double shaft coal mixer
US $7999-$8699

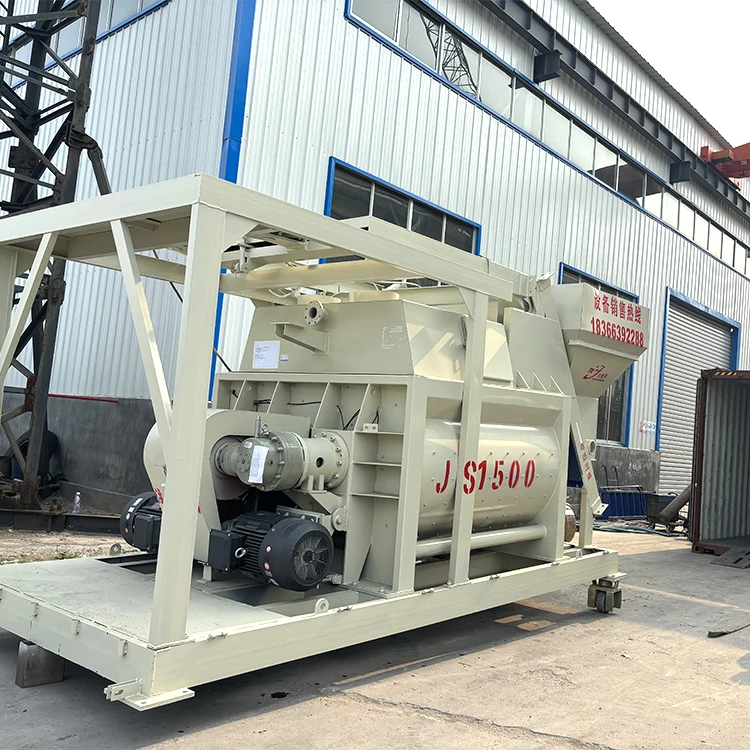

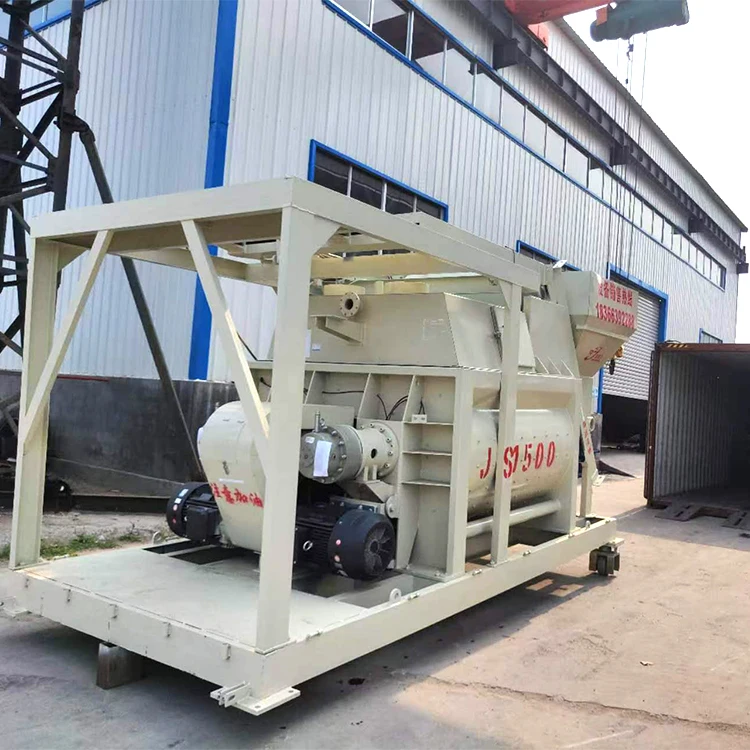

Professional Manufacturer Self Loading Twin Shaft Compulsory Concrete Mixer Js1500
- Category: >>>
- Supplier: Shandong Jinrui Heavy Industry Machinery Co. Ltd.
Share on (1601164208474):
Product Overview
Description
Product Description
JS series forced concrete mixer is double-shaft forced mixers.They can be used as single independent mixing units or can be combined with PL feeders to form concrete batching plant.They can be used in different areas, such as road, bridge, and civil construction.
JS series includes: JS500, JS750, JS1000, JS1500, JS2000, JS3000,JS4500.
Model | JS500 | JS750 | JS1000 | JS1500 | JS2000 | JS3000 |
Discharge volume(L) | 500 | 750 | 1000 | 1500 | 2000 | 3000 |
Charge volume(L) | 800 | 1200 | 1600 | 2400 | 3200 | 4500 |
Capacity( m³/h) | 25 | 35 | 50 | 75 | 100 | 150 |
Mixing motor( KW) | 18.5 | 30 | 2*18.5 | 2*30 | 2*37 | 2*55 |
Lifting motor(KW) | 5.5 | 7.5 | 15 | 18.5 | 37 | |
Water pump motor( KW) | 0.75 | 1.5 | 3 | 3 | 4 | |
speed of agitator ( r/min) | 35 | 30.5 | 25.5 | 25.5 | 25.5 | 18.88 |
Max. aggregate size(mm) | 60 | 60 | 60 | 60 | 60 | 60 |
Leaf number | 2*7 | 2*7 | 2*8 | 2*9 | 2*10 | 2*10 |
Discharging way | manual | manual | pneumatic | pneumatic | pneumatic | pneumatic |
electric | electric | |||||
pneumatic | pneumatic | |||||
Overall weight (kg) | 4000 | 6800 | 8750 | 11130 | 15000 | 18300 |
Main Features
Compact structure design
Latest technology
Novel appearance
Nice seal,no leak
High wear-resistant material, durable
High efficiency
Good mixing effect
Easy installation and maintenance
Detailed Images
Electric Control Box
Domestic well-known electrical appliances, reliable quality.
Realize automatic control of equipment.
Reduce labor intensity.
Air switch，fuse and thermal relay
Short circuit protection and overload protection.
Safe，reliable and easy to operate.
Feeding system
Thickening track : 16 # channel steel
Protection device: Travel witch
Wear resistant Steel wire: Alloy steel
Bigger hopper: 800L
Mixing system
Twin shafts mixing
Wear-resistant alloy steel stirring arm & liner
Multiple seals at shaft end
Water Supply system
Electric pump with throttle valve
Large flow
Cleaning device
Spraying device
Discharge System
Discharge gate with sealing rings
Pneumatic unloading & manual unloading
Air pump control
Packing & Delivery
Packaging | ||
Size | 2950(L) * 2200 (W) * 2300 (H) | |
Weight | 4 T | |
Packaging Details | The normal package is container(Size: L*W*H). If container is too tigher,we will pack it according to customers special request. | |
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Sample testing support.
* View our Factory.
After-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Sample testing support.
* View our Factory.
Show Pictures
Cooperative project
About us
Shandong Jinrui Heavy Industry Machinery Co.,Ltd
Shandong jinrui hevay industry machinery CO.,LTD was established in 2001, which is located in Anqiu,Shandong, China. It is only 160 kilometers way from Qingdao port, which is biggest prot in north of China.

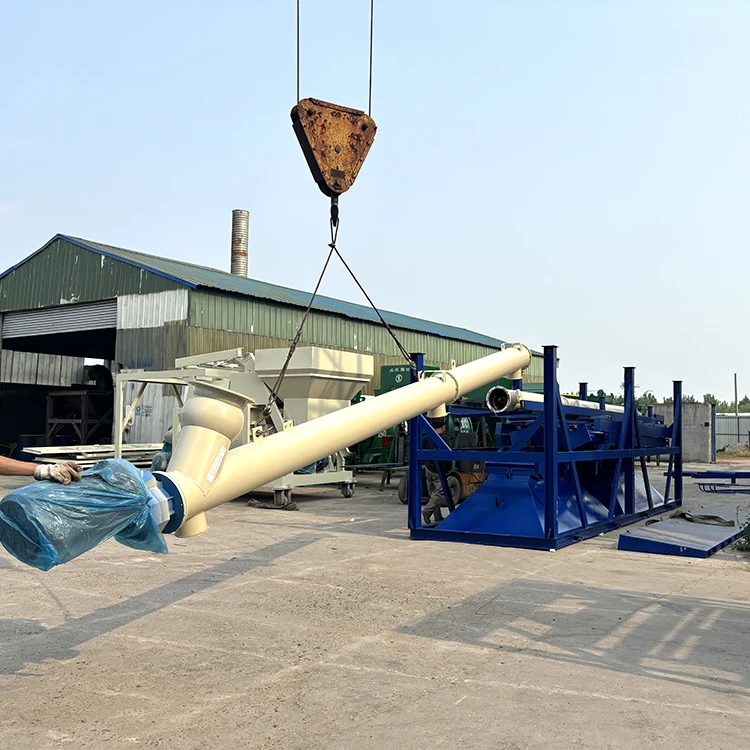

We specialized in construction machinery,which is including concrete mixers(including JZ series counter- rotary with double cones, JS series compulsory mixer with double lying shafts, LSY cement spiral conveyor, cement silo, PLD concrete proportioning MC series and concrete plant ETC).The concrete mixers can be widely used in all kind of prefabrications, roads, bridges, ports and civil constructions and so on. The can mix stable soil concrete, plastic concrete, fluidity concrete, light aggregate concrete and mortars.
Now all the constuction MC have passed state quality standard GB9142-2000, and our company have passed international quality management ISO9001-2000.
We belive "customers foremost, credit first" and insist on providing satisfaction to the customers, we have created strong sales network all over the country and overseas covering east asia, southeast asia and africa.
We are the manufacture.
Near to Qingdao port.
OEM acceptable.
16 years of production experience and 6 years of exporting experience.
Competitive price with high quality
JINRUIFU is China top 10 famous brand
Main production:JZC series mixer, JS series mixer, concrete mixing plants and mobile concrete batching plant.
We have created strong sales network all over the country and overseas covering East Asia,South Asia and Africa.
We specialized in construction machinery,which is including concrete mixers(including JZ series counter- rotary with double cones, JS series compulsory mixer with double lying shafts, LSY cement spiral conveyor, cement silo, PLD concrete proportioning MC series and concrete plant ETC).The concrete mixers can be widely used in all kind of prefabrications, roads, bridges, ports and civil constructions and so on. The can mix stable soil concrete, plastic concrete, fluidity concrete, light aggregate concrete and mortars.
Now all the constuction MC have passed state quality standard GB9142-2000, and our company have passed international quality management ISO9001-2000.
We belive "customers foremost, credit first" and insist on providing satisfaction to the customers, we have created strong sales network all over the country and overseas covering east asia, southeast asia and africa.
We are the manufacture.
Near to Qingdao port.
OEM acceptable.
16 years of production experience and 6 years of exporting experience.
Competitive price with high quality
JINRUIFU is China top 10 famous brand
Main production:JZC series mixer, JS series mixer, concrete mixing plants and mobile concrete batching plant.
We have created strong sales network all over the country and overseas covering East Asia,South Asia and Africa.
