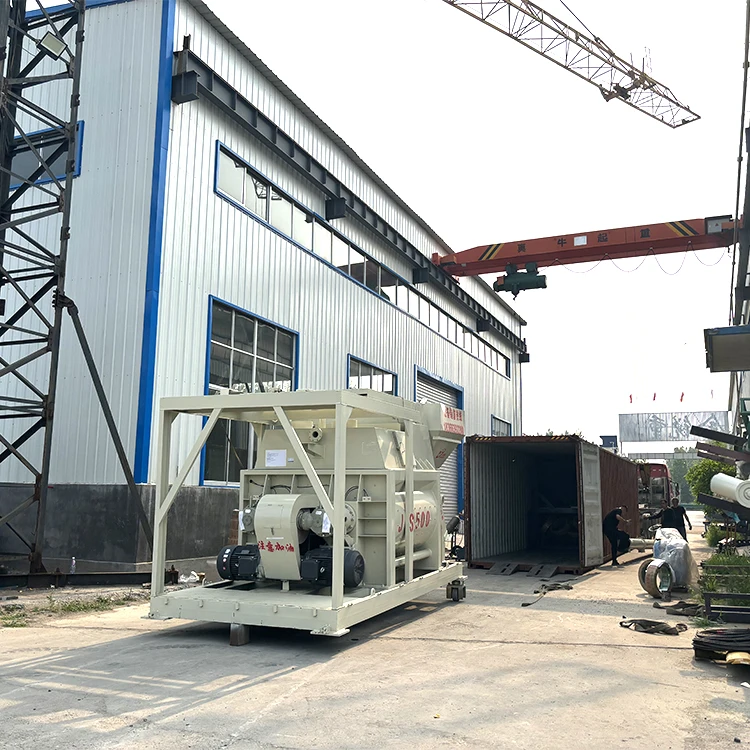

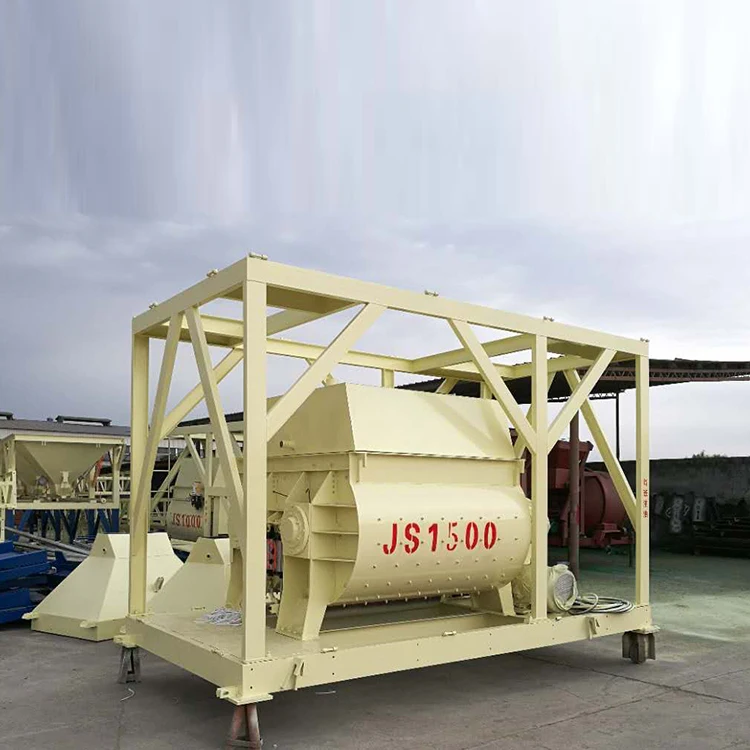

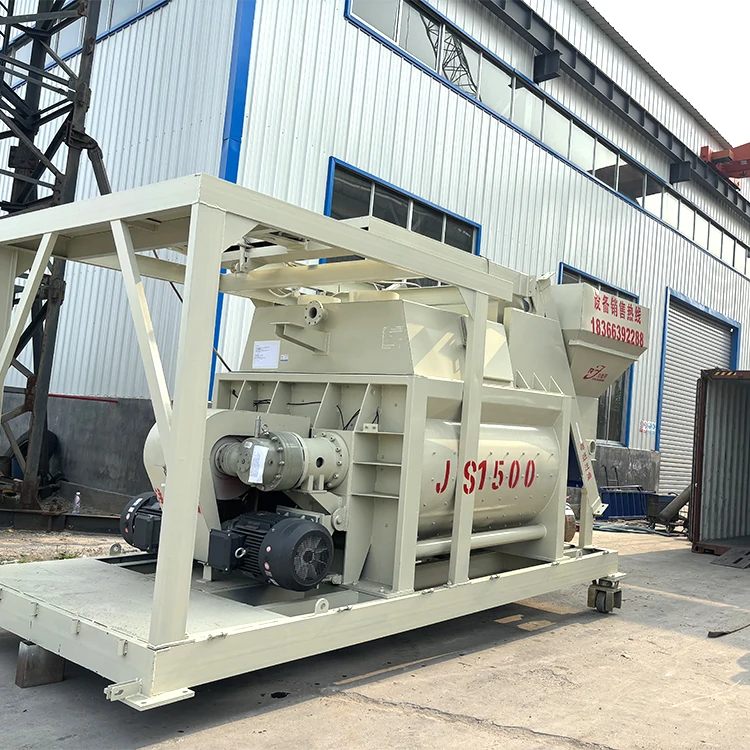

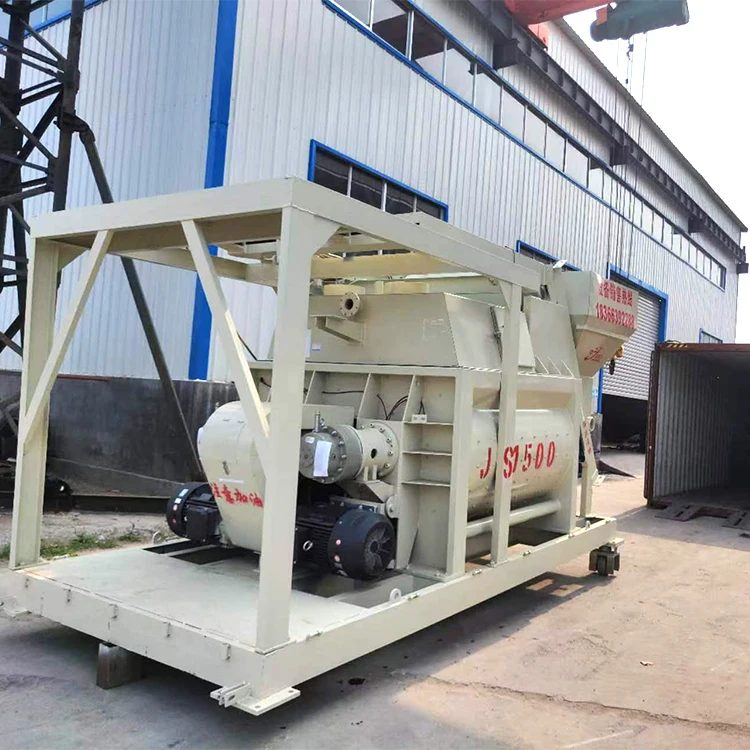

Popular Concrete Machine Js1500 Double Horizontal Shaft Concrete Mixer
- Category: >>>
- Supplier: Shandong Jinrui Heavy Industry Machinery Co. Ltd.
Share on (1601164290109):
Product Overview
Description
Product Description

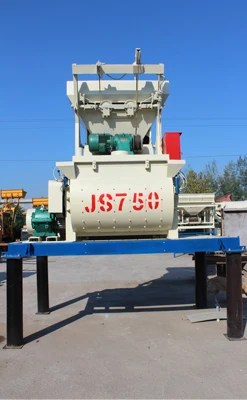

JS series forced concrete mixer is double-shaft forced mixers.They can be used as single independent mixing units or can be combined with PL feeders to form concrete batching plant.They can be used in different areas, such as road, bridge, and civil construction.
JS series includes: JS500, JS750, JS1000, JS1500, JS2000, JS3000,JS4500.
Model | JS500 | JS750 | JS1000 | JS1500 | JS2000 | JS3000 |
Discharge volume(L) | 500 | 750 | 1000 | 1500 | 2000 | 3000 |
Charge volume(L) | 800 | 1200 | 1600 | 2400 | 3200 | 4500 |
Capacity( m³/h) | 25 | 35 | 50 | 75 | 100 | 150 |
Mixing motor( KW) | 18.5 | 30 | 2*18.5 | 2*30 | 2*37 | 2*55 |
Lifting motor(KW) | 5.5 | 7.5 | 15 | 18.5 | 37 | |
Water pump motor( KW) | 0.75 | 1.5 | 3 | 3 | 4 | |
speed of agitator ( r/min) | 35 | 30.5 | 25.5 | 25.5 | 25.5 | 18.88 |
Max. aggregate size(mm) | 60 | 60 | 60 | 60 | 60 | 60 |
Leaf number | 2*7 | 2*7 | 2*8 | 2*9 | 2*10 | 2*10 |
Discharging way | manual | manual | pneumatic | pneumatic | pneumatic | pneumatic |
electric | electric | |||||
pneumatic | pneumatic | |||||
Overall weight (kg) | 4000 | 6800 | 8750 | 11130 | 15000 | 18300 |
Main Features
Compact structure design
Latest technology
Novel appearance
Nice seal,no leak
High wear-resistant material, durable
High efficiency
Good mixing effect
Easy installation and maintenance
Detailed Images
Electric Control Box
Domestic well-known electrical appliances, reliable quality.
Realize automatic control of equipment.
Reduce labor intensity.
Air switch，fuse and thermal relay
Short circuit protection and overload protection.
Safe，reliable and easy to operate.

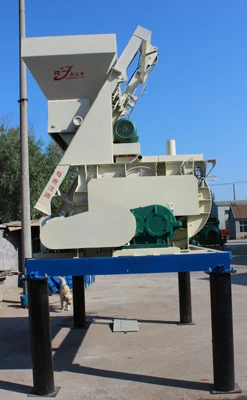

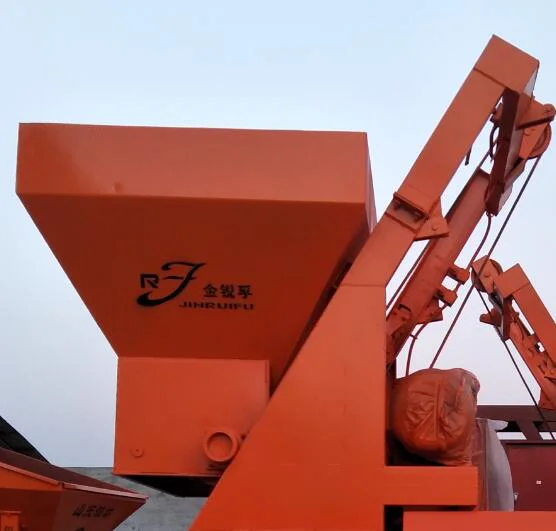

Feeding system
Thickening track : 16 # channel steel
Protection device: Travel witch
Wear resistant Steel wire: Alloy steel
Bigger hopper: 800L

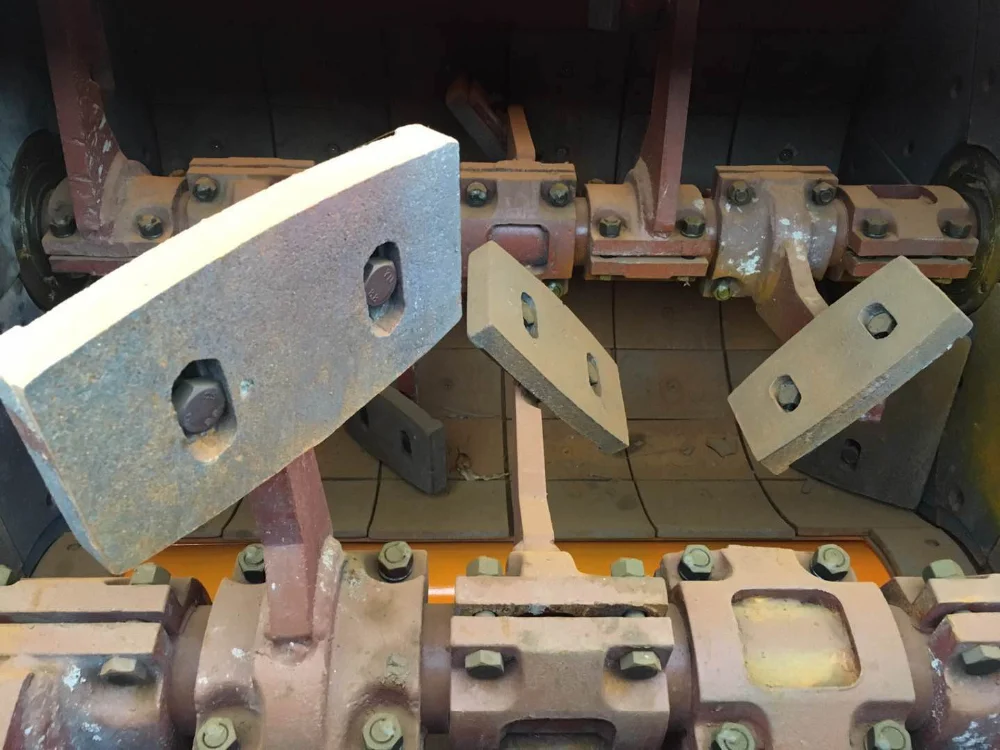

Mixing system
Twin shafts mixing
Wear-resistant alloy steel stirring arm & liner
Multiple seals at shaft end

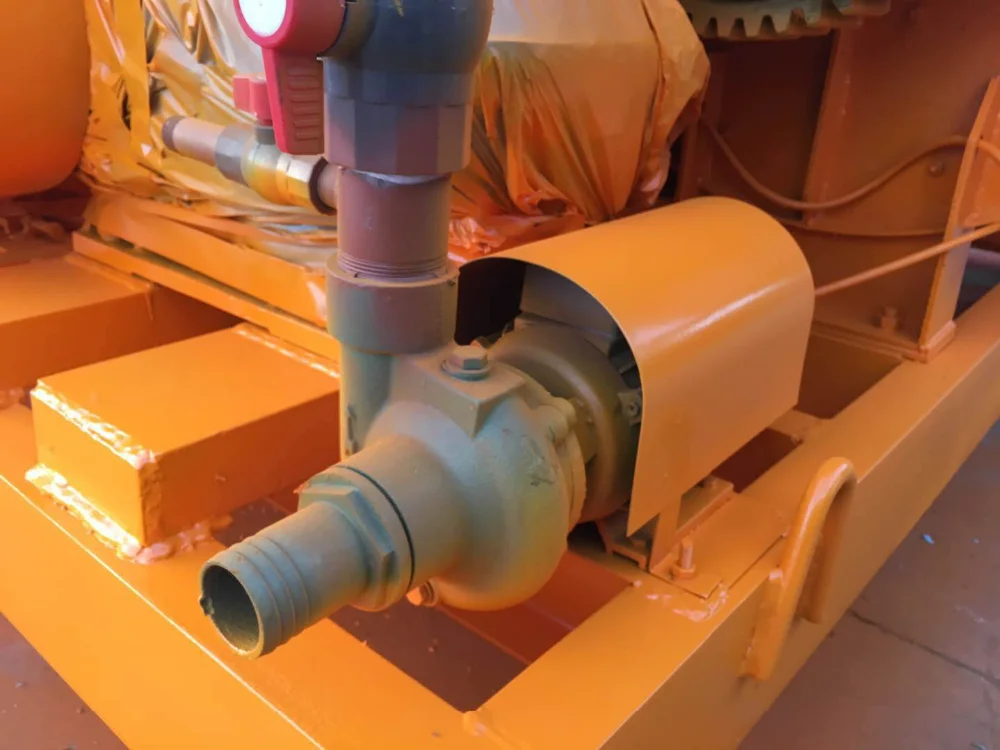

Water Supply system
Electric pump with throttle valve
Large flow
Cleaning device
Spraying device

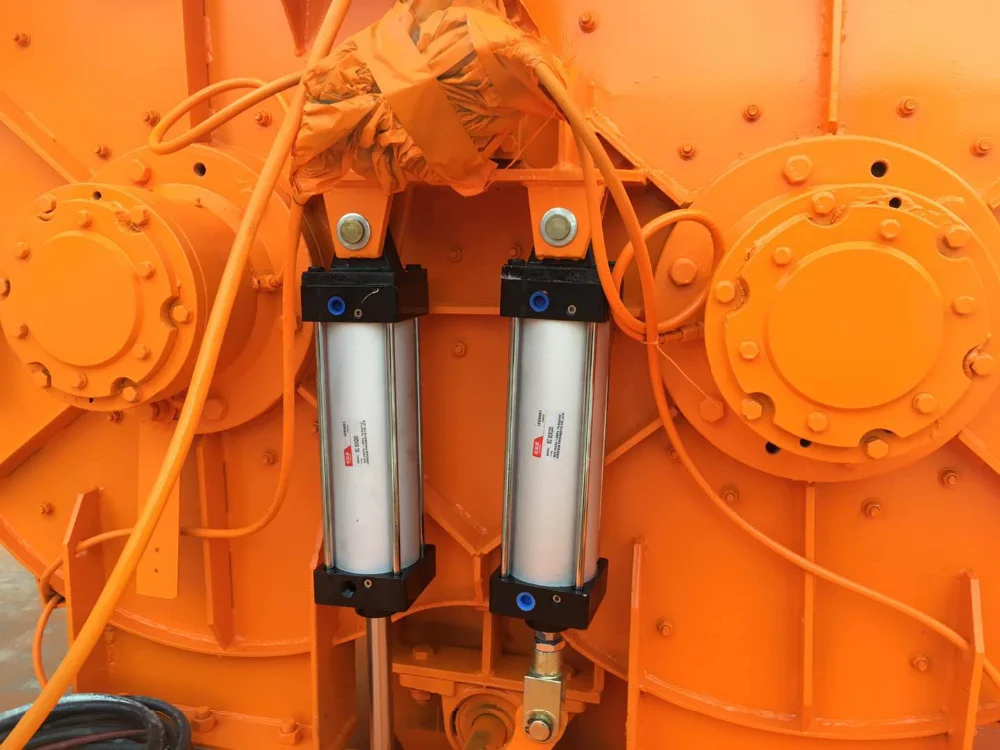

Discharge System
Discharge gate with sealing rings
Pneumatic unloading & manual unloading
Air pump control

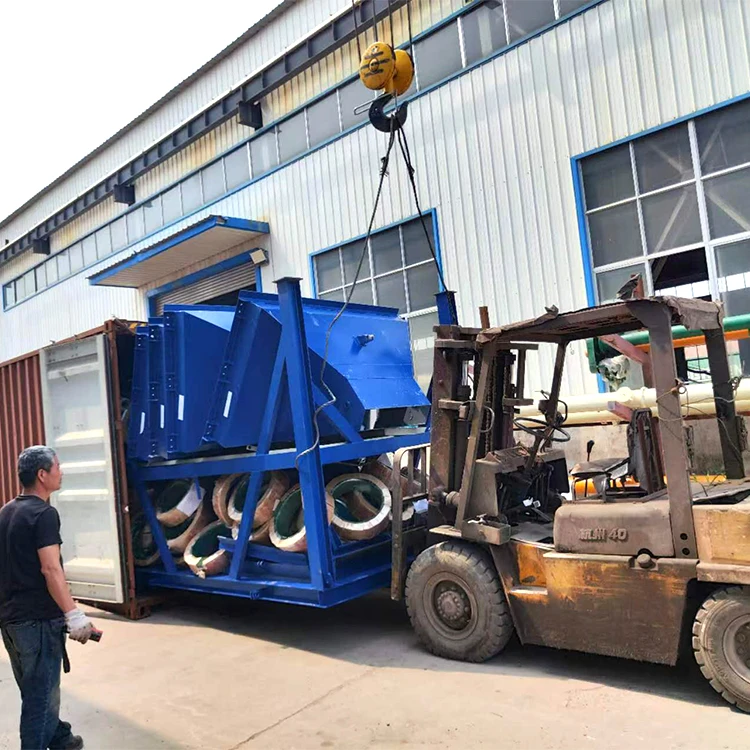

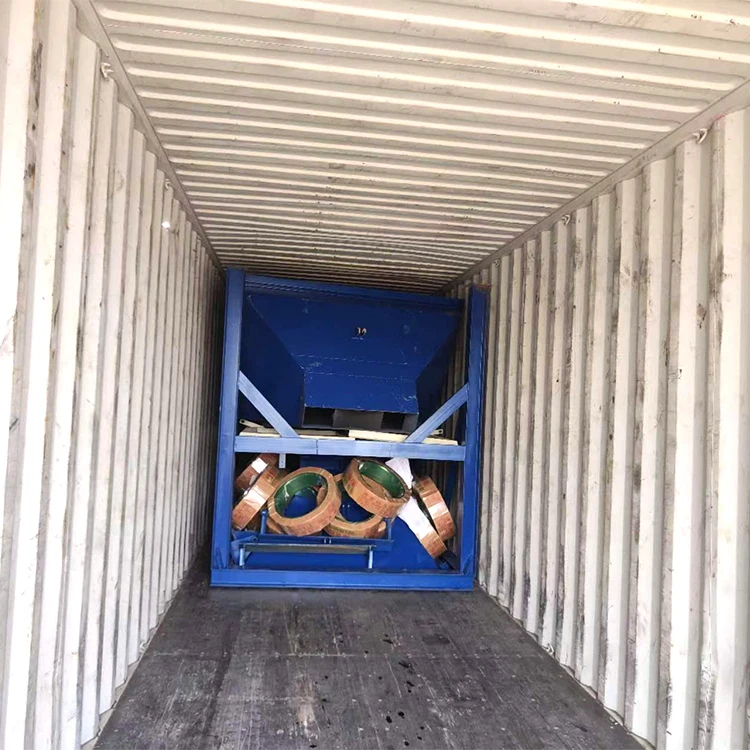

Packing & Delivery
Packaging | ||
Size | 2950(L) * 2200 (W) * 2300 (H) | |
Weight | 4 T | |
Packaging Details | The normal package is container(Size: L*W*H). If container is too tigher,we will pack it according to customers special request. | |
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Sample testing support.
* View our Factory.
After-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Sample testing support.
* View our Factory.
Show Pictures
Cooperative project

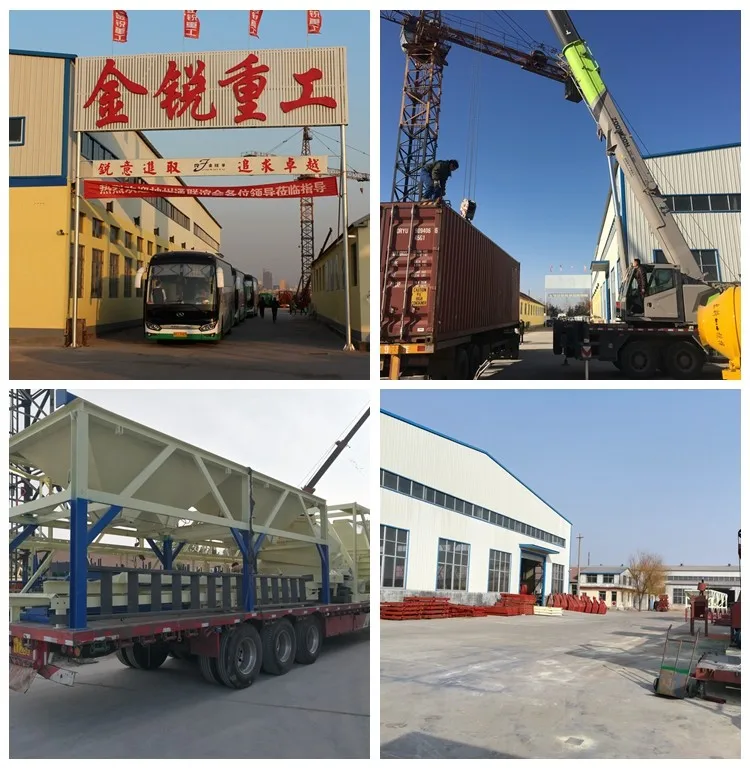

About us
