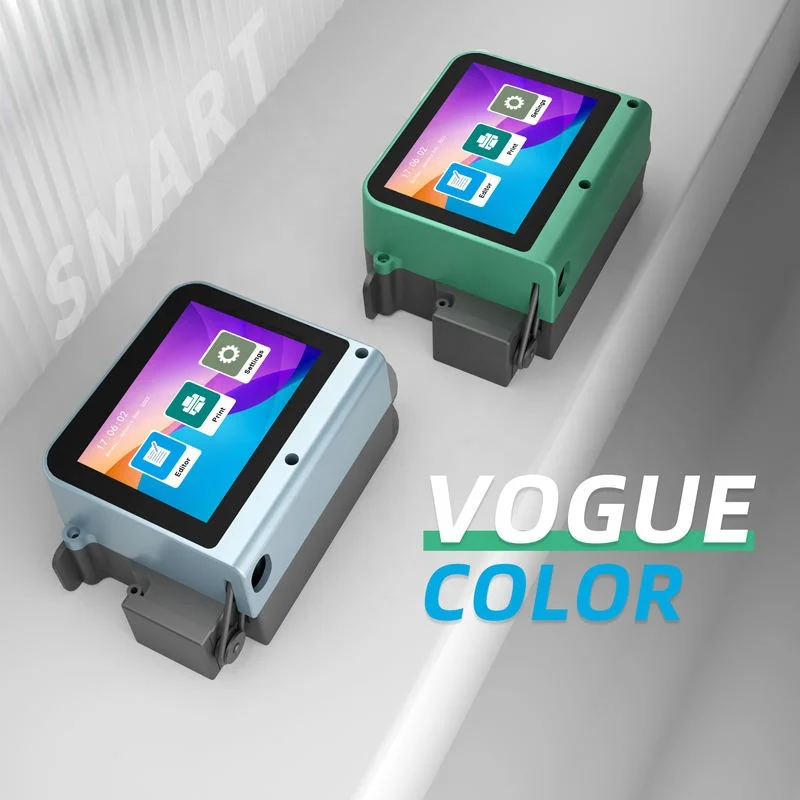

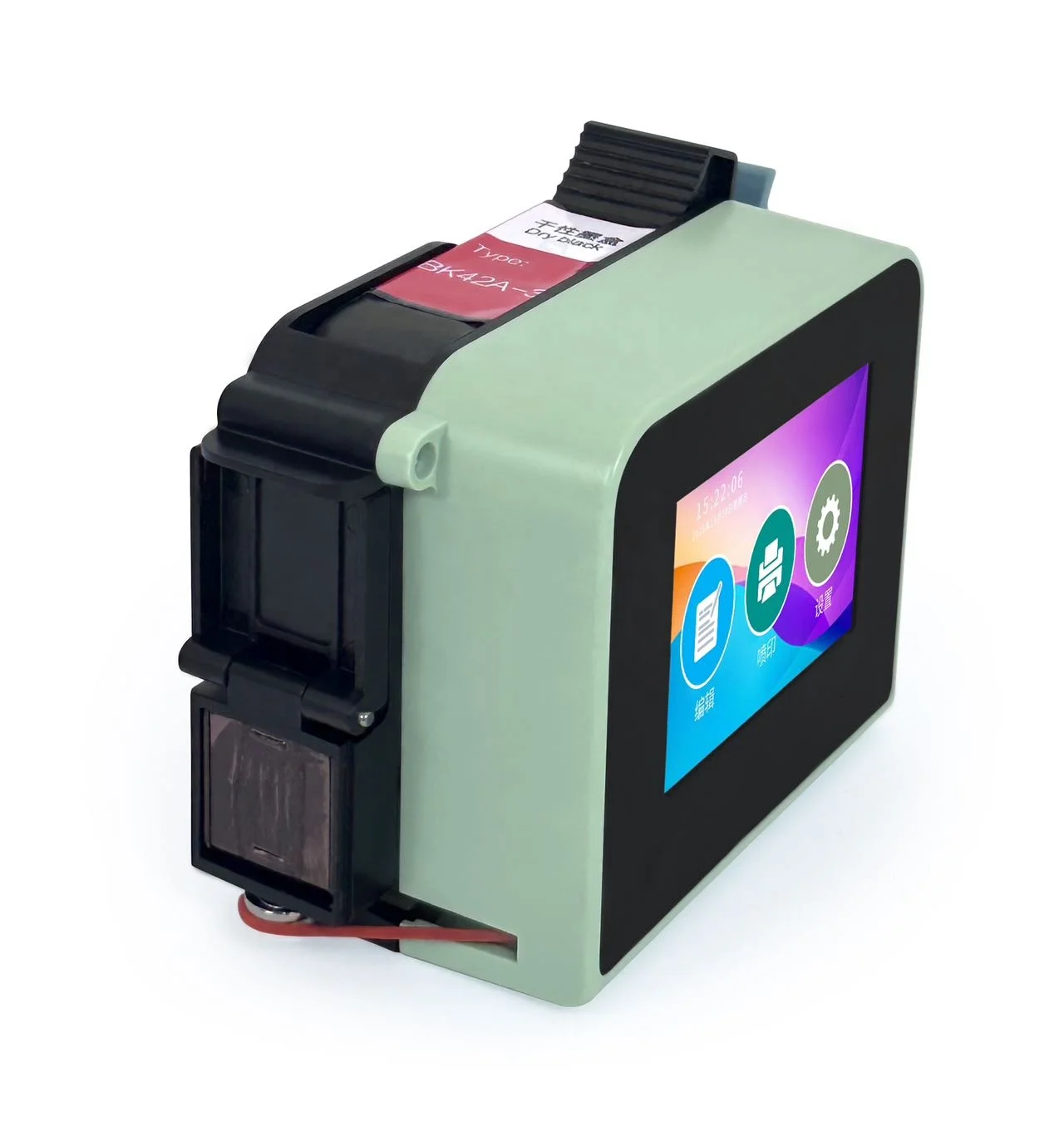

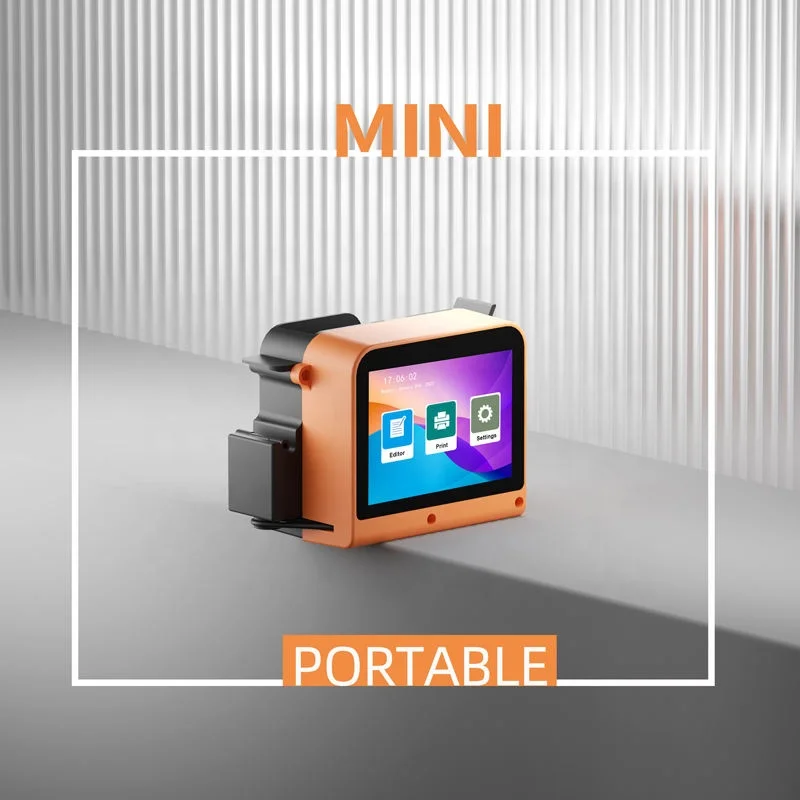

Expiry date batch coding machine for pet bottle portable solvent mini code number printer small logo printer

1PC

Coding printer

1PC

Ink cartridge

1PC

Instruction manual

1PC

Power supply and cable

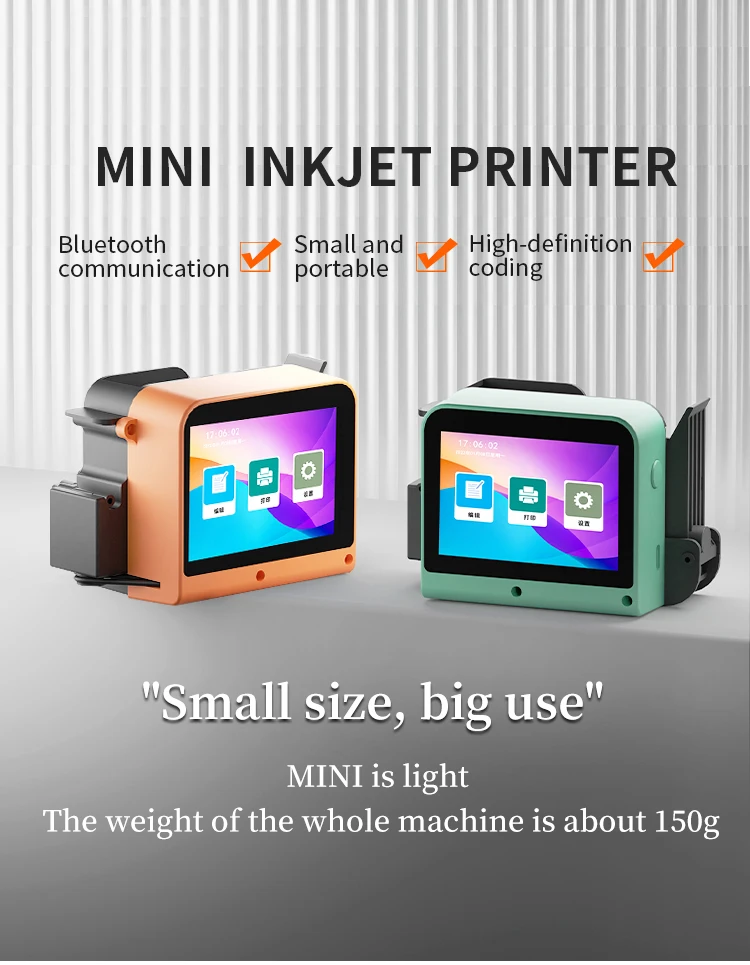

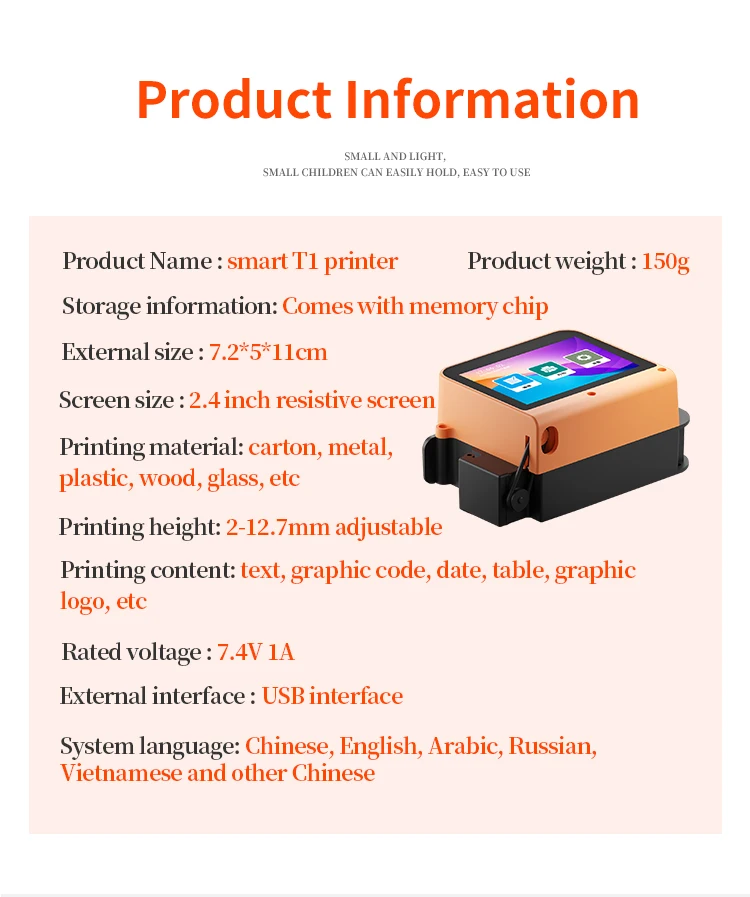

MINI12-Pro / MINI25-Pro

Dimension

100*45*75mm

Net weight

245g

Printing direction

adjusted within 360 degree, meet all kinds of production needs

Character type

high-definition printing character, dot matrix font, Simplified, Traditional Chinese and English

Print Features

Function

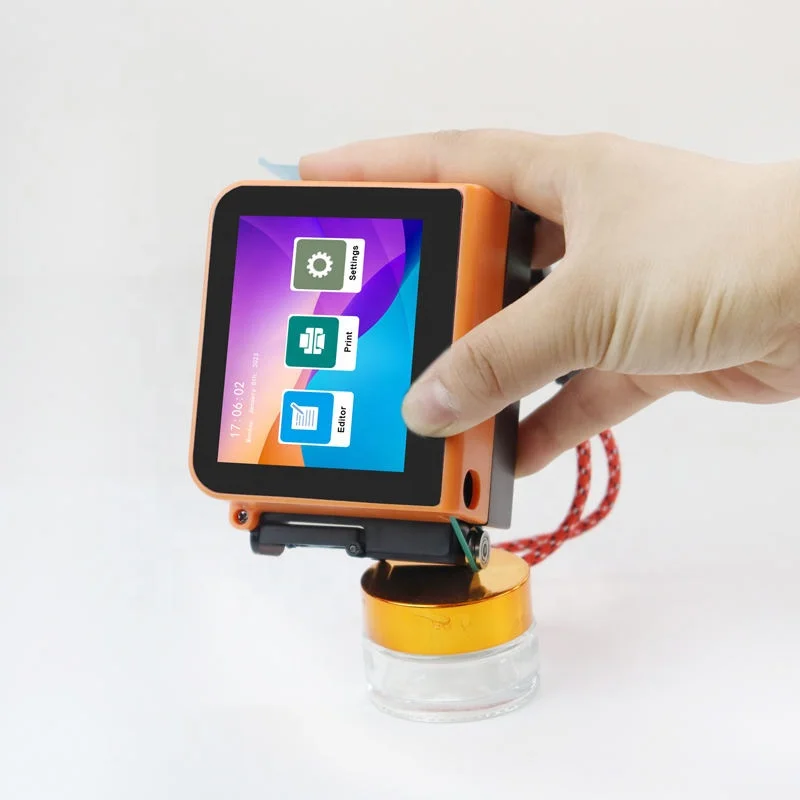

Handheld print PRINTER

Printing pictures

Pictures(BMP Monochrome single bitmap format)can be uploaded through USB disk

Printing accuracy

300DPI 400DPI 600DPI

Printing height

2mm-12.7mm / 6-25.4mm

Print code

bar code, QR Code

Printing distance

1-5mm Mechanical Adjustment (the best distance between the nozzle and printed object is 2-5mm)

Print serial number

0~9

Automatic print

date, time, batch number shift and serial number, etc

Storage

external USB save the information transfer in a free way

Message length

2000 characters for each message, no limitation on length

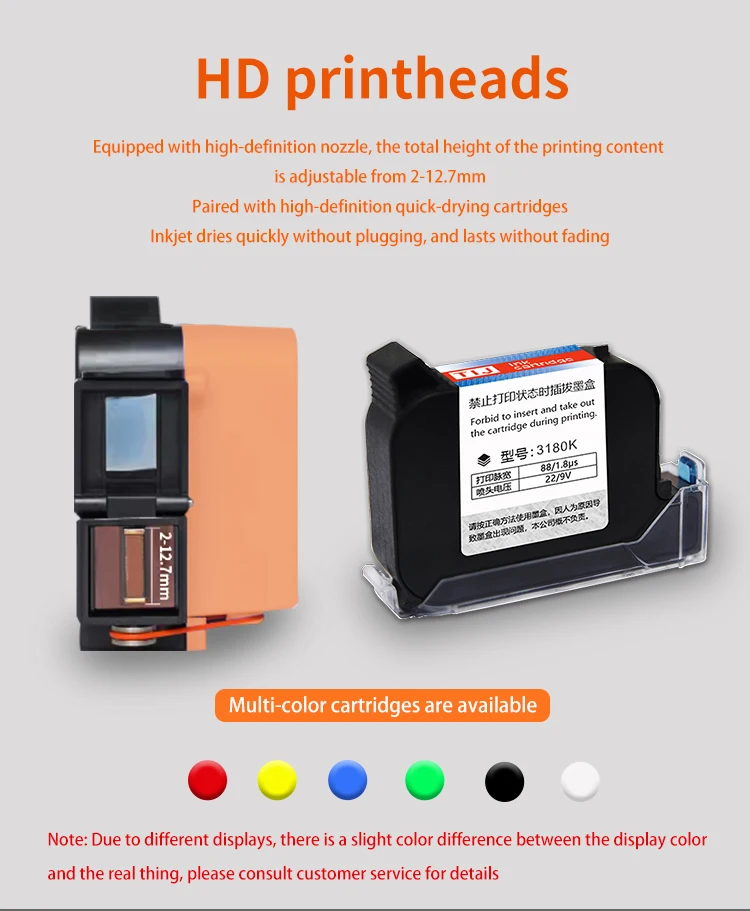

Ink type

Quick-dry environmental ink, water-based ink and oily ink

Ink color

black, white, red, blue, yellow, green, invisible

Ink volume

42ml(usually can print 300,000 characters)

External interface

USB,Photoelectric interface, can directly insert a USB disk to upload information

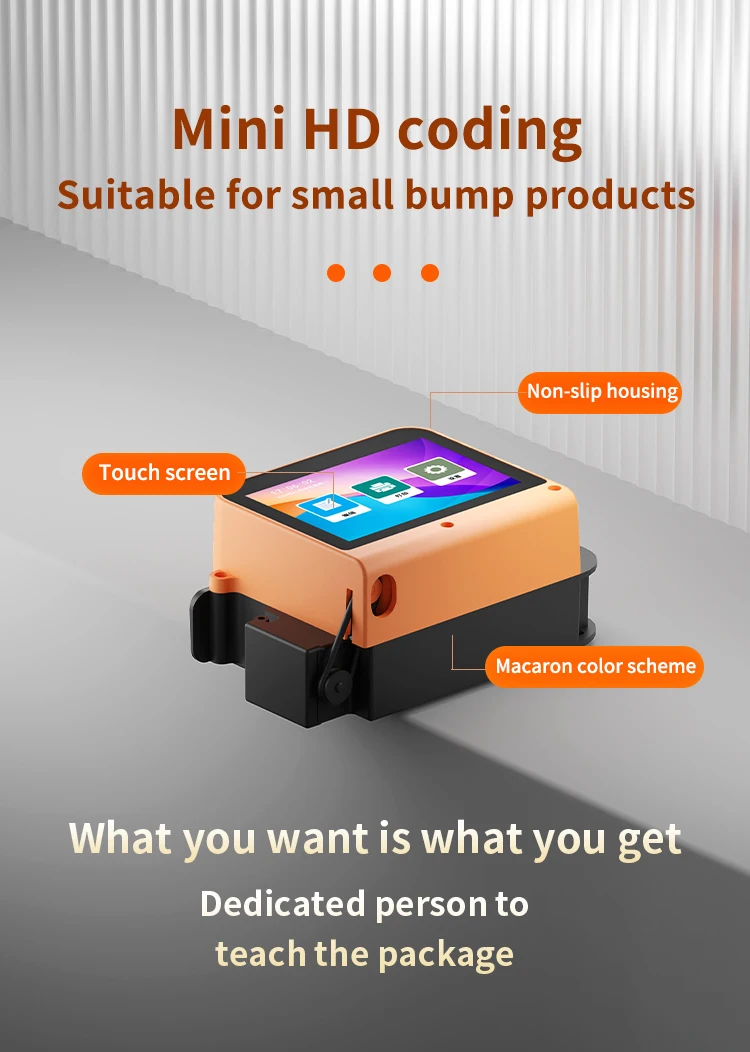

Control panel

touch-screen (can connect wireless mouse)

Power consumption

the average power consumption is lower than 5W

Working environment

Temperature:0 - 38 degree; Humidity: 10% - 80%

Printing material

board, carton, stone, pipe, cable, metal, plastic product, electronic, the fiber board, light steel keel, aluminum foil
