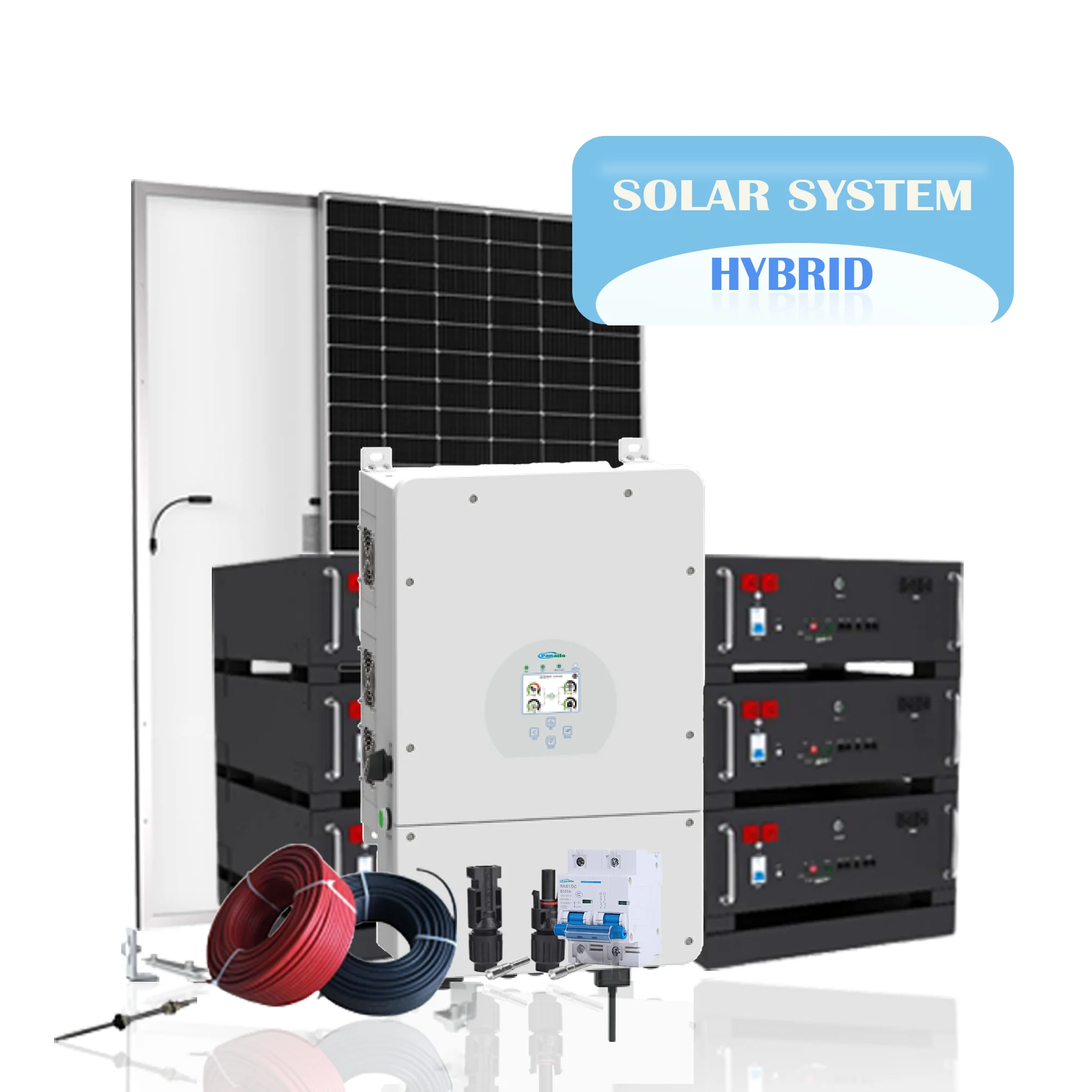

Home Use Complete Set 10kw Hybrid Solar Generator Electricity Backup Power Storage Energy System Solar Panels Kit
- Category: >>>
- Supplier: Panailo Smart Technology Co. Ltd.
Share on (1601164552221):
Product Overview
Description
Comments：

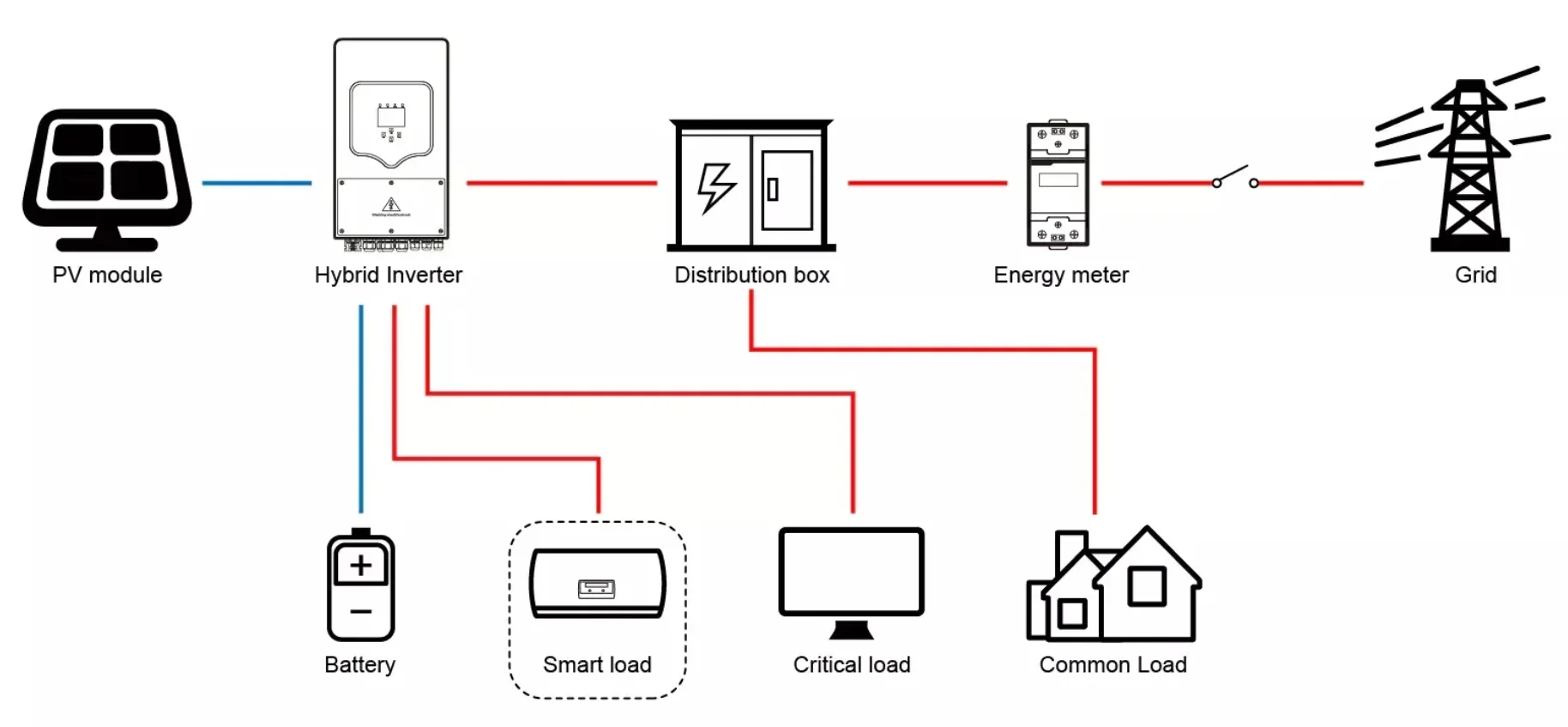

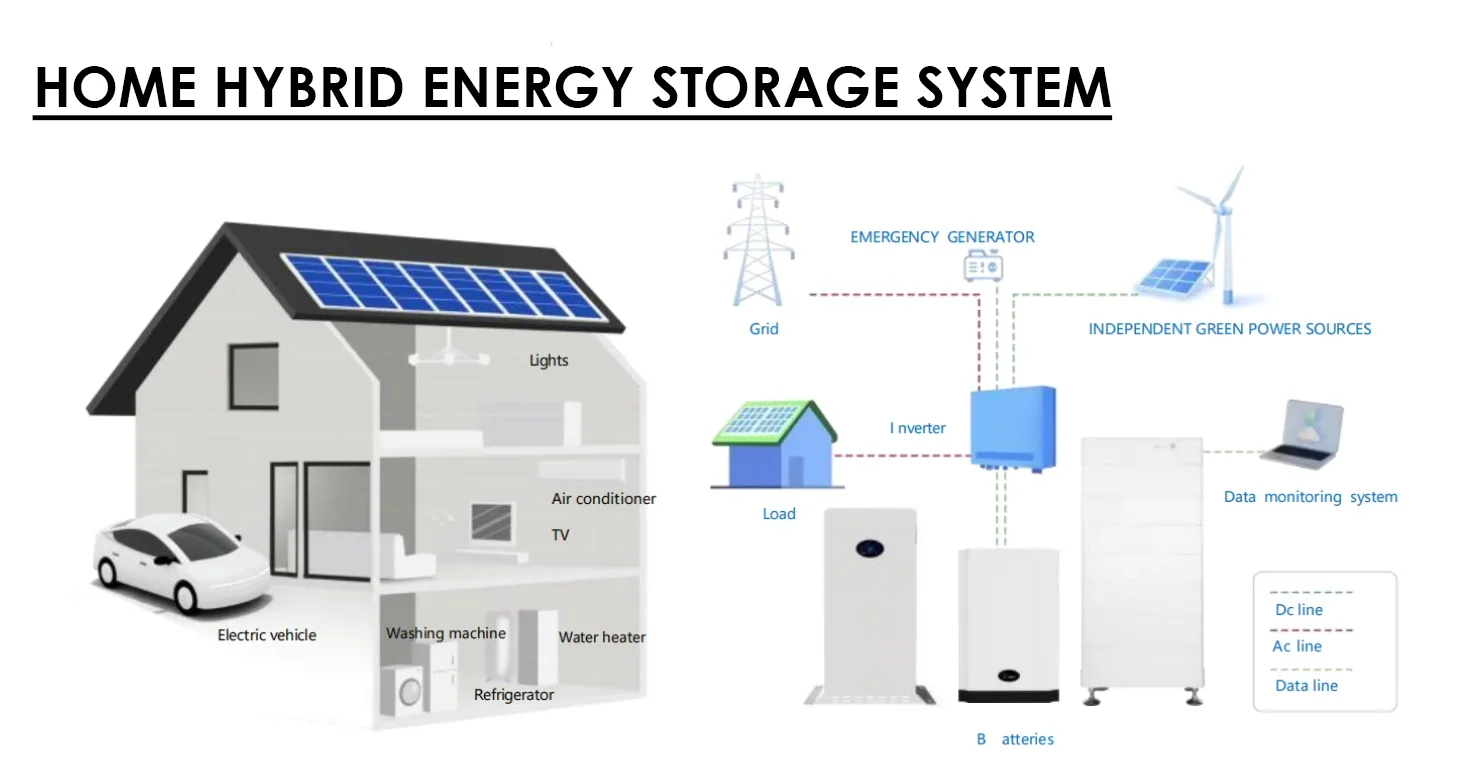

Hybrid Solar System combines advantages of on grid solar system and off grid solar system. It connects to grid, you can sell solar power to grid; Also it has batteries backup, so solar power can be stored in batteries for night use or rainy days useif solar power is not enough, grid can charge batteries and supply power to your load.
Hybrid Solar System combines advantages of on grid solar system and off grid solar system. It connects to grid, you can sell solar power to grid; Also it has batteries backup, so solar power can be stored in batteries for night use or rainy days useif solar power is not enough, grid can charge batteries and supply power to your load.

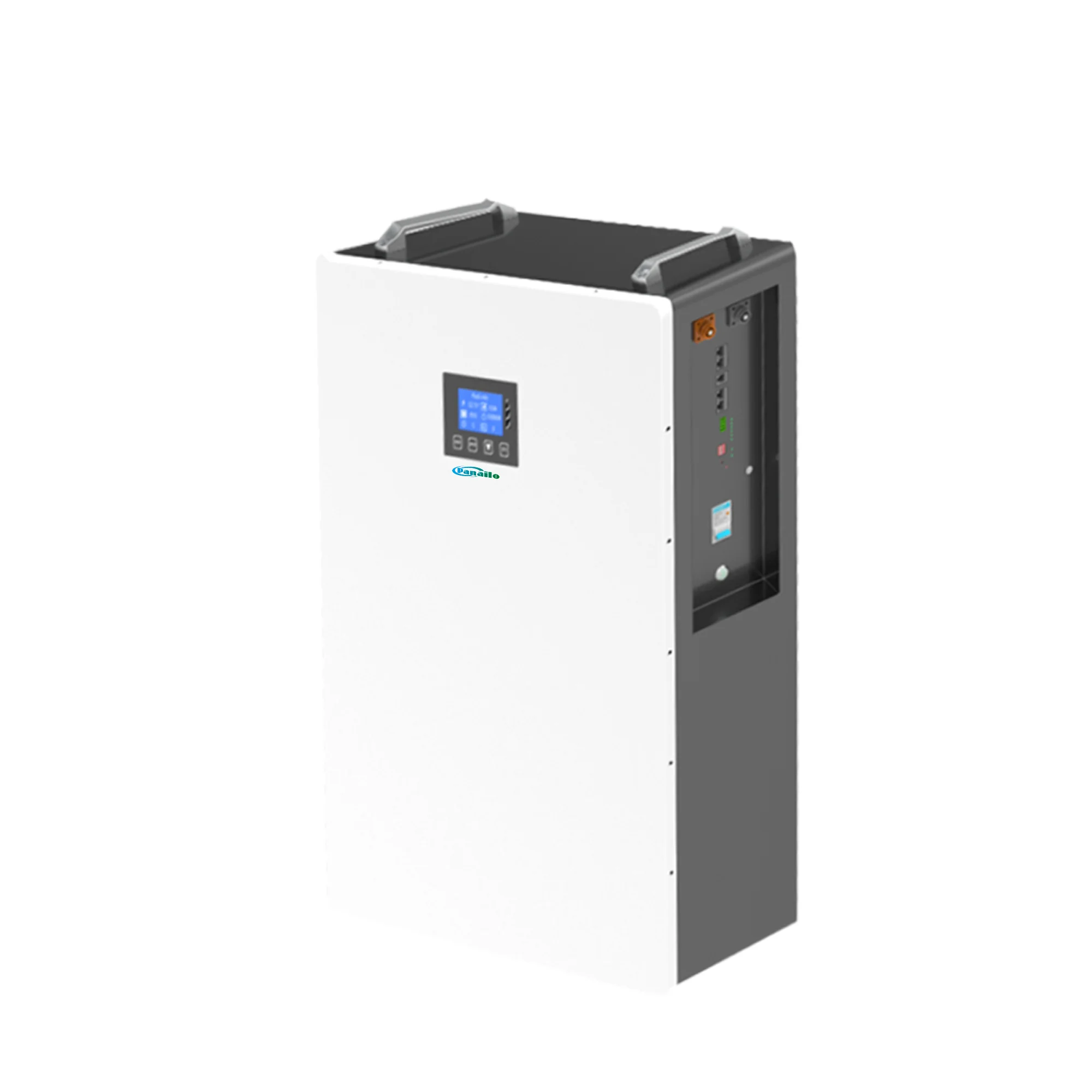

Electrical Characteristics | Nominal Voltage | 51.2V |
Nominal Capacity | 100Ah (C5,25℃) | |
Energy | 5120Wh | |
Internal Resistance | ≤20mΩ | |
Cycle Life | >4000 cycles @0.2C 80%DOD | |
Months Self Discharge | <3% | |
Efficiency of Charge | 100%@0.2C | |
Efficiency of Discharge | 95%@1C | |
Standard Charge | Charge Voltage | 54.5-58.4V |
Charge Mode | 0.2C(CC/CV) | |
Charger Current | 50A | |
Max. Charge Current | (When the charging current is greater than 130A, turn on 100A the current limiting, and limit the current by 20A) | |
Charge Cut-off Voltage | 59.2V | |
Standard Discharge | Continuous Current | 100A |
Max. Pulse Current | 150A | |
Discharge Cut-off Voltage | 44V | |
Environmental | Charge Temperature | 0 C to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
Storage Temperature | 0 C to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |
Water Dust Resistance | ||
Mechanical | Cell & Method | 3.2V100Ah-16S1P |
Plastic Case | standard case | |
Dimensions (in./mm.) | 518*492*177mm | |
Weight (lbs./kg.) | 53Kg | |
Terminal | Through wall terminal | |
Protocol (optional) | RS485/CAN/RS232 | |
BMS | 16S100A |

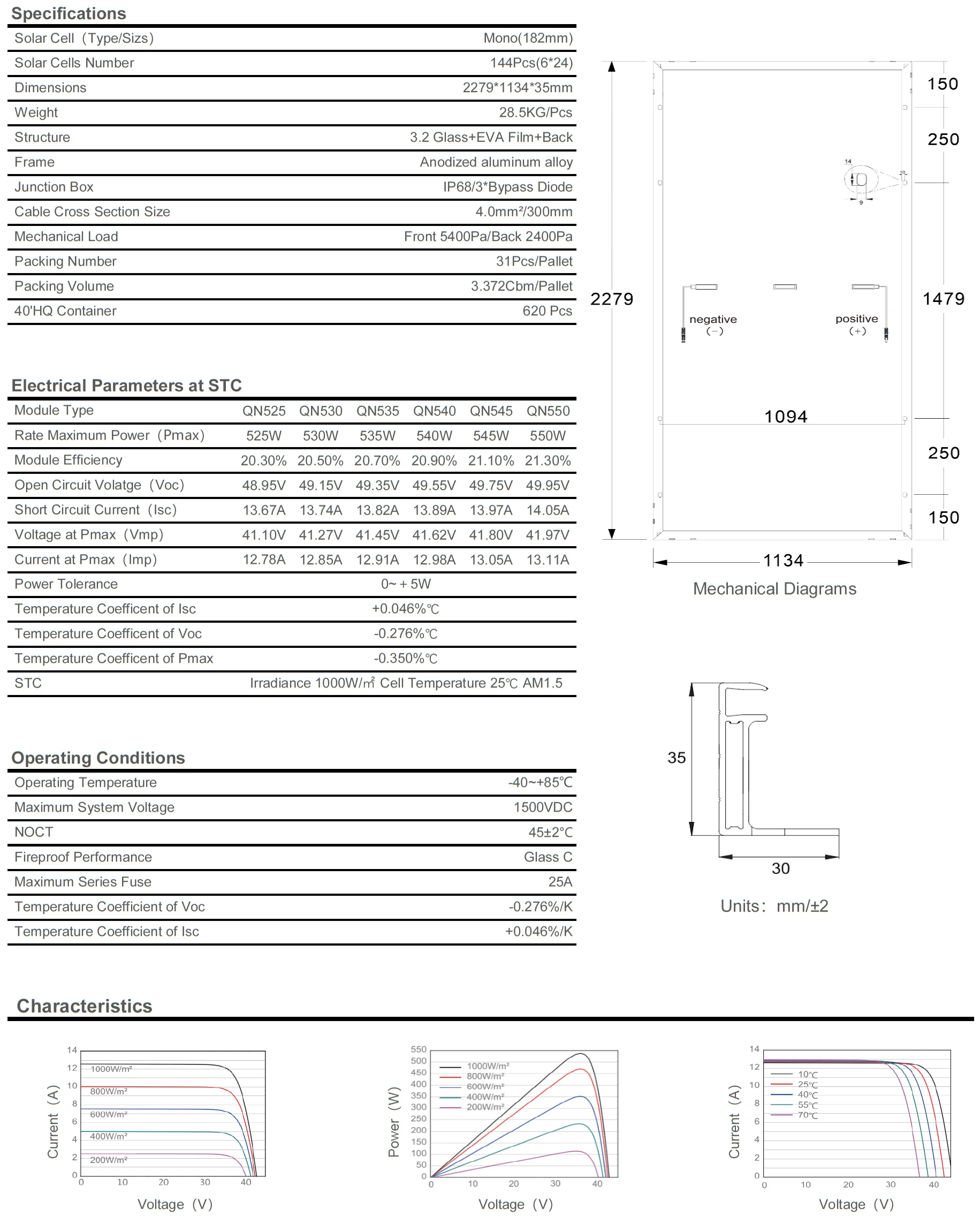

Half Cut Cell Solar Module
Q1:Are you a factory or a trading company?
A: Yes, we are manufacturer of solar street lights for 15 years, has the capacity of R & D, accept OEM and ODM.
Q2:Can I have a sample order for solar products?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3:When you will make the delivery?
A: 10-15 days after receiving customers payment.
Q4:If I want to use high lumen or change the led driver ,is it possible?
A: Of course we have CREE/Philips 3030chips or 5050chips as optional, Moso，Meanwell, Philips, Inventronics are Optional.
A: Yes, we are manufacturer of solar street lights for 15 years, has the capacity of R & D, accept OEM and ODM.
Q2:Can I have a sample order for solar products?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3:When you will make the delivery?
A: 10-15 days after receiving customers payment.
Q4:If I want to use high lumen or change the led driver ,is it possible?
A: Of course we have CREE/Philips 3030chips or 5050chips as optional, Moso，Meanwell, Philips, Inventronics are Optional.
Q5:Do you offer guarantee for the products?
A: Yes, we offer 3 or 5 years warranty for our products.
A: Yes, we offer 3 or 5 years warranty for our products.
