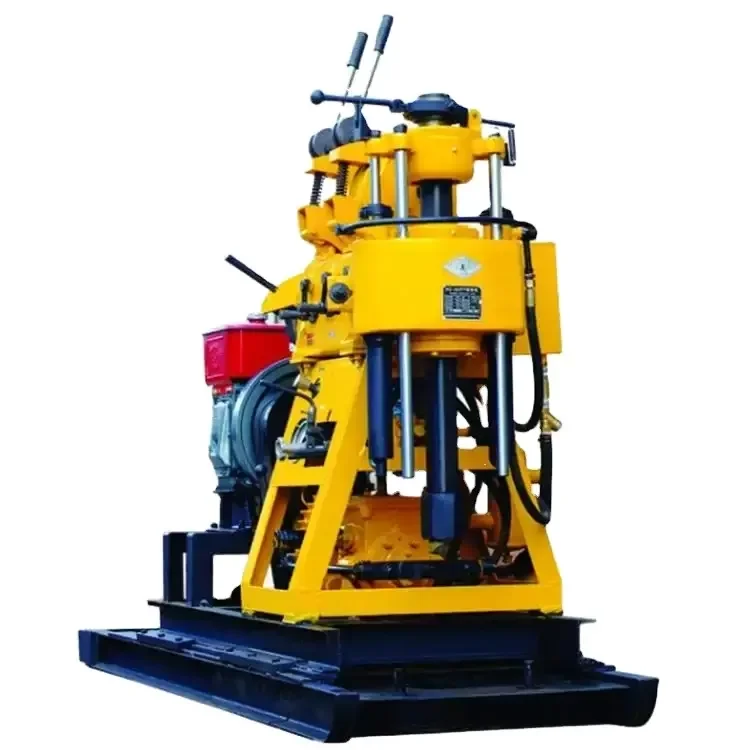

Core Mining Drilling Machine/exploration Core Drilling Rig
- Category: >>>
- Supplier: Henan Ruifan Machinery Equipment Co. Ltd.
Share on (1601164596180):
Product Overview
Description
Products Description
mobile water well drilling rig hydraulic exploration core drilling rig
Features: 1.With oil pressure automatic feeding mechanism, improve drilling efficiency, reduce labor intensity.
2.The ball clamp mechanism is adopted instead of the chuck, which can carry out no-stop reversing, easy to operate, safe and reliable.
3.The hoist is equipped with a retainer to form a double-sided star wheel supporting structure, which can withstand strong impact.
4.Vertical axle box four groups of bearing positioning, to ensure that the rotary device is rigid enough to deal with the gravel layer, pebble layer and other complex geological conditions.
5.The machine adopts the taper clutch with national patent technology, which has the prominent features of large transmission torque, convenient operation and maintenance-free.
Product Parameter
Model | HZ-130Y/130YY | HZ-180Y/180YY | HZ-200Y/200YY |
Drilling Depth | 130m | 180m | 200m |
Open hole diameter | 220mm | 220mm | 325mm |
End hole diameter | 75mm | 75mm | 75mm |
Drill rod diameter | 42-60mm | 42-60mm | 42-60mm |
Dril angle | 90-75 | 90-75 | 90-75 |
Matching power | 13.2Kw | 13.2Kw | 15Kw |
Weight without power | 560Kg | 610Kg | 1150Kg |
Dimension | 2.4x0.7x1.4m | 2.4x0.6x1.4m | 2.7x0.9x1.6m |
Speed | 142/285/570 r/min | 130/300/480/730/830/1045 r/min | 64/128/287/557 r/min |
Stroke | 450mm | 450mm | 450mm |
Max pull force | 1600kg | 2000kg | 2400kg |
Pull speed | 0.41-1.64 | 0.35-2.23 | 0.12-0.95 |
Rope diameter | 9.3mm | 9.3mm | 12.5mm |
Roll capacity | 27m | 35m | 35m |
Rated load | 2 | 2 | 5 |
Height | 6 | 6 | 6 |
Dispalcement | 95 L/min | 95 L/min | 145 L/min |
Max. pressure | 1.2Mpa | 1.2Mpa | 1.2Mpa |
Times | 93/min | 93/min | 93/min |
Inlet hose diameter | 51mm | 51mm | 51mm |
Outlet hose diameter | 32mm | 32mm | 32mm |

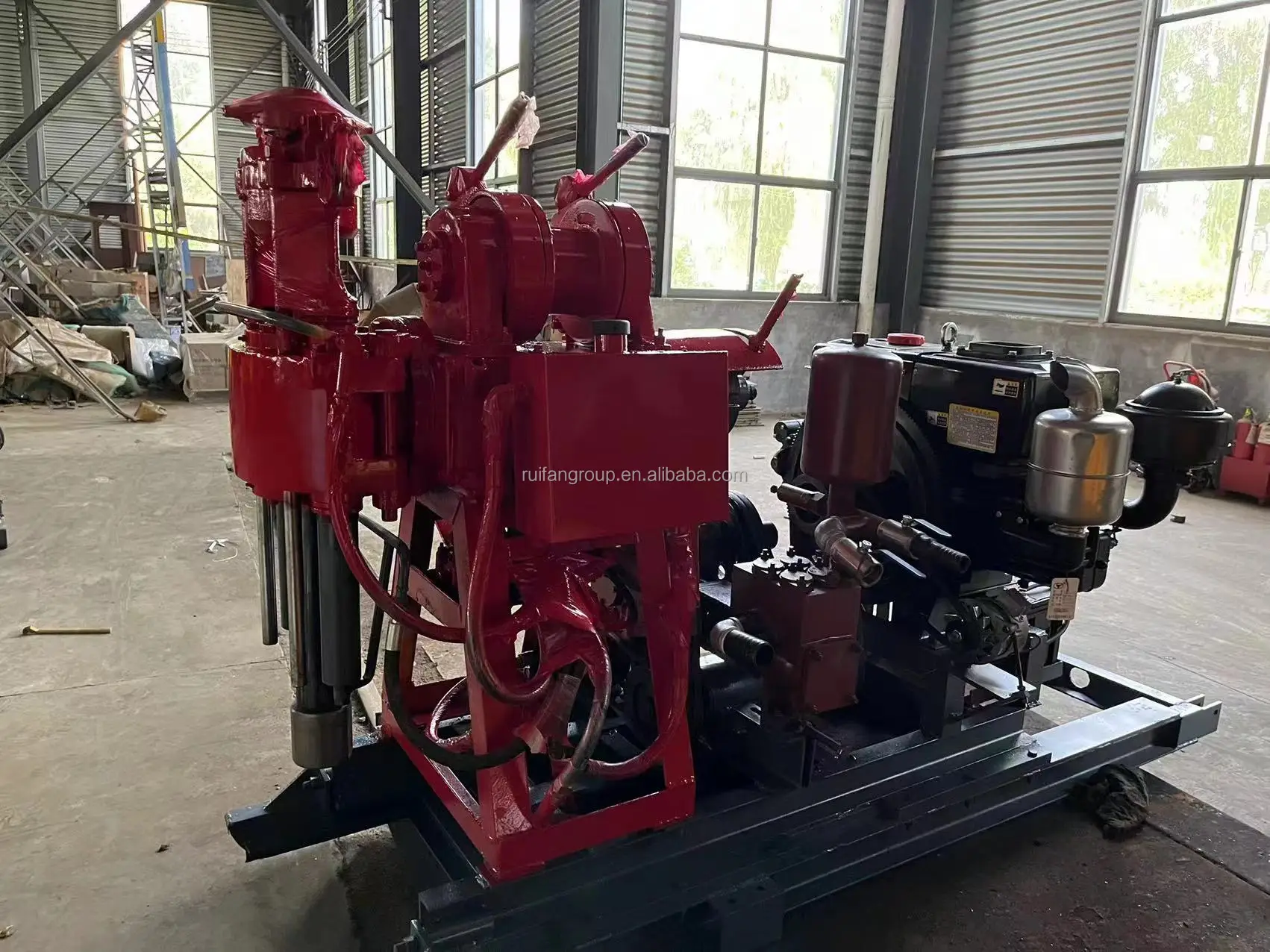

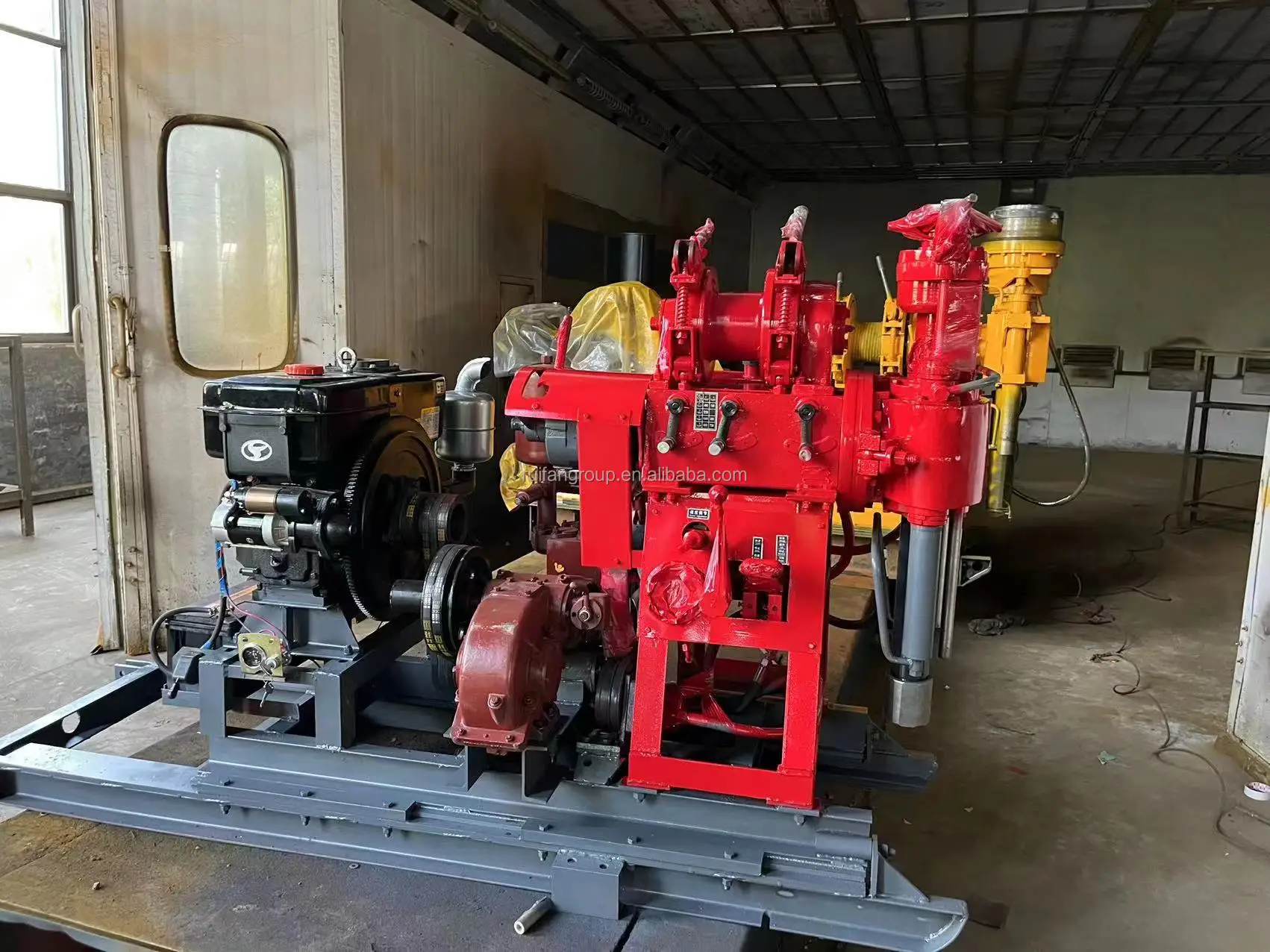

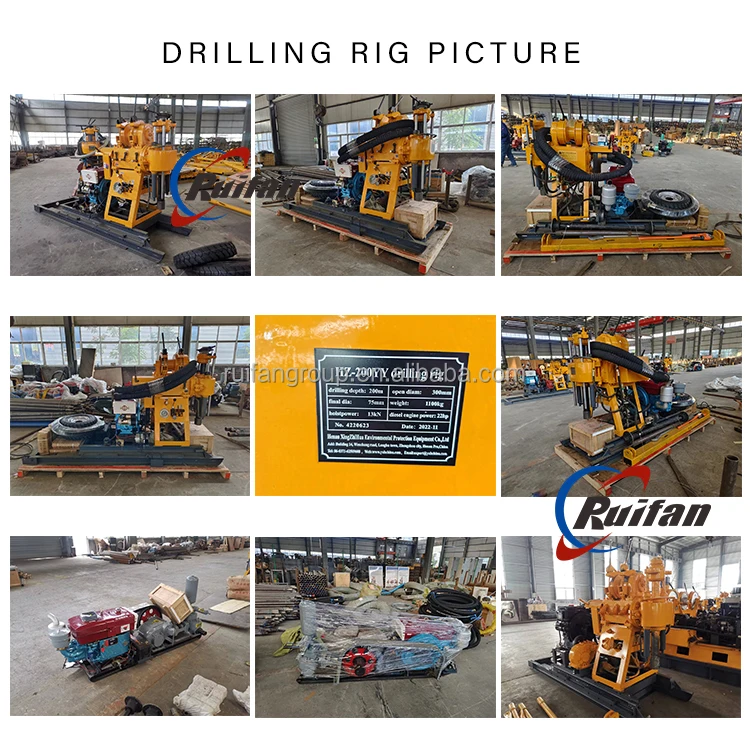

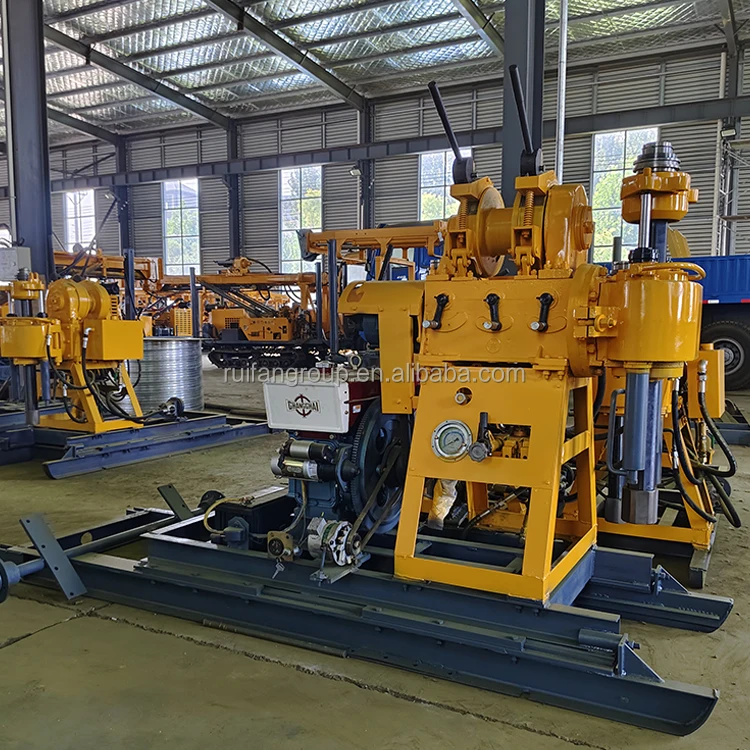

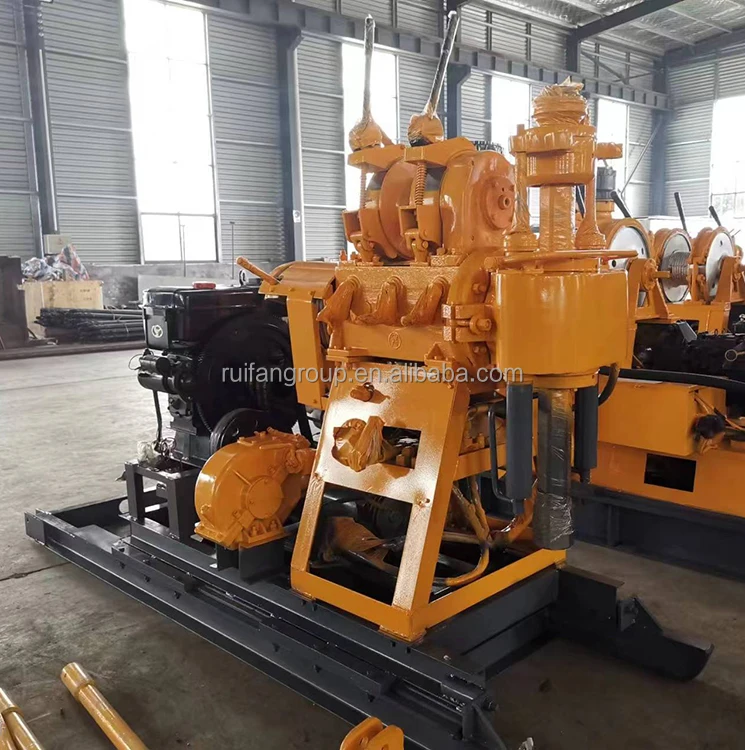

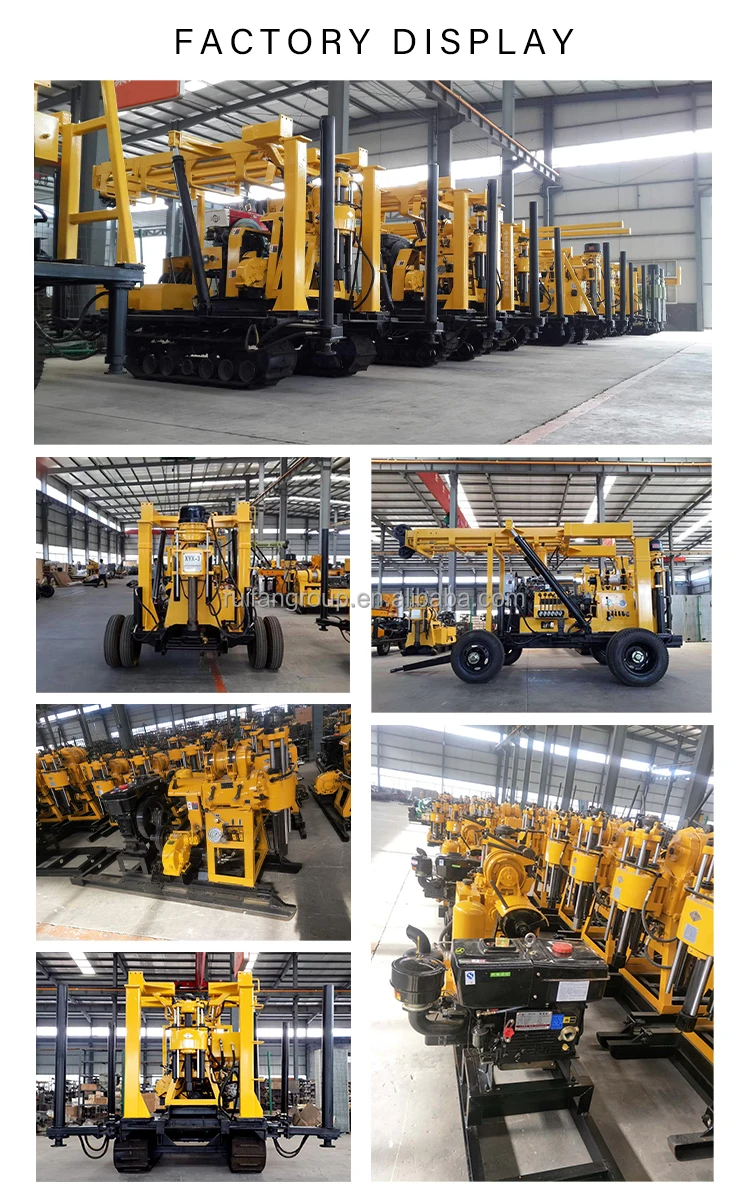

Details Images

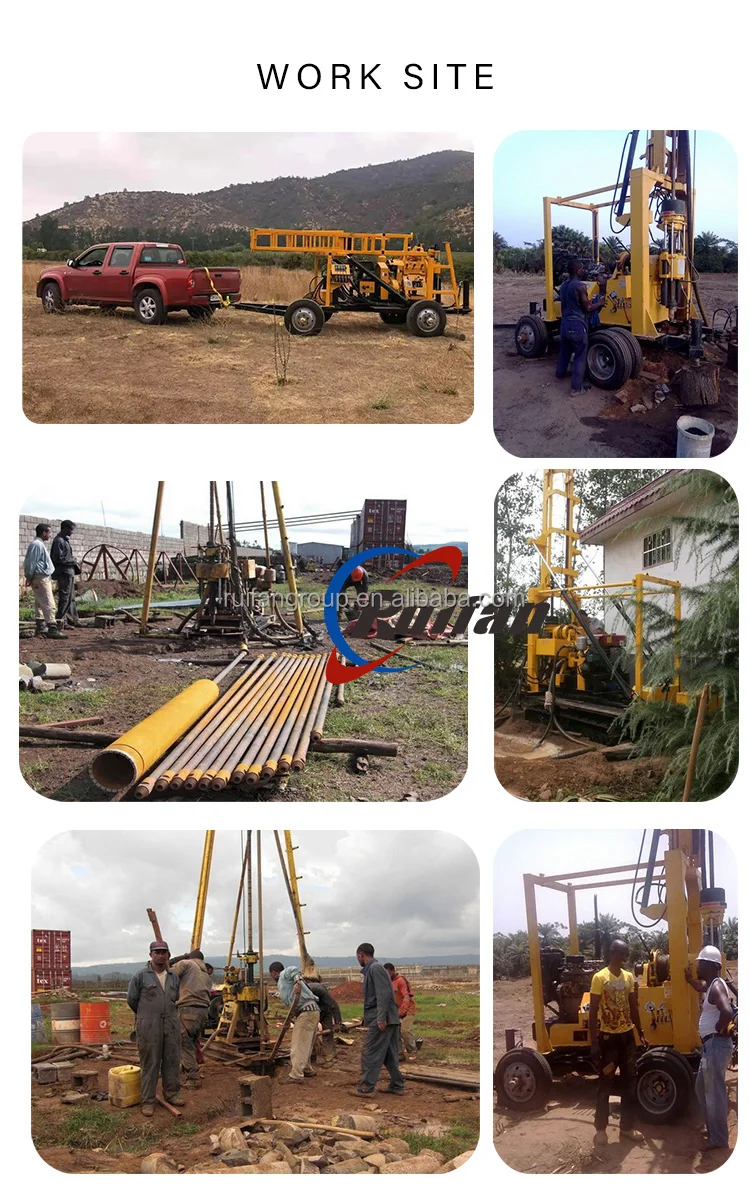

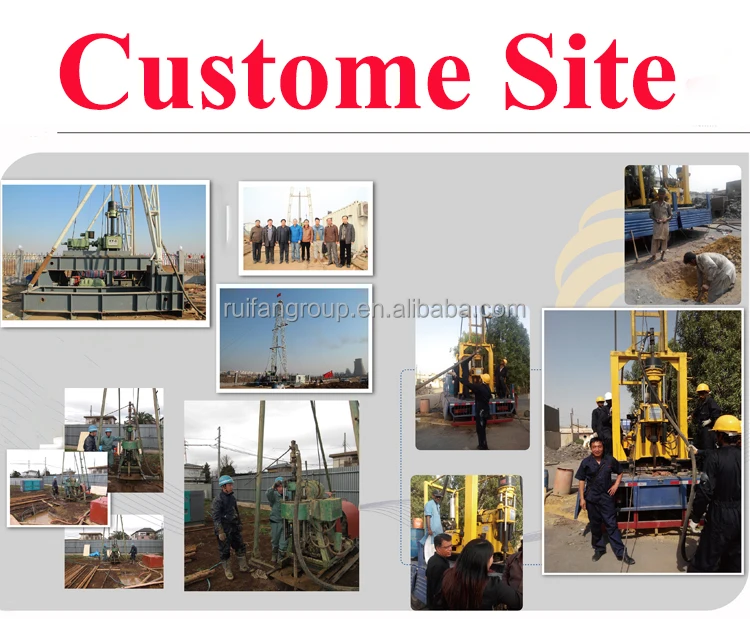

Customer Site

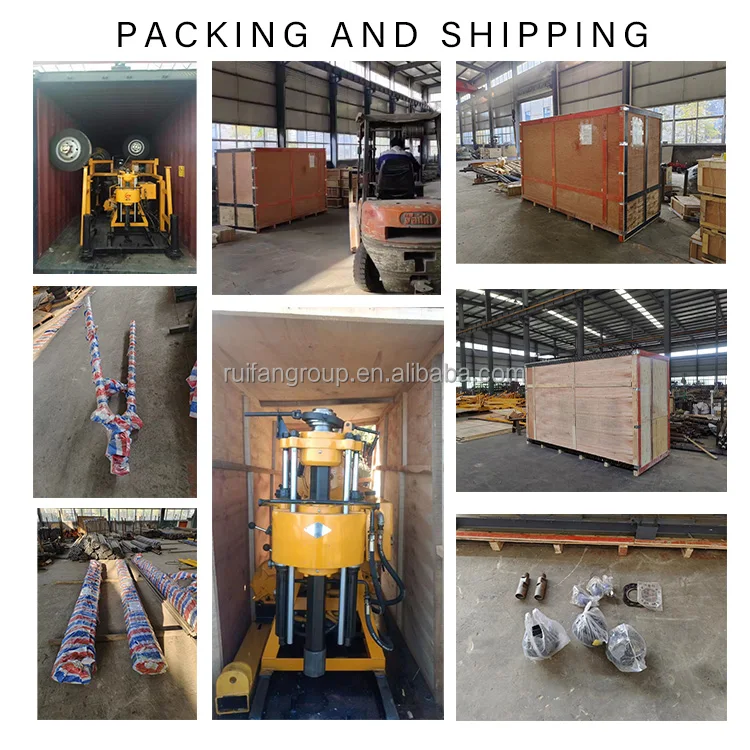

Product packaging
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

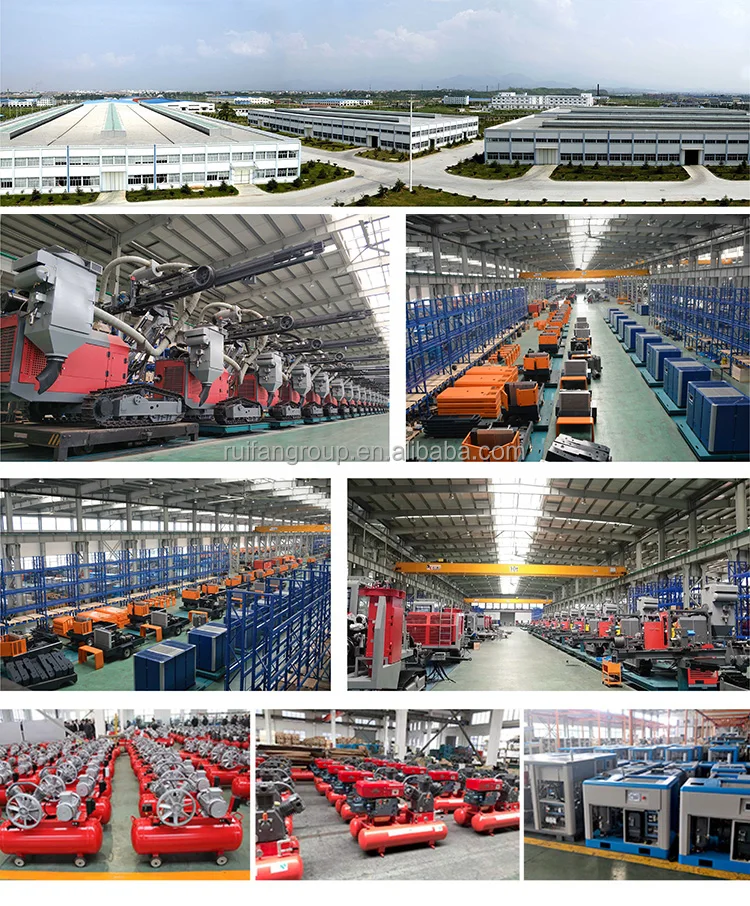

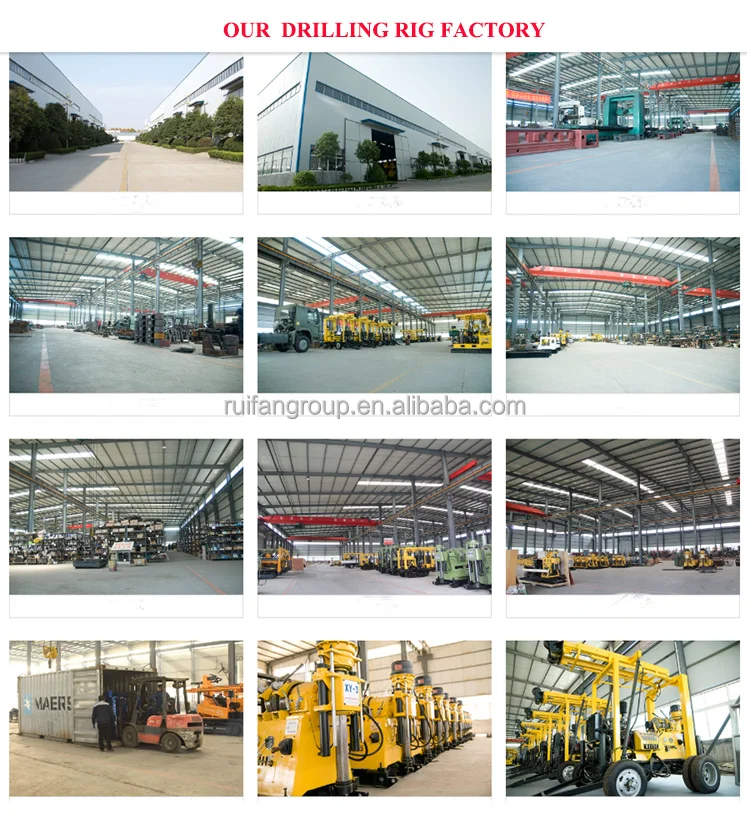

Company Profile
Founded in 1997, our factory has become one of the most powerful air compressor equipment and engineering drilling equipment manufacturers in China, and is a member of the national compressor industry association, drilling machinery and pneumatic tools industry association, and a drafting unit of national standards. All the products have passed the quality system certification of ISO9001:2000 and national inspection-free products.
Its total registered capital of 245 million yuan, holding 10 subsidiaries, is a set of technology research and development, production and manufacturing, sales and service functions in one of the modern machinery and equipment manufacturing enterprises,the enterprise covers an area of 31000m2. The group has more than 1100 employees, including more than 100 middle and senior technical personnel. The group has established close cooperative relations with many domestic famous universities and other scientific research institutes, with strong product research and development capabilities.
Now as the main exporter of drilling rigs and air compressors equipment in China. It has exported to more sixty countries such as Southeast Asia, South America, Africa, Eastern Europe, Russia etc. Excellent quality and perfect service gain the consistent praise from customers.
Its total registered capital of 245 million yuan, holding 10 subsidiaries, is a set of technology research and development, production and manufacturing, sales and service functions in one of the modern machinery and equipment manufacturing enterprises,the enterprise covers an area of 31000m2. The group has more than 1100 employees, including more than 100 middle and senior technical personnel. The group has established close cooperative relations with many domestic famous universities and other scientific research institutes, with strong product research and development capabilities.
Now as the main exporter of drilling rigs and air compressors equipment in China. It has exported to more sixty countries such as Southeast Asia, South America, Africa, Eastern Europe, Russia etc. Excellent quality and perfect service gain the consistent praise from customers.
FAQ
Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.
Q2: Warranty terms of your machine?
A2: One year warranty for the machine and technical support according to your needs.
Q3: Will you provide some spare parts of the machines?
A3: Yes, of course.
Q4: What about the voltage of products??Can they be customized?
A4: Yes, of course. The voltage can be customized according to your equirement.
Q5: How long will you take to arrange production?
A5: 380V 50HZ we can delivery the goods within 7-15 days. Other electricity or other color we will delivery within 20-30 days.
Q6: Can you accept OEM orders?
A6: Yes, with professional design team, OEM orders are highly welcome.
Q7 Which trade term can you accept?
A7: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
