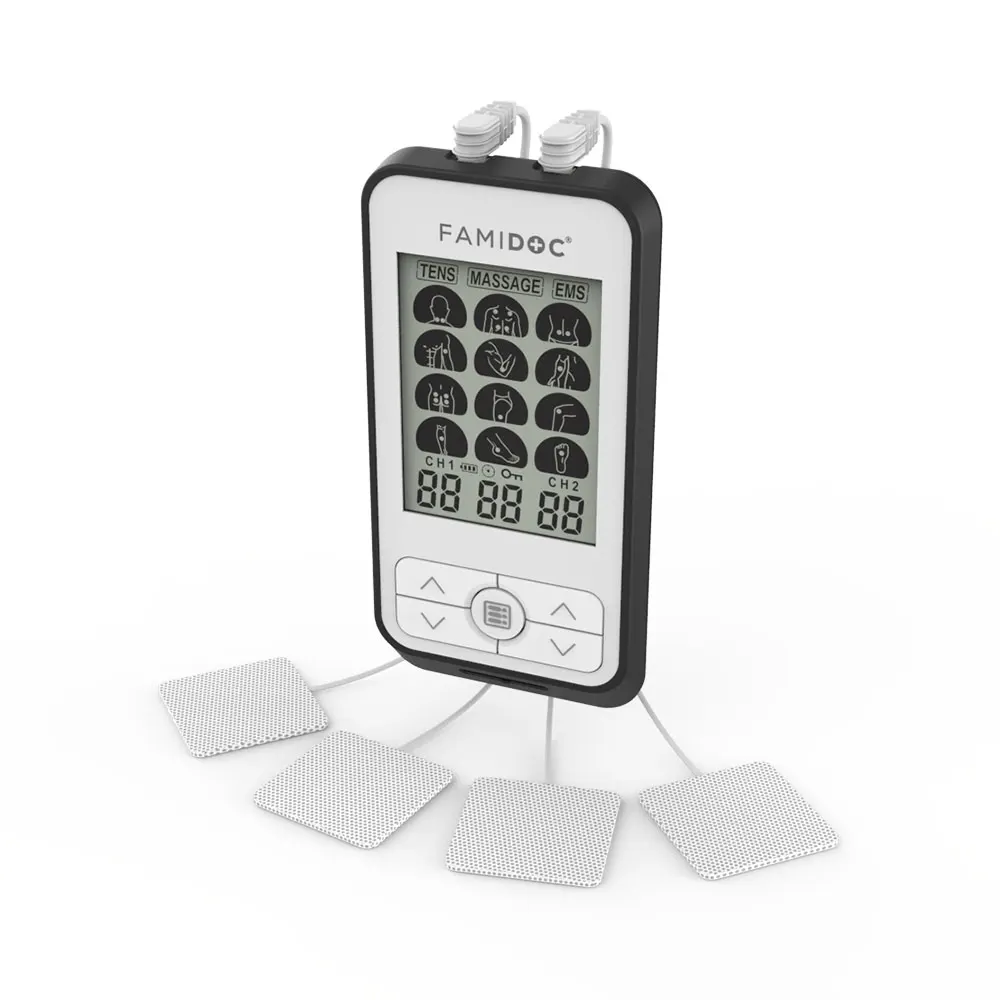

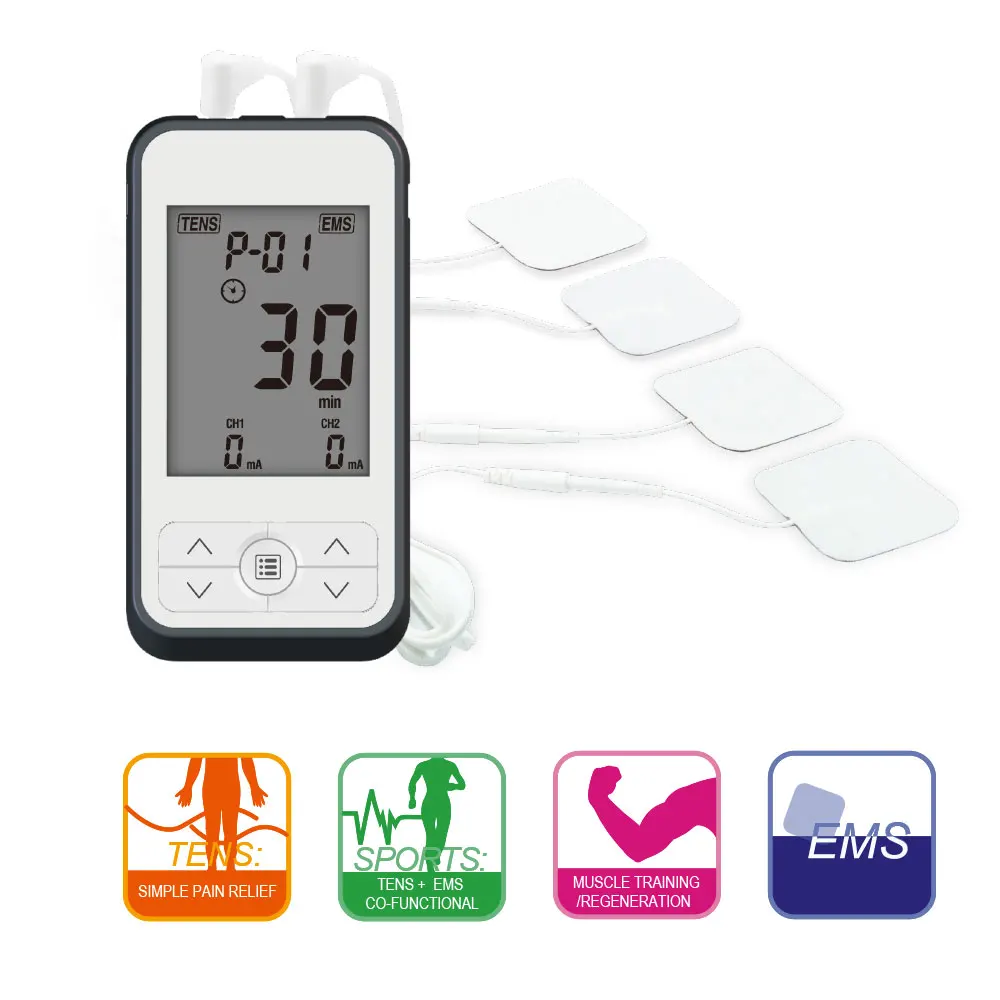

FAMIDOC Body Massage Physical Therapy Equipment Machine Massage Electronic Pulse Muscle Stimulator Tens Unit Physiotherapy
- Category: >>>
- Supplier: Famidoc Technology Co. Ltd.
Share on (1601164682564):
Product Overview
Description
Products Description
About this item
The products is a kind of OTC stimulator, which are widely used in hospitals and clinics in the United States, Europe and Asia.Based on our good quality and OEM&ODM service,our products have been widely recognized and praised by all kinds of buyers--government purchaser, chain Pharmacy, chain drug stores, baby commodity store, supermarkets, medical devices agents....
Its main function and specifications are as follow:
☆For TENS mode:
To be used for temporary relief of pain associated with sore and aching muscles due to strain from exercise or normal household work activities.
☆For EMS mode:
To be used to stimulate healthy muscles in order to improve and facilitate muscle performance.
☆For MASSAGE mode:
To be used for recovery of fatigue, improves blood circulation neuralgia.
To be used for temporary relief of pain associated with sore and aching muscles due to strain from exercise or normal household work activities.
☆For EMS mode:
To be used to stimulate healthy muscles in order to improve and facilitate muscle performance.
☆For MASSAGE mode:
To be used for recovery of fatigue, improves blood circulation neuralgia.
Specifications: | ||
Device name | TENS/EMS/Massage 3 In 1 Electrical Stimulators | |

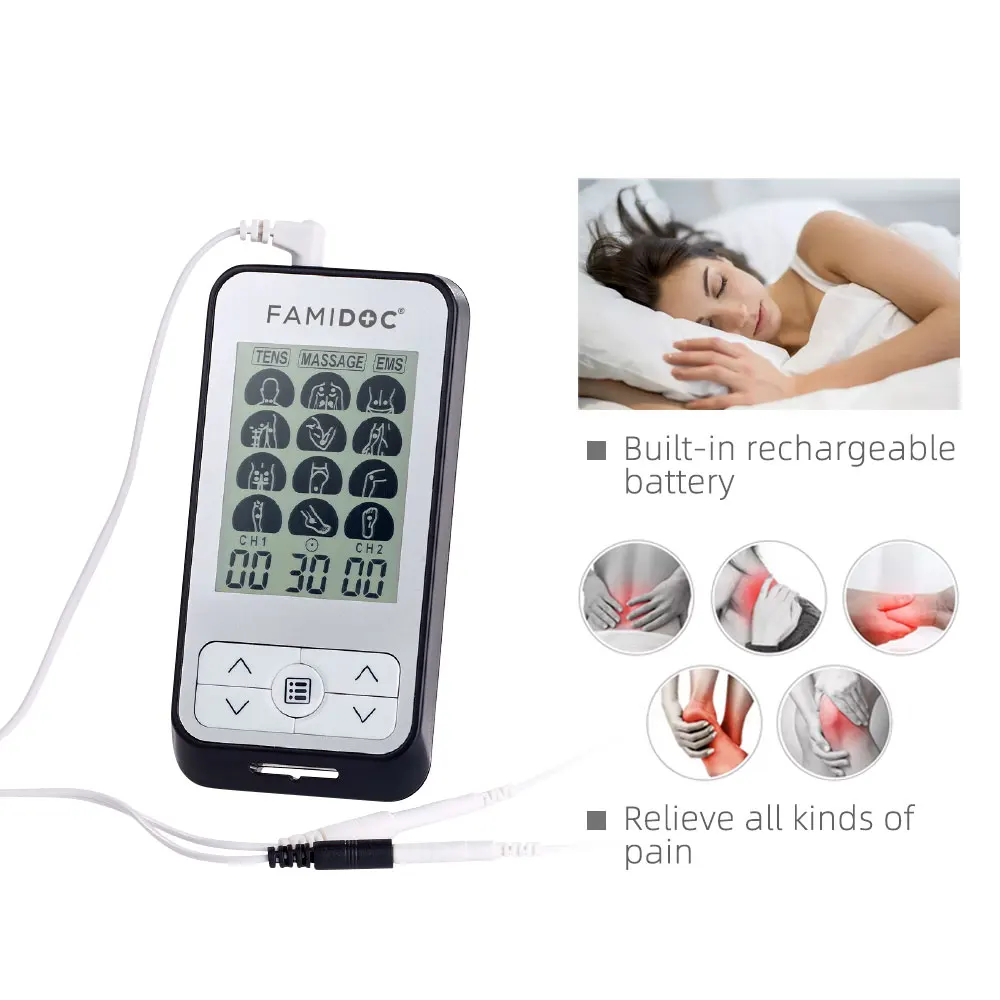

Power supply | DC3.7V/400mAh Polymer lithium battery (Built-in) | |
Wave sharp | Bi-phase square-wave pulse | |
Output voltage | Max. 40Vpp (at 500ohm load) | |
Output current | Max. 80mA (at 500ohm load) | |
Treatment time | 10-30 minutes | |
Output intensity | 0 to 40 levels, adjustable | |
Treatment mode | TENS, EMS and Massage | |
Number of treatment program | TENS: 12 programs; EMS: 12 programs; Massage: 12 programs | |
Operating conditions | 5°C to 40°C (41°F ot 104°F)with a relative humidity of ≤85%, atmo- spheric pressure from 860 hPa to 1060 hPa | |
Transportation and storage environment: | -20°C-55°C (-13°F-131°F); ≤90% RH; 700hPa – 1060hPa | |
Dimensions | 110*60*16.2mm (L*W*H) | |
Weight | 95g | |
Automatic shutoff | 3min. | |
Grade of waterproof | IP22 | |
Device service life | 2 years (Normally) | |
Images for details
Product Usage & Knowledge

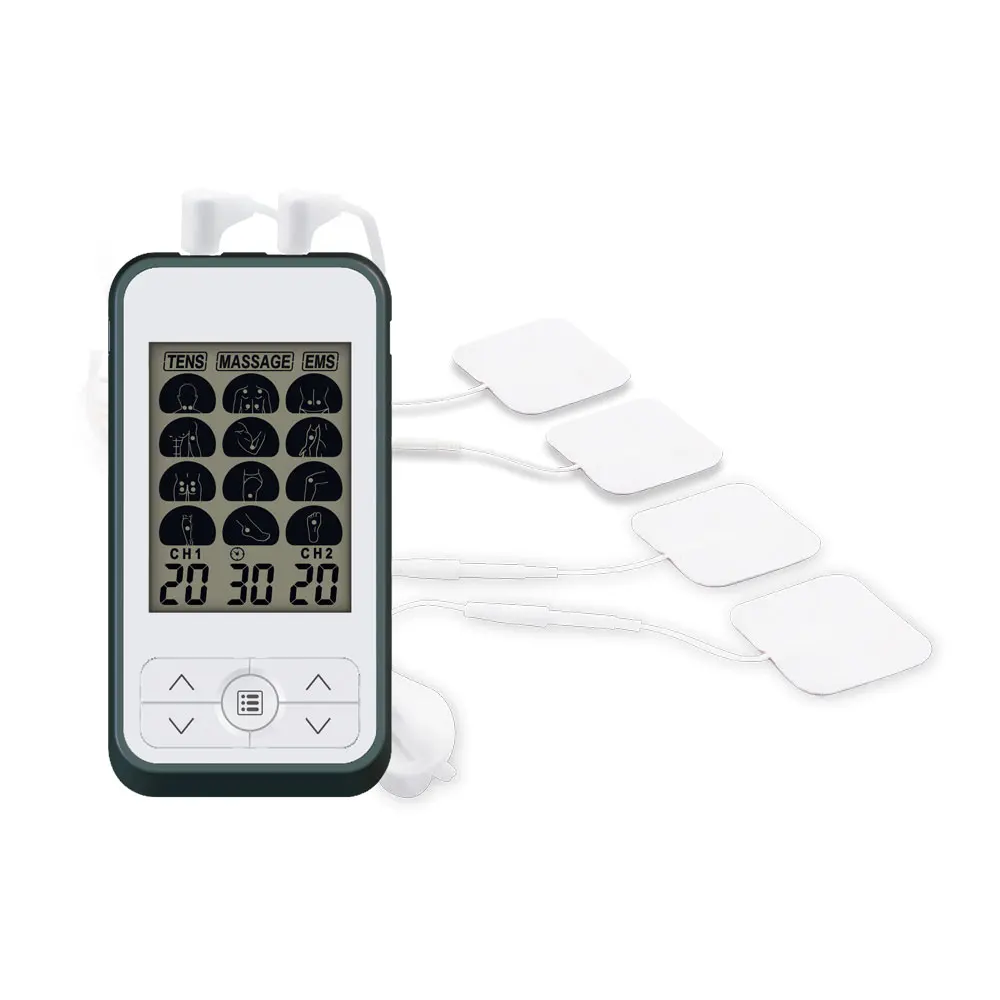

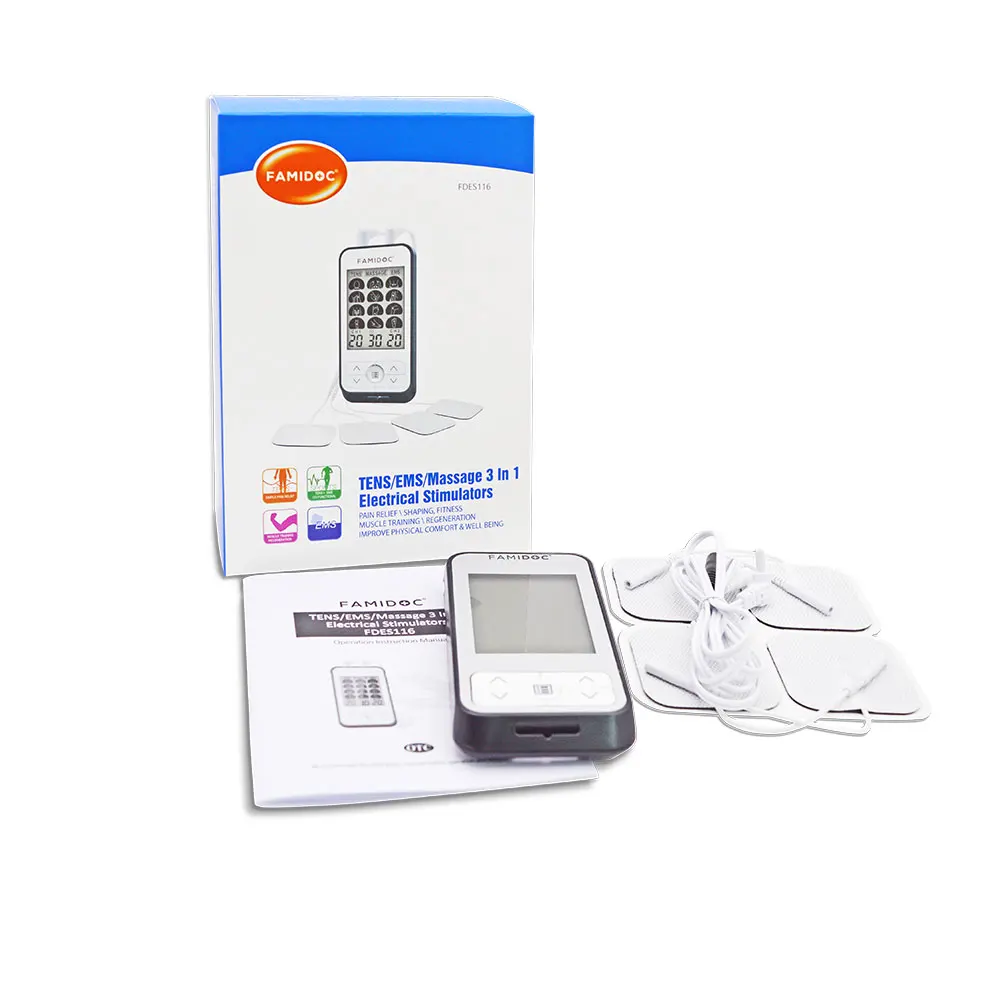

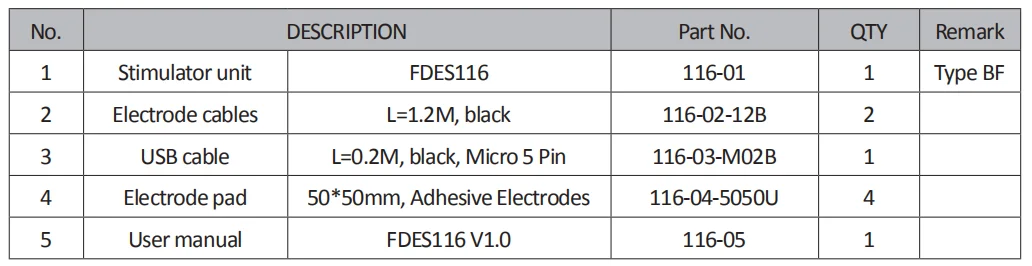

Accessories

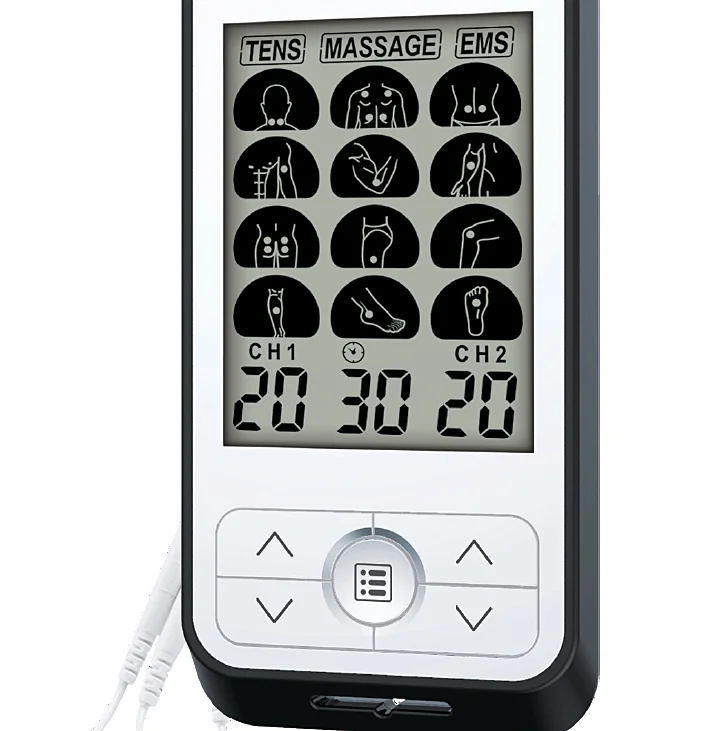

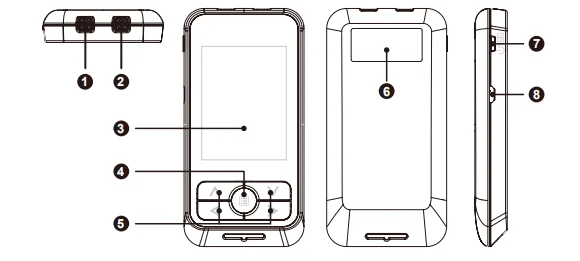

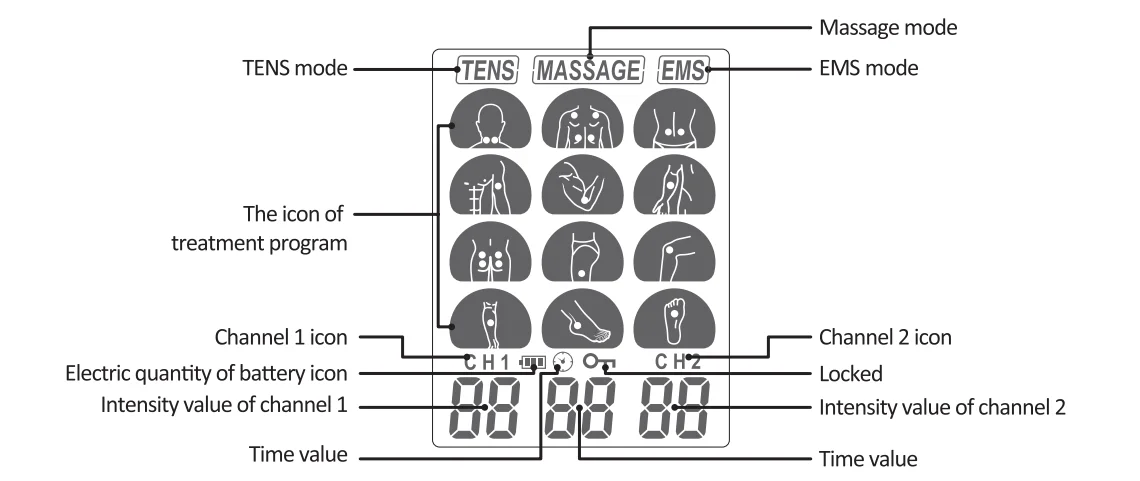

Structural diagram&LCD display
1. Channel 1 output socket: electric signal output of channel 1 after connection of the cable with adhesive electrodes.
2. Channel 2 output socket: electric signal output of channel 2 after connection of the cable with adhesive electrodes.
3. LCD display: Display the user parameters and information.
4. Press the this button to select the treatment program.
5. Press this button to increase output intensity of channel 1 or channel 2, press this to button decrease output intensity of channel 1 or channel 2.
6. Label
7. Press this button of turn on or turn off the unit, and in the standby mode press can be select the treatment mode.
8. USB charging socket
2. Channel 2 output socket: electric signal output of channel 2 after connection of the cable with adhesive electrodes.
3. LCD display: Display the user parameters and information.
4. Press the this button to select the treatment program.
5. Press this button to increase output intensity of channel 1 or channel 2, press this to button decrease output intensity of channel 1 or channel 2.
6. Label
7. Press this button of turn on or turn off the unit, and in the standby mode press can be select the treatment mode.
8. USB charging socket

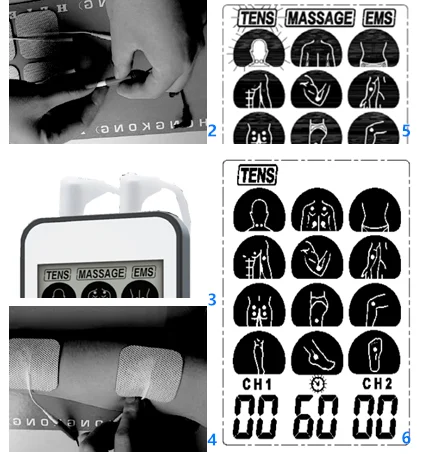

Easy to use
1. Check power
2.Connect electrodes to electrode cables
3.Connect electrode cables to device
4. Place electrodes on skin
5.Turn on and Select the treatment mode
6.Select the application program
7.Starting the treatment
8.Adjust channel intensity
9.Setting the therapy time
What can TENS &EMS &Massage be used for?
TENS (Transcutaneous Electrical Nerve Stimulation) gives good results in relief of pain. It is clinically proven and used daily by physiotherapists, other caregivers and top athletes around the world.
EMS Electrical Muscle Stimulation is an internationally accepted and proven way of treating muscular injuries. It works by sending electronic pulses to the muscle needing treatment; that causes the muscle to exercise passively.
EMS Electrical Muscle Stimulation is an internationally accepted and proven way of treating muscular injuries. It works by sending electronic pulses to the muscle needing treatment; that causes the muscle to exercise passively.
Massage can stimulate the muscle motor nerves of healthy persons to improve their muscular performance, to achieve a relaxing effect or to improve circulation exchanges.

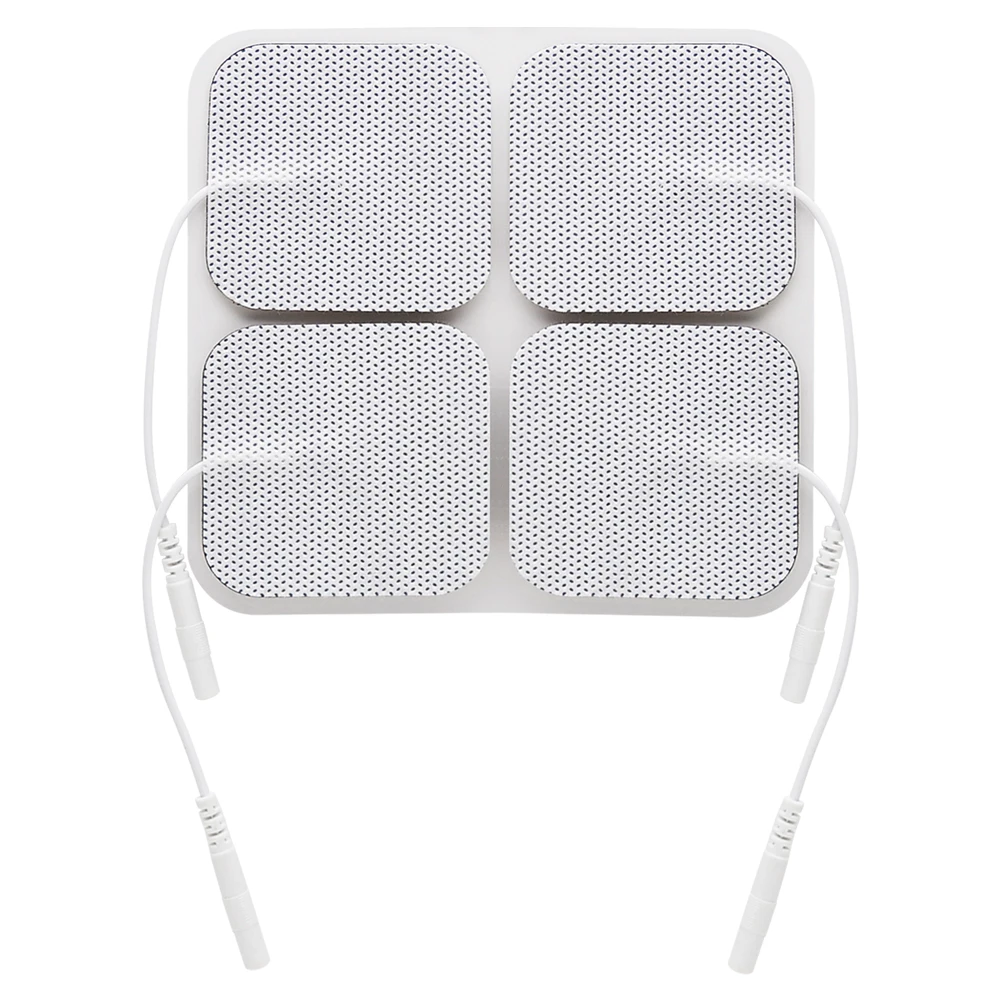

Electrode pads
Compatible\\Self-adhesion
You do not need to use any conductive gel or liquid to attach the electrode pads to the skin. Our electrodes can best fit
perfectly with the skin and experience the neuro stimulation.The high quality electrode can be reused for 30 to 40
times,convenient and portable.
You do not need to use any conductive gel or liquid to attach the electrode pads to the skin. Our electrodes can best fit
perfectly with the skin and experience the neuro stimulation.The high quality electrode can be reused for 30 to 40
times,convenient and portable.
Packing and shipping
This products are packed by color box and carton. Both customized packaging and Famidoc standard packaging are available.Standard: 40pcs /carton ,carton size is 538x385x325mm. It can be arrange d to ship by air ,ocean and land transportation.
