470 Watt 41.5 Volt High Efficiency Flexible Photovoltaic Panels for Innovative Solar Power Systems Flexible Solar Panels
- Category: >>>
- Supplier: Shenzhen Jinxuyuan Solar Technology Co. Ltd.
Share on (1601164736749):
Product Overview
Description
| ELECTRICAL CHARACTERISTICS | |
| Model | JXY-E470S |
| Maximum Power (Pmax) | 470W |
| Maximum Power Voltage (Vmp) | 41.5V |
| Open-circuit Voltage (Voc) | 49.5V |
| Maximum Power Current (Imp) | 11.3A |
| Short-circuit Current (Isc) | 12.2A |
| Cells Efficiency (%) | >23% |
| Operating Temperature | -40℃~85℃ |
| Maximum System Voltage | 600V DC (IEC) |
| Maximum Series Fuse Rating | 20A |
| Nominal Module Operating Temperature(NOMT) | 41±2℃ |
| Temperature Coefficient of Pmax | -0.35%/℃ |
| Temperature Coefficient of Voc | -0.27%/℃ |
| Temperature Coefficient of Isc | +0.048%/℃ |
| STC: Irradiance 1000W/m2 , Cell temperature 25C, AM=1.5. Tolerances of Pmax , Voc and lsc are within ±5% | |
| MECHANICAL CHARACTERISTICS | |
| Solar Cell | SunPower Maxeon Gen 6 Solar Cells (166mm*166mm) |
| Number of Cells | 72(6*12) |
| Module Dimensions | 2075x1040x2.8 mm |
| Weight | 7.0kg |
| Backsheet | Black/White/Transparent |
| Frame | Frameless |

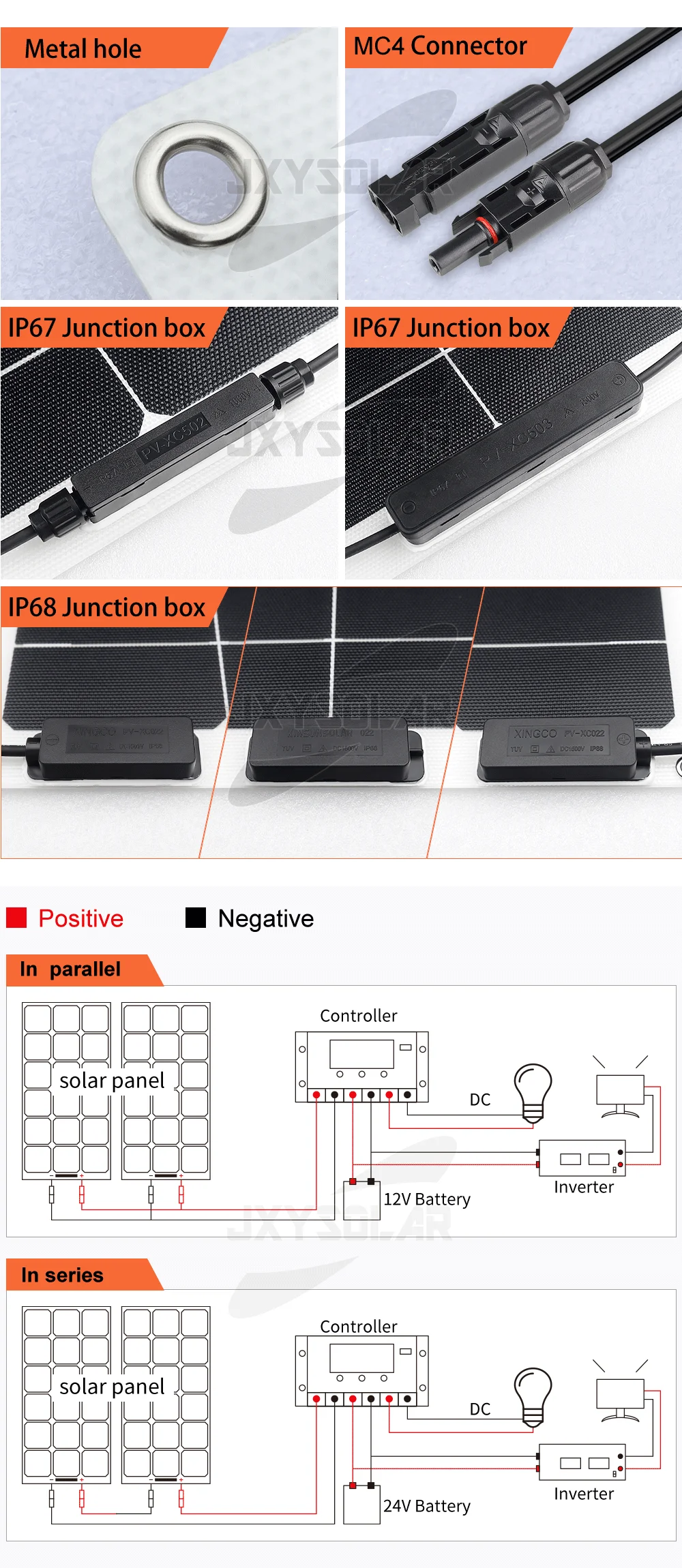

| Junction Box | IP 67 rated |
| Output Cables | 0.9M, 4.0mm² Photovoltaic cable |
| Connector | MC4 compatible |
