RoHS Certified Customized GRB Pin Setup Clear Lens Ultra Bright 5050 RGB SMD Full Color LED Chip For Signal Light
- Category: >>>
- Supplier: Demo Photoelectric Technology (Wuxi) Co. Ltd.Demo Ltd.
Share on (1601164815765):
Product Overview
Description
Product Description
RoHS Certified Customized GRB Pin Setup Clear Lens Ultra Bright 5050 RGB SMD Full Color LED Chip For Signal Light
High-Quality Long Lifespan! Low Light Attenuation! Customize Manufacturing!
Product details
| Peak wavelength | R:620-630nm G:515-525nm B:460-470nm |
| Forward Voltage | R:1.8-2.2V G: 2.8-3.2V B:2.8-3.2V |
| Size | 5.0mm*5.0mm |
| Bead Angle | 120deg |
| Luminous Intensity | R:1800-2000mcd G:2700-3000mcd B:1200-1500mcd |
Features:
·Outline Package: 5.0×5.0mm
·Emitted Color: RGB
·Lens Appearance: Milky Diffused
·Suitable for all SMT assembly methods
·Comply with RoHS

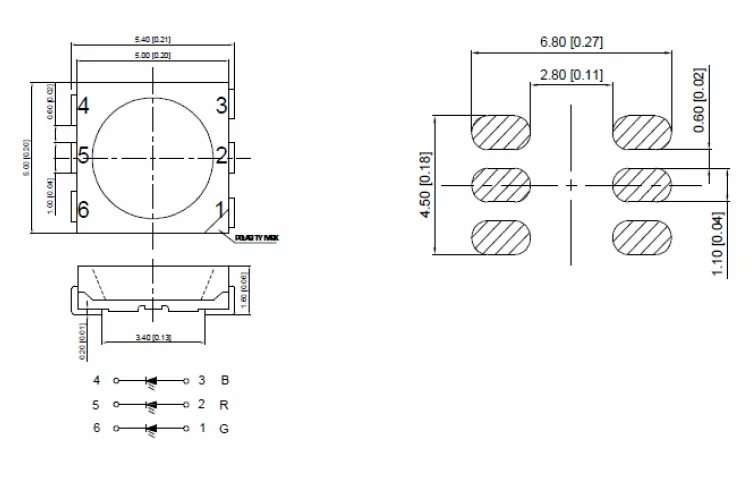

·Pin: customized GRB setup
Application:
·Indoor and outdoor displays
·Optical indicators
·Backlighting
·Interior automotive lighting
·Substitution of micro incandescent lamps
·Signal and symbol luminaries
Our Services
The First Choice in LED Customized Manufacturing!
LED Manufacturer with 10+ years Experience!
High-Quality Long Lifespan LED!
Our Service
1)Customized View angles are acceptable! 10deg, 15deg, 30deg, 45deg, 60deg, 90deg, 120deg, 160deg, etc. for options!
2)Customized LED shapes for options, round head shape, bullet head shape, flat head shape, rectangle shape, oval shape, concave shape, straw-hat shape, etc.
3)Various LED size for options, 2mm/3mm/4mm/5mm/8mm/10mm
Notice for LED Handling
1)All personnel in direct contact with the LEDs throughout the process of use shall perform anti ESD measures. Do not touch the LEDs directly with hands
2) When welding, the operator needs to pay attention to the welding time, welding temperature, and the positive and negative poles of LEDs should be clearly distinguished.
3) Electrical parameters such as current and voltage should not exceed the rated value.
Precautions for LED Soldering
1)The welding time should not exceed 3 seconds
2)The welding temperature is less than 260 ℃
3)Reflow welding is allowed only once
4)When welding, distinguish the positive and negative poles and avoid the lens to avoid damaging the lens.
5)When welding, distinguish the positive and negative poles of LEDs, take care to avoid touching the LED lens from lens-damaging.
6)Especially for IR LEDs and UV LEDs, try to take cooling measures as good as possible to provide adequate heat dissipation area.
7)For longer life of IR LEDs and UV LEDs, it is recommended to use a more stable constant current driver instead of a constant voltage driver.
FAQ
Q1: Why chose us?
A1: We are a factory and we own 10+ years experience in LED industry. High quality, competitive price, fast delivery and professional service will be provided.
Q2: Can I have a sample order for led diode?
A2: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3: Can I have a sample order?
A3: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q4: How do you ship the goods and how long does it take to arrive?
A4: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.

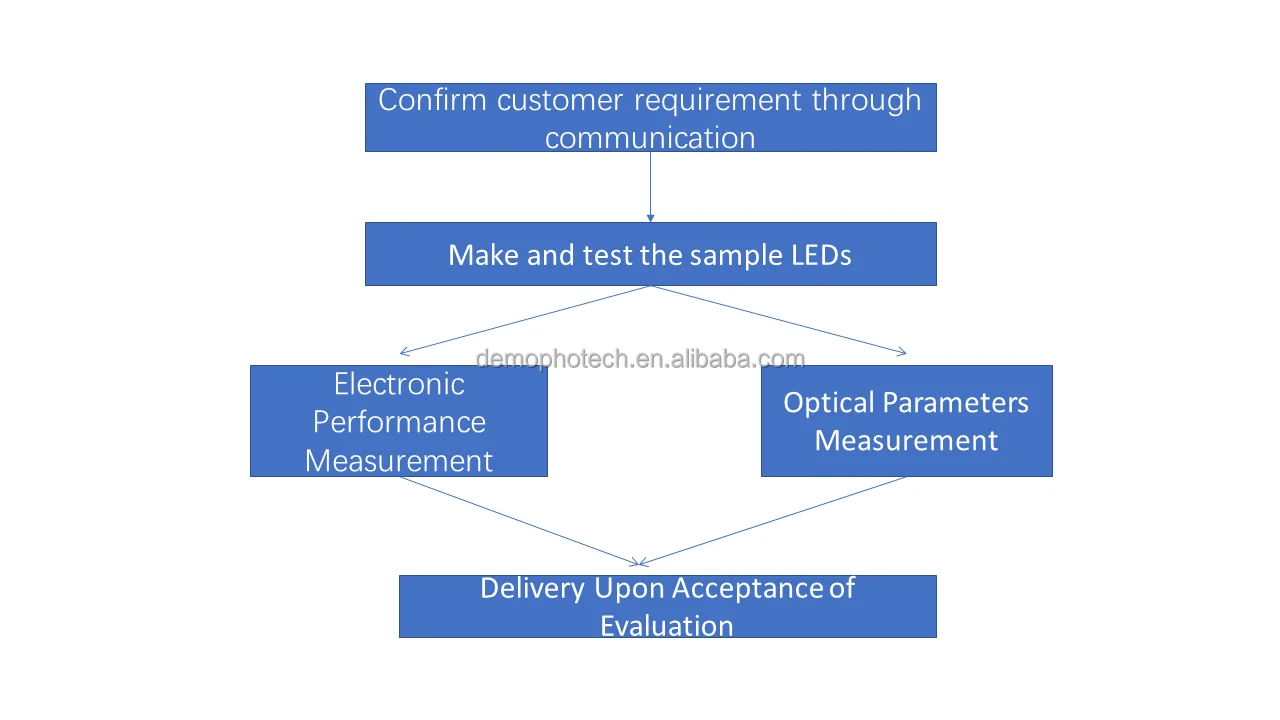

Q5: How to make customized LED?
Company Information
About us
Demo Photoelectric Technology (Wuxi) Co., Ltd.is a professional manufacturer in the design, manufacturing and sale of photoelectric light sources,and other photoelectric lighting applications. The company can be dated back to the former small sized manfacturer, Wuxi Demo Lighting Factory, which was established in 2005. Based on initial assembly lines for OEM orders, our main products lines have been successfully expanded to current LED light sources, LED illuminations and other highly-demanding photoelectric products.
