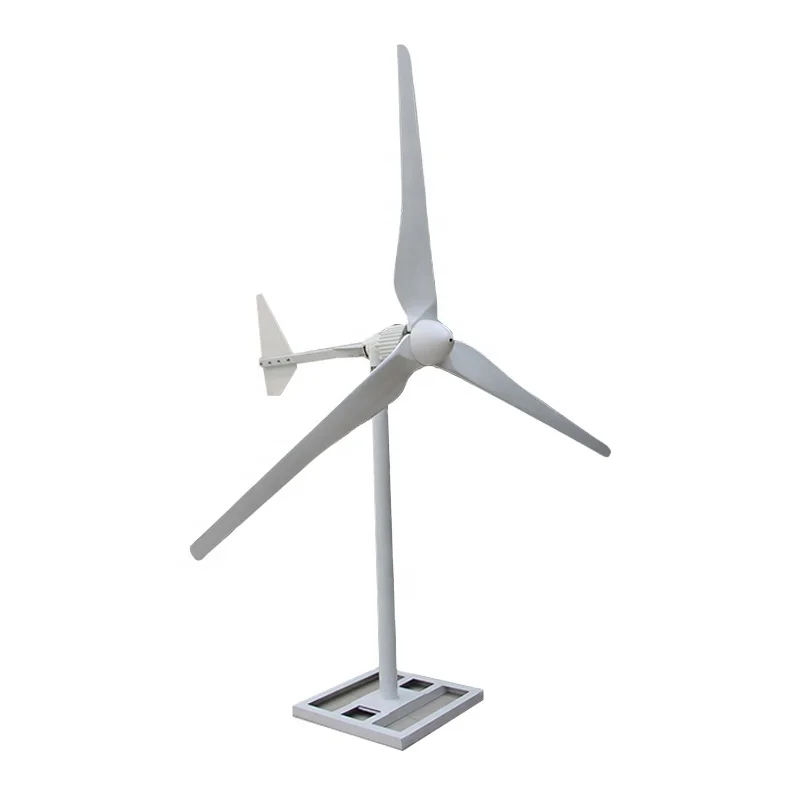

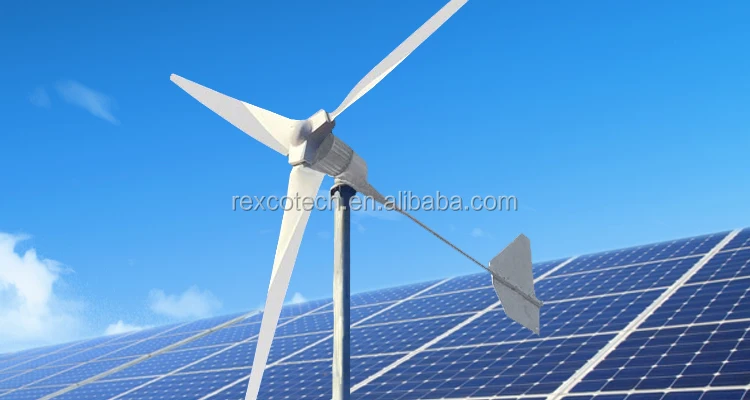

48v 220v 230v 1kw 2kw 3kw 5kw power wind horizontal axis 1000w 24v 48v wind turbine for homes

Model

RC-2K-A

Rated Output

2KW

Peak Output

2.5W

Rated Voltage

24V/48V AC

Start-up Wind Speed

2.5 m/s

Cut-in Wind Speed

3.5m/s

Rated Wind speed

12m/s

Survival Max. wind

45m/s

Number of Blades

3

Rotor Diameter

2.6m

Swept Area

5.31

Blade Material

fiberglass reinforced composite

Generator Type

  3-phase PMA with high performance Neodymium Magnets

Generator case

Casting aluminum alloy

Controller Type

PWM

Over speed control

Automatically adjust windward direction&tail fold up

Net Weight

48kg

Tower Connector

Flange or Hoop

Flange Size *

DN50

Tower Type *

Guy Cable Tower

Tower Size *

3mX2, 89-3mm

Working Temp. range

from -40°C to 60°C

Product Life

15 years

Warranty

1 years

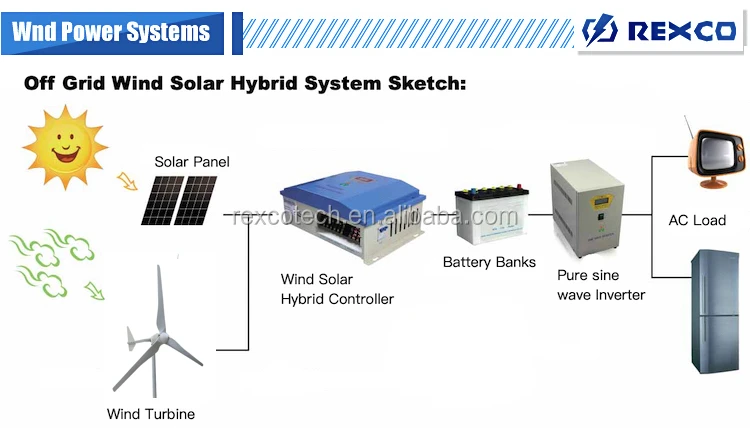

Applications

on/off-grid solar & wind hybrid system etc.

Measurement

Generator: 67*48*26cm / Blades: 130*27*27cm

Gross Weight

52kg
