Product Overview
Description
Product Description

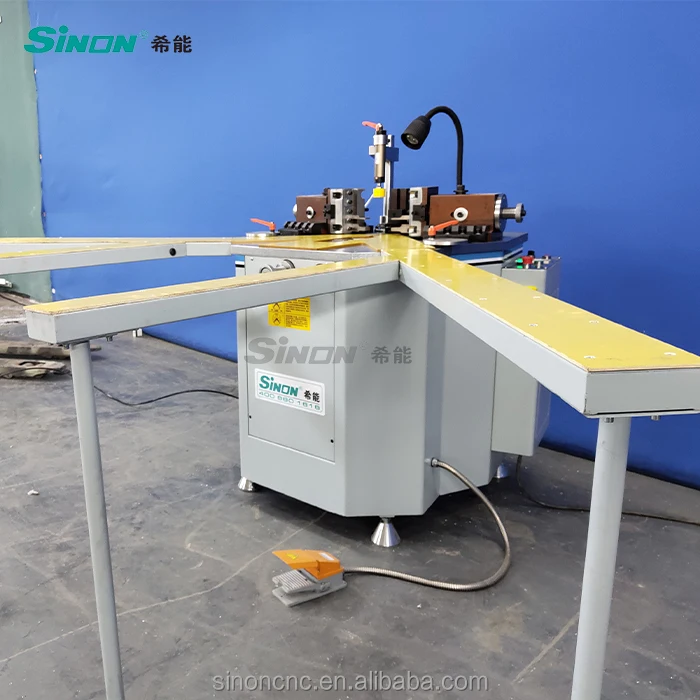

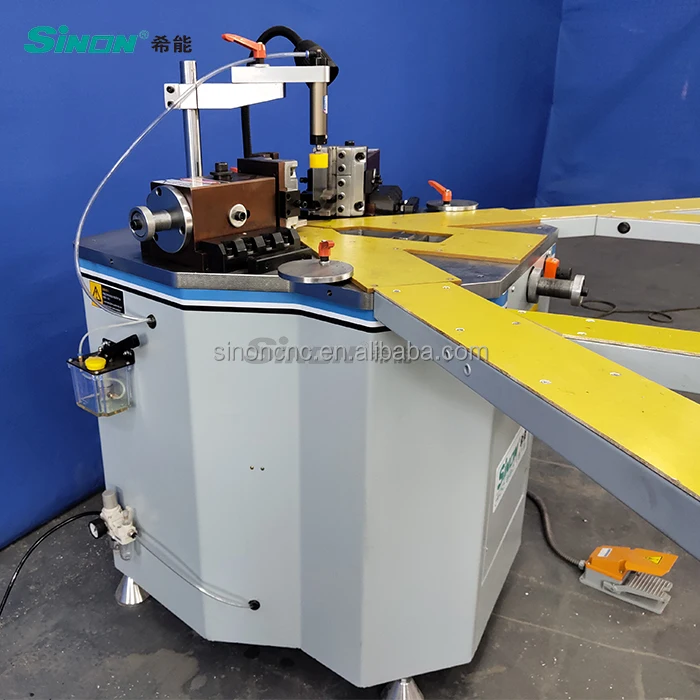

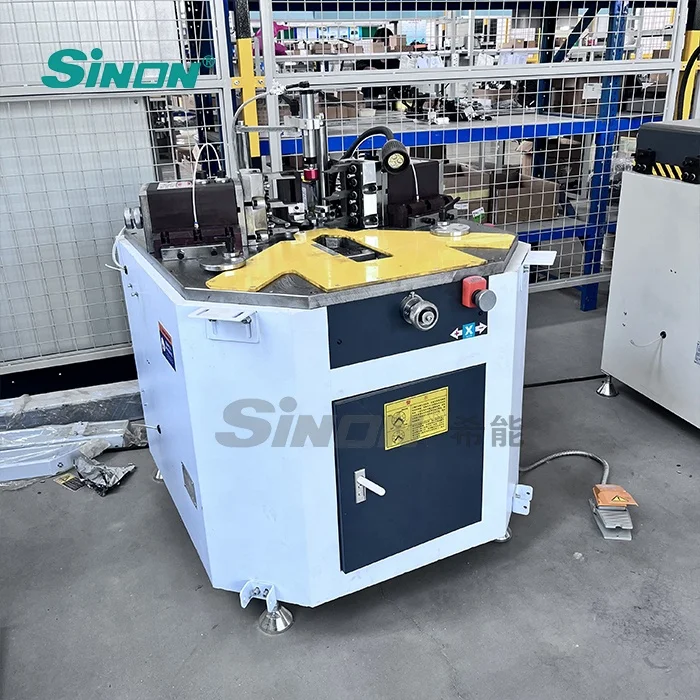

LZJ04-180

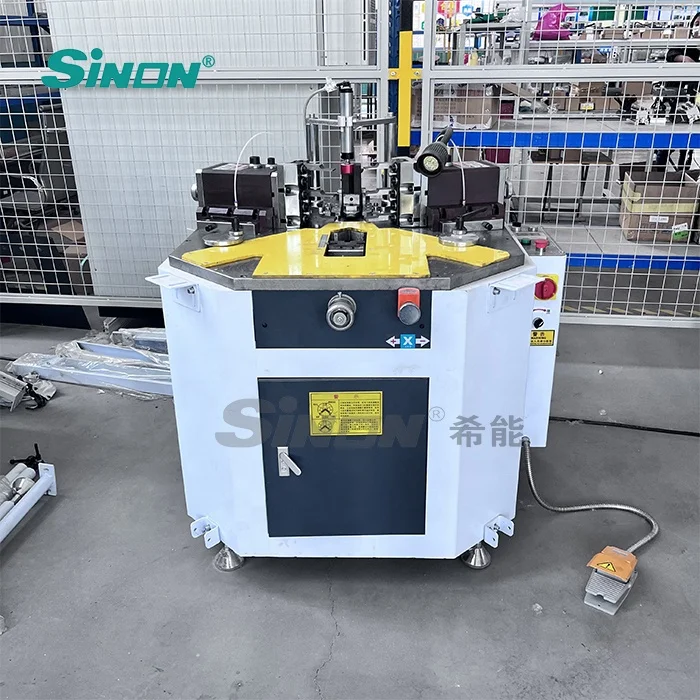

Aluminium Window Corner Crimping Machine
Hydraulic Type
The hydraulic system has the advantages of high power, wide range of profiles and stable work. It is suitable for the production of all aluminum doors and windows
Solid Machine Body
The fuselage is made of high-quality steel through special welding, which is durable.

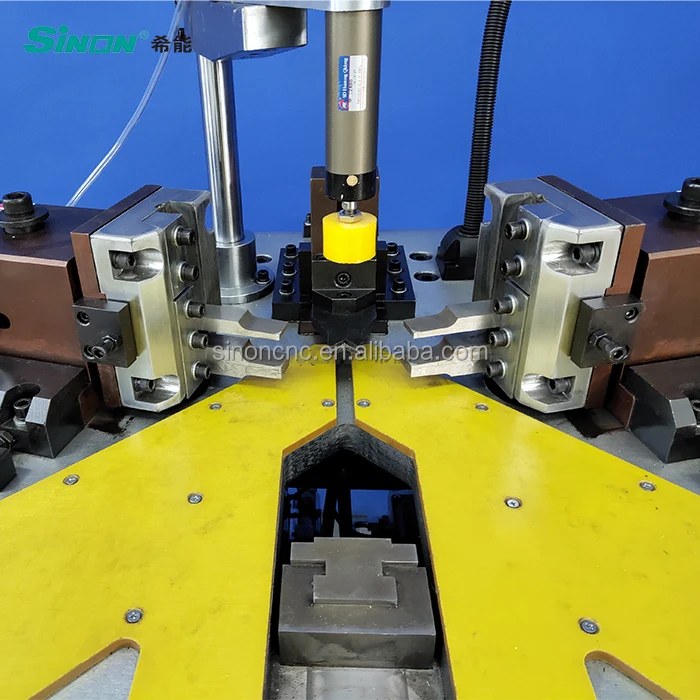

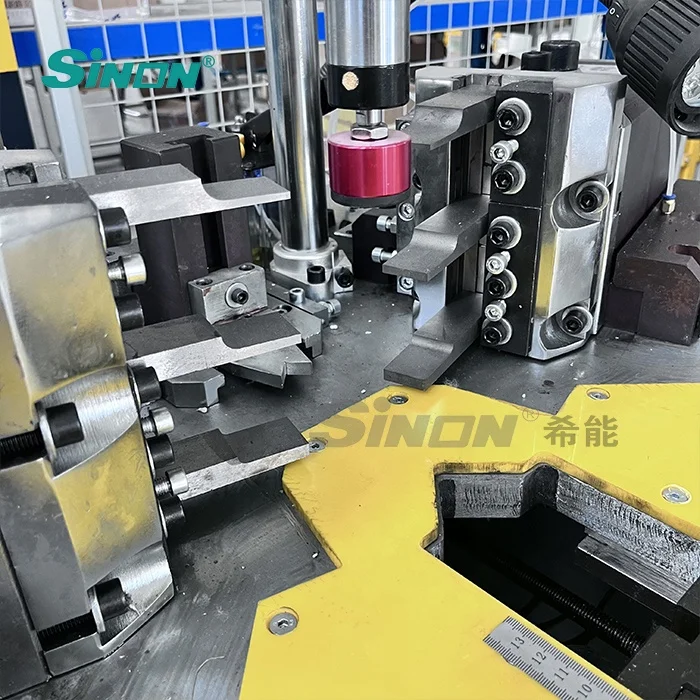

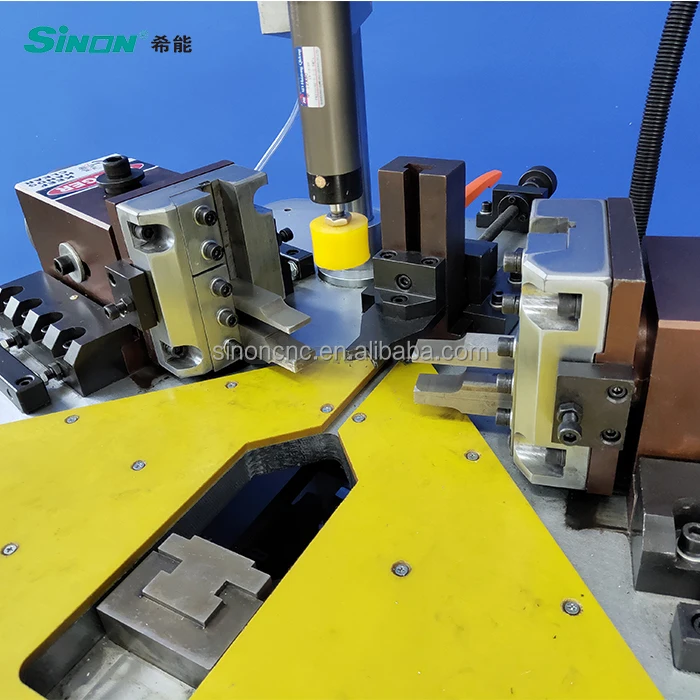

Adjustable Cutters
The synchronous angle crimping device is a double-layer cutter, which is easy to change the position of the cutter, and can realize the processing of double angles and different positions. (The knife can be customized according to the profile)

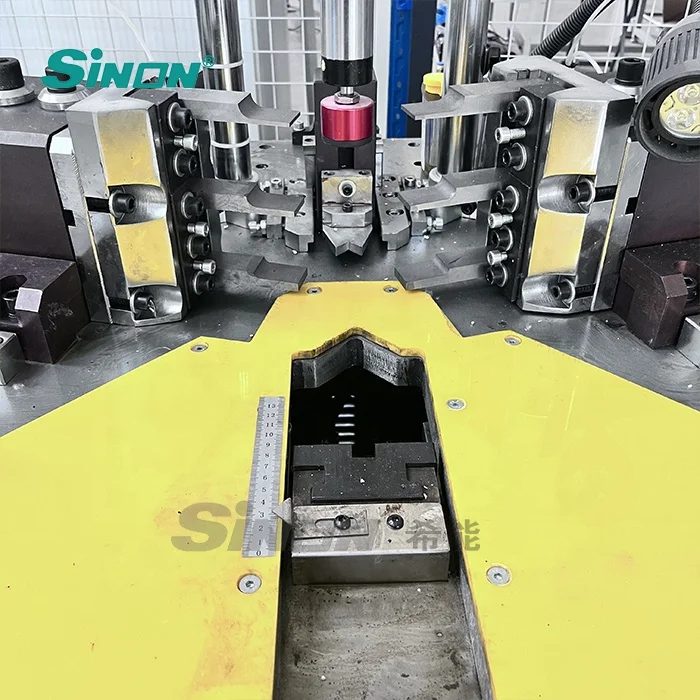

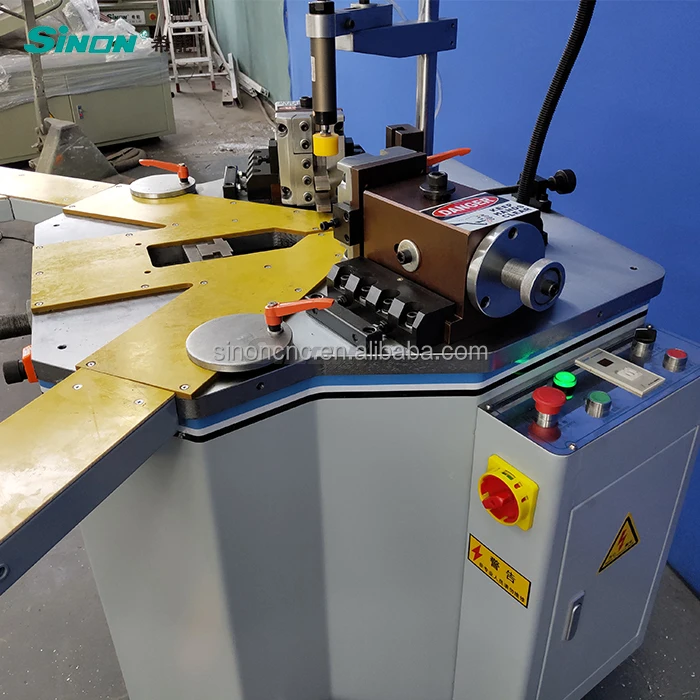

Sinking Positioning
The main positioning can choose the sinking type, which is more convenient to place and take out the profile.

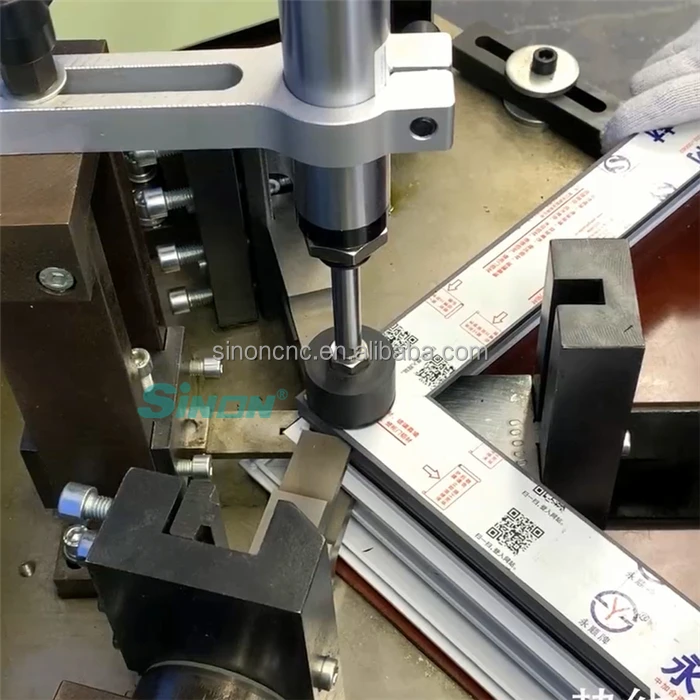

Pneumatic Clamping
Pneumatic clamping in the vertical direction can easily adjust the position. It is suitable for any series of profiles and greatly improves the flatness of the group angle.
Good Results
Stable operation to ensure a high quality crimping result, make sure the frame is formed reliably and firmly.

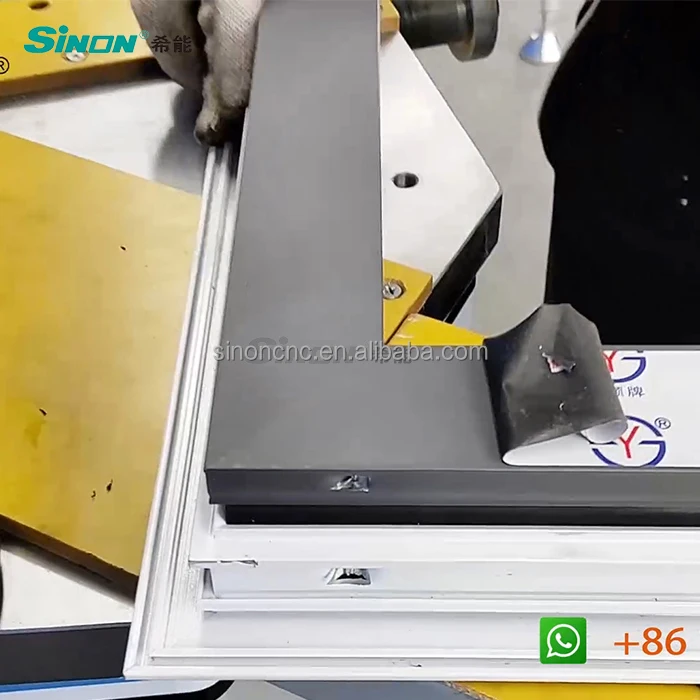

Features1. Application: It is also suitable for corner assembly processing of aluminum curtain walls and aluminum doors and windows, by applying pressure to connect the corners of the two aluminum profiles with the wedge placed inside.

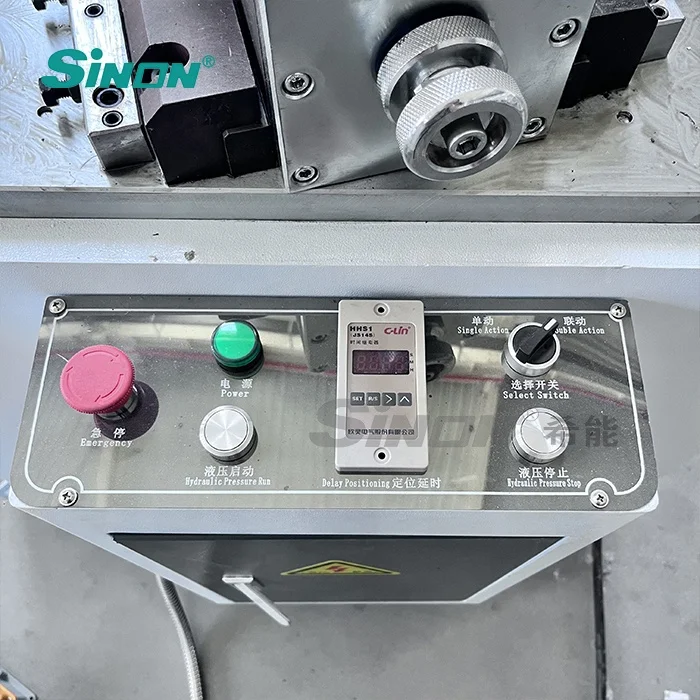

2. PLC Control: Using programmable controller (PLC) control, stable, reliable, and easy to maintain.
3. Digital Display Positioning: The rotation of the main positioning hand wheel adopts the digital display ruler to ensure the accuracy.
4. Sinking Structure: The main positioning sinking structure design is more friendly to placing large-size profiles such as curtain wall profiles.
5. Unique Linkage Mechanical Structure: The corner knives work synchronously to ensure the simultaneous and even force on both sides of the profile, and the corners are stronger and more perfect.
6. Foot Switch: It can control the positioning and group angle step by step.
7. Large Processing Range: The combined knife can be adjusted up and down in a larger range to meet different series of profiles.
8. Option: For other customization, please directly contact us, we provide suitable proposal accordingly.
Specification
Item | Value |
Power Supply | 380V 50Hz 3P( Or Customization) |
Input Power | 3.0KW |
Working Pressure | 0.5-0.8MPa |
Oil Box Capacity | 40L |
Max. Process Height | 140mm |
Profile Width | 100mm |
Dimension（L*W*H） | 2000×1900×1300mm |
Weight | 700kg |

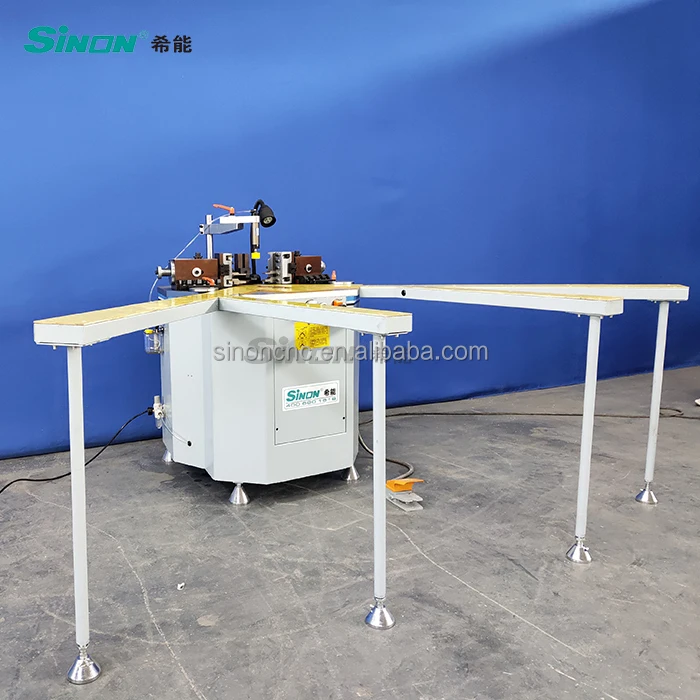

Details Images
