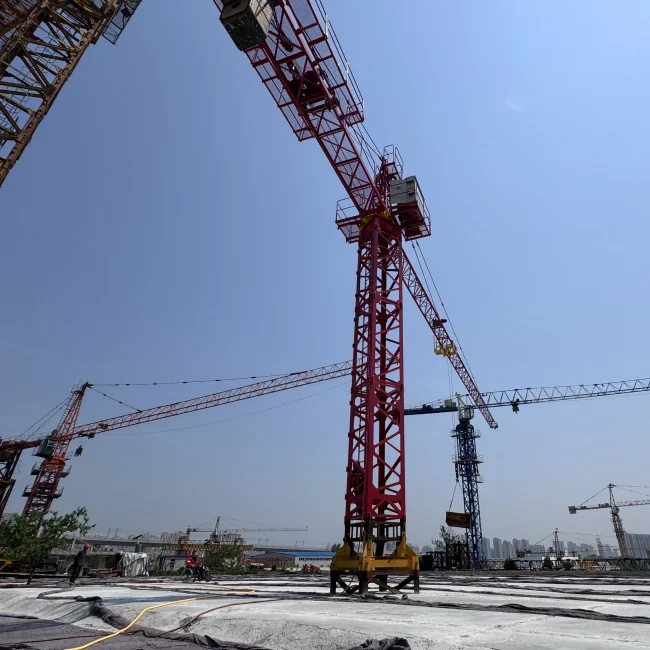

QTZ25 ascensional Tower Crane

With the main business of produce and sales of construction machinery, Yantai Haishan Construction Machinery Co., Ltd. locates in the beautiful seaside city--Yantai. With more than 40 million fixed assets, the company has more than 1200 staff, featuring abundant technical force, excellent manufacturing facilities and perfect detection method. The plant covers 120,000 square meters.

The main products are as follows: tower crane; construction hoist; HZS series of concrete mixing plant JS series of concrete mixers; PL series of concrete batchers; HBT series of transportation pump and water conservancy construction machineries of hoists and gates; HSW series of slewing bearings, XL series of slewing reducers, WCJ120, BX series of variable reducers, HSGK series of hydraulic stations, YG series of high intensity bolt, QT series of winches, multi-function limiters and ZL series of wheeled loaders.

Our company have got the GB/T19001—2000 idt ISO9001:2000 Certificate of Conformity  of Quality Management System and the People's Republic of China special equipment manufacturing license. For the tower crane and concrete mixing plant we have got the CE which is the Europe standard. Our products have exported to Russia, Mongolia, India, United Arab Emirates, Algeria, Angola, Mexico, Brazil and other countries, and got good reputation from the users.

  QTZ25 (HS3206) Tower Crane--2T for Sale

HS3206 inner climbing tower crane is a new type of tower crane designed by Yantai Haishan Construction Machinery Co., Ltd.

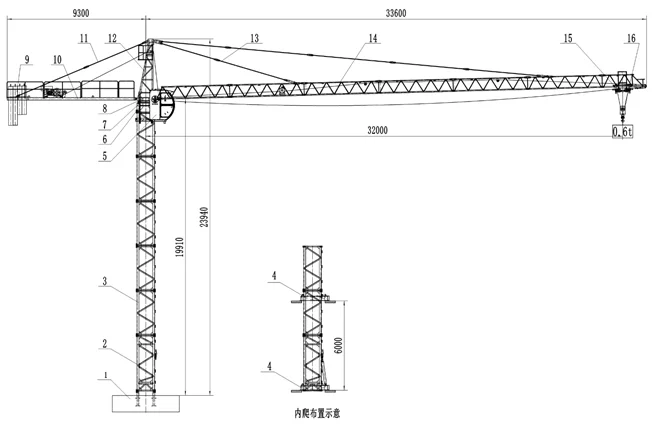

 The HS3206 tower crane is a multi-purpose tower crane with horizontal jib, radius changing trolley, up-turn and inner climbing. The features of this machine are:

1. The performance parameters and technical indicators are domestically leading, with a maximum working range of 32m and an inner-climbing maximum lifting height of 120m.

2. The appearance of the whole machine is of international popular style, very beautiful, and deeply loved by users at home and abroad.

3. Multiple working methods and wide application range. The internal climbing working method is suitable for various construction objects.

4. High working speed and good speed regulation performance. The radius changing mechanism adopts the most advanced frequency conversion stepless speed regulation scheme in the world, making the work more stable and reliable.

5. The main electrical components of the electrical control system are from international famous brands. Their service life is 3 to 4 times longer than that of domestic components. They have fewer faults, simple maintenance and reliable operation.

6. Various safety devices are available and are mechanical or mechatronic products, which are suitable for harsh construction environments and can ensure reliable operation of the tower crane.

7. While adhering to the principle of being in line with national conditions and ensuring safety and reliability, the design absorbs and adopts mature and reliable advanced technologies at home and abroad as much as possible to improve the technical level of the whole machine. The following mature and reliable advanced technologies are used:

1) Safety devices such as weight limiter, torque limiter, height limiter, amplitude limiter, rotation limiter, rotation and traction mechanism brakes are introduced and made locally.

2) The trolley’s anti-rope breaking device (anti-rolling car) and anti-shaft breaking device;

3) Hoisting mechanism rope arrangement system;

4) Traction rope tensioning system;

5) Rigid double-tie rod suspension large-reaching boom, the boom has good stiffness, light weight, small cross-section, low wind resistance, beautiful appearance, and several length changes to meet different construction needs;

6) The driver's cab is independent and external, with good visibility and large internal space, creating a good working environment for the operator;

7) Advanced linkage platform is used to control the movements of each mechanism, which is easy to operate and maintain.

8. The design fully complies with or is superior to relevant national standards. Because this machine has the above characteristics, it is suitable for large-scale construction projects such as high-rise civil buildings, bridges and water conservancy projects, industrial plants, and tall chimneys and silos constructed using the sliding form method.
