FAMIDOC Body Massage Physical Therapy Equipment Machine Massage Electronic Pulse Muscle Stimulator Tens Unit Physiotherapy
- Category: >>>
- Supplier: Famidoc Technology Co. Ltd.
Share on (1601164987017):
Product Overview
Description
Products Description
About this item
The product is a kind of OTC stimulator,which is widely used in hospitals and clinics in the United States, Europe and Asia.Based on our good quality and OEM&ODM service,our products have been widely recognized and praised by all kinds of buyers--government purchaser, chain Pharmacy, chain drug stores, baby commodity store, supermarkets, medical devices agents....
This product complys with relevant medical regulations and safety standards,Its main features and specifications are as follow:
This product complys with relevant medical regulations and safety standards,Its main features and specifications are as follow:
For program of TENS mode
To be used for temporary relief of pain associated with sore and aching muscles due to strain from exercise or normal household work activities.
For program of EMS mode
To be used for temporary relief of pain associated with sore and aching muscles due to strain from exercise or normal household work activities.
For program of EMS mode
To be used to stimulate healthy muscles in order to improve and facilitate muscle performance.
Specifications: | ||
Channel | Dual channel | |
Power supply | 3*1.5AAA batteries | |
Wave shape | Bi-directional square wave | |
Pulse duration and frequency | 200-250uS, 1-80Hz | |
Output voltage | The maximum output voltage is 40V±20% (load 500Ω) | |
Treatment time | 0~20 level | |

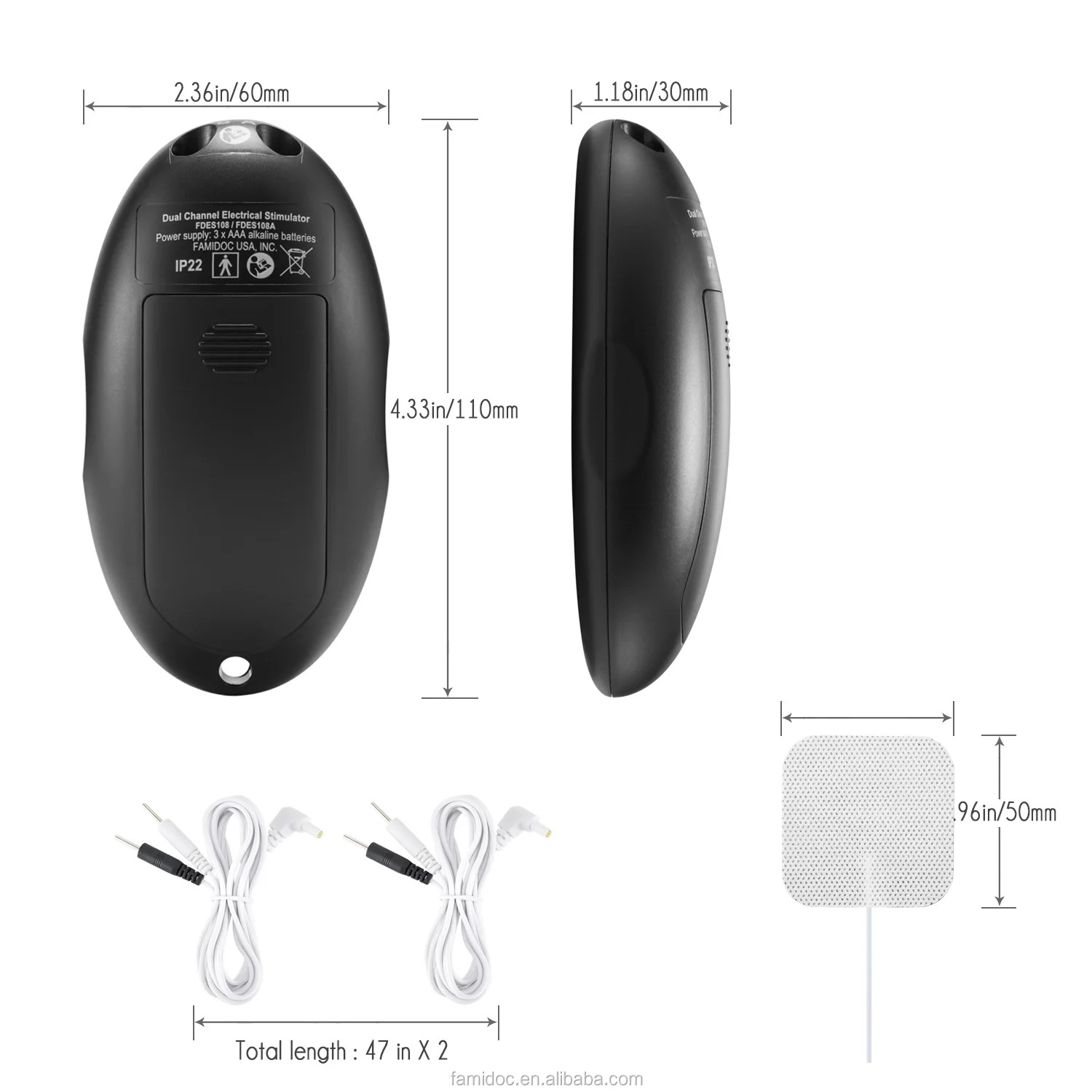

Size | 110mm*50mm*30mm | |
Working environment | 5℃~40℃, 30%RH~85%RH | |
Approval | CE-MDD | |
Images for details

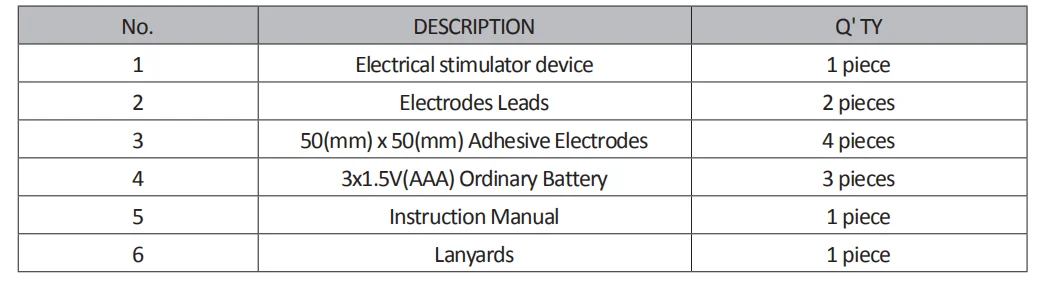

Accessories
Product Usage & Knowledge

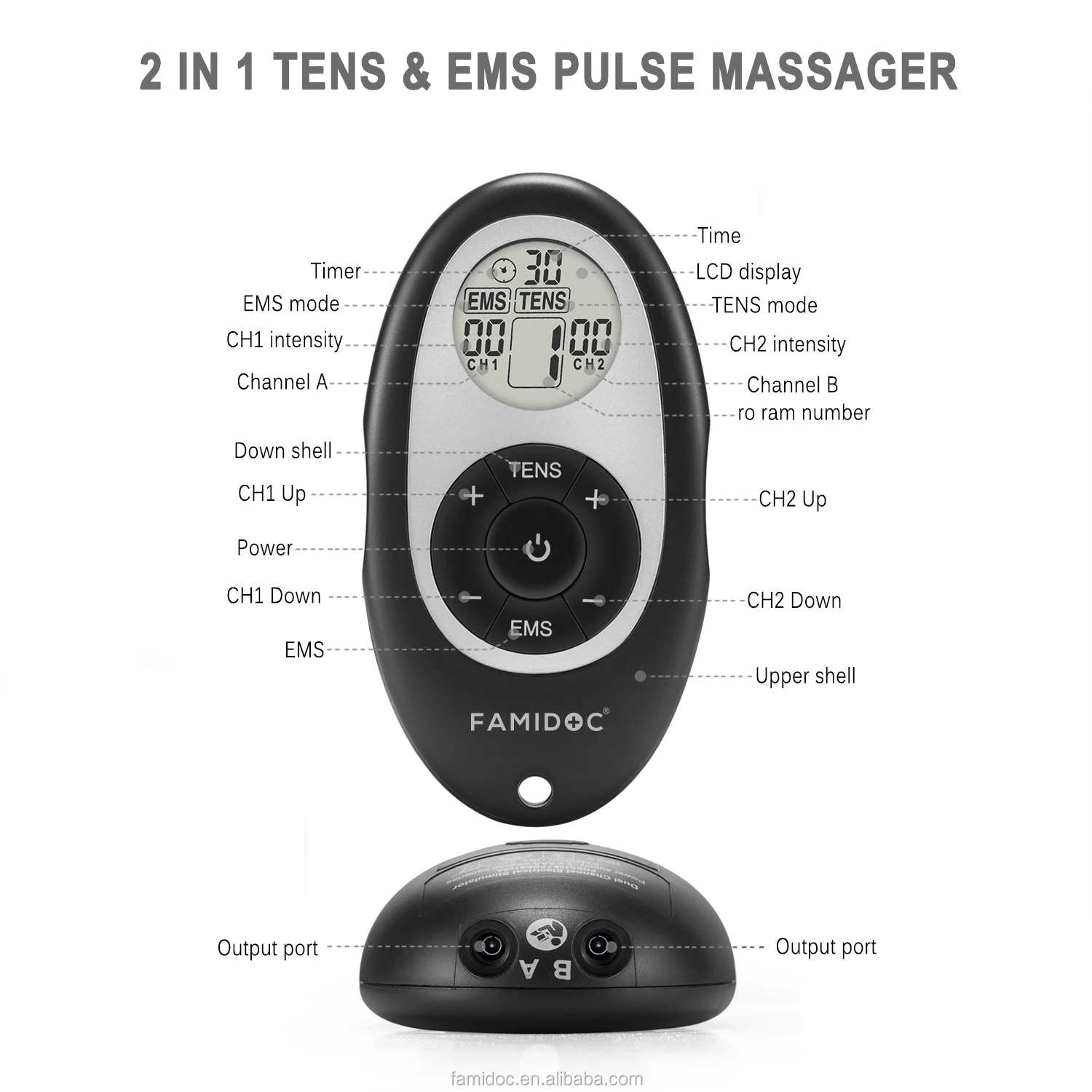

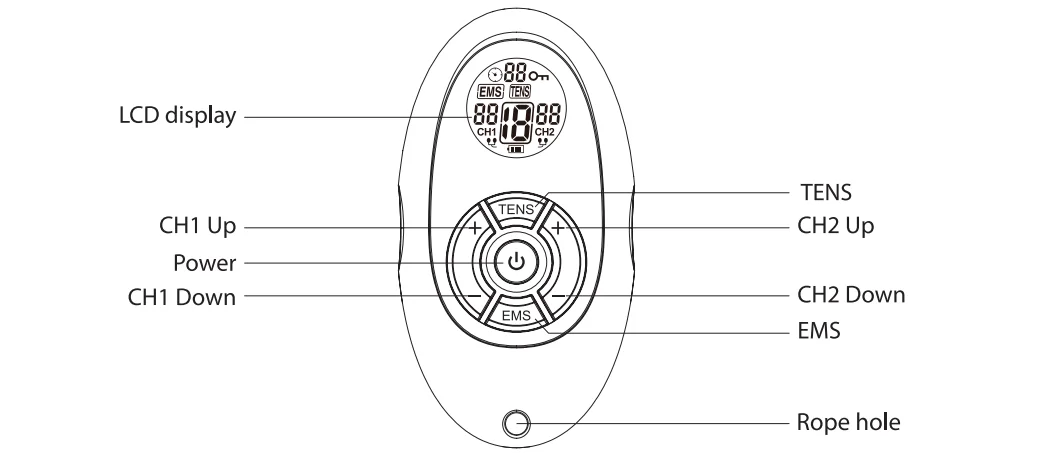

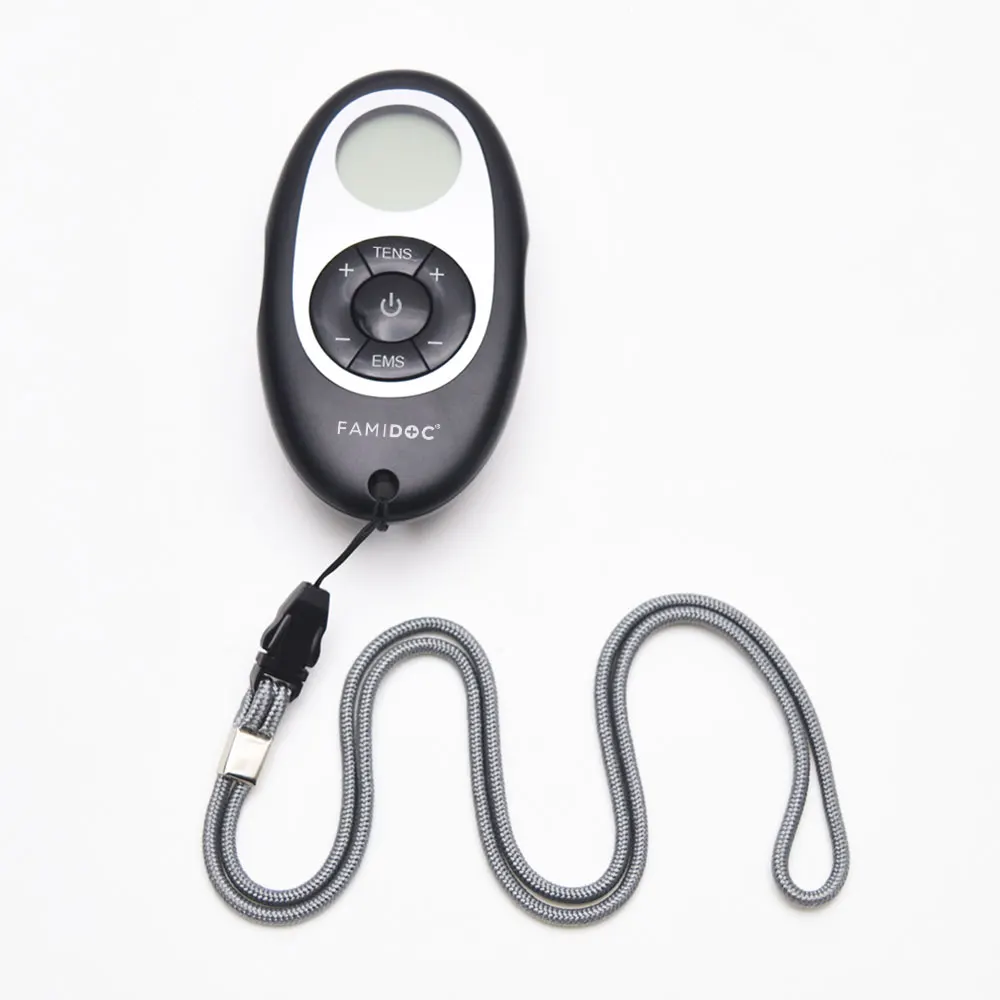

Operation interface &LCD display
1. Channel A output socket
2. Channel B output socket
3. Press[![]()
]the button of power on/off.
4. Press [ + ] to increase output intensity of channel A or channel B , press [ - ] to decrease output intensity of channel A or channel B.
5. [ TENS ]is the button of choosing TENS function; [ EMS ]is the button of choosing EMS function;

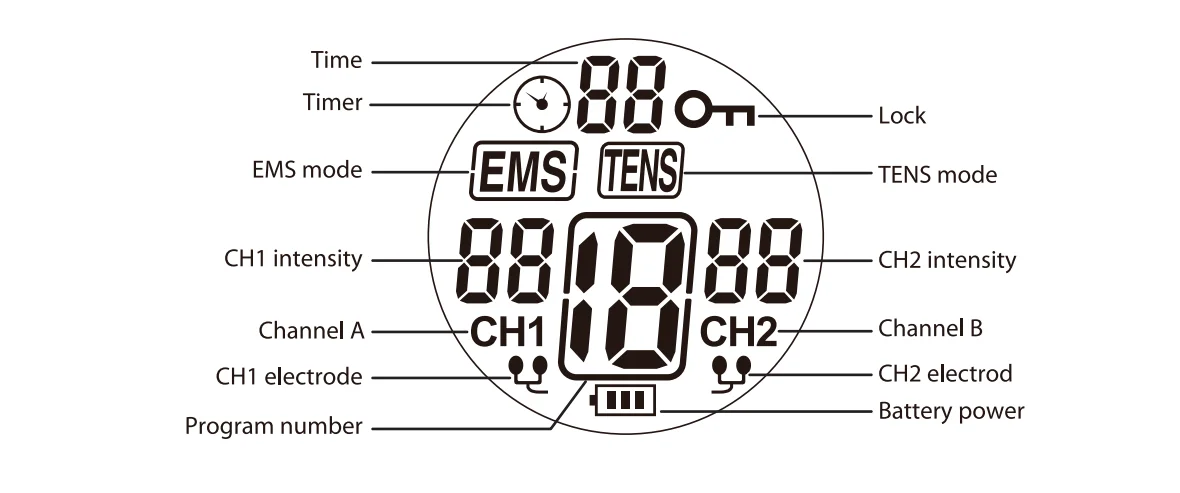

6. LCD display: Shows various user parameters and information.
2. Channel B output socket
3. Press[
4. Press [ + ] to increase output intensity of channel A or channel B , press [ - ] to decrease output intensity of channel A or channel B.
5. [ TENS ]is the button of choosing TENS function; [ EMS ]is the button of choosing EMS function;
6. LCD display: Shows various user parameters and information.
Easy to use
FDES108 is a kind of OTC stimulator, suitable for home use, you only need to use according to the user manual, place the electrode on the position where you feel pain and need to exercise, treating and adjusting based on your own feeling.
1. Check/Replace the battery
2. Connect electrodes to lead wires
3. Connect lead wires to device
4. Place electrodes on skin
5.Turn the device on
6.Select the TENS &EMS mode and adjust its intensity
2. Connect electrodes to lead wires
3. Connect lead wires to device
4. Place electrodes on skin
5.Turn the device on
6.Select the TENS &EMS mode and adjust its intensity

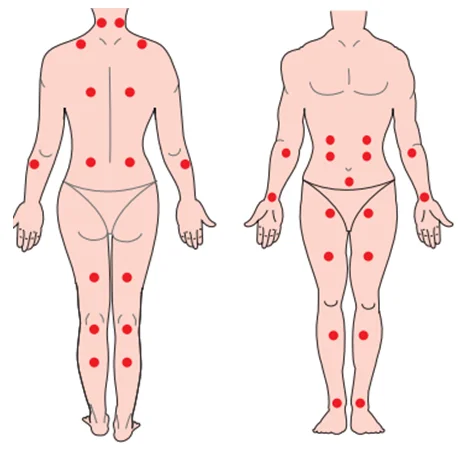

What can TENS &EMS be used for?
TENS （ Transcutaneous Electrical Nerve Stimulation）is approved for applications below: Back pain, particularly lumbar and cervical spine problems,joint pain neuralgia, women’speriod pains,pain after injuries ,pain with circulatory problems,chronic pain .
EMS（ Electrical Muscle Stimulation） is approved for applications below: muscle training ,muscle relaxation, improving muscular fatigue symptoms,accelerating
muscle regeneration after high muscular performance.
EMS（ Electrical Muscle Stimulation） is approved for applications below: muscle training ,muscle relaxation, improving muscular fatigue symptoms,accelerating
muscle regeneration after high muscular performance.

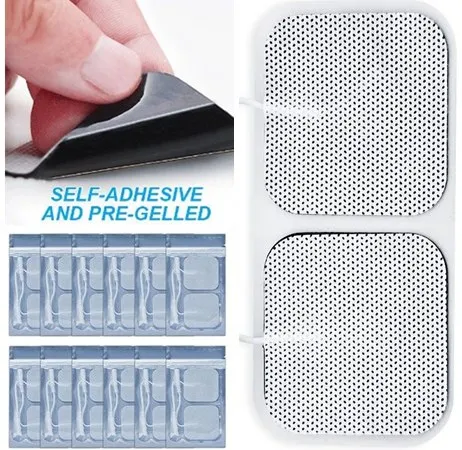

Electrode pads
Compatible\\Self-adhesion
You do not need to use any conductive gel or liquid to attach the electrode pads to the skin. Our electrodes can best fit perfectly with the skin and experience the neuro stimulation.The high quality electrode can be reused for 30 to 40 times,convenient and portable.
You do not need to use any conductive gel or liquid to attach the electrode pads to the skin. Our electrodes can best fit perfectly with the skin and experience the neuro stimulation.The high quality electrode can be reused for 30 to 40 times,convenient and portable.
Packing and shipping
This products are packed by color box and carton. Both customized packaging and Famidoc standard packaging are available.Standard: 40pcs /carton ,carton size is 538x385x325mm. It can be arrange d to ship by air ,ocean and land transportation.
Recommend Products
Company Introduction
Famidoc has 20 years' R&D and manufacturing experience in health medical device Industry . Our OEM & ODM service obtain big brand's praise and affirmation. We are the Braun 's best supplier in 2019. We are always welcoming professional partners to work with us to create a new era of prosperity.
In 2001, famdoc was approved by ISO 13485.
In 2005, we established YY- T 0 2 8 7 domestic quality management system.
In 2011,we introduced and established QSR 820, ISO 13485 under CMDCAS quality management systems, finally
In 2011,we introduced and established QSR 820, ISO 13485 under CMDCAS quality management systems, finally
successfully keep the four systems running in compatible and integrated condition.
In 2012, we joined Japanese MHLW Ministerial Ordinance No 169 quality system and got the Accreditation Certification
issued by Japan government.
In 2017, we got the first MDSAP certificate in China which is issued by SGS United Kingdom Ltd.
Famidoc,who was verified as a national high-tech enterprise in 2017, has owned more than 80 kinds of invention patents and utility model patents for various product .
Famidoc ,which covers a covers an area of about 6000 square meters and has about 400 employees, pay great attention to talent and equipment investment to make sure good products are recognized by world . Our vision is to improve human being life quality by providing affordable, convenient and reliable health care products to more family around the world.
We participate in exhibitions around the world every year, such as Medica, COMPAMED, CMEF, HKEF, and are keen to make people around the world know and enjoy our quality products &services to lead a healthier life .
