Green Energy Solar Power System Hybrid Inverter 6kw with WIFI Control Single Phase for House Inverter
- Category: >>>
- Supplier: Green Energy Co. Ltd.
Share on (1601165035102):
Product Overview
Description

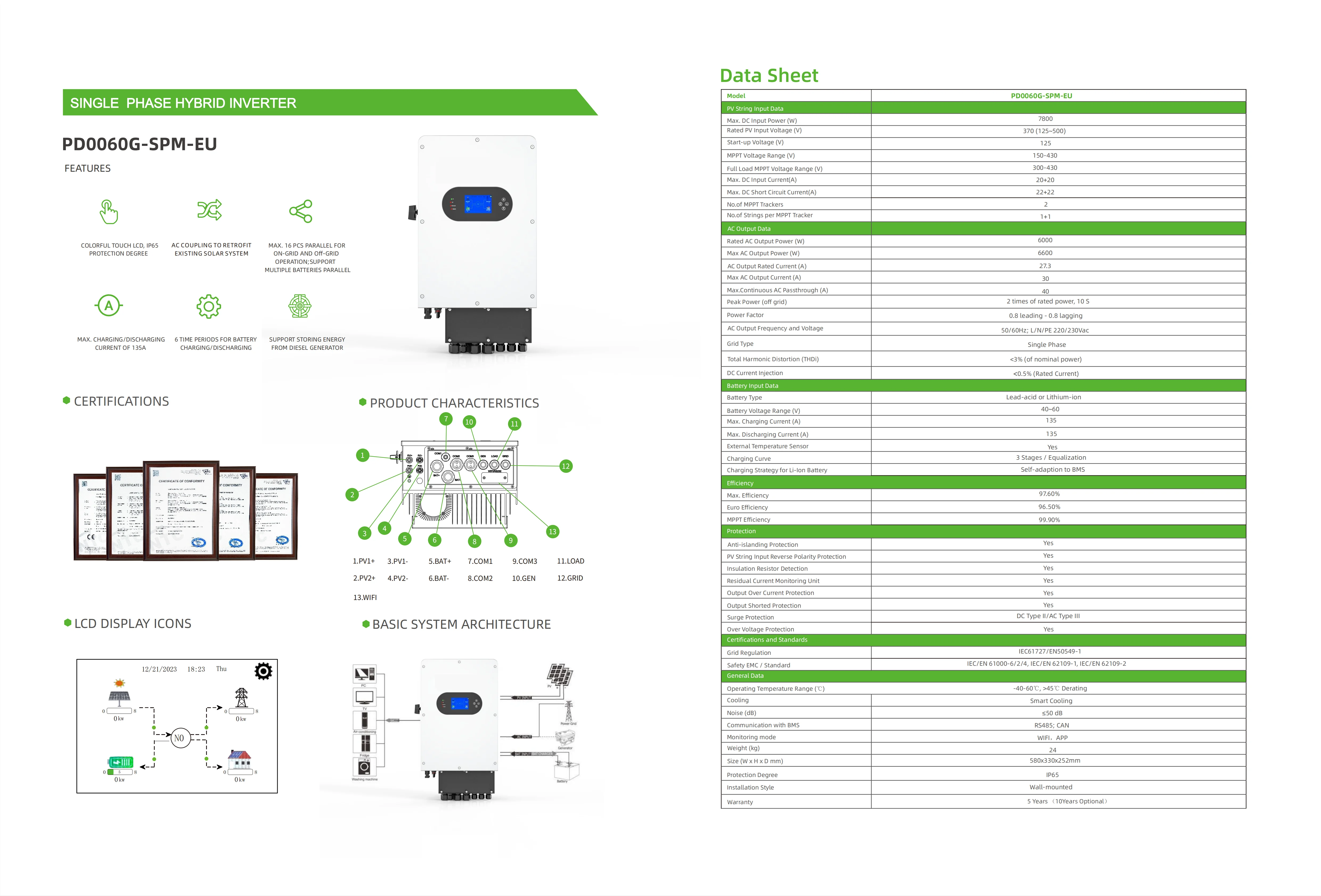

Model | PD0060G-SPM-EU | SUN-5K-SG03LP1-EU | SUN-6K-SG03LP1-EU | |||
Battery Input Data | ||||||
Battery Type | Lead-acid or Lithium-ion | |||||
Battery Voltage Range (V) | 40-60 | |||||
Max. Charging Current (A) | 135 | 120 | 135 | |||
Max. Discharging Current (A) | 135 | 120 | 135 | |||
External Temperature Sensor | Yes | |||||
Charging Curve | 3 Stages / Equalization | |||||
Charging Strategy for Li-Ion Battery | Self-adaption to BMS | |||||
PV String Input Data | ||||||
Max. DC Input Power (W) | 7800 | 6500 | 7800 | |||
Rated PV Input Voltage (V) | 370 (125-500) | |||||
Start-up Voltage (V) | 125 | |||||
MPPT Voltage Range (V) | 150-430 | |||||
Full Load DC Voltage Range (V) | 300-430 | |||||
PV Input Current (A) | 20+20 | |||||
Max. PV I (A) | 22+22 | |||||
No.of MPP Trackers | 2 | |||||
No.of Strings per MPP Tracker | 1+1 | |||||
AC Output Data | ||||||
Rated AC Output Active Power (W) | 6000 | 5000 | 6000 | |||
Max AC Output Active Power (W) | 6600 | 5500 | 6600 | |||
AC Output Rated Current (A) | 27.3 | 22.7/21.7 | 27.3/26.1 | |||
Max AC Output Current (A) | 30 | 25/23.9 | 30/28.7 | |||
Max. Continuous AC Passthrough (A) | 40 | 40 | ||||
Peak Power (off grid) | 2 time of rated power, 10 S | |||||
Power Factor Adjustment Range | 0.8 leading to 0.8 lagging | |||||
Power Factor | 1 | |||||
Output Frequency and Voltage | 50/60Hz; L/N/PE 220/230Vac | |||||
Grid Type | Single Phase | |||||
Total Harmonic Distortion (THD) | <3% (of nominal power) | |||||
DC Current Injection | <0.5% (Rated Current) | |||||
Efficiency | ||||||
Max. Effificiency | 97.60% | |||||
Euro Effificiency | 96.50% | |||||
MPPT Effificiency | 99.90% | |||||
Protection | ||||||
Integrated | Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection,Output Shorted Protection, Surge Protection | |||||
Over Voltage Category | DC Type II/AC Type III | |||||
Certififications and Standards | ||||||
IEC61727/EN50549-1Grid Regulation | IEC61727/EN50549-1 | |||||
Safety EMC / Standard | IEC/EN 61000-6/2/4, IEC/EN 62109-1, IEC/EN 62109-2 | |||||
General Data | ||||||
Operating Temperature Range (℃) | -40-60℃, >45℃ Derating | |||||
Cooling | Smart Cooling | |||||
Noise (dB) | ≤50 dB | |||||
Communication with BMS | RS485; CAN | |||||
Weight (kg) | 24 | |||||
Cabinet Size (WxHxD mm) | 580x330x252mm | |||||
Protection Degree | IP65 | |||||
Installation Style | Wall-mounted | |||||
Warranty | 5 Years (10 Years Optional) | |||||
FAQ
1.What is the difference between PWM inverter and MPPT inverter
PWM is Pulse width modulation, it is a old solar power controller technology, its efficiency is about 70%.MPPT is Maximum Power Point Tracking, it is the latest technology. it contains Low Voltage and High Voltage, 2 types. High voltage inverter efficiency up to 95%
2: How to distinguish Low voltage and high voltage inverter
Low voltage, Max PV voltage Voc < 150V. High voltage, Max PV voltage Voc > 450V
3. What is the difference between a modified sine inverter and pure sine wave inverter?
Modified sine wave power inverter is more portable than pure sine wave power inverter, lighter, and lower in cost. If the device handles voltage fluctuations, a modified sine wave inverter should be considered.Most devices that people typically wish to power will work fine with a modified sine wave inverter.Pure sine wave power inverter allows motors to run cooler, last longer and provide very clean power that is same quality with State Grid . Devices such as air conditioner, Freezer and most medical equipment require a pure sine wave inverter to run.
5.How long of the delivery time, sample order and wholesale order?
For Sample order, within 3 days; For 1000pcs wholesale order, 7-15 working days.
6. How do I know which inverter to buy?
Different devices require specific wattages to run. Please check the following formula to determine the correct watt model: AMPS x 120 = Watt For Example: 20 Amp Freezer Unit * 120 = 2400 Watts
PWM is Pulse width modulation, it is a old solar power controller technology, its efficiency is about 70%.MPPT is Maximum Power Point Tracking, it is the latest technology. it contains Low Voltage and High Voltage, 2 types. High voltage inverter efficiency up to 95%
2: How to distinguish Low voltage and high voltage inverter
Low voltage, Max PV voltage Voc < 150V. High voltage, Max PV voltage Voc > 450V
3. What is the difference between a modified sine inverter and pure sine wave inverter?
Modified sine wave power inverter is more portable than pure sine wave power inverter, lighter, and lower in cost. If the device handles voltage fluctuations, a modified sine wave inverter should be considered.Most devices that people typically wish to power will work fine with a modified sine wave inverter.Pure sine wave power inverter allows motors to run cooler, last longer and provide very clean power that is same quality with State Grid . Devices such as air conditioner, Freezer and most medical equipment require a pure sine wave inverter to run.
4. Do you accept OEM and ODM service?
Yes, we accept OEM and ODM service.
Yes, we accept OEM and ODM service.
5.How long of the delivery time, sample order and wholesale order?
For Sample order, within 3 days; For 1000pcs wholesale order, 7-15 working days.
6. How do I know which inverter to buy?
Different devices require specific wattages to run. Please check the following formula to determine the correct watt model: AMPS x 120 = Watt For Example: 20 Amp Freezer Unit * 120 = 2400 Watts
