FG360 self adhesive PET modified bitumen Geotextile Membrane Waterproof Pond Liner roof membrane waterproof
- Category: >>>
- Supplier: Yunnan Xincheng Waterproof SCI-TECH.CO. LTD.
Share on (1601165068896):
Product Overview
Description
Product Description

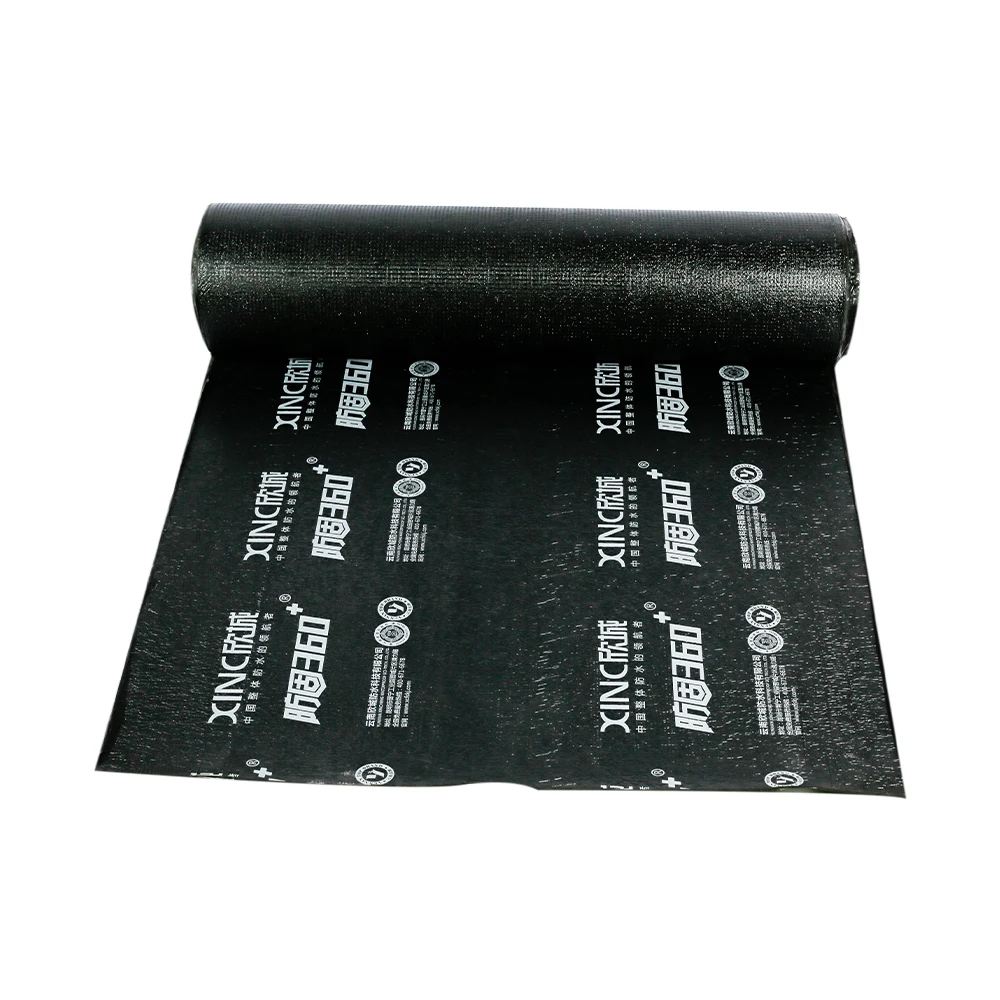

FG360+ Puncture Resistance PET self-adhesive bitumen waterproof membrane for Ice and Water Shield

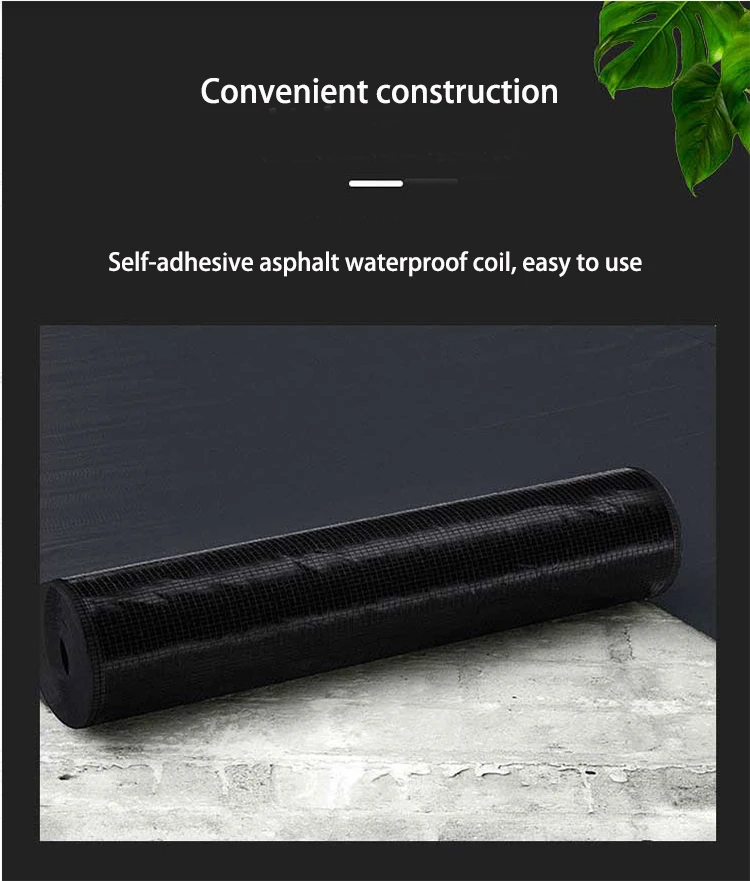

Recommended reason: super self-adhesive, easy construction
Wet spread polymer modified asphalt waterproof coil is a waterproof coil which is made of polyester fiber non-woven fabric as the base, self-adhesive modified asphalt on both sides, silicone oil isolation film, polyethylene film, fine sand and other spacing materials on the lower surface, and silicone oil isolation film or silicone oil isolation paper as the isolation material.The enhanced polymer waterproof coil can be composed on the polymer sheet according to the need

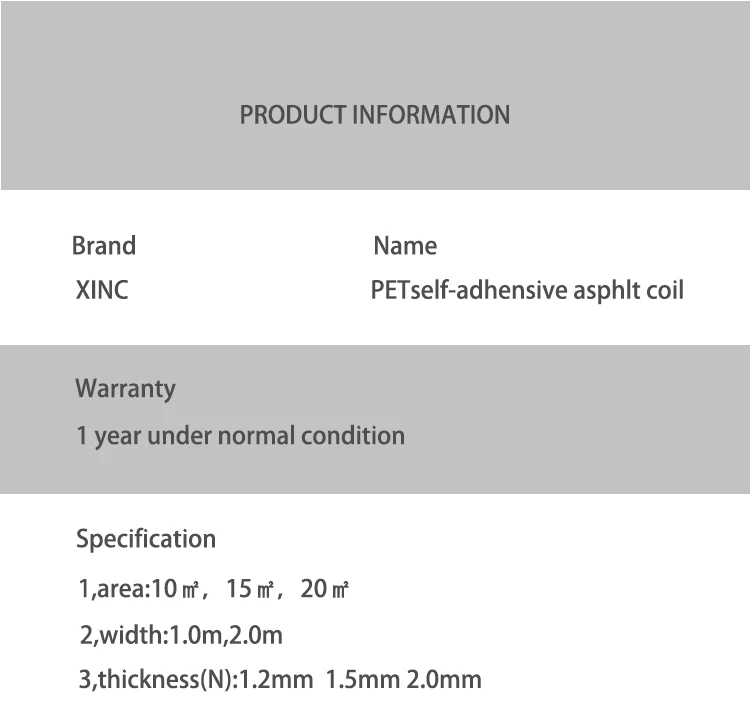

Specification:1, acreage: 10㎡，15㎡，20㎡
2, breadth: 1.0m
3, Thickness; H, E are 1.5mm,2.0mm ; PY is 3.0mm
2, breadth: 1.0m
3, Thickness; H, E are 1.5mm,2.0mm ; PY is 3.0mm
Features:
1, The strong cross-laminated high density polyethylene (HDPE) film is designed with a vertical and horizontal mesh structure, which has higher tear strength and dimensional stability, and better waterproof performance than ordinary films
2, Good adhesion, high adhesion strength with cement, good thermal stability, with anti-ultraviolet radiation performance
3, It is bonded with the building base with water slurry, no need to undercoat, hot melt, no fire hazard, no need to special treatment of uneven base, simple construction, safety and environmental protection
4, The cement mortar is used as the bonding material, which has strong damage resistance and excellent waterproof function, and effectively prevents liquid water and water vapor from entering the structure
1, The strong cross-laminated high density polyethylene (HDPE) film is designed with a vertical and horizontal mesh structure, which has higher tear strength and dimensional stability, and better waterproof performance than ordinary films
2, Good adhesion, high adhesion strength with cement, good thermal stability, with anti-ultraviolet radiation performance
3, It is bonded with the building base with water slurry, no need to undercoat, hot melt, no fire hazard, no need to special treatment of uneven base, simple construction, safety and environmental protection
4, The cement mortar is used as the bonding material, which has strong damage resistance and excellent waterproof function, and effectively prevents liquid water and water vapor from entering the structure

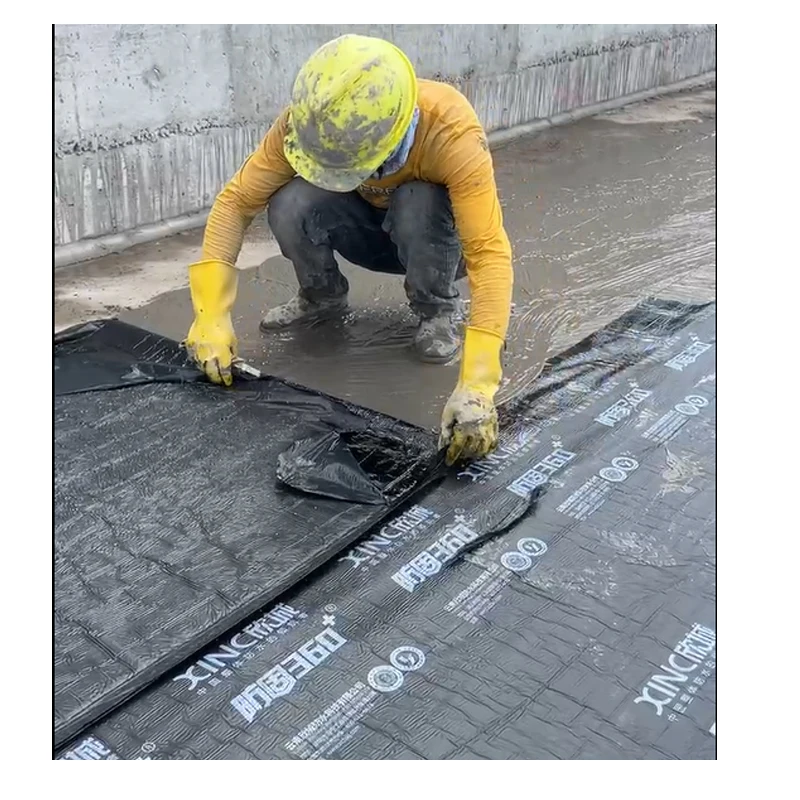

Install-Wet laying method:
refers to the construction method that will be used for the wet laying waterproof coil for the non-exposed waterproof project, and the cement gel (plain cement slurry) is bonded to the base. Suitable for all kinds of industrial and civil building roof, basement and other waterproof projects, especially suitable for high waterproof grade, poor construction environment, wet, in time for the construction of waterproof projects.
refers to the construction method that will be used for the wet laying waterproof coil for the non-exposed waterproof project, and the cement gel (plain cement slurry) is bonded to the base. Suitable for all kinds of industrial and civil building roof, basement and other waterproof projects, especially suitable for high waterproof grade, poor construction environment, wet, in time for the construction of waterproof projects.
Construction key points: pad pouring and ramming (with pouring and smoothing) - self-adhesive coil empty spread - tear off the isolation paper - spread cement powder - tie steel bar (protection) - repair - pouring concrete
Specification
item | value |
Warranty | 1 Year |
Project Solution Capability | graphic design, 3D model design, total solution for projects, Cross Categories Consolidation |
Application | Sports Venues |
Design Style | Contemporary |
Place of Origin | YunNan |
Brand Name | XINC |
Model Number | FG360+ |
Type | waterproof coils |
Product Name | wet laid polymer modified asphalt waterproof coil |
Keyword | wet laid |
Main material | polymer modified asphalt |
Surface | pe |
Usage | waterproof engineering, underground garage, roof greening, roof garden |
Advantage | high waterproof grade for wet |
Thickness | 1.2mm 1.5mm,2.0mm |
Adhesive | double self adhesive |
Packing | roll into a roll |
warranty | 12 months |
No | Item（(Wet spread polymer modified asphalt waterproof coil） | Index(standard：GB/T 35467-2017) | ||||||
H | E | PY | ||||||
1 | Soluble content/(g/㎡） ≥ | 2100 | ||||||
2 | tensile property | pull/(N/50mm) ≥ | 300 | 200 | 150 | |||
Elongation at maximum tension/% ≥ | 50 | 180 | 30 | |||||
Elongation phenomenon | no separation between the rubber layer and the polymer membrane or the fetal base | |||||||
3 | tear force/N | 20 | 25 | 200 | ||||
4 | heat resistance （70℃，2h) | No flow, drip, slip≤2mm | ||||||
5 | low temperature flexibility（-20℃） | no crack | ||||||
6 | unpermeability（0.3MPa 120min) | imperviousness | ||||||
7 | Coil and coil Peel strength/(N/min) | untreated | 1 | |||||
Immersion treatment | 0.8 | |||||||
heat treatment | 0.8 | |||||||
8 | Oiliness/number of sheets ≤ | 2 | ||||||
9 | stickiness/min | 30 | ||||||
10 | With cement mortar Peel strength/(N/mm)≥ | untreated | 1.5 | |||||
heat treatment | 1 | |||||||
11 | Peel strength after immersion with cement mortar/(N/mm) ≥ | 1.5 | ||||||
12 | thermal ageing（80℃，168h) | Tensile retention rate /% ≥ | 90 | |||||
Elongation retention rate /% ≥ | 80 | |||||||
low temperature flexibility （-18℃） | no crack | |||||||
13 | Dimensional change rate/% | ±1.0 | ±1.5 | ±1.5 | ||||
14 | heat stability | No bulging, flowing, polymeric membrane or basal edges The maximum crimp should not exceed 1/4 of the side length | ||||||

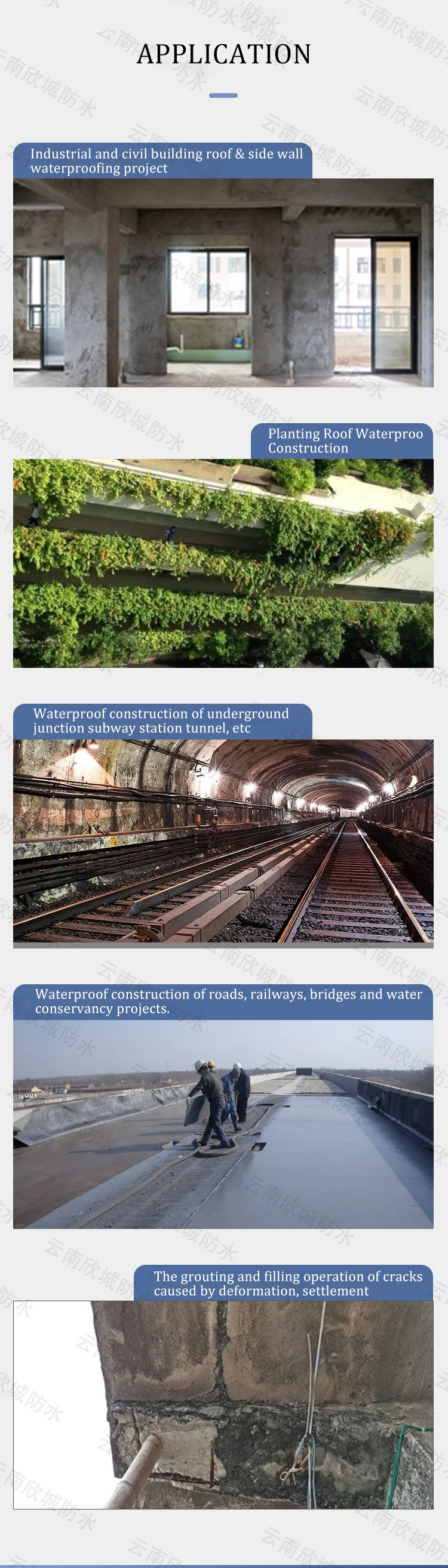

Application
1,Wet spread polymer modified asphalt waterproof coil is used for non-exposed waterproof engineering, cement mortar is used to bond with the base, and self-adhesive lap joint is recommended between the coil
2, Applicable to civil construction roofing, basement, reservoir, swimming pool, municipal engineering and subway tunnel waterproofing, can also be used for underground garage, roof greening, roof garden and other projects waterproofing, especially for not allowed to use open fire projects
Packing & Delivery

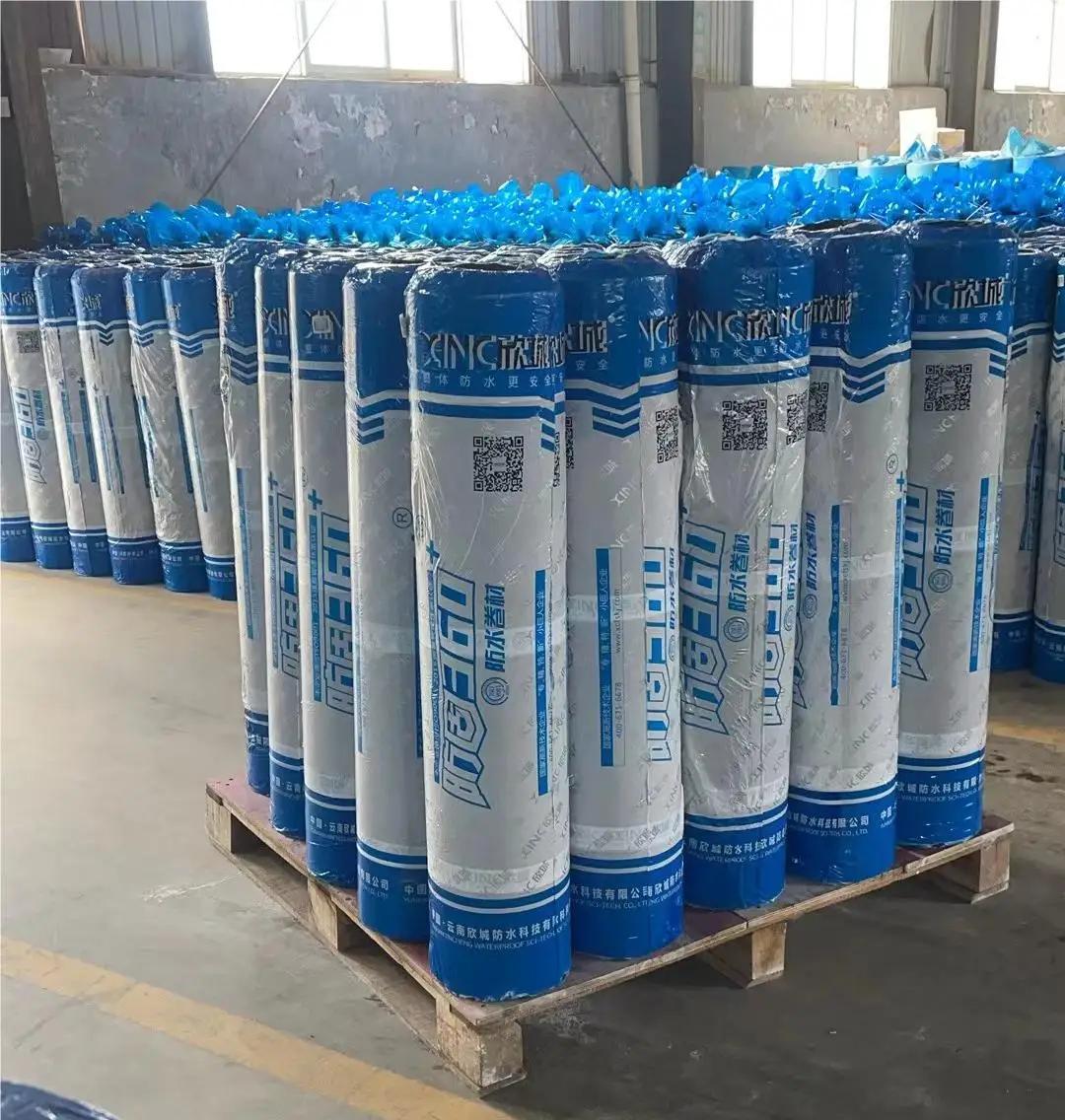

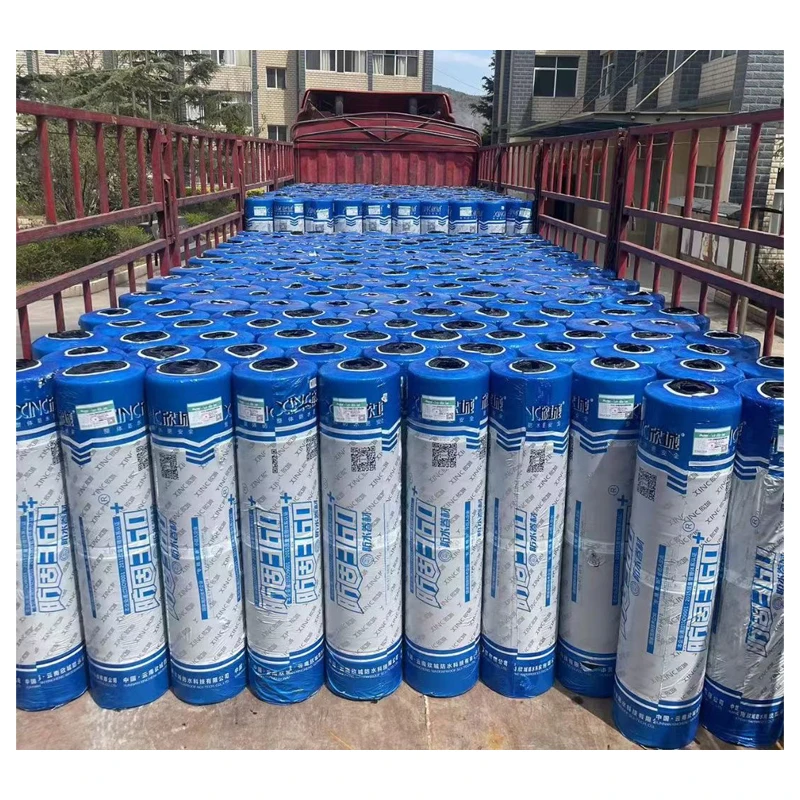

26 rolls in one tray
Packaging and storage
1,Should be stored in a dry, ventilated environment, to prevent sun and rain, moisture, storage temperature is not higher than 45℃ Storage and transportation, different categories, specifications of the coil should be stacked separately, vertical storage shall not tilt or cross transverse pressure, horizontal storage height does not exceed 5 layers.
2, Under normal storage and transportation conditions, the storage period is one year from the date of production
1,Should be stored in a dry, ventilated environment, to prevent sun and rain, moisture, storage temperature is not higher than 45℃ Storage and transportation, different categories, specifications of the coil should be stacked separately, vertical storage shall not tilt or cross transverse pressure, horizontal storage height does not exceed 5 layers.
2, Under normal storage and transportation conditions, the storage period is one year from the date of production
