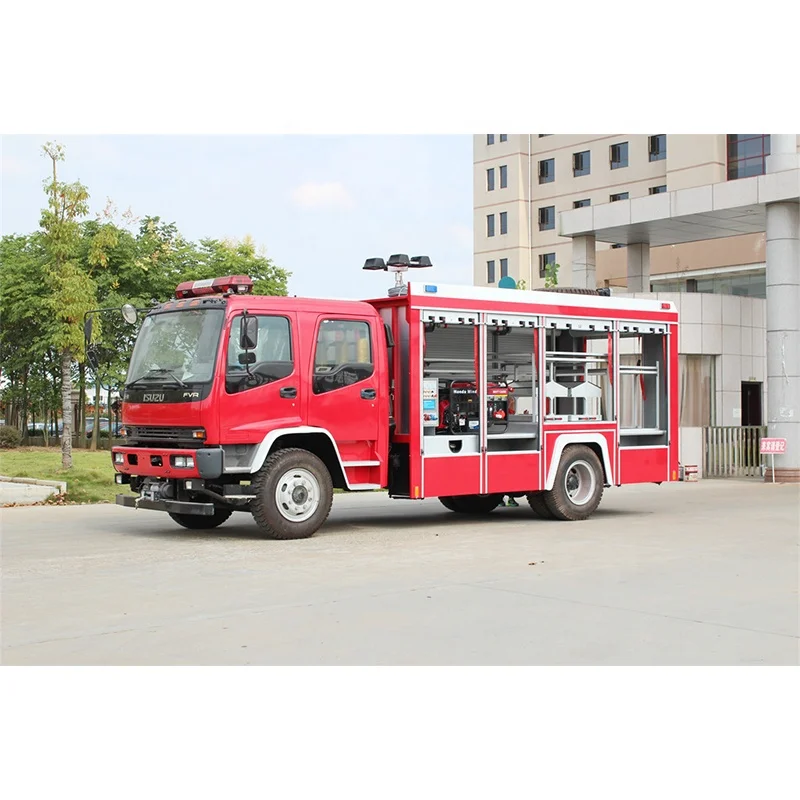

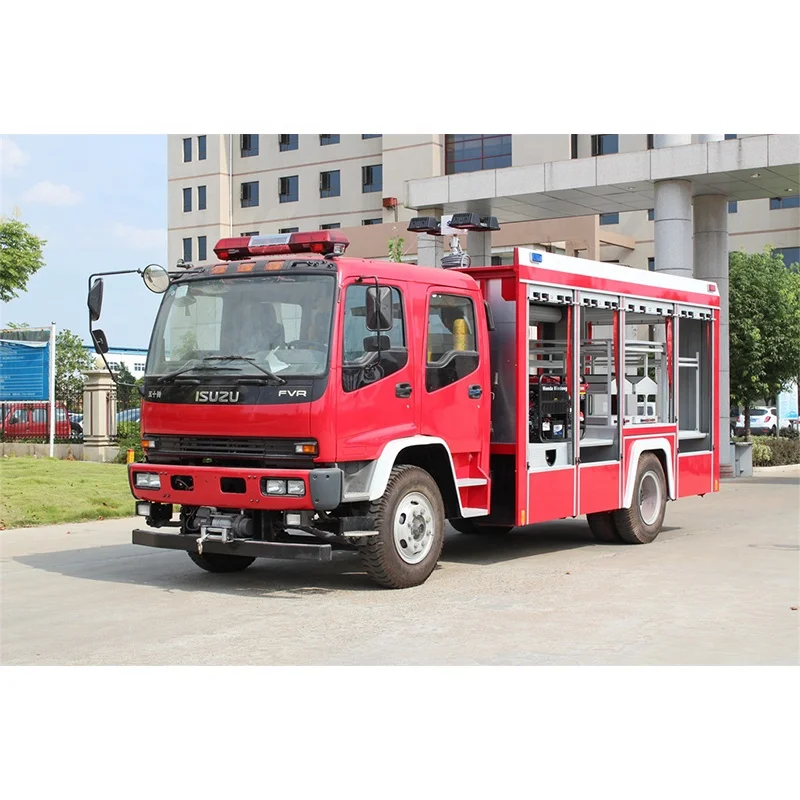

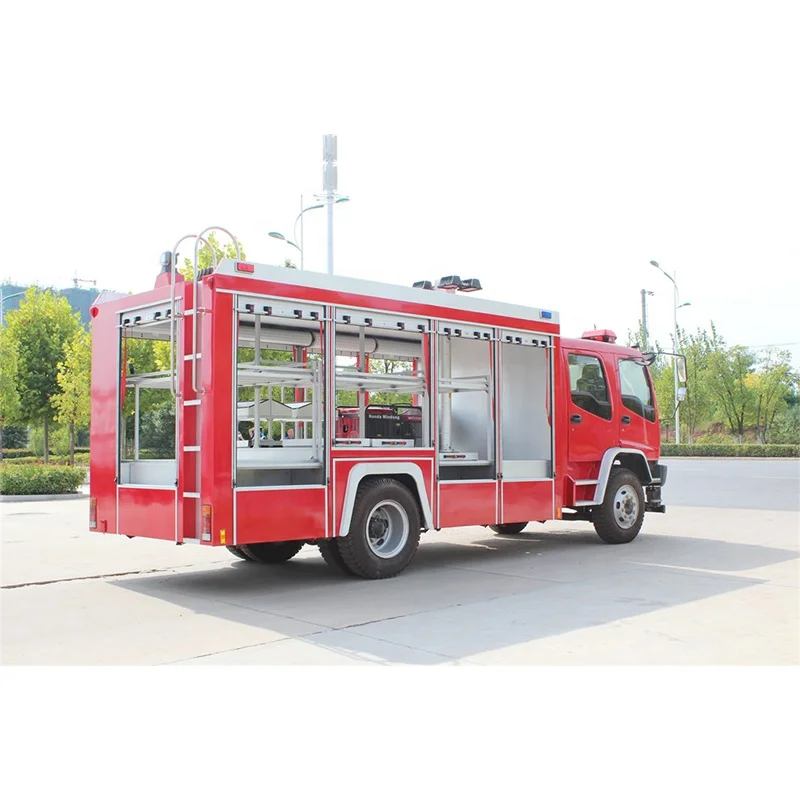

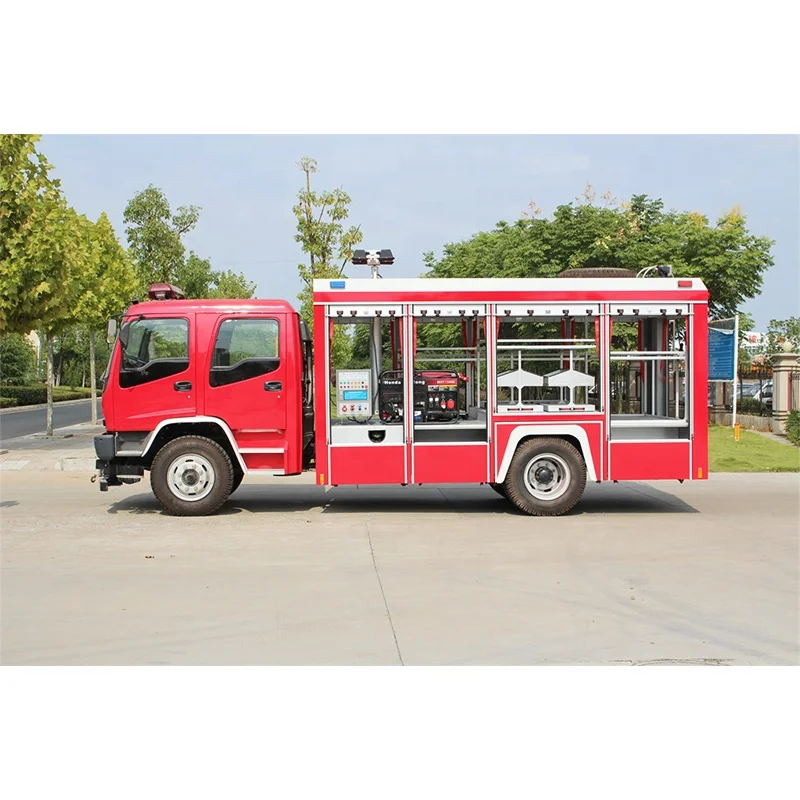

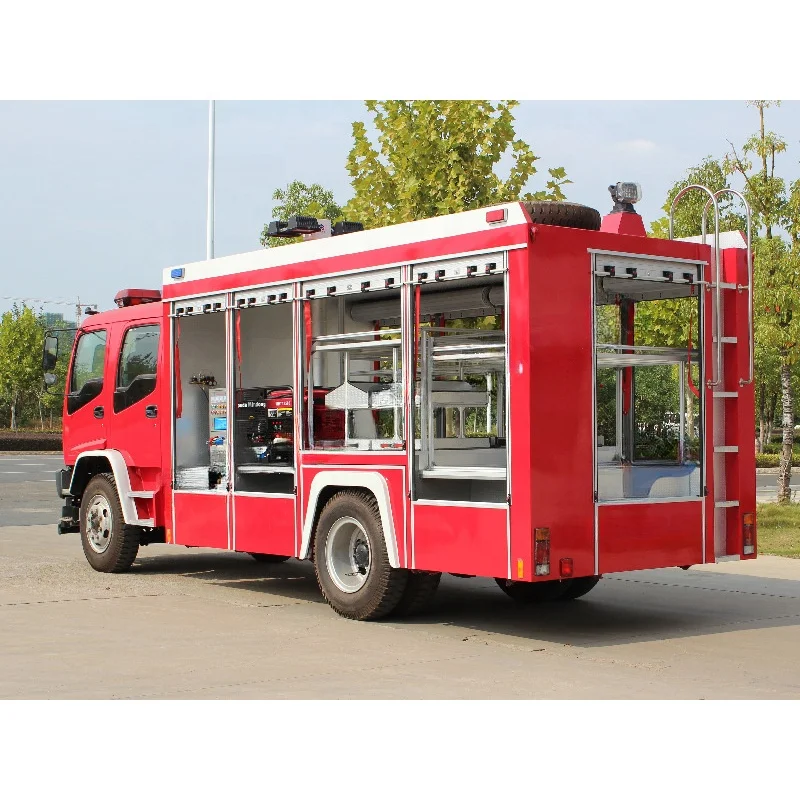

Isuzu FVR Emergency Rescue Fire Truck

Truck Specification

Chassis model

GP MOTORS

Cab

ISUZU F series single cab, with power steering. Electronic flameout,with a/c

Driving Type

4*2 Left hand driving

Max Speed (km/h)

90

Overall dimension(mm)

8820×2500×3450mm

GVW( kg)

19000

Mass in working order ( kg)

11000

Rated payload

8000kg

Wheelbase(mm)

4600

Tire

295/80R22.5 (6+1)

Clutch

Single-plate dry diaphragm spring clutch

Steering

Hydraulic steering with power assistance

Gear box

10-speed

Bridge

Front axle

7T

Rear axle

13T

Engine

Model

ISUZU 6HK1

Fuel Type

Diesel fuel

Type

Water-cooled four-stroke,, direct injection, turbocharged

Exhaust(ml)

7800

Max output power/rotate speed (hp /rpm )

240HP

Braking system

Service Brake

Compressed air brake

Park Brake

Spring energy

Auxiliary brake

engine exhaust brake

Eletric system

24v

Upper-Body specification

Cabin

Single CABIN ,3 PERSON ALLOWABLE

Crane

Model

SQ5ZK2

Lifting capacity

5000kg

Arm qty

3

Winch

Qty

1

Capacity

3000kg

Search light

Rotating angle

360°

Working height

5m, auto lifting

Buble

500w*4pcs

Max wind velocity

<6 grade

Genaral power

5kw

Fire truck body

Truck body is empty, equipments are optional

color

The whole vehicle is red for fire fighting, there are white in the middle of truck in accordance with the whole truck

Technical Parameter

Lifting lighting system

Main light

4x1000w Yuntai DC12V

Lifting height

7.6M air pump AC220V

Electric control box

AC380V wired remote control

Hydraulic crane

Maximum rated lifting quality

3200kg

Maximum lifting torque

4Ton.m

Maximum working range

5.8M

Maximum lifting height

7.4M

Maximum leg span

3540mm

Front electric winch

Voltage

24VDC

Current

240A

Calibration pull

8000kgf (3629kg)

Speed ratio

150:01:00

Speed

5.6m/min

generator

Voltage

380V

Power

10kv/A

Electric start / hand start

Fire truck special function description

Cab

Flat-top all-metal enclosed cab, double row seat, four-door, panoramic curved windshield. Optional new front cover, front bumper,
front combination light, door and window, front under cover.

Equipment box

It is manufactured by the built-in tower technology of aluminum alloy profiles produced by European technology, and is fully
spliced. Aluminum alloy shutter doors are used

Electrical configuration

The front end of the cab is a long row of police lights, and the rear of the car is equipped with a 24V/60W fire field lighting.
The red and blue matching strobe lights are arranged on the upper sides of the vehicle, and the safety sign lights, passenger
compartment and equipment box are installed below. The pump room is equipped with lighting, plus 100W alarm, rotary warning light
switch, communication equipment preparation interface.
