Product Overview
Description
Raw materials | High performance 12k carbon fiber |
Specifications | 12K |
Material Density | 1.80±0.02(g/m³) |
Tensile Strength of Raw Materials | ≥4900MPa |
Modulus of Elasticity of the Material | 220~260GPa |
Elongation at Break of Raw Materials | ≥1.8% |
Sizing agent content | 0.6~1.2% |

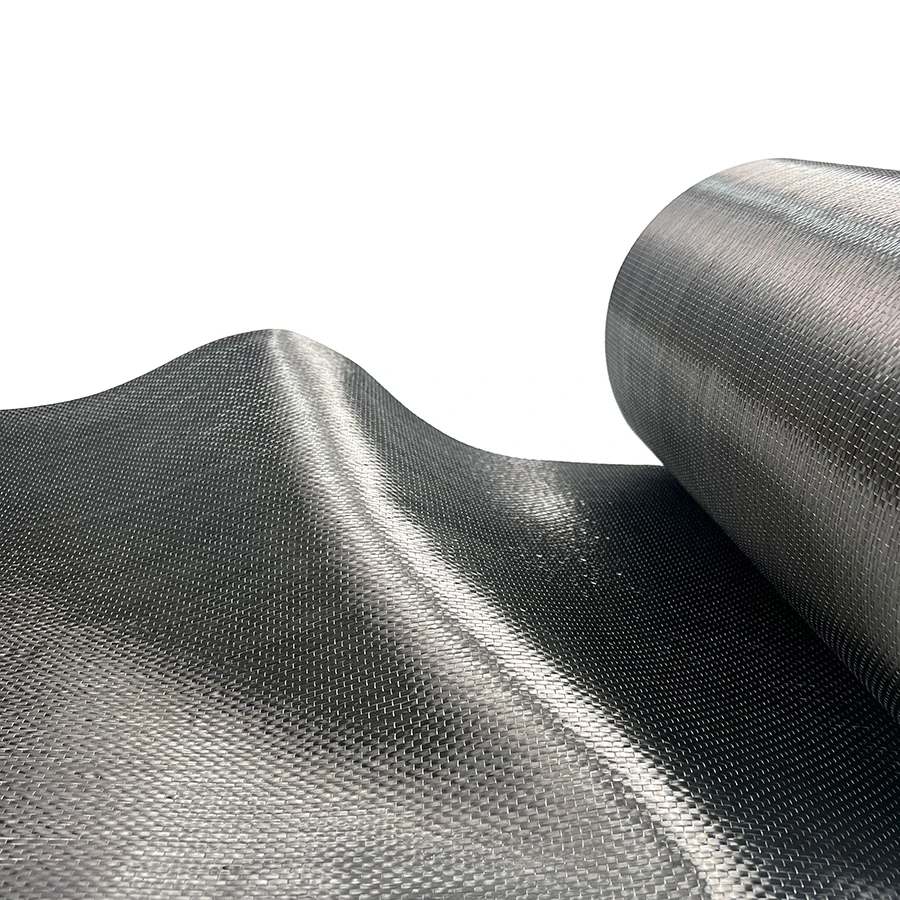

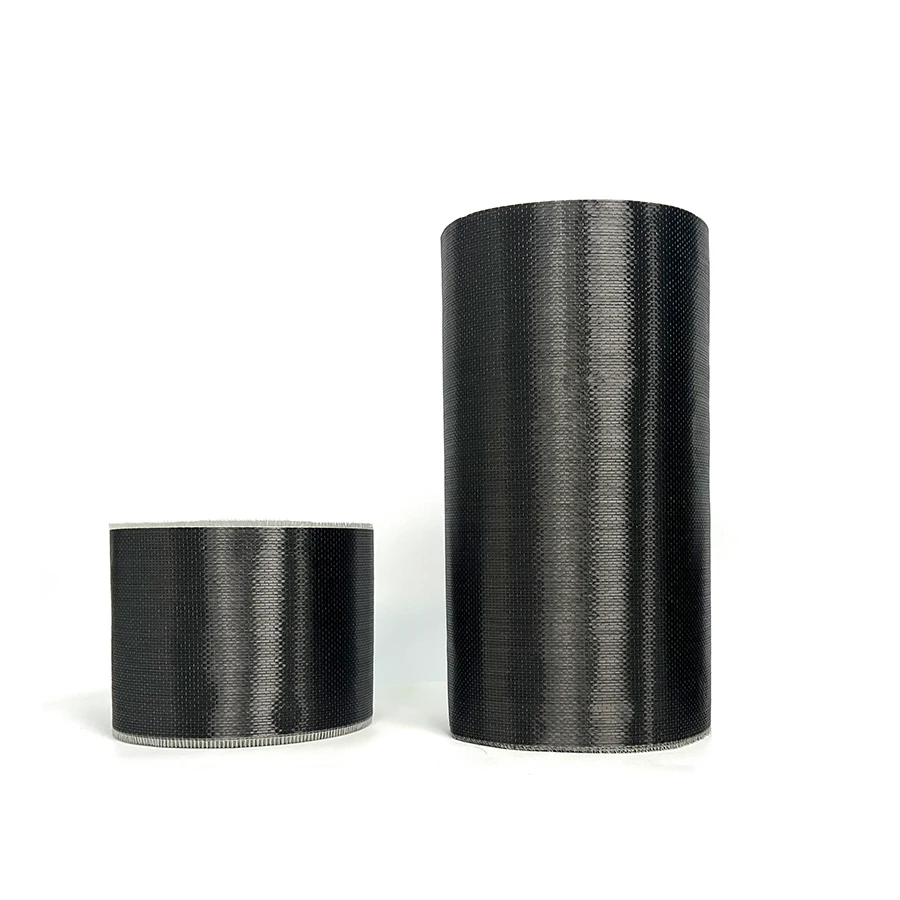

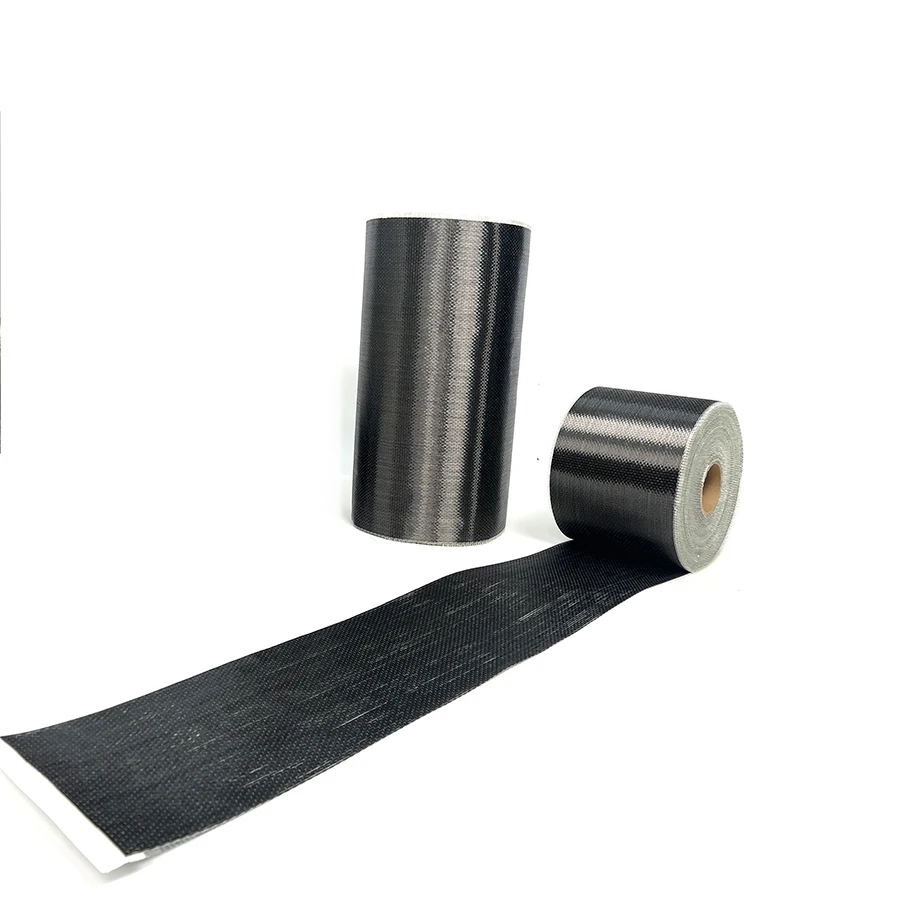

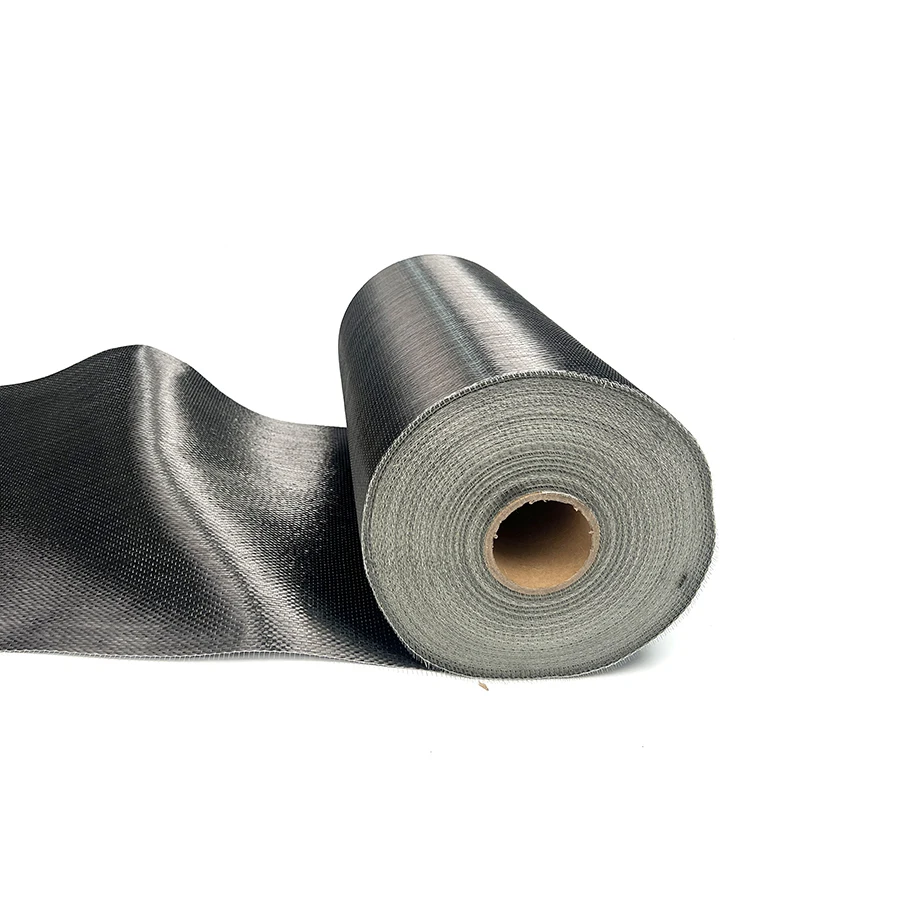

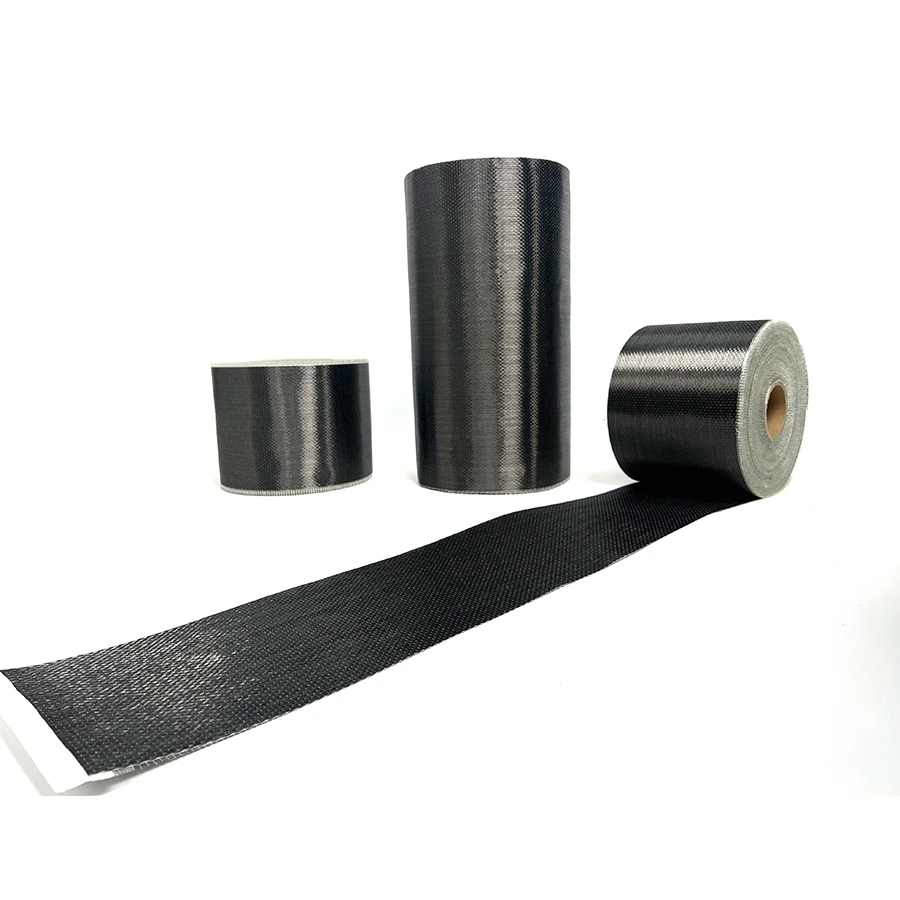

Product Name | Carbon fiber unidirectional fabric for high-performance building reinforcement |
Square gram weight | 300gsm |
Width | 50mm/100mm/150mm/200mm/250mm/300mm/500mm |
Thickness | 0.167mm |
Color | Black |
Tensile Strength(Standard value) | ≥3000MPa |
Tensile Modulus of Elasticity | ≥200GPa |
Elongation at Break | ≥1.5% |
Bending Strength(Average value) | ≥600MPa |
Interlaminar Shear Strength(Aver age value) | ≥35MPa |
Positive Tensile Bond Strength Be tween FRP and Substrate (Average value) | For concrete and brick base: ≥ 2.5MPa For steel base: ≥ 3.5MPa And it must not be adhesive failure |
TYPE | THICKNESS（mm） | INTENSITY LEVEL | Square gram weight |
BYFabric-200UC CF S | 0.111mm | I | 200g/m² |
BYFabric-200UC CF S | 0.111mm | Ⅱ | 200g/m² |
BYFabric-300UC CF S | 0.167mm | I | 300g/m² |
BYFabric-300UC CF S | 0.167mm | Ⅱ | 300g/m² |
BYFabric-400UC CF S | 0.222mm | I | 400g/m² |
BYFabric-400UC CF S | 0.222mm | Ⅱ | 400g/m² |
BYFabric-600UC CF S | 0.333mm | I | 600g/m² |
BYFabric-600UC CF S | 0.333mm | Ⅱ | 600g/m² |
1. Company situation (years of establishment, foreign trade team)
The company was established in 2018, headquartered in Shenzhen, and formed a foreign trade team in 2023.
2. What certifications does the company have, and which certifications are not available in all companies in the same industry?
3. What are the advantages of company products (price, raw materials, workmanship, quality inspection, service, etc.)
Price: Large company scale, high production volume, and precise cost control
Raw materials: Only aviation grade raw materials are used
Equipment: Introducing advanced weaving equipment and automated extrusion equipment from Germany
Quality inspection: Strictly control every detail from raw materials to finished product packaging
4. Has the company participated in Alibaba activities (such as Qicheng, Orange Merit Camp, Dream Seeking, Orange Battle, etc.)? Do you have any relevant photos?
nothing
5. Are there any positive reviews of the company from customer communication? Do you have a screenshot
nothing
6. Does the original intention show the company's credit insurance to the buyer?
like
7. What are the well-known large enterprises among existing customers?
China Aviation Technology Industry Co., Ltd
8. Has the company participated in major foreign exhibitions? Do you have any relevant photos?
nothing
9. Company product positioning, such as targeting high-end consumer customers or low-end consumer customers? Running volume or doing high value-added?
High end consumer customers and sales volume
10. What is the company's market positioning and the main export markets in which regions?
The company was established in 2018, headquartered in Shenzhen, and formed a foreign trade team in 2023.
2. What certifications does the company have, and which certifications are not available in all companies in the same industry?
3. What are the advantages of company products (price, raw materials, workmanship, quality inspection, service, etc.)
Price: Large company scale, high production volume, and precise cost control
Raw materials: Only aviation grade raw materials are used
Equipment: Introducing advanced weaving equipment and automated extrusion equipment from Germany
Quality inspection: Strictly control every detail from raw materials to finished product packaging
4. Has the company participated in Alibaba activities (such as Qicheng, Orange Merit Camp, Dream Seeking, Orange Battle, etc.)? Do you have any relevant photos?
nothing
5. Are there any positive reviews of the company from customer communication? Do you have a screenshot
nothing
6. Does the original intention show the company's credit insurance to the buyer?
like
7. What are the well-known large enterprises among existing customers?
China Aviation Technology Industry Co., Ltd
8. Has the company participated in major foreign exhibitions? Do you have any relevant photos?
nothing
9. Company product positioning, such as targeting high-end consumer customers or low-end consumer customers? Running volume or doing high value-added?
High end consumer customers and sales volume
10. What is the company's market positioning and the main export markets in which regions?
America, Malaysia, Germany, Türkiye, Italy, Thailand, Russia, Indonesia, Vietnam, India, Brazil, South Korea, Japan, Cambodia, Philippines
