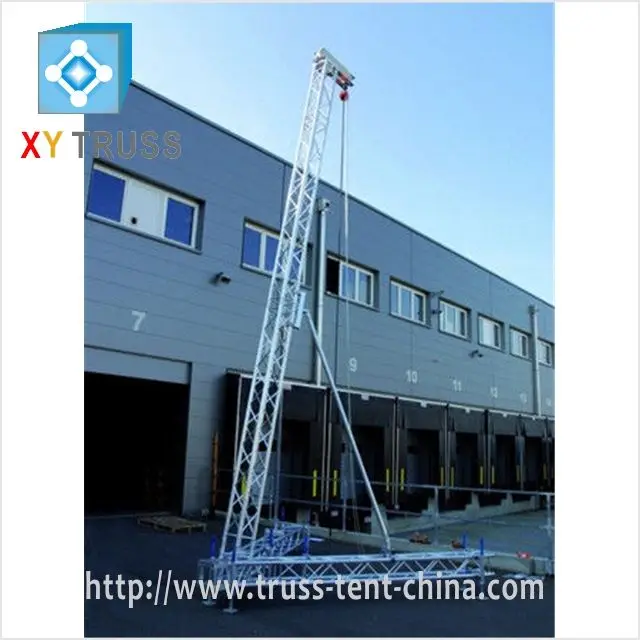

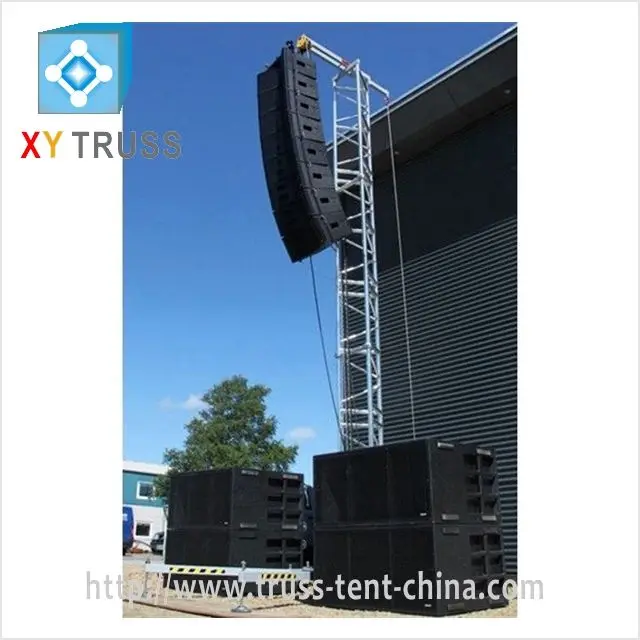

XY truss company 8m large outdoor line larry trusses aluminum triangle speaker truss tower for sale
- Category: >>>
- Supplier: Guangzhou Xingyue Performance Equipment Co. Ltd.
Share on (1601165306010):
Product Overview
Description
Specification

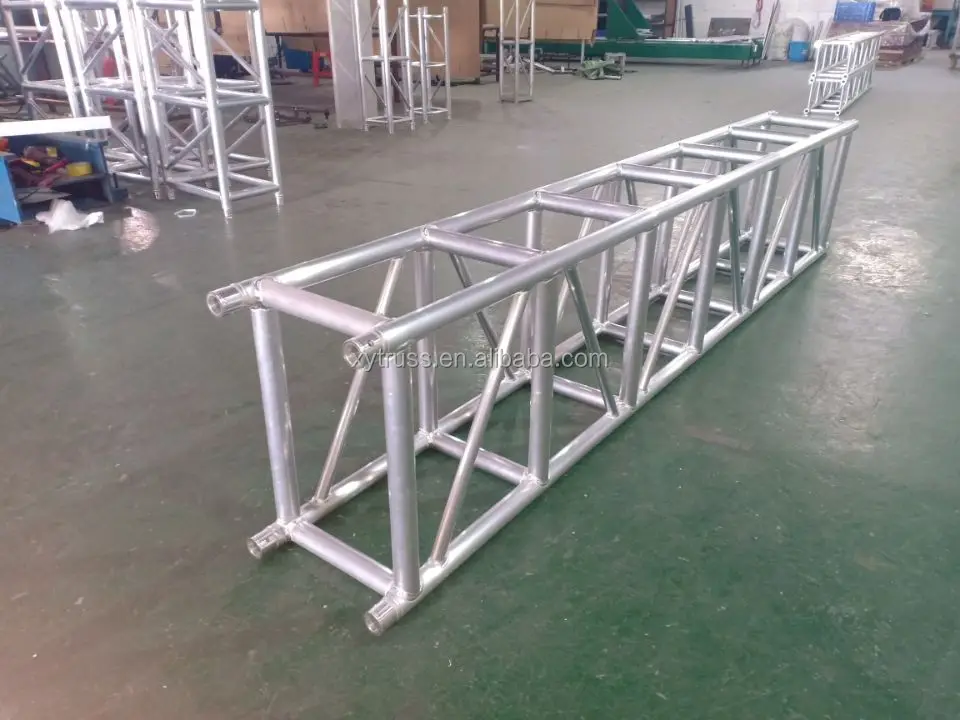

Hot Sale Triangle Stage Lighting Truss
When the 400 * 600MM truss is carrying 50KG / M, the maximum safety span is 20M. When hanging a heavy object, when the center of the beam sags to 160MM, you need to stop hanging.
Model: x-HT46
section size 400x600mm.
main tube: Φ50x3mm ,
Snakebrace: Φ 30x2mm,
material: alu-6061 T6,
Max span 20m
Other Heavy truss SIZE | MAIN TUBLE | BRACE TUBLE | Max span |
520x760mm | 50x4mm | 30x2mm | 24m |
600x760mm | 50x4mm | 30x2mm | 26m |
530x530mm | 50x4mm | 30x2mm | 22m |
500x1000mm | 50x4mm | 30x3mm | 28m |
600x1200mm | 50x4mm | 40x2mm | 30m |
750x1500mm | 50x4mm | 40x2mm | 34m |
folding truss 530x580mm | 50x4mm | 40X2MM | 24m |
Product Description
We have two materials of 6082 and 6061 to choose from.
6082 hardness reaches 17.5 degrees
6061 hardness reaches 15.5 degrees
On the surface, the two materials are basically the same, but the components are different.
All our materials have test reports, please ask for them.
The electrodes we use are also of high quality.

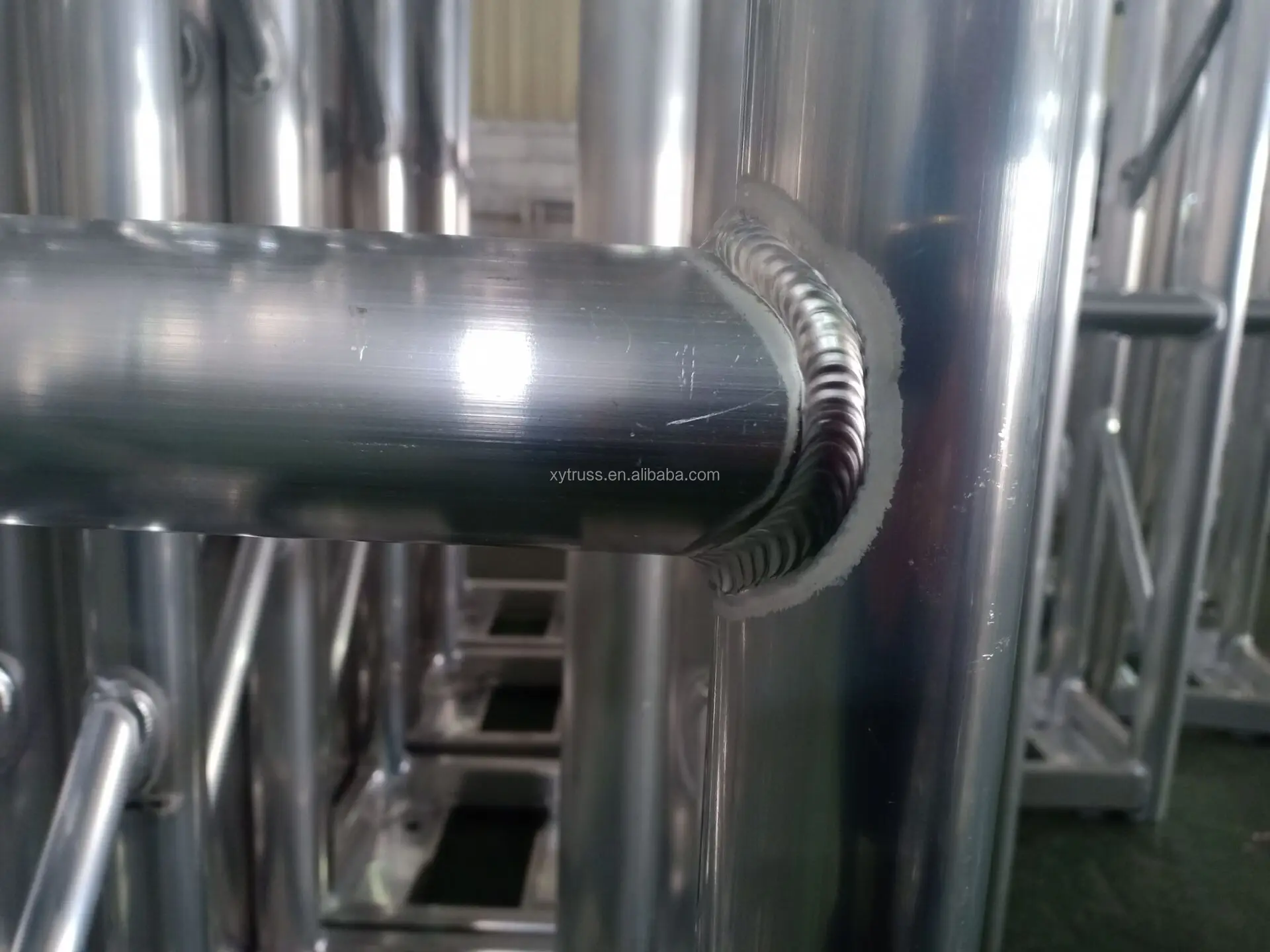

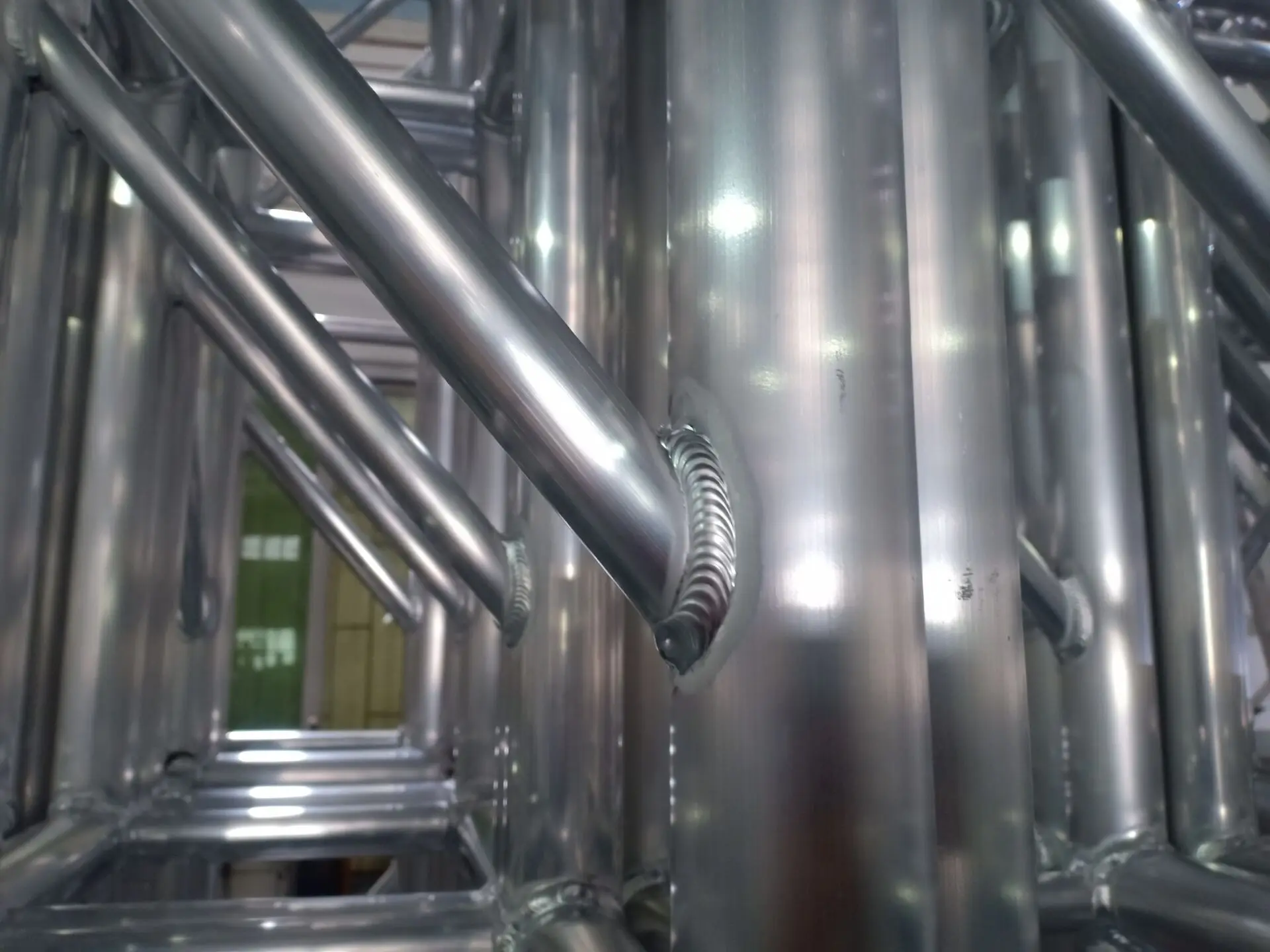

The most important thing is the welding technology of our welders,
That is beautiful, and has reached the best melting point, which makes the welding bond between the main pipe and the auxiliary pipe the strongest.
Our Production line, From 100mm Decorative aluminum truss to 1500mm heavy duty concert truss has been put into production. Not only that, Product line extends to the aluminum truss accessory products. Such as all kinds of stage, tower systems, lift stands are playing their role in all over the world.
X-HT46- Goal post truss
Set up an 18 * 7M high goal post truss, use 400 * 600MM as the beam, 350 * 350MM as the column, you can hang the LED screen, or stage lighting and sound, the price of this set is about 2800USD.
X-HT46 Sleeve block
Aluminum sleeve block, use 50x50x3mm square tube, 3 way weld connecting spigot.

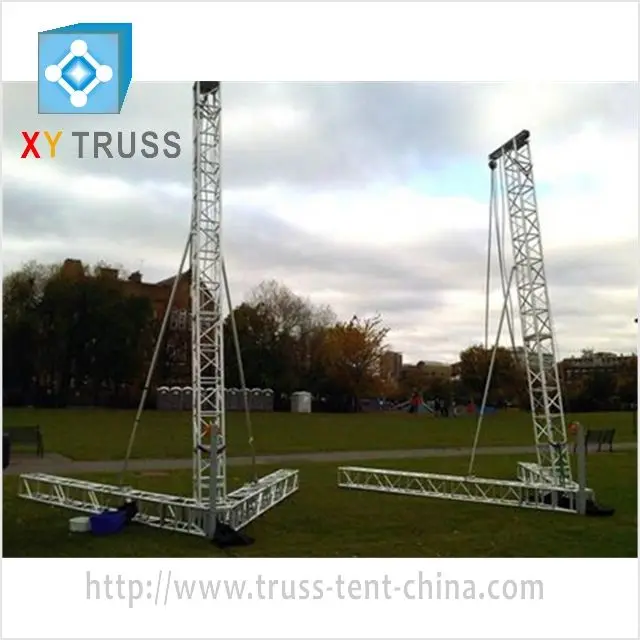

Base and long outrigger
Base size 700x700x200mm,
when install long outrigger size 2.7x2.7m
long outrigger length 2m
Base size 700x700x200mm
long outrigger length 2m, extend steel tube 1.5m
Installation Process
sleeve block, pillar 350x350mm, beam 400x600mm
Steel top seciton and chain hoist
400 * 600MM truss can also be used in the following cases
Regardless of whether it is a curved structure or a triangular roof structure, a 400 * 600MM truss can be used as a beam.
12x2x6m arch tent truss.
Use 290x290mm spigot truss
Main tuble:50x2mm
Snakebrace:20x2mm
Max span:13m
14x12x7m canvos truss.
Use 350x350mm spigot truss
Main tuble:50x3mm
Snakebrace:25x2mm
Main tuble:50x3mm
Snakebrace:25x2mm
Max span:16m.
16x12x8m 6pillars roof truss.
Use 400x400mm spigot truss
Main tuble:50x3mm
Snakebrace:25x2mm
Max span:16m.
Applications
X-LED-03.
LED screen frame truss.
6x5m ,use FT44 TRUSS,
load:2000kg
X-LED-05
LED screen frame truss.
6x5m ,use FT44 TRUSS,
load:2000kg
X-LED-07.
LED screen frame truss.
8x6m ,use FH34 TRUSS,
load:3000kg
ARCH ROOF TRUSS.
stage roof truss.
large stage roof truss
Certifications
Company Information
FAQ
Q1. Can I have a sample order for truss or stage?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for truss or stage order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by sea. DHL, UPS, FedEx or TNT also optional. It usually takes 3-5 days by express.
Q5. How to proceed an order for truss or stage?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the order and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on truss or stage?
A: Yes. Please inform us formally before our production.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the defective product?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.1%.
Secondly, during the guarantee period, we will send new product with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
