Price:$13,500.00 - $15,000.00

Quantity:


Product Overview

Description



Product Description


99.999% Pure Hydrogen Filling Stations H2 Compressors for Oil Gas Industry




Diaphragm compressor according to the needs of the user, choose the right type of compressor to meet the needs of the user. The diaphragm of the metal diaphragm compressor completely separates the gas from the hydraulic oil system to ensure the purity of the gas and no pollution to the gas. At the same time, advanced manufacturing technology and accurate membrane cavity design technology are adopted to ensure the service life of the diaphragm compressor diaphragm. No pollution: the metal diaphragm group completely separates the process gas from the hydraulic oil and lubricating oil parts to ensure the gas purity.

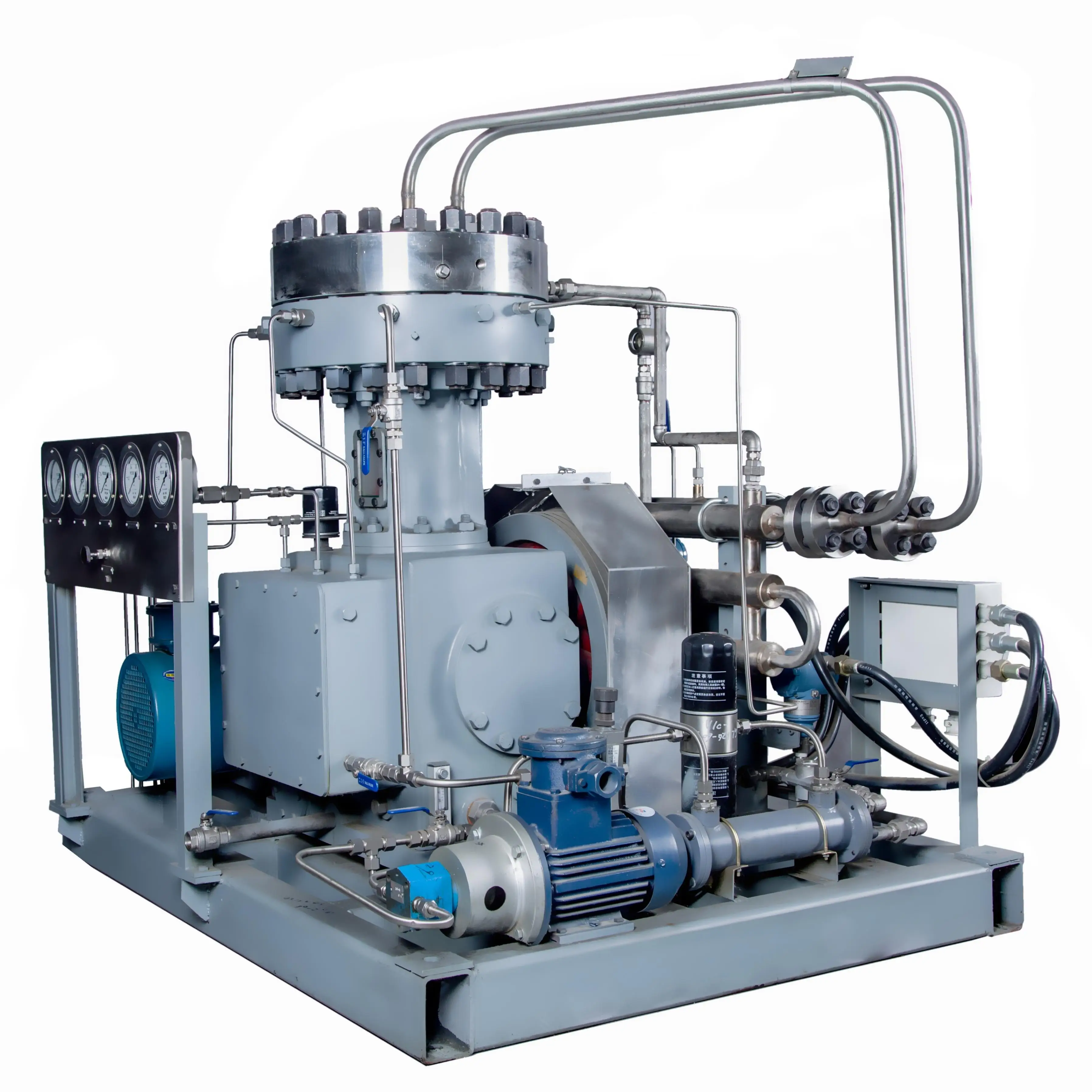

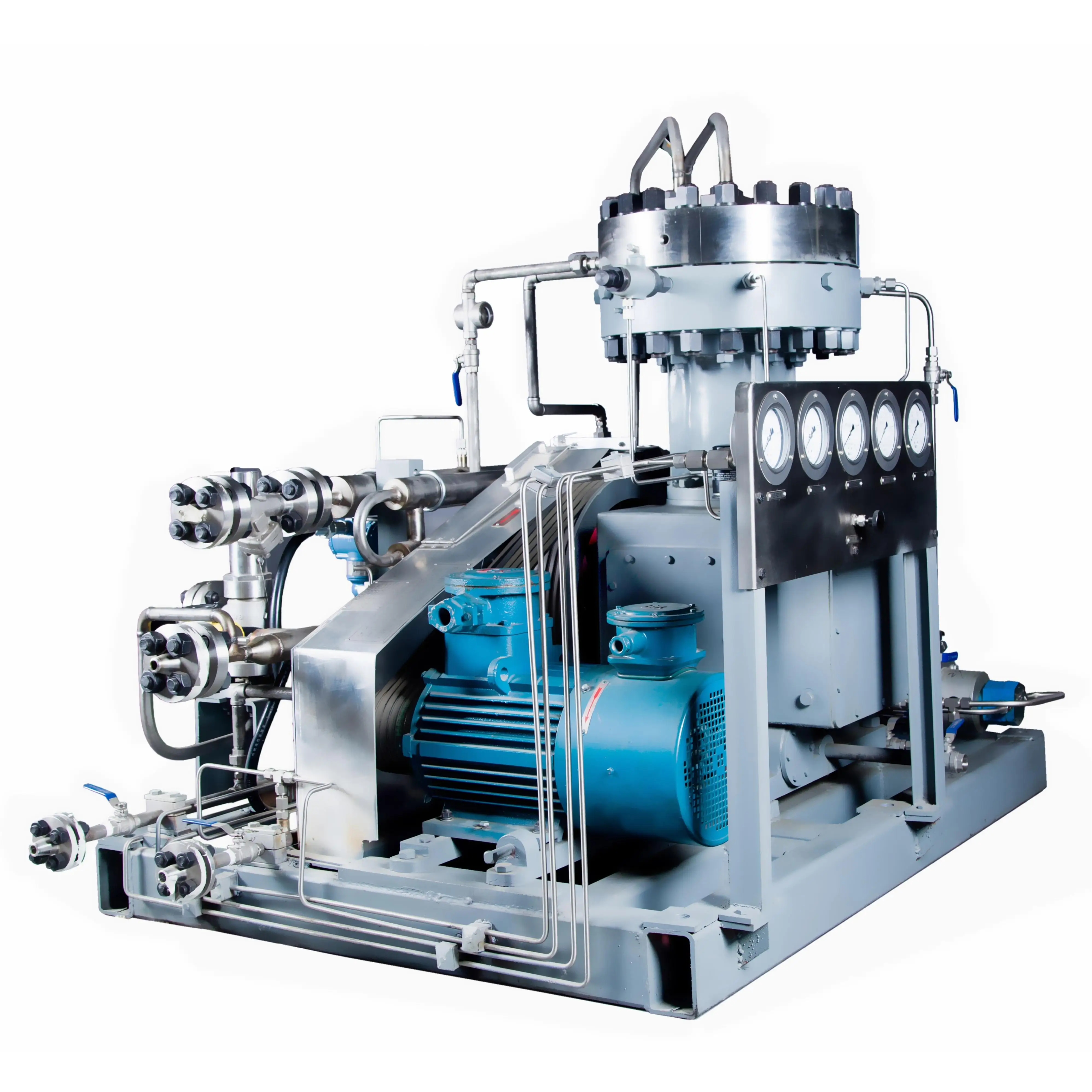

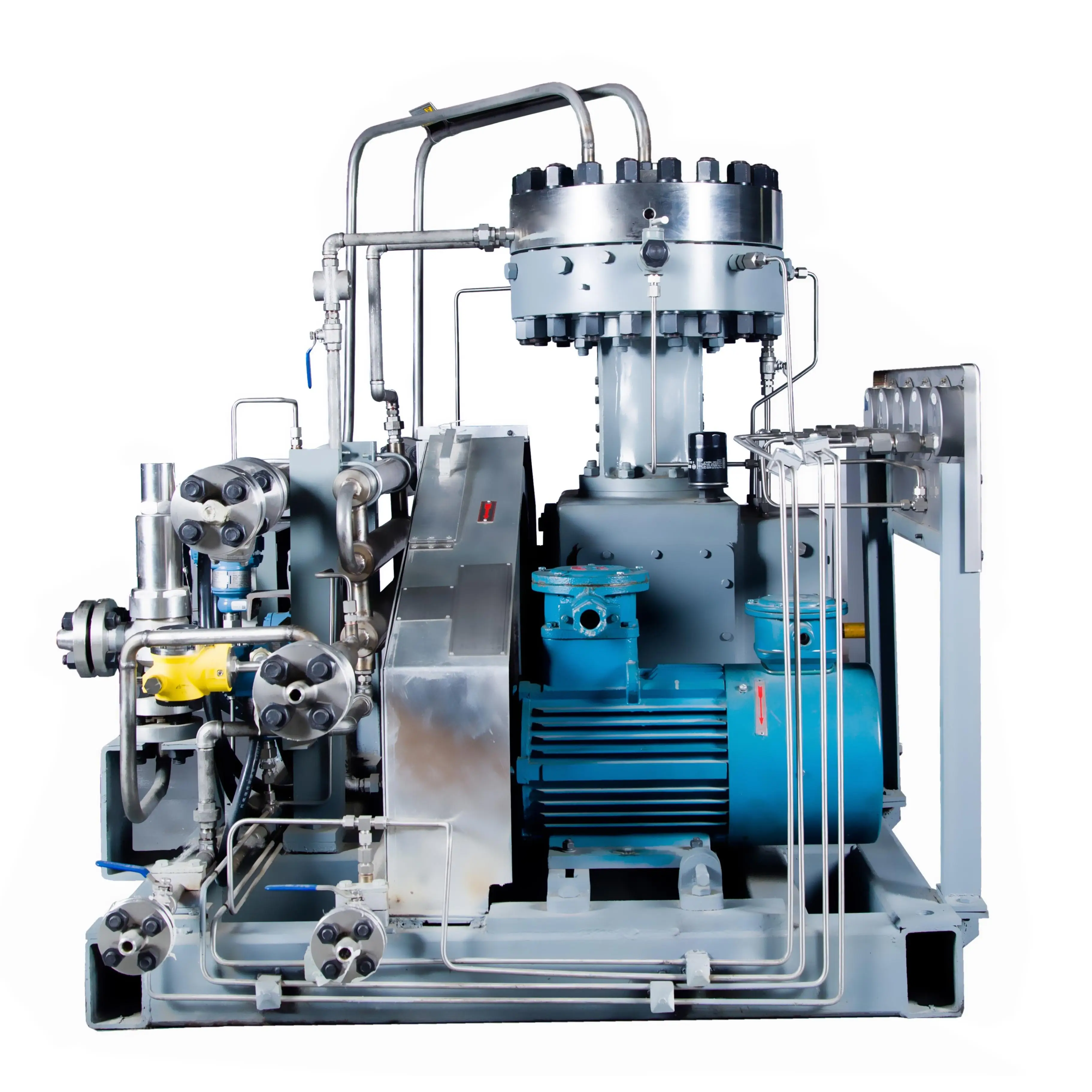

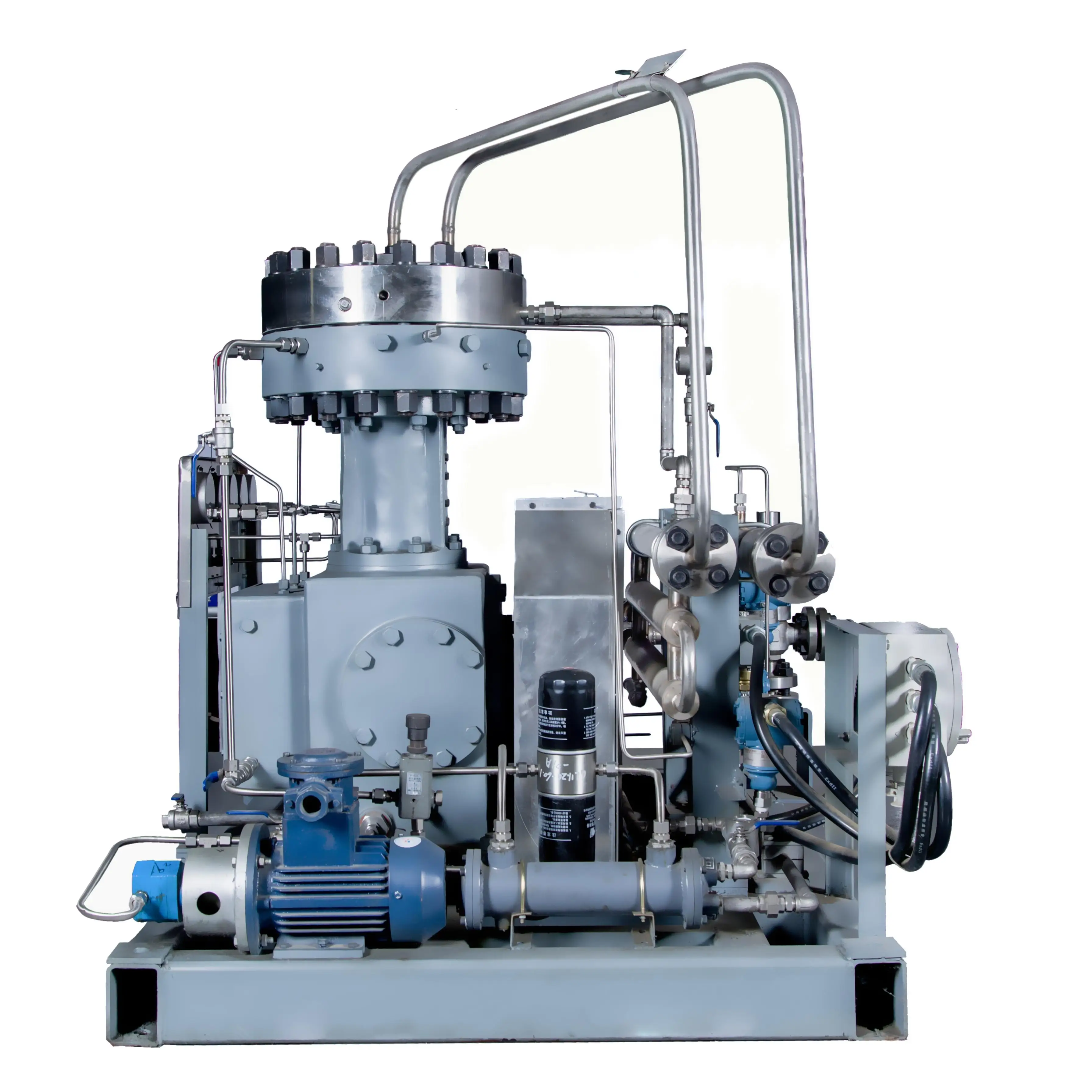

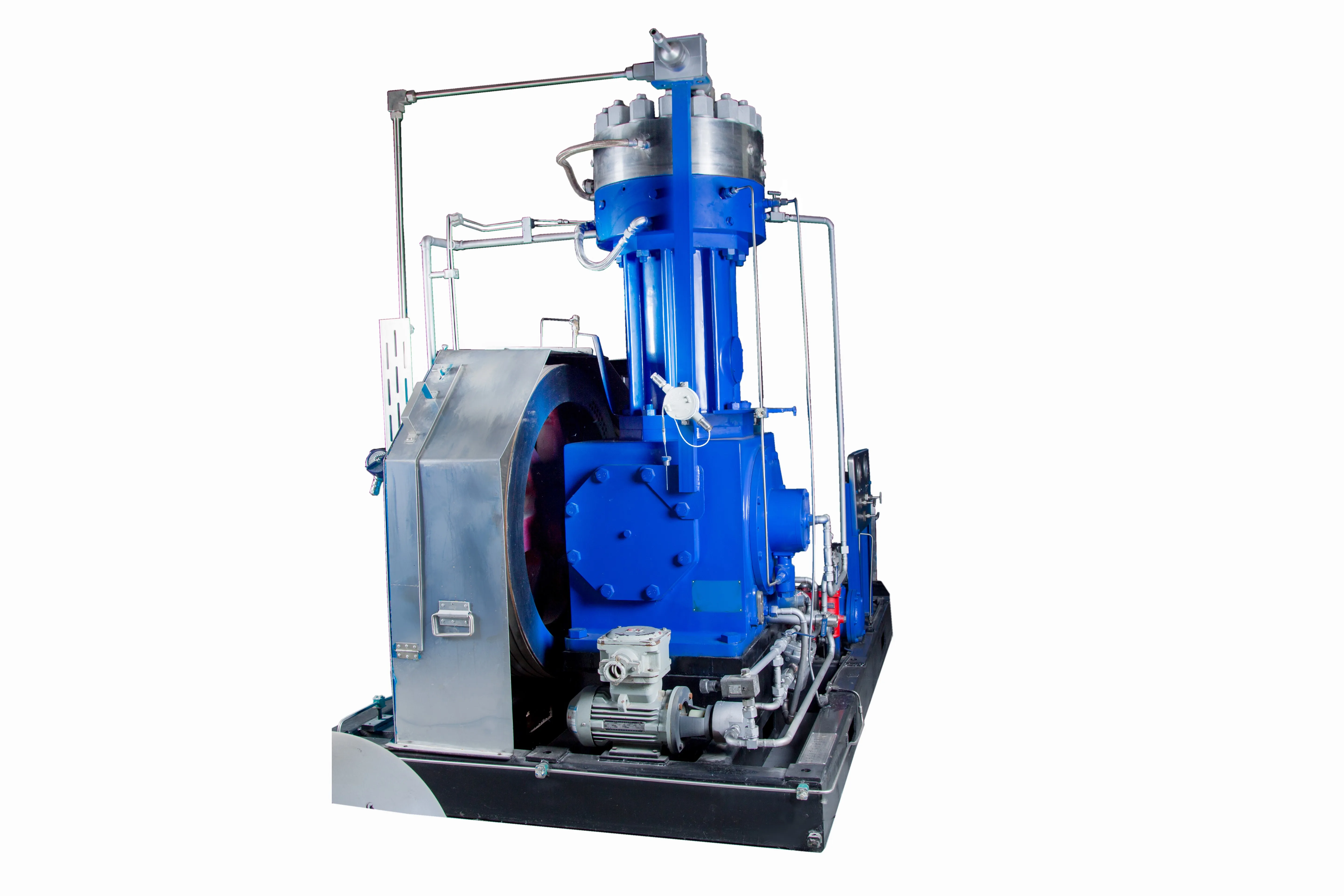

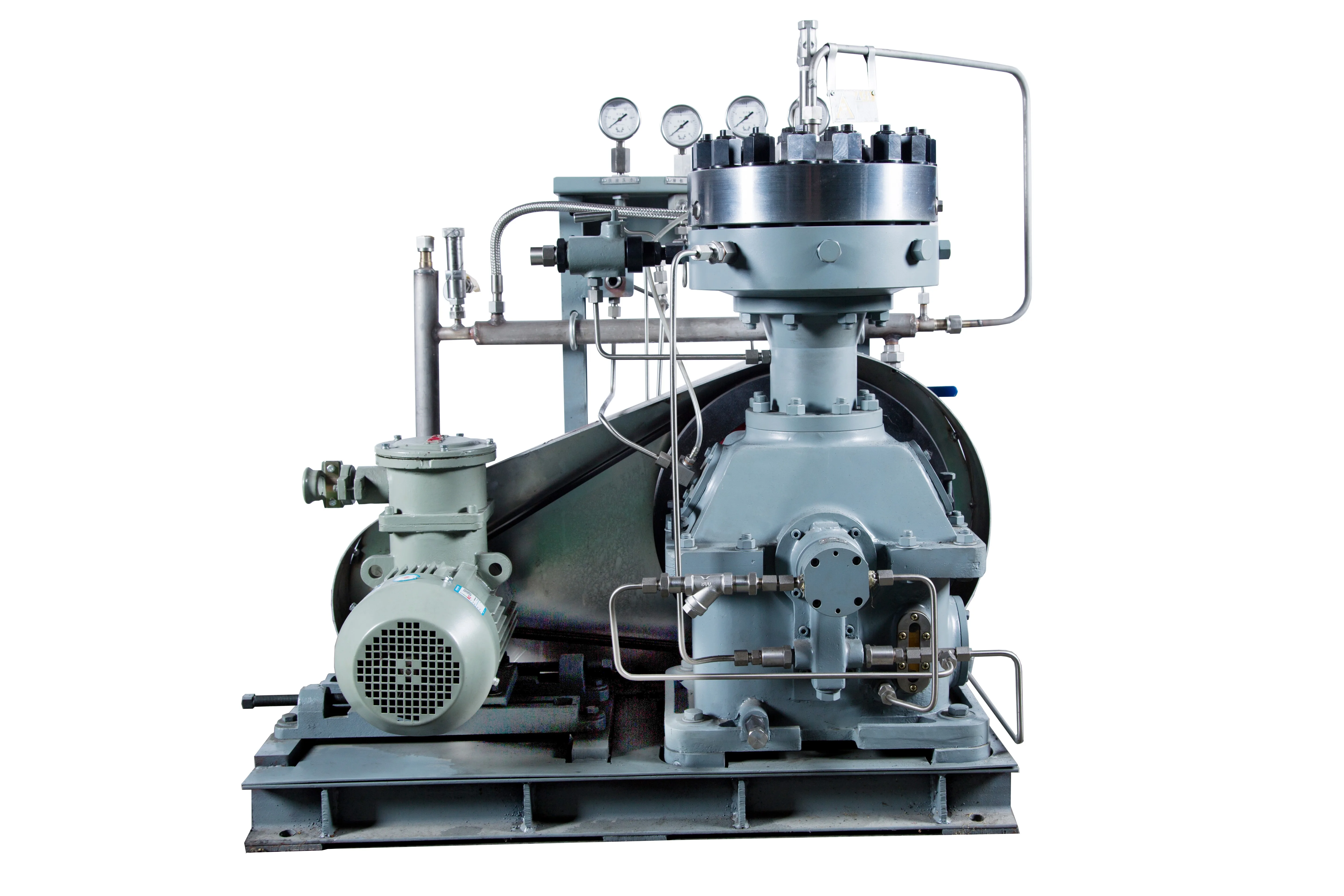

GZ type diaphragm compressor
GZ diaphragm compressor is composed of cylinder block, cylinder head, crankshaft connecting rod, diaphragm, oil circuit, gas path, water cooling system and motor drive. All diaphragm compressor series products can provide various cooling. Mode: air cooling, water cooling and forced cooling.




Product Paramenters


Model
Displacement (Nm³/h)
Intake pressure (MPa)
Exhaust pressure (MPa)
Dimensions L×W×H(mm)
Weight (t)
Motor Power (kW)
GZ-2/3
2.0
0.0
0.3
1200×700×1100
0.5
2.2
GZ-5/0.5-10
5.0
0.05
1.0
1400×740×1240
0.65
2.2
GZ-5/13-200
5.0
1.3
20
1500×760×1200
0.75
4.0
GZ-15/3-19
15
0.3
1.9
1400×740×1330
0.75
4.0
GZ-30/5-10
30
0.5
1.0
1400×740×1330
0.7
3.0
GZ-50/9.5-25
50
0.95
2.5
1500×760×1200
0.75
5.5
GZ-20/5-25
20
0.5
2.5
1400×760×1600
0.65
4.0
GZ-20/5-30
20
0.5
3.0
1400×760×1600
0.65
5.5
GZ-12/0.5-8
12
0.05
0.8
1500×760×1200
0.75
4.0
GZ—5/0.5-8
5.0
0.05
0.8
1400×740×1240
0.65
2.2
GZ-14/39-45
14
3.9
4.5
1000×460×1100
0.7
2.2
You can tell us your detailed requirements, and the detailed commercial quotation and technical suggestions will be sent to you within 8 working hours.



Diaphragm compressor is a type of positive displacement compressor that utilizes a flexible diaphragm to compress gases or vapors. It is widely used in various industries where oil-free and contamination-free compressed air or gases are required.

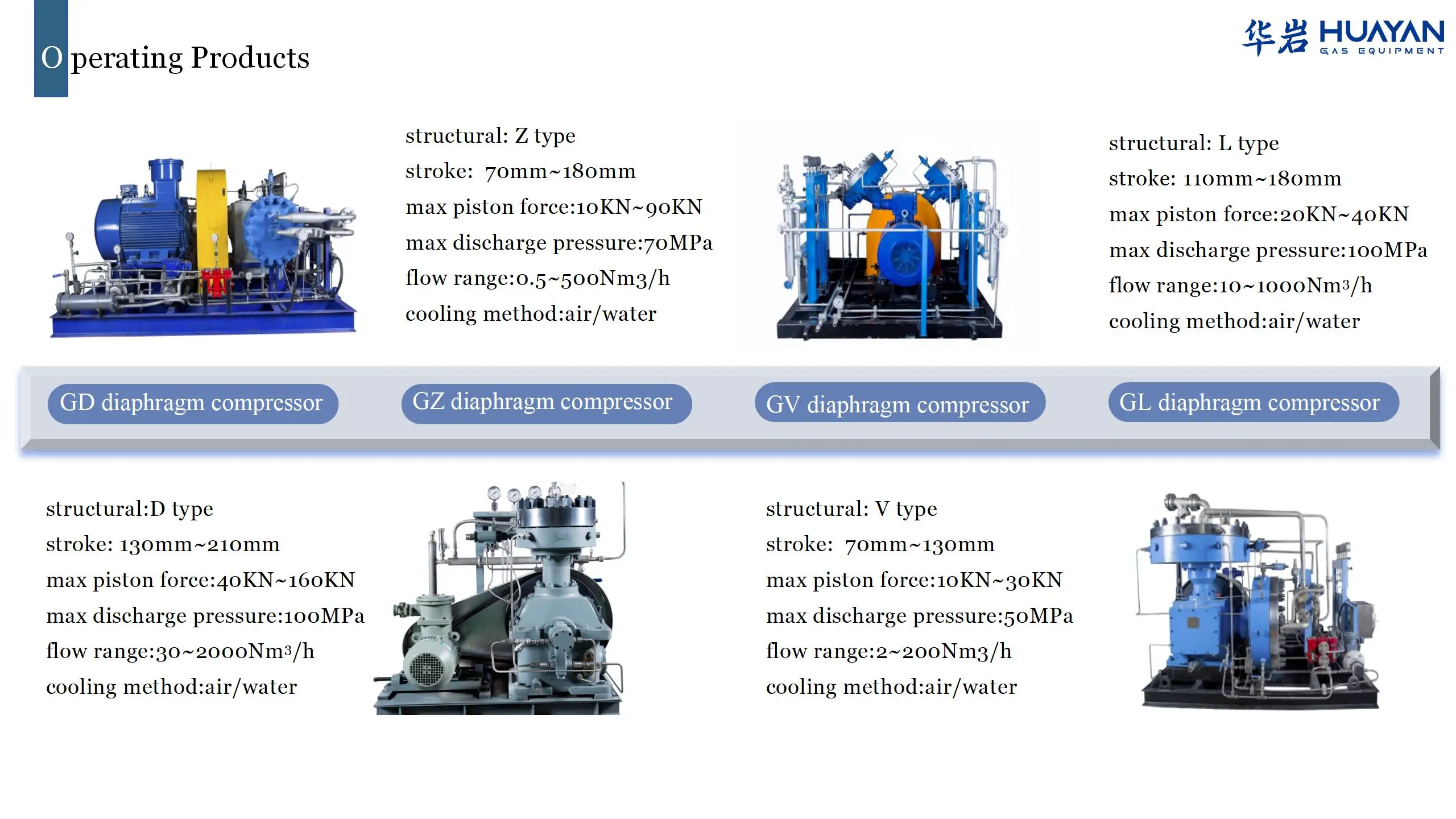

Basically, we have four kinds of the diaphragm compressor divided by its structure： GZ,GV,GL,GD.

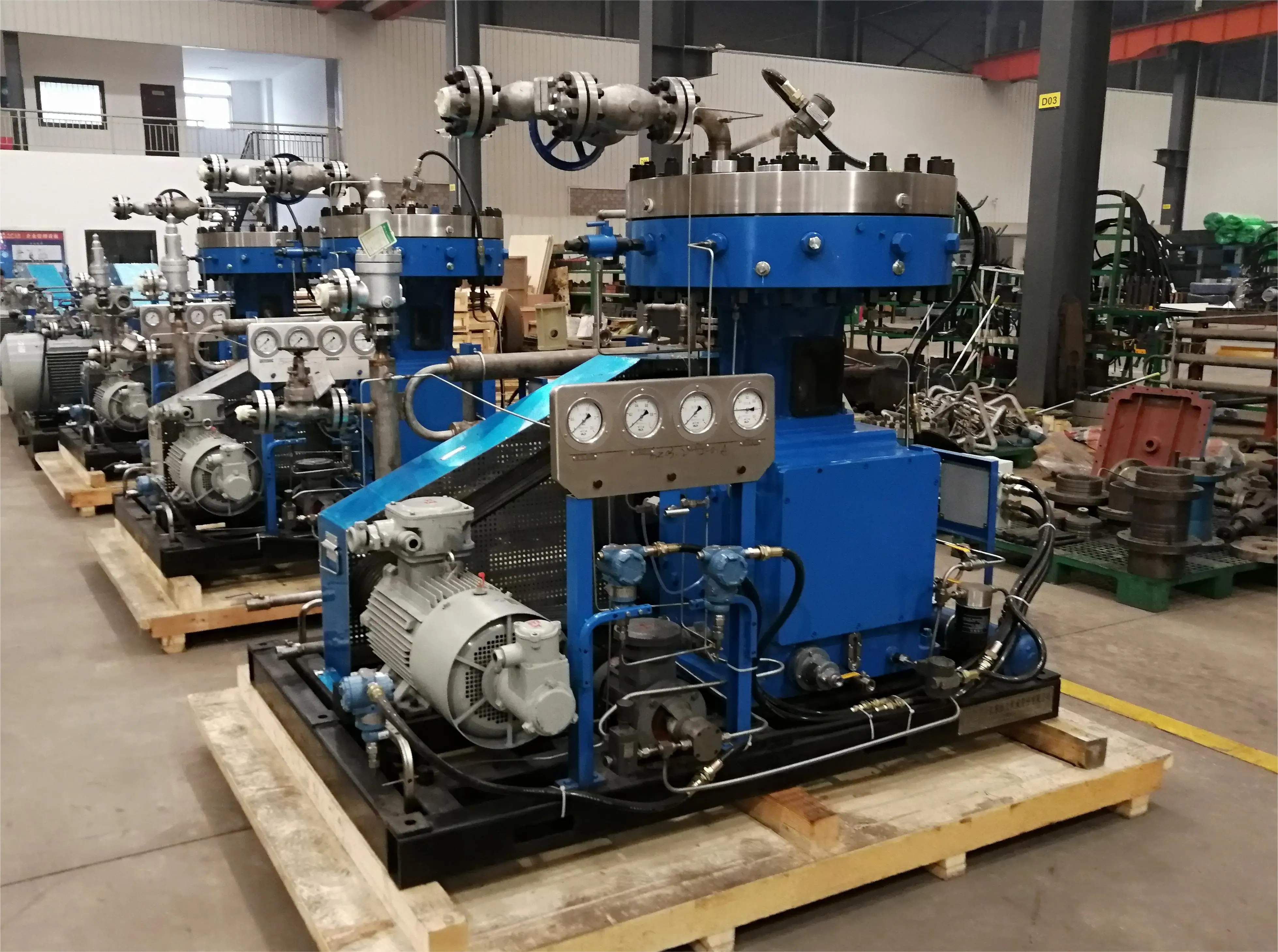

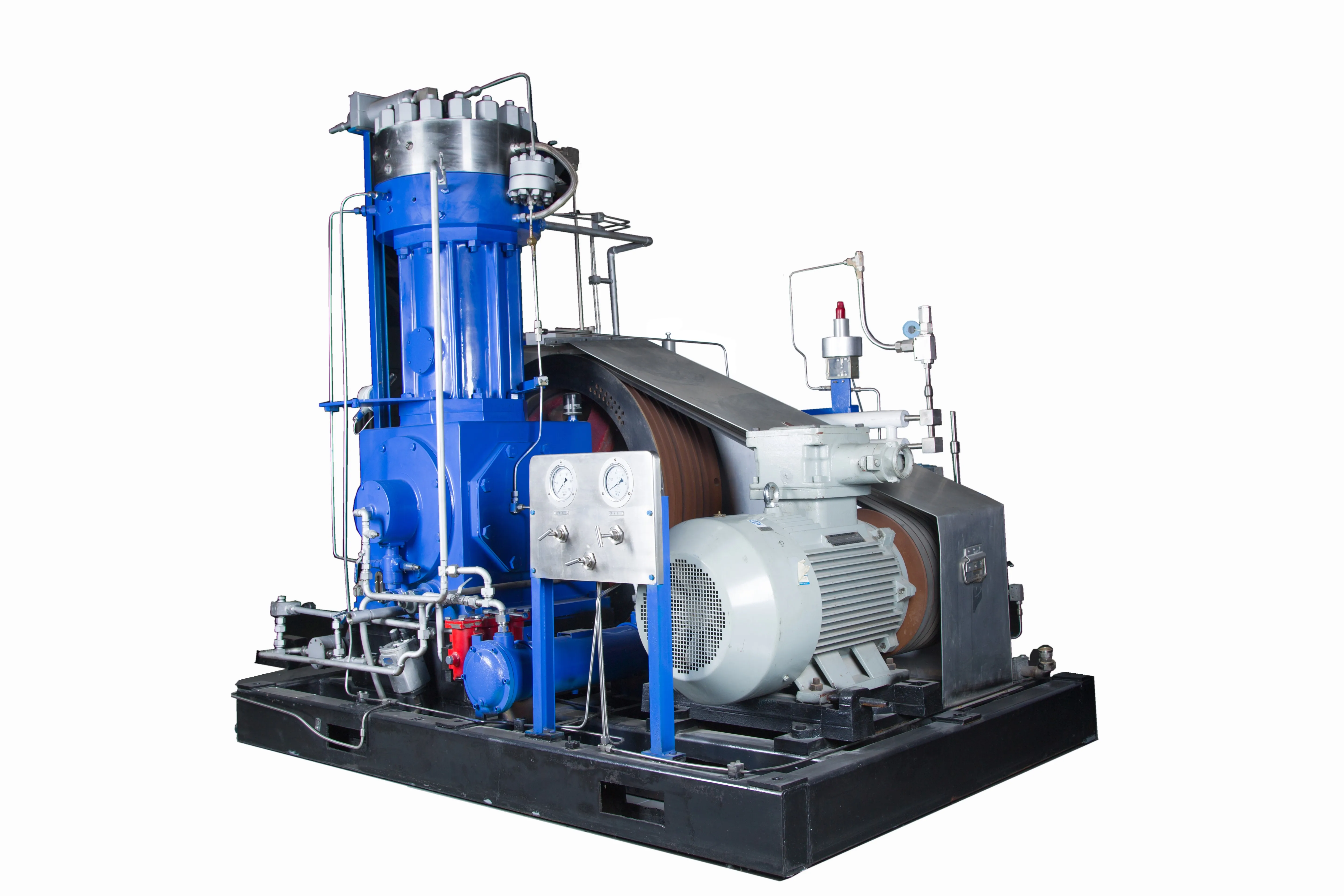

Details Images




Advantage
1. Good sealing performance:
A diaphragm compressor is a kind of special structure positive displacement compressor, the gas does not need lubrication, good sealing performance, the compression medium does not contact with any lubricant, will not produce any contamination in the compression process, Especially suitable for high purity (99.9999% above), rare, highly corrosive, toxic ,harmful, flammable , explosive and radioactive gas compression, transportation and bottle filling.
2. Cylinder heat dissipation performance is good: Compressor cylinder heat dissipation performance is good, close to isothermal compression, can use high compression ratio, suitable for compression of high-pressure gas.

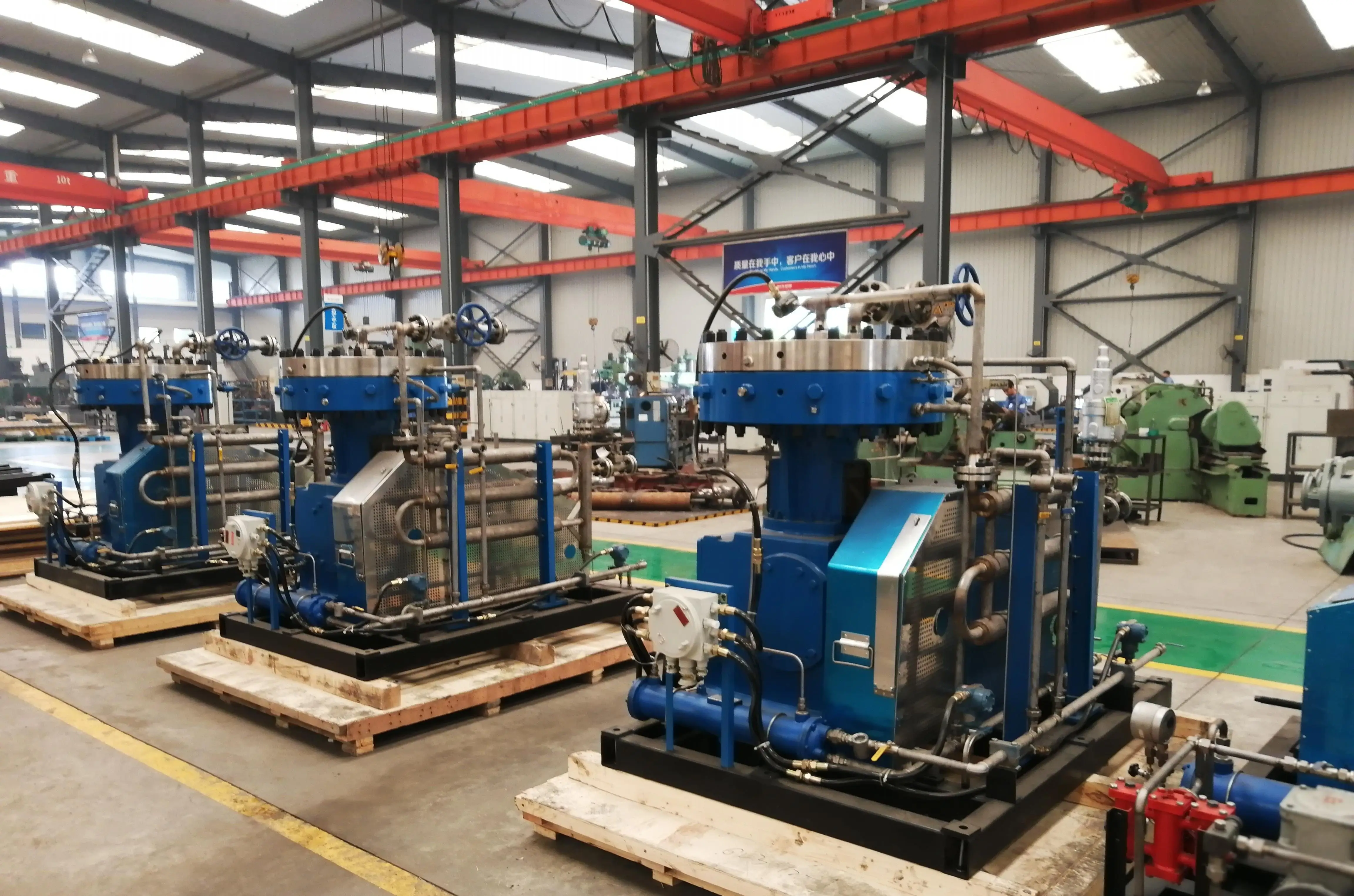

OUR COMPANY










We sincerely invite friends from all over the world to visit our factory and exchange ideas.



Package and Shipping




FAQ


Q1.How to get a prompt quotation of gas compressor ?
1)Flow Rate/Capacity : ___ Nm3/h
2)Suction/ Inlet Pressure : ____ Bar
3)Discharge/Outlet Pressure :____ Bar
4)Gas Medium :_____
5)Voltage and Frequency : ____ V/PH/HZ

Q2.How long is delivery time ?
Delivery time is around the 30-90 days .

Q3.What about the voltage of products? Can they be customized?
Yes, the voltage can be customized according to your inquire.

Q4.Can you accept OEM orders?
Yes, OEM orders is highly welcome.

Q5.Will you provide some spare parts of the machines?
Yes, we will .
