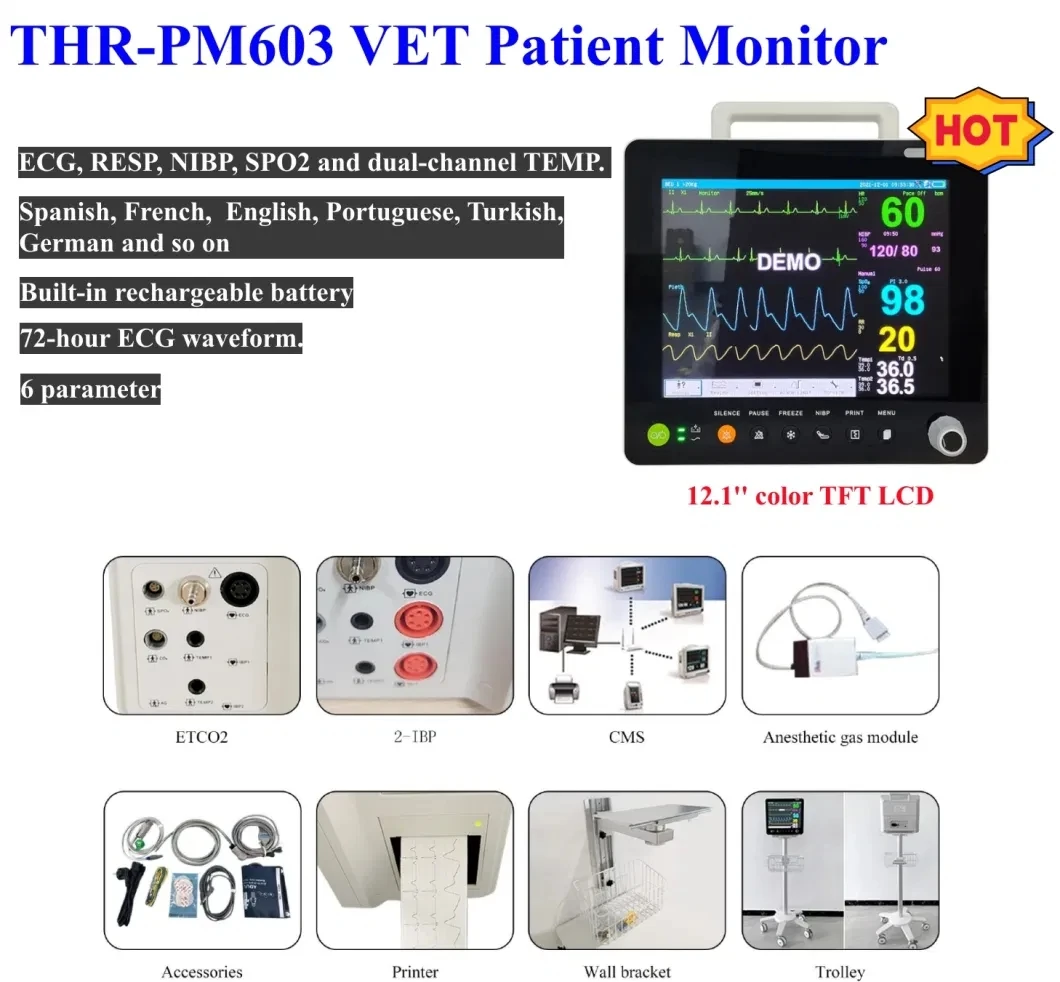

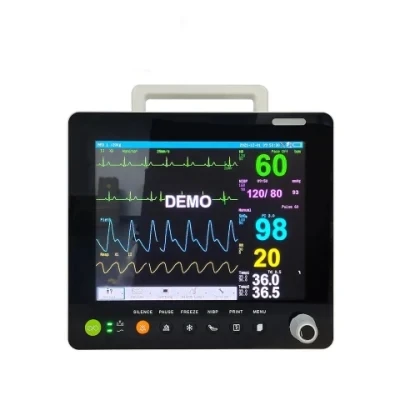

Veterinary Use Hospital Equipment Portable 12.1 inch Multi Parameter Patient Monitor
- Category: >>>
- Supplier: Suzhou Thriving Medical Equipment Corp.
Share on (1601165416256):
Product Overview
Description
Product Description
This equipment can monitor such parameters as ECG, RESP, SPO2, NIBP, and Dual- channel TEMP.
It integrates parameter measuring module, display and recorder in one device to form a compact and portable device. At the same time, its built-in replaceable battery provides convenience for patient moving.

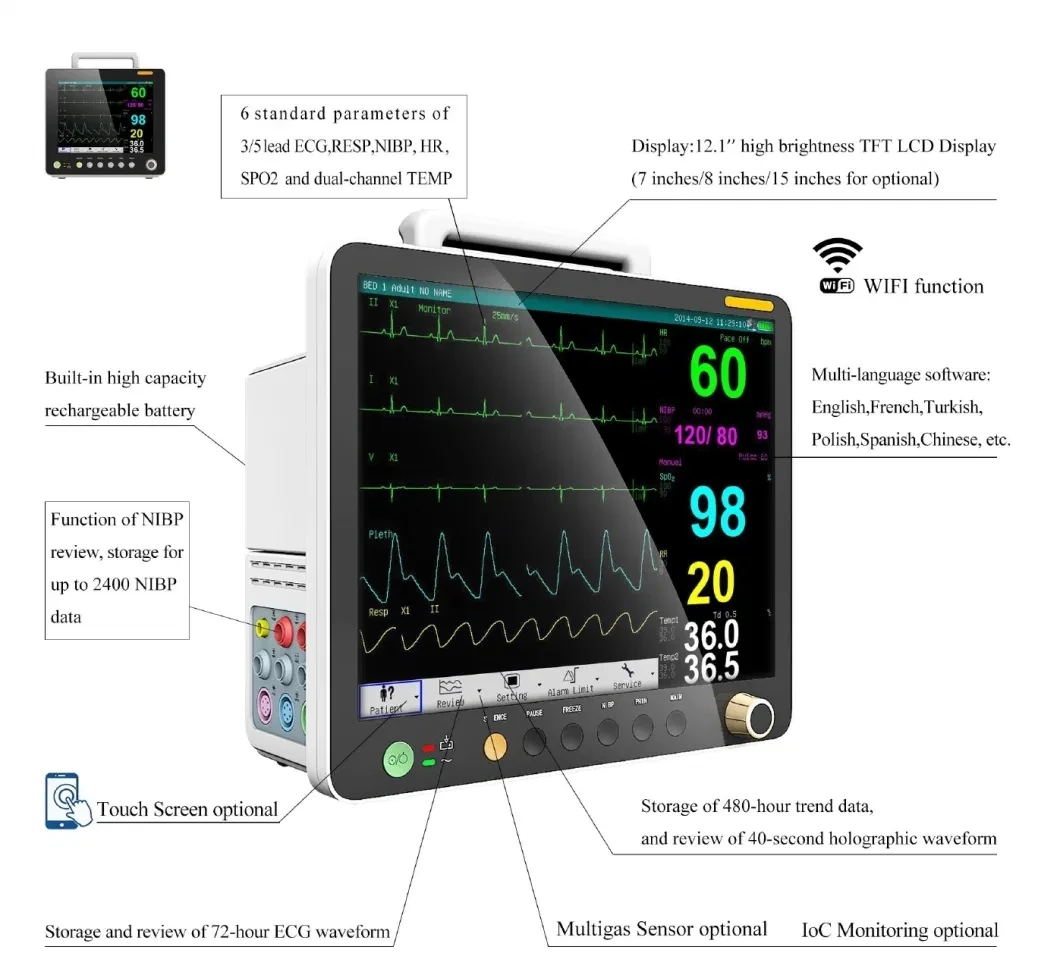

Features:
* Elegant appearance, clear marks, standard interface, OXYCRG SCREEN, trend graph, big characters, other BED observation, which are convenient for user.

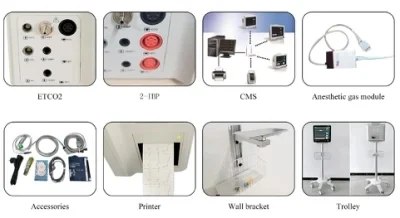

* Standard parameters of ECG, RESP, NIBP, SPO2 and dual-channel TEMP. IBP, CO2, Built-in printer, curving handle, moving bracket and hanging bracket are optional.
* Operation interface with Chinese and English. Finish all operations by keys and knobs.(Optional languages: Spanish, French, English, Portuguese, Turkish, German and so on) design with full built-in module, stable and reliable performance.
* 12.1'' color TFT LCD with high resolution displays patient parameter and waveform, and alarm, bed NO,clock,state and other information provided by the monitor synchronously.

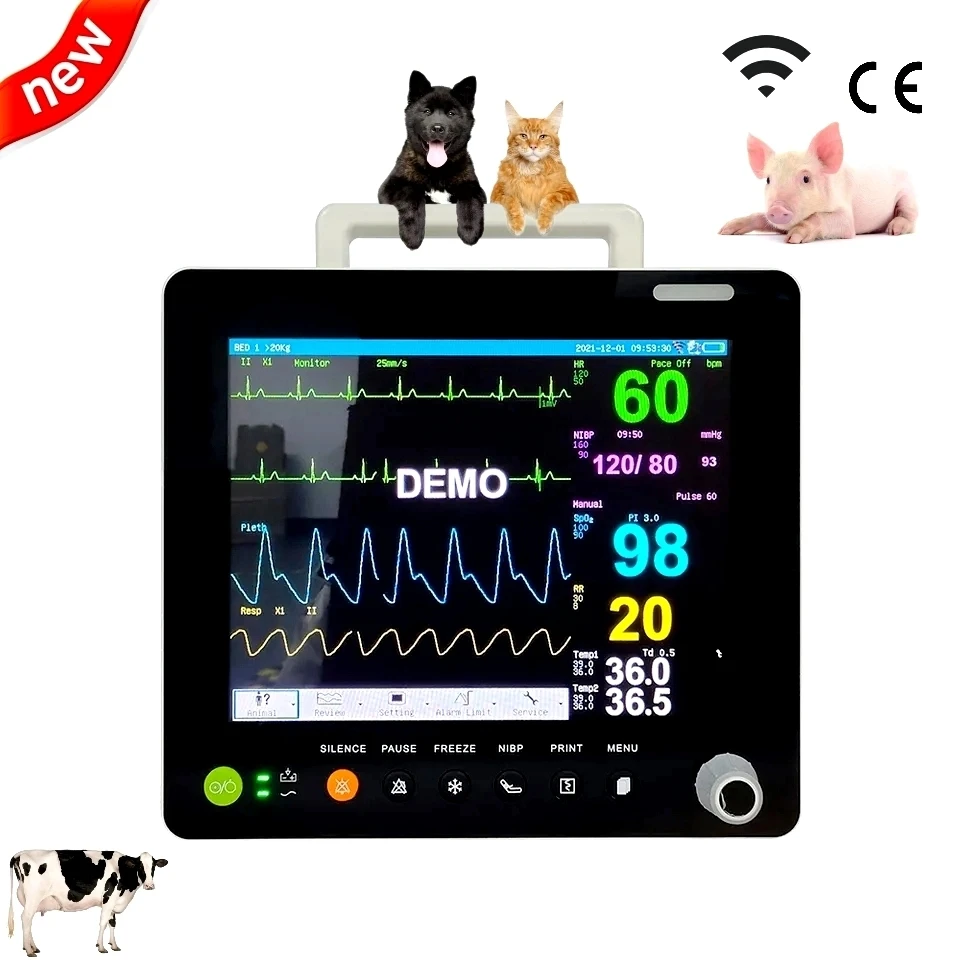

* Be applicable for different animals, such as dog, cat, sheep, cow, cattle, pig, etc
* Monitoring contents, scan speed, volume and output contents can be set optionally.
* Storage of 480-hour trend data, and review of 40-second holographic waveform.
* Storage and review of 72-hour ECG waveform.
* Function of NIBP review, storage for up to 2400 NIBP data.
* Adopt digital SPO2 technology, which has strong anti-interference and antiweak filling capability.
* Calculation of drug concentration.
* Network: connecting with central station, other Bed observation and software updating. Connection mode: wireless and wired.
* Built-in rechargeable battery for uninterrupted monitoring.
* Anti-high frequency surgical unit, defibrillation-proof(requirement for special leads).
* Analysis function for heart rate variability(HRV) (optional).
* Elegant appearance, clear marks, standard interface, OXYCRG SCREEN, trend graph, big characters, other BED observation, which are convenient for user.
* Standard parameters of ECG, RESP, NIBP, SPO2 and dual-channel TEMP. IBP, CO2, Built-in printer, curving handle, moving bracket and hanging bracket are optional.
* Operation interface with Chinese and English. Finish all operations by keys and knobs.(Optional languages: Spanish, French, English, Portuguese, Turkish, German and so on) design with full built-in module, stable and reliable performance.
* 12.1'' color TFT LCD with high resolution displays patient parameter and waveform, and alarm, bed NO,clock,state and other information provided by the monitor synchronously.
* Be applicable for different animals, such as dog, cat, sheep, cow, cattle, pig, etc
* Monitoring contents, scan speed, volume and output contents can be set optionally.
* Storage of 480-hour trend data, and review of 40-second holographic waveform.
* Storage and review of 72-hour ECG waveform.
* Function of NIBP review, storage for up to 2400 NIBP data.
* Adopt digital SPO2 technology, which has strong anti-interference and antiweak filling capability.
* Calculation of drug concentration.
* Network: connecting with central station, other Bed observation and software updating. Connection mode: wireless and wired.
* Built-in rechargeable battery for uninterrupted monitoring.
* Anti-high frequency surgical unit, defibrillation-proof(requirement for special leads).
* Analysis function for heart rate variability(HRV) (optional).
Specification | ||
ECG | Lead Mode 3-lead and 5-lead are optionalLead Selection I, II, III, AVR, AVL, AVF, V Wave 5-lead: 2 channels 3-lead: 1channel Gain ×2.5mm/mV, ×5.0mm/mV, ×10mm/mV, ×20mm/mV HR Measuring and Alarm Range Range 15 ~ 300 bpm Accuracy ±1% or ±1bpm, which is greater Alarm Accuracy ±2bpm Resolution 1 bpm | |
CMRR | Monitor ≥ 100 dB Surgery ≥ 100 dB Diagnosis ≥ 60 dB | |
Bandwidth | Surgery 1 ~ 20 Hz(+0.4dB,-3dB) Monitor 0.5 ~ 40 Hz(+0.4dB,-3dB) Diagnosis 0.05~75Hz(+0.4dB,-3dB); 76Hz~150Hz(+0.4dB,-4.5dB) Calibration Signal 1 mV (Vp-p), ±5% Accuracy | |
ST Segment Monitoring | Measuring and Alarm Range -0.6 mV~ + 0.8 mV | |
ARR | ARR Detecting Type ASYSTOLE, VFIB/VTAC, COUPLET, BIGEMINY, TRIGEMINY, R ON T, VT>2, PVC, TACHY, BRADY, MISSED BEATS, PNP, PNC | |
Alarm | Available | |
Review | Available | |
Scan Speed for ECG Waveform is adjustable | 12.5mm/s accuracy ±10% 25mm/s accuracy±10% 50mm/s accuracy±10% | |
Respiration | Method R-F(RA-LL) Impedance Differential Input Impedance >2.5 MΩ Measuring Impedance Range 0.3~5.0Ω Baseline Impedance Range 100Ω- 2500Ω Bandwidth 0.3 ~ 2.5 Hz | |
Resp. Rate | Measuring and Alarm Range 0~120rpm Resolution 1 rpm Measuring Accuracy ±2 rpm Alarm Accuracy ±3rpm Apnea Alarm 10 ~ 40 S | |
NIBP | Method Oscillometry Mode Manual, Auto, continuous Measuring Interval in AUTO Mode 1 /2 /3 /4 /5/ 10/ 15/ 30 /60 /90/120/240/480/960 Min Measuring Period in Continuous Mode 5 Min Measuring and Alarm Range 10~270mmHg Alarm Type SYS, DIA, MEAN | |
Resolution | Pressure 1mmHg Cuff Pressure ±3 mmHg Accuracy ±10% or ±8mmHg, which is greater Over-pressure Protection: Adult Mode 315±10 mmHg Pediatric Mode 265±10 mmHg Neonatal Mode 155±10 mmHg | |
SPO2 | Measuring Range 0 ~ 100 % Alarm Range 0 ~ 100 % Resolution 1 % Accuracy 70% ~ 100% ±2% 0% ~ 69% unspecified | |
Pulse Rate(PR) | Measuring and Alarm Range 0~250bpm Resolution 1bpm Measuring Accuracy ±2bpm or ±2%, which is greater Alarm Accuracy ±2bpm | |
TEMP | Channel dual-channel Measuring and Alarm Range 0 ~ 50°C Resolution 0.1°C Accuracy ±0.1°C Actualization Interval about 1 Sec. Average Time Constant < 10 Sec. Alarm responding Time ≤2min | |
ETCO2 | Method Sidestream or Mainstream Measuring Range for CO2 0~150mmHg Resolution for CO2: 0.1 mm Hg 0 to 69 mm Hg 0.25 mm Hg 70 to 150 mm Hg Accuracy for CO2: 0 - 40 mm Hg ±2 mm Hg 41 - 70 mm Hg ±5% 71 - 100 mm Hg ±8% 101 - 150 mm Hg ±10% Respiration Rate>80BPM ±12% AwRR Range 2~150 rpm AwRR Accuracy ±1BPM Apnea Alarm Available | |
Accessories:
Temperature probe (1 PC)
Reusable Spo2 tongue clip (1 PC)
ECG Cable and Leadwire (1 PC)
Vet NIBP cuff (5 PCS)
Extending tube for blood pressure(1 PC)
Power line( 1 PC)
Rechargable lithium battery (1 PC)
Power cord (1 PC)
User manual (1 PC)
Thermal recording paper(optional)
