6mm 8mm 10mm 12mm 15mm Fireproof tempered glass heatproof insulating glass fire resistant glass for public places
- Category: >>>
- Supplier: Shandong New Line Import and Export Co. Ltd.
Share on (1601165683994):
Product Overview
Description
Products Description

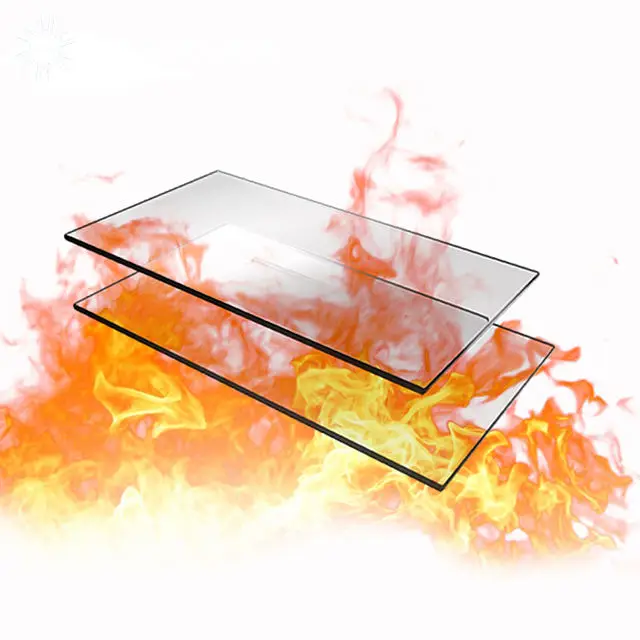

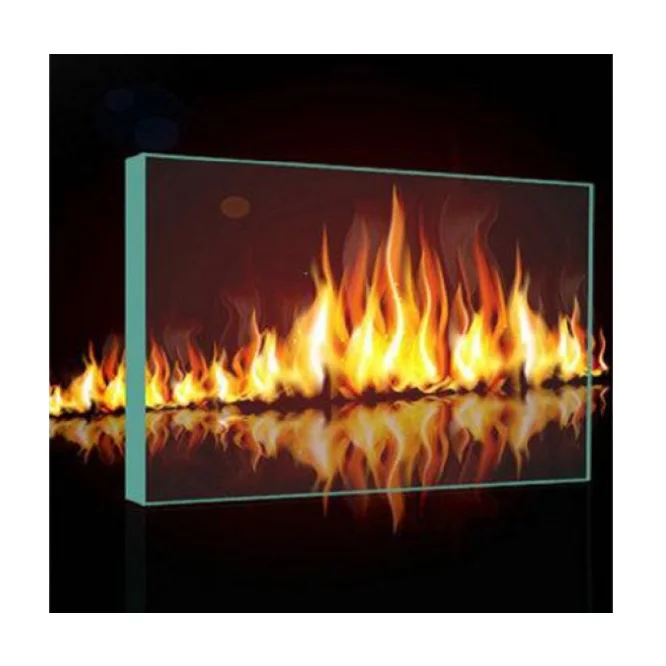

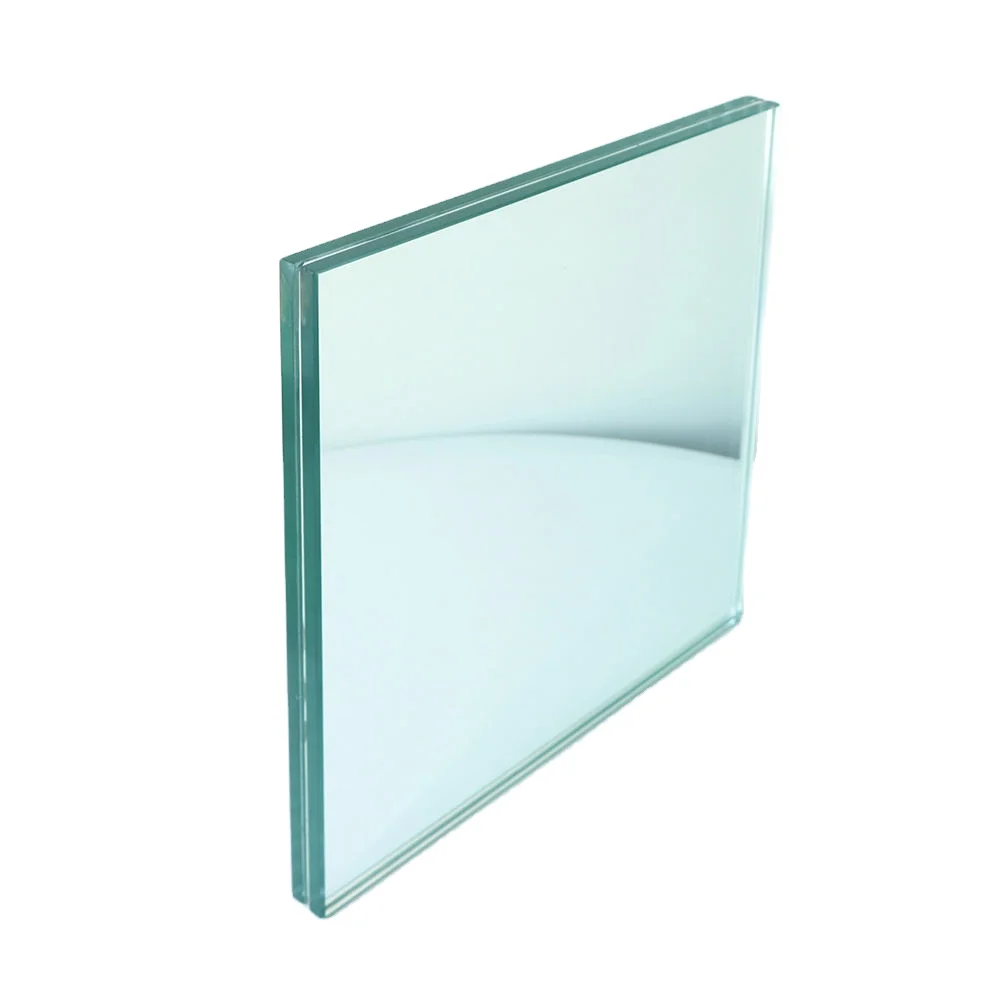

Fire resistance glass

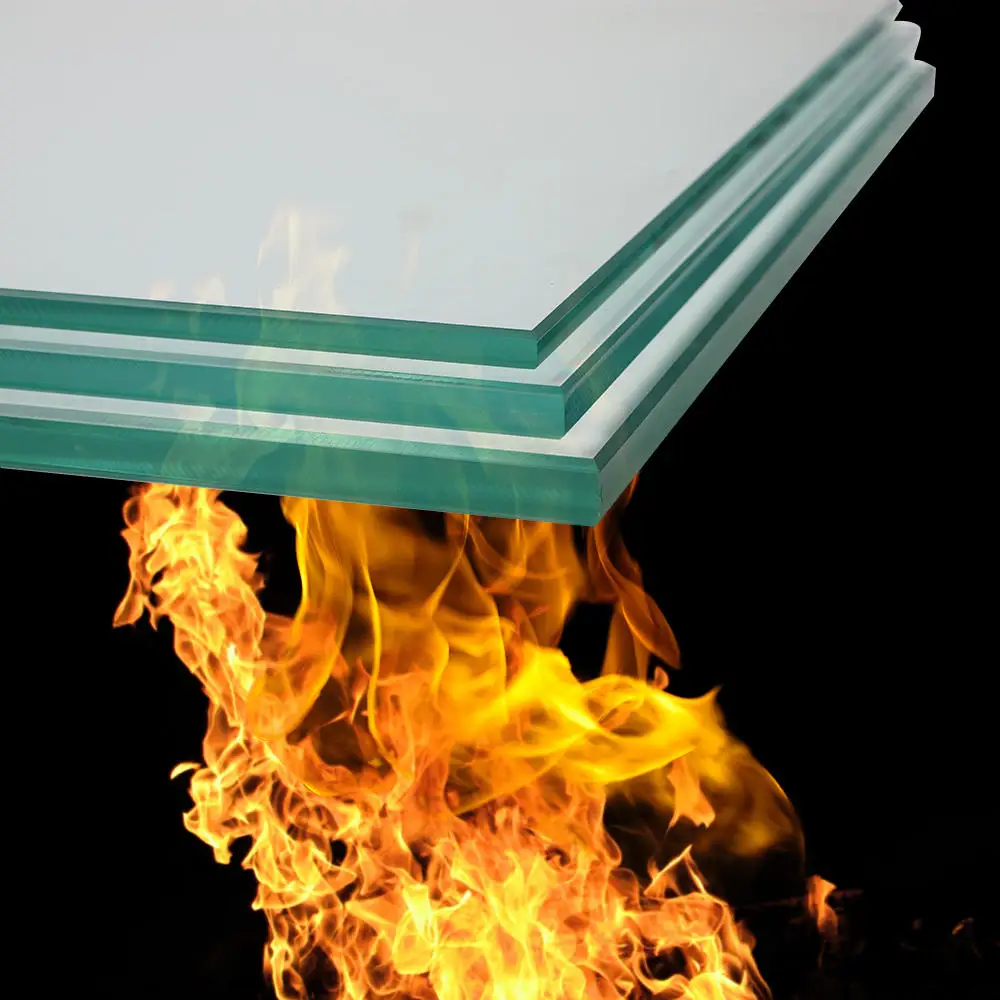

Fire-proof glass is a new functional materials which used in construction, with good light-transmission and fire retardant properties. In the appearance they are the same with float glass, but they used the physical method and special techniques processing the float glass to get it. With high-heat resistance, light specific gravity, high transparency, no yellow, no bubbles
and other unique characteristics. It can hold not burst within 1000degrees celsuis flames 84-183minute, and thus effectively to prevent flame and smoke spread.
and other unique characteristics. It can hold not burst within 1000degrees celsuis flames 84-183minute, and thus effectively to prevent flame and smoke spread.
Product Features
1. Fire-resistance
2. Transparent
3. Safety
4. Easy to install
5. High temperature resistance
6. High strength
1. Fire-resistance
2. Transparent
3. Safety
4. Easy to install
5. High temperature resistance
6. High strength
Details Images
According to the fire-resistant grade, the fire-resistant glass can be sorted as Grade 1, Grade 2, Grade 3, Grade 4, where each is resistant to fire respectively no less than the following time:90 min, 60min, 45min, 30min.
Intensity: (design value: N/sqmm)
Intensity: (design value: N/sqmm)
Type | Float Glass | Tempered Glass | High Intensity Single Layer Cesium-potassium Fire Rated Glass | ||
Thickness (mm) | 6-12 | 6-12 | 6-12 | ||
Glass Intensity Design Value | Surface Intensity | 28.0 | 84.0 | 126 | |
Edge Intensity | 19.5 | 58.8 | 88.2 | ||
Comparison | Visible Light(%) | Heat Transfer Coefficient | Shading Coefficient | ||
Transmittance | Reflectivity | W/m2 C | SC | ||
6mm normal glass | 89.1 | 8.0 | 5.73 | 0.95 | |
6mm Cesium-potassium fire rated glass | 50.0 | 12.0 | 3.99 | 0.64 | |
6mm+12A+6mm hollow glass | 79.8 | 14.4 | 2.76 | 0.82 | |
6mm Cesium-potassium fire rated glass +12A+6mm glass | 49.9 | 15.2 | 1.85 | 0.46 | |
8mm Cesium-potassium fire rated glass +12A+8mm glass | 49.5 | 15.0 | 1.85 | 0.45 | |
10mm Cesium-potassium fire rated glass +12A+10mm glass | 49.0 | 14.8 | 1.84 | 0.44 | |
Processing range
Max size: 3600×2000 mm
Min size: 100×100 mm
Processing standard: GB15763.1-2009
Max size: 3600×2000 mm
Min size: 100×100 mm
Processing standard: GB15763.1-2009

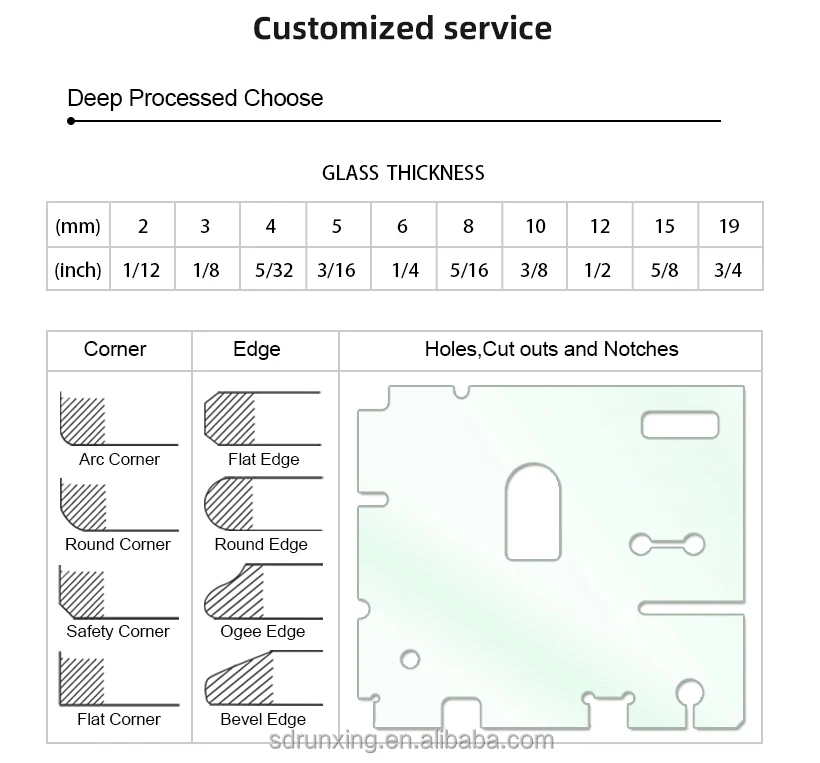

Custom Service
Custom Edging
Custom Color
Custom Size

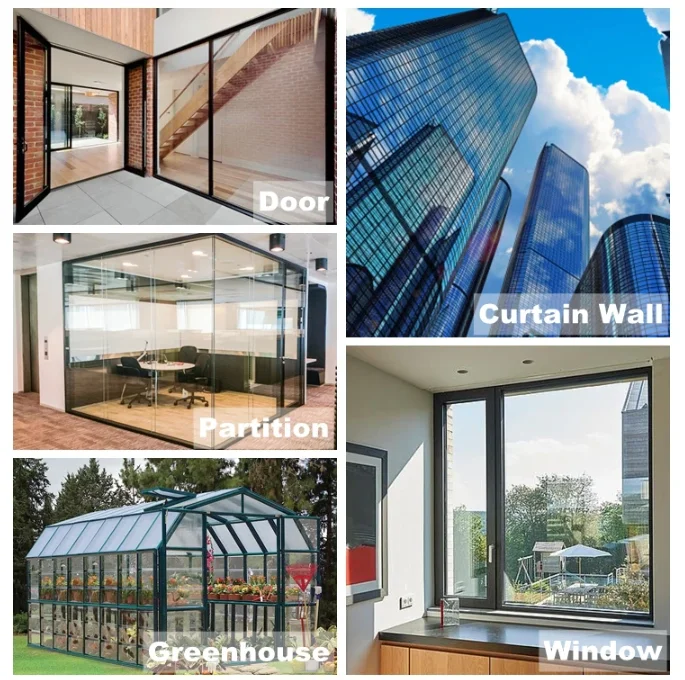

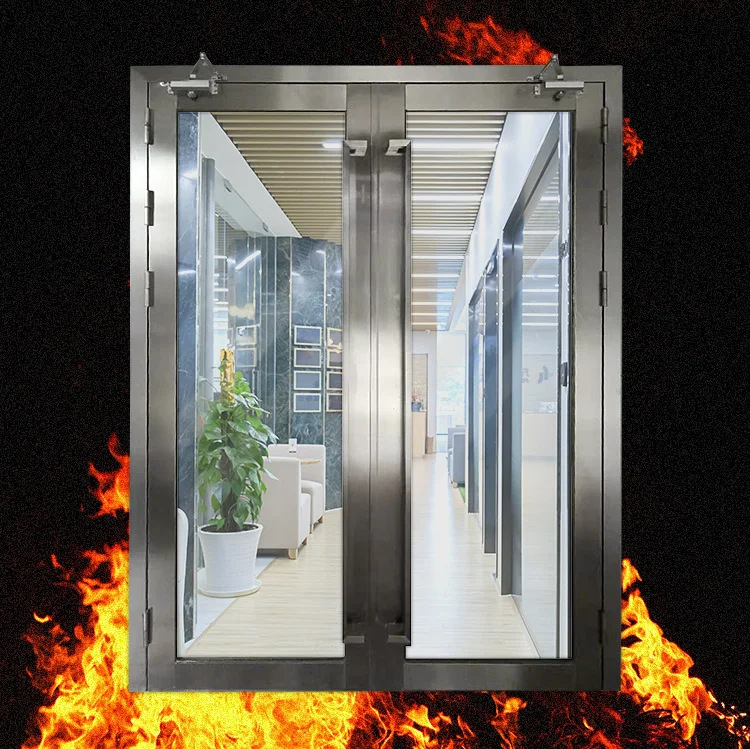

Applications
Based on the above characteristics, fireproof glass can generally be used:
Luxury hotel, Theaters, Exhibition hall, Airports, Gymnasium, Hospital, Library, Commercial building, and other public building etc
Luxury hotel, Theaters, Exhibition hall, Airports, Gymnasium, Hospital, Library, Commercial building, and other public building etc
Why Choose Us
1. We are a professional manufacturing vendor with over 25 years of experience in glass.
2. We have a professional and proactive business team, with excellent understanding of glass in Europe and the US.
3. We are design-oriented and strong in interpreting customer’s ideas into marketable products. Any idea about the glass, let’s work together to make it into possible.
4. We prioritize all potential customers as our VIP customers, handling all business process with excellent service and standing behind any possible issue with excellent solutions.
2. We have a professional and proactive business team, with excellent understanding of glass in Europe and the US.
3. We are design-oriented and strong in interpreting customer’s ideas into marketable products. Any idea about the glass, let’s work together to make it into possible.
4. We prioritize all potential customers as our VIP customers, handling all business process with excellent service and standing behind any possible issue with excellent solutions.
Company Profile
Shandong New Line Import and Export Co., Ltd. is located in Liaocheng City, Shandong Province, is a professional glass manufacturer, and glass & aluminum solution provider in China. The company was established in 2005. Now we can supply a comprehensive range of products including tempered glass, laminated glass, insulated glass, float glass, mirror glass, aluminum windows & doors and curtain wall etc. to satisfy the advanced design and engineering technical requirements of modern building envelops.

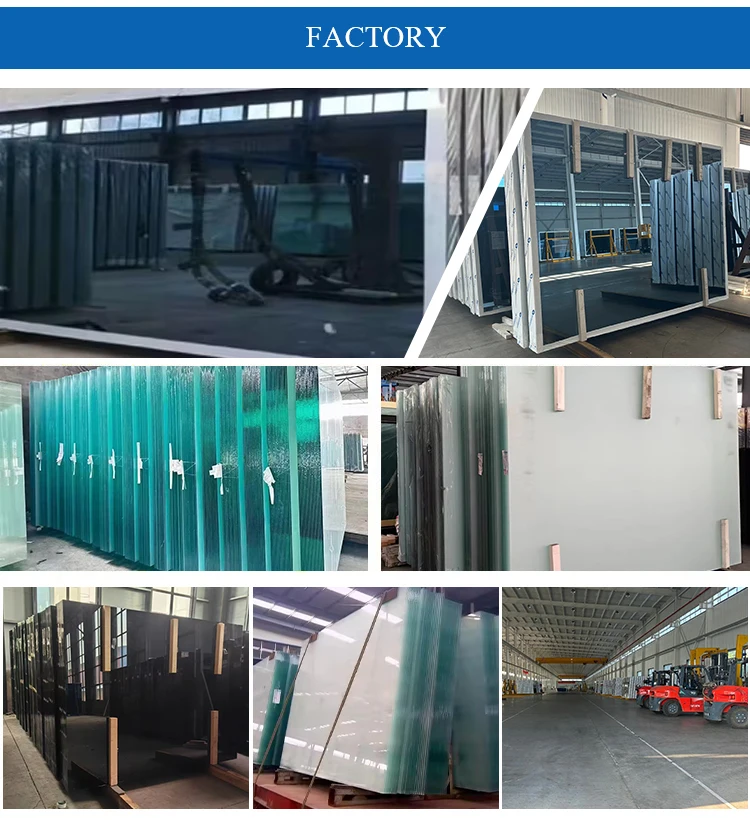

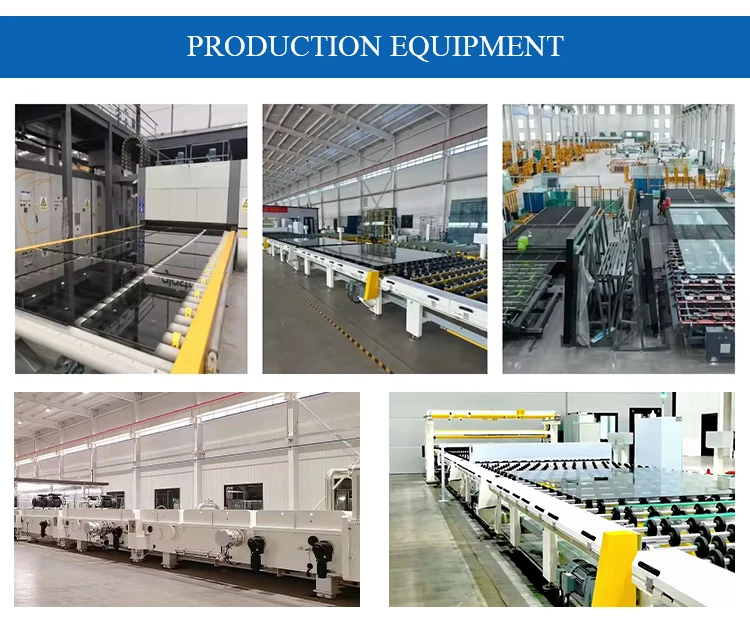

OUR FACTORY
New Line factory covers an area of 80,000 m² with 110,000 m² floor space of building and have an annual processing capacity of 1,500,000 m². The main equipment was imported from world-famous processed equipment manufacturers, such as Tamglass, Lisec, Bystronic, Intermac and Bottero etc. We already got Europe CE, USA SGCC, IGCC, UK BSI, France Cekal and Australia CSI certificates for our glass and aluminum products.
Our Certificates
Shandong New Line Import and Export Co., Ltd has been meet ISO, CCC, USA and Europe safety glass etc. certificates, we produce strictly comply with standards and customer's requirements.
Our Exhibitions
Shandong New Line Import and Export Co., Ltd participate in international exhibition of building materials every year, our high quality and creative products are popular on exhibitions.

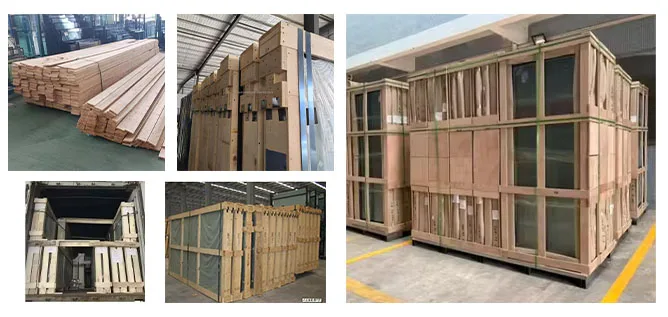

Packaging and Delivery
Paper interred between the glass, packed by strong seaworthy wooden crates or according to your requirements.
FAQ
Q1: Can you accept OEM or ODM?
A1:Yes. We can produce products according to customer's requirements and accept customized design.Besides, if you have any ideas, we are here to make it out.
Q2: How about sample and charge?
A2: Sample is free, but freight cost should be paid by clients.
Q3: What about the payment?
A3: L/C, T/T, Western Union, PayPal.
Q4: How can we get detailed price?
A4: Please office us detailed information of the production,specific packaging requirements and purchasing quantity.
Q5: Can we get any discount from your company?
A5:We offer extra discount for large purchasing quantity, or important clients or iconic projects.
Q6: What's the lead time for regular order?
A6:Honest, it depends on the order quantity, usually 15-30 days.
Q2: How about sample and charge?
A2: Sample is free, but freight cost should be paid by clients.
Q3: What about the payment?
A3: L/C, T/T, Western Union, PayPal.
Q4: How can we get detailed price?
A4: Please office us detailed information of the production,specific packaging requirements and purchasing quantity.
Q5: Can we get any discount from your company?
A5:We offer extra discount for large purchasing quantity, or important clients or iconic projects.
Q6: What's the lead time for regular order?
A6:Honest, it depends on the order quantity, usually 15-30 days.
