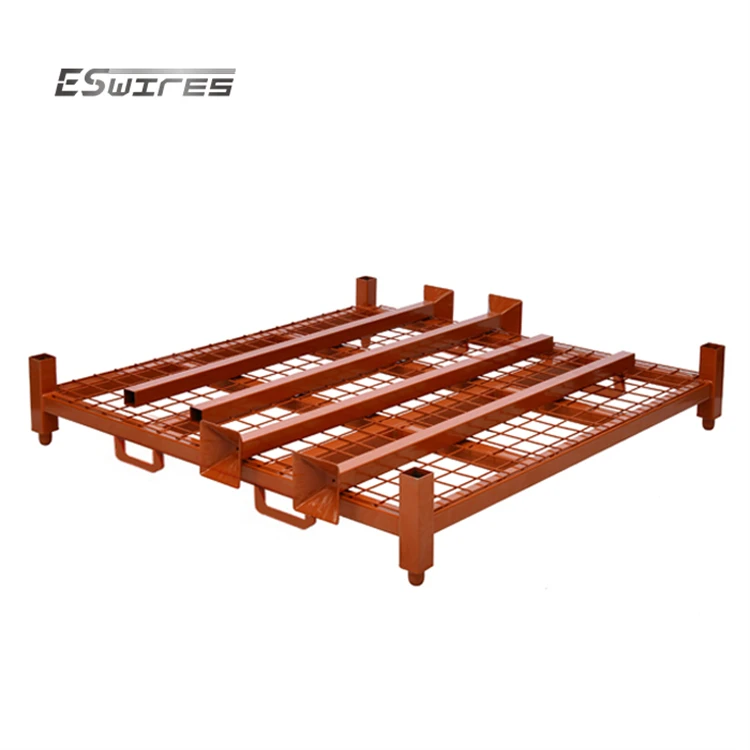

Powder coating heavy duty industrial steel stackable logistic warehouse box tyre tire rack pallet
- Category: >>>
- Supplier: AMOY E-SOON Metal Manufacture Co. Ltd
Share on (1601165983809):
Product Overview
Description
Product Description

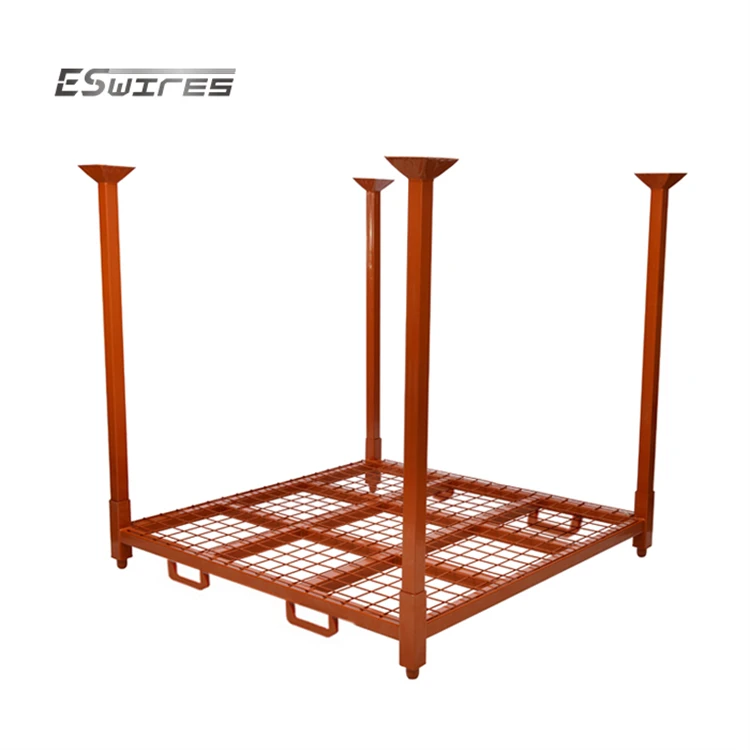

Powder coating heavy duty industrial steel stackable logistic warehouse box tyre tire rack pallet

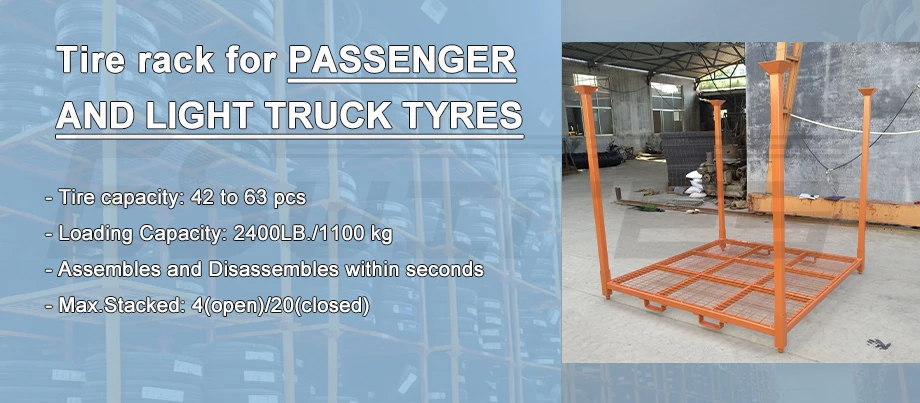

Tire rack pallet is a standard warehouse solution for tires for passenger tire or light SUV tires storage.
Technical data of Tire rack pallet
| Model No. | ES04-7272-WM | |||||
| Dimensions | 72"x72"x72" | |||||
| max. load (surface load) | 2400LB./1100 kg | |||||

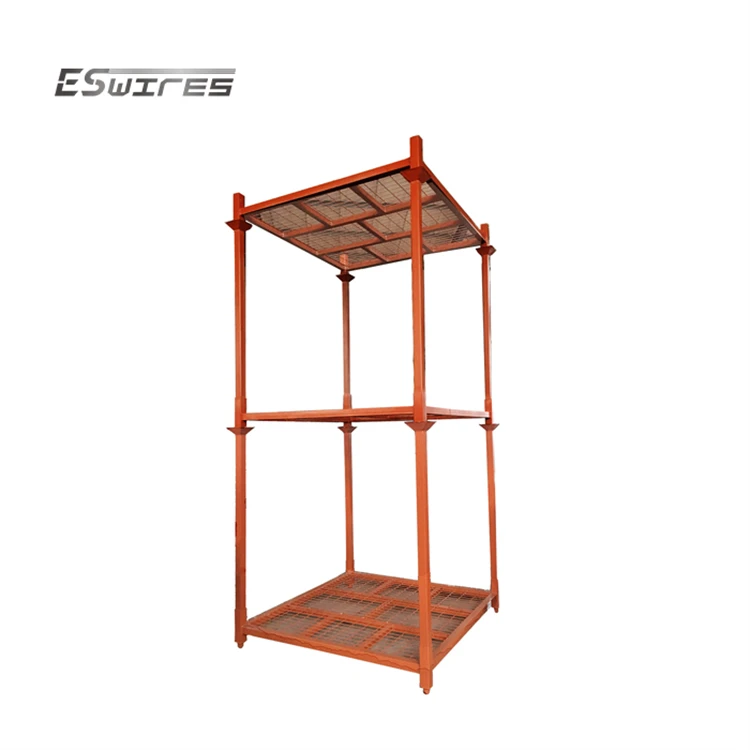

| Stacking | 4 high | |||||
| Empty pallet stacking | 1 + 19-fold | |||||
| Warehouse capacity | 42 to 63 tires | |||||
| Finish | Powder coating | |||||
| Loading Capacity | 2400LB./1100 kg | |||||
| 1*40'HQ | 160 sets | |||||
| Similar design, different sizes | Exterior Dim. | Tire capacity | Loading Capacity | Max.Stacked | Max. Stacked | Load in 1x40HQ |
| LxWxH | pcs | kg | open | closed | sets | |
| ES04-6060 | 60"x60"x60" | 24 to 32 | 2400LB./1100 kg | 4 | 20 | 280 |
| ES04-8080 | 80"x80"x60" | 20 | 2400LB./1100 kg | 4 | 20 | 100 |
| ES04-LR | 85"X 48 1/2" X 50" | 34 to 50 PCR-SUV - 7 TBR | 2400 lb. / 1100 kg | 6 | 20 | 140 |
| ES04-TBR-HD | 92''x40''x72'' | 72to81 | 2400 lb. / 1100 kg | 4 | 20 | 220 |
| Application area | Warehouse, logistics, tyre, auto industry | |||||

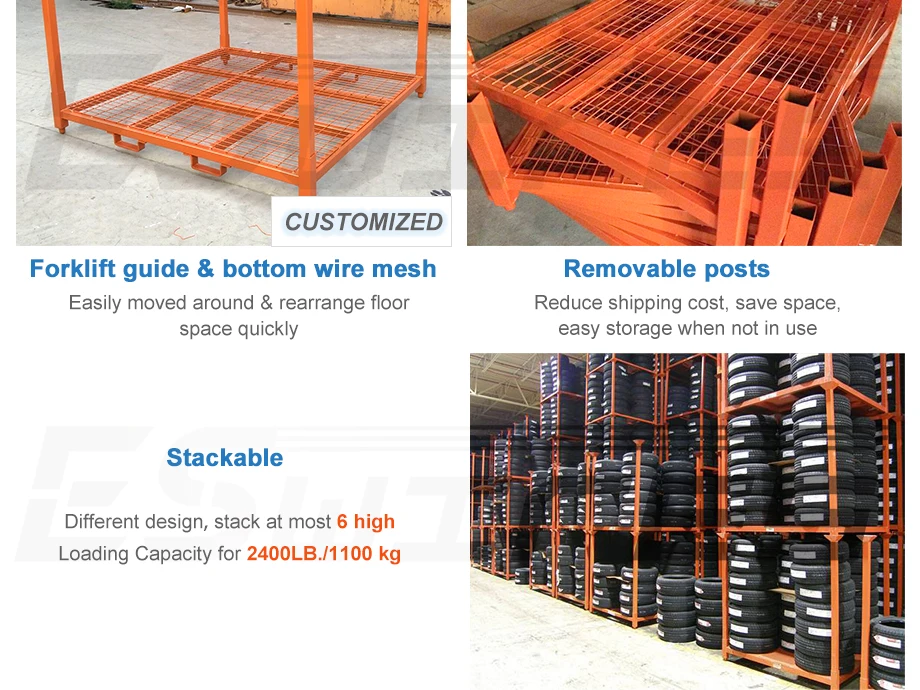

| Product features | 1. Portable modular racks --easy to stack and move around with the fork truck --rearrange floor space quickly and simply than pallet racking 2. Removable posts --reduce shipping costs, save space during slower periods --regain 80% storage space when folded | |||||
The Tire rack pallet is is made of durable mild steel Q235, and the surface is powder-coated which is can be used indoors and outdoors.
The wire mesh decking is designed to allow employees safer to step on it to manipulate tires.

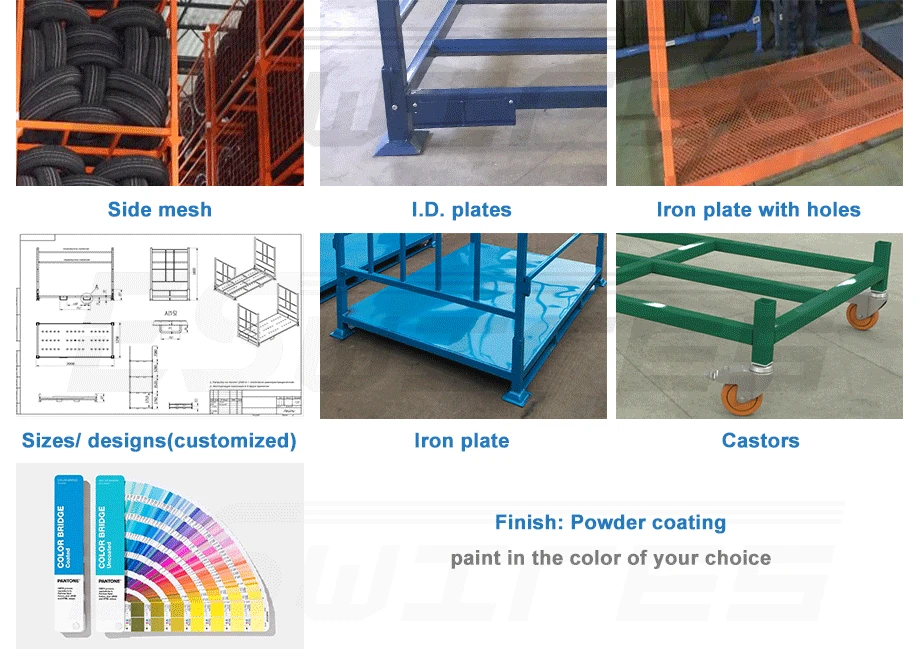

Customized accessories such as side mesh, iron plate with holes, wheels, etc.

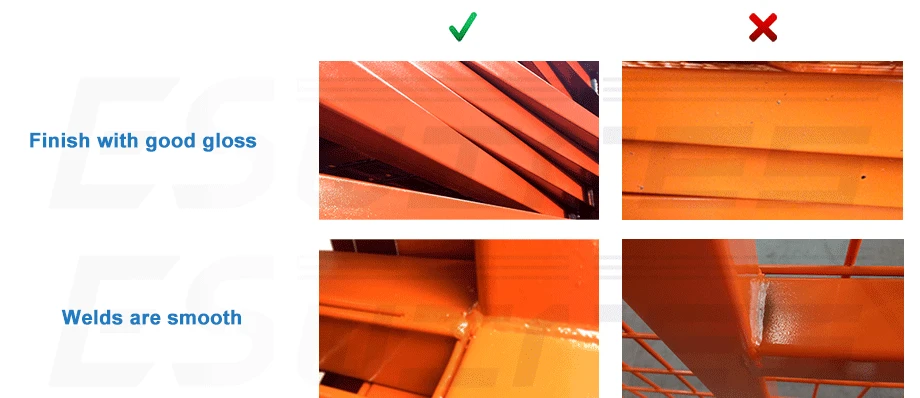

If we find any defects, like welding point open, zinc surface damage, the product will be picked out and will not send to you.

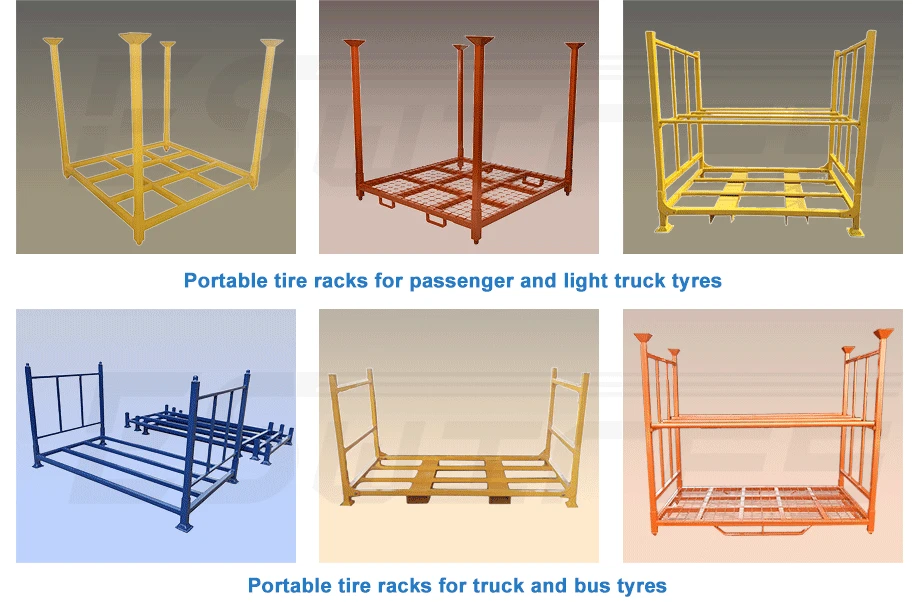

Related Products
More other types of Tire rack pallet to meet your specific needs and support OEM, ODM.

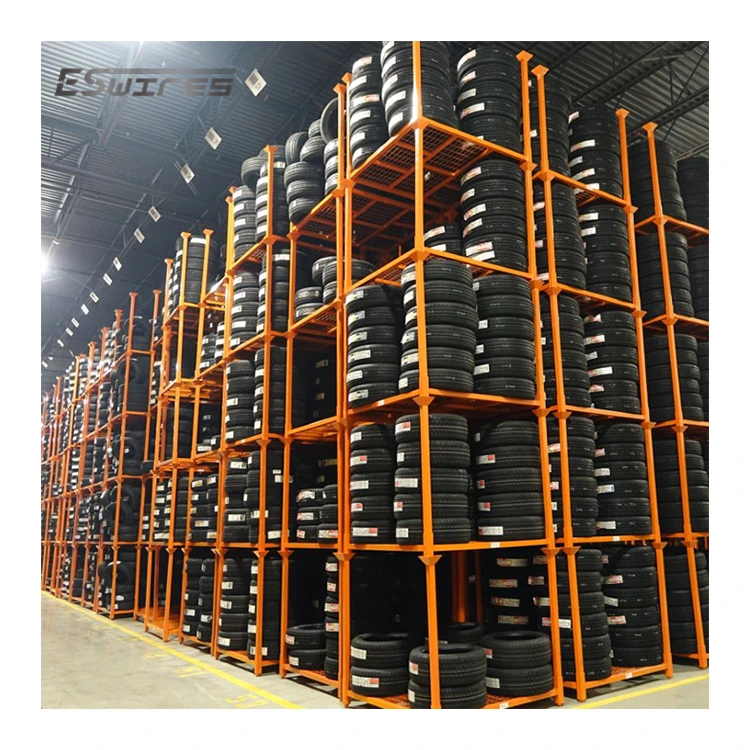

Product Uses

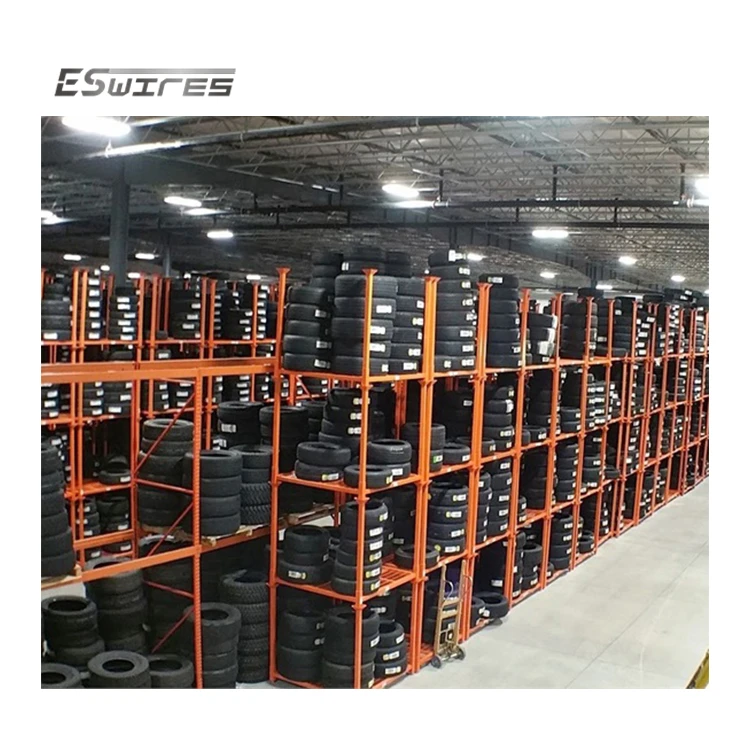

Tire rack pallet offer the GREATEST density and handling efficiency!
Packaging & Shipping
-- Plastic or metal straps to fix the product and add paper to reduce friction.
-- Loaded and unloaded by forklift.
-- Support for product packaging customization.
Customer Reviews
Main Products
We are a professional manufacturer of material handling products such as stacking pallet racks, nestainer, steel pallets, etc.
Company Profile
* Customer Focus & Long-Term View
For the past 20 years, E-soon has been producing the best solutions wherever and whenever material is handled. We believe in helping our customers create profitable growth.
* Quality & Innovation
We do not compromise on quality- -strength and safety of our containers are built on every detail during production. We relentlessly drive for better, fit-for-purpose solutions and breakthrough innovations.
* Responsibility
We take deep responsibility not only for our employees and customers but also for the communities by adopting various costly but environment-friendly production facilities.

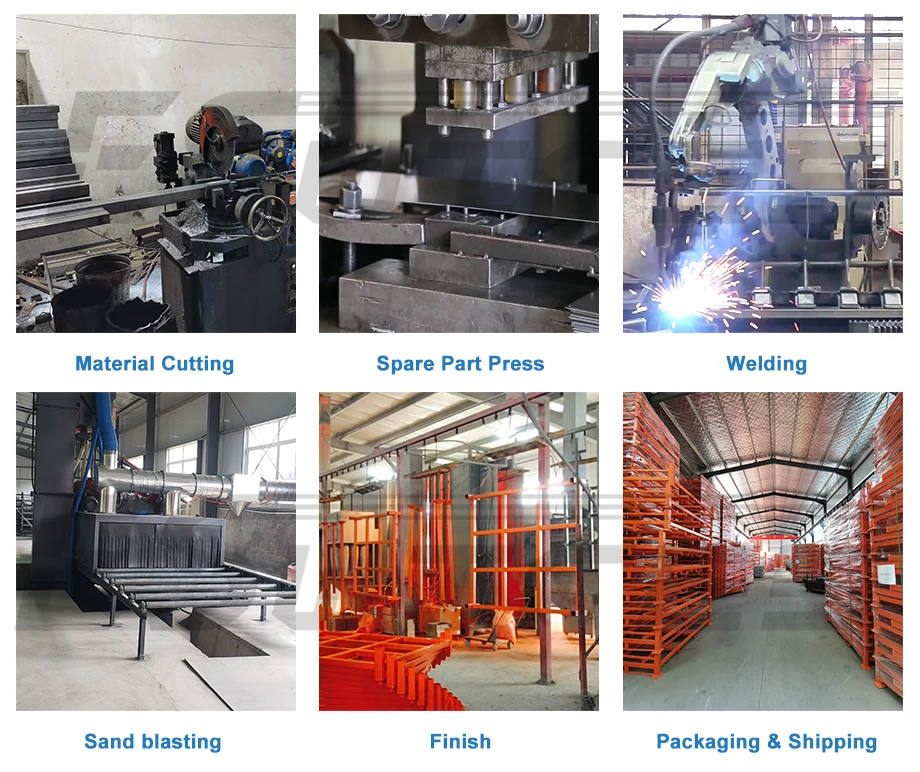

Production Process:
We have bending, cutting, punching, as well as automatic welding machine to manufacture products.
Quality Control:
Our QC team will have serious inspections from the raw material to product final loading.
Exhibitions:
Every year we will participate in exhibitions all over the world, communicate with customers, and achieve better cooperation.
FAQ
Q: Are you a factory or trading company?
A: We are a professional manufacturer of metal products and have our own factory.
Q: What is the raw material of your products?
A: The raw material is high-quality low-carbon steel q235.
Q: I like your design, but couldn't find the right model from the products list, is custom size available?
A: Yes, we do custom products and projects.
Q: I don't have drawings or pictures available for the custom products, could you design for me?
A: Yes, we can make the best suitable design for you but do need to know the details.
Q: Are samples available?
A: Yes. Samples could be provided.
Q: How are the goods being packed?
A: Plastic banding or Stretch film wrapped ensures safe delivery.
Q: What is the payment terms I can get?
A: TT or L/C at sight, Trade Assurance, etc.
Q: May I know the status of my order?
A: Yes. We will send you information and photos at the different production stages of your order. You will get the latest information in time.
Q: What are delivery times?
A: It depends on the order quantity and types. In general, within 4-6 weeks, for an ordinary order quantity.
Q: What happens in case any quality problem is identified after arrival?
A: We take full responsibility for any manufacturing defect, would either refund or reship good products to you.
