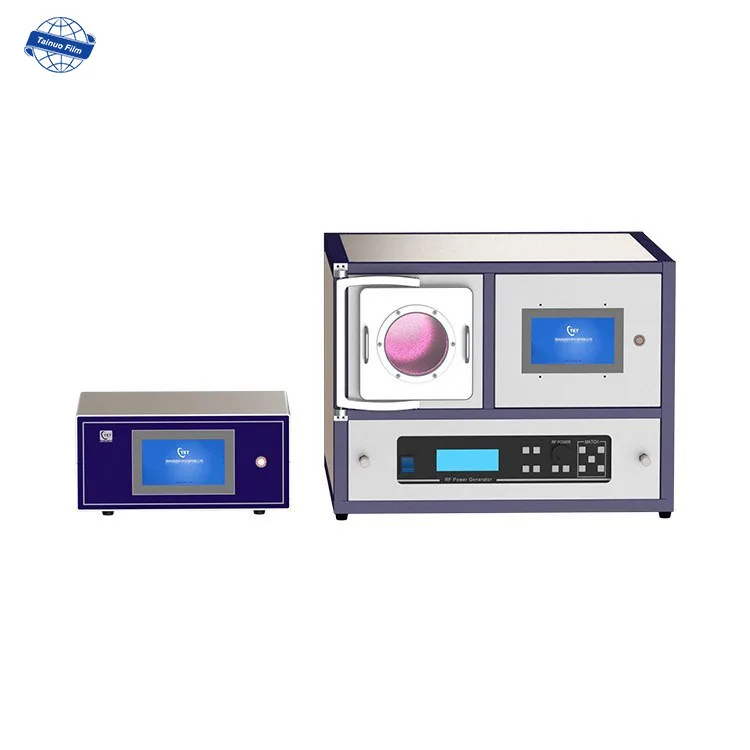

Lab 2L 300W Mini Desktop Plasma Cleaner Vacuum Atmosphere Plasma Cleaner for PCB Sample Cleaning
- Category: >>>
- Supplier: Zhengzhou Tainuo Film Materials Co. Ltd.
Share on (1601166005697):
Product Overview
Description
Lab 2L 300W Mini Desktop Plasma Cleaner Vacuum Atmosphere Plasma Cleaner
for PCB Sample Cleaning
Product Description
Plasma cleaning machine is a small, non - destructive cleaning equipment. The plasma cleaning machine uses low pressure excited plasma as cleaning medium, which effectively avoids the secondary pollution caused by liquid cleaning medium to the cleaned objects. The instrument is equipped with a mechanical vacuum pump, which can maintain the vacuum of the chamber while also removing the pollutants after the plasma reaction through the vacuum pump. Therefore, a short time of cleaning can make the organic pollutants be completely cleaned out.
plasma cleaner (plasma cleaner), is a new high-tech technology, the use of plasma to achieve conventional cleaning methods can not achieve the effect. Plasma is a state of matter, also known as the fourth state of matter, and does not belong to the common solid-liquid-gas triplet. Enough energy is applied to a gas to dissociate it into a plasma state.
In addition to the cleaning function, this small plasma cleaning machine can also change the surface performance of some materials according to the need under specific conditions. In the cleaning process, the glow discharge of the small plasma cleaning machine can strengthen the adhesion, compatibility and infiltration of these materials.
This plasma cleaning machine is suitable for laboratory and small production. The 13.56Mhz RF power supply can be used to match the plasma of various commonly used gases. Rf power supply power from 100W to 1000W between a variety of common specifications available for selection, to meet the diverse needs of users.
Application fields:
Metal: remove oil, greasy dirt and other organic matter and oxide layer on the metal surface;
Automotive manufacturing: used for pre-treatment of plastics and paint spraying in automotive manufacturing processes;
Textile production: used for the hydrophilicity, hydrophobicity and surface modification of textiles, filter screens and films;
Biomedicine: Petri dishes enhance activity, vascular stents, syringes, catheters and pro-wetting of various materials, before cross-coating treatment;
Aerospace: surface coating pretreatment of insulating materials, electronic components, etc.;
Electronics: circuit board cleaning and etching. Non-oxidation and activation treatment of PP and other materials, to improve solderability;
Semiconductor industry: wafer processing and processing to remove photoresist, pre-package pretreatment;
LED: Pre-treatment before the bracket is cleaned and packaged;
Plastic rubber: Improve the surface activity of PS, PE, PTFE, TPE, POM, AS and PP, making it easy to bond and print.
Product Parameters
Notes:
The following specifications can be provided,
Volume: 1L, 2L, 5L, 10L, etc
RF power supply: 100W, 150W, 300W, 300W, 1000W, adjustable. 13.56MHz
Dual-channel gas float flowmeter
Vacuum: Dual-stage rotary vane vacuum pump, 0.5Pa
Customzied plasma cleaner according to your requirements is available
The following specifications can be provided,
Volume: 1L, 2L, 5L, 10L, etc
RF power supply: 100W, 150W, 300W, 300W, 1000W, adjustable. 13.56MHz
Dual-channel gas float flowmeter
Vacuum: Dual-stage rotary vane vacuum pump, 0.5Pa
Customzied plasma cleaner according to your requirements is available
Main part | Index name | Parameter index |

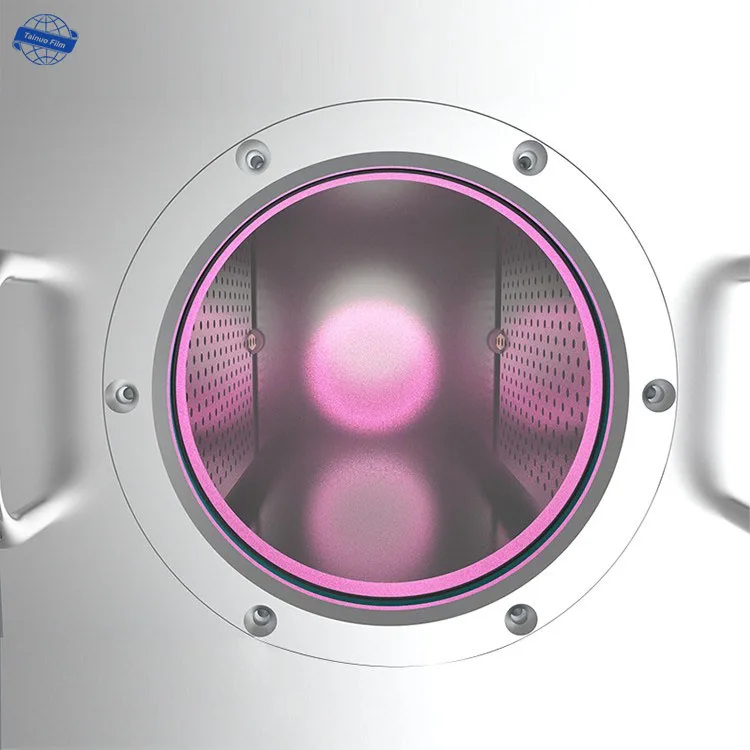

Cleaning | Material | High purity quartz |
Size | Diameter 120mm;length 280mm | |
High-frequency | Character | The 40k high frequency power supply is self-independently developed with reliable |
Advantage | Can run normally for a long time High power efficiency, less heat | |
RF power | 0~300W continuously adjustable | |
Signal frequency | 40kHz | |
Power stability | ±0.1% | |
Cooling mode | Forced air cooling | |
Gas | Measurement element | Float flow-meter |
Gas way | Two channels | |
A channel range | 10~100ml | |
B channel range | 16~160ml | |
Vacuum | Vacuum measurement | Resistance vacuum gauge |
Vacuum extraction | Bipolar vane pump | |
Pumping rate | At 50Hz:1.1L/s; At 60Hz:1.3L/s. | |
Vacuum range | 1Pa~10000Pa | |
Ultimate vacuum | 1Pa | |
Motor noise | ≤56dB | |
Pipe joint | Air inlet:KF16;air outlet:KF16. | |
Connect pipes | KF16 vacuum bellows | |
Motor power | 400W | |
Others | Power supply | AC220V 50/60Hz |
Total power | 800W | |
Operating temperature | -10ºC -- 40ºC | |
Operating vacuum | ≤40Pa | |
Total size | 560mm*650mm*480mm | |
Total weight | 65kg(package included) |

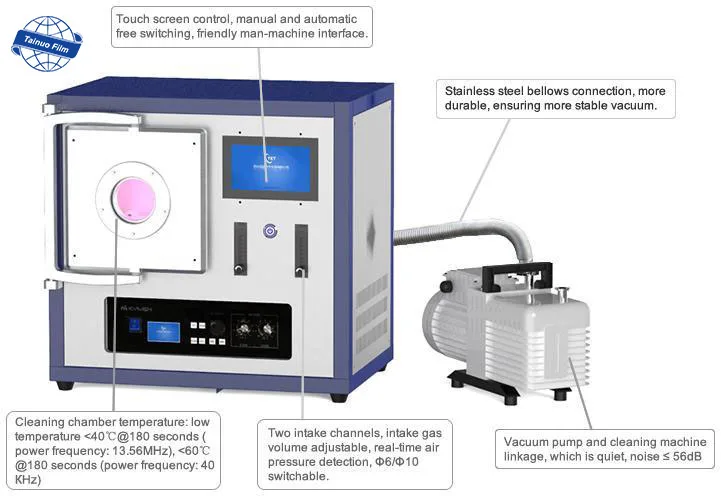

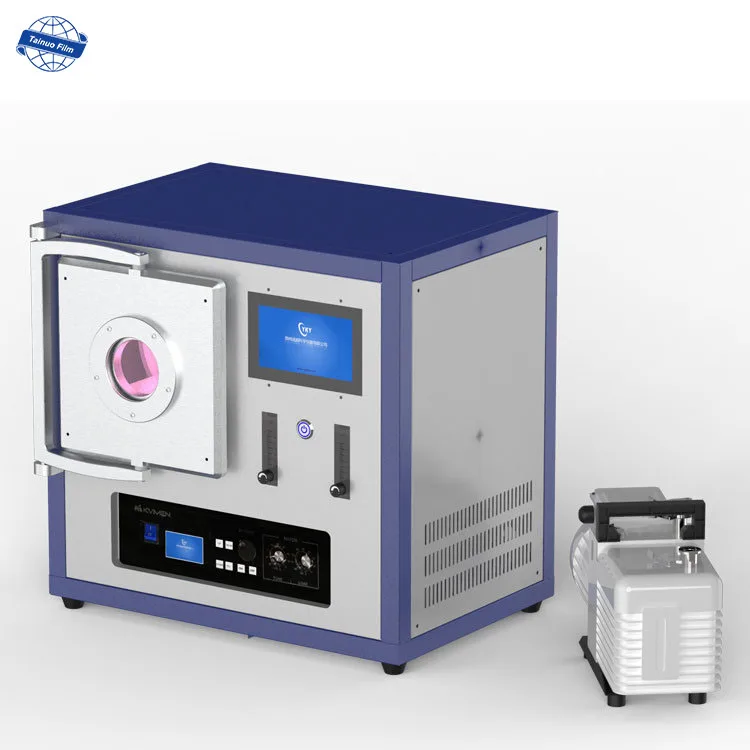

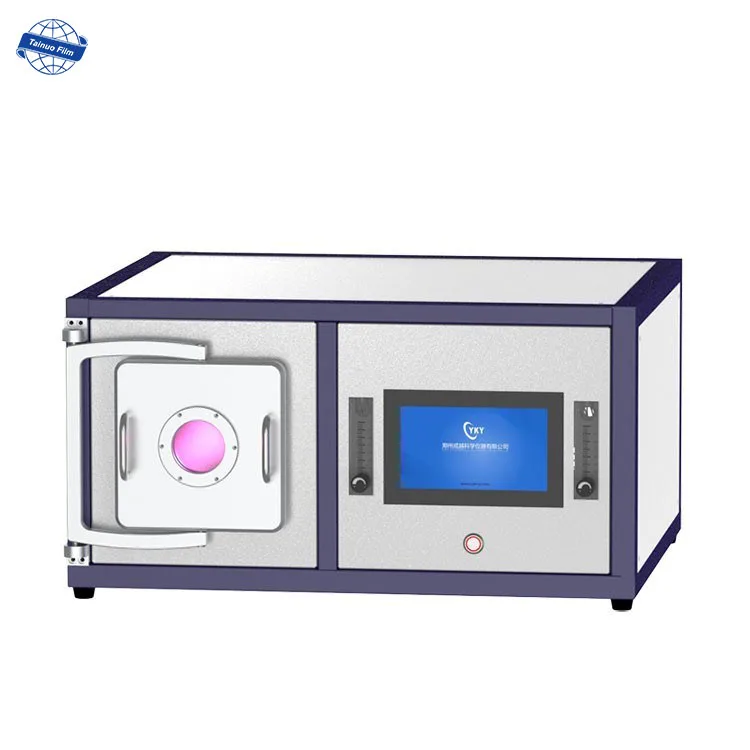

Detailed Photos
FAQ
Q. Are you a manufacturer or a trading company?
A. We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.
Q. How is your company's product after-sales service system?
A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales departments that can respond to you within 24 hours to resolve any technical issues.
Q. How long is your delivery time? If I want to customize the instrument, how long does it take?
A.1. If the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.
Q. Our country's power supply and plug are different. How do you solve it?
A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.
Q. How to pay?
A.T / T, L / C, D / P, etc., it is recommended to use Alibaba Trade Guarantee.
Q. How is the package of goods? Delivery methods?
A.1. Standard export fumigation sign wooden box packaging 2. Express, air, sea shipping according to customer requirements, find the most suitable way.
