Industry Air Oil Mist Collector Slag Extraction And Liquid Exchange Oil Separation Integrated For CNC Machine Center
- Category: >>>
- Supplier: Kwlid (jiangsu) Intelligent Equipment Manufacturing Co. Ltd.Kwlid Ltd.
Share on (1601166028089):
Product Overview
Description
Product Description

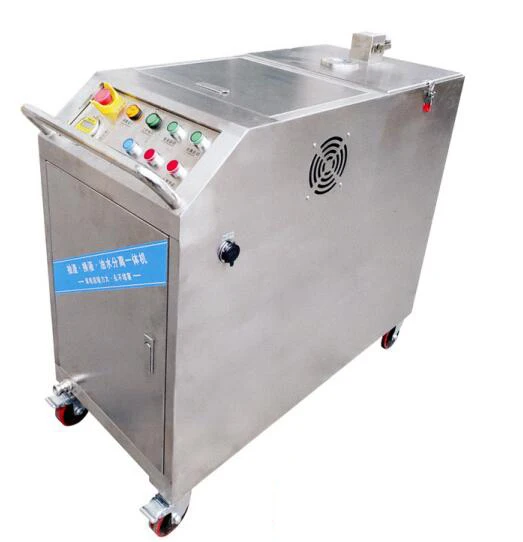

slag extraction and liquid exchange oil water separation integrated machine

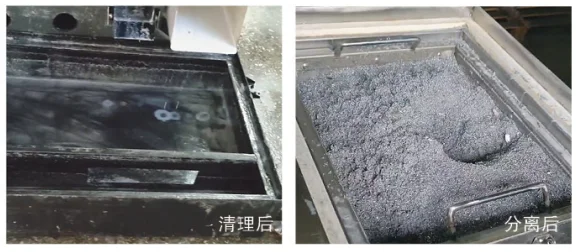

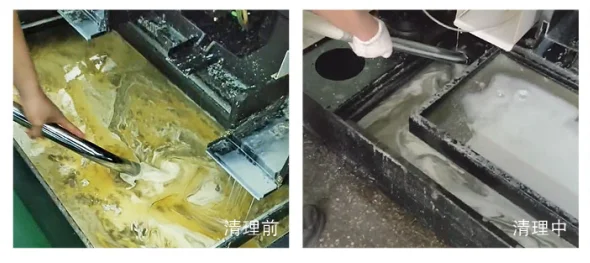

During the use of the machine tool, all kinds of metal debris, powder, and silt will gradually accumulate in the water tank of the machine tool. lf it is not cleaned for a long time, the volume of the water tank will become smaller, and the cutting fluid will not be fully utilized and circulated. Cause pipeline blockage, water pump and parts scrapped. There will be a lot of metal debris and sludge inside, which is smelly and dirty, and it is very troublesome to deal with. The slag extractor can solve the problems of machine tool water tank debris and sludge with one click. And with complete functions, one machine can handle the sanitation of a workshop, hand-held mode, 360°no dead angle cleaning.
The machine has a maximum storage capacity of 200L, has the functions of slag pumping, liquid replacement, oil-water separation, etc., and can be used for both dry and wet purposes. lt can clean the debris and oil sludge in the water tank of the machine on-line, realize the discharge while pumping, without stopping the machine, separate the sludge, water and oil, and recycle and store them.
The machine has a maximum storage capacity of 200L, has the functions of slag pumping, liquid replacement, oil-water separation, etc., and can be used for both dry and wet purposes. lt can clean the debris and oil sludge in the water tank of the machine on-line, realize the discharge while pumping, without stopping the machine, separate the sludge, water and oil, and recycle and store them.
Specification parameter table

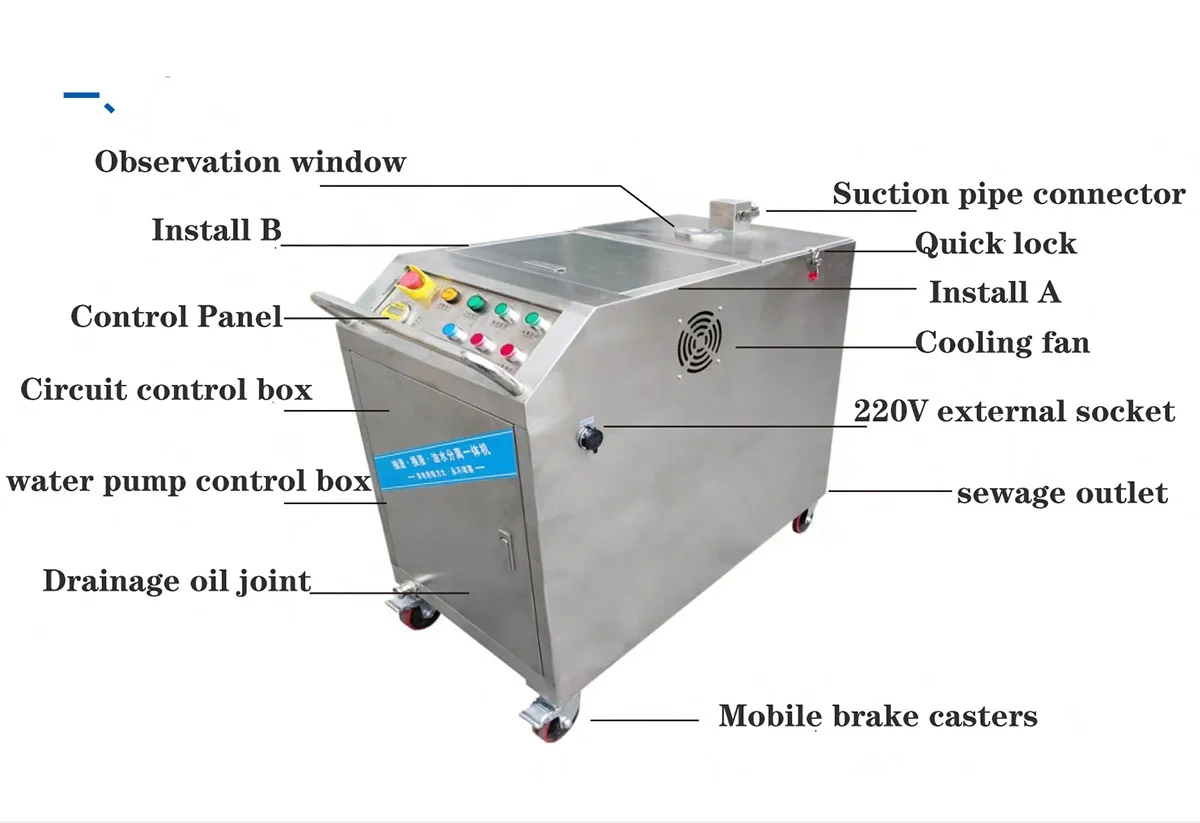

1. The whole machine is made of stainless steel, with full copper dual motors and a built-in stainless steel water pump;
2. Double-motor vacuum drive, strong suction, never clogged;
3. Two-stage filtration,filtration accuracy up to 10um, no consumables;
4. One-button start, double system protection, safe, efficient and fast;
5. Liquid level control design in the water tank, automatic start-stop
function,oil-water separation and discharge;
6.200L liquid storage tank and 40Limpurity volume,large processing capacity without frequent cleaning;
7. Equipped with swivel casters, easy to move, easy to drain and dump slag.cleaning water tanks of machine tools
2. Double-motor vacuum drive, strong suction, never clogged;
3. Two-stage filtration,filtration accuracy up to 10um, no consumables;
4. One-button start, double system protection, safe, efficient and fast;
5. Liquid level control design in the water tank, automatic start-stop
function,oil-water separation and discharge;
6.200L liquid storage tank and 40Limpurity volume,large processing capacity without frequent cleaning;
7. Equipped with swivel casters, easy to move, easy to drain and dump slag.cleaning water tanks of machine tools
Model | RA-G200L |
Power | 3000w |
Voltage | 220v |
Pressure | -20kpa |
Sipper diameter | 38mm |
Pipe diameter | 19mm |
Water tank volume | 200L |
Weight | 125kg |
Frame size | 390*300*160mm |
Dimension | 1150*550*1050mm |
Purification principle
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Exhibtion
Company Profile
Kwlid (Jiangsu) Intelligent Equipment Manufacturing Co., Ltd is a Sino-German cooperative enterprise.and specializing in the production of high-quality drag chain series, protective cover series, cantilever box series, oil mist dust purification equipment series, chip conveyor series and other products. The company is located in Shenzhou Intelligent Manufacturing Industrial Park,Changshu City,Jiangsu Province.Kwlid company integrates research and development , production and sales, it is a large-scale supplier of mechanized equipment accessories in the domestic industry. The company has advanced production technology and equipment and an excellent design and R&D team. lts series of products are widely used in CNC machine tools, welding equipment,automation equipment, Glass machinery, stone equipment and many other industries.
FAQ
Q: Are you trading company or manufacturer ?
A: We are Manufacturer , we have professional team and professional production line
Q: How long is your delivery time?
A: We are Manufacturer , we have professional team and professional production line
Q: How long is your delivery time?
A:It depends on your order item and quantity.Usually within 5-7 days for stock goods, 7-15 days for customized products after receiving the prepayment or relevant L/C.
Q: What is your terms of payment ?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Dear friend , if you are interested in our products , please feel free to contact me by inquiry .
Q: What is your terms of payment ?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Dear friend , if you are interested in our products , please feel free to contact me by inquiry .
here i will reply you within one hour as soon as getting your inquiry information .
