Ksd301 Thermostat 16a 125v 250v Thermal Switch Thermal Fuse
- Category: >>>
- Supplier: Changzhou Anran International Trading Co. Ltd.
Share on (1601166044902):
Product Overview
Description
Company Profile
\t\t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t
Product Description
Product details
| Product name2 | ksd301 thermostat 250v/10a |
| Certification | CQC,TUV |
| Temperature | 20-180℃ |
| Accuracy | ±3℃,±5℃ |
| Current | 10A~16A |
| Voltage | 12/24VDC,125/250VAC |

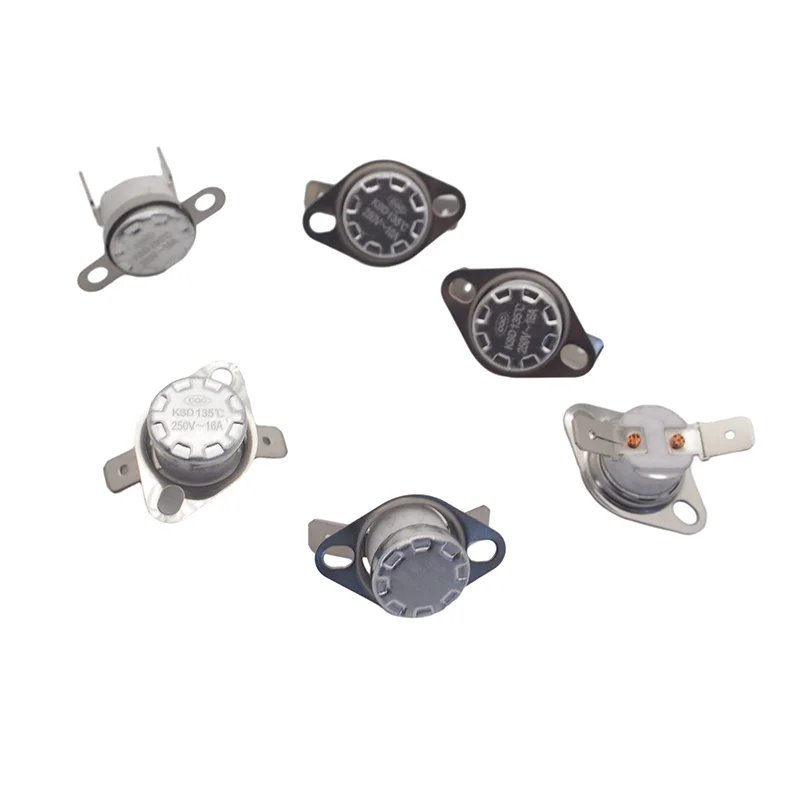

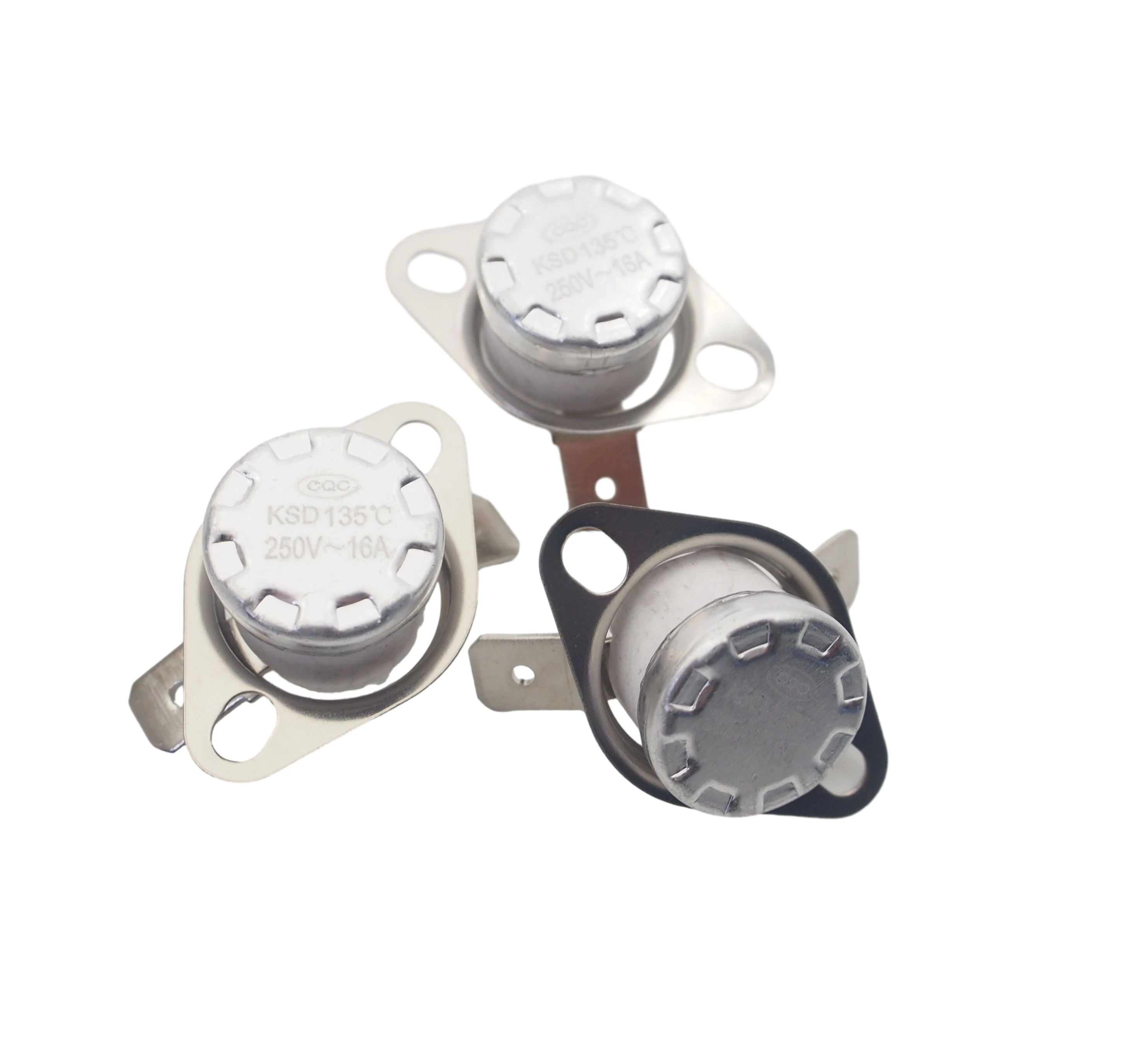

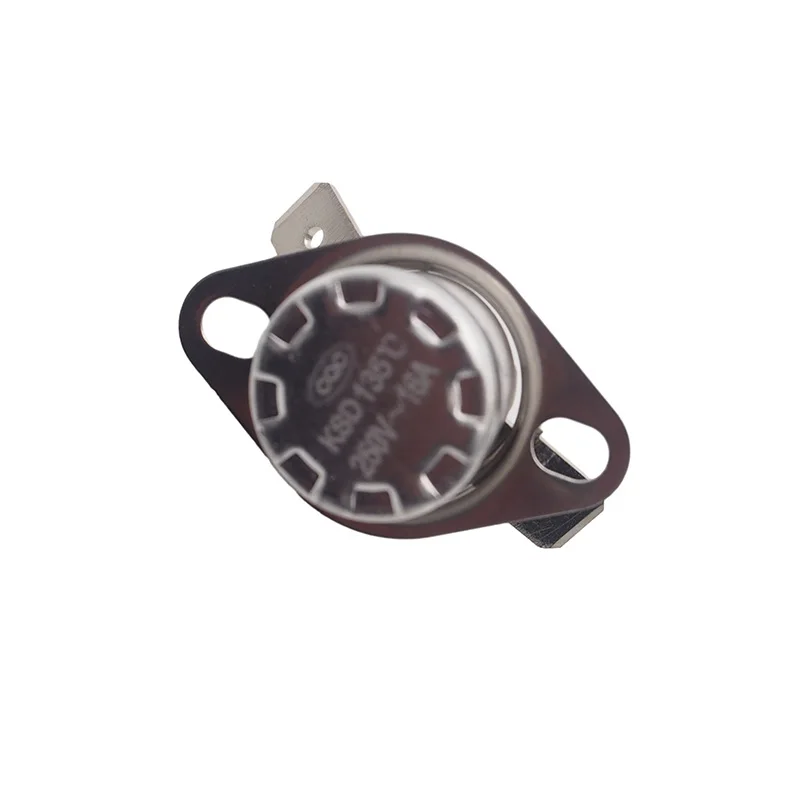

KSD301 snap action thermostat is small-size bimetal thermostat series with a metal cap,which belongs to thermalrelays’family.The main principle is that one function of bimetal discs snap action under the change of sensing temperature.The snap action of disc can push the action of the contacts through the inside structure,then caused on of off of the circuit finally.The main characteristics are the fixation of working temperature,the reliable snap action,less flashover,longer working life and less radio interference.
| Rated Current: | 10A 16A | Rated Voltage: | 125V/250V |
| Case: | Bakelite Or Ceramic | Type: | Normal Closed Or Normal Open |
| Terminal Size: | 6.3mm | Bracket: | Fixed Or Movable |
| Terminal Direction: | Horizontal Or Vertical | Action Temperature: | 40℃ To 220C℃ |
| Tolerance: | ±5℃ | Operation Cycles: | ＞30000 Times |
| High Light: | KSD301 Bimetal Thermal Protector | ||
| 6.3mm Bimetal Thermal Protector | |||
| Bimetal KSD301 Thermal Switch | |||
| Technical parameters | |||
| Action temperature | Reset temperature | Action temperature | Reset temperature |
| 45±5℃ | 40±10℃ | 135±5℃ | 105±15℃ |
| 50±5℃ | 40±10℃ | 140±5℃ | 110±15℃ |
| 55±5℃ | 45±10℃ | 145±5℃ | 115±15℃ |
| 60±5℃ | 50±10℃ | 150±5℃ | 120±15℃ |
| 65±5℃ | 50±10℃ | 155±5℃ | 125±15℃ |
| 70±5℃ | 50±10℃ | 160±5℃ | 130±15℃ |
| 75±5℃ | 55±10℃ | 165±5℃ | 135±15℃ |
| 80±5℃ | 55±10℃ | 170±5℃ | 140±15℃ |
| 85±5℃ | 55±10℃ | 175±5℃ | 145±15℃ |
| 90±5℃ | 60±10℃ | 180±5℃ | 150±15℃ |
| 95±5℃ | 65±10℃ | 185±5℃ | 160±15℃ |
| 100±5℃ | 75±10℃ | 190±5℃ | 165±15℃ |
| 105±5℃ | 80±15℃ | 200±5℃ | 170±15℃ |
| 110±5℃ | 80±15℃ | 210±5℃ | 175±15℃ |
| 115±5℃ | 85±15℃ | 215±5℃ | 180±15℃ |
| 120±5℃ | 90±15℃ | 220±5℃ | 185±15℃ |
| 125±5℃ | 95±15℃ | ||
| 130±5℃ | 100±15℃ | ||
