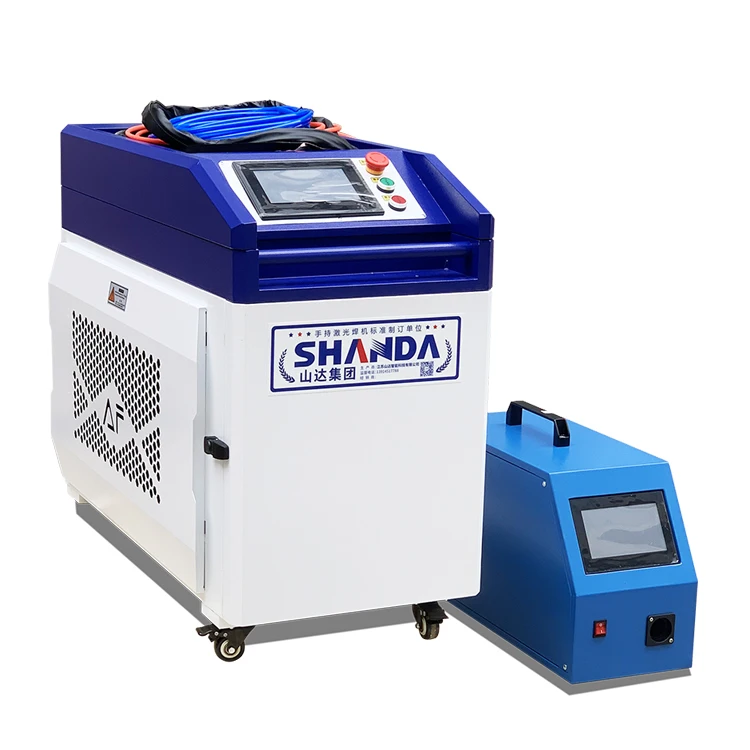

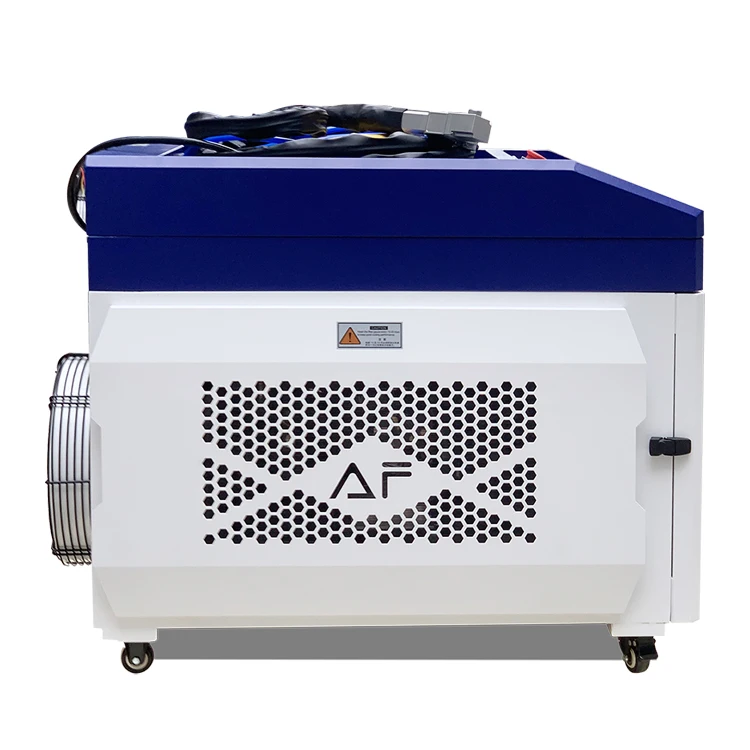

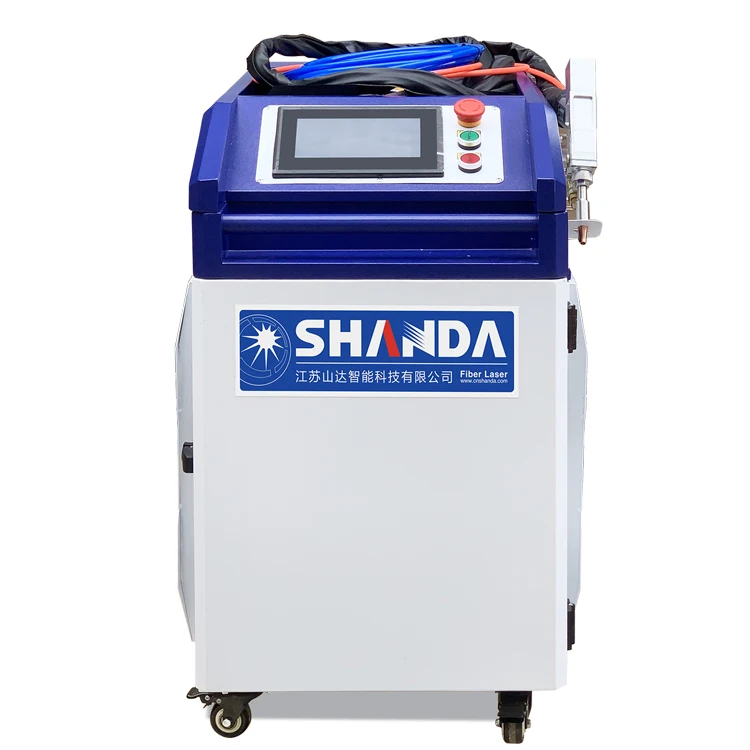

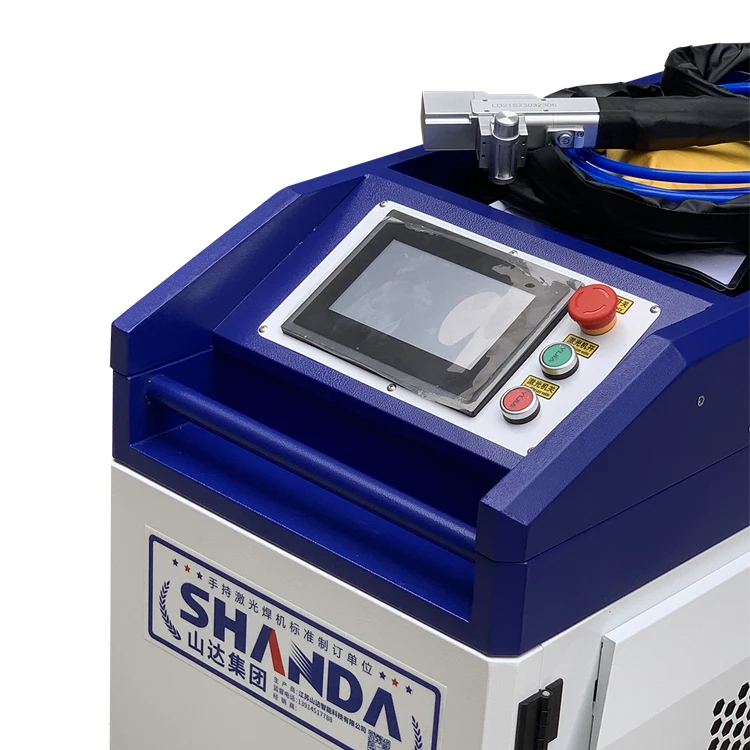

NEW Handheld Laser Welding 10m fiber optic cable Fiber Welding Automatic Machine
- Category: >>>
- Supplier: Jiangsu Shanda Intelligent Technology Co. Ltd.
Share on (1601166108138):
Product Overview
Description
category | Technical parameters | ||||||||
model | SDLW-1500 | SDLW-1000 | SDLW-2000 | SDLW-2000 | |||||
Laser power | 1500W | 1000W | 2000W | 2000W | |||||
Working mode | Continuous fiber | ||||||||
The laser wavelength | 1070 nm + 10 | ||||||||
Fiber length | The standard 10m length supports 15m | ||||||||
Welding speed range | 0-120 - mm/s | ||||||||
Weldingthickness range | 1-4.5mm | ||||||||
Weld requirements | 0.2 mm or less | ||||||||
The welding head | Single swing/double swing | ||||||||

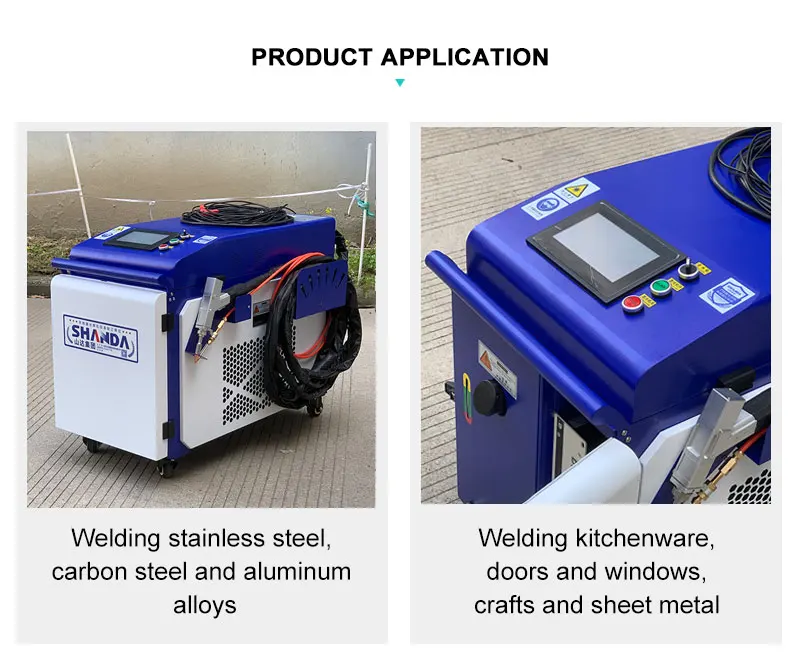

Suitable material | Aluminum, carbon steel, stainless steel, galvanized sheet, etc | ||||||||
voltage | 220V | 220V | 220V | 220V | |||||
power | 4.5KW | 7.2KW | 8KW | 6KW | |||||

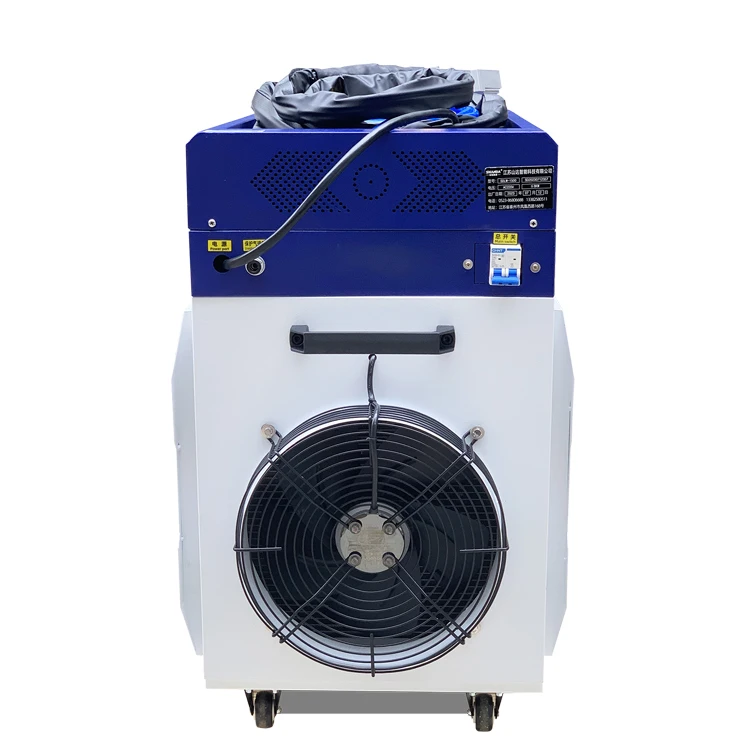

Cooling way | Water cooled | ||||||||
Collimating focal length | 150mm | ||||||||
Output fiber terminal | QBH | ||||||||
Ambient temperature | Temperature 0-60℃; humidity10-90% | ||||||||
Machine size | 85*54*88cm/100*52.5*74cm | ||||||||
