CCS Marine Embarkation Ladder Boat Safety Ladder Wood / Aluminium Rope Ladder for port, dock ,boat

Product Overview

Description

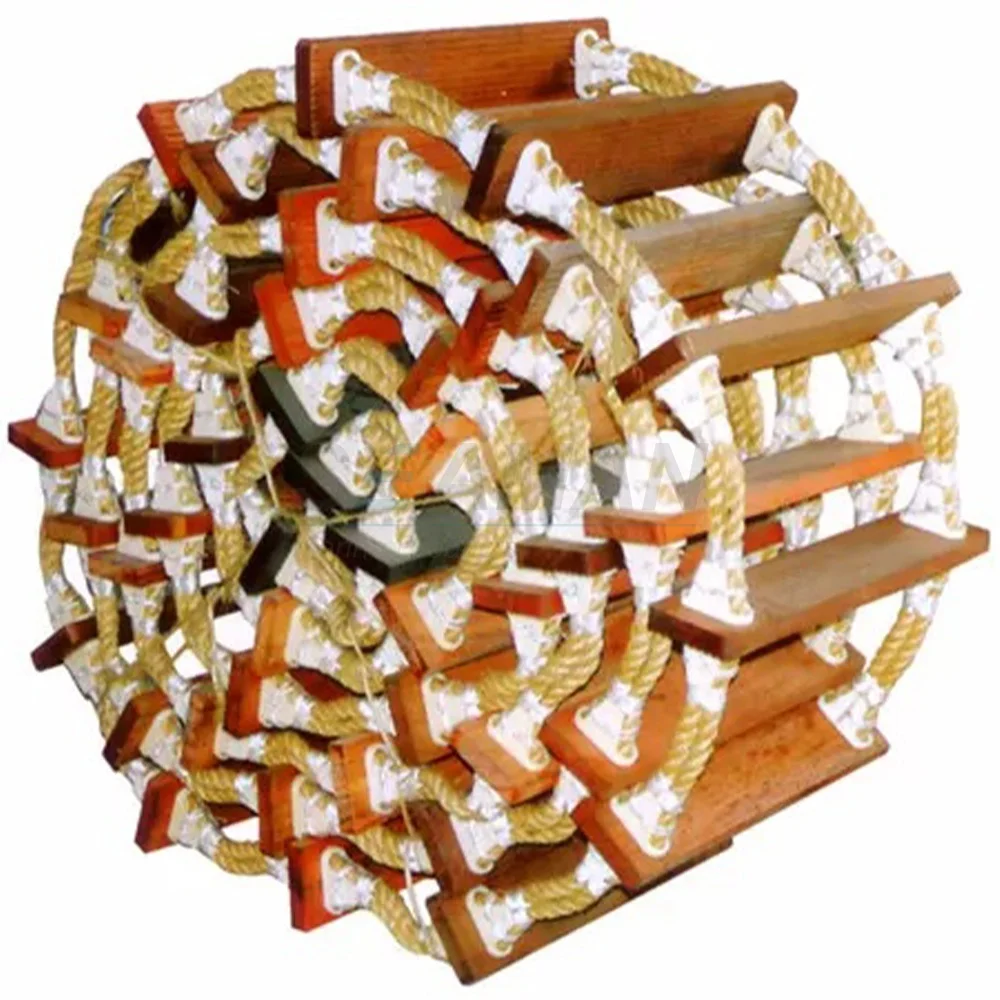

CCS Marine Embarkation Ladder Boat Safety Ladder Wood / Aluminium Rope Ladder

The wood ladder equipped in the embarking place of the vessel,for pilots to board and leave the vessels.

In accordance with the 2000 Amendments to SOLAS 1974 and LSA.



The lowest 4 steps are rubber plates with steel lining. The count-down fifth step is spreader step,and there are 8 short steps between two neighboring spreader steps. The distance between two neighboring steps: 310+-5mm.



Product Inspection Standard:

Requirements of the ZC Regulations for the statutory surveys of ships and offshore installations and International Marine Anti-collision Regulation(1972),1996 Amendments to the SOLAS1974, and CB/T3142-94,CB/T428-93.



Main Data Sheet:

Rope dia.: 22mm

 Material: Hard Wood

Rope size: 3 strand

Short step size: 525x115x28mm

Spreader step size: 1800x115x28mm



Embarkation ladder - length = 4 m - steps 12,

Embarkation ladder - length = 5 m - steps 15,

Embarkation ladder - length = 6 m - steps 18,

Embarkation ladder - length = 7 m - steps 21,

Embarkation ladder - length =8 m - steps 24,

Embarkation ladder - length = 9 m - steps 27,

Embarkation ladder - length = 10 m - steps 30,

Embarkation ladder - length = 11 m - steps 33,

Embarkation ladder - length = 12 m - steps 36,

Embarkation ladder - length =13 m - steps 39,

Embarkation ladder - length = 14 m - steps 42,



Specifications:





Name	mm Board Size (mm)		Orifice	Material
	Short Board	Long Board
Pilots Rope Ladder	525×115×28 flat board	1800×115×28	Φ25mm	willow
	525×115×30∼38 525×115×30∼60 slotting board
Rope Ladder	525×115×28 flat board	1800×115×28
	525×115×30∼38 525×115×30∼60 slotting board
