Construction Engineering China factory 3600KG Mini Wheel Loader mini small front end loader
- Category: >>>
- Supplier: Qingzhou Huizhong Machinery Co. Ltd.
Share on (1601166129104):
Product Overview
Description
Product Description
1.specification
1).Streamlined appearance design,elegant and generous.
2).WEICHAI DEUTZ(92KW)strong power engine with a stable performance.
3).Fully hydraulic steering systm,easy to operation
4).New sealing cab,Grammer seat with a comfortable operating environment.
5).Double cabin heater,double brake pump.
6).New style tires can adapt for different working environment
7). LED lamp,varta battery,adjustable seat,six air outlet cab heater,electric joystick,rear view camera etc.
Specification | overall weight(kg) | 9800 |
L×W×H(mm) | 7050×2430×3120 | |
rated bucket capacity(m3) | 1.7 | |
Rated load(kg) | 3000 | |
Maximum dump height (mm) | 3200 | |
Bucket indicator | Yes | |
Max. breakout force(KN) | 43 | |
Engine | Model |
DEUTZ TD226B CUMMIN 6BT5.9-C130 |
Type | Vertical, in-line, water cooled, 4-stroke diesel engine | |
Rated power(kw) |
92kw | |
Rated speed(r/min) | 2400 | |
Transmission system | Model of torque converter | HangChi 428 |
Type | single-phase single-stage radial-inward turbine triplex | |
Gearbox type | Power shaft normally engaged straight gear | |
Gear shift | 2forward 1 reverse | |
Hydraulic system | Distribution of work valve | ZL20B |
Working pump | CBGj1045,CBGq1018 | |
Steering system | Type | Articulated hydraulic steering |
Max. turning angle | 27±1° | |
Min turning radius(mm) | 3000 | |
Brake system | Brake type | Oil brake(Vacuum booster) |
Tyres | Standard tyres | 16/70-24 |
Optional wide tyres | 17.5-25 |

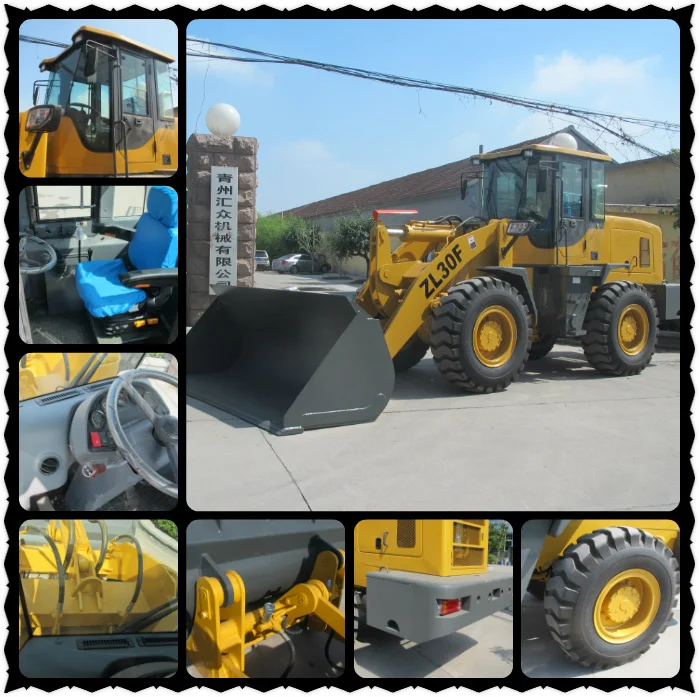

2 wheel loader show room

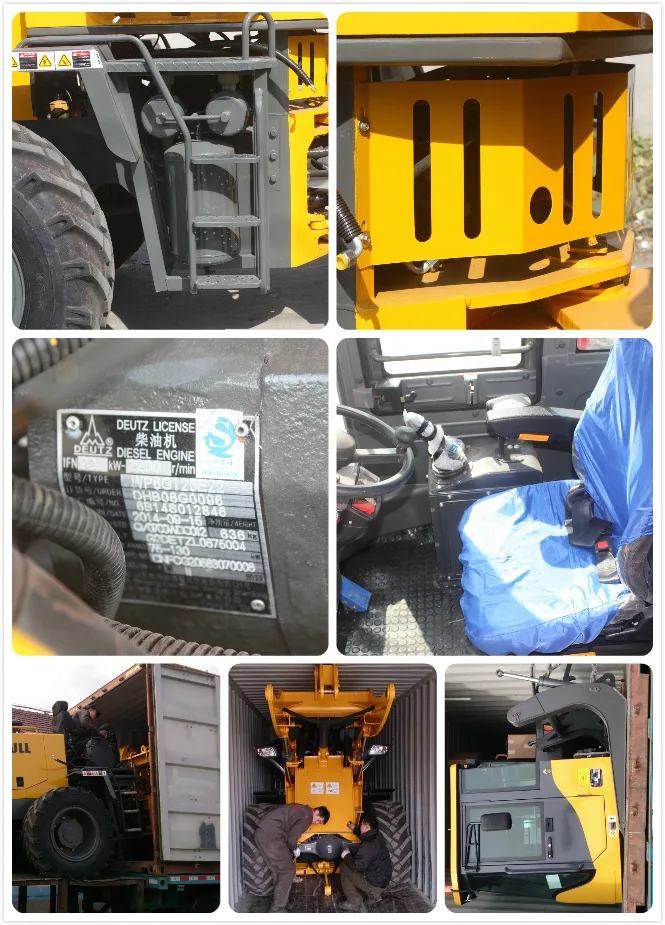

3.Detail scan
4.Attachments
5 Warranty
our warranty period is 1 year.in the warranty period ,if you have loader part damage,sent the part pic to us, we will sent a new part to you!
6 Contact us
Qingzhou Huizhong Machinery Co.,ltd
sales:Jennifer
our warranty period is 1 year.in the warranty period ,if you have loader part damage,sent the part pic to us, we will sent a new part to you!
6 Contact us
Qingzhou Huizhong Machinery Co.,ltd
sales:Jennifer
Wechat:j15963888
