3M 4M 5M 6M 7M 8M 9M Hand cranked Telescopic Mast for Vehicle mounted Winch Monitoring Lighthouse High Pole Lighting
- Category: >>>
- Supplier: Yixing Huahong Electrical Appliance Manufacturing Co. Ltd.
Share on (1601166228620):
Product Overview
Description
Products Description

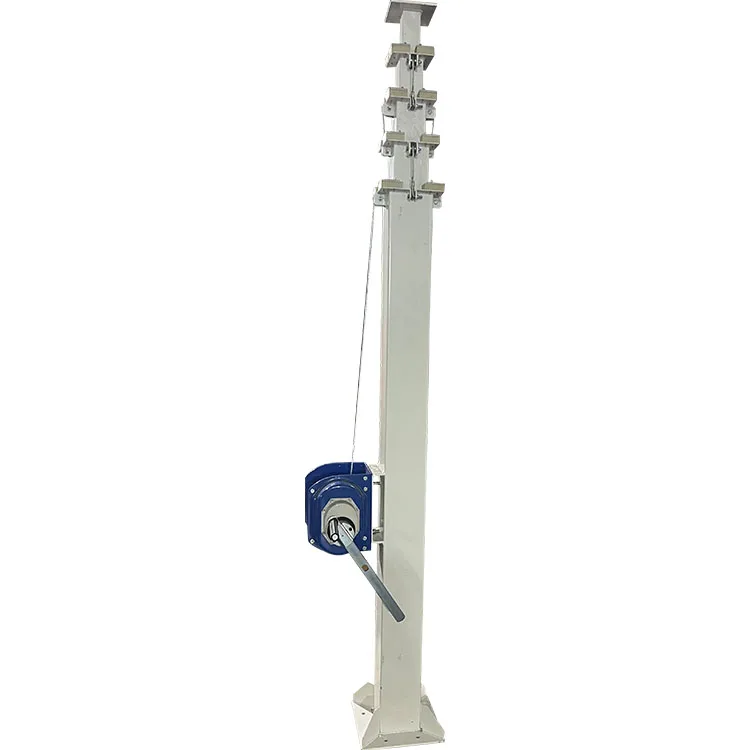

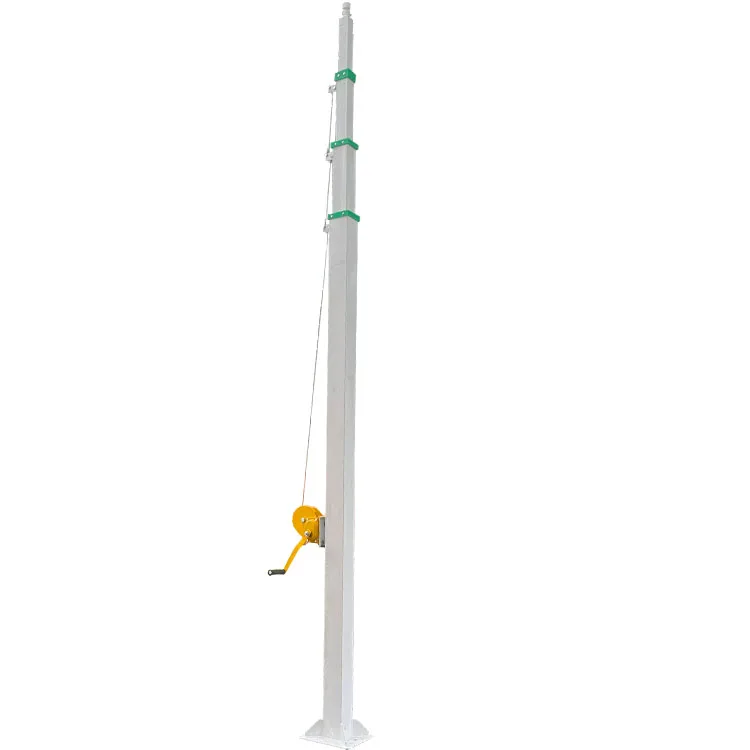

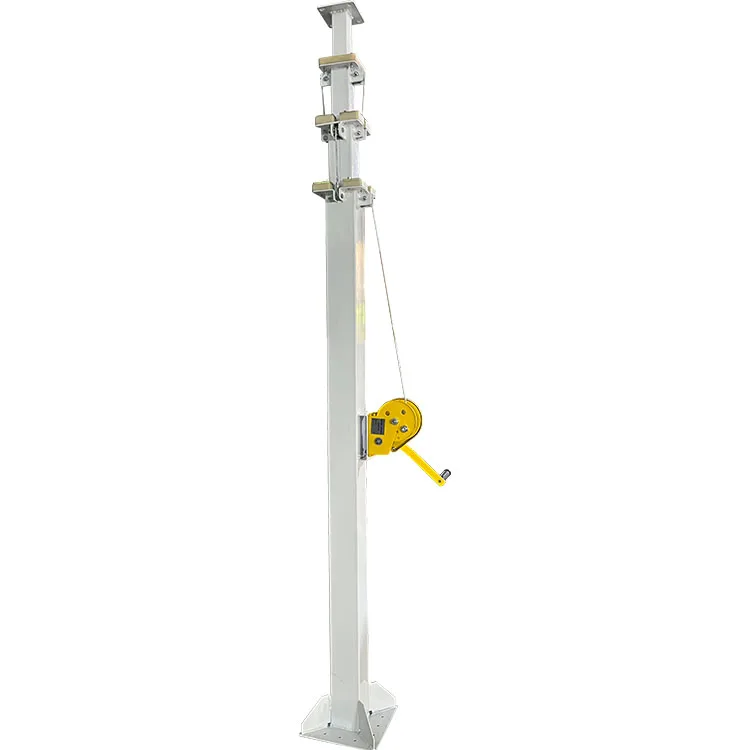

Manual Telescopic Mast
Introduction to Manual Masts A manual masts rely on manual mechanisms, such as cranks, winches, or pulleys, to extend and retract
the structure. Components of a Manual Mast 1. Base: The foundational structure that provides stability to the mast. 2. Telescoping
Sections: Multiple nested sections that can extend or retract to adjust the height of the mast. 3. Winch/Crank Mechanism: A manual
winch or crank system used to extend and retract the telescoping sections. This mechanism converts the user’s manual effort into
lifting power. 4. Cables or Belts: Connect the winch mechanism to the telescoping sections, facilitating the movement of the mast.
5. Load Attachment Point: The top of the mast where the load is secured. This could be a platform, bracket, or another fixture
depending on the specific application.
the structure. Components of a Manual Mast 1. Base: The foundational structure that provides stability to the mast. 2. Telescoping
Sections: Multiple nested sections that can extend or retract to adjust the height of the mast. 3. Winch/Crank Mechanism: A manual
winch or crank system used to extend and retract the telescoping sections. This mechanism converts the user’s manual effort into
lifting power. 4. Cables or Belts: Connect the winch mechanism to the telescoping sections, facilitating the movement of the mast.
5. Load Attachment Point: The top of the mast where the load is secured. This could be a platform, bracket, or another fixture
depending on the specific application.
Product Paramenters
Yixing Huahong Electrical Appliance Manufacturing Co., Ltd | ||||||||||
SYM- Manual Lifting Mast | ||||||||||
SELECTION TABLE（01） | ||||||||||
Model Code | SYM3-3M | SYM4-3M | SYM4-4M | SYM4-5M | SYM4-6M | |||||
Extended Height | 3 meters | 3 meters | 4 meters | 5 meters | 6 meters | |||||
Retracted Height | 1380mm | 1260mm | 1460mm | 1760mm | 1960mm | |||||
Net weight | 20kg | 22kg | 26kg | 32kg | 40kg | |||||
Top tube size | 50×50mm | 50×50mm〔Square tube〕 | ||||||||
Base tube size | 80×80mm | 100×100mm〔Square tube〕 | ||||||||
Number of sections | 3 sections | 4 sections | ||||||||
Max payload | 30kg | |||||||||
Brand | JSUHUAHONG | |||||||||
Mast Type | Multi-Section Retractable Mast | |||||||||
material quality | Steel（Square tube wall thickness 2.0mm） | |||||||||
Lifting Driver | Manual mechanical | |||||||||
Manual Winch | 1200Lbs | |||||||||
Winch function | Self-locking | |||||||||
Surface treatment | Galvanizatio/Powder Coat | |||||||||
Packaging | ||||||||||
Packaging Details | Corrugating carton box or wooden case | |||||||||
Optional configuration | ||||||||||

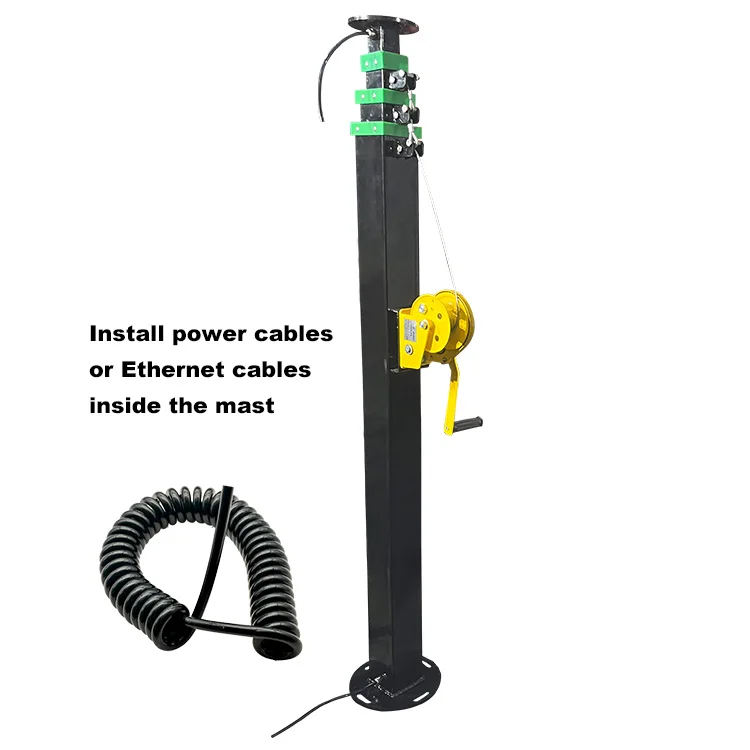

The mast can be customized with either a built-in spring power cord or Ethernet cable. | ||||||||||
Yixing Huahong Electrical Appliance Manufacturing Co., Ltd | ||||||||
SYM- Manual Lifting Mast | ||||||||
SELECTION TABLE（02） | ||||||||
Model Code | SYM4-7M | SYM4-8M | SYM4-9M | SYM4-10M | ||||
Extended Height | 7 meters | 8 meters | 9 meters | 10 meters | ||||
Retracted Height | 2260mm | 2460mm | 2760mm | 2960mm | ||||
Net weight | 45kg | 50kg | 55kg | 70kg | ||||
Top tube size | 50×50mm | 50×50mm〔Square tube〕 | ||||||
Base tube size | 80×80mm | 100×100mm〔Square tube〕 | ||||||
Number of sections | 3 sections | 4 sections | ||||||
Max payload | 30kg | |||||||
Brand | JSUHUAHONG | |||||||
Mast Type | Multi-Section Retractable Mast | |||||||
material quality | Steel（Square tube wall thickness 2.0mm） | |||||||
Lifting Driver | Manual mechanical | |||||||
Manual Winch | 1200Lbs | |||||||
Winch function | Self-locking | |||||||
Surface treatment | Galvanizatio/Powder Coat | |||||||
Packaging | ||||||||
Packaging Details | Corrugating carton box or wooden case | |||||||
Optional configuration | ||||||||
The mast can be customized with either a built-in spring power cord or Ethernet cable. | ||||||||
Recommend Products
Components of a Mast
1. Base: The foundational structure that provides stability to the mast.
2. Telescoping Sections: Multiple nested sections that can extend or retract to adjust the height of the mast.These sections are made of durable square steel pipes
3. Winch/Crank Mechanism: A manual winch or crank system used to extend and retract the telescoping sections. This mechanism converts the user’s manual effort into lifting power.
4. Steel wire rope: Connect the winch mechanism to the telescoping sections, facilitating the movement of the mast.

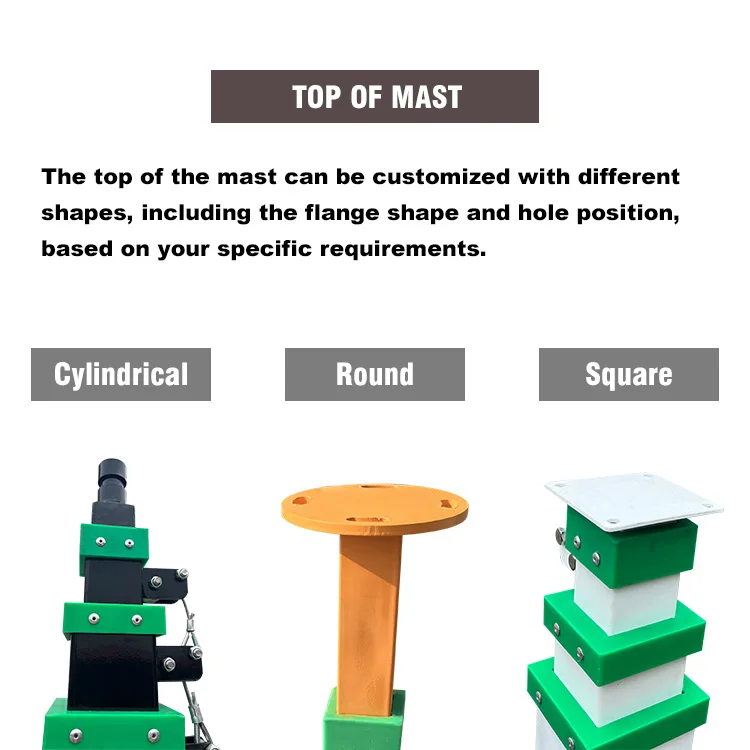

5. Load Attachment Point: The top of the mast where the load is secured. This could be a platform, bracket, or another fixture depending on the specific application.
2. Telescoping Sections: Multiple nested sections that can extend or retract to adjust the height of the mast.These sections are made of durable square steel pipes
3. Winch/Crank Mechanism: A manual winch or crank system used to extend and retract the telescoping sections. This mechanism converts the user’s manual effort into lifting power.
4. Steel wire rope: Connect the winch mechanism to the telescoping sections, facilitating the movement of the mast.
5. Load Attachment Point: The top of the mast where the load is secured. This could be a platform, bracket, or another fixture depending on the specific application.
Product packaging
Plastic film or wooden case packaging according to customer requirements
Manufacturing Technique
Company Profile
Yixing Huahong Electrical Appliance Manufacturing Co., Ltd
Yixing Huahong Electrical Appliance Manufacturing Co., Ltd is a real manufacturing factory established in 2010, producing lighting lighthouses, solar lights, lifting masts, and more.
We support processing and customization, and have a strong design team and production line to supply quickly and effectively. With a reputation for service and integrity, Huahong products feature superb functionality, unique features, versatility and dependability.
Certifications
FAQ
Q1：Are you manufacturer?
A：Yes, we are.We have more than 13 years experience in this field and welcome to our factory for field trips.
A：Yes, we are.We have more than 13 years experience in this field and welcome to our factory for field trips.
Q2：Can I get one set free sample?
A：Free sample is not available before we have build up deep business relationship.
A：Free sample is not available before we have build up deep business relationship.
Q3：Is OEM & ODM available?
A：1). We can do the product according your design
2). We can provide customized solutions according your requirements.
A：1). We can do the product according your design
2). We can provide customized solutions according your requirements.
Q4：What's your MOQ?
A: 1 set.
A: 1 set.
Q5：What's your warranty?
A：1 year.
A：1 year.
Q6：Do you have after-sales service?
A：Yes, we have.
A：Yes, we have.
