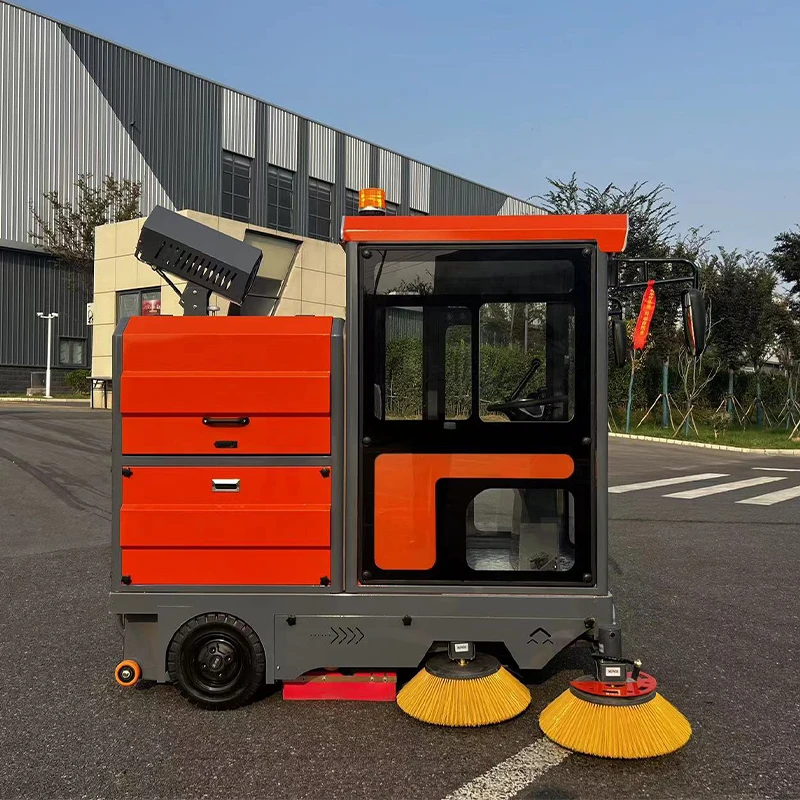

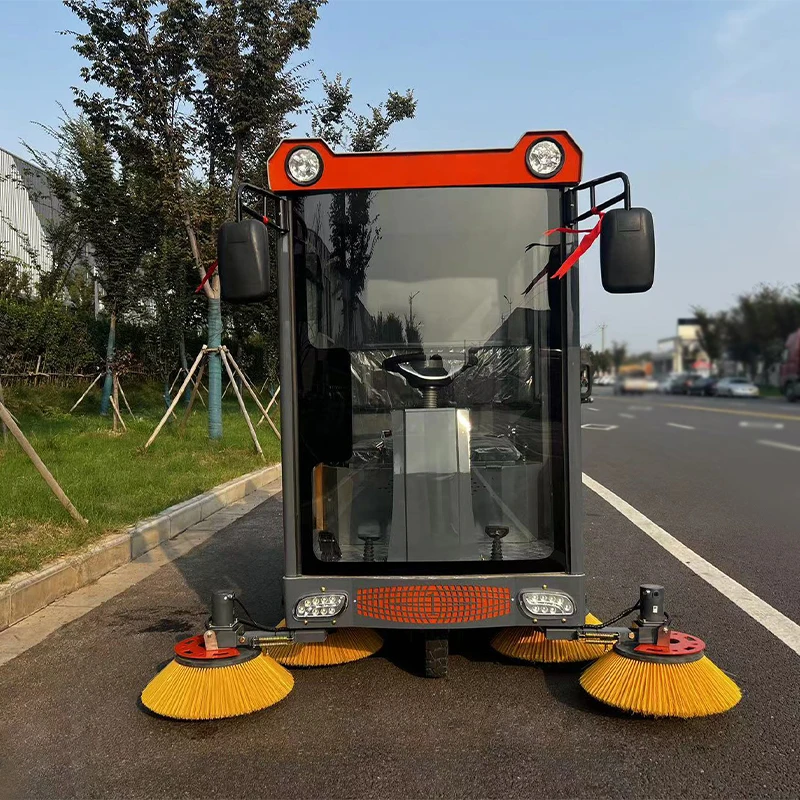

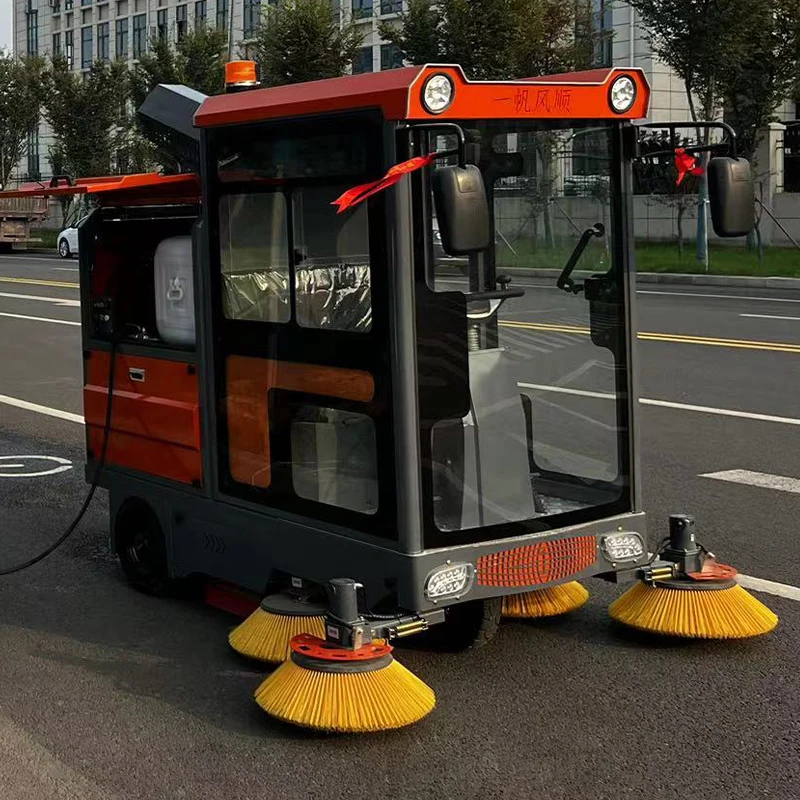

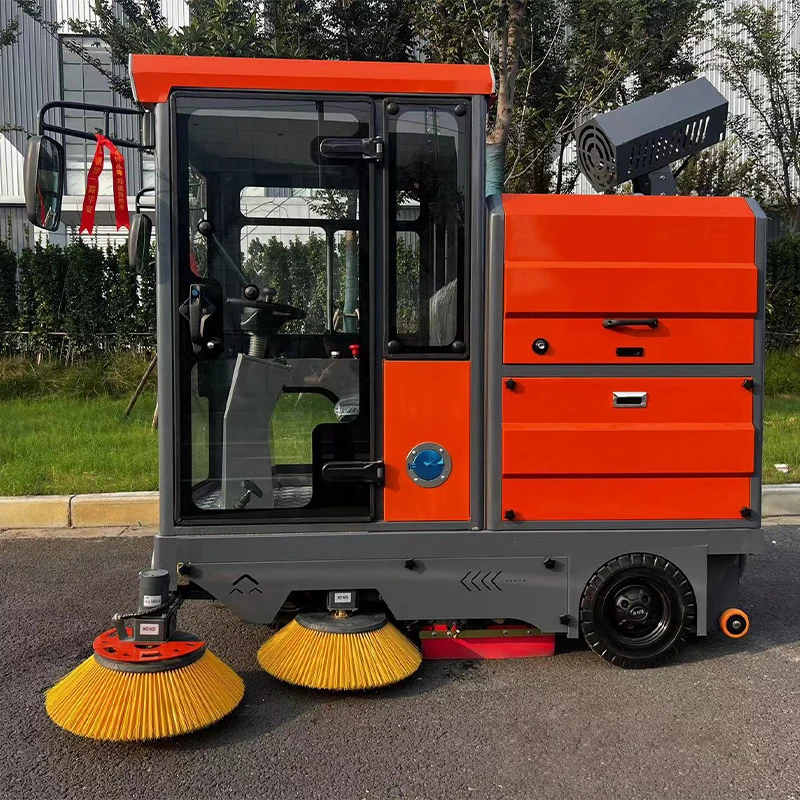

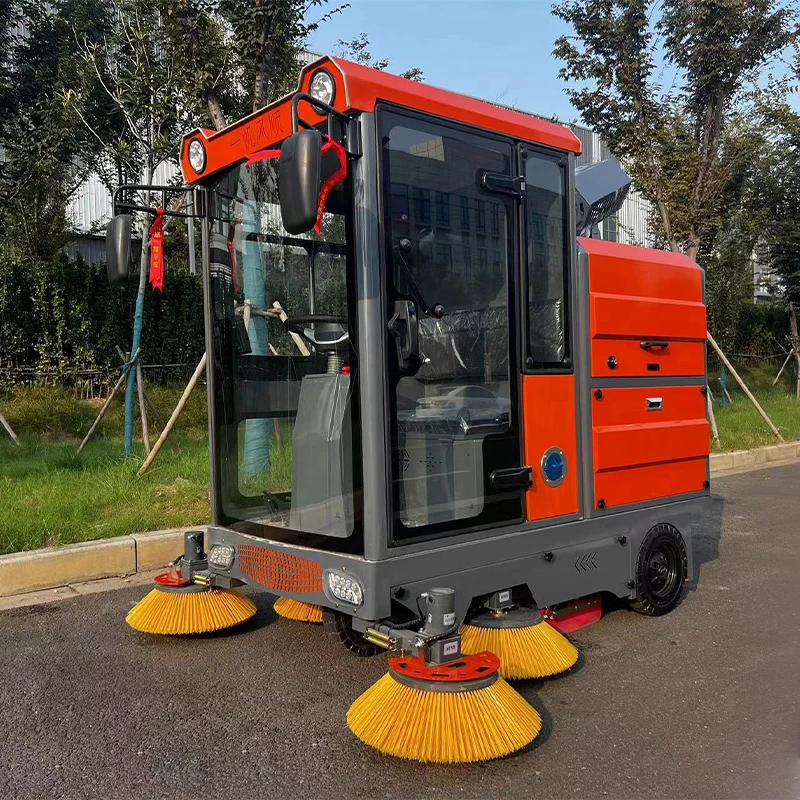

Multi Function Street Road Avenue Cleaning Machine Truck Four Wheel Sweeper Fully Closed Electric Automatic On Floor Sweeper Car

Component Name

Serial Number

project

Parameter values
/specifications

Complete vehicle

1

Model

YX-G21A

2

Sweeping width

2100mm

3

Main brush width

750mm

4

working efficiency

13500m²/h

5

working hours

3-8h

6

Dustbin capacity

180L

7

Side brush diameter

500mm

8

 Walking speed

0-14km/h

9

Overall dimensions

2300*2100*2100mm

10

water tank

200L

11

Vacuum filtration area

12m²

12

Tyre type

Front 400-8,
 rear 300-8
 solid tyre

13

control mode

Intelligent control
system (timed
dust shaking function)

Warning
lights

1

Headlight

Four way LED headlights

2

tail light

Steering+braking
+driving
 integrated
taillights

3

Alarm lamp

Top operation
 warning light

Storage
battery

1

Type

Lead acid maintenance
 free (optional
with lithium battery)

2

Battery capacity

Standard 48V-100AH*6
/150AH*4 lead-acid
battery

Electrical
machinery

1

 Walking motor

1000W intelligent
 gear change

2

Rolling brush motor

1200W

3

side-brush motor

4*100W

4

Motor voltage

48V

Rearview
mirror

1

model

Dedicated for
sweeping vehicles

Note: Standard single fan,
optional with sunshade.
Machine performance: The combination
of suction, sweeping, and spraying effectively
suppresses dust and thoroughly
cleans ground waste and dust.
Place of use: Used for cleaning workshop,
 parks, streets, lanes, docks, property
communities, warehouses, sports venues,
 schools, airports, and other areas in the
factory area. The cleaning efficiency is
10 times that of the traditional manual
cleaning, and one sweeper can replace 8-12 Cleaner
