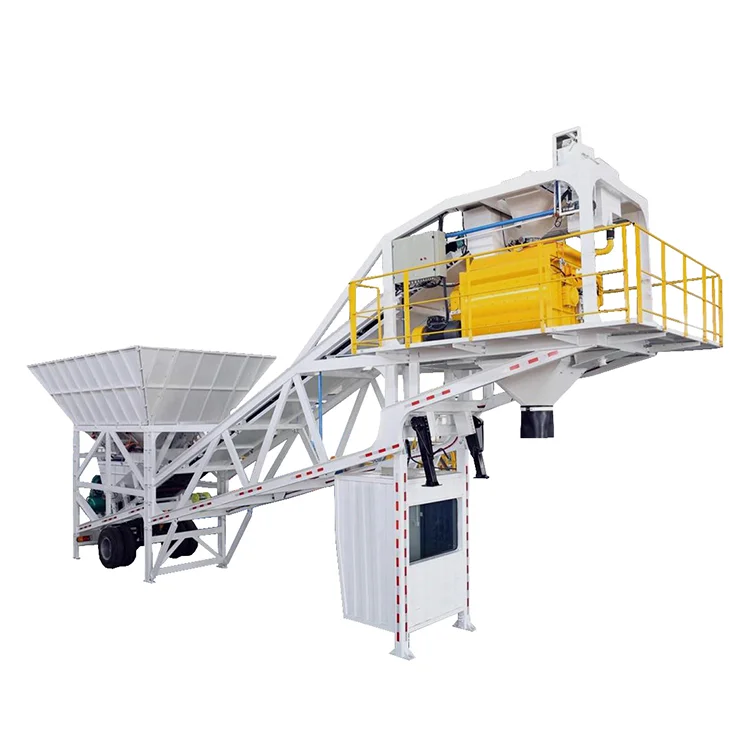

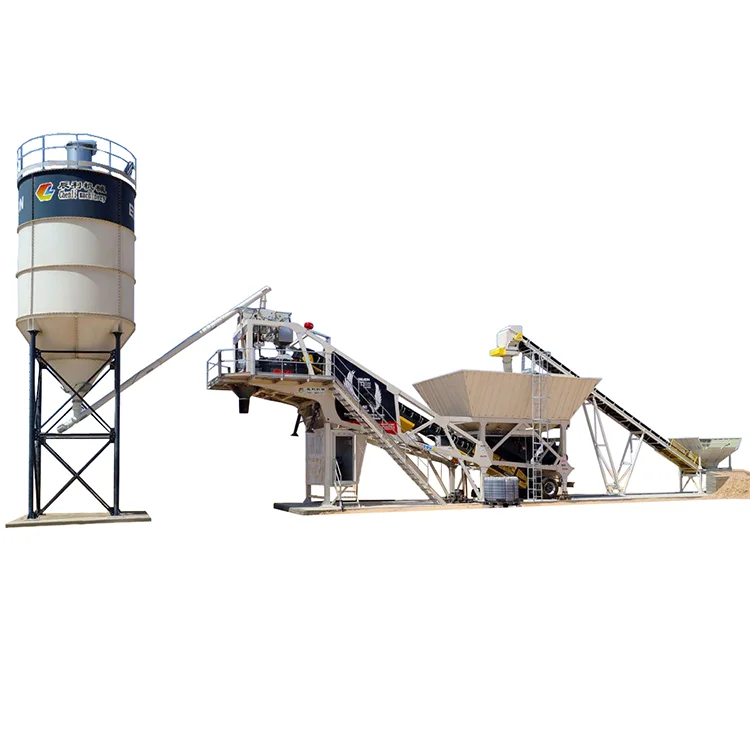

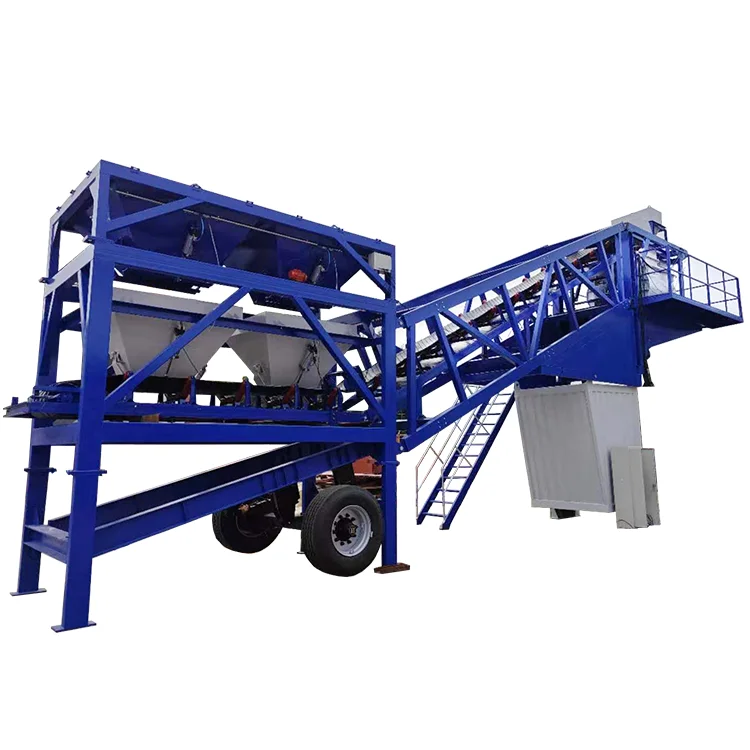

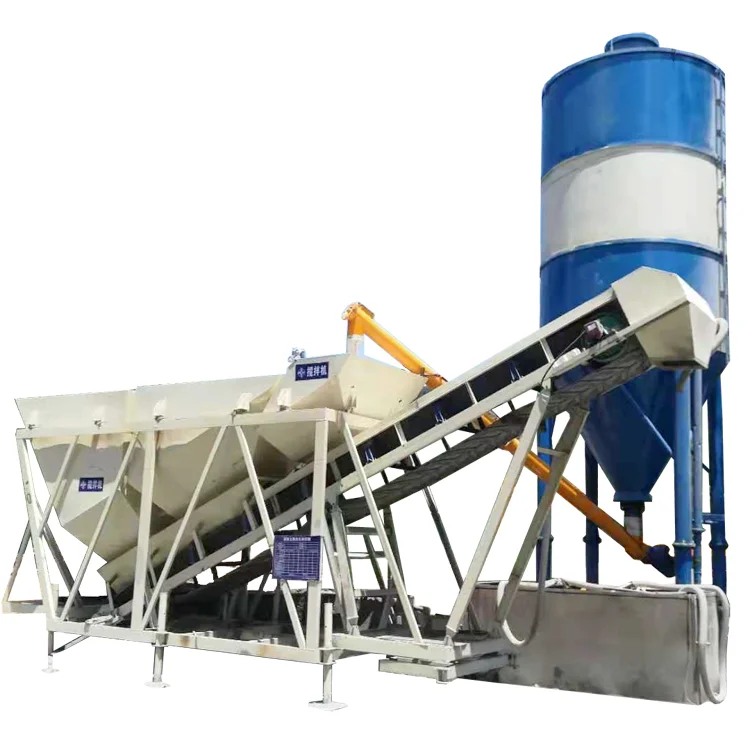

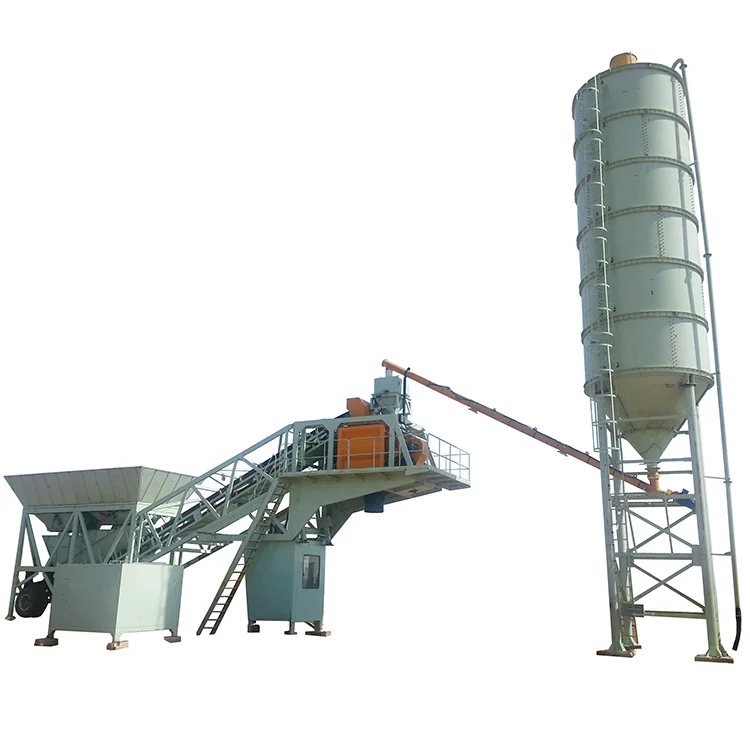

small concrete batching plant is a concrete production equipment that integrates the material storage, weighing, transportation, mixing, unloading and fully automatic control system of the small concrete batching plant into a trailer unit. It is exactly the same as the stationary small concrete batching plant in all its action processes, operation methods and maintenance. At the same time, small concrete batching plant has unique characteristics such as flexible movement, quick and easy disassembly and assembly, and simple storage and management.

At present, small concrete batching plant s are mainly divided into two types: tractor type and trailer type. The tractor type chassis contains complete front and rear axles. The trailer type chassis only has the rear axle, and the front end is placed on the tractor saddle bridge.

1. Mixing machine

2. Powder weighing scale

3. Additive weighing scale

4. Water weighing scale

5. Batching bin

6. Aggregate weighing scale

7. Belt conveyor

8. Cement silo

9. Screw conveyor

10. Control room

11. Feeding bin

12. Discharge port

1. Mixing machine

2. Cement weighing scale

3. Powder weighing scale

4. Screw conveyor

5. Additive weighing scale

6. Water weighing scale

7. Cement silo

8. Batching bin

9. Aggregate weighing scale

10. Belt conveyor

11. Discharge port

Related Equipment

1. Quick disassembly and assembly, easy to move. When transferring, except for the screw conveyor and cement silo, the entire small concrete batching plant can be hauled and moved by dropping the front end. Other items such as the walking platform and elevated panels need to be removed, all control cables do not need to be removed. The removed accessories can be taken away with the small concrete batching plant .


2. When installing, the ground just requires to be leveled the hardened.


3. During storage, if the small concrete batching plant is not in use temporarily, just keep it in the same state as it was during transportation.


4. Other performance, operation methods and principles are the same as the small concrete batching plant .

All production processes, operating, and maintenance of the small concrete batching plant and the stationary small concrete batching plant are exactly the same. At the same time, small concrete batching plant has the unique advantages of flexible movement, quick and easy disassembly and assembly, simple storage and management, etc. Therefore, the small concrete batching plant is suitable for construction projects that need to be moved such as highways, railways, bridges, ports, water and electricity projects, etc.

small concrete batching plant is designed with modular structure, which is suitable for container transportation.
