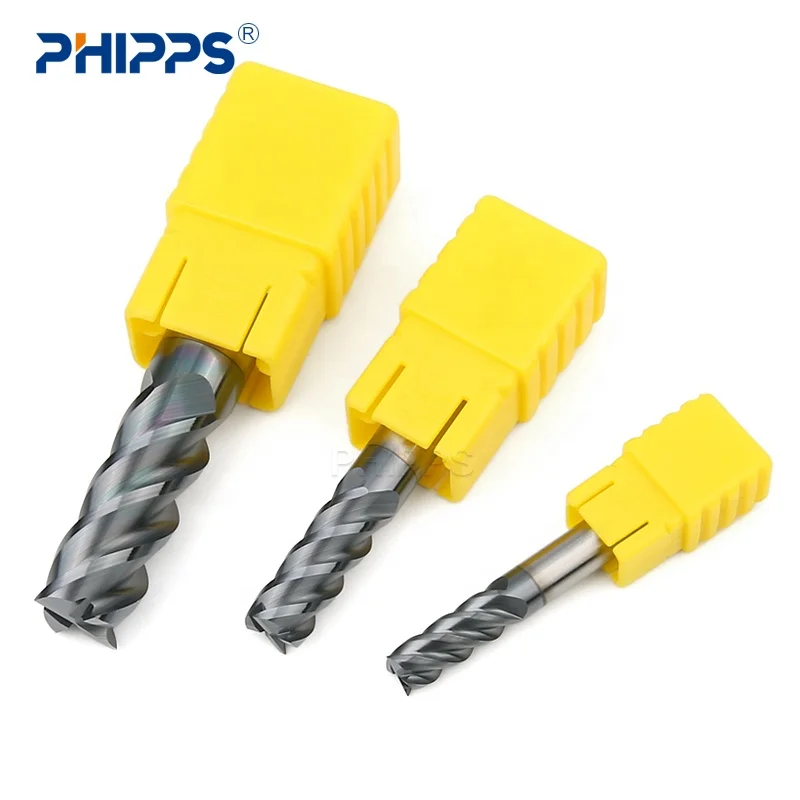

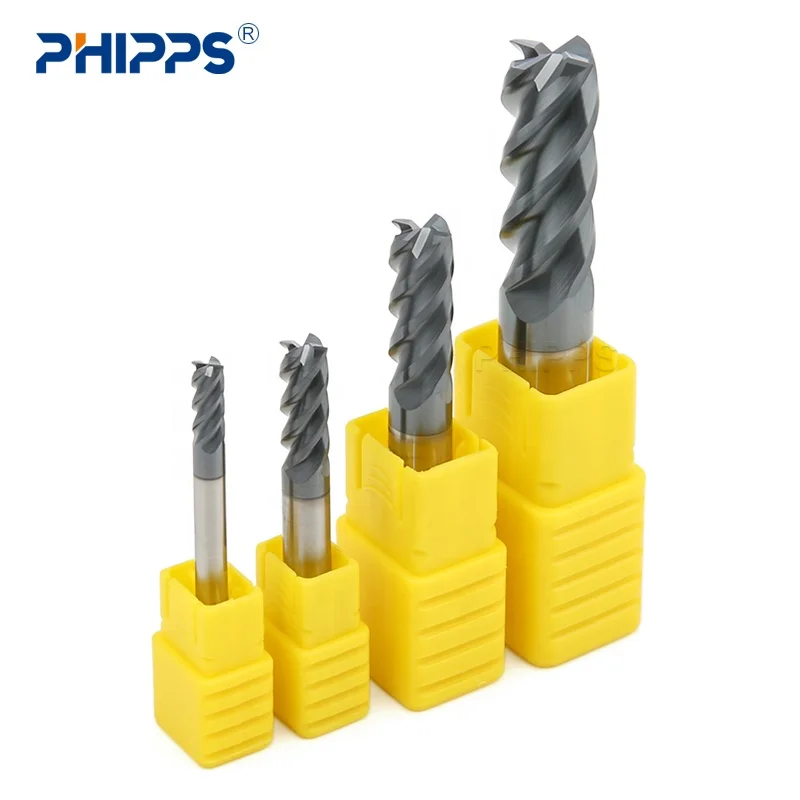

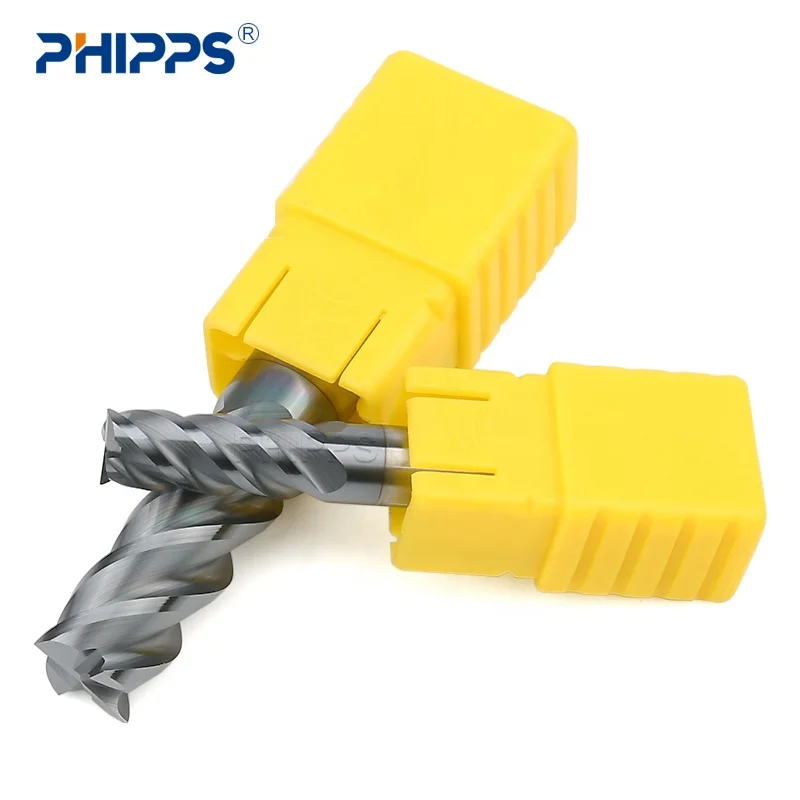

HRC60 professional 4 flutes milling cutter solid tungsen CNC cutter tool speed tiger carbide end mill set
HRC60 professional 4 flutes milling cutter solid tungsen CNC cutter tool speed tiger carbide end mill set
HRC60 professional 4 flutes milling cutter solid tungsen CNC cutter tool speed tiger carbide end mill set
HRC60 professional 4 flutes milling cutter solid tungsen CNC cutter tool speed tiger carbide end mill set
HRC60 professional 4 flutes milling cutter solid tungsen CNC cutter tool speed tiger carbide end mill set
HRC60 professional 4 flutes milling cutter solid tungsen CNC cutter tool speed tiger carbide end mill set
HRC60 professional 4 flutes milling cutter solid tungsen CNC cutter tool speed tiger carbide end mill set

HRC60 professional 4 flutes milling cutter solid tungsen CNC cutter tool speed tiger carbide end mill set

Share on (1601166445573):


Price:$2.36 - $2.63

Quantity:


Product Overview

Description





Product Paramenters

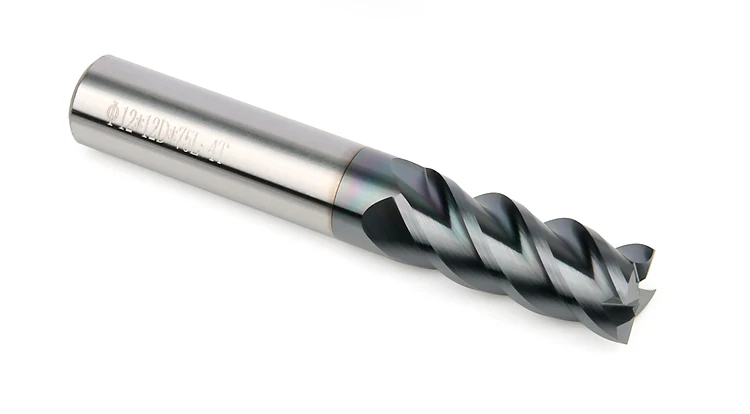

HRC60 professional 4 flutes milling cutter solid tungsen CNC cutter tool speed tiger carbide end mill set


Product Name
HRC60 4 Flutes speed tiger carbide end mill set
Material
Tungsten carbide
Flute
2/4 Flutes
Shank Dimater
3-20mm
Total Length
50-200mm
Tolerance
-0.01~0
Coating
AlTiN, TiAlN, TiSiN, AlTiSiN, DLC, or your requirements
HRC
HRC45, HRC55, HRC60, HRC65, or your requirements
Applicable Machine
CNC machining center, engraving machine, high speed machine
Suitable for
Cast iron, Stainless steel, mould steel, carbon steel, titanium alloy, tool steel, heat-treated steel, wood, etc
All the specs can be customized


1. Super Raw Material
All cutting materials are from international famous brands, high hardness, long tool life.


HRC
Grade
Helix Angle
Co Content
(%)
Grain Size
（UM）
Bending Strength
(N/mm2)
Application
HRC45
YG10X
35°
10%
0.8
2800
General steel
HRC55
ZK30UF
35°
10%
0.6
3000
General steel, Cast iron
HRC60
ZK40SF
35°/45°
12%
0.4-0.5
≥3800
High hard material, Mould steel, Cast iron, etc
HRC65
GU25UF
45°
12%
0.4
4000
Titanium alloy, high temperature alloy matertial, etc


2. Super Coating
Good coating can improve tools life and production effiency, and we provide professional suggestions according to your cutting requirements.


Coating
Hardness(HV)
Thickness (UM)
Firction Coefficient
Oxidation Temp.(°C)
Color
AlTiN
3500
2.5-3
0.3
850°C
Black
TiAlN
2800
2.5-3
0.3
900°C
Violet
TiSiN
3600
3
0.45
1100°C
Copper
AlTiSiN
4000
4
0.4
1200°C
Blue
TiN
2500
2.5-3
0.5
600°C
Gold


Products Description

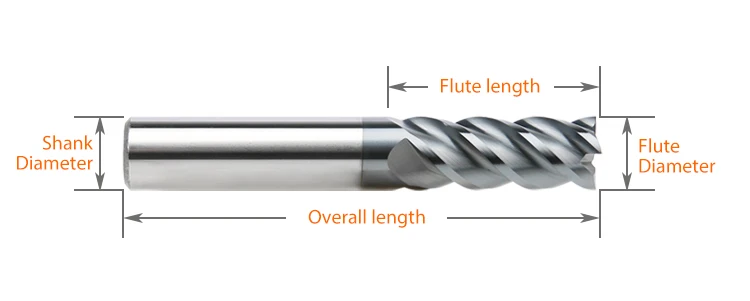

Specification
Diameter
Cutting Length
Shank
Total length
Flutes
3*8*3*50
3
8
3
50
2 / 4
3*12*3*75
3
12
3
75
2 / 4
3*15*3*100
3
15
3
100
2 / 4
1*3*4*50
1
3
4
50
2 / 4
1.5*4*4*50
1.5
4
4
50
2 / 4
2*5*4*50
2
5
4
50
2 / 4
2.5*7*4*50
2.5
7
4
50
2 / 4
3*8*4*50
3
8
4
50
2 / 4
3.5*10*4*50
3.5
10
4
50
2 / 4
4*10*4*50
4
10
4
50
2 / 4
4*16*4*75
4
16
4
75
2 / 4
4*20*4*100
4
20
4
100
2 / 4
5*13*5*50
5
13
5
50
2 / 4
5*20*5*75
5
20
5
75
2 / 4
5*25*5*100
5
25
5
100
2 / 4
1*3*6*50
1
3
6
50
2 / 4
1.5*4*6*50
1.5
4
6
50
2 / 4
2*5*6*50
2
5
6
50
2 / 4
2.5*7*6*50
2.5
7
6
50
2 / 4
3*8*6*50
3
8
6
50
2 / 4
3.5*10*6*50
3.5
10
6
50
2 / 4
4*10*6*50
4
10
6
50
2 / 4
4.5*12*6*50
4.5
12
6
50
2 / 4
5*13*6*50
5
13
6
50
2 / 4
5.5*15*6*50
5.5
15
6
50
2 / 4
6*15*6*50
6
15
6
50
2 / 4
6*25*6*75
6
25
6
75
2 / 4
6*30*6*100
6
30
6
100
2 / 4
6*40*6*150
6
40
6
150
2 / 4
7*18*8*60
7
18
8
60
2 / 4
8*20*8*60
8
20
8
60
2 / 4
8*28*8*75
8
28
8
75
2 / 4
8*35*8*100
8
35
8
100
2 / 4
8*50*8*150
8
50
8
150
2 / 4
9*23*10*75
9
23
10
75
2 / 4
10*25*10*75
10
25
10
75
2 / 4
10*40*10*100
10
40
10
100
2 / 4
10*50*10*150
10
50
10
150
2 / 4
11*28*12*75
11
28
12
75
2 / 4
12*30*12*75
12
30
12
75
2 / 4
12*45*12*100
12
45
12
100
2 / 4
12*60*12*150
12
60
12
150
2 / 4
14*35*14*80
14
35
14
80
2 / 4
13*45*14*100
13
45
14
100
2 / 4
14*45*14*100
14
45
14
100
2 / 4
14*60*14*150
14
60
14
150
2 / 4
15*45*16*100
15
45
16
100
2 / 4
16*45*16*100
16
45
16
100
2 / 4
16*60*16*150
16
60
16
150
2 / 4
18*45*18*100
18
45
18
100
2 / 4
18*70*18*150
18
70
18
150
2 / 4
20*45*20*100
20
45
20
100
2 / 4
20*70*20*150
20
70
20
150
2 / 4


Remarks: The milling cutter model marked with color is a common model. Product length unit: mm




Company Information
Shenzhen Phipps Technology Co.,Ltd. is a professional manufacturer of carbide engraving tools, focusing on high precision tungsten steel inserts, milling cutters, drill bits, engraving tools and various non-standard tools. For R&D, production, sales and technical services, the company has introduced 20 world-class CNC grinders, high-end testing equipment and manufacturing from Germany, Australia and Japan. The tool produced have the advantages of high precision, long life and high efficiency.










Package & Shipment




FAQ


1) Are you manufacturer? Do you have factory?
We are professional manufacturer, have more than 12 years experience in this field.

2) When can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

3) Is free shipping possible?
We don't offer free shipping service, but we will give you some discount if you buy large quantity products. And we have cooperation Express Companies, can offer you the best price of shipping cost.

4) How long is your delivery time?
Generally it is 5-10 days if the goods are in stock, or it is 15-20 days if the goods are not in stock, it is according to quantity.

5) How can I pay?
we accept paypal as the sample. if large amount need pay by western union or TT.

6) Whats your MOQ?
We welcome your sample order to test our quality, we believe that you will find that we are the right supplier you are looking for. So no MOQ.
