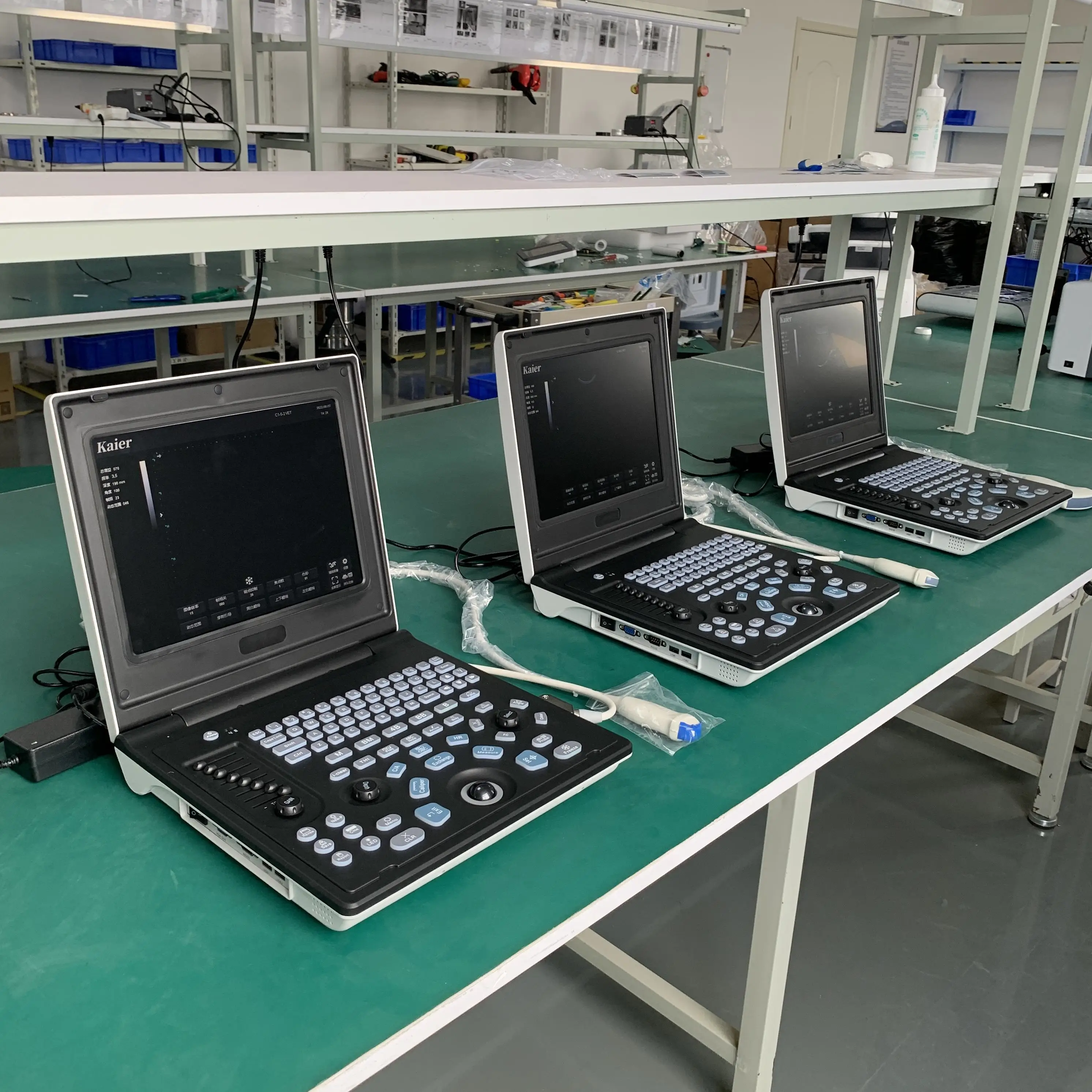

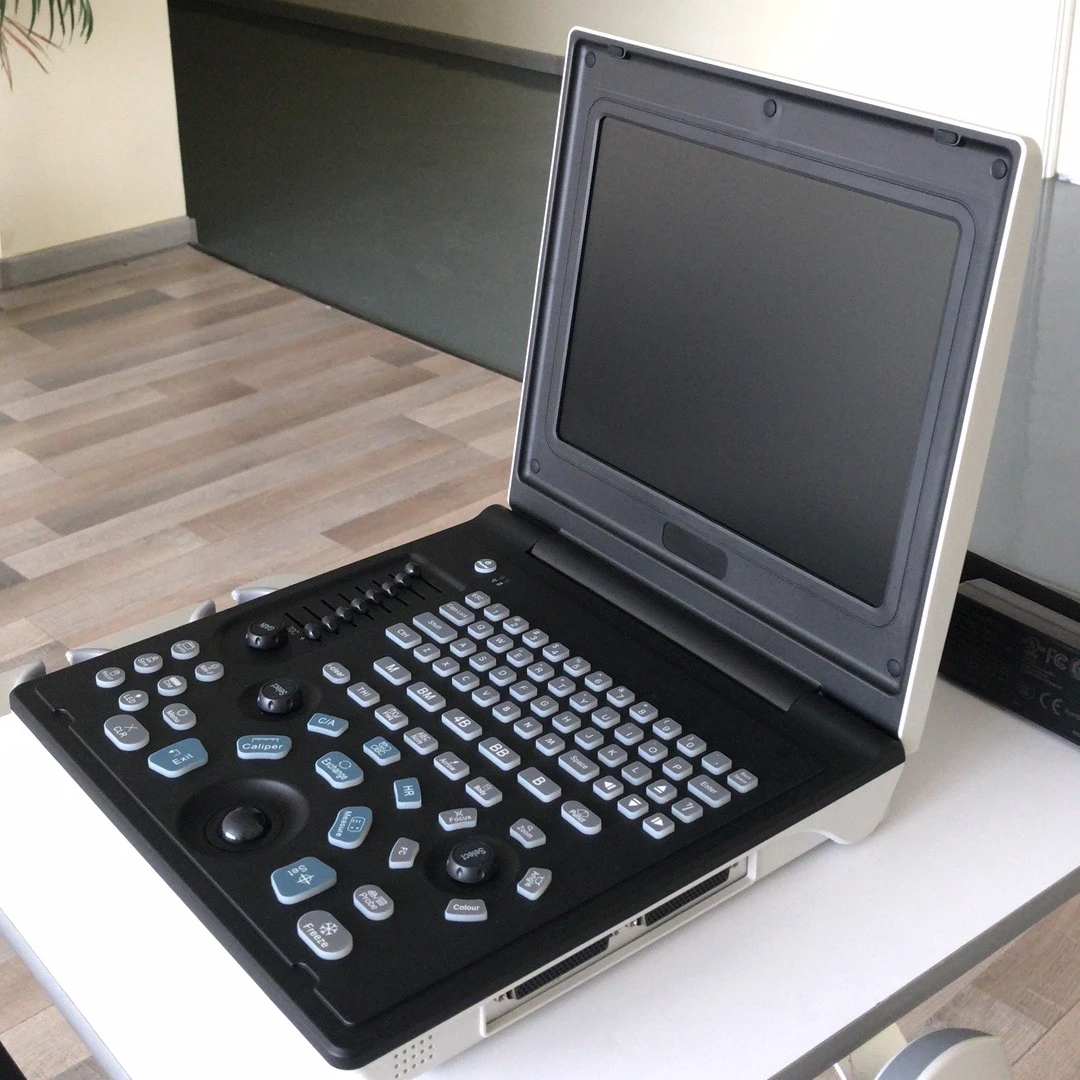

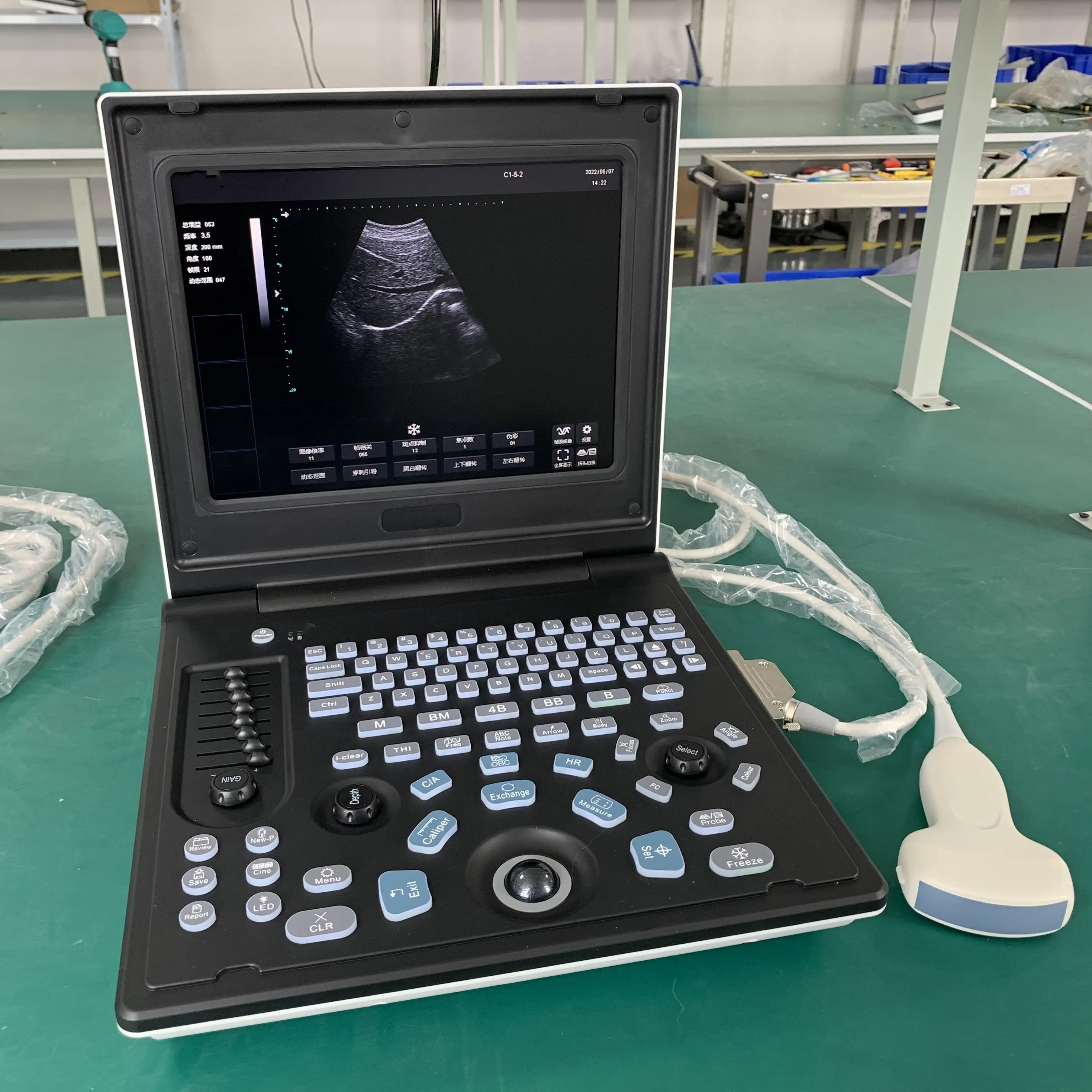

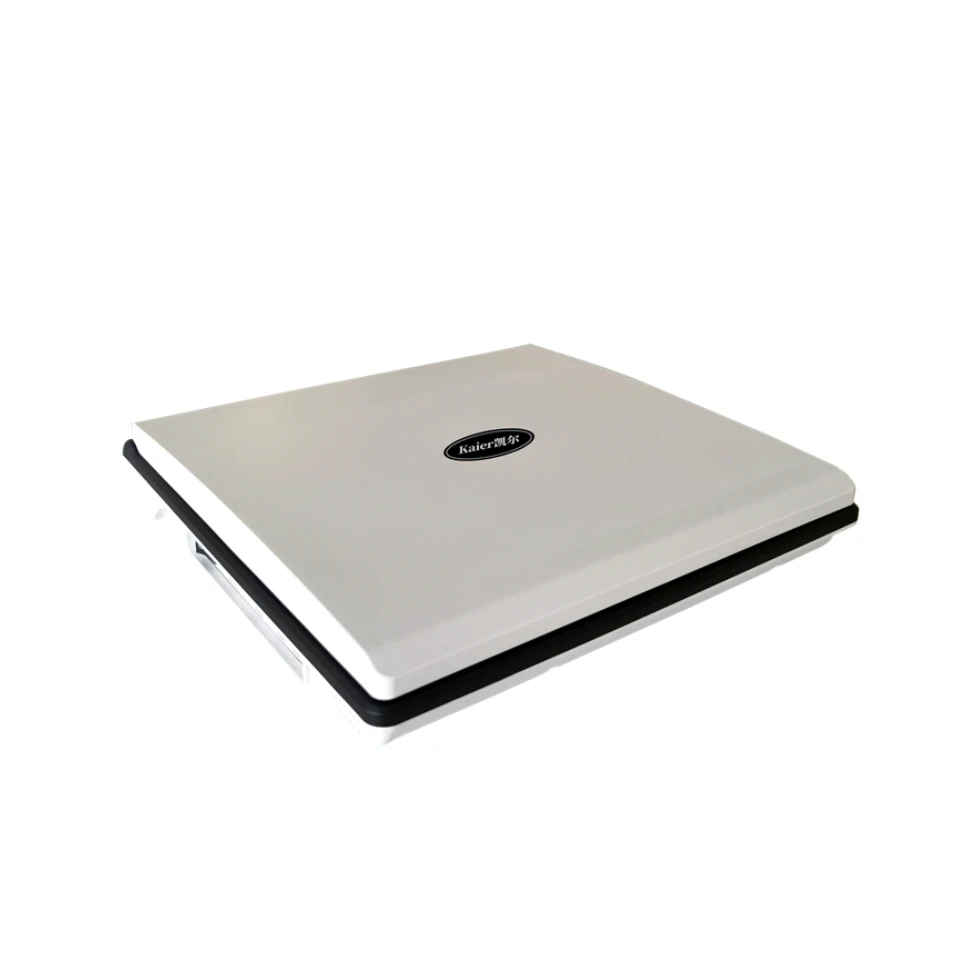

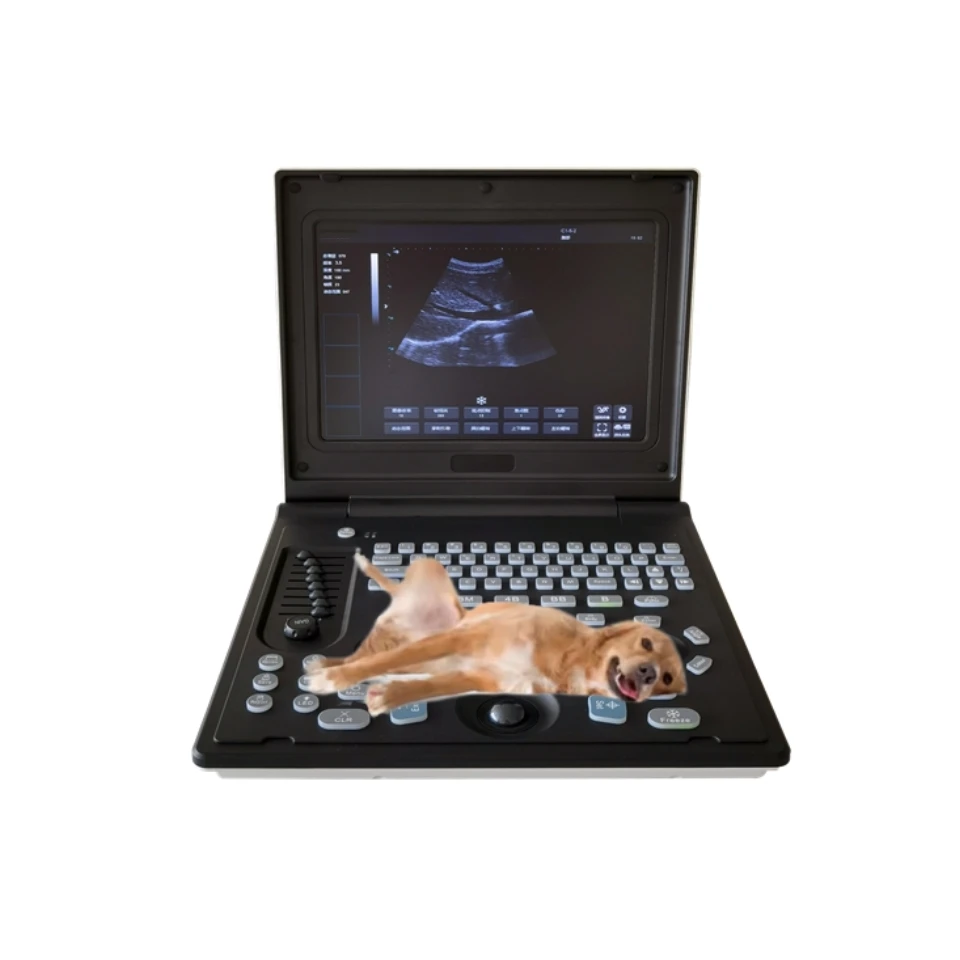

High Performance Portable Colour Full Digital CE ISO Approved Medical Diagnostic 3d Ultrasound Machine
- Category: >>>
- Supplier: Jinan Xinhuisheng Economic And Trade Co. Ltd.
Share on (1601166545244):
Product Overview
Description
Cheap ultrasound machine price Ultrasonic Diagnostic Imaging System B/W Portable Ultrasound Machine
Product Description
Summary

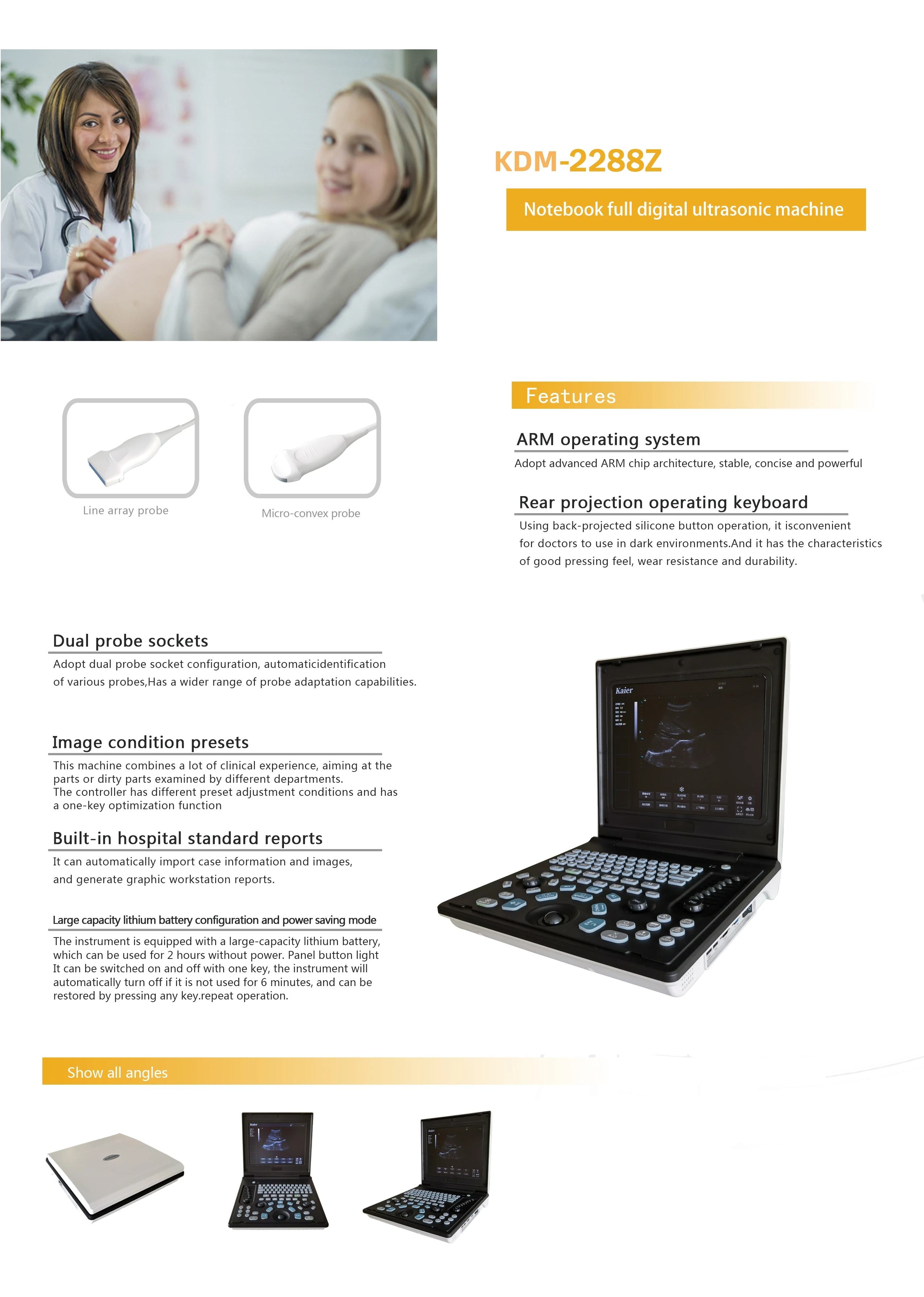

Laptop ultrasound diagnostic system（the following Referred to as instrument）is composed of a host, a 3.5MHz convex probe and a power adapter. A 7.5MHz high frequency linear probe, a 6.5MHz intracavity probe, a 6.5MHz micro convex probe and battery are selected.
Based on the ARM chip, the operating system is stable and reliable; Advanced processing technology provides high-quality images, and specific algorithms are preset for different races, parameter conditions are preset for different departments. Standard diagnostic reports are generated. Mainly used in ultrasound examination of heart, abdomen, urology, obstetrics and gynecology, pediatrics, musculoskeletal, etc.
Based on the ARM chip, the operating system is stable and reliable; Advanced processing technology provides high-quality images, and specific algorithms are preset for different races, parameter conditions are preset for different departments. Standard diagnostic reports are generated. Mainly used in ultrasound examination of heart, abdomen, urology, obstetrics and gynecology, pediatrics, musculoskeletal, etc.
Main Parameters
1.Operating system: using ARM chip architecture, stable, concise and powerful
2.Display: 12-inch 1024*768 resolution high-definition LED LCD screen
3.Imaging modes: B, B+B, B+M, M, 4B Probe array element: automatically identify and use a variety of array element probe （ 80 elements,96 elements,128 elements）
4.Image preset: The system combines a large amount of clinical experience, has different preset adjustment conditions for the parts or organs, and has a one-key optimization function
5.Cine playback: ≥256 frames
6.Image storage: ≥360 frames.External USB storage，Single image storage time≤about 9s.（Storage speed is related to the USB device used）
7.Scanning angle adjustment: adjustable
1.Operating system: using ARM chip architecture, stable, concise and powerful
2.Display: 12-inch 1024*768 resolution high-definition LED LCD screen
3.Imaging modes: B, B+B, B+M, M, 4B Probe array element: automatically identify and use a variety of array element probe （ 80 elements,96 elements,128 elements）
4.Image preset: The system combines a large amount of clinical experience, has different preset adjustment conditions for the parts or organs, and has a one-key optimization function
5.Cine playback: ≥256 frames
6.Image storage: ≥360 frames.External USB storage，Single image storage time≤about 9s.（Storage speed is related to the USB device used）
7.Scanning angle adjustment: adjustable
Probe Optional
8.Image enlargement: Separate knob depth adjustment (≥about 20 levels adjustable)
9.Puncture: with puncture guide line, angle and position are adjustable
10.Focus: more than 5 levels of focus position adjustment
11.Image adjustment: up and down, left and right, brightness, focus number, focus position, dynamic range, scan angle, frame correlation, M speed
12.Image Processing: image smoothing/sharpening, tissue harmonics, gamma correction, false color
13.Notes and characters: date, clock, name, age, gender, doctor, hospital name, image annotation
14.Position mark: ≥97 kinds
15.Measurement function
1. a) Routine measurement: distance, circumference, area, volume;
2. b) Heart measurement: left atrium, right atrium, left ventricle, right ventricle, aorta, descending aorta, aortic isthmus;
1. c) Obstetric measurement: gestational sac, biparietal diameter, head circumference, abdominal circumference, femur length, fibula length, head hip diameter, yolk sac, abdomen,
cerebrum, cerebellum, amniotic fluid, gestational age, expected date of delivery, fetal weight, etc;
d)Gynecological measurement: uterus, cervix, endometrial thickness, ovaries, follicles;
e)Urology measurement: kidney, adrenal gland, prostate, testicular mass, epididymis, etc;
f)Pediatric measurement: common liver duct, common bile duct, pancreas, spleen, kidney,
adrenal gland, etc;
9.Puncture: with puncture guide line, angle and position are adjustable
10.Focus: more than 5 levels of focus position adjustment
11.Image adjustment: up and down, left and right, brightness, focus number, focus position, dynamic range, scan angle, frame correlation, M speed
12.Image Processing: image smoothing/sharpening, tissue harmonics, gamma correction, false color
13.Notes and characters: date, clock, name, age, gender, doctor, hospital name, image annotation
14.Position mark: ≥97 kinds
15.Measurement function
1. a) Routine measurement: distance, circumference, area, volume;
2. b) Heart measurement: left atrium, right atrium, left ventricle, right ventricle, aorta, descending aorta, aortic isthmus;
1. c) Obstetric measurement: gestational sac, biparietal diameter, head circumference, abdominal circumference, femur length, fibula length, head hip diameter, yolk sac, abdomen,
cerebrum, cerebellum, amniotic fluid, gestational age, expected date of delivery, fetal weight, etc;
d)Gynecological measurement: uterus, cervix, endometrial thickness, ovaries, follicles;
e)Urology measurement: kidney, adrenal gland, prostate, testicular mass, epididymis, etc;
f)Pediatric measurement: common liver duct, common bile duct, pancreas, spleen, kidney,
adrenal gland, etc;
g)Small organ measurement: thyroid, seminal vesicle, testis, scrotum, breast mass, skin mass, etc.
The instrument has different ethnographic measurement formulas.
16.Report function: automatically generate reports on abdomen, urology, obstetrics, heart, etc
17.External interface: VGA interface, USB2.0 interface, RS232 interface
18.Power saving mode: the panel button light can be turned on and off by one button, and the instrument will automatically turn off the power if it is not used for 6 minutes. Press any key to resume operation
19.Language settings: Chinese and English
20.Built-in operating instructions
The instrument has different ethnographic measurement formulas.
16.Report function: automatically generate reports on abdomen, urology, obstetrics, heart, etc
17.External interface: VGA interface, USB2.0 interface, RS232 interface
18.Power saving mode: the panel button light can be turned on and off by one button, and the instrument will automatically turn off the power if it is not used for 6 minutes. Press any key to resume operation
19.Language settings: Chinese and English
20.Built-in operating instructions
Optional Accessories
Usage introduction
First turn on the power switch at the bottom left of the instrument, and then press the POWER key, the instrument automatically enters the operation interface.First press PROBE (probe selection key) to select
department or organ. The instrument pre-sets the conditions of each department or inspection site. Customers can make the following
fine-tuning according to their own habits:
1: Slide the TGC left and right to adjust the near, middle and far field signals;
2: Rotate the GAIN knob to adjust the overall image gain.
3: Rotate the DEPTH knob to adjust the depth.
4: Adjust the focus position to adjust the definition of the position to be scanned.
5: Adjust FREQ, the higher the frequency, the more delicate the image, but the less the signal.
6: Adjust dynamic range DR, spot suppression NOI CAN, , the higher the value, the finer the image, but the less the signal richness.
First turn on the power switch at the bottom left of the instrument, and then press the POWER key, the instrument automatically enters the operation interface.First press PROBE (probe selection key) to select
department or organ. The instrument pre-sets the conditions of each department or inspection site. Customers can make the following
fine-tuning according to their own habits:
1: Slide the TGC left and right to adjust the near, middle and far field signals;
2: Rotate the GAIN knob to adjust the overall image gain.
3: Rotate the DEPTH knob to adjust the depth.
4: Adjust the focus position to adjust the definition of the position to be scanned.
5: Adjust FREQ, the higher the frequency, the more delicate the image, but the less the signal.
6: Adjust dynamic range DR, spot suppression NOI CAN, , the higher the value, the finer the image, but the less the signal richness.
Specification
item | value |
Place of Origin | China |
Shandong | |
Brand Name | XINHUISHENG |
Model Number | KDM-2288Z |
Power Source | Electric |
Warranty | 1 Year |
After-sale Service | Online technical support |
Material | Metal, Plastic |
Shelf Life | 1years |
Quality Certification | CE |
Instrument classification | Class II |
Safety standard | None |
Product name | KDM 2288Z Ultrasound |
Keyword | Portable full digital ultrasonic machine |
Type | BW Portable Ultrasonic Diagnostic Devices |
Scanning mode | Convex/Linear/Trans-vaginal; |
Display mode | B, B+B, B+M, M, 4B |
Scanning depth | 240mm |
Gray scales | 256 |
Body marks | 44 |
Size | 44*46*24CM |
GW | 5.6KG |
Company Profile
Jinan XinHuisheng is one of leading professional manufacturer & exporter of the professional medical equipment company from China, compounded with the R&D and sales of medical equipment, we provide and support customization one stop solutions for all the dental clinic ,hospitals, ICU & First Aid room and household therapy.
We Headquartered Ji nan City, Shandong province, Our production covers dental chair,dental accessories and consumable, Panoramic CBCT ,hospital furniture ,physical therapy supply ,anesthesia machines, ventilators, operation room equipment,surgical instruments, and household medical supply.
Based on mutual trust & good service, our mission is to provide the most cost-effective medical equipment for hospital and medical distributor & dealers around the world and as a well established reliable supplier we could assure every buy and purchase of our customers will be highly guaranteed and taking good care of.
We Headquartered Ji nan City, Shandong province, Our production covers dental chair,dental accessories and consumable, Panoramic CBCT ,hospital furniture ,physical therapy supply ,anesthesia machines, ventilators, operation room equipment,surgical instruments, and household medical supply.
Based on mutual trust & good service, our mission is to provide the most cost-effective medical equipment for hospital and medical distributor & dealers around the world and as a well established reliable supplier we could assure every buy and purchase of our customers will be highly guaranteed and taking good care of.
Certification and Exhibition
Our products have won many international certifications.Based on service, quality for survival and science and technology for development.

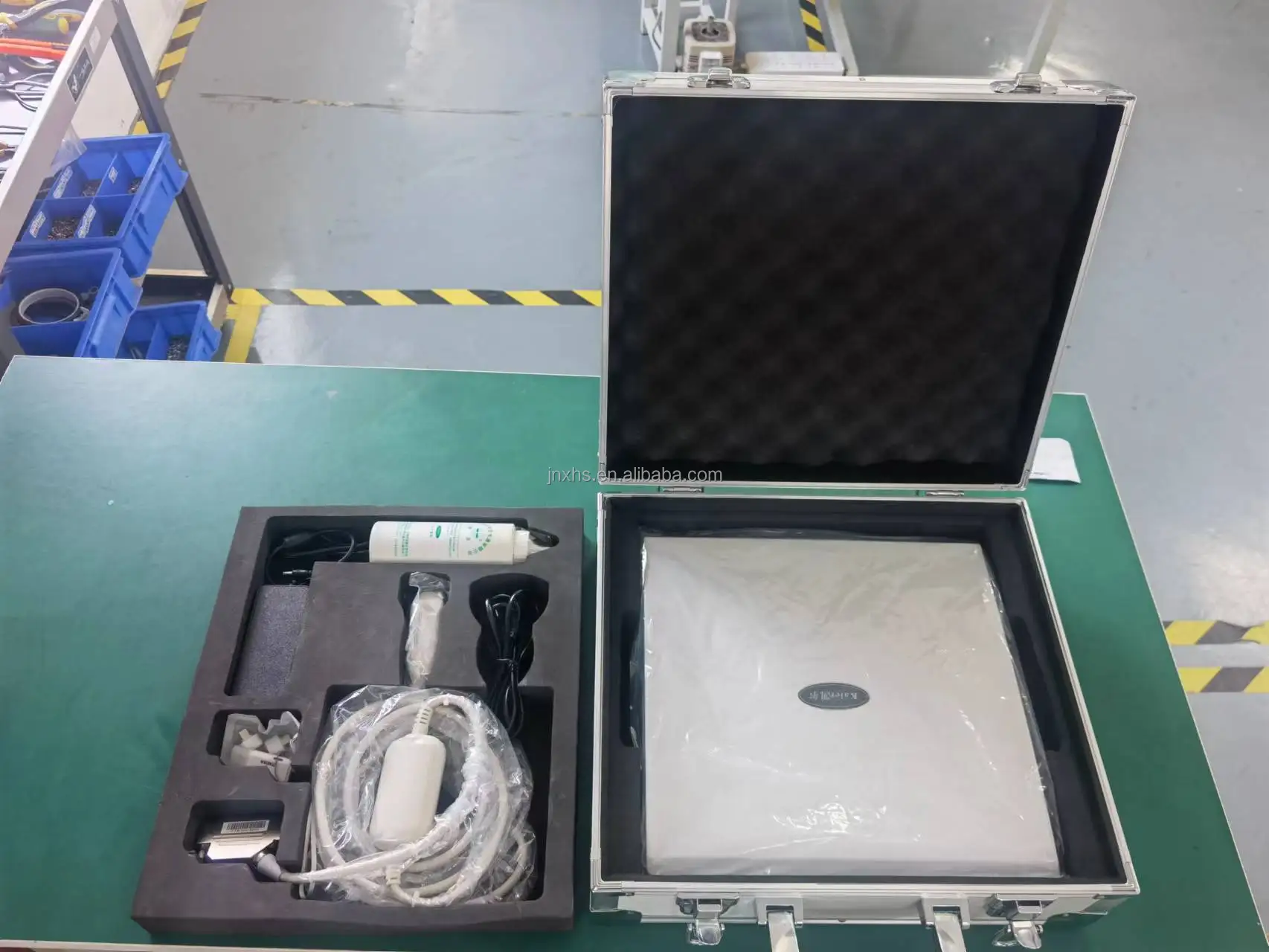

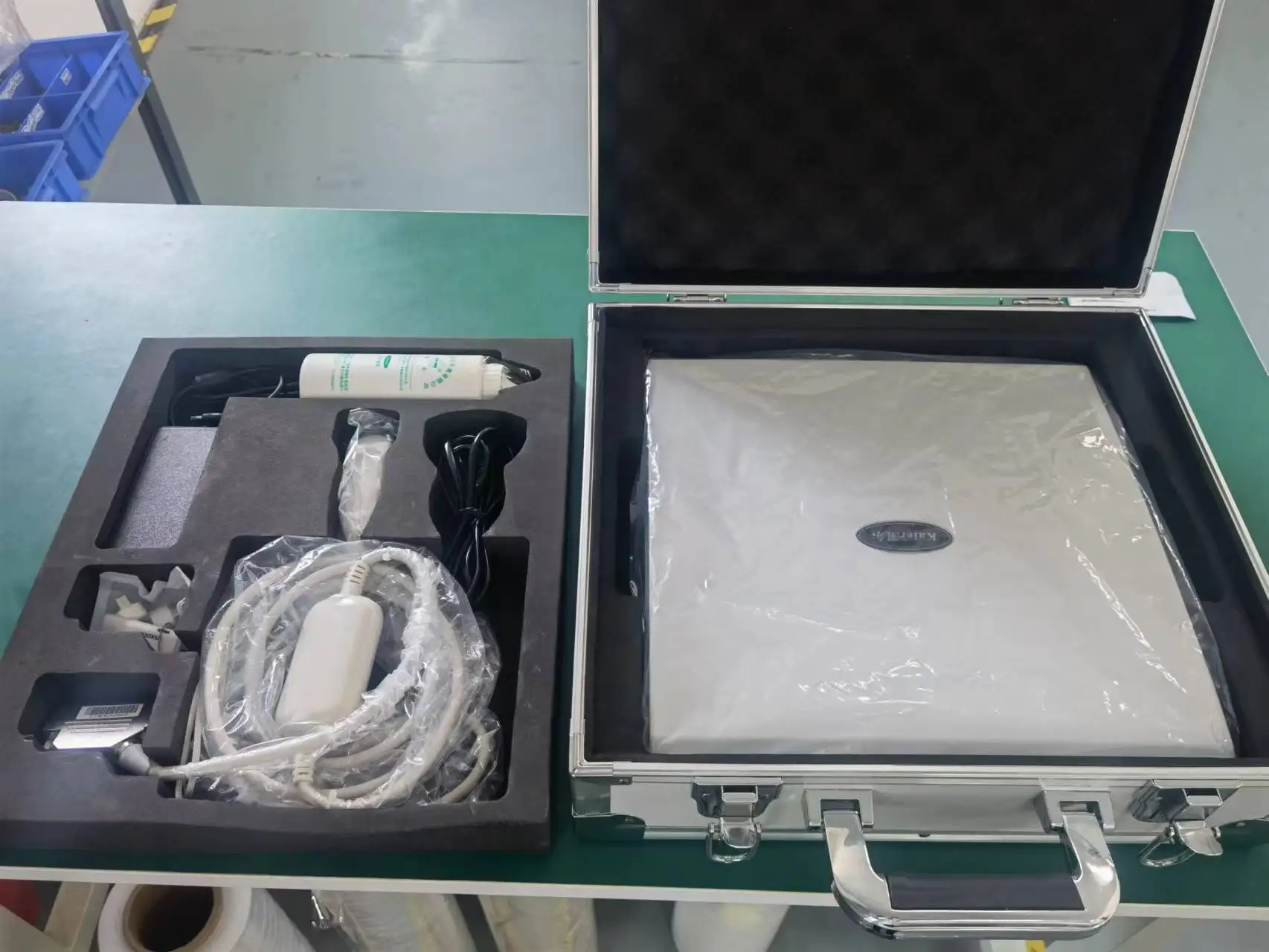

Packing & Delivery
