5tons 3000mm Diameter Welding Motorised Welding Turning Roller Self Aligning Welding Rotator
- Category: >>>
- Supplier: Dalian Acrros Machine Co. Ltd.
Share on (1601166670135):
Product Overview
Description
Product Description

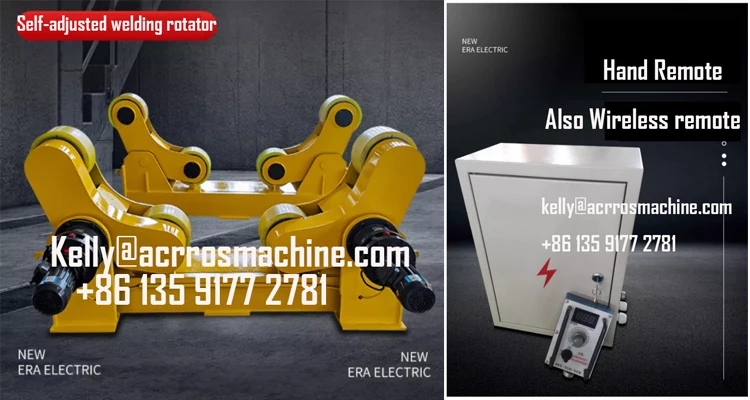

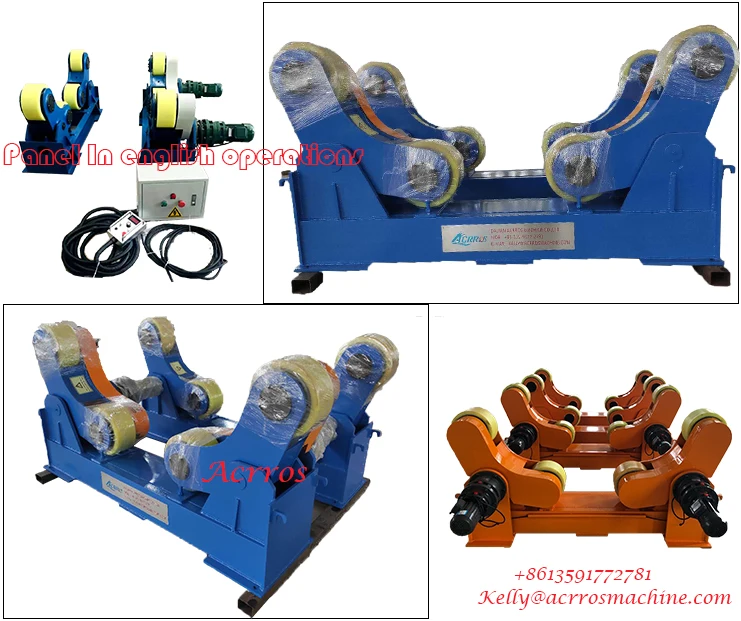

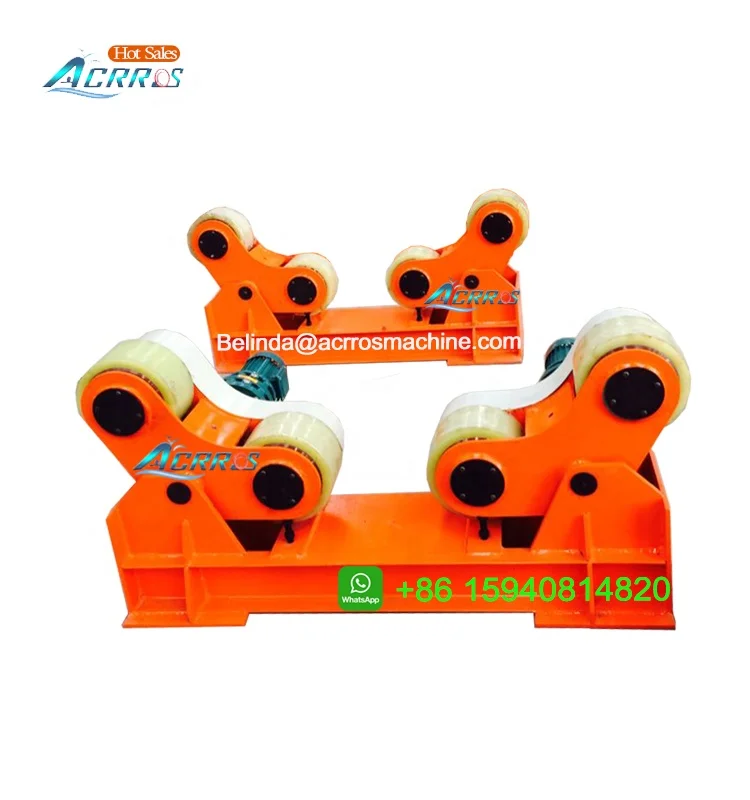

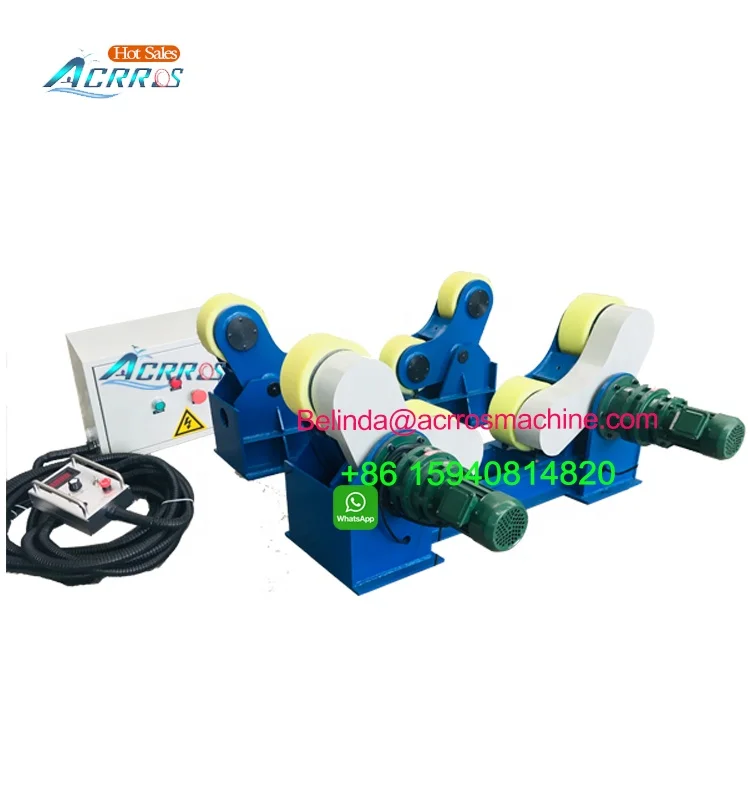

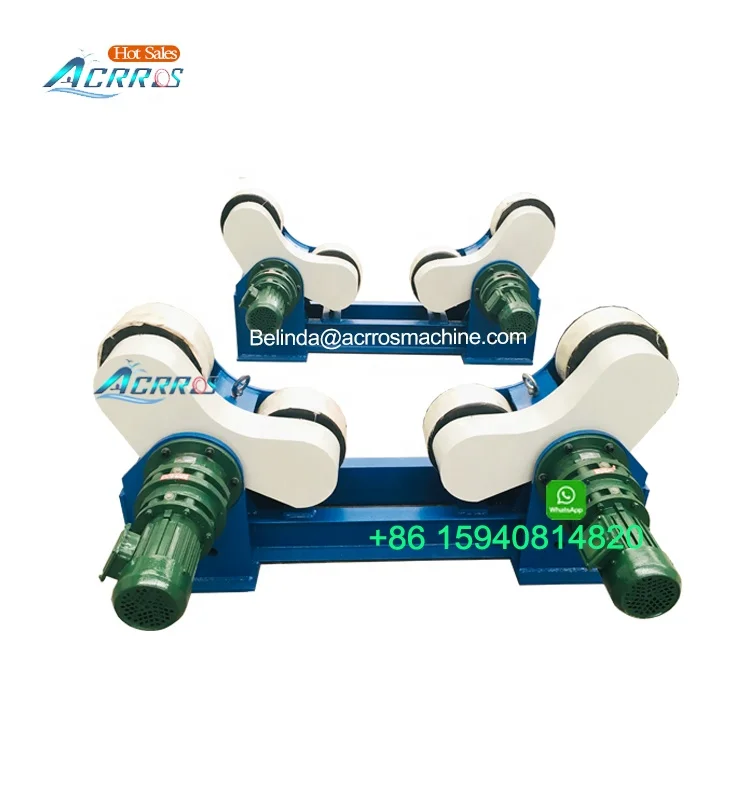

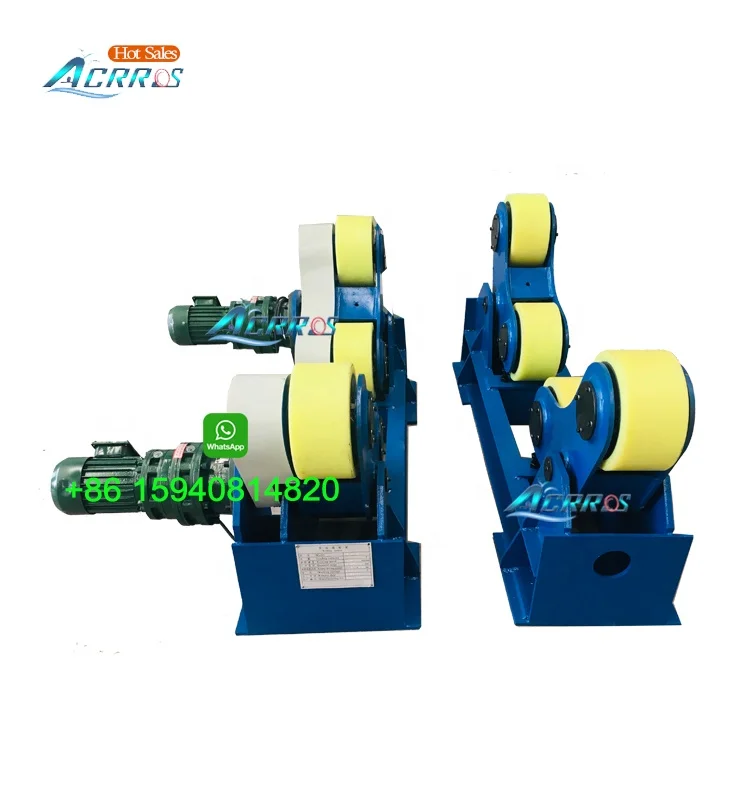

Self-adjusting rotator is composed of primary frame and secondary frame. The primary part is composed of foundation, motor, transmission gear, swing arm and wheels.
Feature
*The secondary part is composed of foundation, swing arm and wheels.
*The primary and secondary roller must be installed on the same level. Two groups of wheel frame must put parallel.
*Two groups of wheel frame must put parallel.
Size Information
According to the needs of users, the roller is divided into rubber wheel, steel wheel, steel rubber combination wheel three forms; It can be controlled with other devices.
When the piece hanging on the rack, should be test run for one week, observing whether there is a error on the welding seam and whether work-piece stick tight roller.
Parameters of Welding Rotator
Model | AWR-5T | AWR-10T | AWR-20T | AWR-30T | AWR-40T | ||||
Loading capacity (TON) | 5 | 10 | 20 | 30 | 40 | ||||
Min Diameter of shell (MM) | 400 | 350 | 600 | 600 | 600 | ||||
Max Diameter of shell (MM) | 2800 | 3000 | 4000 | 4500 | 4500 | ||||
Roller speed (M/H) | 6-60 | 6-60 | 6-60 | 6-60 | 6-60 | ||||
Motor power (KW) | 2x0.37 | 2x0.37 | 2x0.75 | 2x0.75 | 2x1.1 | ||||
Speed regulating mode | Frequency speed | Frequency speed | |||||||
Overall size(L) driving - driven (MM) | 1585-1450 | 1585-1450 | 2165-2125 | 2410-2410 | 2410-2410 | ||||
Overall size(W) driving - driven (MM) | 872-392 | 872-392 | 1010-4255 | 1260-550 | 1290-550 | ||||
Overall size(H) (MM) | 660 | 660 | 945 | 1125 | 1135 | ||||
Packaged size (MM) | 1400x1200x900 | 1600x1400x1000 | 2140x1450x1350 | 2550x1900x1350 | 2300x1950x1400 | ||||
Gross weight (KGS) | 700 | 750 | 1300 | 2500 | 2800 | ||||
Manufacture Specification
The roller frame is mainly used for welding, polishing, lining and assembly of cylindrical cylinder, and can also be used for assembling and welding of cone and segmented rotary body with other tools.
Contact:
DALIAN ACRROS MACHINERY CO.,LTD.
Ms.Belinda _ Manager
E-MAIL: Belinda @ acrrosmachine.com
MOB: +86-159-4081-4820
WHATSAPP:+86-159-4081-4820
WECHAT:+86-159-4081-4820
DALIAN ACRROS MACHINERY CO.,LTD.
Ms.Belinda _ Manager
E-MAIL: Belinda @ acrrosmachine.com
MOB: +86-159-4081-4820
WHATSAPP:+86-159-4081-4820
WECHAT:+86-159-4081-4820
Best Selling
Company Introduction
Dalian Acrros Machine Co, Ltd has focused on introducing and cultivating high-tech talents and takes it as development
strategy,Acrros have been specialized in manufaturing welding positioners for more than 15 years. All of its welding positioner，welding manipulator are certificated approved and exported all over the world. ACRROS is getting great reputation for its great quality and service. Welding positioners are the machines be used to change the position of work piece on the welding positioner turntable and to ensure smooth rotation of the work piece at certain required speed. So welding postitioner normally means a table rotates workpiece at certain rotation speed, optional torch holder, tailstock, pipe bracket etc. ACRROS can be your loyal friends,we can establish our own national brand and witness prosperous future harmonious world.
strategy,Acrros have been specialized in manufaturing welding positioners for more than 15 years. All of its welding positioner，welding manipulator are certificated approved and exported all over the world. ACRROS is getting great reputation for its great quality and service. Welding positioners are the machines be used to change the position of work piece on the welding positioner turntable and to ensure smooth rotation of the work piece at certain required speed. So welding postitioner normally means a table rotates workpiece at certain rotation speed, optional torch holder, tailstock, pipe bracket etc. ACRROS can be your loyal friends,we can establish our own national brand and witness prosperous future harmonious world.
Our Services & Strength
This product is widely used in wind power, pressure vessel, petrochemical, pipeline, steel structure, boiler, shipbuilding, surfacing repair and other industries. The factory can also design and customize various types of roller frames according to user needs.
