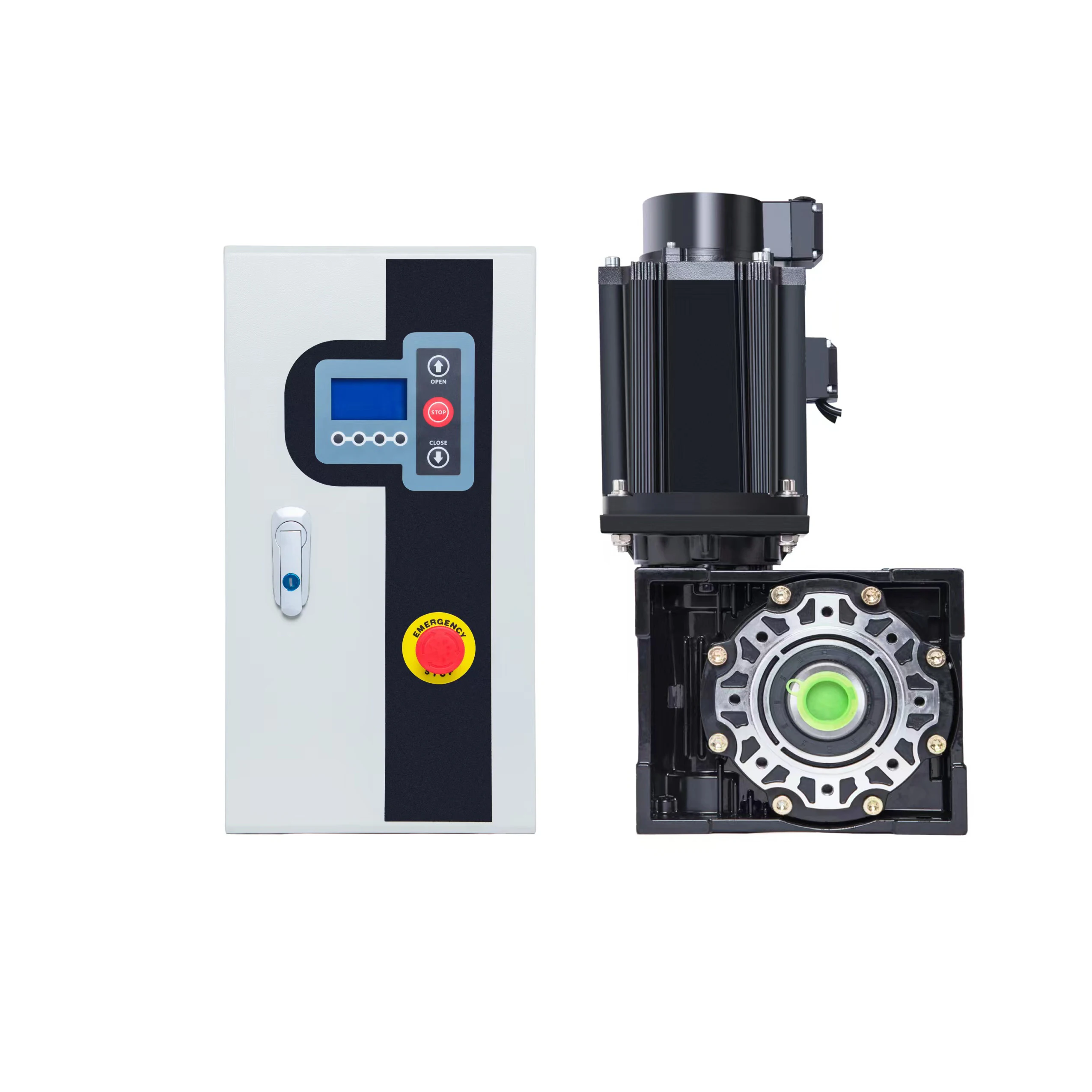

A1 2200W Three Phase Servo Motor Automation System with Speed Reducer for Quick Access of Rapid High Speed Door Motor
A1 2200W Three Phase Servo Motor Automation System with Speed Reducer for Quick Access of Rapid High Speed Door Motor
A1 2200W Three Phase Servo Motor Automation System with Speed Reducer for Quick Access of Rapid High Speed Door Motor
A1 2200W Three Phase Servo Motor Automation System with Speed Reducer for Quick Access of Rapid High Speed Door Motor

A1 2200W Three Phase Servo Motor Automation System with Speed Reducer for Quick Access of Rapid High Speed Door Motor

Share on (1601166748236):


Price:$390.00 - $400.00

Quantity:


Product Overview

Description

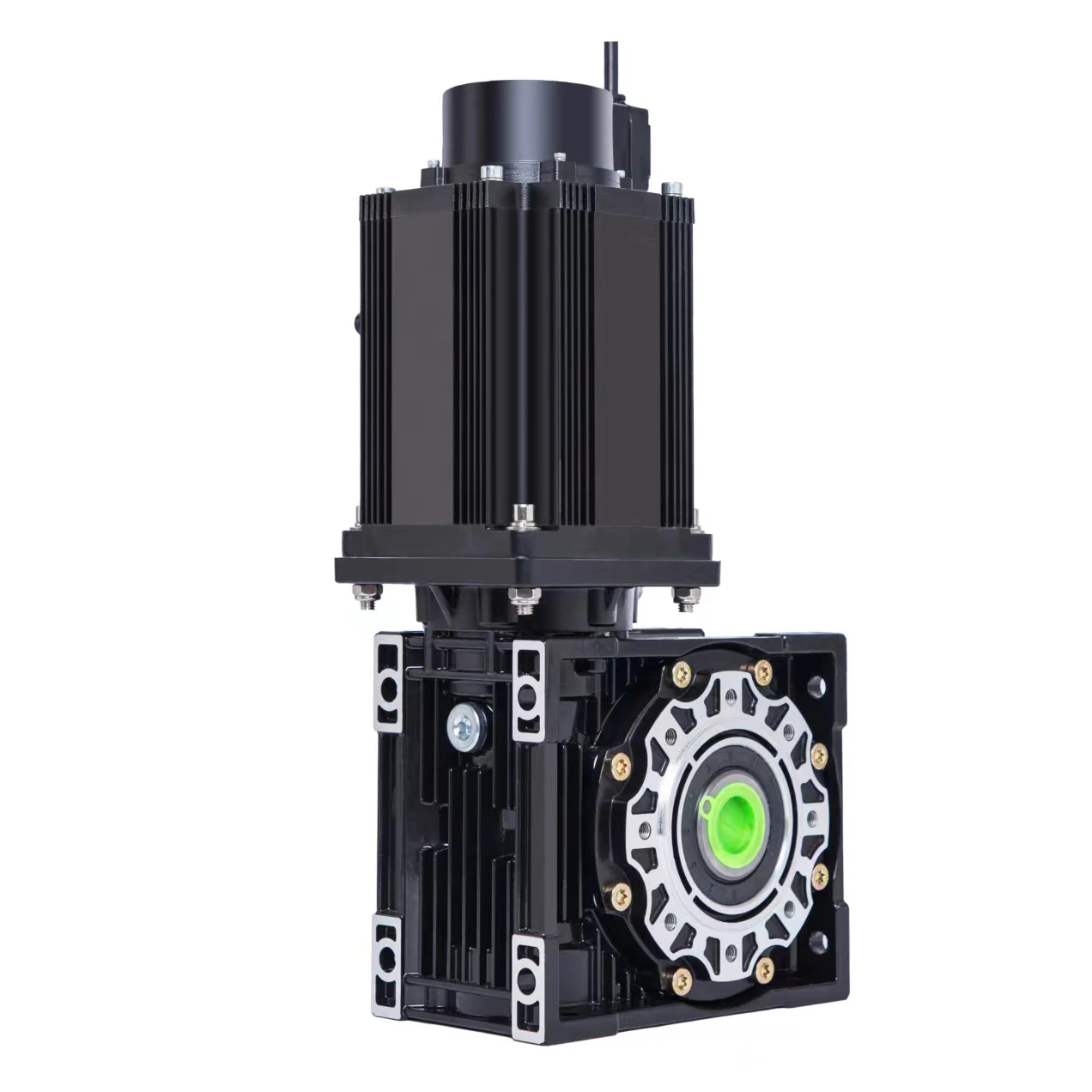

The A1 motor boasts a maximum speed of 2500 rpm, while the door body can operate at a maximum speed of 1.95 m/s. This ultra-high-speed motor ensures heightened efficiency.
The A1 series fast door machine is highly responsive, boasting a door opening speed from 0 to 1.9 m/s in just 500 milliseconds. Within this range, adjustments can be made as needed, and smooth slow starts and stops can be easily configured, effectively reducing wear and tear on the entire door system.
Equipped with high-precision encoders and utilizing closed-loop vector control algorithms, it precisely calculates and controls the speed, torque, and position of the door body, ensuring precise and flexible door operation. Even during acceleration, there is no jarring impact on the door body, resulting in an extended lifespan.
The waterproof and dust proof design of aviation plugs ensures the stability and reliability of the connection. Capable of withstanding vibration, temperature changes, and other environmental factors, ensuring the stable operation of the equipment. Specific shaped sockets and pins prevent incorrect connections.

Recommended for:
Loading and unloading docks, warehouses, distribution centers
Manufacturing facilities, military installations
Refrigeration, energy management, and LEED-certified buildings



Features
Built to last
User friendly

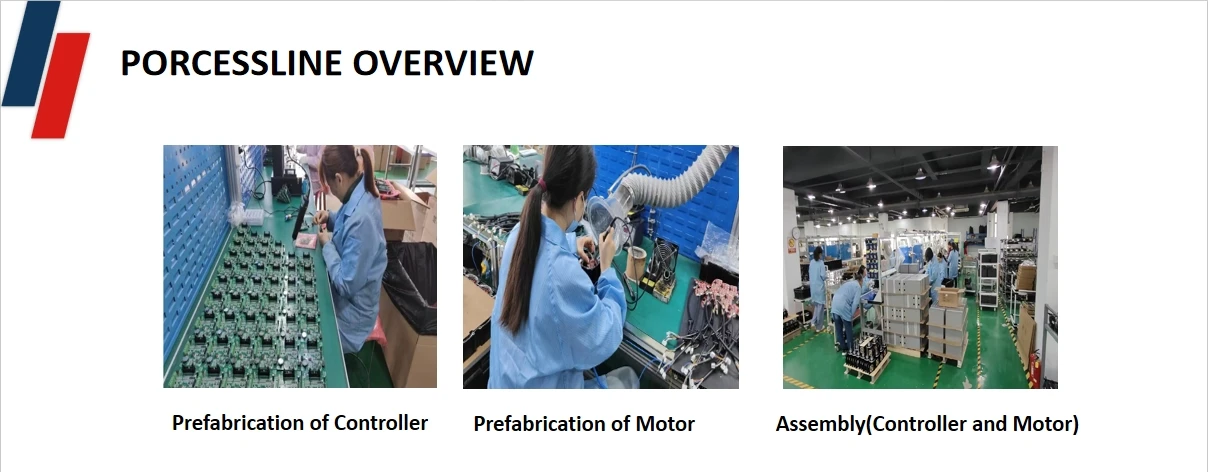

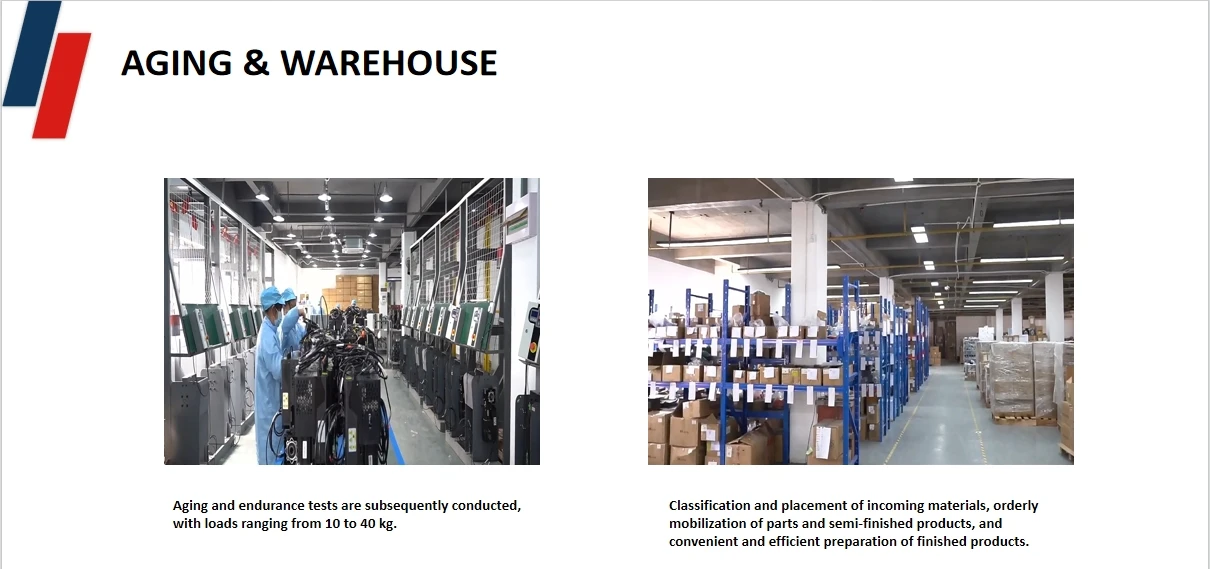

Full load testing before delivery
2 year warranty
Easy to install
Easy to wire
Easy to adjust
Easy to maintain

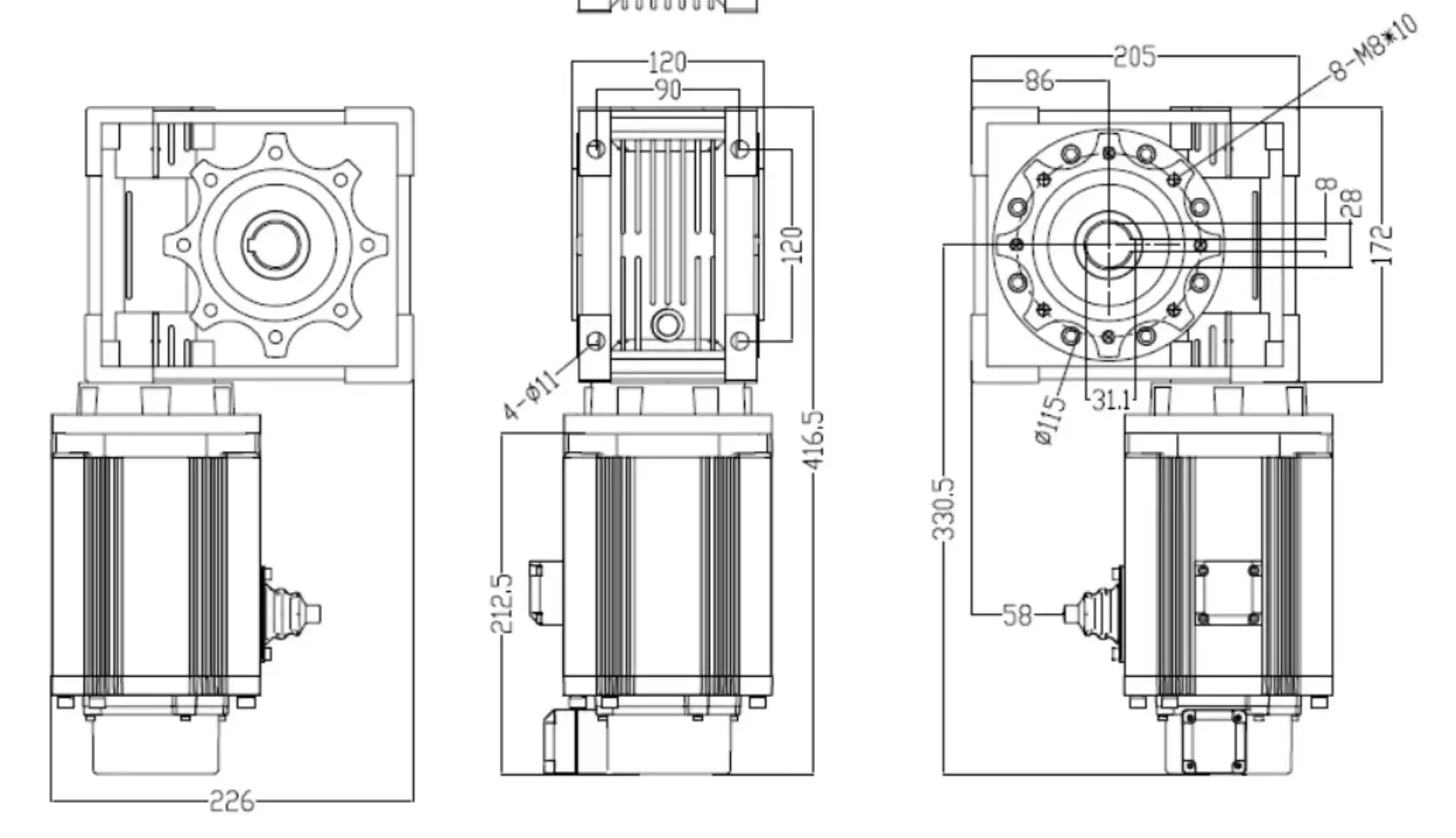

Basic Parameters
A1 2200W PE700
Power
2200W
Power supply
220V±10%
Reducer
Worm Gear Reducer(RV75）
Motor Operating Mode
S3
Max Rated Speed
2000 rpm
Rated Torque
10.5 Nm (2times Overload)
Motor IP Level
IP65
Shielding Wire Standard Length
8m
Working Temperature
-10℃-40℃
Limit Setting
Incremental Encodre + Absolute Encoder
Self Locking Method
Electronic Mechanical Brake

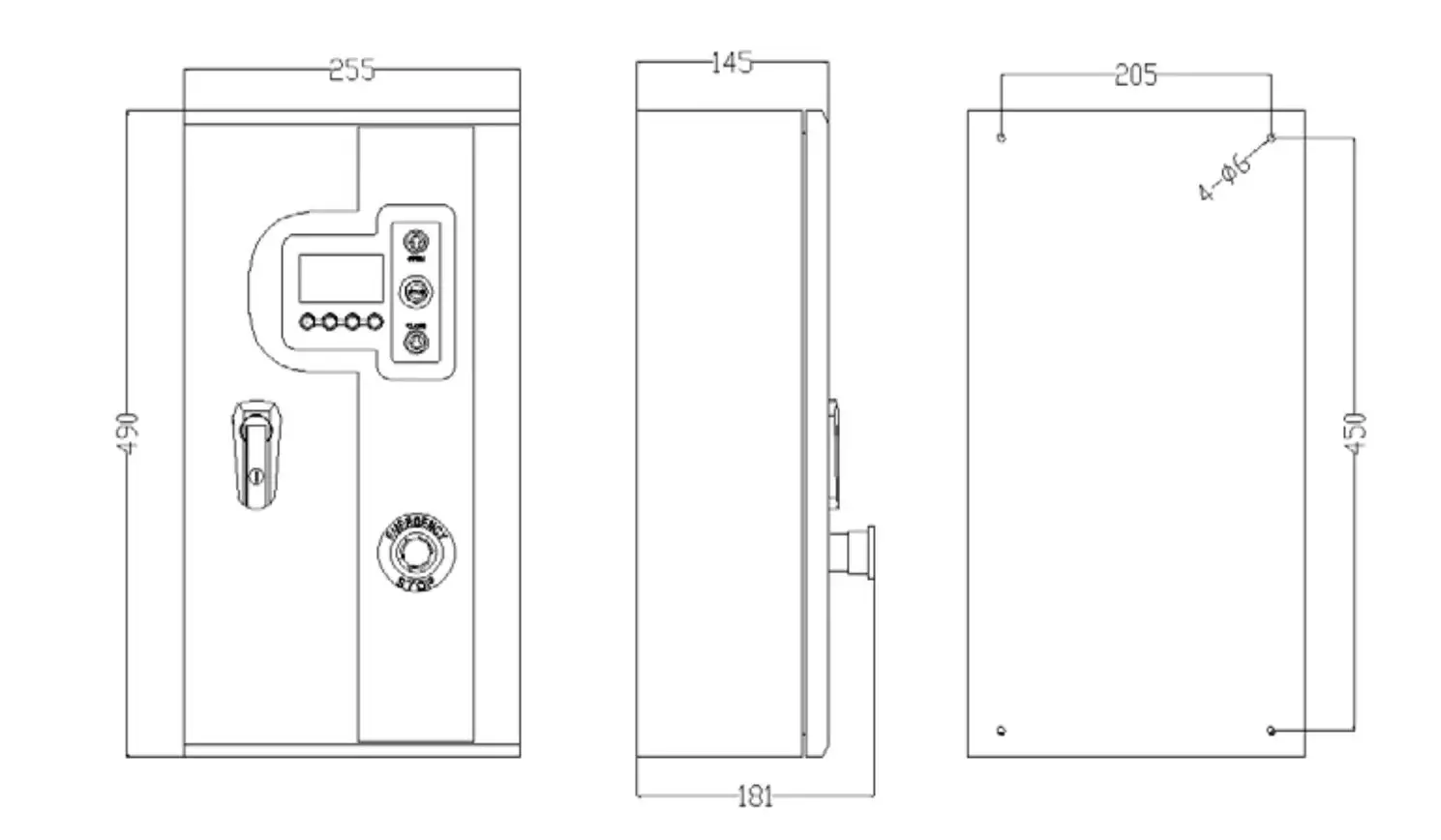

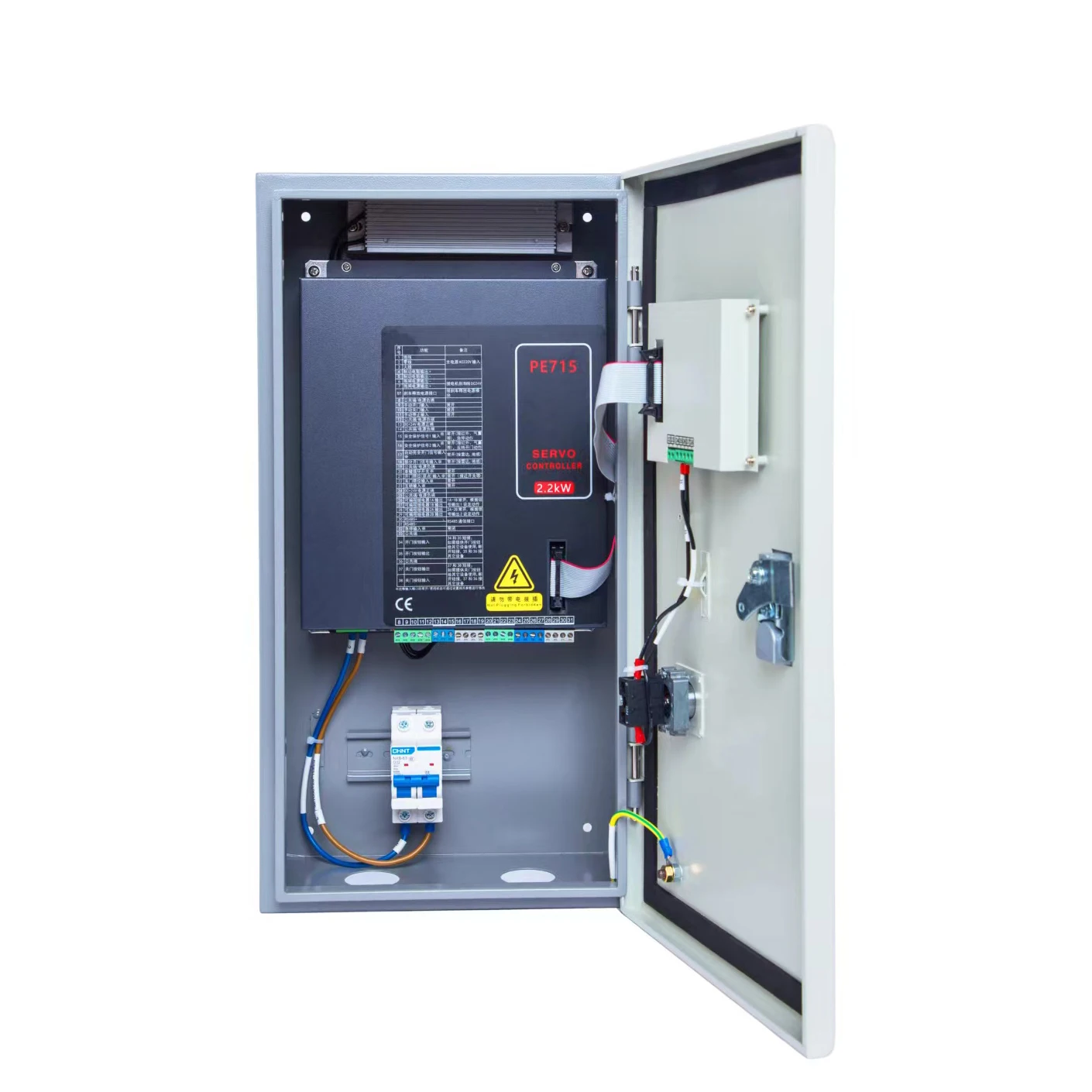

Control Panel Functions
Display
LCD Monitor
Opening Speed Setting
Stepless Speed Regulation
Closing speed setting
Stepless Speed Regulation
Opening Deceleration Interval Setting
√
Closing Deceleration Interval Setting
√
Automatic Closing Time-Delay (seconds)
0-240(0: Disable Automatic Door Closing）
Partial Opening Height(%)
Any Position Between the Limits
Running Status Display Option
√
Extensions of Control Panel Functions
Error Prompt
√
Data Statistics
√
Error Log
√
Maintenance reminder
√
Jogging Mode
√
Motor Running Reverse
√
Interface Logic Switching(NC/NO)
√
Anti-Shake Function In Low Temp.
√
Torque Servo Function
√
Interface of Control Cabinet
Networking Physical Interface
RS485
Safety Protection Signal 1 Input
Emergency stop
Safety Protection Signal 2 Input
Reverse Opening
Automatic Fully Opening Signal Input
√
Partial Opening Signal Input
√
Single Key Circle
√
Open Limit (Origin) Switch Input※
√
Close Limit Switch Input
√
Interlock Input
√
Programmable Relay Output
2 Groups
Manual/Automatic Switching Inputs
√
Emergency Stop Input
√
Limiting Options
Incremental Encoder
External Absolute Encoder
Proximity Switch

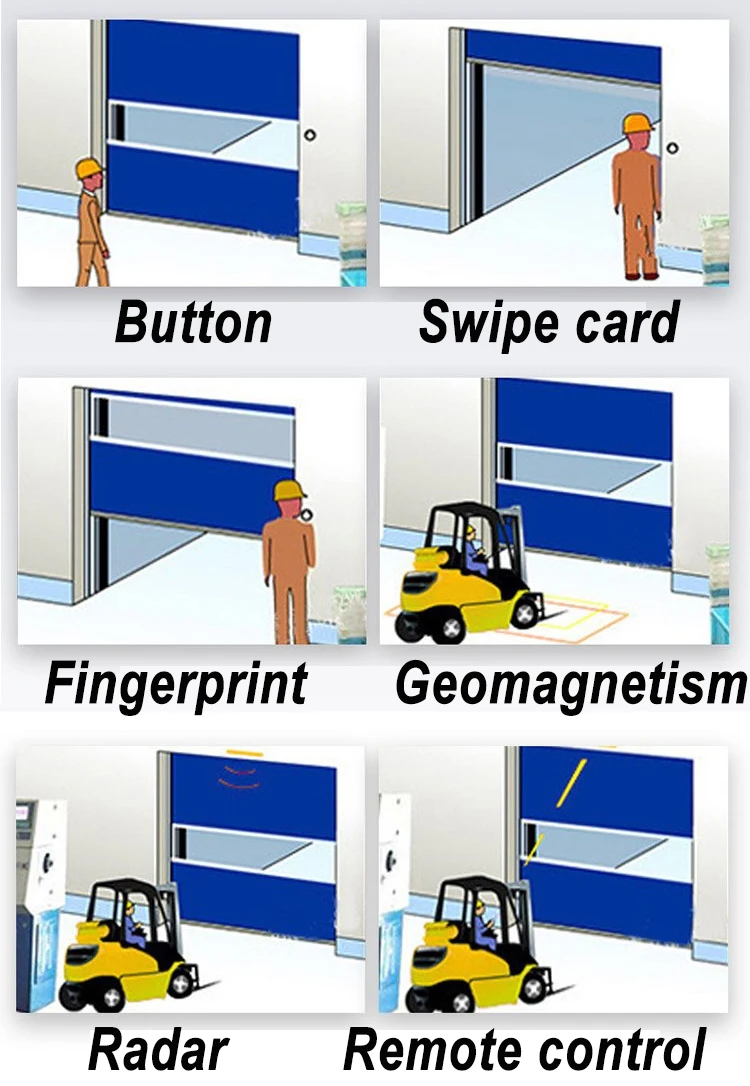

Six Ways to Open the Door






1. Accurate
We've achieved precise control over position, speed, and torque with a fully closed-loop servo system. Our high-precision
electronic limits ensure there's no deviation during long-term operation. Also eliminating the need for climbing to set limits and ensuring operator safety.

2. Stable
Our integrated design includes EMC electromagnetic compatibility features. We continuously monitor motor output data in real-time, allowing us to assess the status of balance systems like torsion springs and tension springs, as well as detect any jamming point.

3. Efficient
Our system offers adjustable speeds for flexible operation. The lifting door system can reach a rated output speed of 133RMP, with a maximum lifting speed of 1.95M/s.

4. Less Impact
The system operates smoothly without any shaking, minimizing the impact on its mechanical structure and significantly extending its service life.

5. Security
Our system is equipped with various protection methods, including overvoltage, undervoltage, overcurrent, and short circuit protection. With an emergency signal response time of under 30 milliseconds, we ensure the safety of both people and objects.

6. High Frequency
Ideal for environments with ultra-frequent and fast passage needs.

7. Energy Conservation
By utilizing rare earth permanent magnet materials in our servo motors, we've doubled efficiency compared to traditional
asynchronous induction motors. This results in energy savings, lighter weight, lower temperature rise, and increased torque.






Logistic Center Workshop Refrigeration Airport
