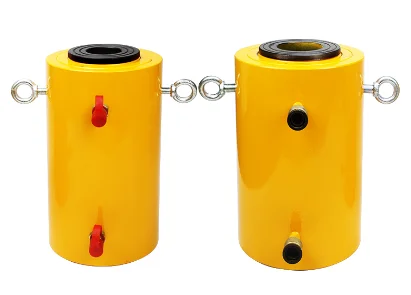

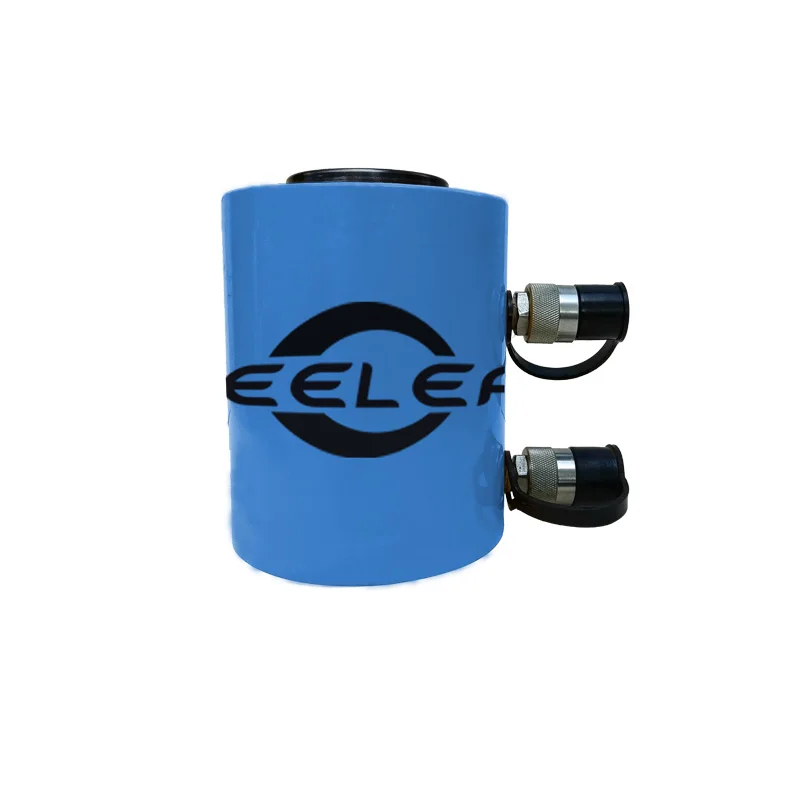

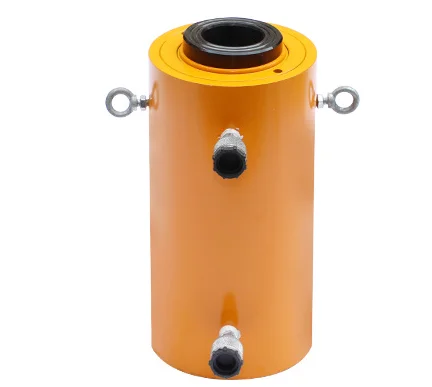

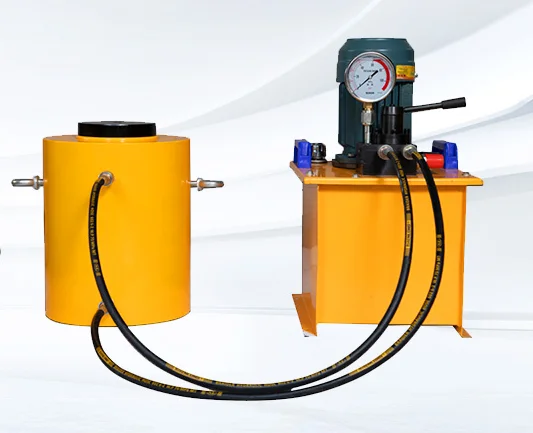

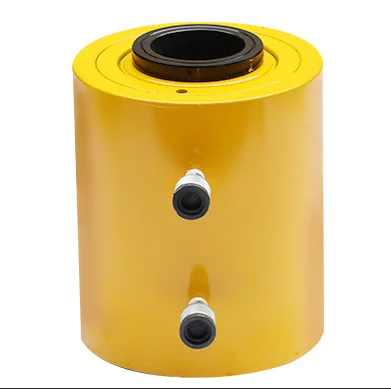

60 Tons Double Acting Hollow Plunger Hydraulic Cylinder with 6 inch stroke for hydraulic pump double

Name:

60 Tons Double-Acting Hollow Plunger Hydraulic Cylinder with 6 inch stroke for hydraulic pump double Acting

Features:

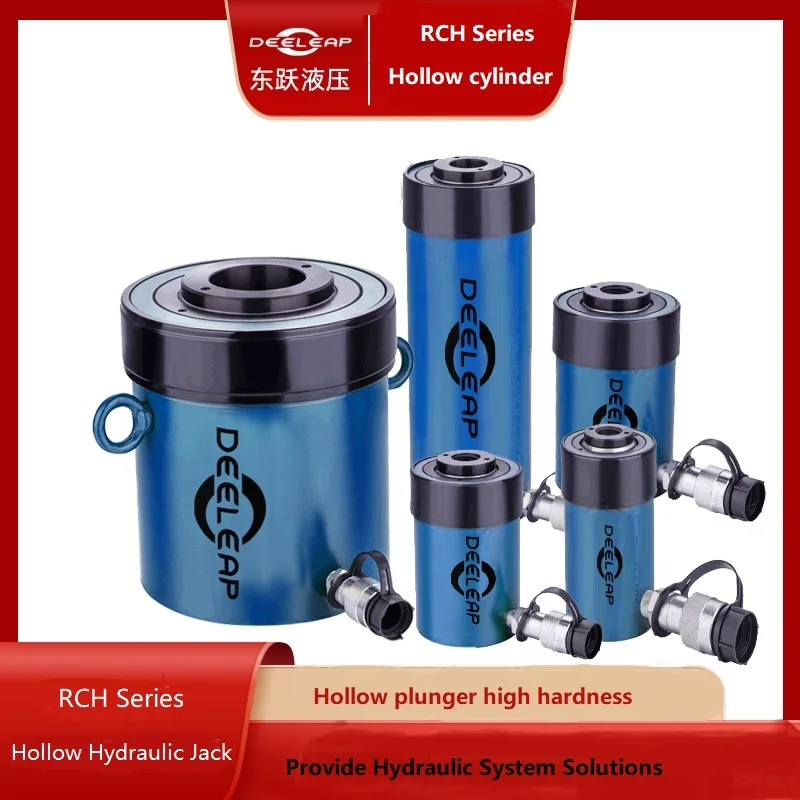

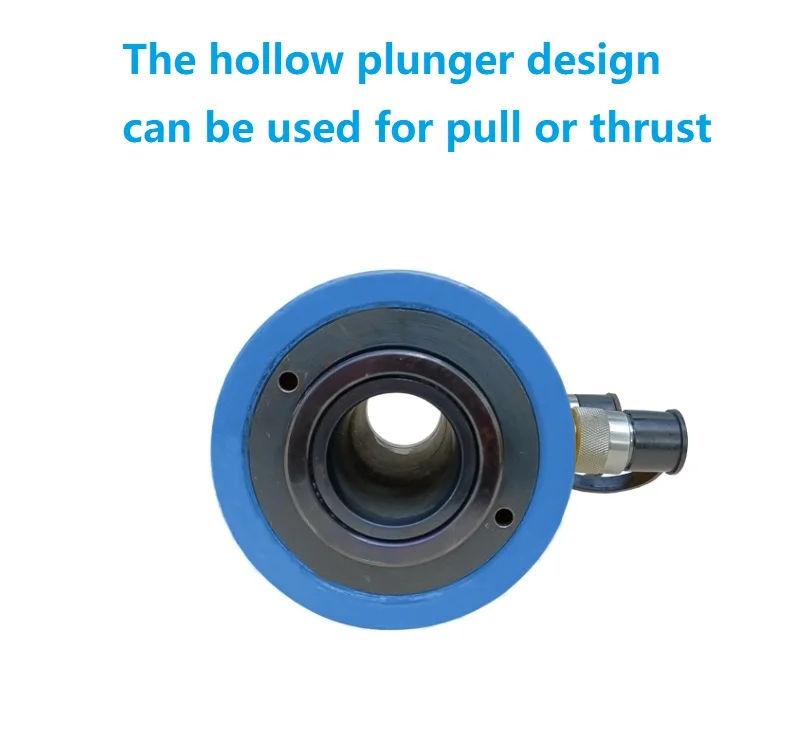

Hollow plunger that allows the traction bar or steel cable to pass through the entire hydraulic cylinder for lifting or jacking operations.

Advantages:

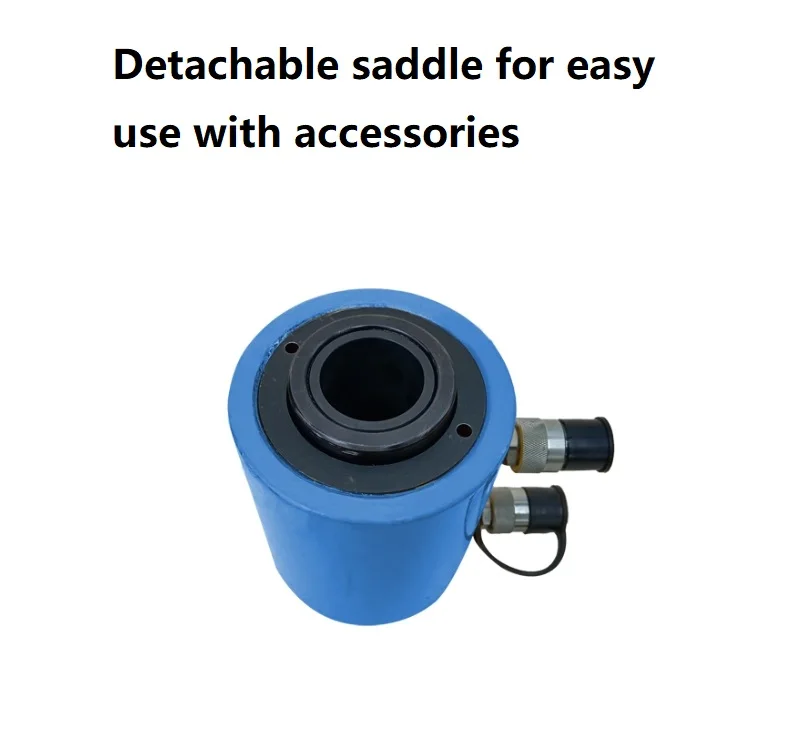

Easy installation of the outer ring thread (except for some models) for use in connection with structures;

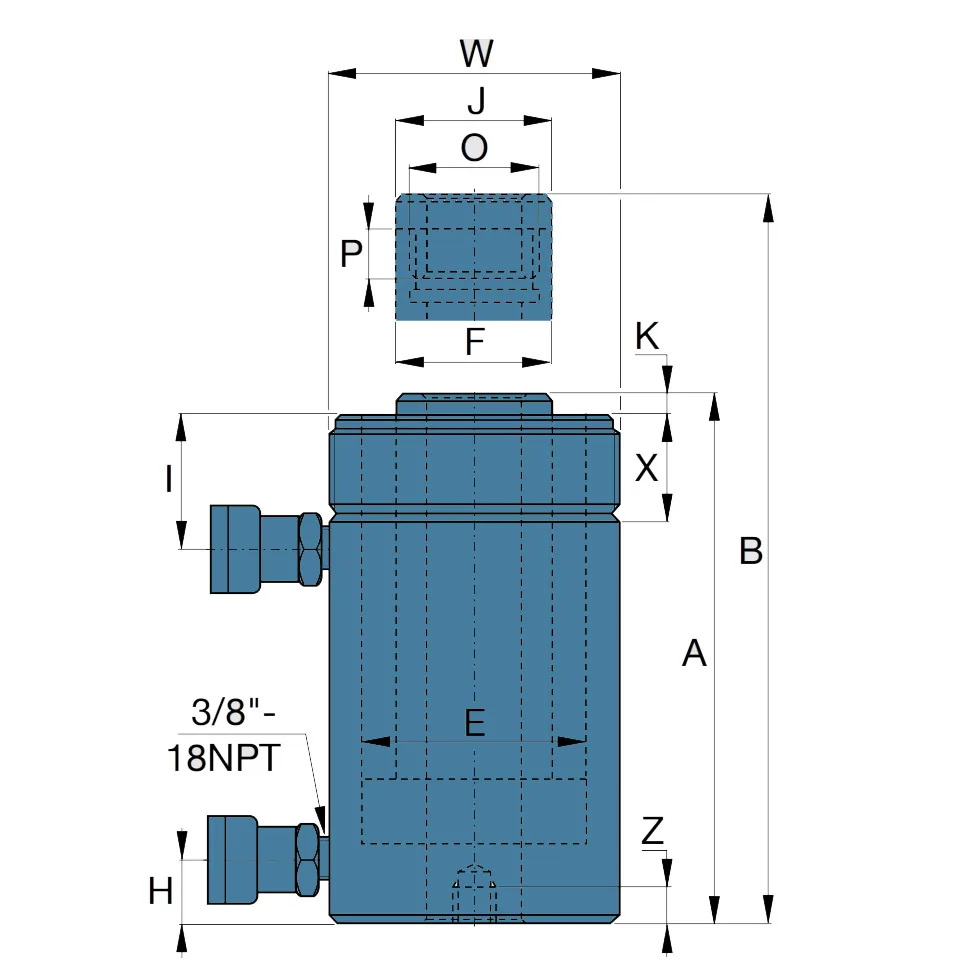

Matching 3/8"-18NPT quick hydraulic coupling with thread protection sleeve.

Anti-dust sealing ring prevents dust from entering the cylinder and prolongs the use time.

Hollow plunger high hardness, smooth surface, wear and corrosion resistance.

Seal ring: specially selected brand seal ring, wear-resistant and anti-aging, can make the hydraulic cylinder work for a long time.

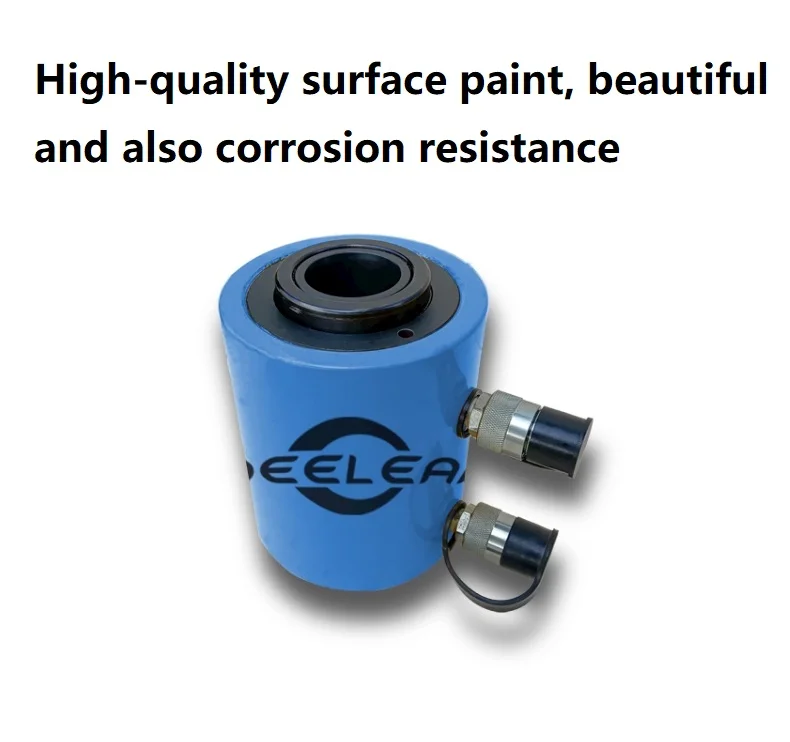

Cylinder surface treatment, wear-resistant and anti-corrosion, prolong the use of time.

Contact us
