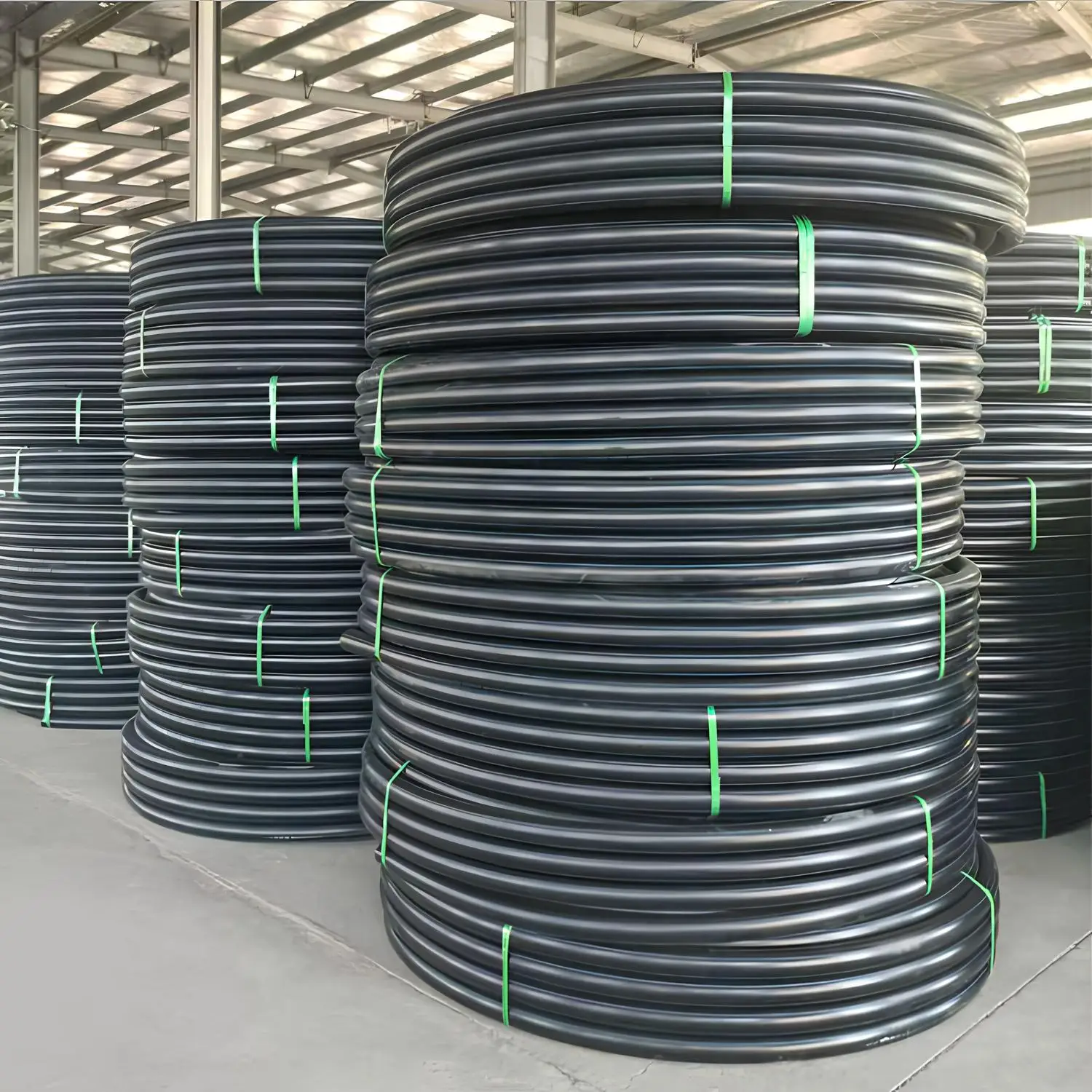

hdpe hoseclass 10 pipe pe100 32mm polyethylenes hose PN10 PN12.5 pn16 1 inch 2 inch irrigation pipe inch 3 hdpe water roll
- Category: >>>
- Supplier: Jinan Bada Plastic Pipe Welding Equipment Co. Ltd.
Share on (1601167107979):
Product Overview
Description
Products Description
100% new polyethylene water supply polyethylene pipe 2 hdpe pipe price for irrigation
Pipe made of polvethylene is a cost effective solution for a broad range of piping problems in municipal, industrial. marine,mining, landifill, duct and agricultural applications. It has been tested and proven effective for above ground. surface, buried, sliplined, floating, and sub-surface marine applications. High-density polyethylene pipe (HDPE) can carry potable water, wastewater, slurrles, chemicals, hazardisous wastes, and compressed gases. Polyethylene is strong, extremely tough and very durable.
TECHNICAL SPECIFICATION:STANDARD: ISO4427, EN12201, AS/NZS4130, DIN8074, ASTM F714, GOST18599, GB/T13663 | ||||||
item | pressure | requirment | ||||
PE80 | PE100 | |||||
20 C hydrostatic strength (100h) | 9 | 12.4 | Non breakage and leakage | |||
80 C hydrostatic strenath (165h) | 4.6 | 5.5 | Non breakage and leakage | |||
80 C hydrostatic strergth (1000h) | 4 | 5 | Non breakage and leakage | |||
1. PN = Nominal Pressure(Bar) at 20 °
2. Series, SDR and PN based on MRS = 10 MPa
3. Nominal diameter per ISO 161-1. Minimum wall thickness per ISO 4065.
4. Weight calculated in according with PPI TR-7 using 0.959 g/cm density.
2. Series, SDR and PN based on MRS = 10 MPa
3. Nominal diameter per ISO 161-1. Minimum wall thickness per ISO 4065.
4. Weight calculated in according with PPI TR-7 using 0.959 g/cm density.
HDPE100 grade water supply pipe | ||||||||||||
Implementation standard: GB/T13663.2-2018 | ||||||||||||
Tube Series | S12.5 | S10 | S8 | S6.3 | S5 | S4 | ||||||
Nominal Pressure | 0.6MPa（PN6） | 0.8MPa（PN8） | 1.0MPa（PN10） | 1.25MPa（PN12.5） | 1.6MPa（PN16） | 2.0MPa（PN20） | ||||||
Standard size ratio | SDR26 | SDR21 | SDR17 | SDR13.6 | SDR11 | SDR9 | ||||||
Nominal outer diameter (mm) | Wall thickness | Wall thickness | Wall thickness | Wall thickness | Wall thickness | Wall thickness | ||||||
16 | - | - | - | - | - | 2.3 | ||||||
20 | - | - | 2.0 | - | 2.3 | 2.3 | ||||||
25 | - | - | 2.0 | 2.3 | 2.3 | 3.0 | ||||||
32 | - | - | 2.3 | 2.4 | 3.0 | 3.6 | ||||||
40 | - | 2.3 | 2.4 | 3.0 | 3.7 | 4.5 | ||||||
50 | 2.3 | 2.4 | 3.0 | 3.7 | 4.6 | 5.6 | ||||||
63 | 2.5 | 3.0 | 3.8 | 4.7 | 5.8 | 7.1 | ||||||
FEATURES:
1. High corrosion resistance, resulting into a longer life
2. Extremely light weight and hence easy to handle
3. High fle ibility. High abrasion resistance. High impact strength.
4. Excellent water hammer characteristic helps, sustaining surges .
5. Excellent flow characteristics leading to significant energy savings.
6. Shifting soils no breakage. Earthquake resistance.
7. No infitration, helps maintaining the quality of fluids being conveyed
8. No trenches needed, resulting into easy and economical installation.
9. High UV resistance to scaling and biological build up -Allows fusion to eliminate leakages
1. High corrosion resistance, resulting into a longer life
2. Extremely light weight and hence easy to handle
3. High fle ibility. High abrasion resistance. High impact strength.
4. Excellent water hammer characteristic helps, sustaining surges .
5. Excellent flow characteristics leading to significant energy savings.
6. Shifting soils no breakage. Earthquake resistance.
7. No infitration, helps maintaining the quality of fluids being conveyed
8. No trenches needed, resulting into easy and economical installation.
9. High UV resistance to scaling and biological build up -Allows fusion to eliminate leakages
Details Images

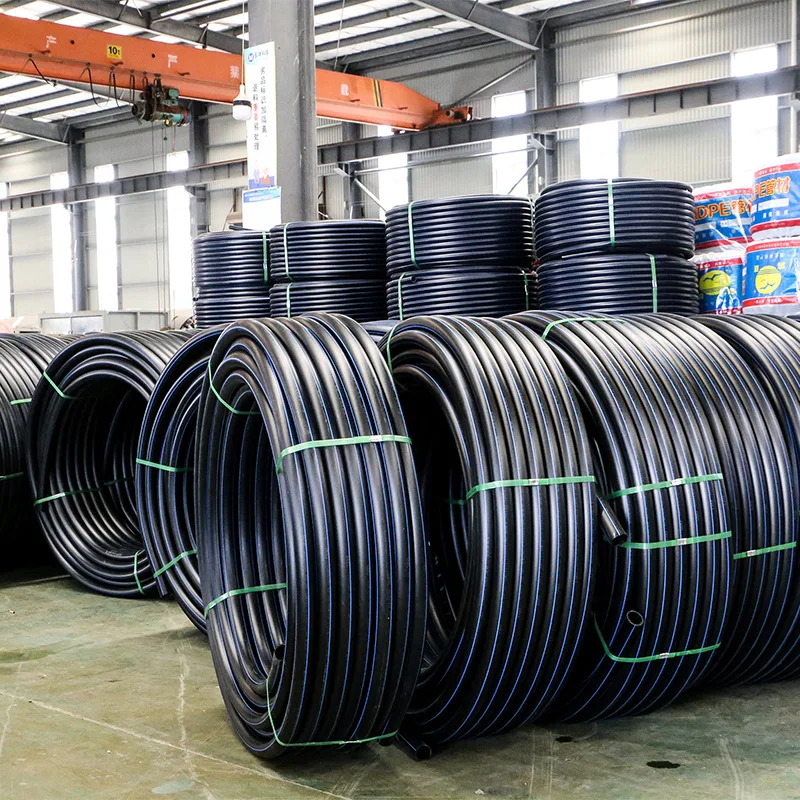

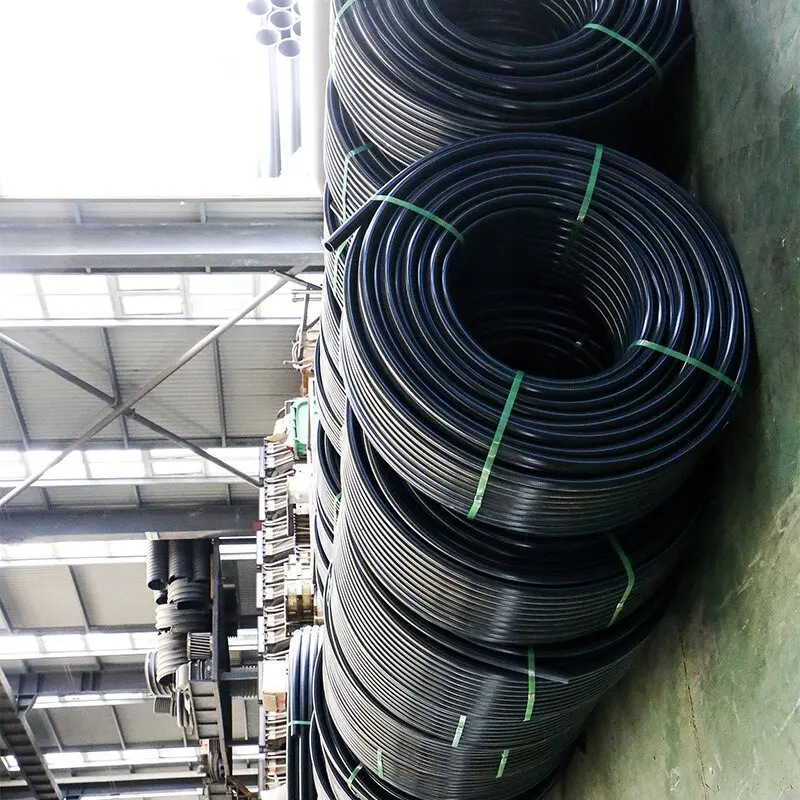

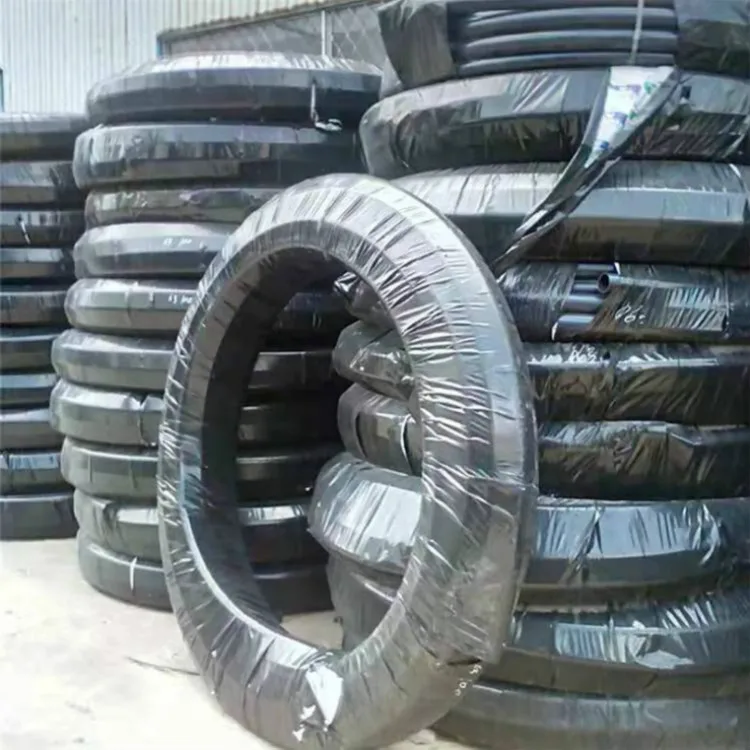

Our Pipes

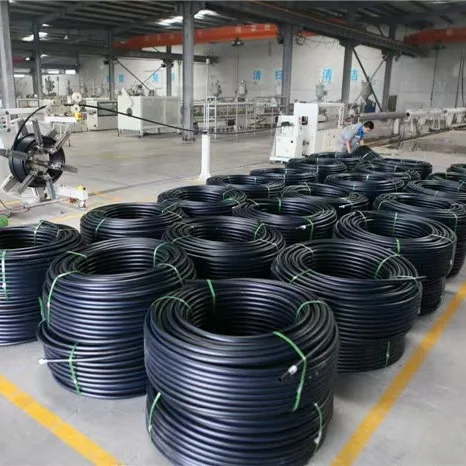

Production Line
Construction Cases
1. Light weight;
2. corrosion resistance;
3. Resistant to chemical fertilizers and herbicides;
4. Nontoxic and odorless;
5. Resistant to harsh climate;
6. Up to 50 years' durability;
7. Resistant to deformation;
8. Smooth interior structure, low friction losses;
9. Low labor cost for handling and installing;
10. Reliable performance .
2. corrosion resistance;
3. Resistant to chemical fertilizers and herbicides;
4. Nontoxic and odorless;
5. Resistant to harsh climate;
6. Up to 50 years' durability;
7. Resistant to deformation;
8. Smooth interior structure, low friction losses;
9. Low labor cost for handling and installing;
10. Reliable performance .
Certifications
Related Products
FAQ
1. Q: How could we get to your factory?
A: It is located at beautiful, historic and cultural city, Jinan city. And it's only 40 KM from Jinan Internationl Airport.You may
also come to our factory by High Speed Railway train, we will go to train station to pick you up.
2. Q: What shipment is it to our destination?
A: In general,we transfer goods by sea in order to save cost.If your shipping date is urgent,we could also consider to ship by air.
3. Q: How about the quality?
A:We can make sure that our products must be tested by high level testing methods before they go to customers.
4.Q: What about your customs clearance?
A:The original B/L,invoice,packing list and all certification you need will be sent to you by TNT or DHL within 7 days.
A: It is located at beautiful, historic and cultural city, Jinan city. And it's only 40 KM from Jinan Internationl Airport.You may
also come to our factory by High Speed Railway train, we will go to train station to pick you up.
2. Q: What shipment is it to our destination?
A: In general,we transfer goods by sea in order to save cost.If your shipping date is urgent,we could also consider to ship by air.
3. Q: How about the quality?
A:We can make sure that our products must be tested by high level testing methods before they go to customers.
4.Q: What about your customs clearance?
A:The original B/L,invoice,packing list and all certification you need will be sent to you by TNT or DHL within 7 days.
