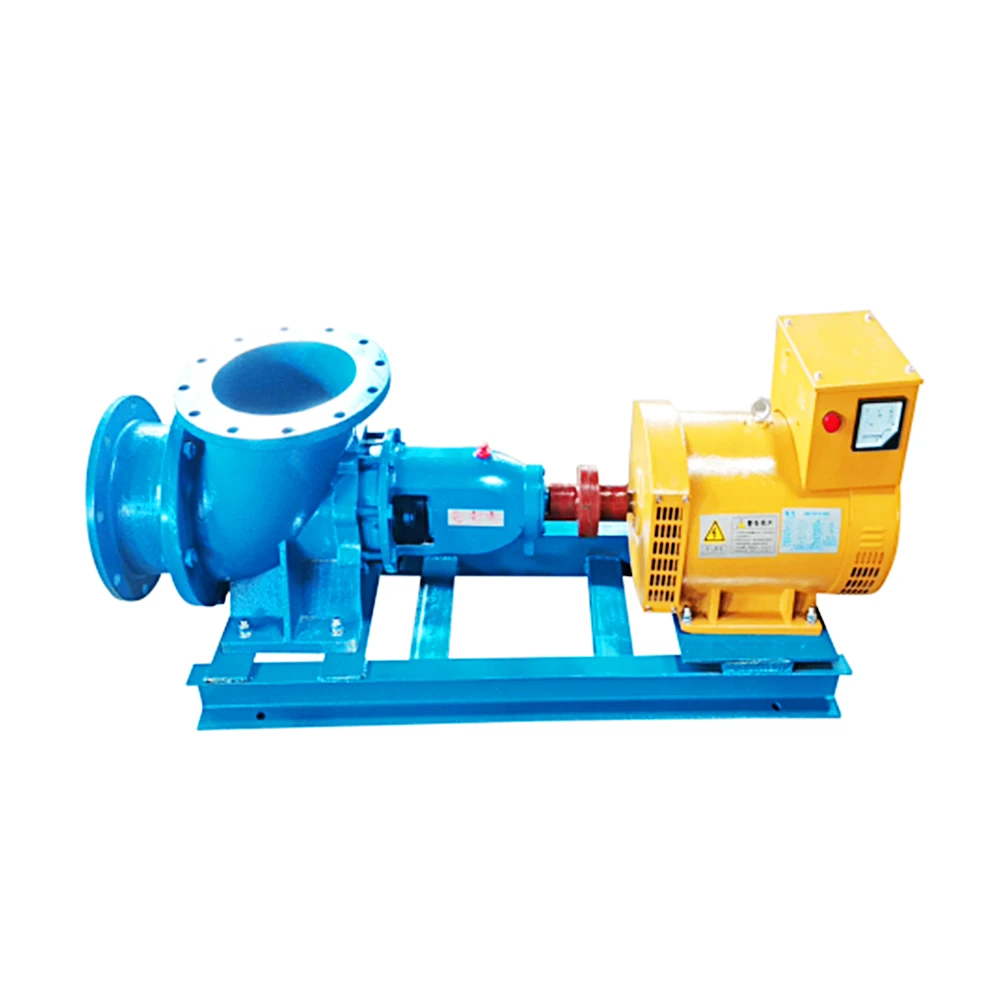

10KW Good Quality Horizontal pressurized axial flow Mini Hydro Generator For Hydro Turbine Power Station 15kw 20KW 30kw 50kw
- Category: >>>
- Supplier: ELEGE NEW ENERGY (ZHANGJIAGANG) CO. LTD
Share on (1601167290472):
Product Overview
Description
1. Suitable for low head (minimum three meters), large flow;
2. Pressure inlet, pressure outlet; pipe inlet, pipe outlet.
3.Separation of hydraulic turbine and generator, easy for maintenance and replacement of wearing parts.
4. Separate 2 bearings for hydraulic turbine and 2 bearings for generator, more reliable structure.
5. Hydraulic turbine bearing has independent oil lubrication system, bearing life is longer.
6. Brushless excitation generator, no need to replace carbon brushes and copper rings,easy to maintain.
Power | Head (meters) | Flow rate (m3/s) | Tube inner diameter/mm | Installation Head |
5kw | 5-12m | 0.027-0.082 | 200 | 10 |
8kw | 5-12m | 0.055-0.125 | 250 | 10 |
6-20m | 0.027-0.12 | 200 | 15 | |
10kw | 6-12m | 0.055-0.126 | 250 | 10 |
10-25m | 0.027-0.15 | 200 | 20 | |
15kw | 8-15m | 0.08-0.2 | 300 | 10 |
8-25m | 0.08-0.2 | 250 | 15 | |
10-35m | 0.02-0.12 | 200 | 20 | |
20 kw | 10-35m | 0.08-0.25 | 200 | 30 |
8-30m | 0.08-0.25 | 250 | 20 | |
8-15m | 0.1-0.35 | 350 | 10 | |
30kw | 10-40m | 0.05-0.24 | 250 | 30 |
8-30m | 0.052-0.23 | 300 | 20 | |
40kw | 8-40m | 0.052-0.25 | 300 | 30 |
50kw | 8-30m | 0.1-0.4 | 350 | 20 |
8-30m | 0.1-0.36 | 300 | 30 |

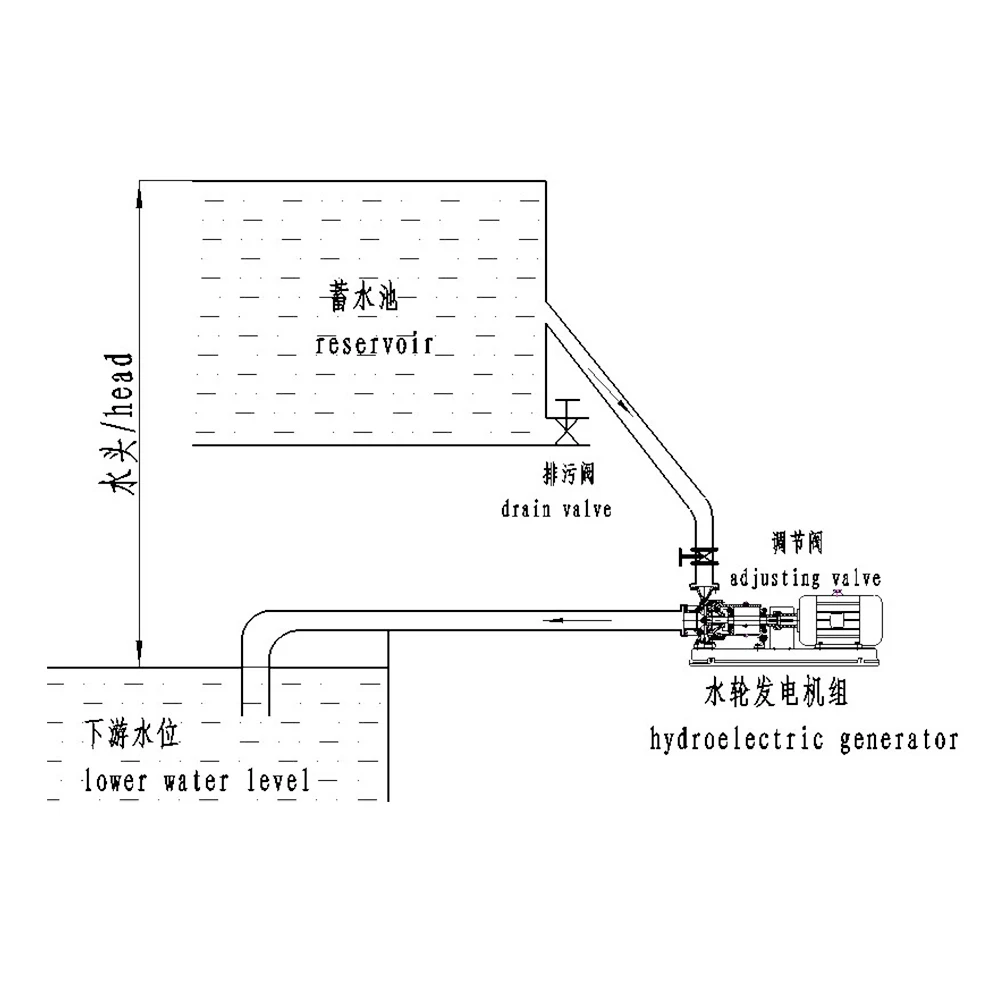

Installation Procedure: After the unit foundation be poured with concrete is solidified, the unit is installed in place and then watered in sequence. The water level must be measured with a level gauge to ensure that the unit is fixed in a horizontal position. The gap between the unit and the floor should be sealed with cement, and no water seepage is allowed. After the unit is installed, check again and turn the turbine shaft of the turbine by hand. If the machine is flexible, the installation is finished. Installation requirements: The bottom plane of the turbine in close contact with the foundation plane. NOTE: 500w hydro generator only can be used with the following two conditions:. 1) The vertical Water level difference between the unit foundation and the hydro generator must be in this range:7-15M 2) The water flow must can fully fill the water tube that is above 7.5cm diameter all the time.
