TOP LINK REPAIR ENDS
- Category: >>>
- Supplier: Chongqing July Trade Co. Ltd.
Share on (1601167295174):
Product Overview
Description

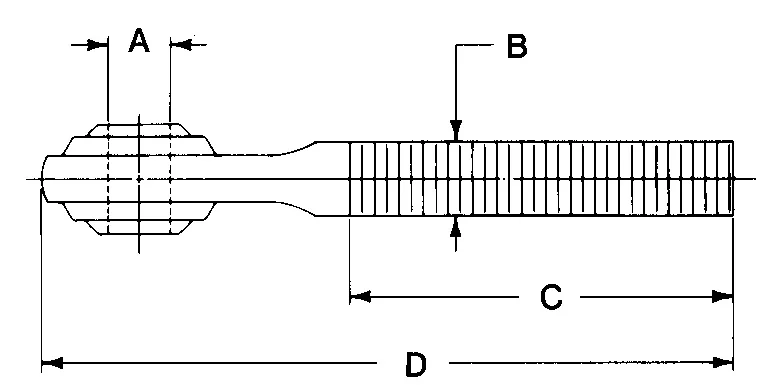

| PART NUMBER | CAT. | TYPE | A | B | C | D | PACKAGE QTY. | WEIGHT (LB.) |
| PIN HOLE SIZE | THREAD DIAM. | THREAD LENGTH | OVERALL LENGTH | |||||
| TE1L | 1 | FORGED | 3/4" | 1-1/8" NC (LH) | 6" | 10" | 1 | 2.4 |
| TE1R | 1 | FORGED | 3/4" | 1-1/8" NC (RH) | 6" | 10" | 1 | 2.4 |
| TE2L | 2 | FORGED | 1" | 1-1/4" NC (LH) | 5-1/2" | 10" | 1 | 3 |
| TE2R | 2 | FORGED | 1" | 1-1/4" NC (RH) | 5-1/2" | 10" | 1 | 3 |
| TE2R | 2 | FORGED | 1" | 1-1/8" NC (LH) | 6-1/2" | 11" | 1 | 3 |
| TE2R | 2 | FORGED | 1" | 1-1/8" NC (RH) | 6-1/2" | 11" | 1 | 3 |
| TE3R | 3 | FORGED | 1-1/4" | 1-3/8" NC (RH) | 7-1/4" | 12-1/8" | 8 | 8 |
| TE3L | 3 | FORGED | 1-1/4" | 1-3/8" NC (LH) | 7-1/4" | 12-1/8" | 8 | 8 |

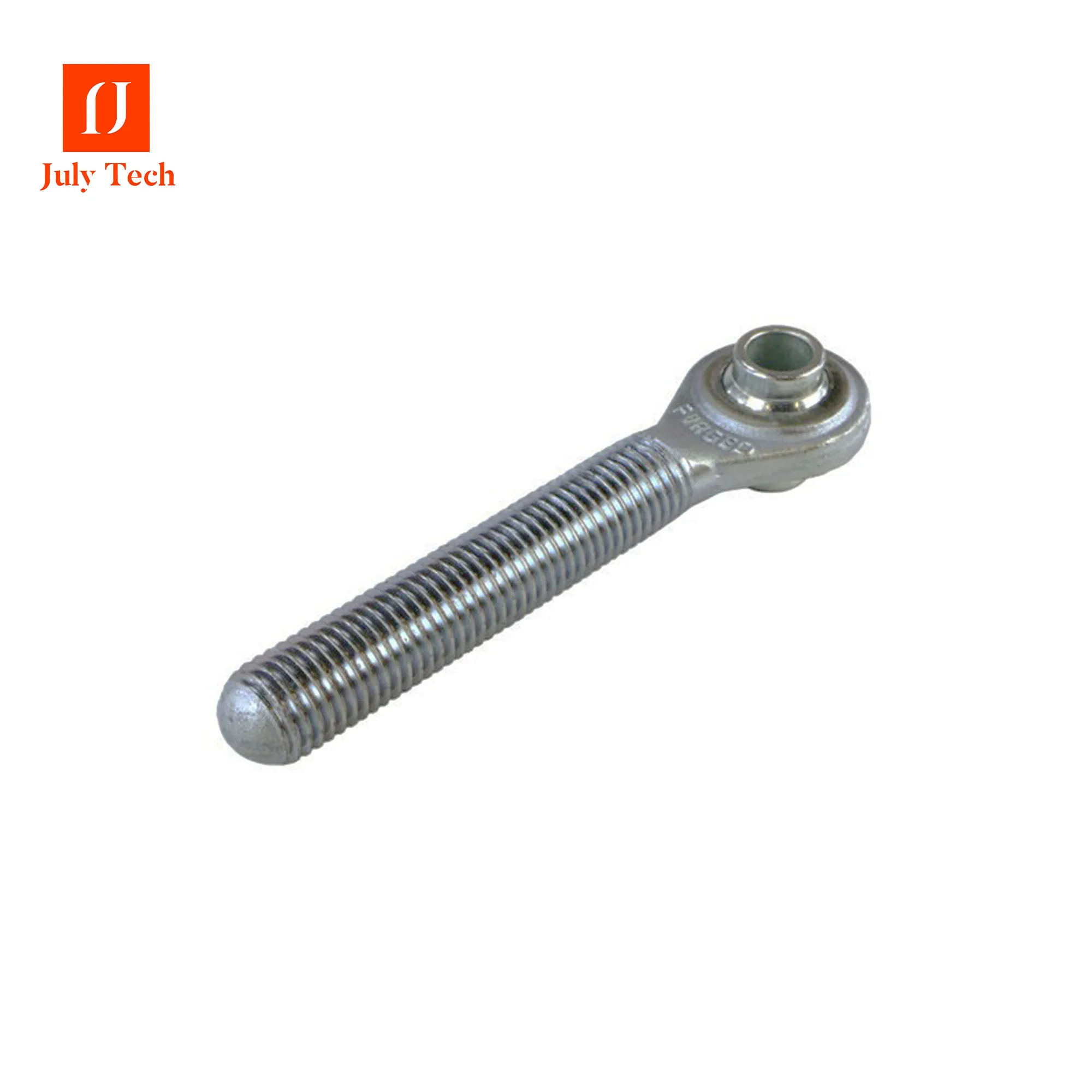

Forged and Welded Screw-In Repair Ends
Our forged and welded screw-in repair ends are crafted for superior durability and performance. Made from high-strength materials through precision forging and welding, these repair ends provide a robust and seamless bond. They are threaded for easy installation and can be customized to fit various thread standards like NPT or BSP. These repair ends offer a cost-effective solution to extend equipment life.
For Category 0, 1, 2, and 3 Top Links
These repair ends are compatible with Category 0, 1, 2, and 3 top links, making them suitable for a wide range of agricultural and industrial machinery. They ensure your equipment stays in optimal working condition, from small-scale farming tools to large industrial machines.
Clear Zinc Plated
To enhance durability and corrosion resistance, our repair ends are coated with clear zinc plating. This finish provides significant protection against rust and environmental wear, ensuring reliable performance in both indoor and outdoor applications.
