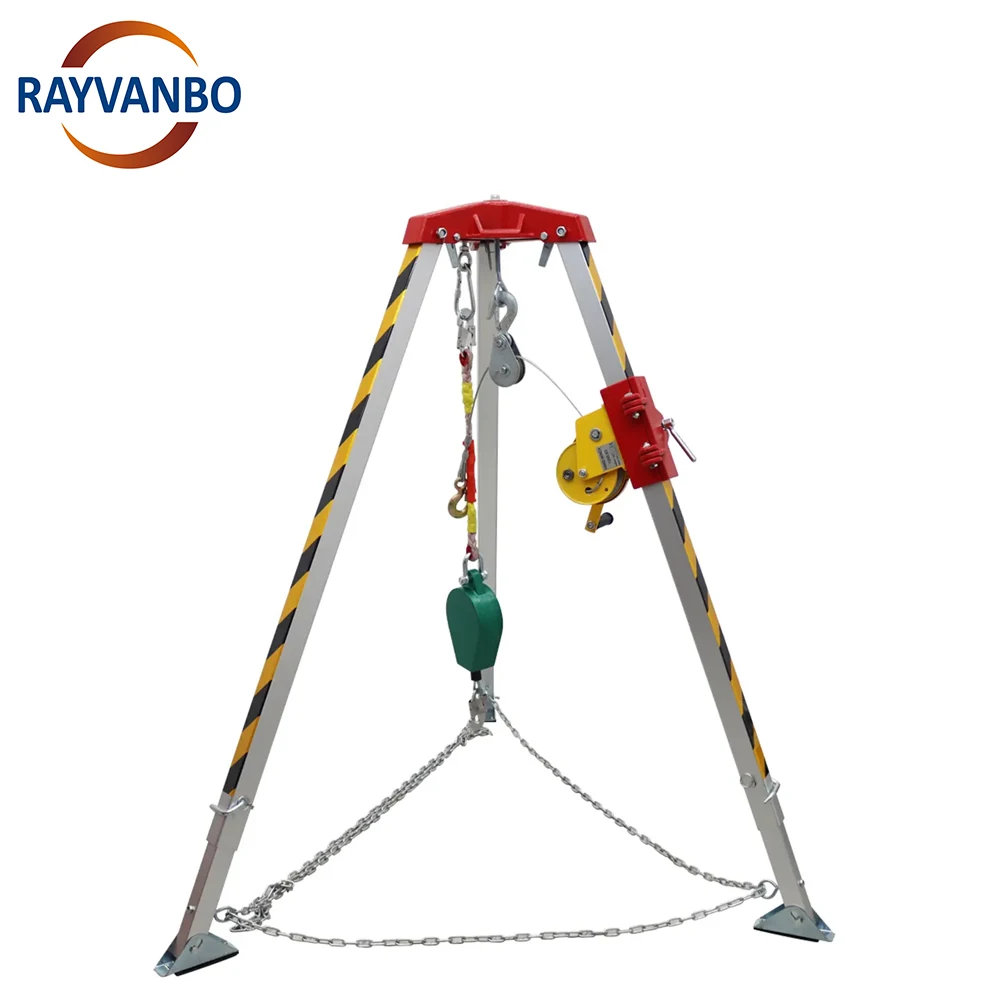

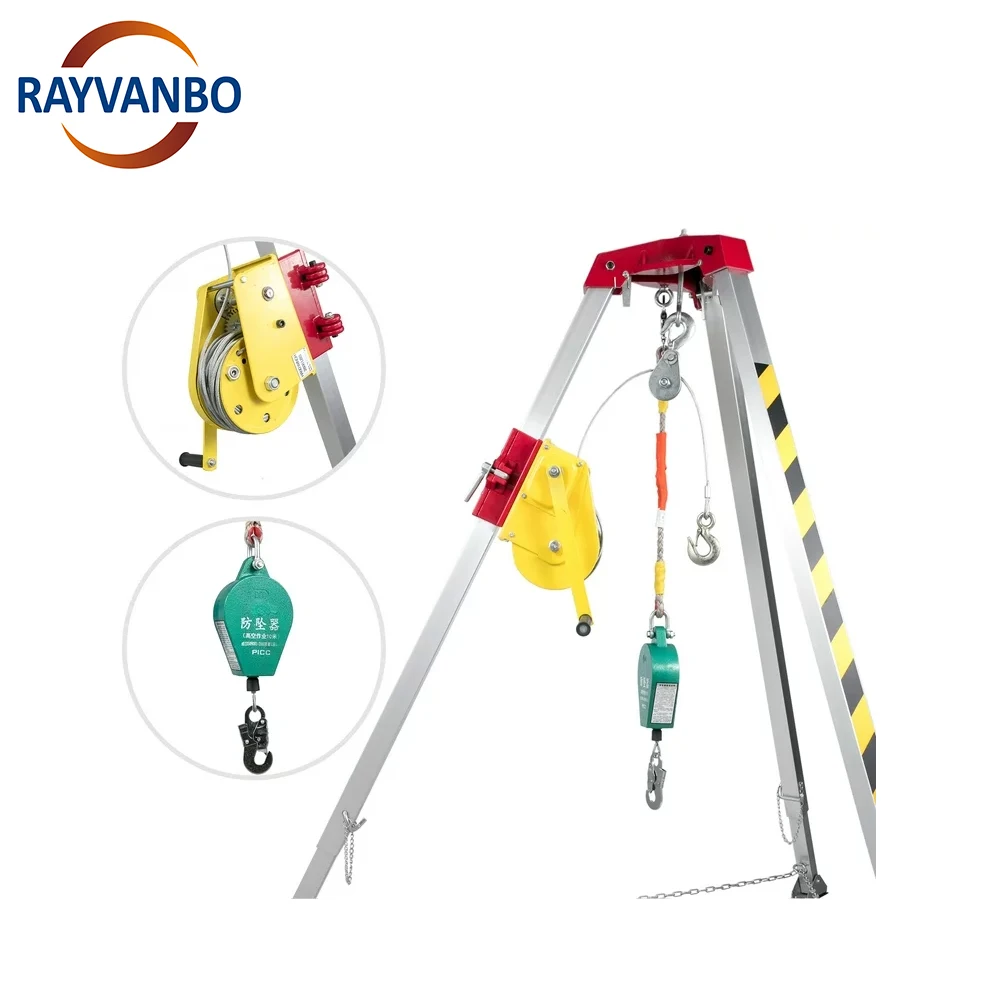

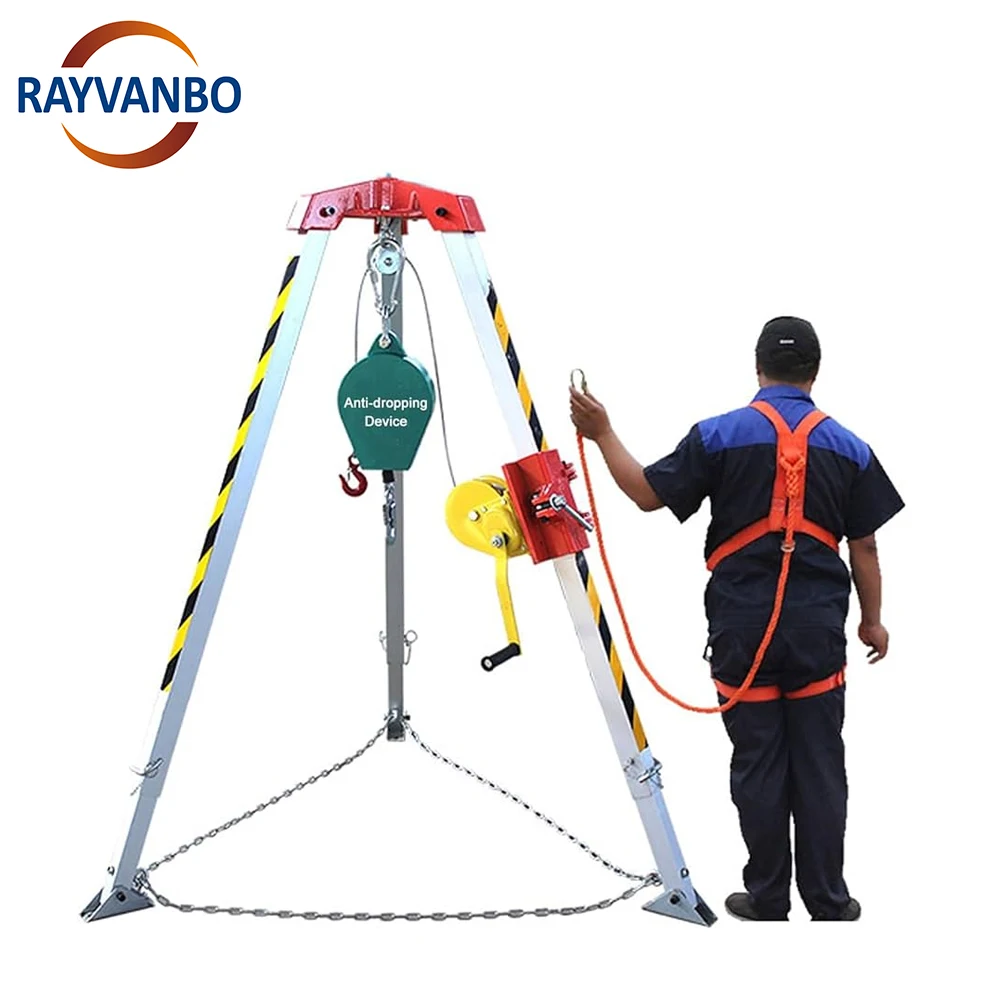

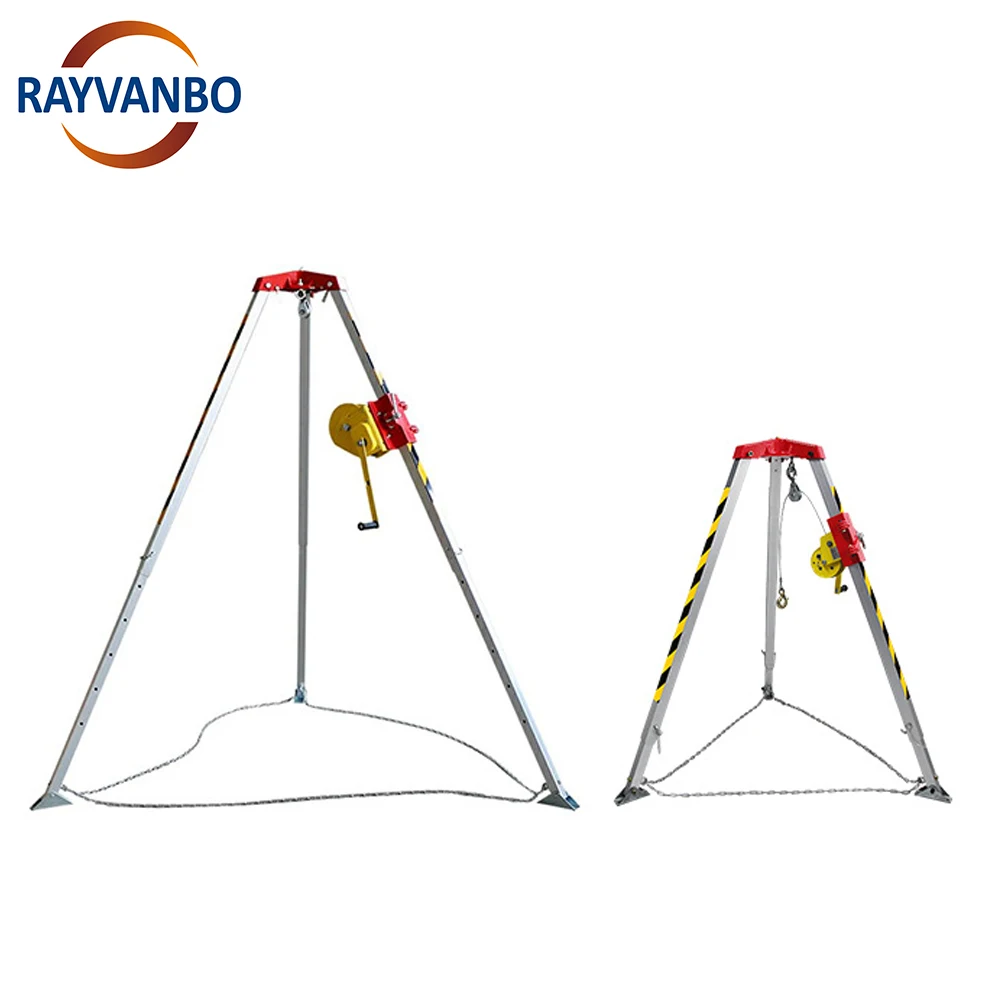

Aluminum tripod for fall protection and rescue at the bottom of the well
- Category: >>>
- Supplier: Wuhan Rayvanbo Import And Export Trade Co. Ltd.
Share on (1601167336020):
Product Overview
Description
Product Description

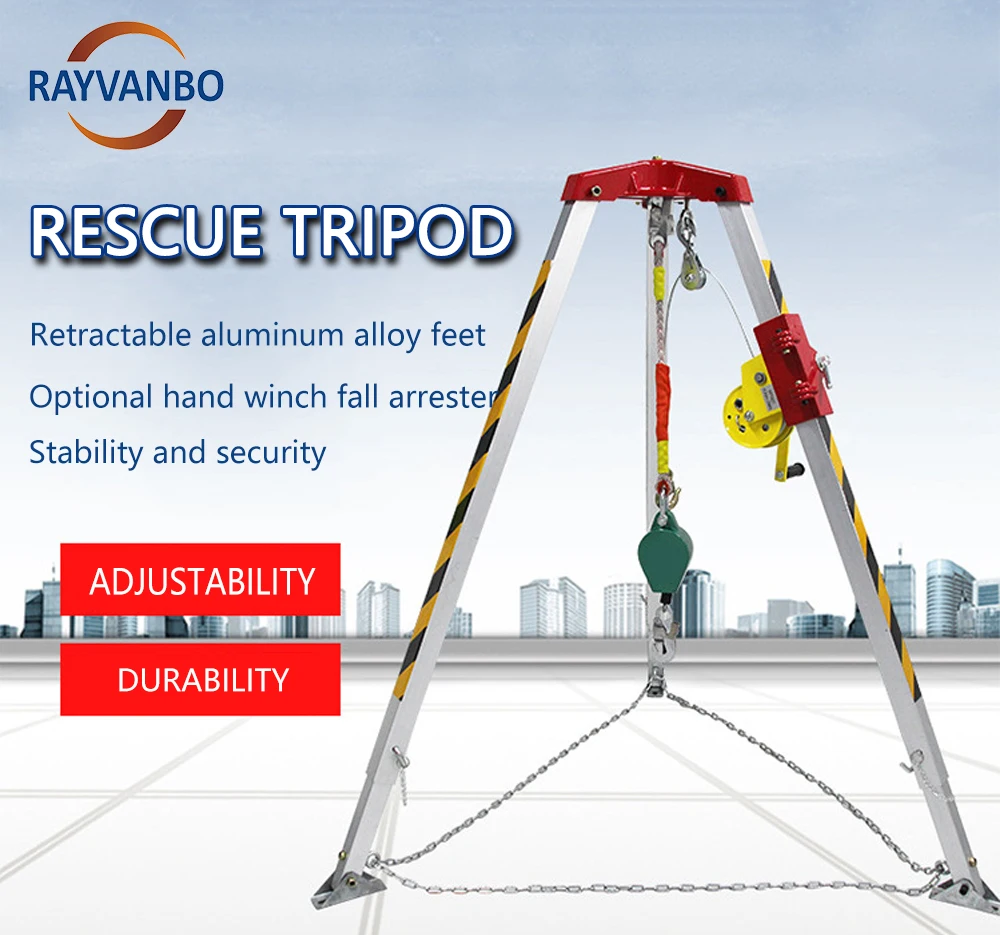

Rescue Tripod
The rescue tripod is a retractable foot made of high-strength lightweight alloy. It features a rising and falling self-locking device, a special wire rope, good flexibility, and no damage to the copper wire caused by corrosion or lack of oil. It is used in a tripod for deep wells, high-rise buildings, and other high-rise rescues. It is suitable for fire fighting and rescue mechanisms.

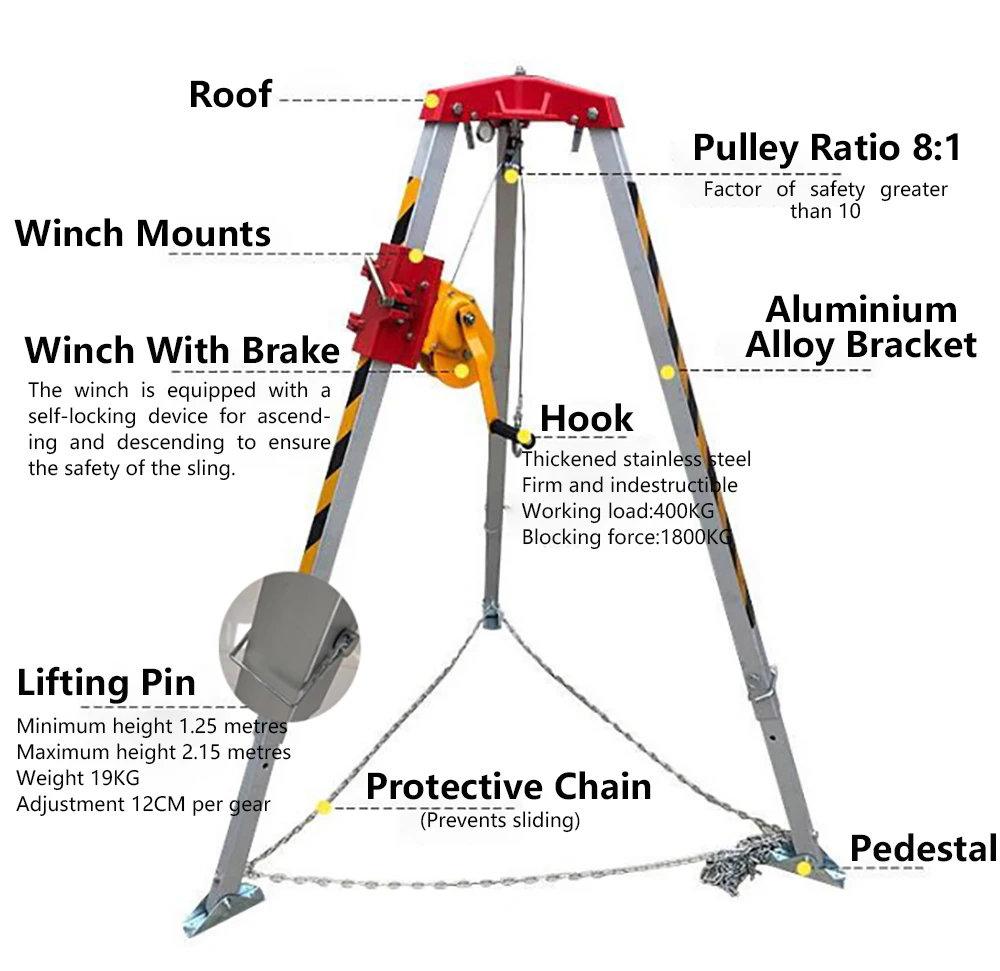

1. Retractable feet made of high-strength lightweight alloy with a safety factor greater than 10, with a ring-shaped protective chain on the foot.

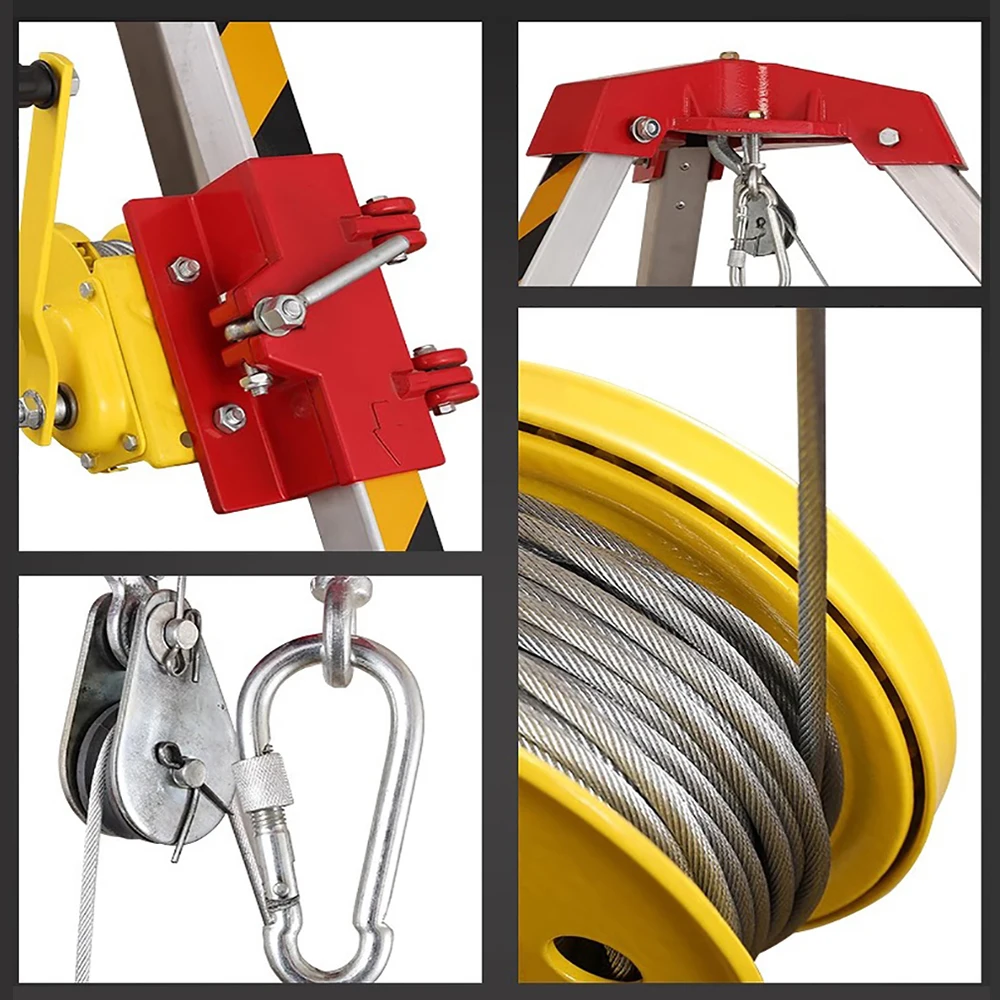

2. The winch is provided with a rising and falling self-locking device to ensure the safety of the sling.
3.The sling is made of special stainless steel wire rope, which has good flexibility and will not damage the steel rope due to corrosion or lack of oil.
4. Convenient assembly, suitable for local facilities at the wellhead, pits, and without the height of the ground.

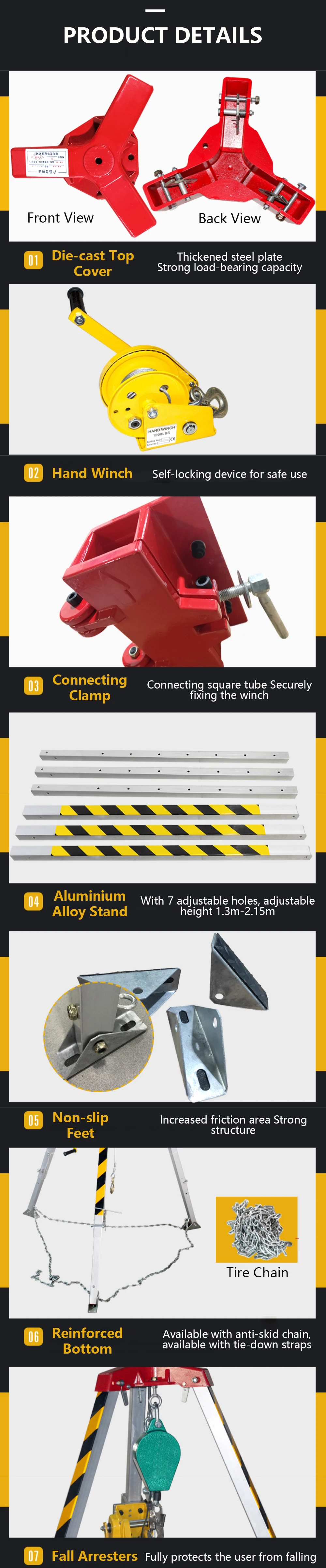

Product Details

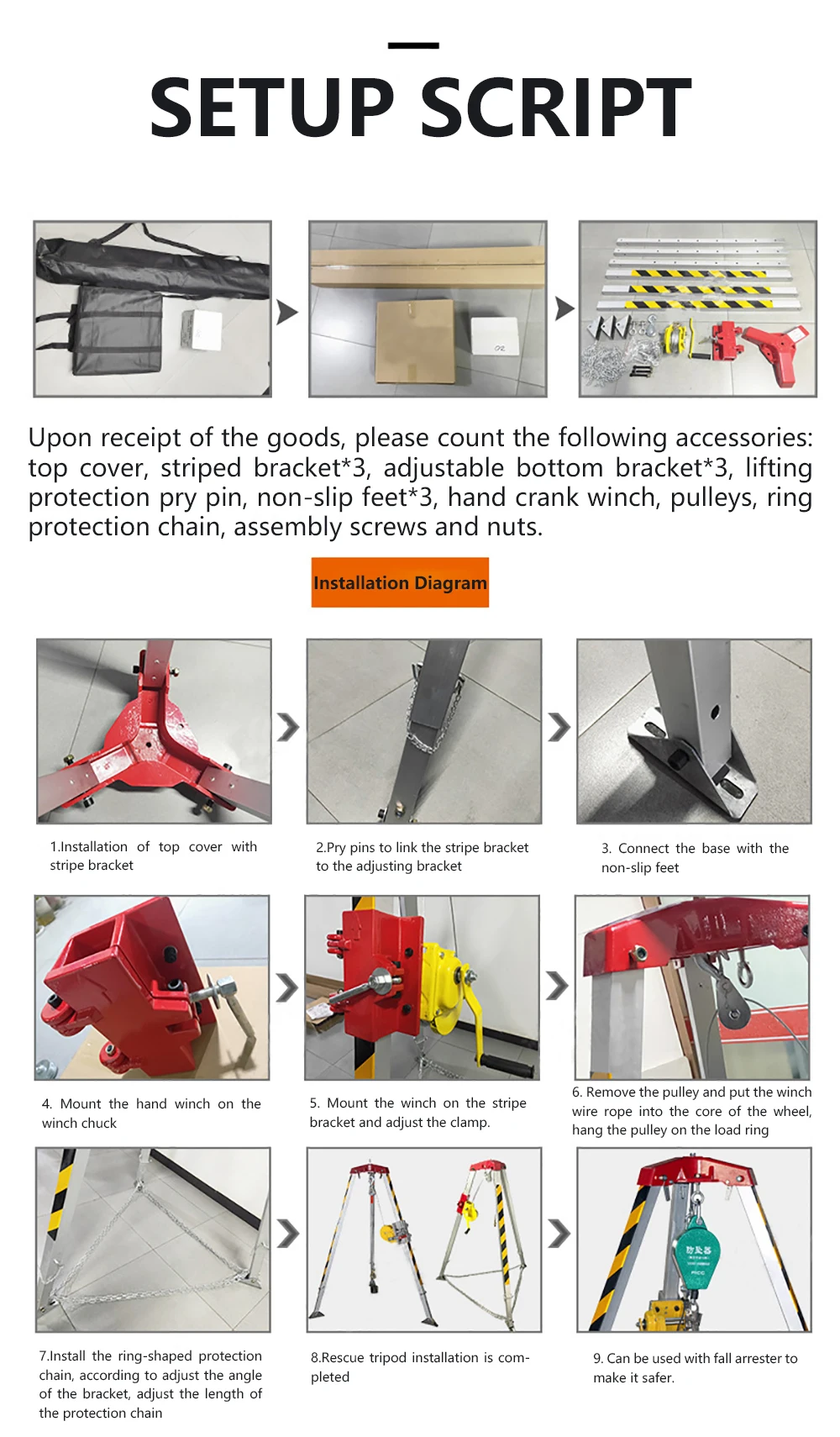

Setup Script
Specification
Packing Specification | 173×39×36cm |
Rated Load | ≤180KG |
Close Length | 1.34m |
Manual Handle Force | ≤500N |
Wire Rope Length | 20m |
Winch Mechanical Efficiency | 5:1 |
Blocking Force | 22KN |
Dimensions | 173*39*36cm |

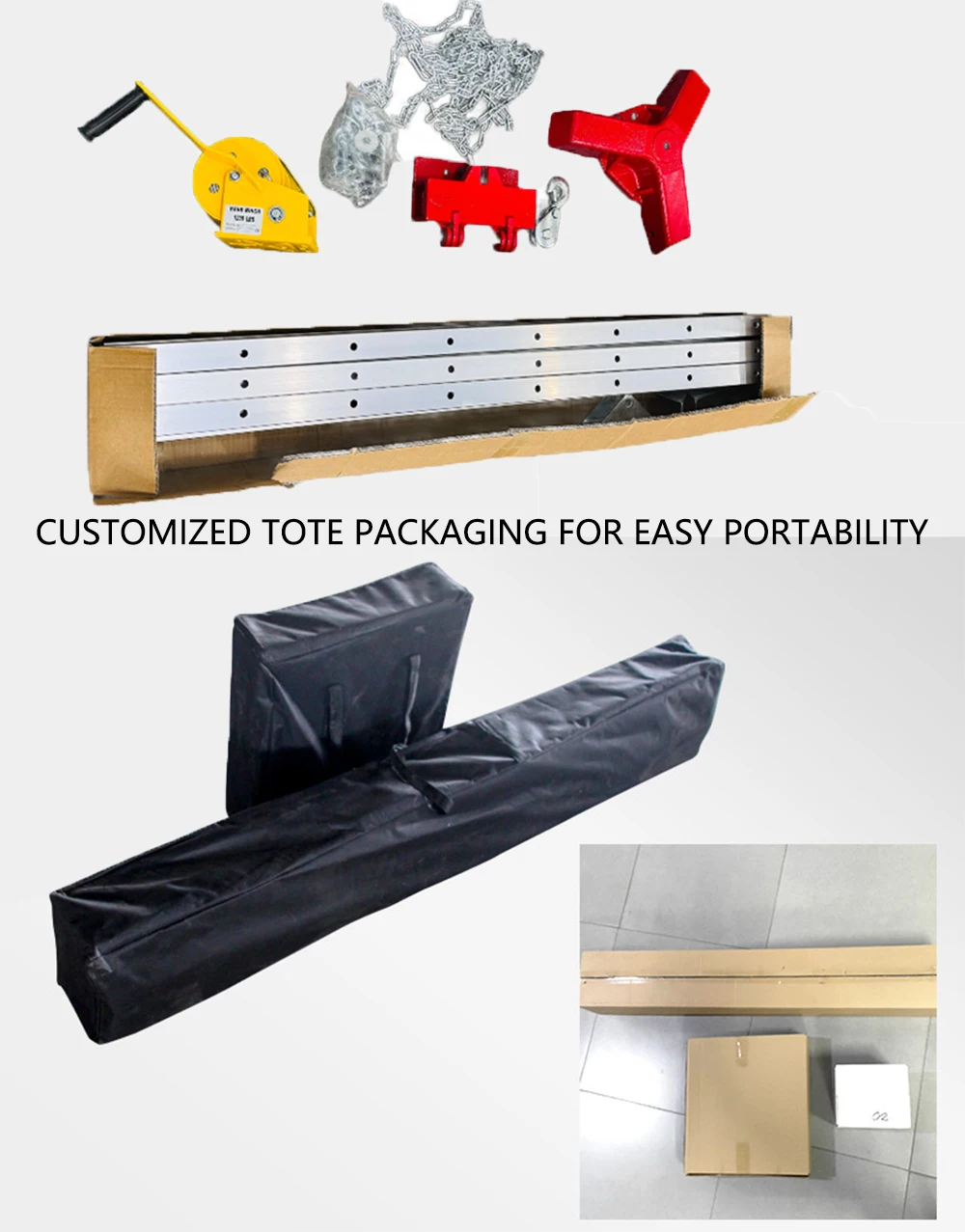

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
