excavator stone crusher 50t/h sand stone compound crusher production line stone crusher heavy duty
- Category: >>>
- Supplier: Zhengzhou General Mining Machinery Co. Ltd.
Share on (1601167405482):
Product Overview
Description

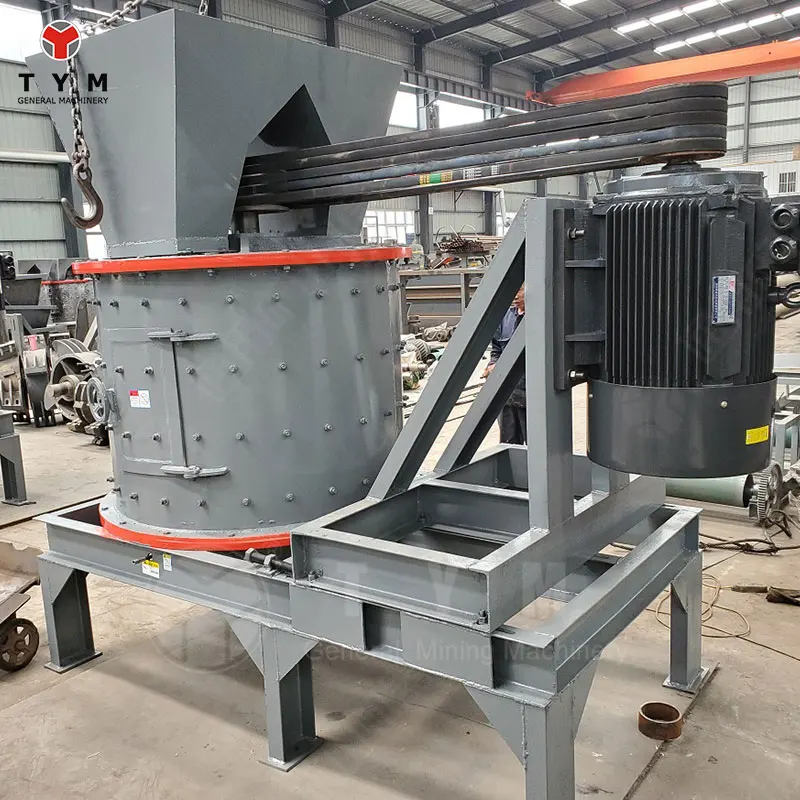

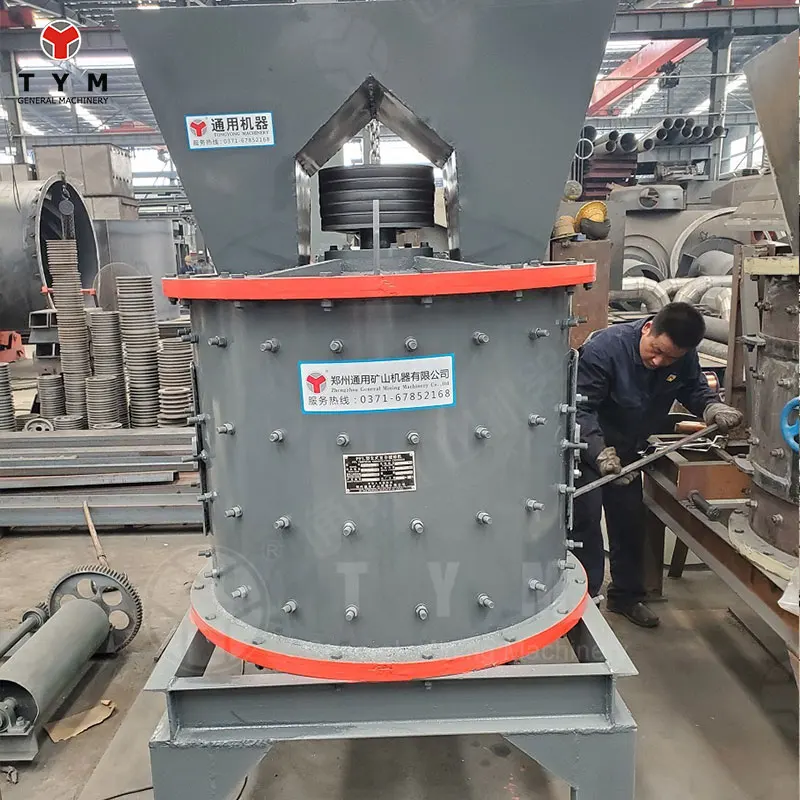

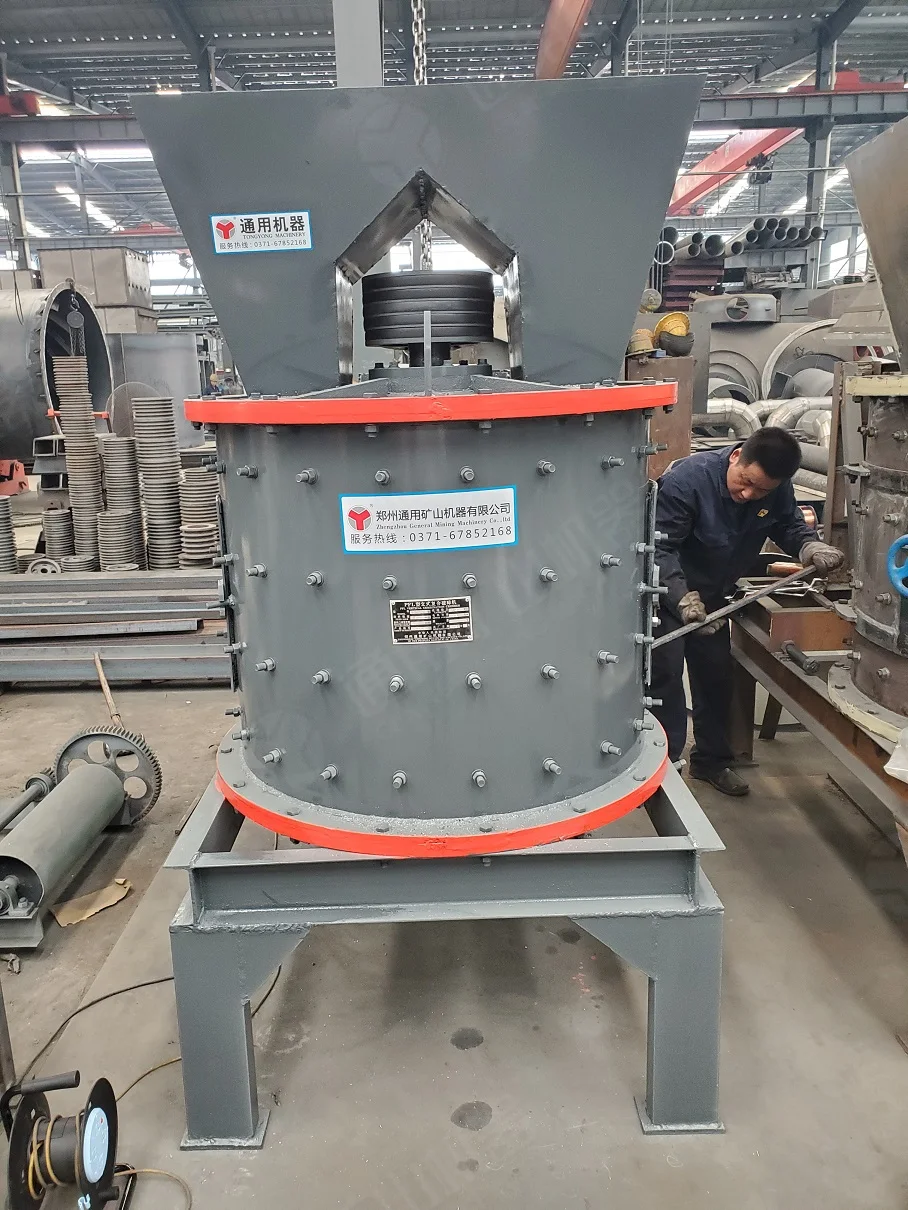

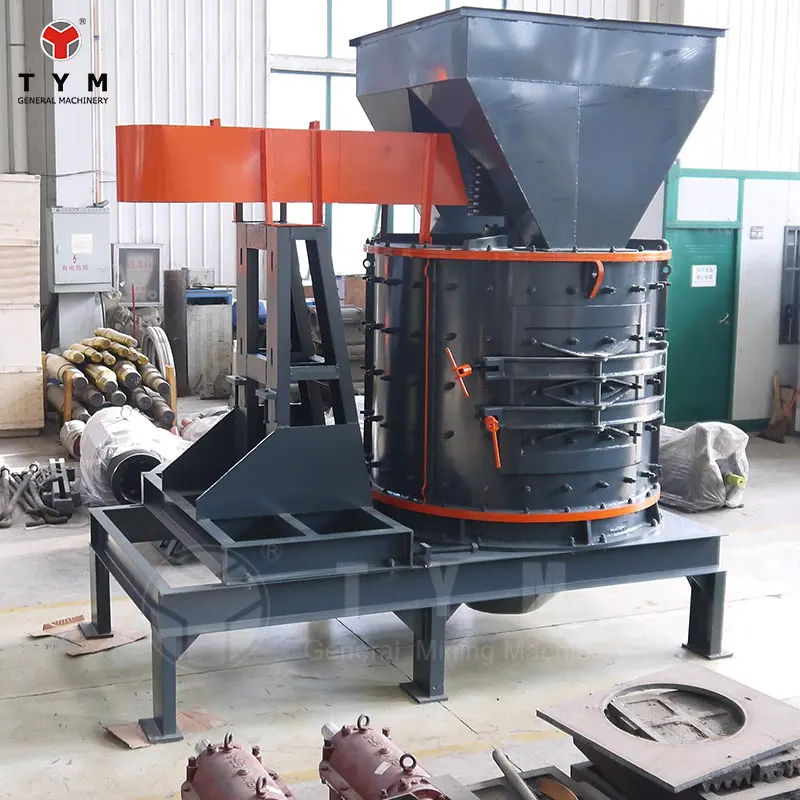

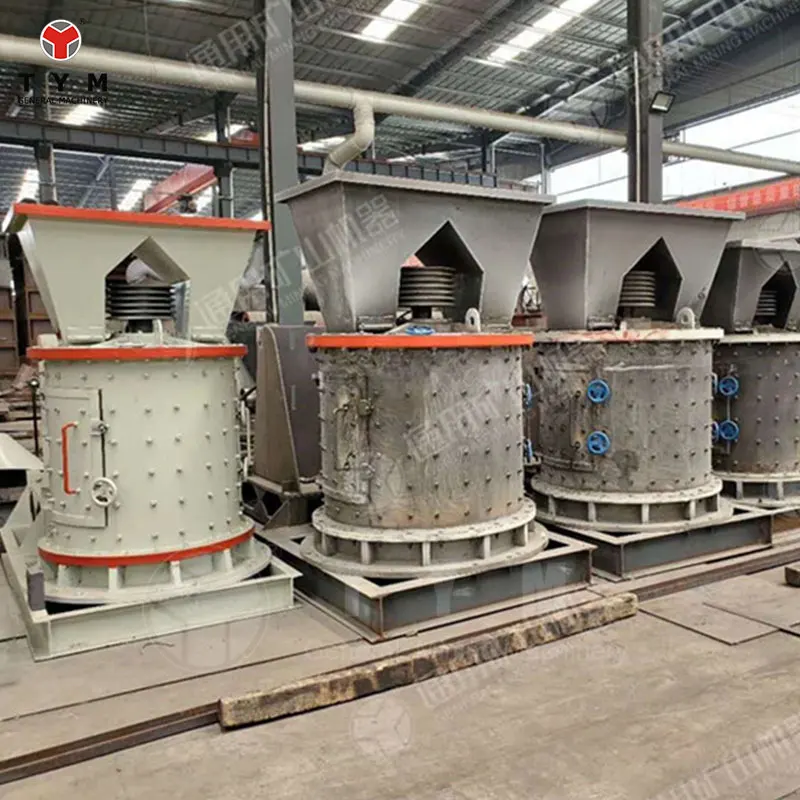

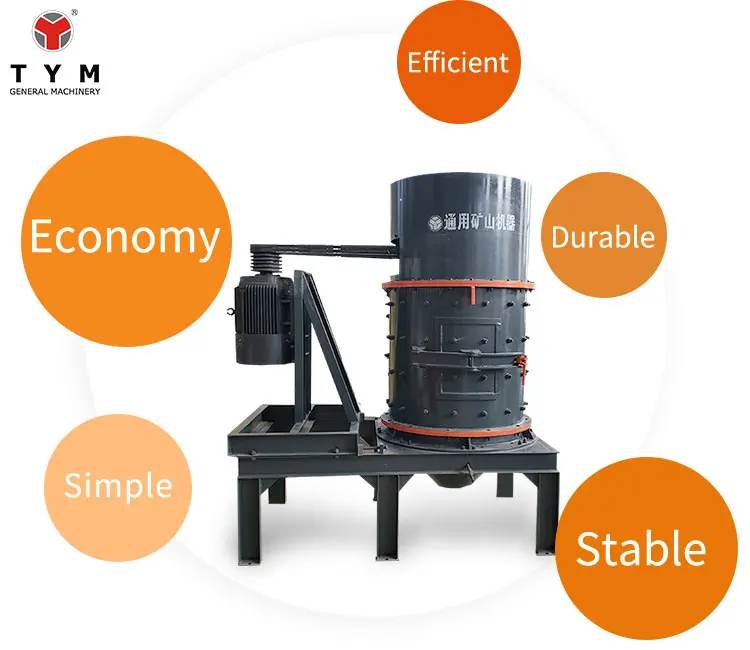

Compound Crusher
The compound crusher is a new type of straight-through fine crushing equipment with adjustable fine crushing and coarse grinding, which is optimized and developed by our company on the basis of absorbing advanced fine crushing technology at home and abroad, combining the advantages of impact crushing and hammer crushing. The equipment can be widely used in cement, refractory materials, building materials and artificial sand making industries, fine crushing of limestone, river pebble, dolomite, blast furnace slag, coal gangue, lump coal, refractory and other medium hardness stones.
Features
1. The equipment has a large crushing ratio, high crushing moisture content, and can process materials with high moisture content.
2. The discharge granularity is fine, which can be adjusted arbitrarily. There is no screen bar setting. The material with a large amount of mud will not be blocked, and the unbreakable material can be automatically discharged when it enters the machine body without causing damage to the equipment.
2. The discharge granularity is fine, which can be adjusted arbitrarily. There is no screen bar setting. The material with a large amount of mud will not be blocked, and the unbreakable material can be automatically discharged when it enters the machine body without causing damage to the equipment.
3. The crushed material is direct current, with low energy consumption and high production efficiency.
4. Simple structure, stable operation and low noise.
5. It is easy to operate and maintain, and the wearing parts can be easily replaced by opening the working compartment door.
Commonly used materials
Compound Crusher can crush various coarse, medium and fine materials (tor example granite, limestone, concrete, etc.) with feed particle size less than 50 mm and compressive resistance below 350 M Pa. The impact crusher with adjustable output size and diverse broken specifications is widely used for varies of industries including mining crushing, railway, highway,energy, cement,chemicals, construction and so on
Technical Parameters
Model | 800 | 1000 | 1250 | 1500 | 1750 |
Rotor diameter(mm) | 650 | 850 | 1100 | 1400 | 1700 |
Main shaft speed(r/min) | 1100 | 980 | 880 | 840 | 745 |
Max.input size(mm) | 50 | 50 | 50 | 50 | 50 |
Capacity(t/h) | 8-15 | 15-30 | 30-60 | 50-100 | 70-150 |
Power(kw) | 22-30 | 45-50 | 75-90 | 110-132 | 160 |
Dimension(mm) | 1500*810*1680 | 2100*1100*1800 | 2500*1500*2300 | 3300*1640*3100 | 3350*2000*3600 |
Our Customers Site
Customize solutions according to customer requirements！
We are able to design and manufacture complete crusher plants with capacity from 30tph to 500tph, and to provide optimum and most economical solutions according to customers' requirements on stone specifications, output, application, etc.
We are able to design and manufacture complete crusher plants with capacity from 30tph to 500tph, and to provide optimum and most economical solutions according to customers' requirements on stone specifications, output, application, etc.

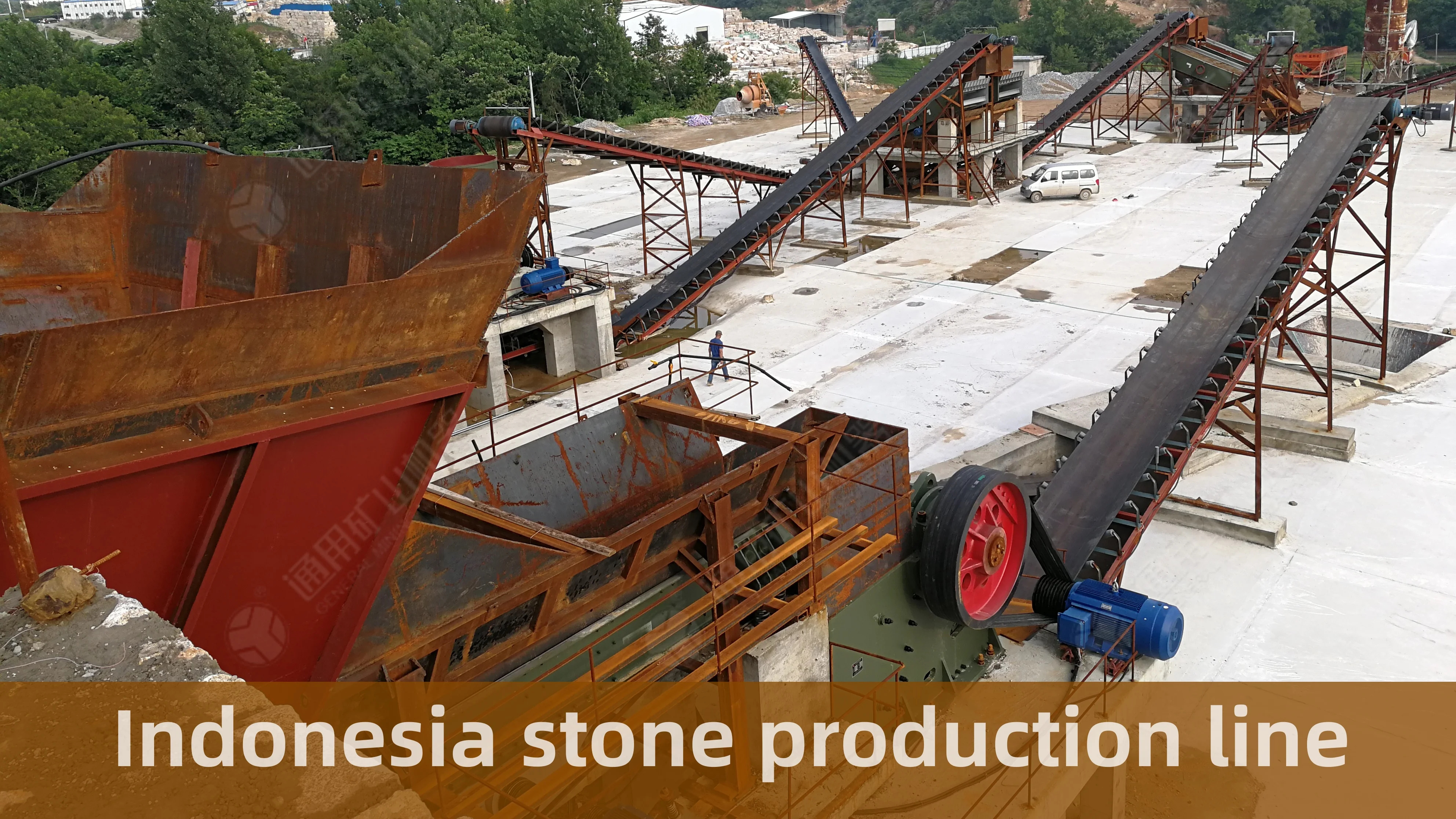

This is our stone production line in Indonesia！
The customer's requirements:
raw material: marble, capacity: 400 tons/hour, finished products: 0-5mm, 5-16mm, 16-31mm.
Equipment configuration: 2xZSW490*130 vibrating feeder, 2 PE750x1060 jaw crusher, 2xPYD2200 cone crusher, 2x3YZS2460 vibrating screen, a VSI1140 sand making machine.raw material: marble, capacity: 400 tons/hour, finished products: 0-5mm, 5-16mm, 16-31mm.

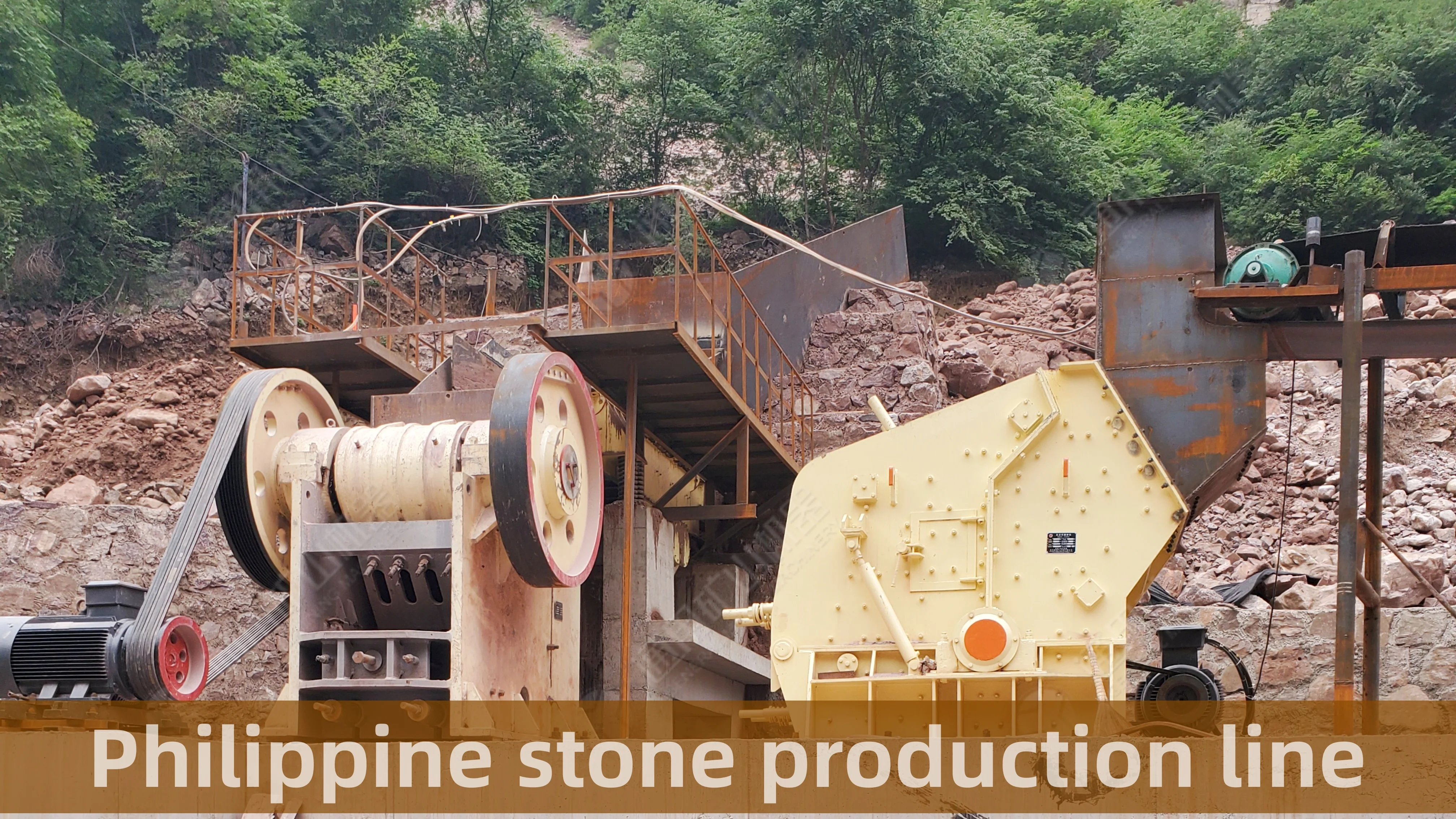

This is our stone production line in Philippine!
The customer's requirements:
raw material: limestone, capacity: 100 tons/hour, finished products: 0-5mm, 5-10mm, 10-20mm.
Equipment configuration: ZSW380x96 vibrating feeder, PE600x900 jaw crusher, PF1214 impact crusher, 3YZS1860 vibrating feeder.
raw material: limestone, capacity: 100 tons/hour, finished products: 0-5mm, 5-10mm, 10-20mm.
Equipment configuration: ZSW380x96 vibrating feeder, PE600x900 jaw crusher, PF1214 impact crusher, 3YZS1860 vibrating feeder.

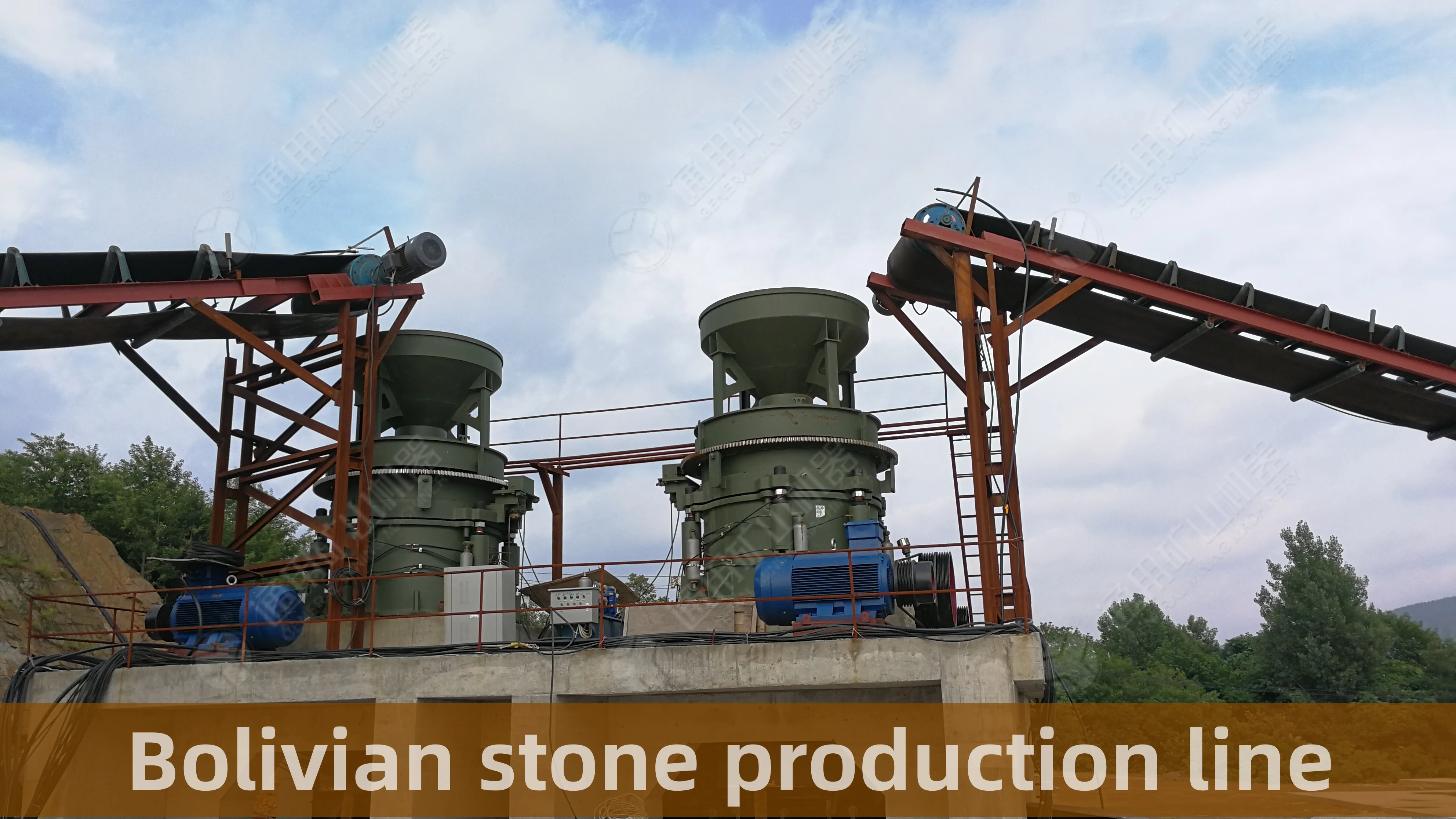

This is our stone production line in Bolivian!
The customer's requirements:
Raw material: grinite, capacity: 500 tons/hour, finished products: 0-10mm, 10-20mm, 20-30mm.
Equipment configuration: ZSW6000X1300 vibrating feeder, PE1000x1200 jaw crusher, 2 sets HP500 cone crusher, 4 sets 4YZS2470 vibrating screen.
Raw material: grinite, capacity: 500 tons/hour, finished products: 0-10mm, 10-20mm, 20-30mm.
Equipment configuration: ZSW6000X1300 vibrating feeder, PE1000x1200 jaw crusher, 2 sets HP500 cone crusher, 4 sets 4YZS2470 vibrating screen.

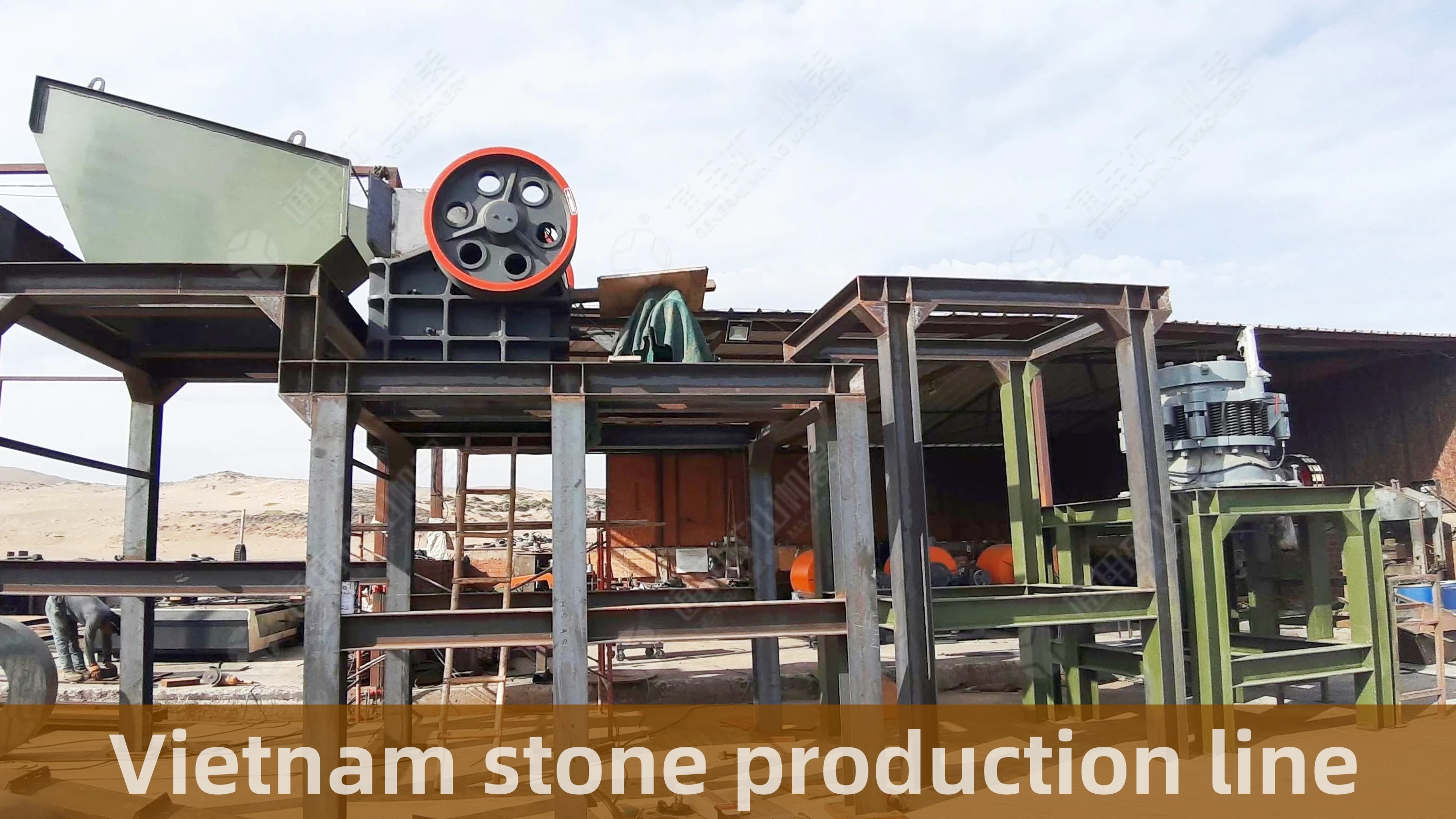

This is our stone production line in Vietnam!
Raw material: Barite, capacity: 40 tons/hour, finished products: 0-8mm, 8-15mm, 15-25mm.
Equipment configuration: ZSW320x90 vibrating feeder, PE400x600 jaw crusher, PYB900 spring cone crusher, 3YZS1237 vibrating screen.
Equipment configuration: ZSW320x90 vibrating feeder, PE400x600 jaw crusher, PYB900 spring cone crusher, 3YZS1237 vibrating screen.
Company Information
Since in 2004, Zhengzhou General Mining Machinery Co.,Ltd has been the professional manufacturer of Grinding Mill, crushers and sand making machines,etc.
TYM is committed to helping more users around the world to obtain higher profits and faster return on value. Our main products are European Version Grinding Mill, Raymond Grinding Mill, High Pressure Suspension Roller Mill, Micro-powder Grinding Mill, Jaw Crushers, Impact Crushers, Hammer Crusher, Compound Crushers, Ball Mill, nine series of products with more than 30 kinds of specifications.
TYM is committed to helping more users around the world to obtain higher profits and faster return on value. Our main products are European Version Grinding Mill, Raymond Grinding Mill, High Pressure Suspension Roller Mill, Micro-powder Grinding Mill, Jaw Crushers, Impact Crushers, Hammer Crusher, Compound Crushers, Ball Mill, nine series of products with more than 30 kinds of specifications.
Our factory
Our factory covers an area of 120,000 square meters and manufactures TYM brand Mining Machinery,has passed international ISO:9001, GOST and CE certification.
Crushing equipment showroom!
Sand making equipment showroom!
Grinding mill showroom!
Grinding mill showroom!
CNC manufacturing shop!
Improve production efficiency!
Shorten the production cycle!
Packing & Shipping

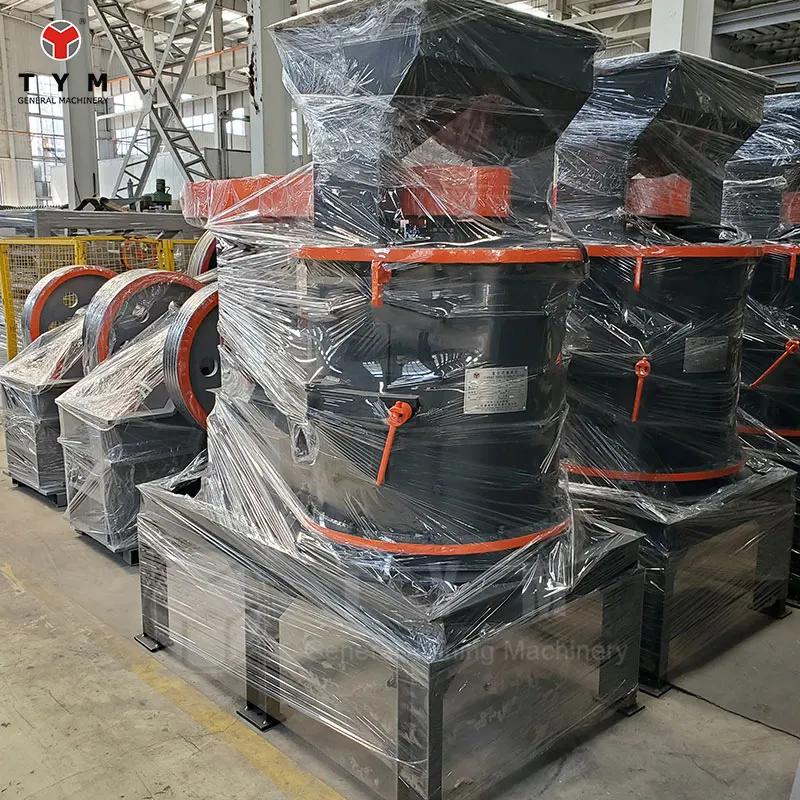

The package of all equipment is accord with the standard protective measures.The packing is suitable for short and long distance transportation. The moisture proof, quake proof, protected against dampness, and rustproof protection measures were taken to ensure the machine shipping to customers safely. All the machine will be packaged by plastic film.
Plastic film packaging
Large items will be wrapped in plastic film, such as jaw crusher, impact crusher, cone crusher, main mill, pipe, etc.
Box wooden packing
Small parts will be packed in wooden box, such as bolts, rubber sleeves, springs, etc
Certifications
Our Services
Warranty
100% brand new when leaving the factory. The seller guarantee quality of the machines (excluding wearing parts) for a period of one year from the date of trial run finish under our technician's guidance, but not exceed 15 months from date on which machine leaves the factory.
Pre-sale services:100% brand new when leaving the factory. The seller guarantee quality of the machines (excluding wearing parts) for a period of one year from the date of trial run finish under our technician's guidance, but not exceed 15 months from date on which machine leaves the factory.
(1) Device model choice.
(2) According to customer's special requirements, design and manufacture of products.
(3) Training technical personnel for clients.
(4) The company is free of charge to the user on-site engineering and technical personnel planning site for the user to design the best processes and program.
Sale services:
We will send technicians to you for guiding the equipment installation and commissioning and staff training.
Sales tracking :
(1) product acceptance.
(2) to help customers develop construction programs.
After-sale services :
(1) Guiding customers' installation.
(2) On-site training of operators.
(3) Complete sets of equipment installed, 1-2 full-time technical staff to stay free of charge to help customers on-site production of 1 month, until the user' satisfaction.
contact us
In order to recommend the suitable models and supply more complete quotation for you, Send your Requiry Details in the below!
Include:
1. Which machine do you need?
(such as crusher, grinder, vibrating screen, vibrating feeder, belt conveyor and other benefication equipment)
2. Which kind of material you are going to process?
Soft stone (dolomite, limestone and others) or hard stone (granite, basalt, river pebble and others) ?
3. What's the production capacity you want?
How many tons or cubic meters per hour?
4. You want only a machine or a complete production line?
And please tell me your email and phone, I will give you factory price with full specification and you will know all details about machine and discount.
