150W LED Moving head light RGB color mixing 3 in 1 LED to pre program or control the movement, color and wash gobo effects
- Category: >>>
- Supplier: Guangzhou Shengyi Photoelectric Equipment Co. Ltd.
Share on (1601167515249):
Product Overview
Description
Product Description
Voltage: AC100-240V,50/60Hz
Power: 280W
Led source: 150W White LED
Color Temperature: 7500K-8000K
Led Life Time: 50000 Hours
Channel: 18 DMX channel
Control: DMX/Master-slave/Auto/Sound
activated
Pan: 540 degree + fine
Tilt: 270 degree + fine
Zoom range: 8-17°
Dimmer: 0-100% smooth linear dimmer
Strobe: 1-25 Hz with pulse effect
Color Wheel: 9 colors + open, with rainbow effect
Static Gobo Wheel: 10 gobos + open, with
rotation and running water effect
Rotation gobo wheel: 6 gobos+open
Prism: 3 facet prism with bi-direction rotating
Frost: With frost effect
Display: LCD display, can adjust 180 degree to fit
different installation position
Product size：275×200×475mm
Packing size：475×365×360mm(1PC/CTN）
N.W：9kg G.W：12kg
Power: 280W
Led source: 150W White LED
Color Temperature: 7500K-8000K
Led Life Time: 50000 Hours
Channel: 18 DMX channel
Control: DMX/Master-slave/Auto/Sound
activated
Pan: 540 degree + fine
Tilt: 270 degree + fine
Zoom range: 8-17°
Dimmer: 0-100% smooth linear dimmer
Strobe: 1-25 Hz with pulse effect
Color Wheel: 9 colors + open, with rainbow effect
Static Gobo Wheel: 10 gobos + open, with
rotation and running water effect
Rotation gobo wheel: 6 gobos+open
Prism: 3 facet prism with bi-direction rotating
Frost: With frost effect
Display: LCD display, can adjust 180 degree to fit
different installation position
Product size：275×200×475mm
Packing size：475×365×360mm(1PC/CTN）
N.W：9kg G.W：12kg

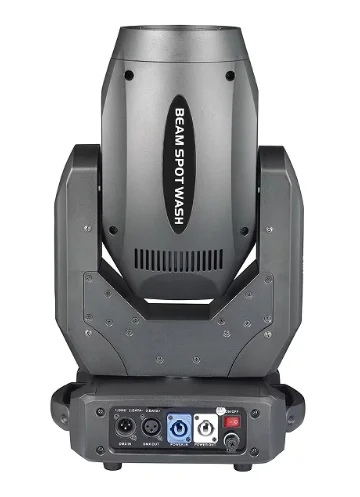

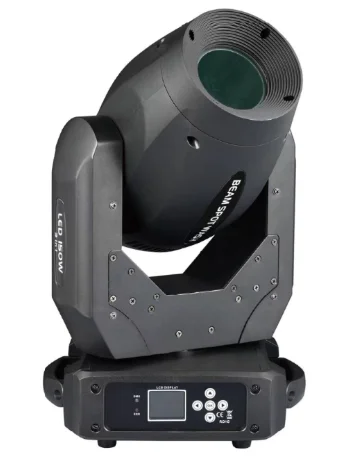

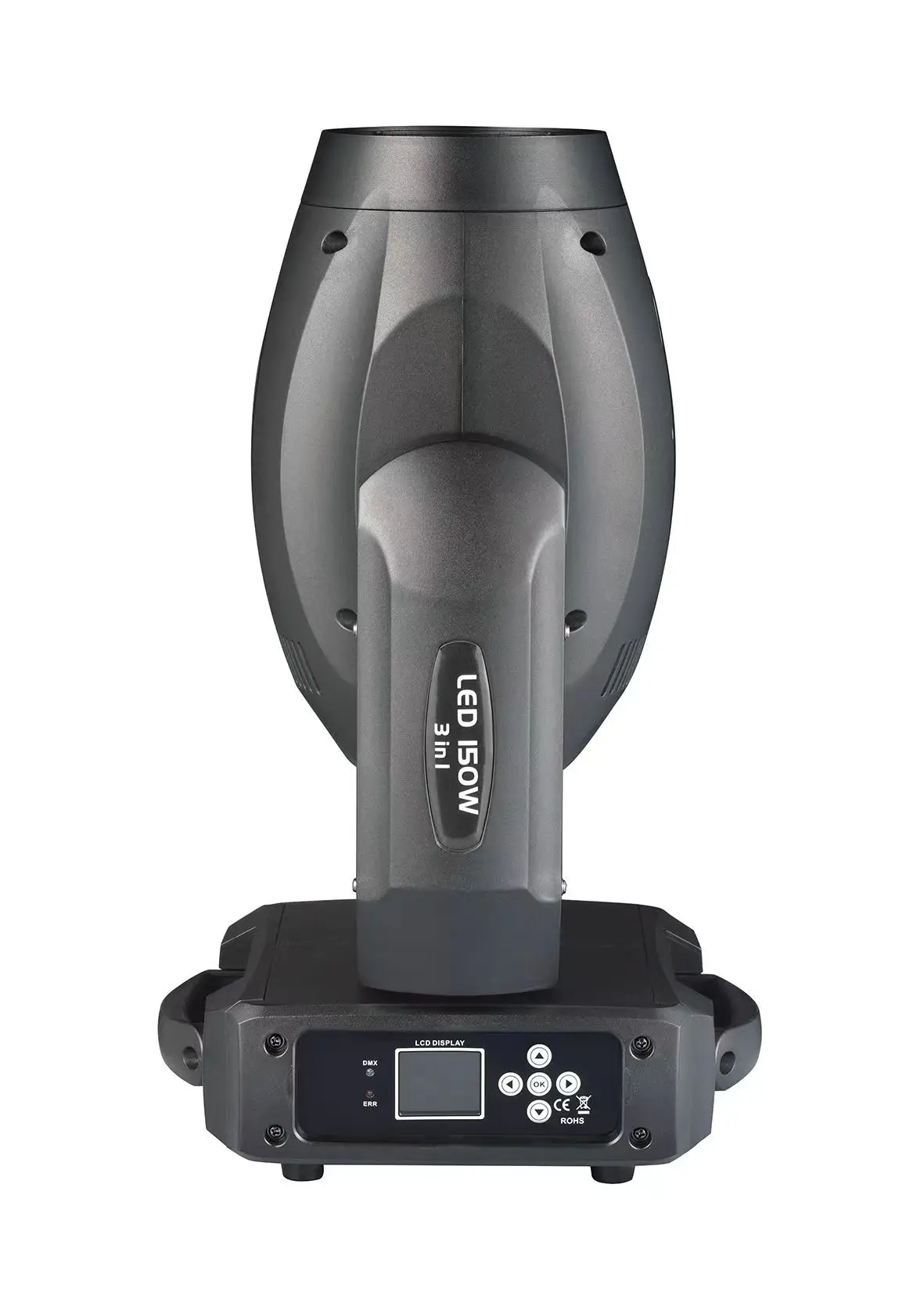

Detailed Images

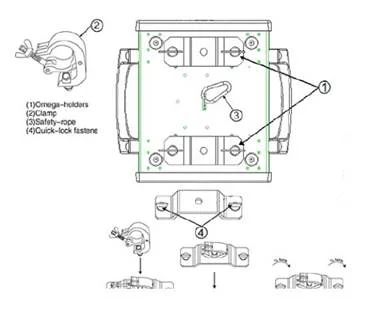

Clamp Mounting
The LED moving head provides a unique mounting bracket assembly that integrates the bottom of the base, the included ‘omega
bracket’ (see the following pic)and the safety cable rigging point in one unit.When mounting this fixture to truss be sure to sere
to secure an appropriately rated clamp to the included omega bracket using a M10 screw fitted through the center hole of the ‘
omega bracket’.As an added safety measure be sure to attached at least one properly rated safety cable to the fixture using on of
the safety cable rigging point integrated in the base assembly.
bracket’ (see the following pic)and the safety cable rigging point in one unit.When mounting this fixture to truss be sure to sere
to secure an appropriately rated clamp to the included omega bracket using a M10 screw fitted through the center hole of the ‘
omega bracket’.As an added safety measure be sure to attached at least one properly rated safety cable to the fixture using on of
the safety cable rigging point integrated in the base assembly.

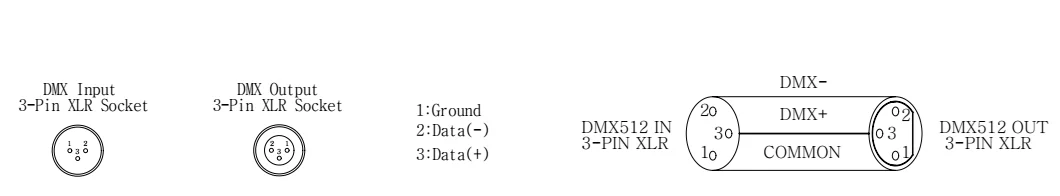

DMX-512 Control Connection
Connect the provided XLR cable to the female 3-pin XLR output of your controller and the other side to the male 3-pin XLR input of
the moving head. You can chain multiple Moving head together through serial linking. The cable needed should be two core, screened
cable with XLR input and output connectors. Please refer to the diagram below.
the moving head. You can chain multiple Moving head together through serial linking. The cable needed should be two core, screened
cable with XLR input and output connectors. Please refer to the diagram below.
BEFORE USE
* Before you start using this unit,please check if there is no transportation damage.Should there be any,do not use the device
and consult your dealer first.
* This device has left our factory in absolutely perfect condition and well packed. In order to maintain this condition and to
ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in
this manual.
* The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorized modification to the device.
* Please consider that damages caused by manual modifications to the device are not subject to warranty.
and consult your dealer first.
* This device has left our factory in absolutely perfect condition and well packed. In order to maintain this condition and to
ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in
this manual.
* The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorized modification to the device.
* Please consider that damages caused by manual modifications to the device are not subject to warranty.
Product video
Packing&Shipping

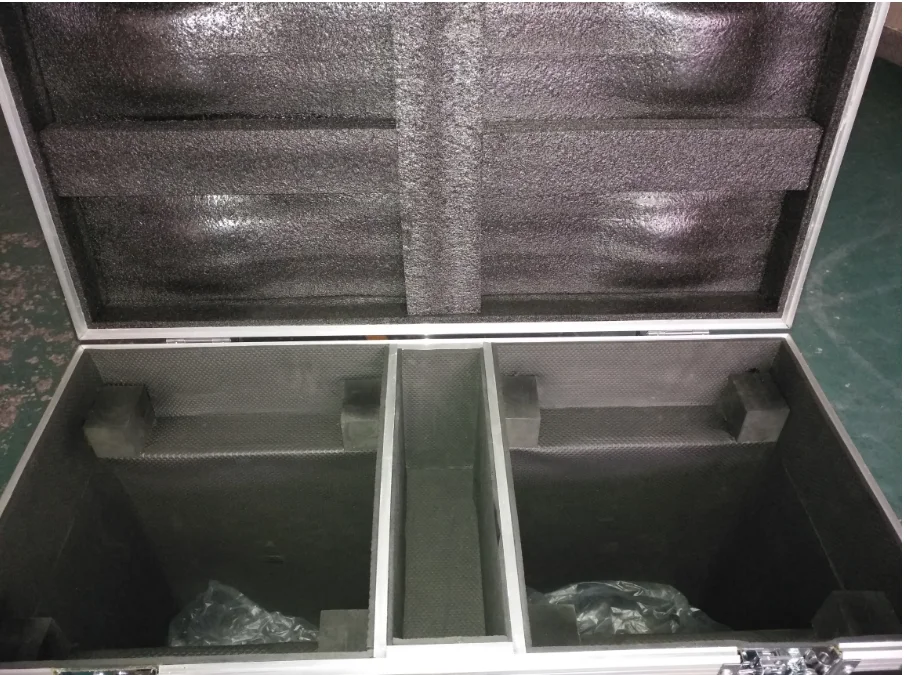

Flight case packing 1/1pcs for wooden case packing /pallets/wooden case packing with cartons
