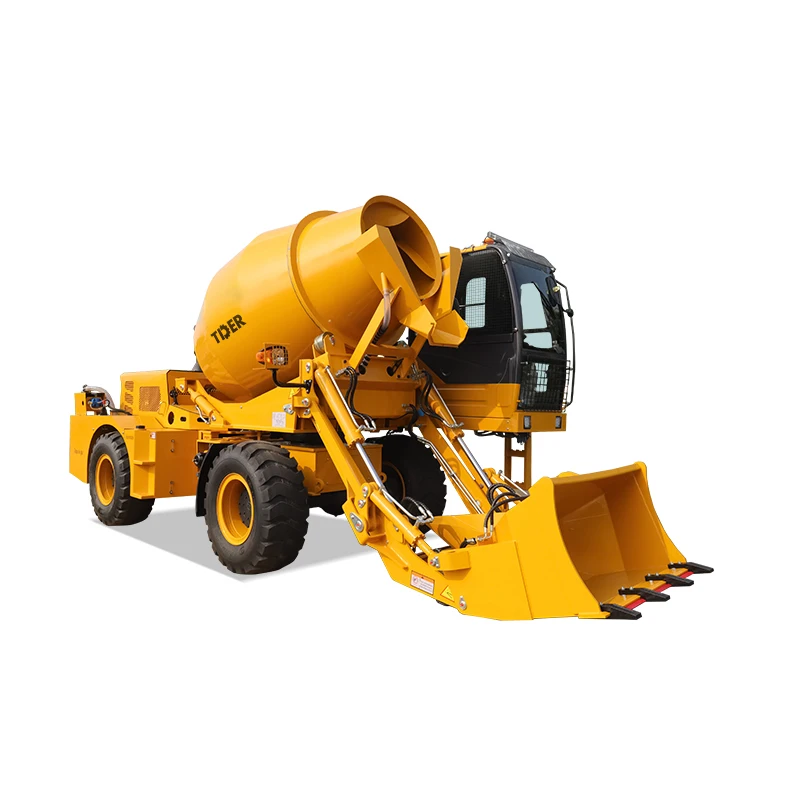

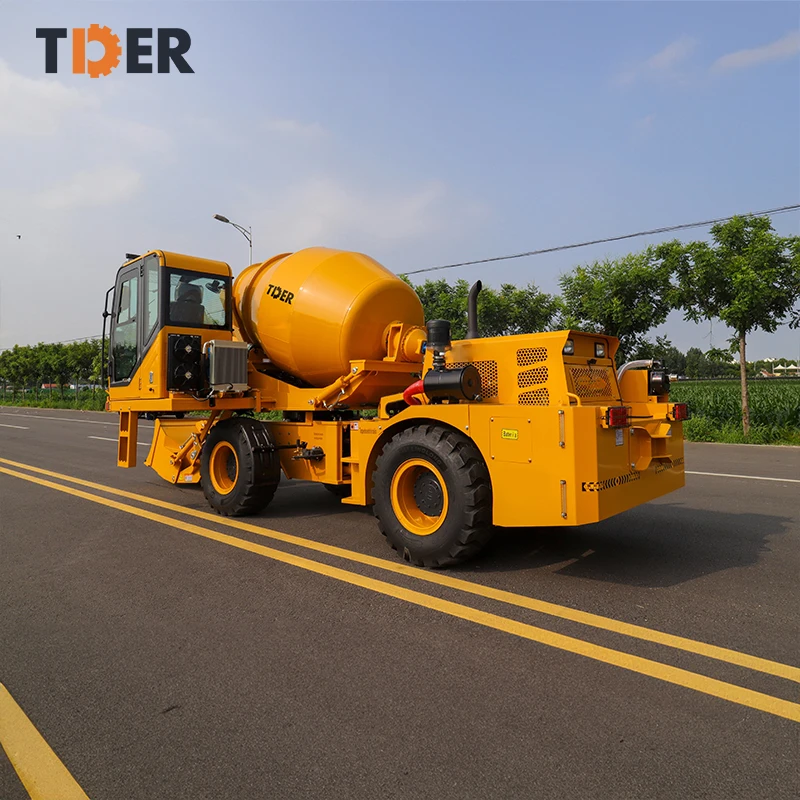

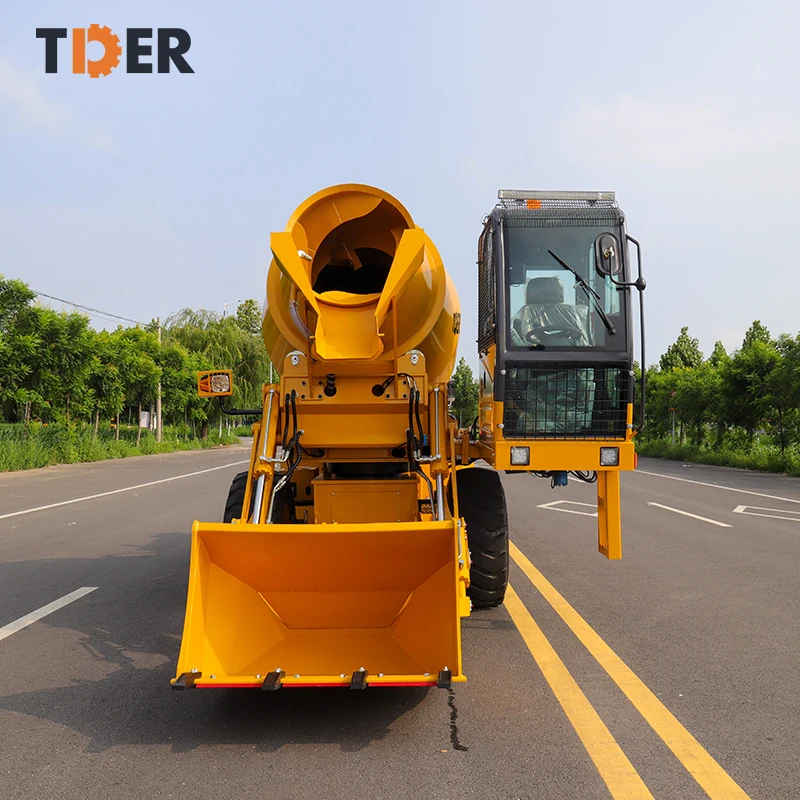

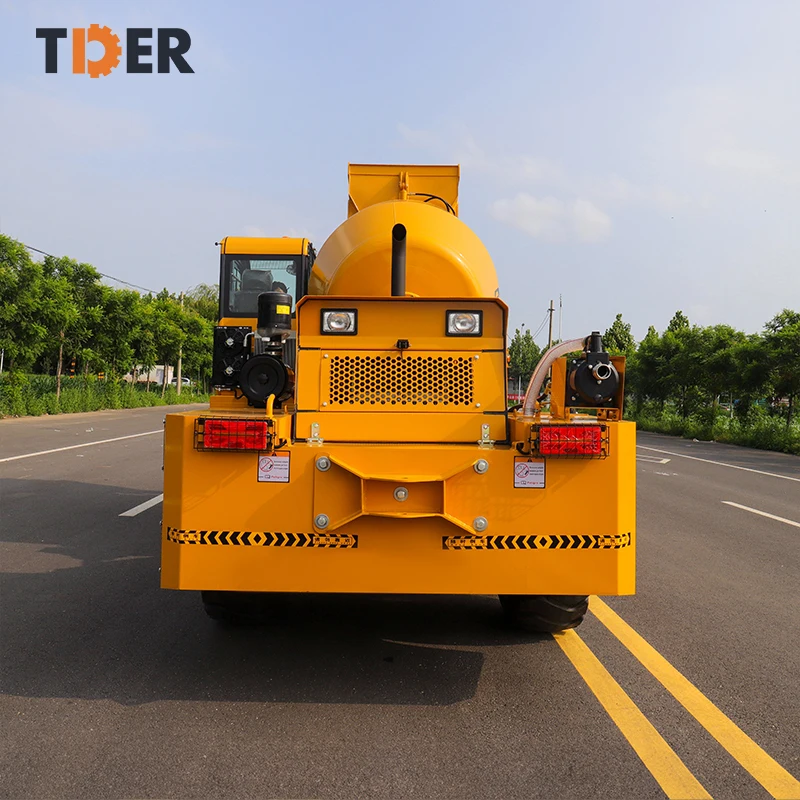

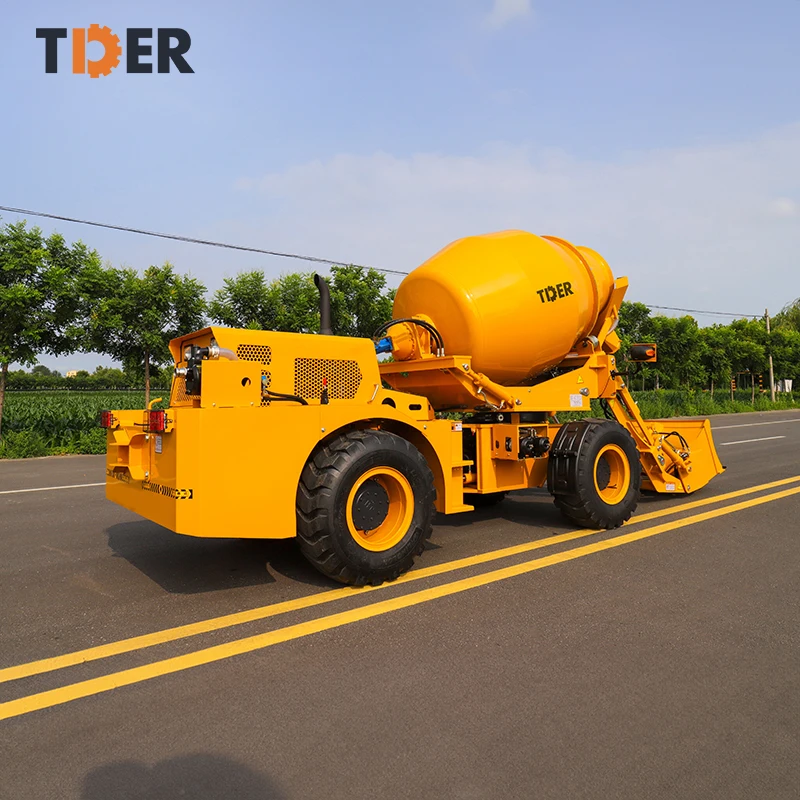

TDER self loading mobile concrete mixer trailer 2.6 cbm transit mud mixer truck with bucket pump machine
- Category: >>>
- Supplier: Xiamen Tder Industrial Co. Ltd.
Share on (1601167538735):
Product Overview
Description
Product parameters
Model | TCM26 |
Output per lot | 2.6cubic metres |
Drum rotation | discharge port height 1.65 M, horizontal rotation 270 degrees, tank can be raised and lowered |
Capacity | Up to 4 batches per hour, 10.4cubic hours |
Engine | Yuchai 4102 supercharged, diesel, water cooled, 4 cylinder, 2200 rpm |
Rated power | 77.3KW |
Drive mode | The engine is directly connected to the280 torque converter, through the drive shaft to the transmission with dual high and low speed through the drive shaft connected to the front and rear axles to achieve 4-wheel drive |
Climb | 40 degrees |
Speed | dual altitude, low speed 0-25 kph, high speed 0-40 kph |
Driver's seat | Widen luxurious cab, anti-rollover, anti-falling object type |
Hydraulic system | Open type oil, two gear pumps to participate in the work |
Joystick | Two hydraulic pilot joysticks control the scoop, upper arm, 270 turn, lift tank |

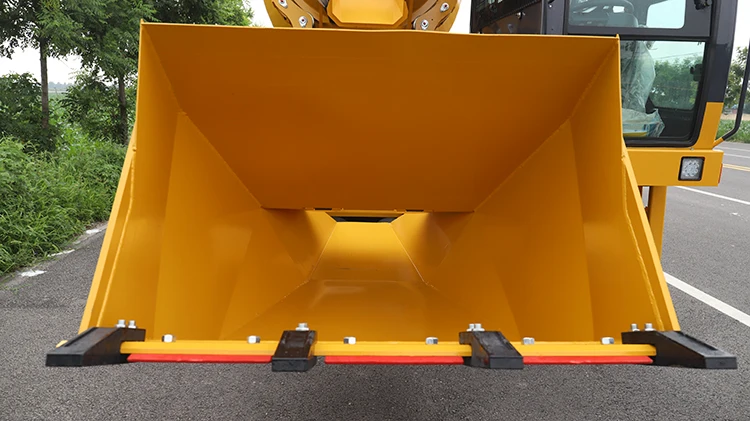

Bucket | 0.6 cubic, hydraulic gate |
Clay groove | equipped with two 150 cm detachable chute to increase discharge length |

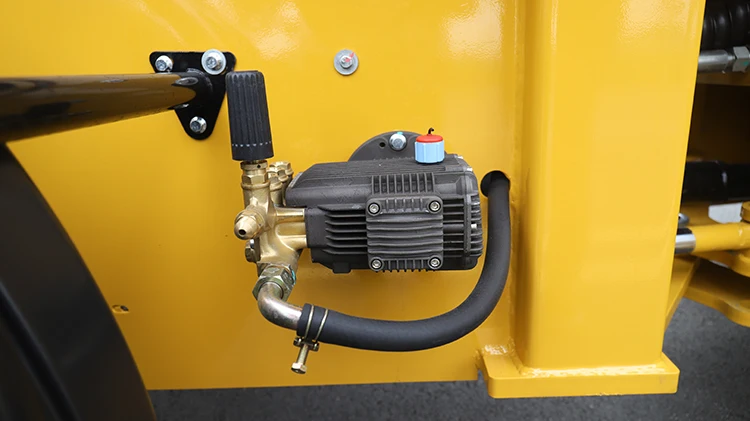

Water Supply System | self-priming driven pump, 24V self-timing Centrifugal pump, 24V car wash machine |

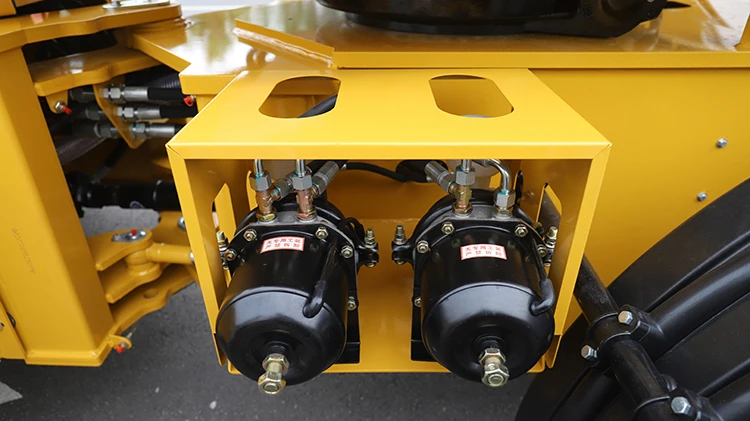

Brake | Use Small Servo pump on independent double circuit, use single wheel 4-piston plus double brake caliper |
Steering | Hydraulic articulated steering |

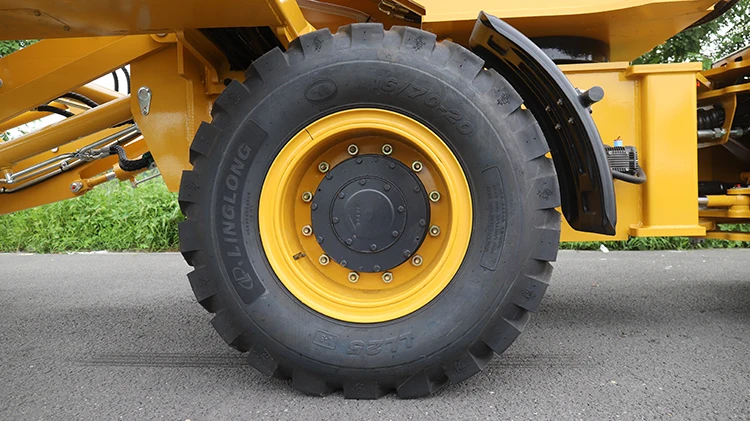

Tyres | 12R22.5 steel wire tyres |
Power System | 24V |
Fuel tank / Water tank | 1 * 600 l water tank, 120 l diesel fuel tank, 120 l hydraulic fuel tank |
Weight | 7000 kg |
Length, width, height / wheelbase / Wheelbase | 7150mm * 2650mm * 3000mm * 2900mm * 2100mm |
Turning radius | 2800 mm |
Other | Q345 manganese steel frame, luxury cab, driving impact, cement bucket |
Product details
Product packaging
*All products will be strictly tested before shipping.
*Before delivery, we will arrange our staff to take photos and videos of your machine.
*The extra security packing will be carried out for the nude cargo.
*Ropes and triangle blocks will be used for fixing forklifts.
*We also offer wooden packing way to make the forklifts safer.
*Product certificates and nameplates are provided.
*A tutorial CD, tool box and extra paint are included as free gifts.
Certifications

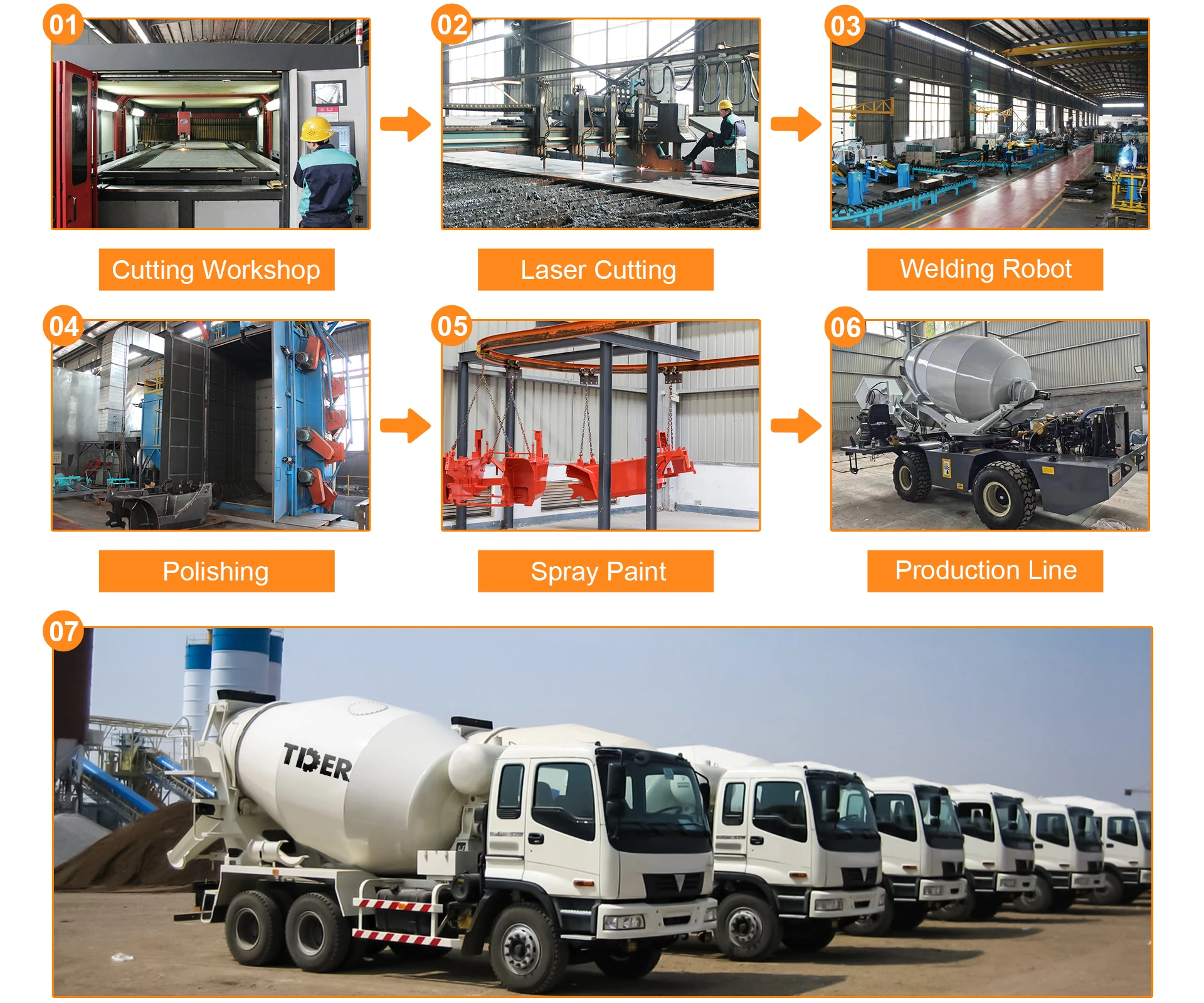

Our Factory
Founded in 2003, TDER Group is an international large-scale machinery manufacturing company, engaged in the invention and sales of various machinery products, including forklifts, loaders, warehouse equipment and port equipment. The TDER Group has established 3 factories. All 25 categories of products have passed the SGC, TUV, BV, INTERTEK and other authoritative international institutions certification. Today, our products have been exported to Brazil, Russia, Australia, Canada, Turkey and other 158 countries and regions, with 56 agents.
Customer feedback
Why Choose Us
1. Why choose us?
As a manufacturer, Tder industrial is committed to offer not only products with high quality and performance and competitive price, but also in-time delivery and comprehensive 7/24 after-sale services.
2. What is the product range of our factory ?
Tder industrial is a large-scale machinery manufacturing enterprise primarily specializes in supplying wheel loaders, forklift trucks and related attachments. We can also customize non-standard products according to customer's requirements.
3. What payment terms can we accept?
Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted.
4. What Certificates do we have?
All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if needed.
5. How about our delivery time?
Usually it will take 15 to 30 days after receiving your deposit. About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
6. Can we provide OEM service?
Tder industrial can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
As a manufacturer, Tder industrial is committed to offer not only products with high quality and performance and competitive price, but also in-time delivery and comprehensive 7/24 after-sale services.
2. What is the product range of our factory ?
Tder industrial is a large-scale machinery manufacturing enterprise primarily specializes in supplying wheel loaders, forklift trucks and related attachments. We can also customize non-standard products according to customer's requirements.
3. What payment terms can we accept?
Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted.
4. What Certificates do we have?
All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if needed.
5. How about our delivery time?
Usually it will take 15 to 30 days after receiving your deposit. About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
6. Can we provide OEM service?
Tder industrial can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
You can send an email or message to explain your needs, and we will recommend a suitable machine for you according to the model and configuration requirements provided.
