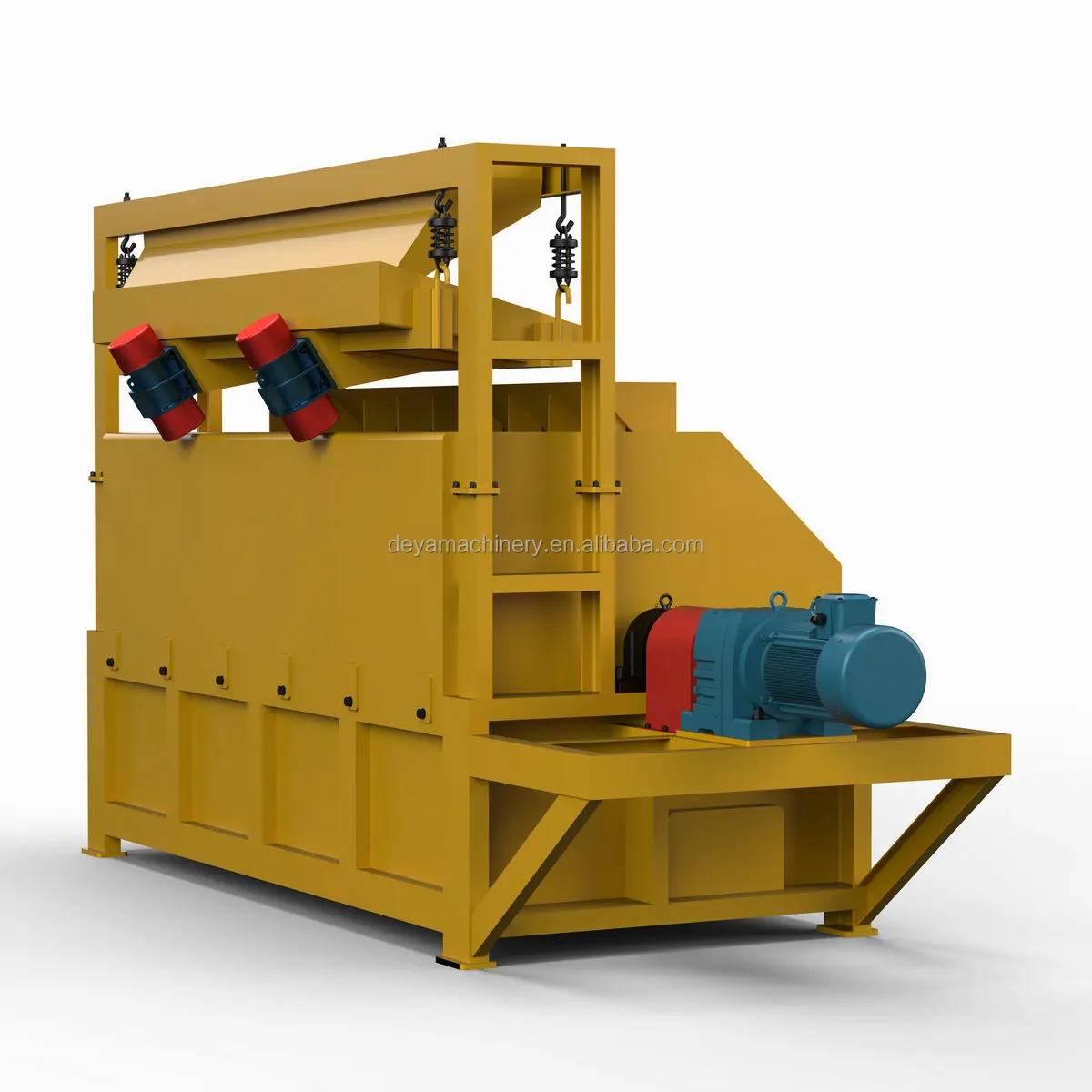

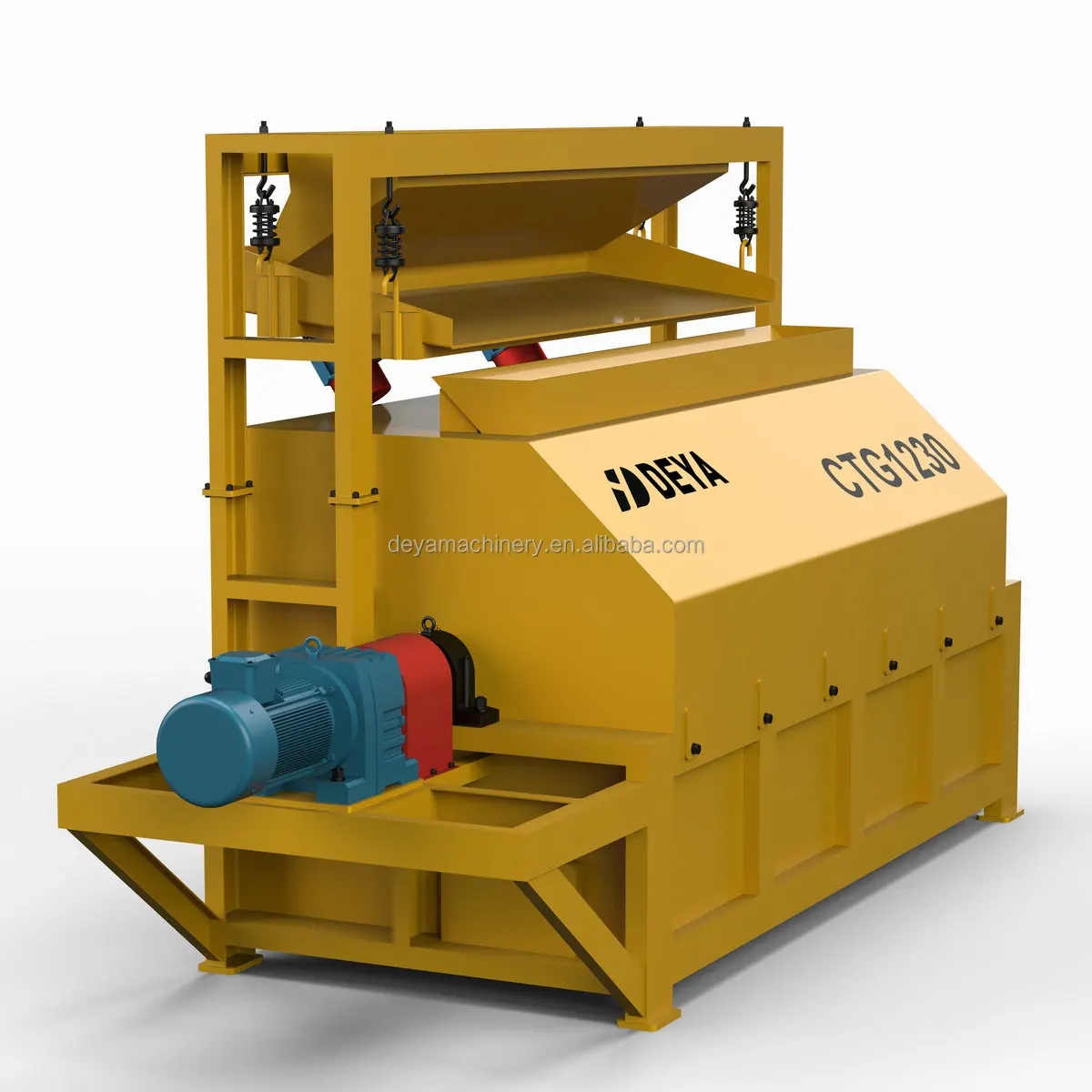

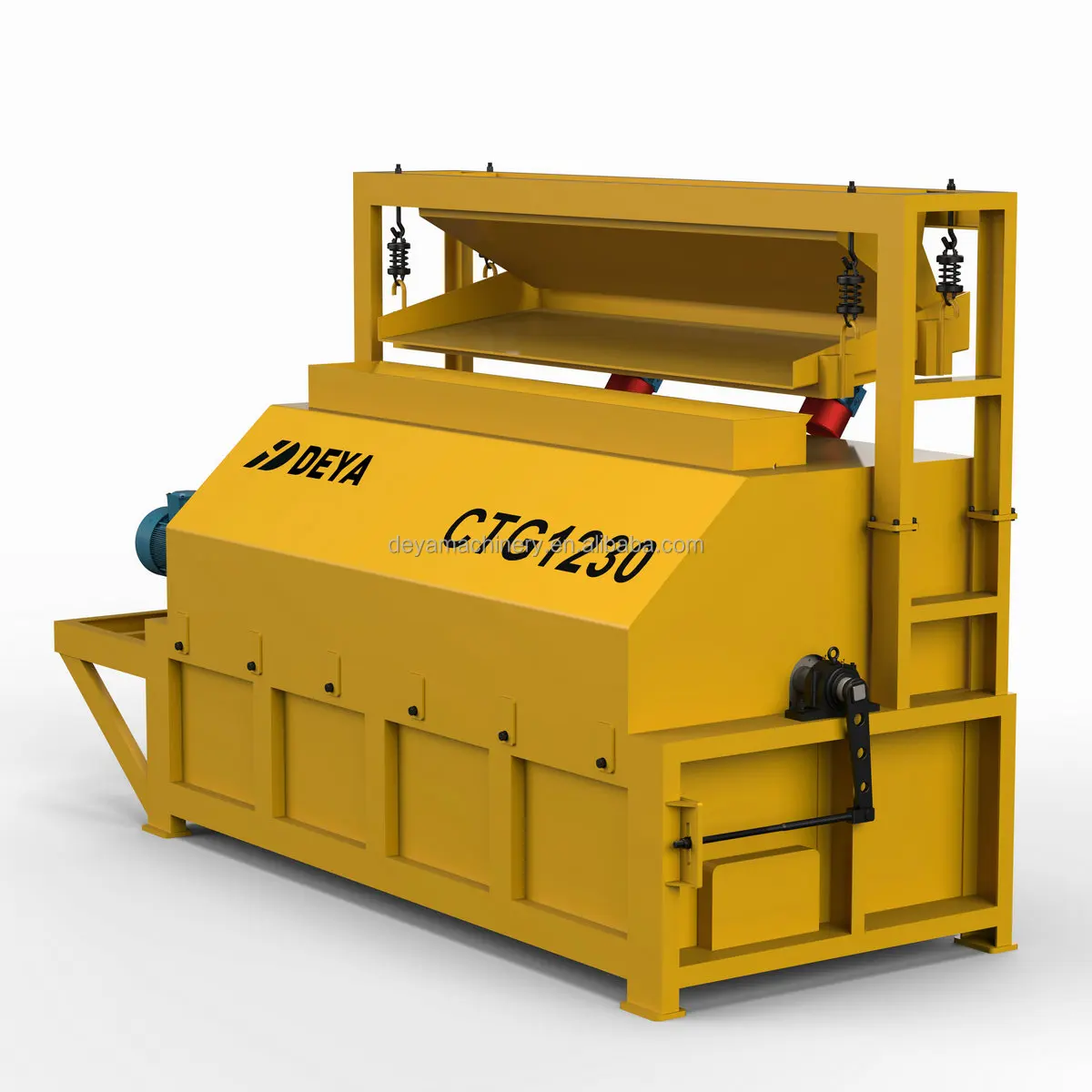

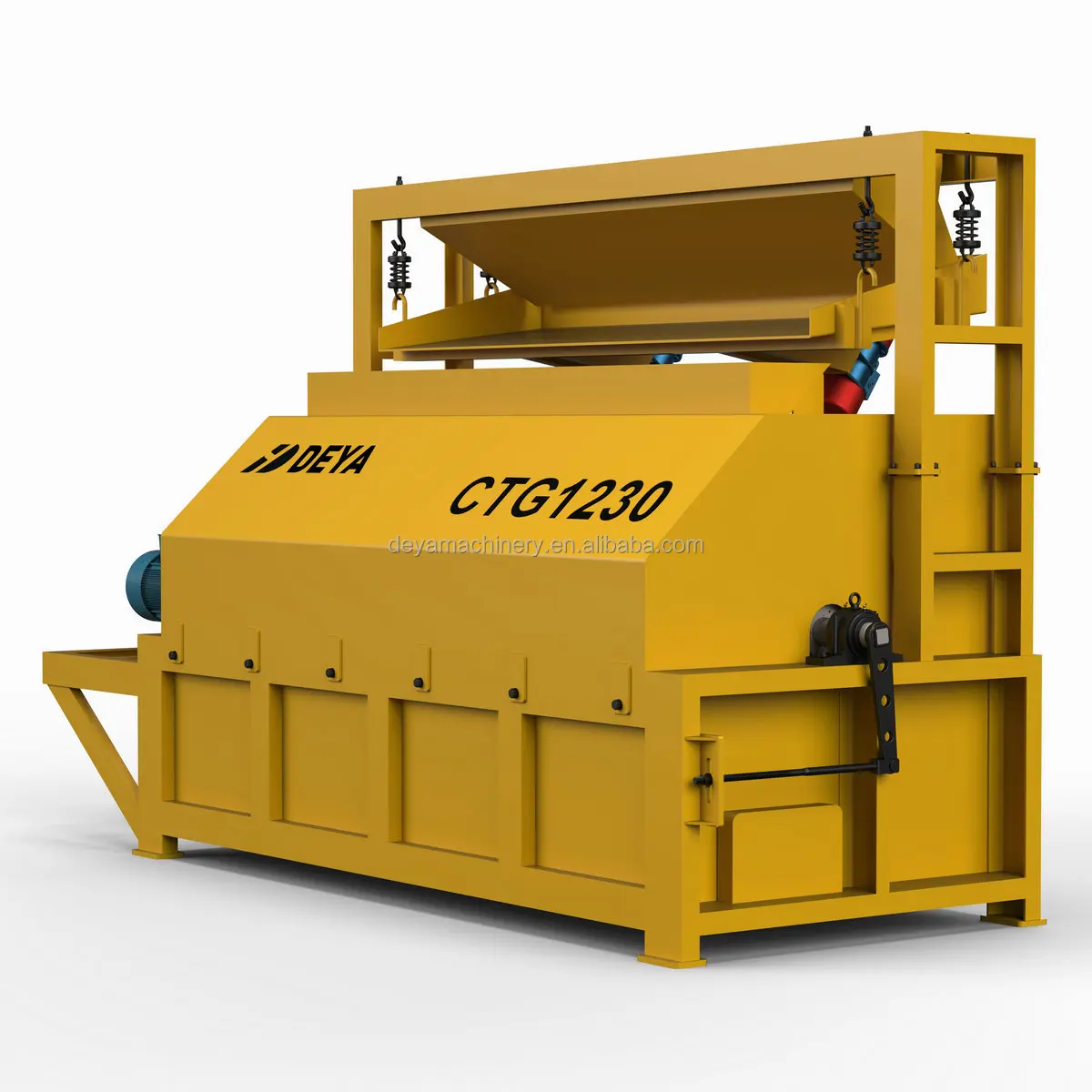

nonferrous magnetite iron ore process plant dry drum low intensity magnetic separator
- Category: >>>
- Supplier: Henan Deya Machinery Co. Ltd.
Share on (1601167584101):
Product Overview
Description
Product Description
Contact us to get more information whatsapp & wechat: +86 137 2141 9876
Deya Machinery produces both wet and dry magnetic separators, the model from drum diameter 600 mm to 1800mm, length 600mm to 5000mm, magnetic intensity from 800 Gauss to 5000 Gauss. The magnetic separator sells well in Vietnam, Philippines, Indonesia, India, Iran, Chile, Peru, etc.
Magnetic separation is a process in which magnetically susceptible material is extracted from a mixture using a magnetic force. This separation technique can be useful in mining iron as it is attracted to a magnet.
Introduction
A magnetic separator is a device that uses magnetic properties to separate target minerals from other elements in minerals.
Magnetic separator is applicable for the magnetite, pyrrhotite, roasting ore, ilmenite, etc. with size less than 3 mm, it also can be used for removing iron in coal, non-metallic minerals, building materials and other materials.
According to user needs, Deya Machinery can provide different magnetic intensity for both dry and wet magnetic separators.
Features
• Strongest, most effective magnetic elements in the industry
• Ceramic and Rare Earth magnetic elements to cover various types of applications

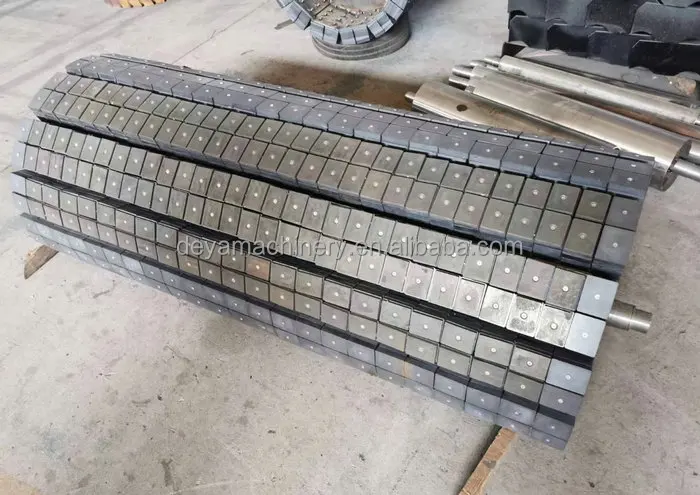

• Stainless steel encapsulated magnetic element
• One piece stainless steel drum shell
• Abrasion–resistant aluminum or stainless steel end flanges
• Double row, self aligning ball bearings easily accessible without drum disassembly
Wet magnetic drum separator technical parameter
| Model | Drum size (mm) | Intensity (Gauss) | Feed size (mm) | Capacity (T/H) | Motor (KW) | Weight (KG) |
| CTB 6090 | 600x900 | 800 to 6000 | less than 2 mm | 8 to 15 | 1.1 | 910 |
| CTB 6012 | 600x1200 | 800 to 6000 | less than 2 mm | 10 to 20 | 1.1 | 1340 |
| CTB 6018 | 600x1800 | 800 to 6000 | less than 2 mm | 15 to 30 | 2.2 | 1500 |
| CTB 7512 | 750x1200 | 800 to 5000 | less than 2 mm | 25 to 40 | 3.0 | 1680 |
| CTB 7518 | 750x1800 | 800 to 5000 | less than 3 mm | 30 to 45 | 3.0 | 2200 |
| CTB 9018 | 900x1800 | 800 to 5000 | less than 3 mm | 35 to 60 | 4.0 | 3000 |
| CTB 1018 | 1050x1800 | 800 to 5000 | less than 3 mm | 40 to 75 | 5.5 | 4300 |
| CTB 1024 | 1050x2400 | 800 to 5000 | less than 3 mm | 55 to 90 | 5.5 | 5000 |
| CTB 1230 | 1200x3000 | 800 to 5000 | less than 3 mm | 80 to 150 | 7.5 | 7800 |
| CTB 1530 | 1500x3000 | 800 to 5000 | less than 4 mm | 120 to 200 | 11 | 9600 |
| CTB 1824 | 1800x2400 | 800 to 4000 | less than 4 mm | 200 to 300 | 18.5 | 12500 |

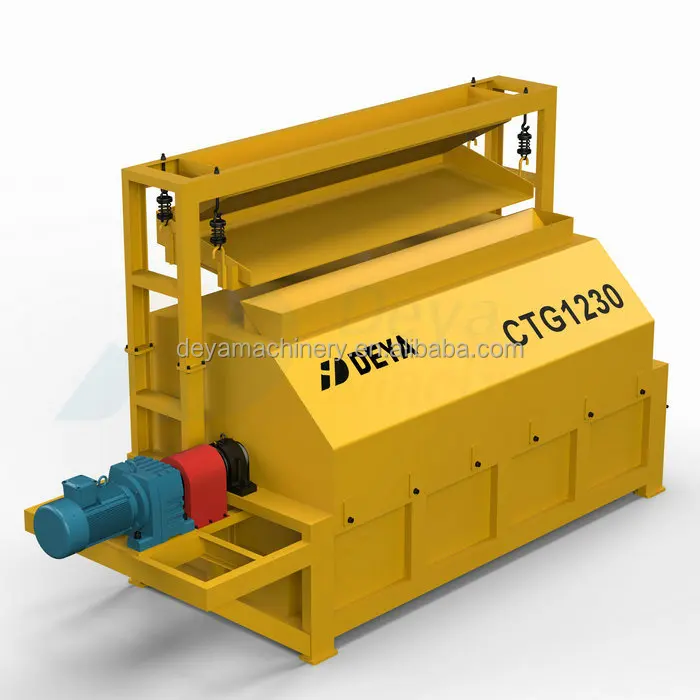

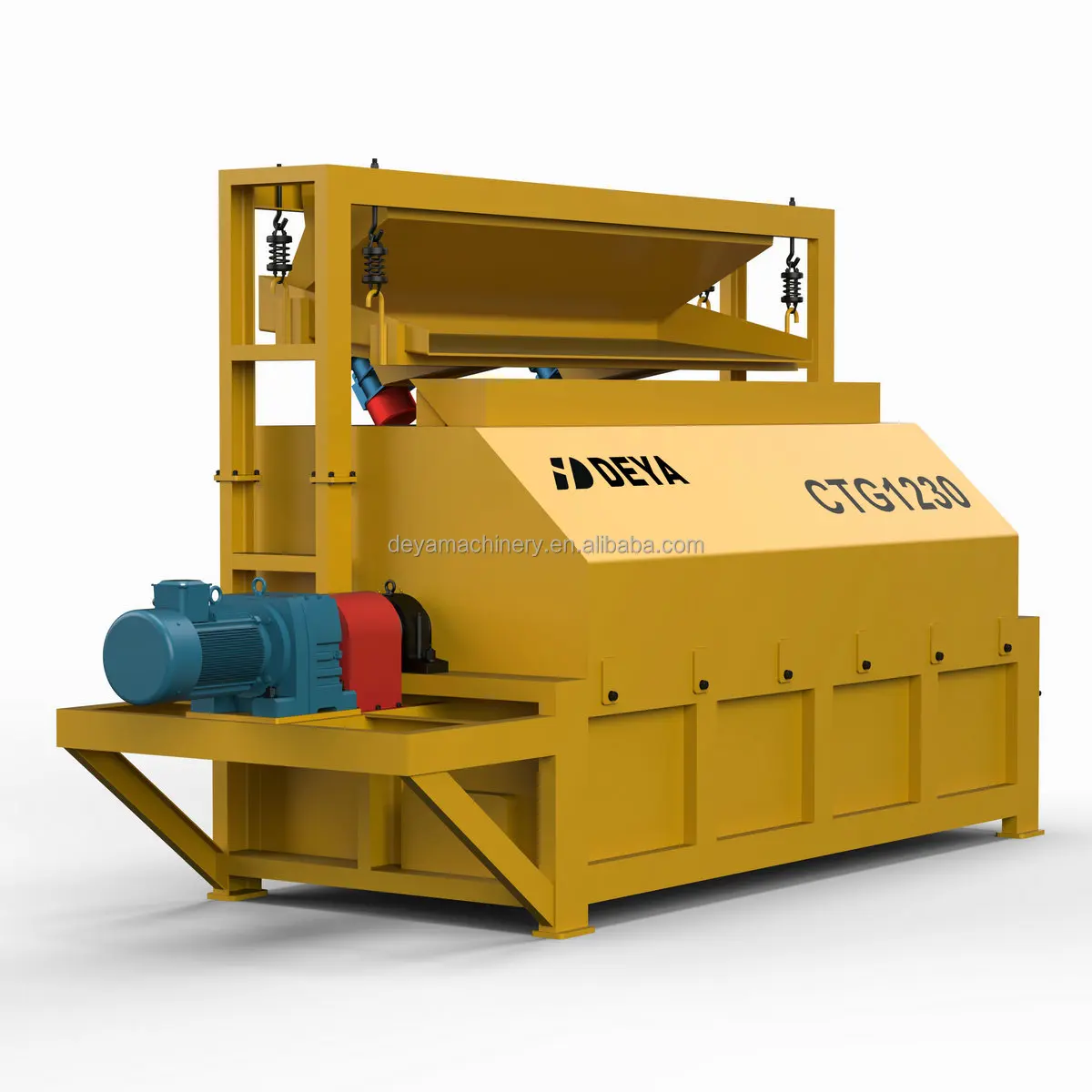

Dry Magnetic drum separator technical parameter
| Model | CTG 7518 | CTG 9018 | CTG 1018 | CTG 1021 | CTG1024 | CTG 1230 | CTG 1530 |
| Drum size (mm) | 750X1800 | 900X1800 | 1050X1800 | 1050X2100 | 1050X2400 | 1200X3000 | 1500X3000 |
| Capacity (T/H) | 40 to 50 | 45 to 55 | 100 to 120 | 125 to 145 | 130 to 180 | 150 to 220 | 170 to 250 |
| Feed size (mm) | 0 to 8 | 0 to 8 | 0 to 8 | 0 to 10 | 0 to 10 | 0 to 10 | 0 to 10 |
| Motor (KW) | 3 | 4 | 5.5 | 5.5 | 5.5 | 7.5 | 11 |
| Water content | 0-3% | 0-3% | 0-3% | 0-3% | 0-3% | 0-3% | 0-3% |
| Rotation (r/m) | 34 | 30 | 24.5 | 24.5 | 24.5 | 21 | 18 |

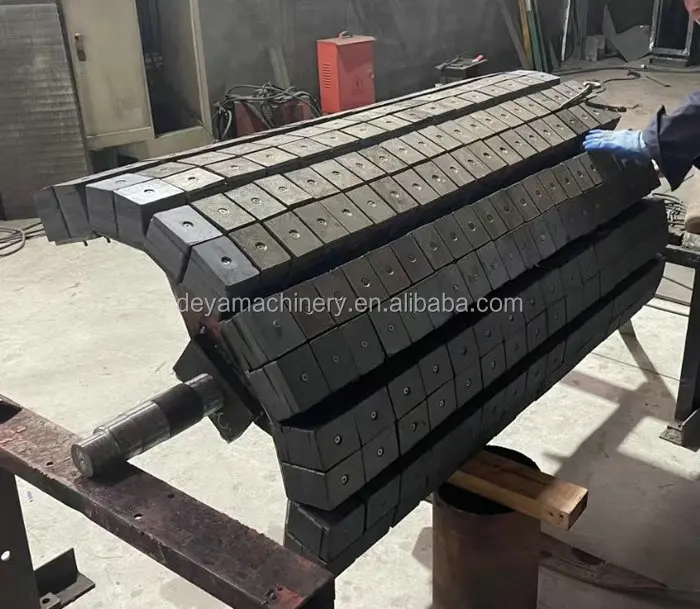

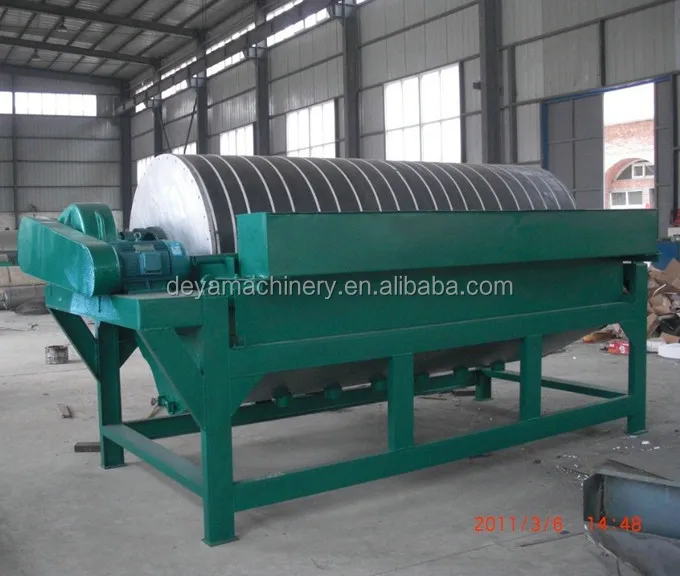

Wet and dry magnetic drum separator production workshop from Deya machinery

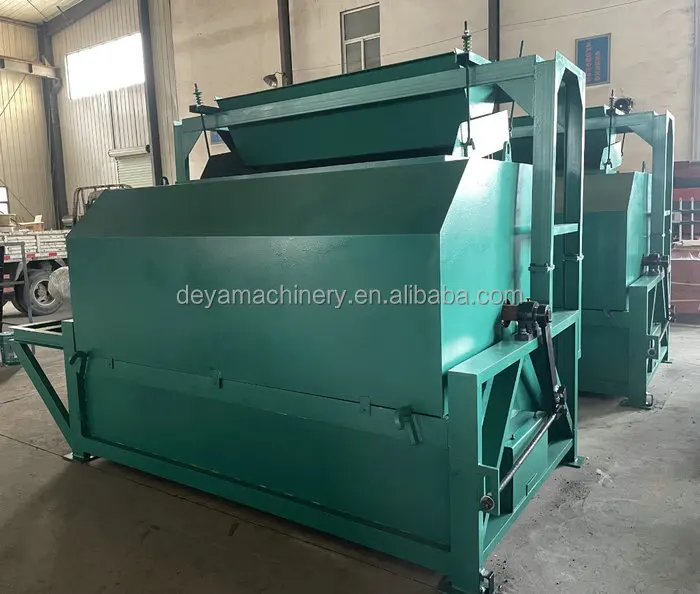

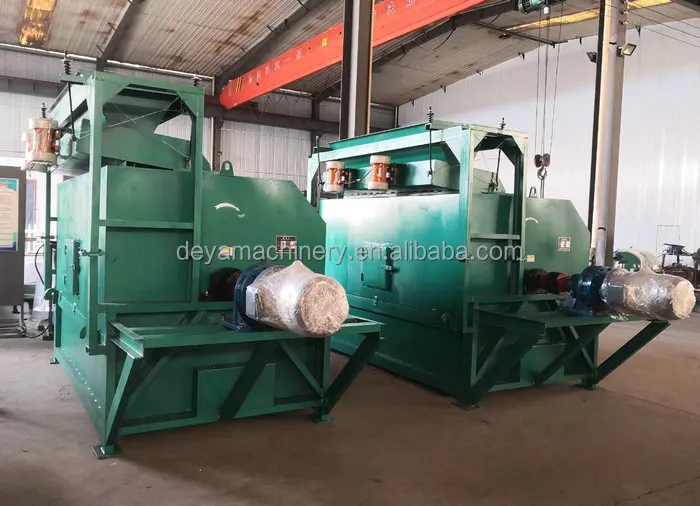

Finished magnetic separators, both wet and dry type

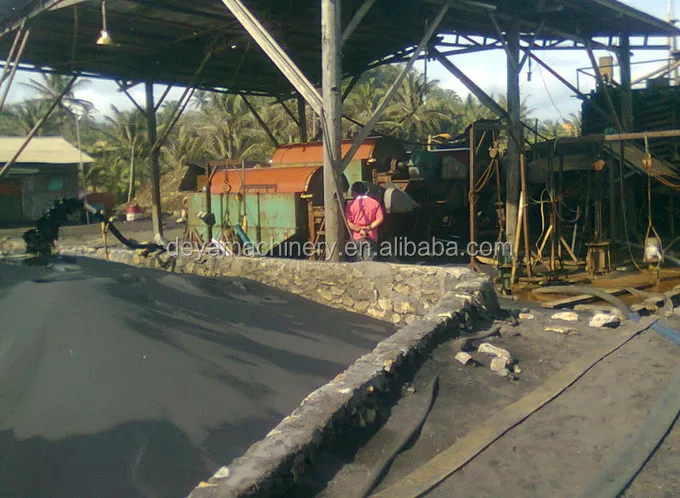

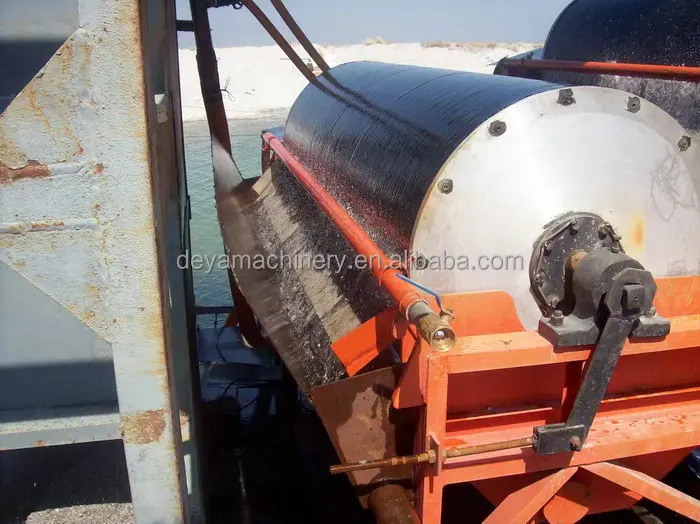

Wet and dry magnetic drum separator from Deya clients' mine site
Packaging & Shipping

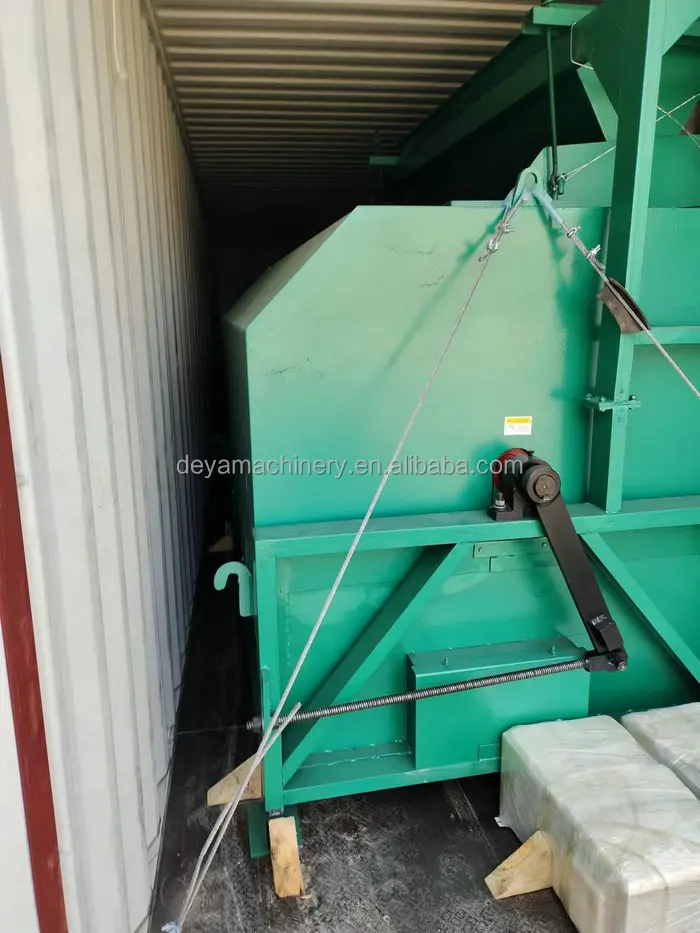

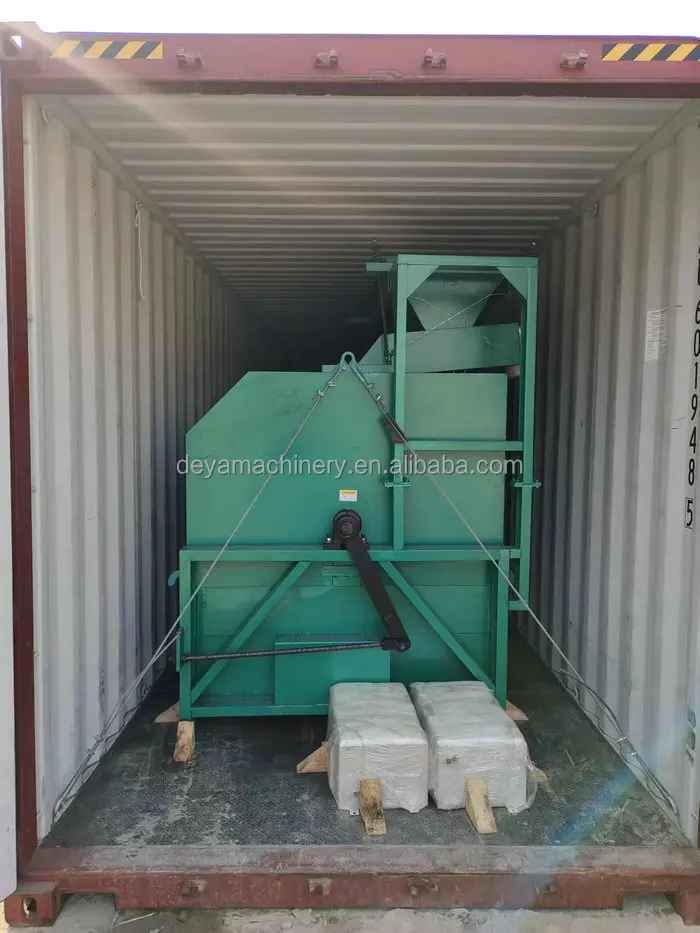

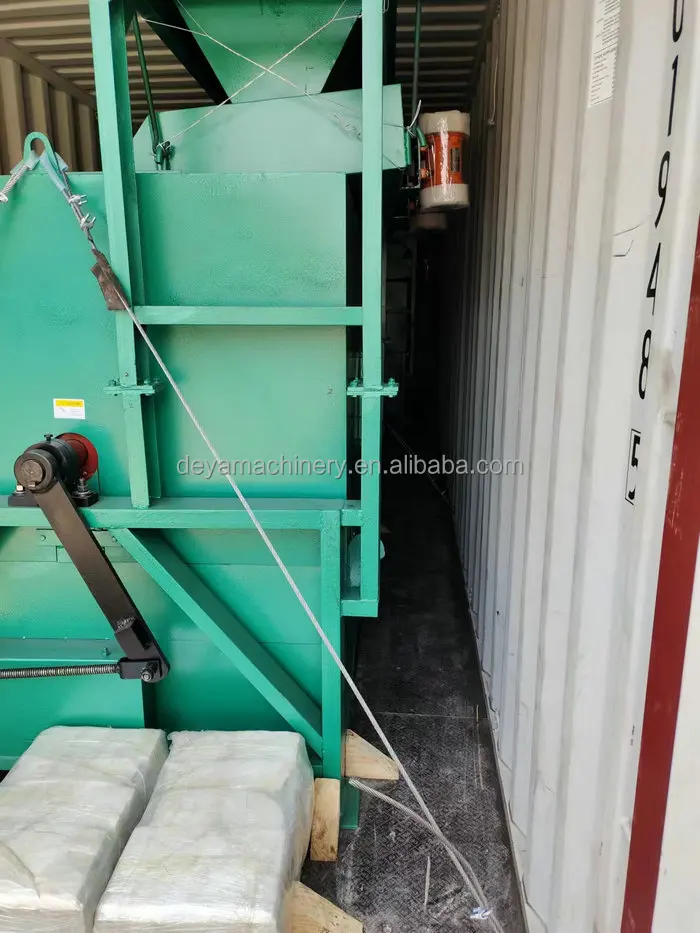

Deya Machinery offers various ways of package, fumigation-free wooden cases, steel plate cases, or as the clients' request. Most of the time, the equipment will be loaded to the containers in the factory. Deya workers make sure all equipment are steady and fixed before close the door of the container, there will be no damage during transporation and shipment.
Our Services
-Pre-sale services
Based on the clients’ request and budget, we will offer equipment pictures, working site videos, plant processing diagram, assemble drawings, foundation drawings, and plant layout. Clients are welcome to visit our factory, also our equipment working site from former clients. We will arrange cars, hotels and translators for the visiting customers.
-Sale services
Our experienced technicians is available on the phone also the internet, clients can get instance guidance by telephone, email, online service anytime, anywhere. As clients’ request, we will send technician to the mine site to guide the installation, trial run test, and training operators until the plant works normally.
-After-sale services
Normally, the equipment warranty is 18 months since installation, but can extend as long as 24 months as the clients’ request. Equipment spares will be offered with manufacturing cost in at least 10 years since the order is placed. To establish long term cooperation, we will regularly call and email our clients, to check the equipment working condition, offer suggestions for maintenance, and if necessary we will pay a visit to clients to solve the problems caused during equipment working.
Company Information
Henan Deya Machinery Co., Ltd. is a professional manufacturer of crushing equipment, mineral processing equipment, construction machinery equipment and their spares; the company was established in early 1990’s with an area of one hundred and twenty thousand square meters which includes forty thousand square meters of standard industrial workshop.
Deya Machinery lays much emphasis on quality and service; the company has acquired ISO 9001: 2008 certificate, and it has independent quality control department and after sale service department. Main equipment includes Sand making machine, Cone crusher, Jaw Crusher, Vibrating screen, Ball Mill, complete crusher plant and mineral process plant. Main processing equipment includes φ8.0m, φ5.0m hobbing, φ6.3m, φ5.0m heavy vertical lathe, φ3.5m, φ2.5m CNC vertical lathe, φ6.0m × 18.0m barrel sleeper, φ220mm, φ160mm boring, φ160mm boring and milling machine, CNC cutting machine, milling machine, automatic welding center, 60mm × 3m Bending and other NTU, fine processing equipment.
As a customer oriented company, Deya People with high level of professionalism, and responsibility; total satisfaction from clients becomes the top priority, and long-term cooperation is what we always sought and cherished for. The products have exported to over 50 countries like Indonesia, Philippines, Vietnam, India, Pakistan, Iran, Turkey, Tanzania, Zambia, South Africa, Ghana, Peru, Bolivia, Mexico, Chile, etc. We sincerely hope can establish business cooperation with your esteemed company in the long run.
