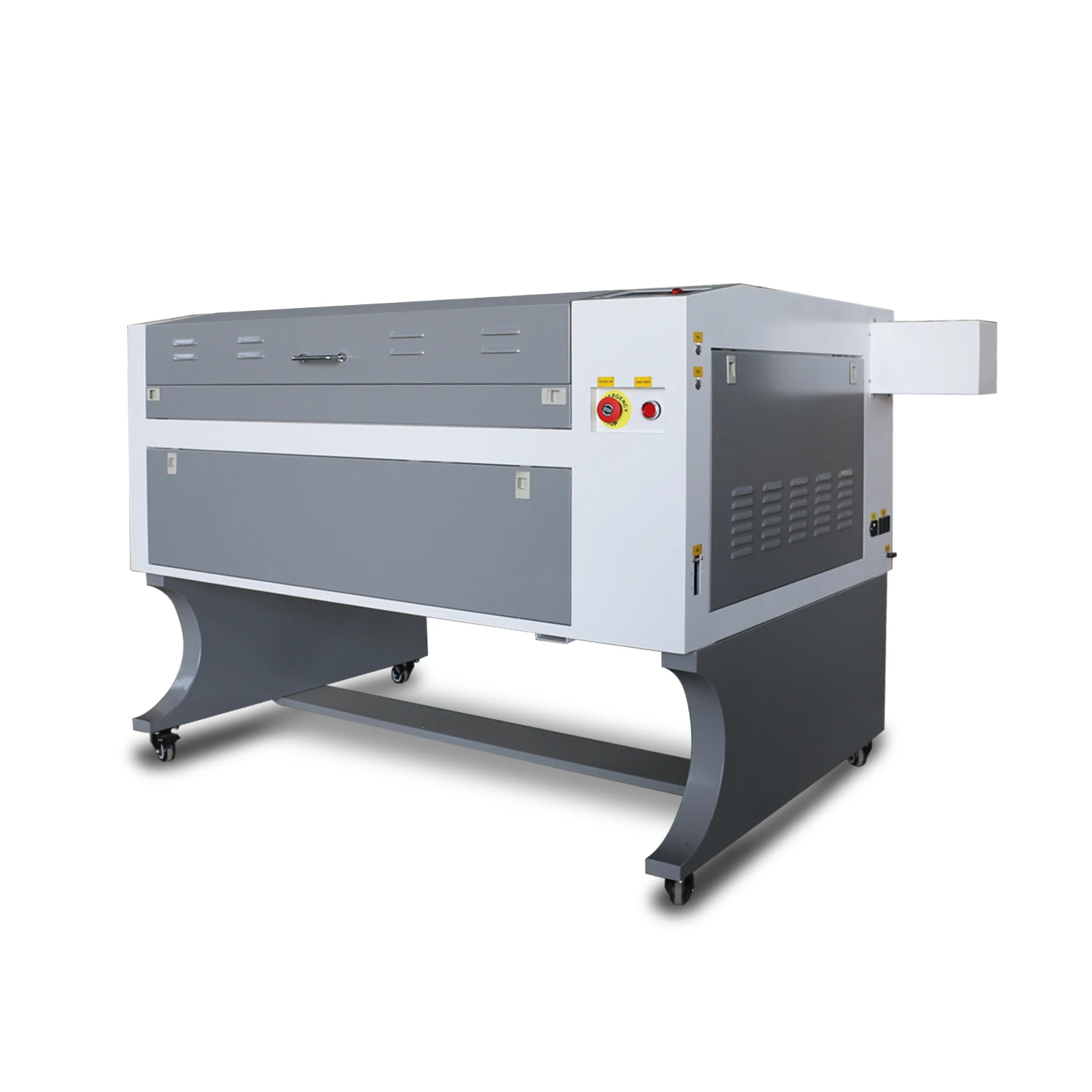

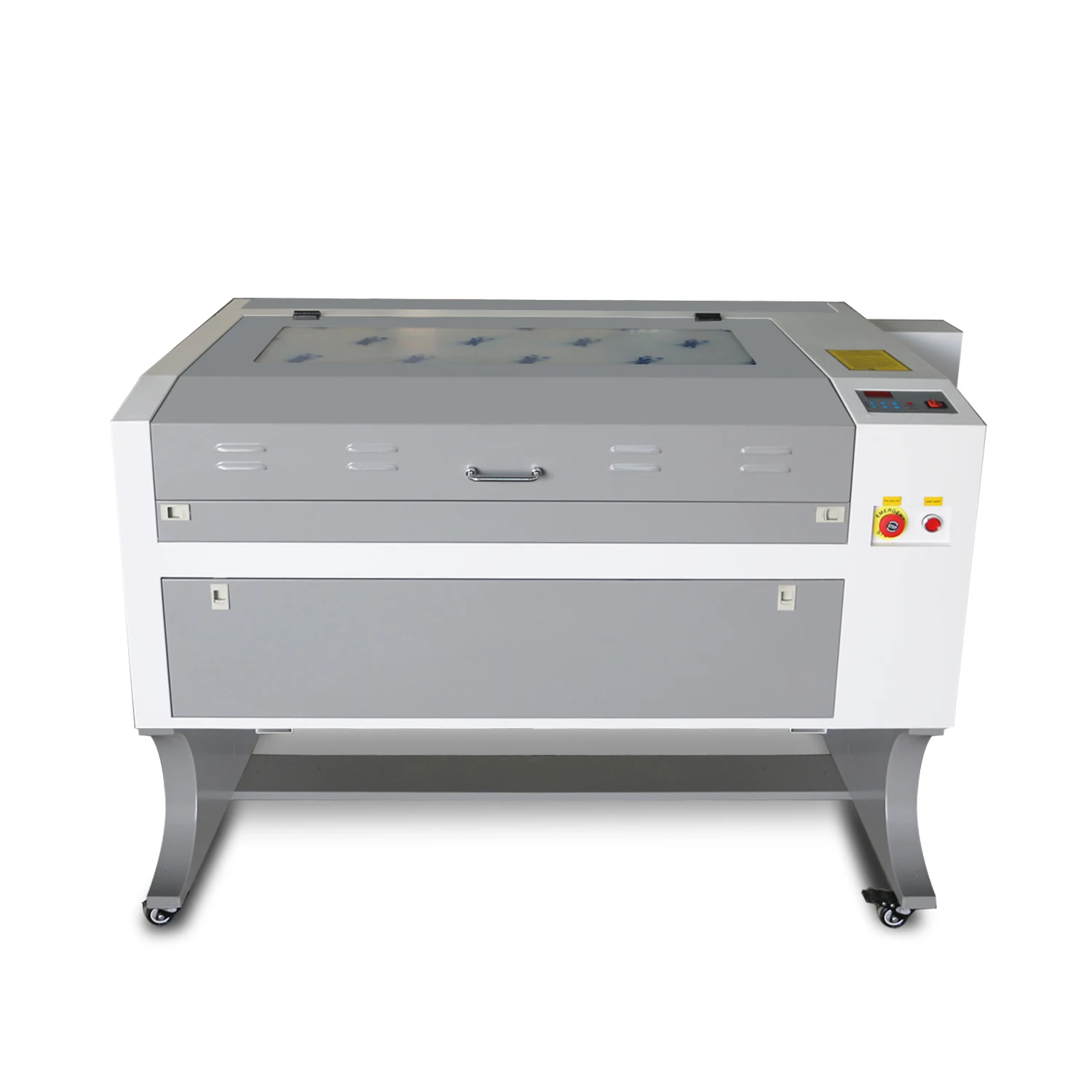

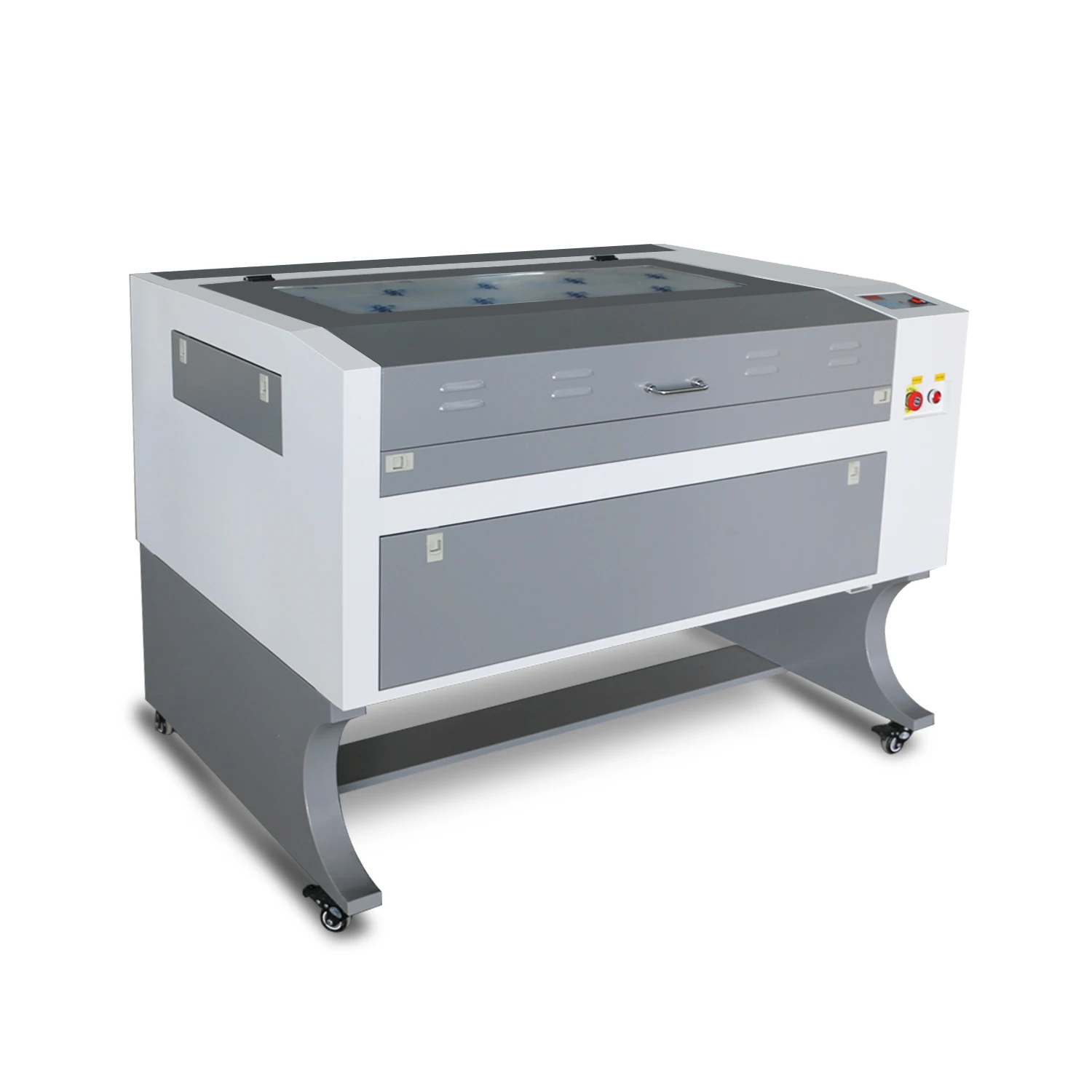

Made In China Co2laser Engraving Machine 9060 Co2 Laser Engraver Laser Engraving Machine For Cup
- Category: >>>
- Supplier: Focus Laser Technology Co. Ltd.
Share on (1601167629565):
Product Overview
Description
Product Description
Based on the characteristics of high energy and strong operability of laser, Focus laser technology co., ltd. has successfully developed a new generation of laser cutting and engraving machine based on years of production of laser engraving and cutting machines.
Laser engraving cutting machine processing material variety, cutting material surface smooth without burr, no polishing, no noise, no dust, processing speed, high precision, waste less, high efficiency, is the industry to replace the best choice
Laser engraving cutting machine processing material variety, cutting material surface smooth without burr, no polishing, no noise, no dust, processing speed, high precision, waste less, high efficiency, is the industry to replace the best choice
Brand
FOCUSProduct origin
Shandong Province China
Delivery time
3-5 days
Supply capacity
30 Sets / Month In stock!

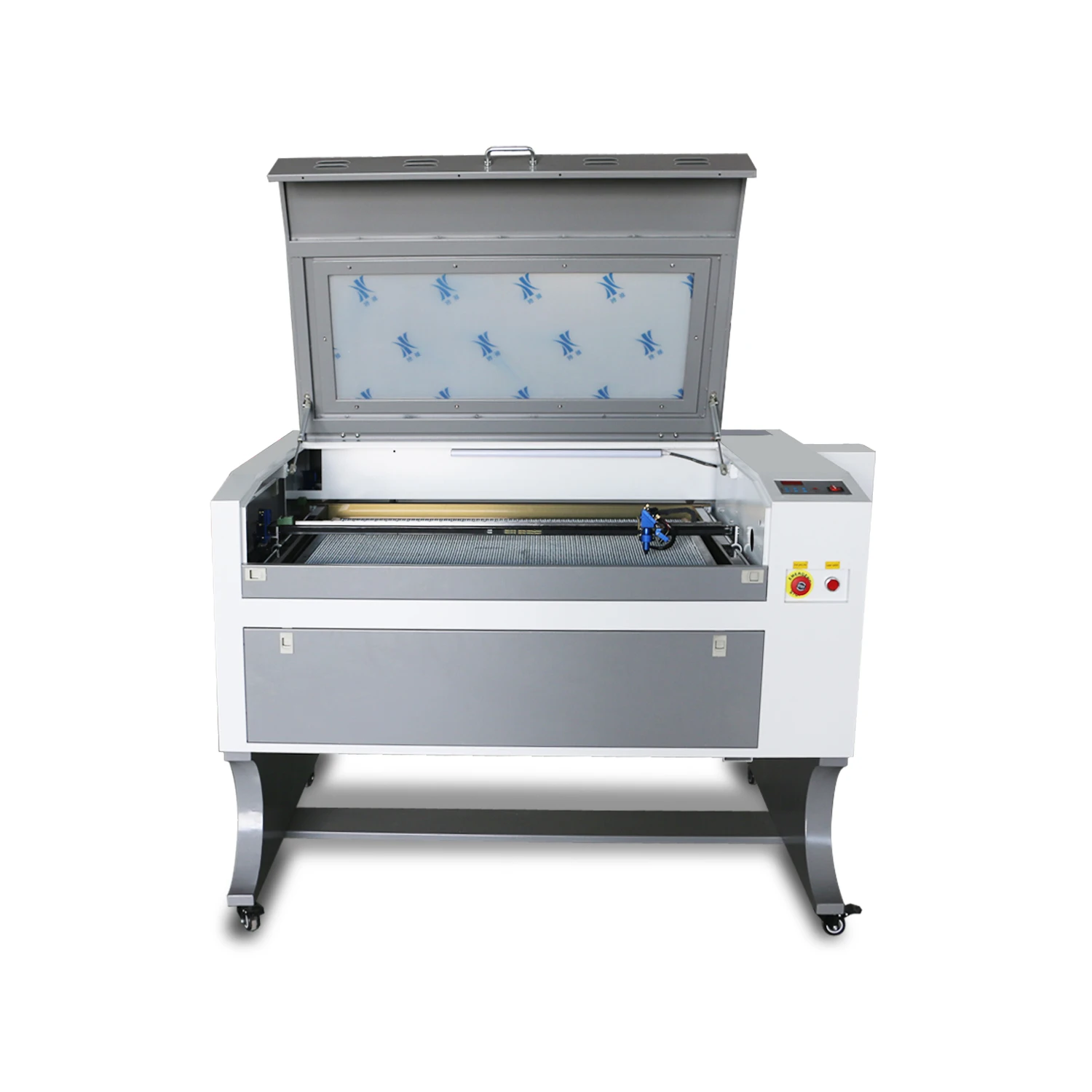

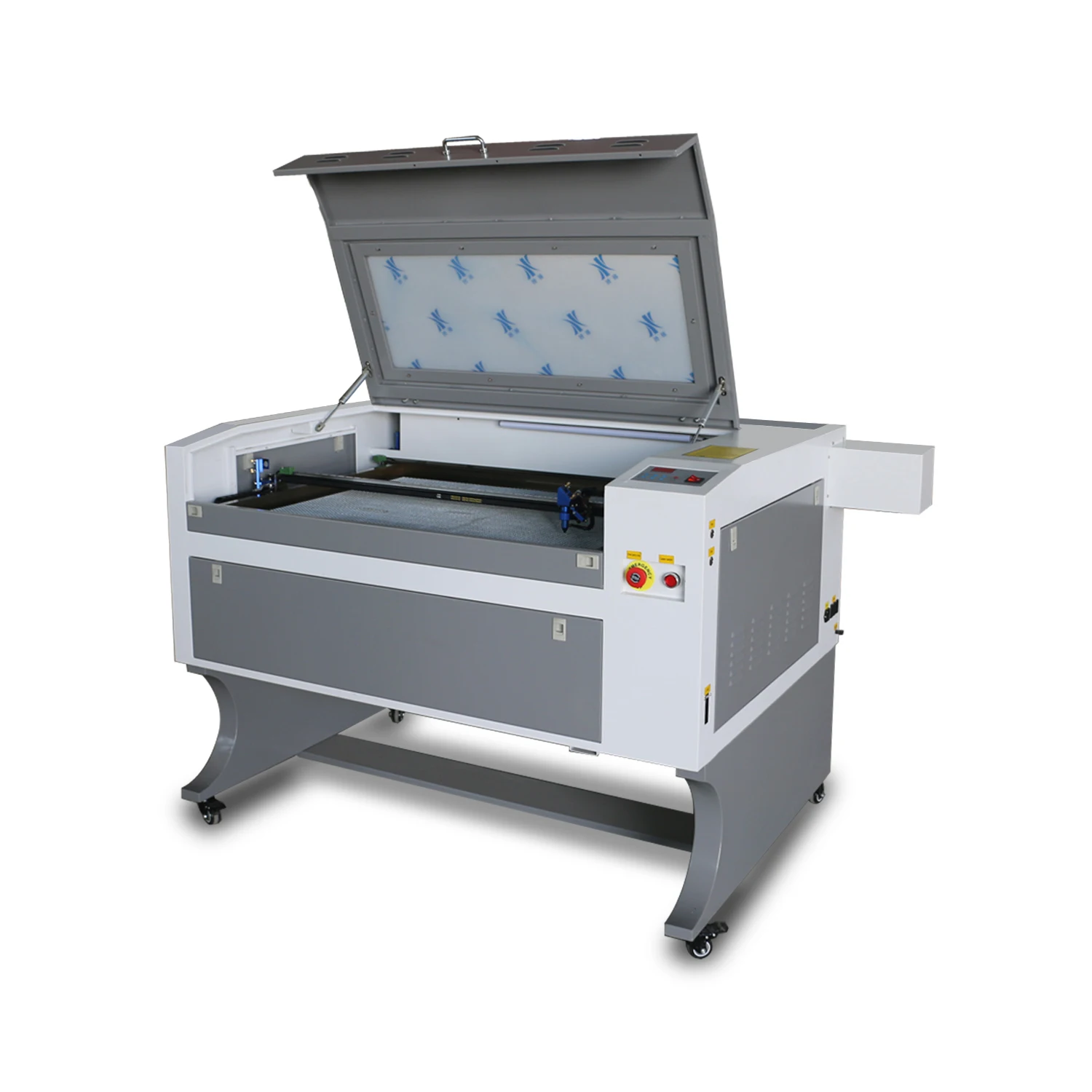

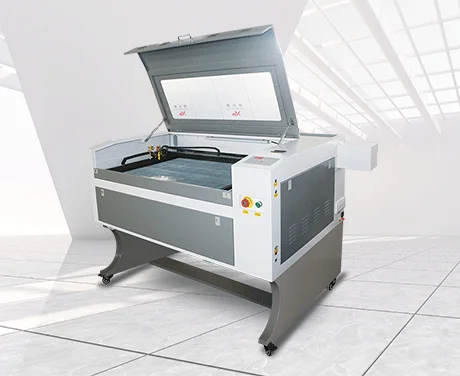

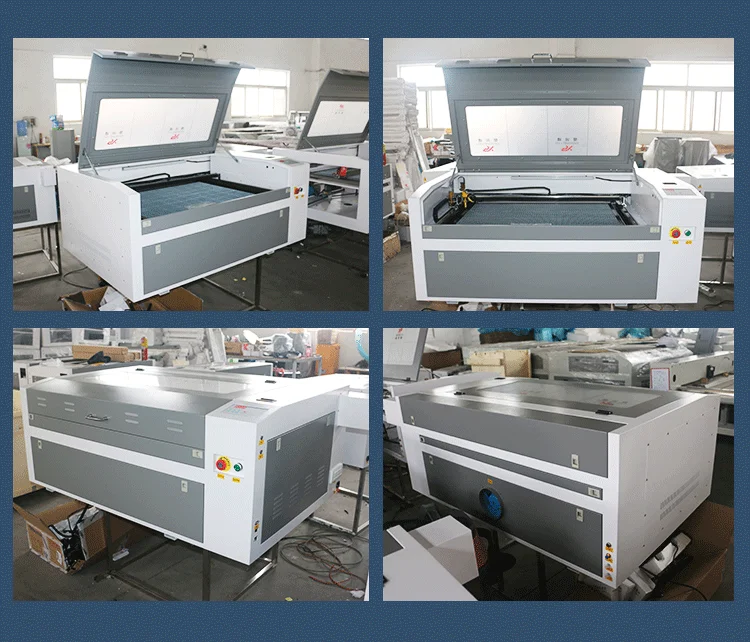

Product Display
Product Paramenters
Model | FS-9060 | Software supported | CorelDraw, PhotoShop, AutoCAD |
working area | 90cm*60cm / 35in*24in (L*W) | Laser Output Control | 1-100% software setting |
Laser type | CO2 sealed laser tube | Highest Scanning Precision | 2500DPI |
Cooling type | water cooling | Location precision | 0.1mm |
Laser power | 60w/80w/100W | Working temperature | 5 to 45 degrees |
Engraving speed | 25-60000mm/min | Operating humidity | 5%-95%(without condensed water) |
Cutting speed | 20-10000mm/min | Equipment Dimension | 1500mm*1100mm*1200mm(L*W*H) |
Power supply | 220V±10% /50HZ , 110V±10%//60HZ | Net Weight | 70KG |
Min. shaping a character | Letter 1.0 x 1.0mm | Optional parts | Rotary device, CW3000 or CW5000 Water cooling system |
Graphics format supported | BMP, PLT, DST, DXF, AI, CDR | Total power | <500w |
Product Details

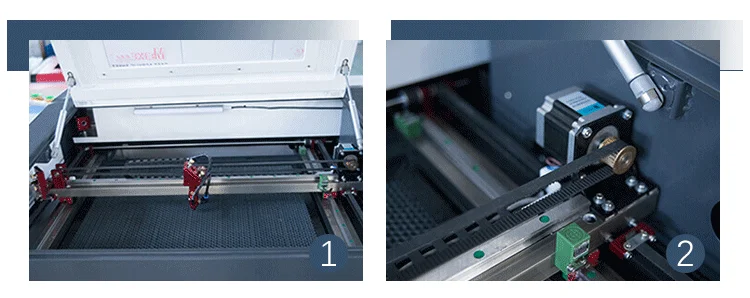

①X-Y three-wire square rail, more stable structure, carving speed up to 1000mm/s，Inlet guide rail runs smoothly
②57 step motor, more stable operation, faster transmission speed.
Unique mechanical structure combined with perfect circuit makes the overall performance of the machine more stable.
②57 step motor, more stable operation, faster transmission speed.
Unique mechanical structure combined with perfect circuit makes the overall performance of the machine more stable.

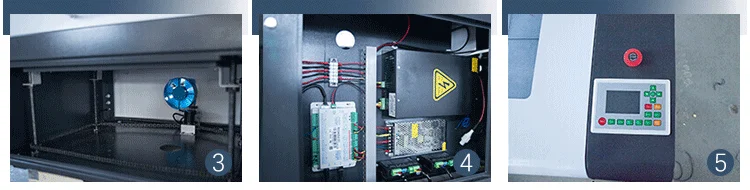

③Chain drive; honeycomb table and knife table can be configured,UP and DOWN.The unique exhaust system effectively protects the laser engraving cutting material
④High quality laser power supply laser tube, ensure super laser cutting force.
⑤RUIDA control system
1, color screen, dynamic display processing trajectory
2. Support to modify layer parameters directly online
3. Onboard memory, high-speed data transmission
4. Different engraving and cutting parameters can be set for different parts of the same pattern,
5.Engraving and cutting can work simultaneously
6. It can be read by usb flash drive or connected to a computer
7. Power cut continuous carving/slope carving function
8. Multi-function key operation
9. Online preview
④High quality laser power supply laser tube, ensure super laser cutting force.
⑤RUIDA control system
1, color screen, dynamic display processing trajectory
2. Support to modify layer parameters directly online
3. Onboard memory, high-speed data transmission
4. Different engraving and cutting parameters can be set for different parts of the same pattern,
5.Engraving and cutting can work simultaneously
6. It can be read by usb flash drive or connected to a computer
7. Power cut continuous carving/slope carving function
8. Multi-function key operation
9. Online preview

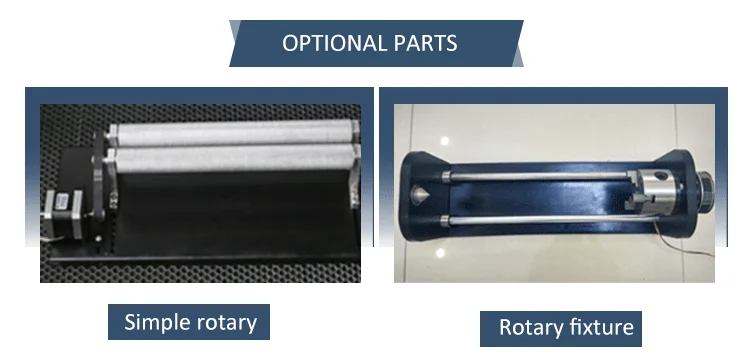

Rotary
Simple rotary is suitable for regular cylinder, such as pen holder, cup, bamboo, etc., only need to put the engraving material on the simple rotary, the material will rotate with the roller.
Rotary fixture is suitable for all objects, there are no regular restrictions, if the irregular surface of the object engraving arc patterns, the best choice.

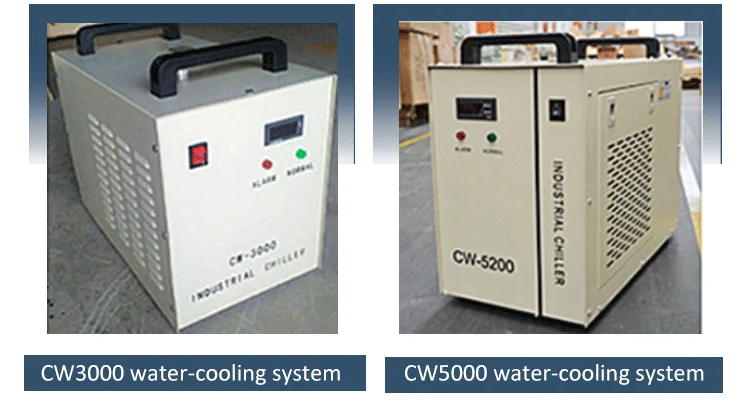

Water-cooling system
The water cooling system can better cool down the laser engraving machine. The customer can choose the water cooling system if the machine is used very frequently or the high-power cutting ground is often used. It is recommended to use the water cooling system at 80W/100W/120W/150W
Product Applications
Laser engraving cutting machine application industry: wood plate cutting, advertising text, large surface cutting, garment proofing, leather industry, footwear industry, decoration industry, furniture industry, packaging and printing industry, model industry, craft gift industry.
Suitable materials for laser engraving and cutting machine: wood sheet, acrylic, plexiglass, glass, cloth, leather, paper, bamboo and wood products, thin film, etc
Suitable materials for laser engraving and cutting machine: wood sheet, acrylic, plexiglass, glass, cloth, leather, paper, bamboo and wood products, thin film, etc
Materials | Cutting | Engraving |
Wood/Cork/Bamboo/Veneer/MDF | √ | √ |
Acrylic/Rubber/Plexiglass/Pmma | √ | √ |
Glass/Fiberglass | √ | |
Mylar/Delrin/Matte Board | √ | √ |
Fabric/Cloth/Textile/Garment | √ | √ |
Leather/Pig leather/Cow leather/Sheep leather | √ | √ |
Ceramic/Marble/Tile | √ | |
Plastic | √ | √ |
Melamine | √ | √ |
Paper/Cardboard/Pressboard | √ | √ |
Organic board / Double color plate | √ | √ |
Corian | √ | √ |
Company Profile
The company specializes in manufacturing laser engraving machine, laser cutting machine,mini laser engraving machine, laser metal and non-metal hybrid cutting machine. Fiber laser marking machine, CO2 laser marking machine,laser welding machine, CO2 laser engraving and cutting machine, rubber stamp laser engraving machine, granite stone laser engraving machine and other series of products.
Shandong Focus Laser Technology Co., Ltd will continue to create value for customers at home and abroad. Continuously introduce advanced production technology and production process at home and abroad, develop and produce high-quality, cost-effective CNC equipment, adhere to provide users with design, installation, training, debugging, maintenance, consulting and other services. The company focuses on advocating the enterprise spirit of "unity and struggle, excellence, thrifty construction, striving for first-class" and the business philosophy of " Strive for quality with preciseness, survive with quality and develop with honesty", strengthening management, strict quality and integrity, willing to return customers at home and abroad with first-class quality and services.
Shandong Focus Laser Technology Co., Ltd will continue to create value for customers at home and abroad. Continuously introduce advanced production technology and production process at home and abroad, develop and produce high-quality, cost-effective CNC equipment, adhere to provide users with design, installation, training, debugging, maintenance, consulting and other services. The company focuses on advocating the enterprise spirit of "unity and struggle, excellence, thrifty construction, striving for first-class" and the business philosophy of " Strive for quality with preciseness, survive with quality and develop with honesty", strengthening management, strict quality and integrity, willing to return customers at home and abroad with first-class quality and services.
Certifications
Product Packing
FAQ
Q1. Are You A Factory Or Trading Company?
We are a manufacturer with export license.
Q2. Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
Q3. Will The Laser Machine Be Safe During Transport?
(1)Inner: plastic stretch film and white foam.
(2)Middle: small pieces of wood and screws.
(3)outside: standard export wooden case. So,the laser machine will send to you safely. In case the machine was damaged , please contact us ,We will process the replacement as soon as possible to ensure that it arrives in time .
Q4. What Should I Do When Something Goes Wrong With The Laser ?
We offer a two-year warranty. In warranty, we will provide the broken items free of charge. Beyond the warranty period, we still provide maintenance service.
Q5. How Is The Shipping Method?
As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the machine to your office as per your requirement .
Q6. Payment Terms?
TT/West Union/Payple/LC/Cash and so on.
Q7. I Don't Know How To Use After I Receive Or I Have Problem During Use,how To Do?
1) We have detailed user manual with pictures and CD,you can learn step by step.And our user manual update every month for your easy learning if there is any update on machine.
2) If have any problem during use,you need our technician to judge The problem elsewhere will be solved by us. We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can also provide Door service if you need.
Q8. Do The Laser Machines Need To Be Connected To A Laptop Or Desktop Computer To Work?
Yes, either is ok. It supports Windows 2000, Windows XP, Win 7 and other operating systems
Q9. What Kind Of Graphic Format Does It Support?
JPG, PNG, BMP, PLT, DST, DXF, CDR, AI, DSB, GIF, MNG, TIF, TGA, PCX, JP2, JPC, PGX, RAS, PNM, SKA, RAW , etc.
We are a manufacturer with export license.
Q2. Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
Q3. Will The Laser Machine Be Safe During Transport?
(1)Inner: plastic stretch film and white foam.
(2)Middle: small pieces of wood and screws.
(3)outside: standard export wooden case. So,the laser machine will send to you safely. In case the machine was damaged , please contact us ,We will process the replacement as soon as possible to ensure that it arrives in time .
Q4. What Should I Do When Something Goes Wrong With The Laser ?
We offer a two-year warranty. In warranty, we will provide the broken items free of charge. Beyond the warranty period, we still provide maintenance service.
Q5. How Is The Shipping Method?
As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the machine to your office as per your requirement .
Q6. Payment Terms?
TT/West Union/Payple/LC/Cash and so on.
Q7. I Don't Know How To Use After I Receive Or I Have Problem During Use,how To Do?
1) We have detailed user manual with pictures and CD,you can learn step by step.And our user manual update every month for your easy learning if there is any update on machine.
2) If have any problem during use,you need our technician to judge The problem elsewhere will be solved by us. We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can also provide Door service if you need.
Q8. Do The Laser Machines Need To Be Connected To A Laptop Or Desktop Computer To Work?
Yes, either is ok. It supports Windows 2000, Windows XP, Win 7 and other operating systems
Q9. What Kind Of Graphic Format Does It Support?
JPG, PNG, BMP, PLT, DST, DXF, CDR, AI, DSB, GIF, MNG, TIF, TGA, PCX, JP2, JPC, PGX, RAS, PNM, SKA, RAW , etc.
