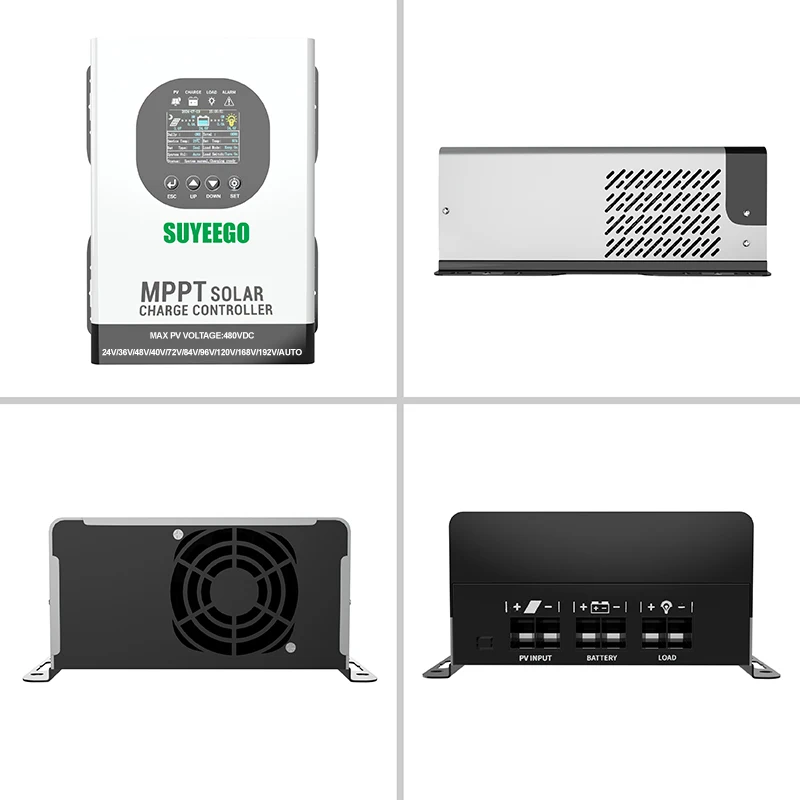

SUYEEGO 120A 60A PV Input Voltage 480VDC 24V/48V/96/120V/192V/Auto Battery Voltage High Voltage MPPT Solar Charge Controller
- Category: >>>
- Supplier: Guangzhou Suyeego Electronic Technology Co. Ltd.
Share on (1601167691041):
Product Overview
Description
SUYEEGO 120A 60A PV Input Voltage 480VDC 24V/48V/96/120V/192V/Auto Battery Voltage High Voltage MPPT Solar Charge Controller
Product Overview

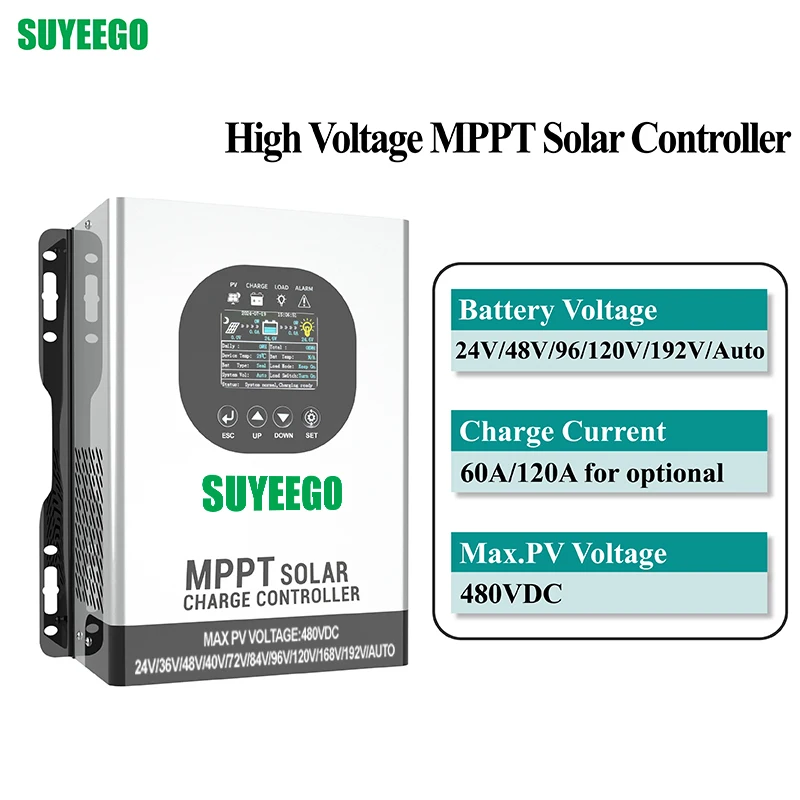

1. Battery voltage 24V/48V/96/120V/192V/Auto
2. High PV input voltage range(60-480VDC)

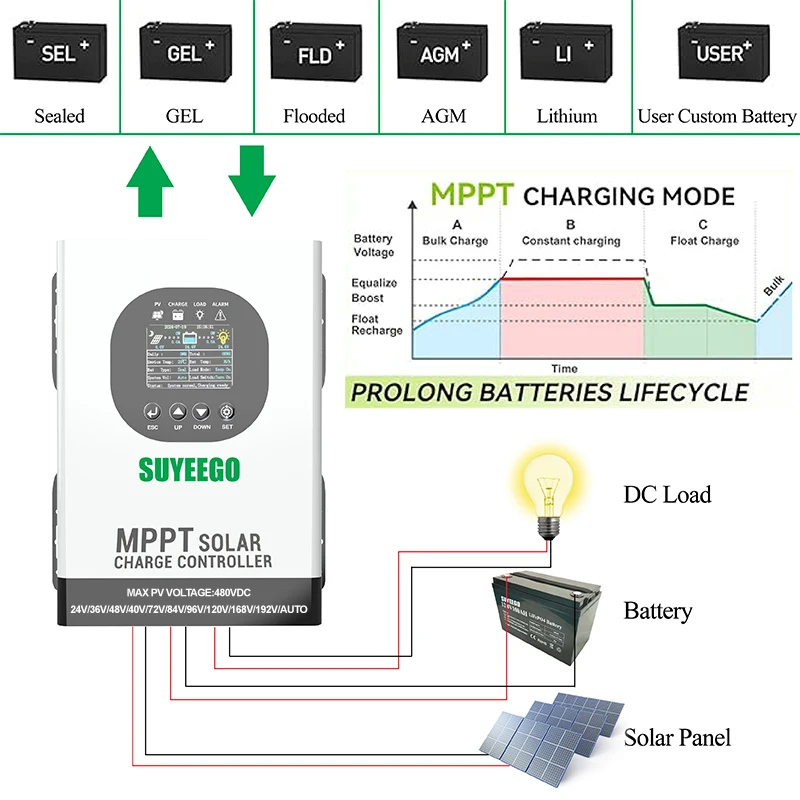

3. Smart battery charge design to optimize battery life
4. Charge Current 60A/120A for optional
2. High PV input voltage range(60-480VDC)
3. Smart battery charge design to optimize battery life
4. Charge Current 60A/120A for optional
5. OEM/ODM
PRODUCT SPECIFICATIONS
Model | SYGSC-MPPT-480VDC | |
Maximum Charging Current | 120A | |
BATTERY & CHARGE | ||
Battery Voltage | 24V/48V/96/120V/192V/Auto | |
SOLAR CHARGER | ||
Solar Charger Type | MPPT | |
Maximum PV Array Power | 6000W | |
MPPT Range @ Operating Voltage | 60-480VDC | |
Maximum PV Array Open Circult Voltage | 500VDC | |
Number of MPPT Trackers/Maximum Input Current | 1/22A | |
PHYSICAL | ||

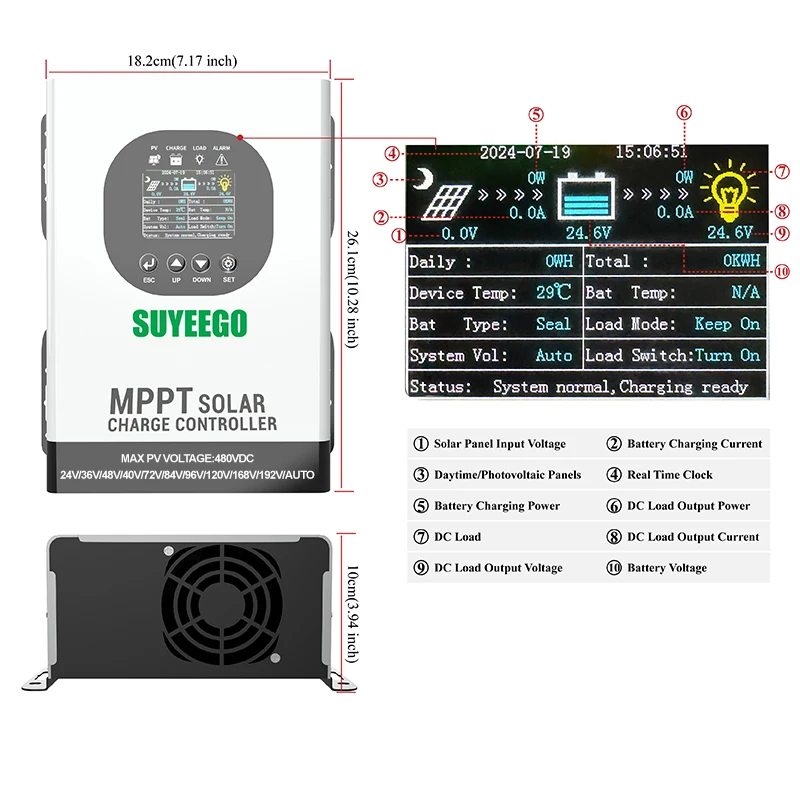

Dimension.D*W*H(mm) | 365*236*118 | |
Net Weight(kgs) | 6.7 | |
Gross Weight(kgs) | 8 | |
OPERATING ENVIRONMENT | ||
Humidity | 5% to 95% Relative Humidty | |
Operating Temoerature | -10-50℃ | |
FAQ
1. How does a power inverter work?
A power inverter converts DC power into conventional AC power, when an AC outlet is not available. Simply connect an inverter to a battery source, plug your appliance into the inverter.
A power inverter converts DC power into conventional AC power, when an AC outlet is not available. Simply connect an inverter to a battery source, plug your appliance into the inverter.
2.What is the difference between PWM inverter and MPPT inverter?
PWM is Pulse width modulation, it is a old solar power controller technology, its efficiency is about 70%.MPPT is Maximum PowerPoint Tracking, it is the latest technology. it contains Low Voltage and High Voltage, 2 types. High voltageinverter efficiency up to 95%.
PWM is Pulse width modulation, it is a old solar power controller technology, its efficiency is about 70%.MPPT is Maximum PowerPoint Tracking, it is the latest technology. it contains Low Voltage and High Voltage, 2 types. High voltageinverter efficiency up to 95%.
3.How to distinguish Low voltage and high voltage inverter ?
Low voltage, Max PV voltage Voc 150V. High voltage, Max PV voltage Voc 450V
Low voltage, Max PV voltage Voc 150V. High voltage, Max PV voltage Voc 450V
4. What is the difference between a modified sine inverter and pure sine wave inverter?
*Modified sine wave power inverter is more portable than pure sine wave power inverter, lighter, and lower in cost. If the device handles voltage fluctuations, a modified sine wave inverter should be considered.Most devices that people typically wish to power will work fine with a modified sine wave inverter.
*Pure sine wave power inverter allows motors to run cooler, last longer and provide very clean power that is same quality with State Grid . Devices such as air conditioner, Freezer and most medical equipment require a pure sine wave inverter to run.
*Modified sine wave power inverter is more portable than pure sine wave power inverter, lighter, and lower in cost. If the device handles voltage fluctuations, a modified sine wave inverter should be considered.Most devices that people typically wish to power will work fine with a modified sine wave inverter.
*Pure sine wave power inverter allows motors to run cooler, last longer and provide very clean power that is same quality with State Grid . Devices such as air conditioner, Freezer and most medical equipment require a pure sine wave inverter to run.
5. What type of batteries do you recommend?
Most of people choose to use deep cycle marine batteries with their inverters. Also can use Acid battery, Lithium battery.
Most of people choose to use deep cycle marine batteries with their inverters. Also can use Acid battery, Lithium battery.
6. Do you accept OEM and ODM service?
Yes, we accept OEM and ODM service.
7. How long of the delivery time, sample order and wholesale order?
For Sample order, within 7 days; For 100pcs wholesale order, 7-15 working days.
For Sample order, within 7 days; For 100pcs wholesale order, 7-15 working days.
8. How do I know which inverter to buy?
Different devices require specific wattages to run. Please check the following formula to determine the correct watt model.
Different devices require specific wattages to run. Please check the following formula to determine the correct watt model.
