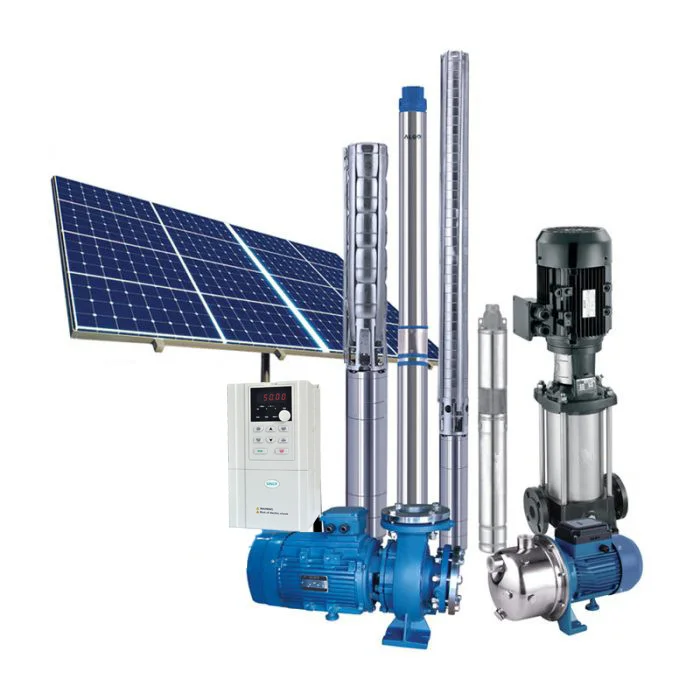

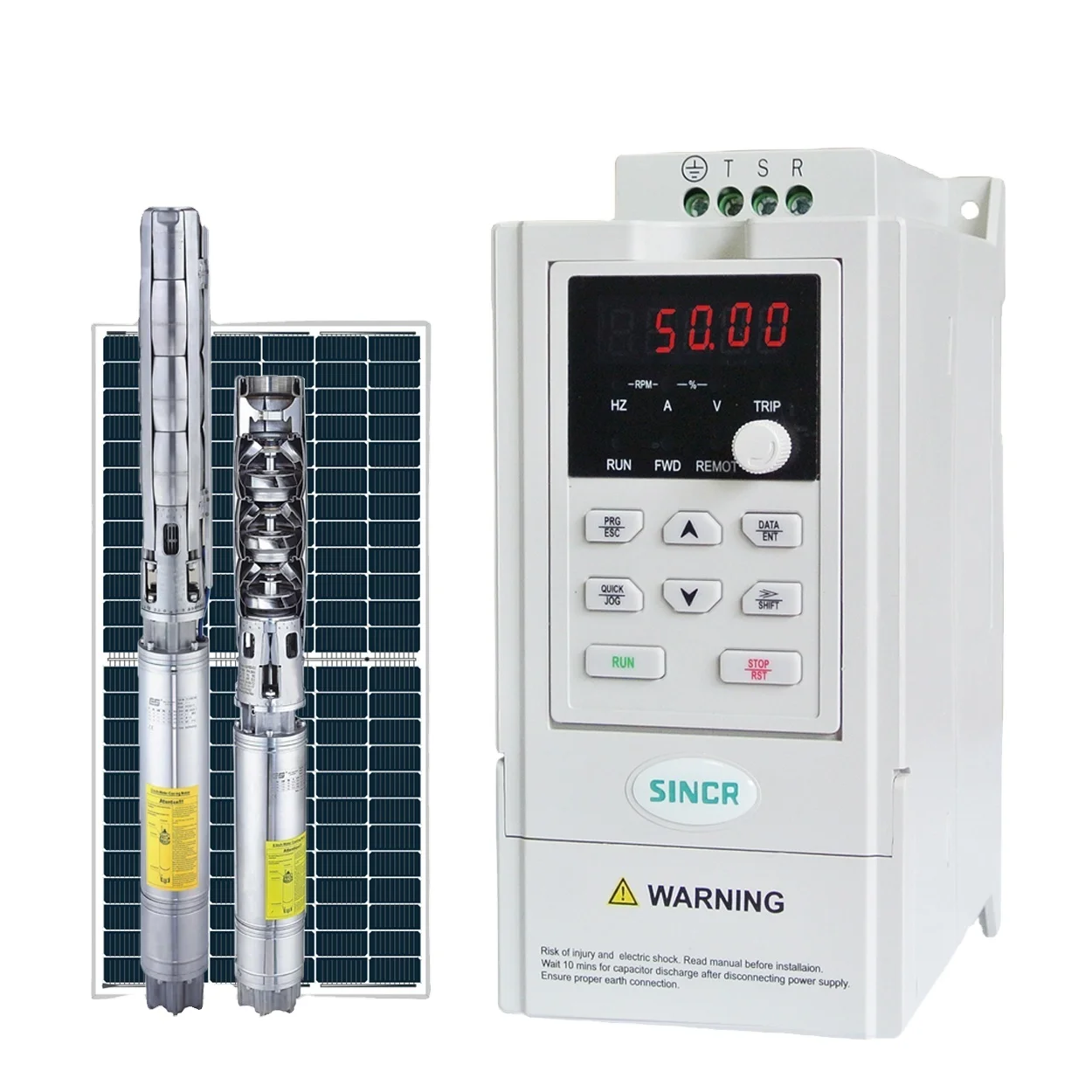

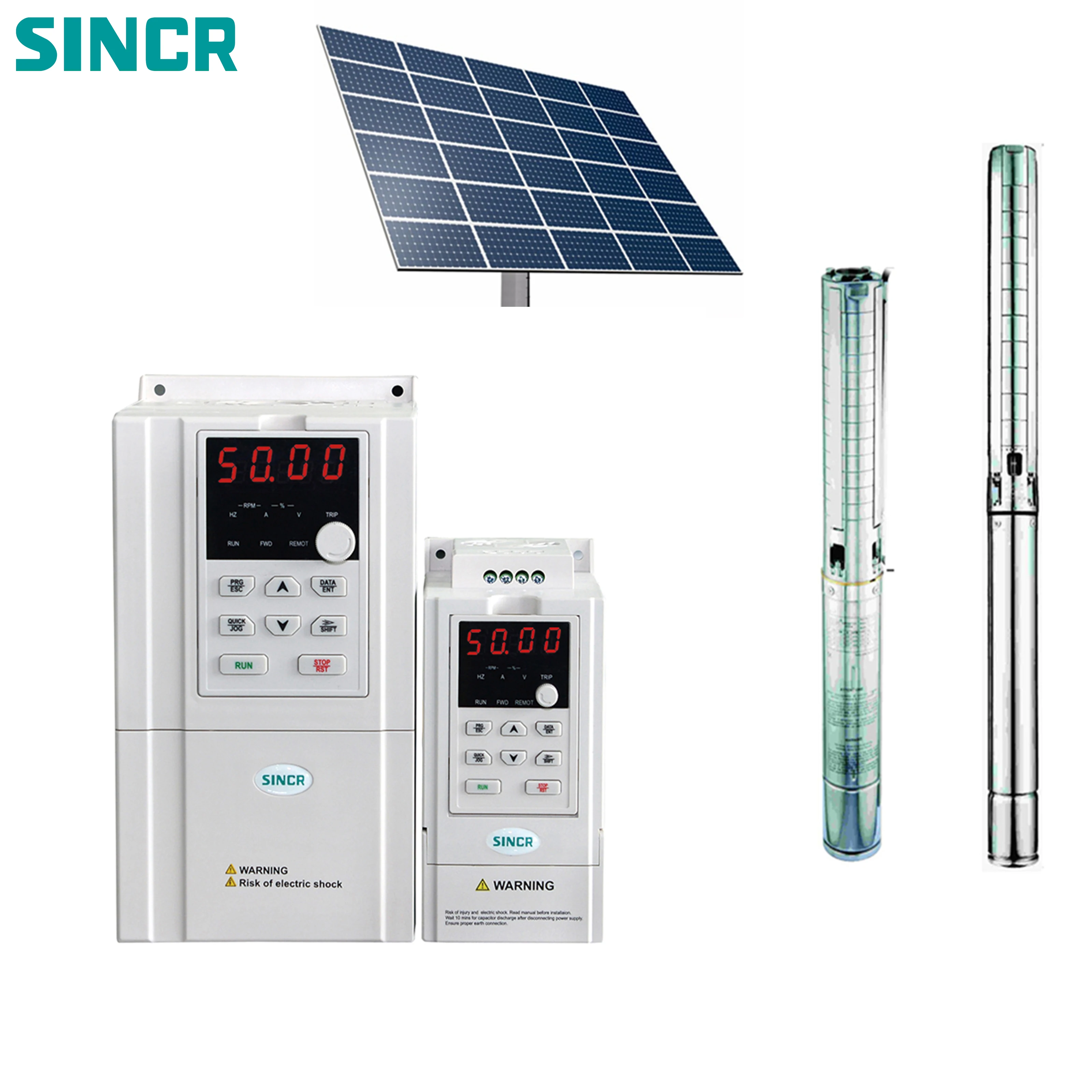

SV100 99% Mppt Efficiency Manufacturer Solar Pump Inverter VFD 1.5KW for agriculture house
- Category: >>>
- Supplier: Shenzhen Sincrea Electrical Technology Co. Ltd.
Share on (1601167745166):
Product Overview
Description
SV100 3phase Mppt water pump solar wasserpumpen wechsel richter1.5KW for agriculture house

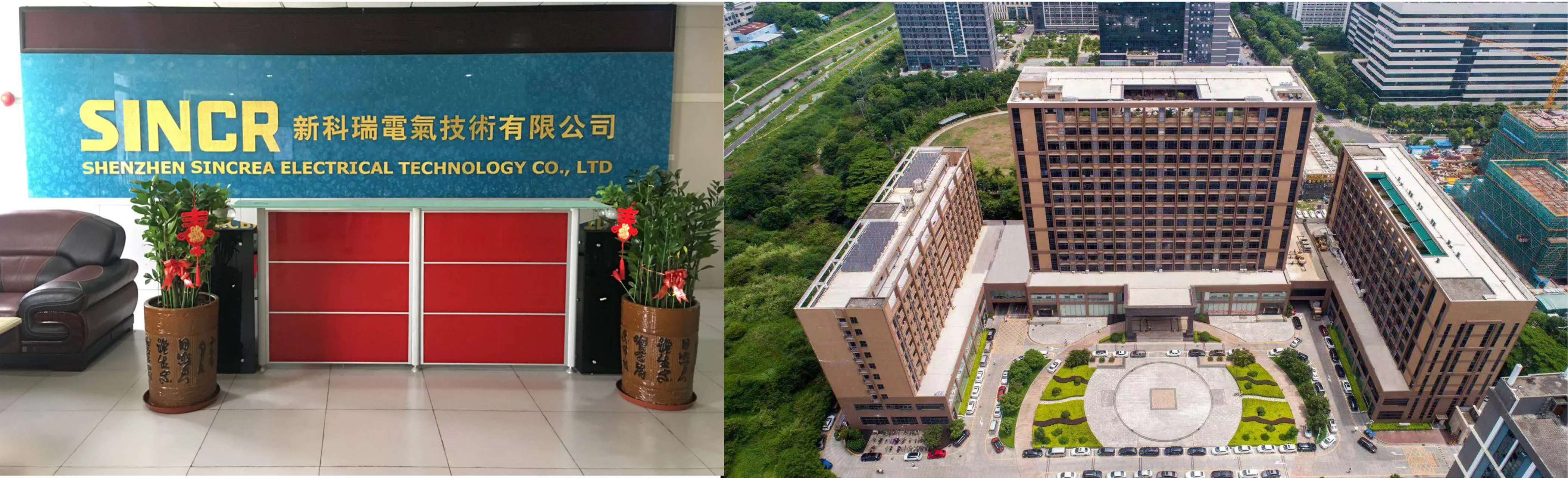

Company Information
Shenzhen SINCREA Elektrische Technologie Co., Ltd.Ist eine Nationale & Shen zhen High-Tech unternehmen spezialisierung inElektrische
Stick, frequenz inverter, industrielle steuerung, solar pumpe inverter, neue energie produkte rese arch und entwicklung, produktion und vertrieb.
SINCREA der produktion linie:Low, medium und high spannung wechselrichter, servo sticks, solar pumpe inverter, weiche starter, PLC,HMI,UPS
Und andere produkte. Das unternehmen hat bestanden ISO9001: 201 5 qualität systemcertificationUnd CE zertifizierung, weit verbreitet in kunststoff
Maschine, maschine werkzeug, textil, chemische, holzbearbeitung, metallurgie, bergbau, pharma-, keramik, papier, öl, druck-, lebensmittel-, hebe, aufzug,
Power und energie.
SINCREA wird sich an die markt-orientierte,Kunden-centric business philosophie, und kontinuierlichEntwickeln und verbessern
Unsere produkte zu bieten kundenMitDifferenziert produkte und dienstleistungen,UndSich zu einemBeliebteElektrische stick, neue energie, und system
Lösungen lieferant.
Certification
- CE & ISO9001 & 14001
Product Description
This product is specially designed solar pump inverters. Solar pump inverter transfer solar DC current to be AC to drive the water pump to work. With maximum power tracking (MPPT), light weak sleep, light intensity wake-up, protection for well lack of water,protection for tank full of water, underload protection, photovoltaic and grid automatic switching, unattended automatic operation and other control and protection functions.
No need for batteries, water storage instead of battery, easy installation, low cost and low maintenance, economical and environmental protection, zero carbon emissions, widely used in solar agricultural irrigation, irrigation station renovation, domestic water supply, desert greening, etc.area.

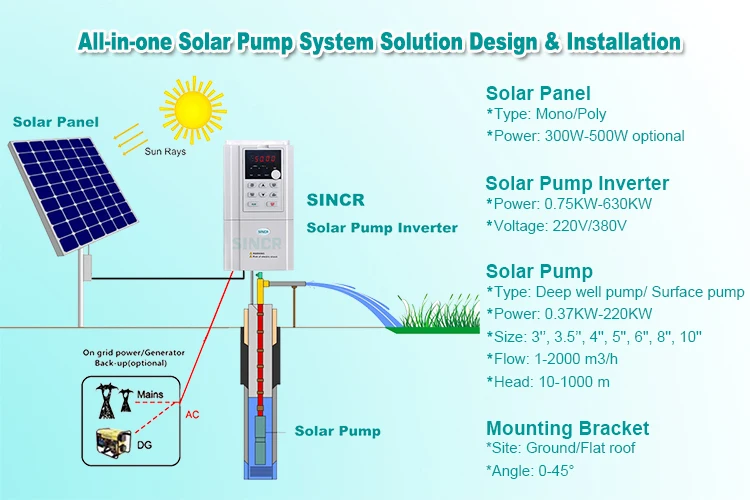

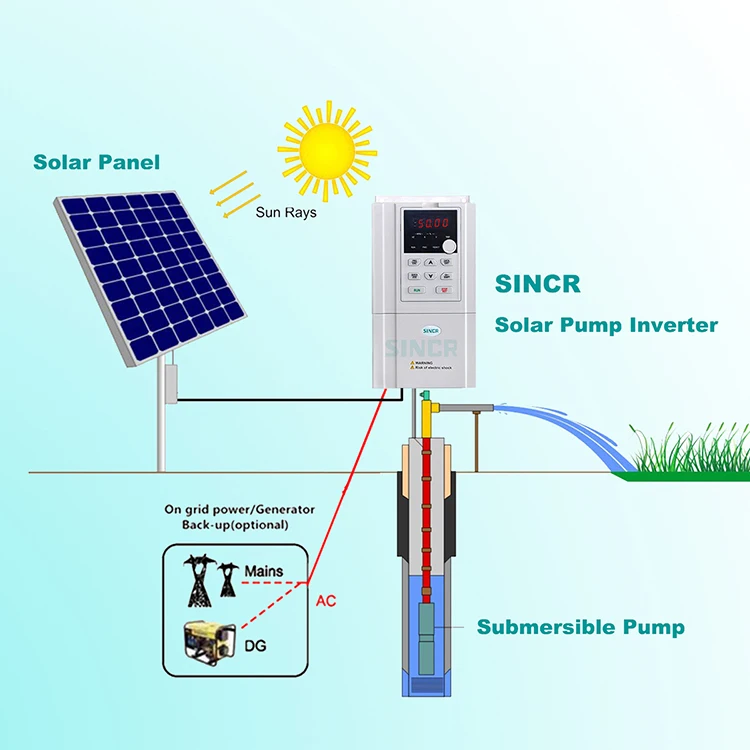

Working principle:

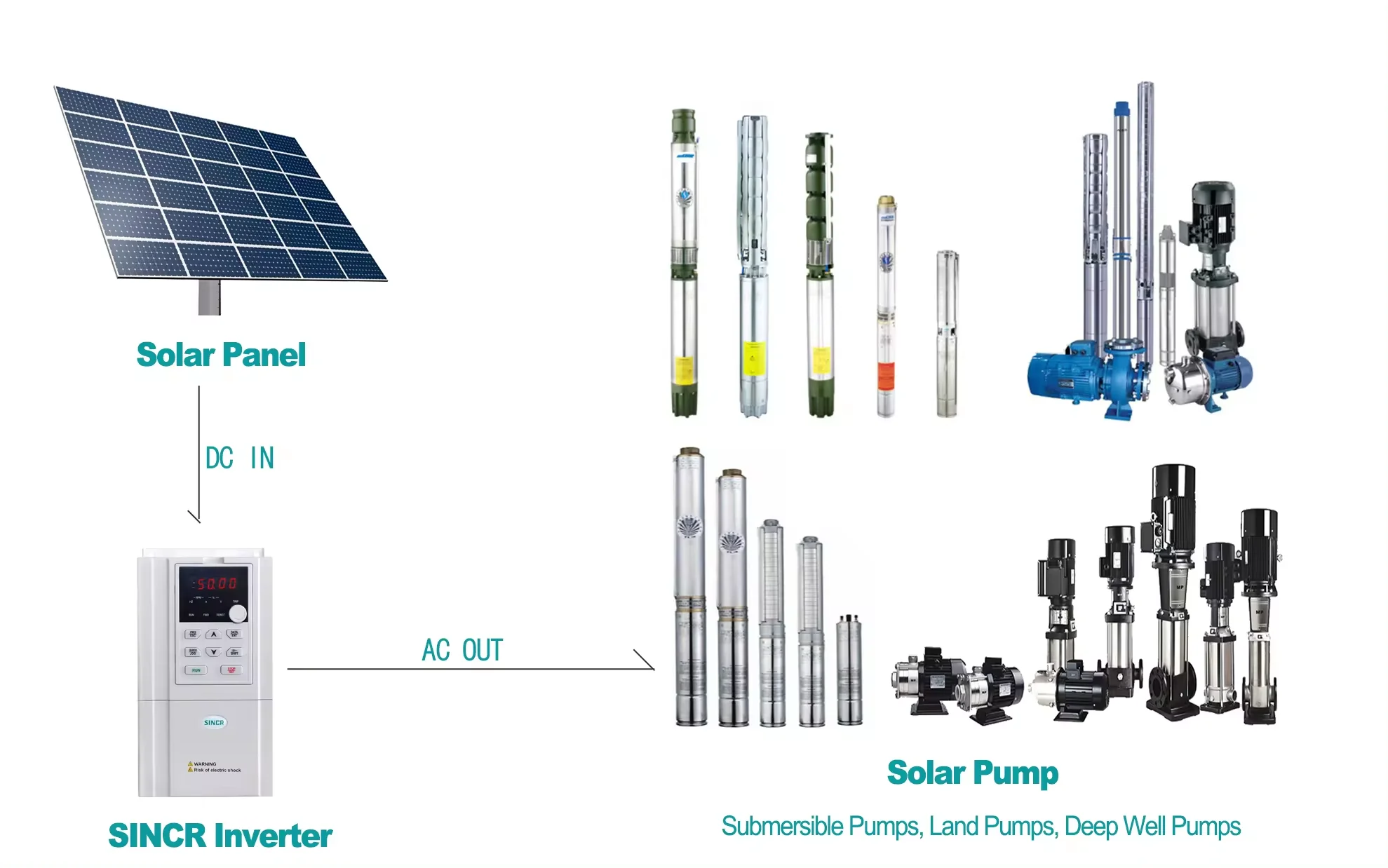

Solar pump inverter transfers solar DC current to be AC to drive the water pump to work, no need for battery, low cost and low maintenance.
Product Model No.

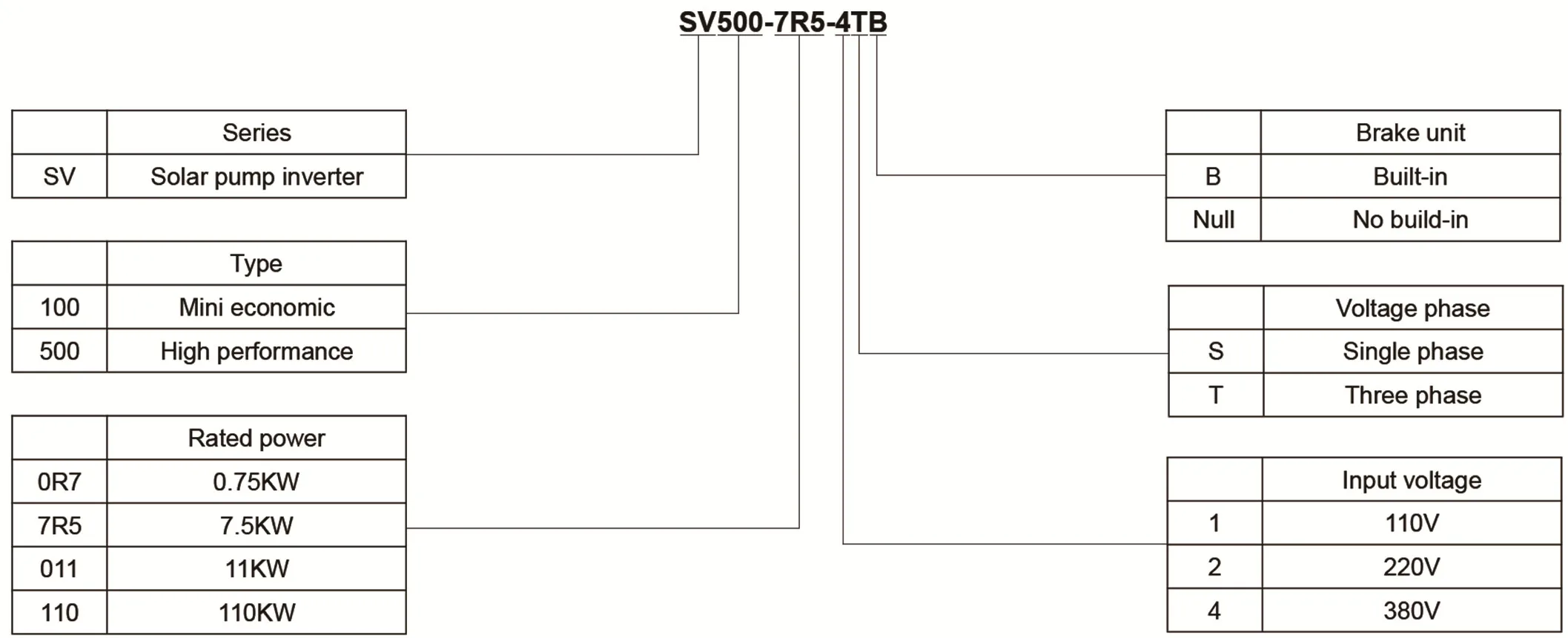

Model Definition
SV100 Series Solar Pump Inverter
| Model No. | AC input voltage(V) | MPPT voltage range (Vmp) | Output power(KW) | Input current(A) | Output current(A) |
| SV100-0R7-2SB | Single phase 220~240V AC250~350V DC | 0.75 | 8.2 | 4.5 | |
| SV100-1R5-2SB | 1.5 | 14.2 | 7 | ||
| SV100-2R2-2SB | 2.2 | 23 | 10 | ||
| SV100-0R7-2TB | 3 phase 220~240V AC | 250~350V DC | 0.75 | 5 | 4.5 |
| SV100-1R5-2TB | 1.5 | 7.7 | 7 | ||
| SV100-2R2-2TB | 2.2 | 11 | 10 | ||
| SV100-0R7-4TB | 3 phase380~480V | AC 500~700V DC | 0.75 | 3.4 | 2.5 |
| SV100-1R5-4TB | 1.5 | 5 | 3.7 | ||
| SV100-2R2-4TB | 2.2 | 5.8 | 5 | ||
| SV100-004-4TB | 4 | 10 | 9 | ||
Wire Connecting

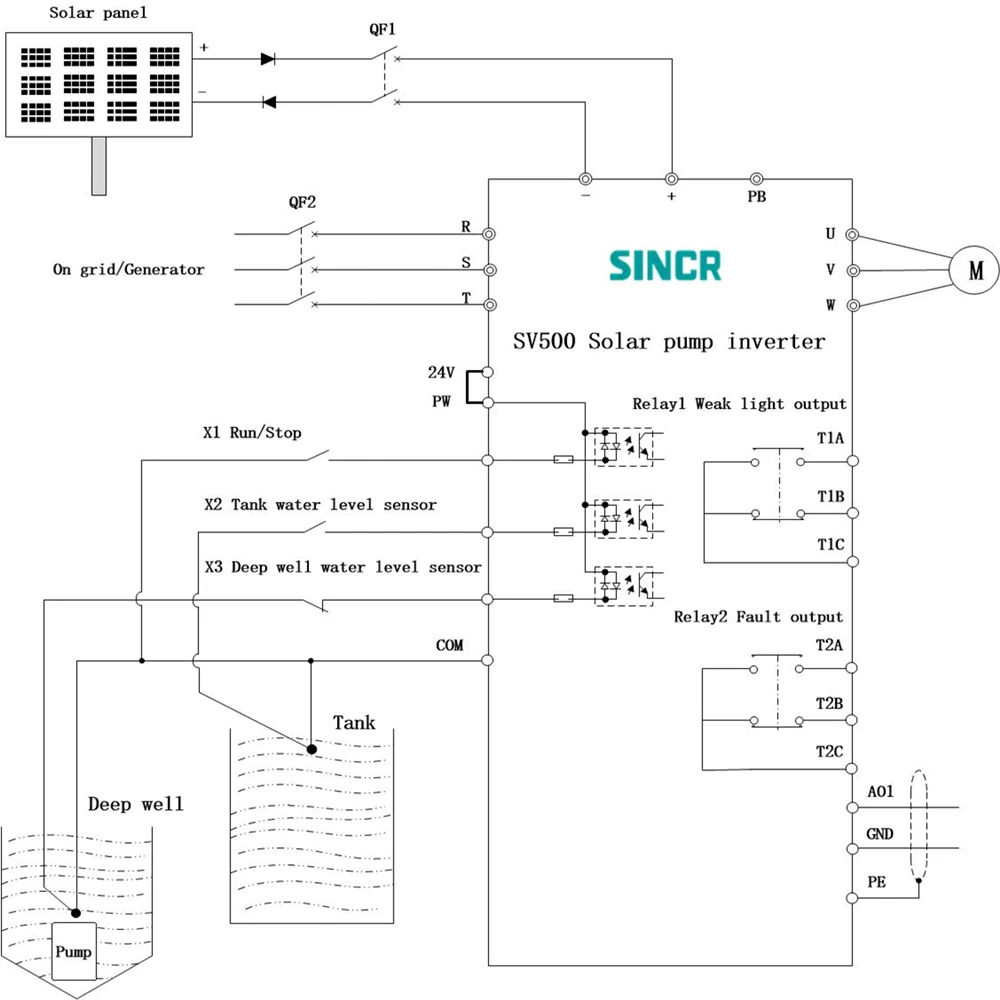

Solar Water Pump Inverter Wires Connecting Diagram

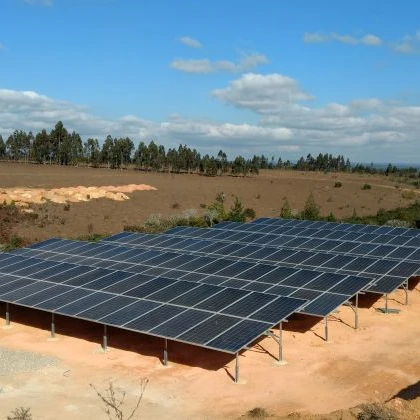

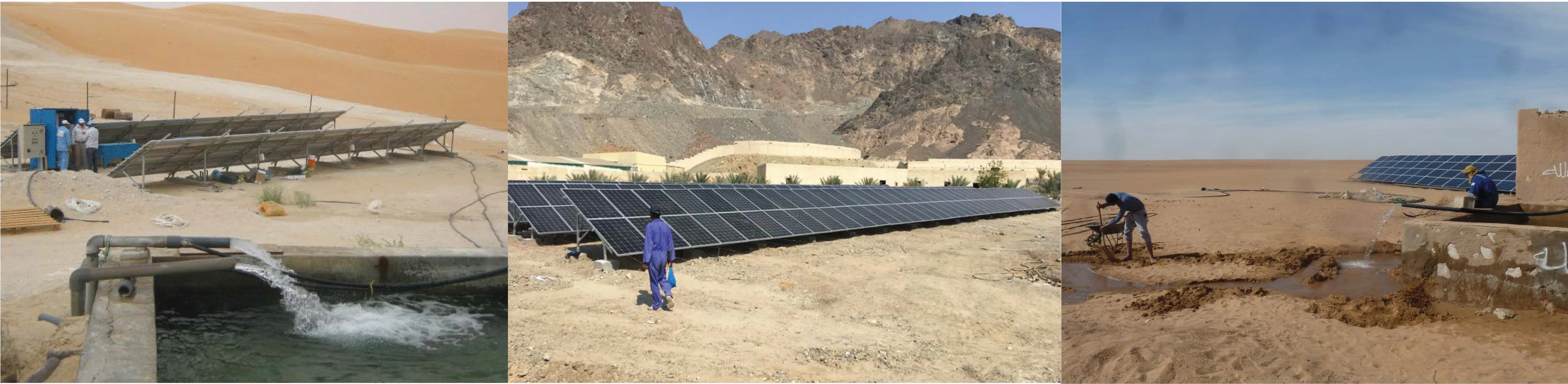

application
| Location | Muscat-Oman | |
| Purpose | Farm fishery,animal husbandry | |
| Water source | Tank | |
| Requiredments | The farm is located in the mountains and deserts,with drought and long sunshine radiation all the year,inconvenient for water supply,unable to meet the demand for electricity in the farm,and the high dependence of the fishery on water.Considering the power grid limit,the electricity price during the day is high and the electricity price is low at night.So to install SINCREA solar pump power supply system to provide protection for fishery on water.Considering the power grid limit,the electricity price during the day is high and the electricity price is low at night.So to install SINCREA solar pump power supply system to provide protection for fish farming and farm electricity,saving electricity costs. | |
| Solution | Water pump | 2pcs 15KW pump+8pcs |
| Solar panel | 150KW,480pcs 300W Mono solar panel in series | |
| Solar pump inverter | SINCREA,Model:SV500-015-4TB+SV500-7R5-4TB+SV500-004-4TB | |
| Mounting bracket | Ground fixed+roof type Q235 hot galvanized | |
| Accessories | DC/AC cables,MC4 connector,water level sensor,installation tools,DC/AC multi-meter.etc | |
| Benefits | The SINCREA 100KW ground fixed +50KW roof-type photovoltaic pump power supply system is installed in the farm.During the day,all solar energy is uesd to power the pump,and the electricity consumption at night is low.Now saves $1,500 om electricity bills per mouth,which nor noly solves the demand for electricity,but also saves the whole ocost of electricity. | |

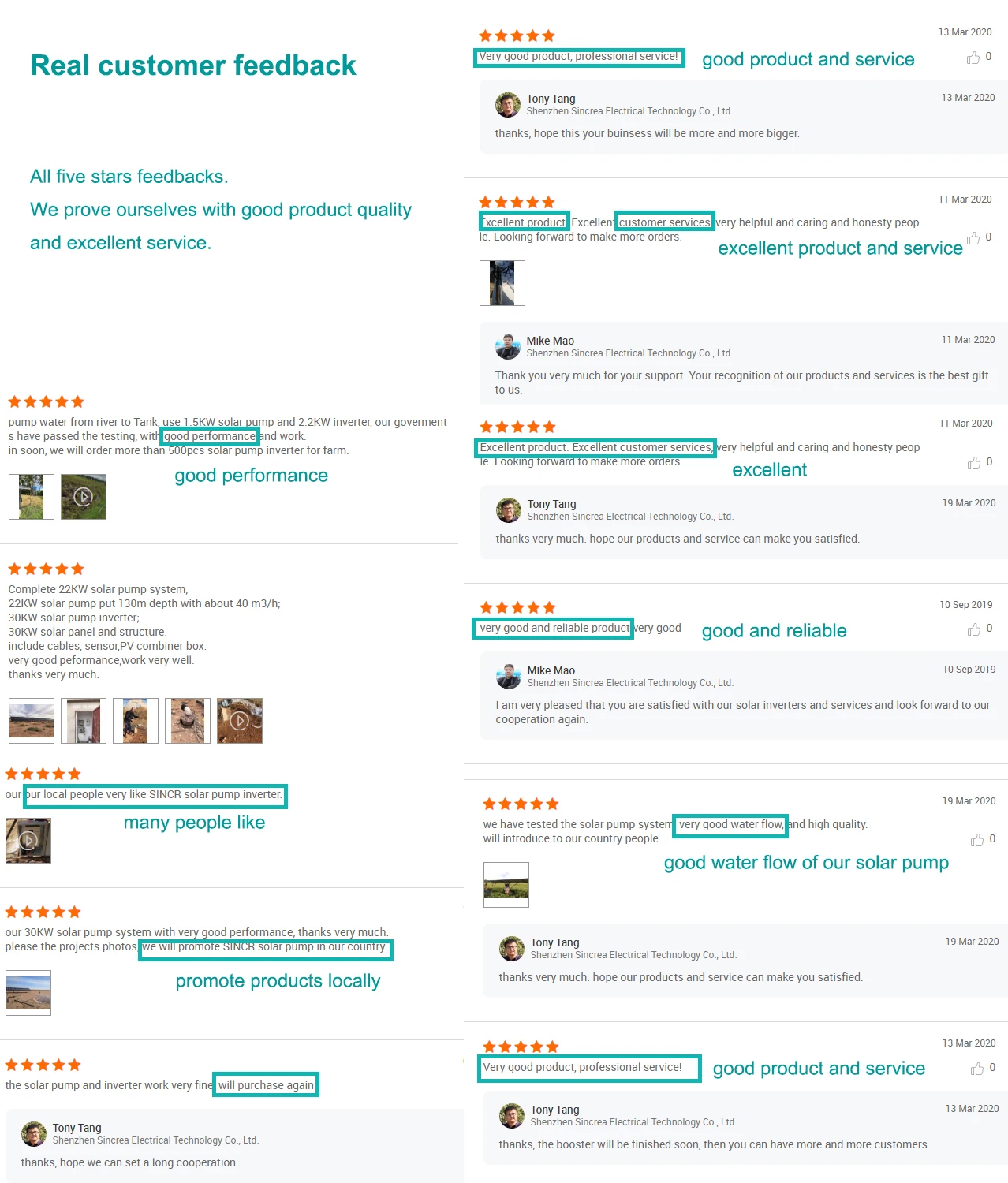

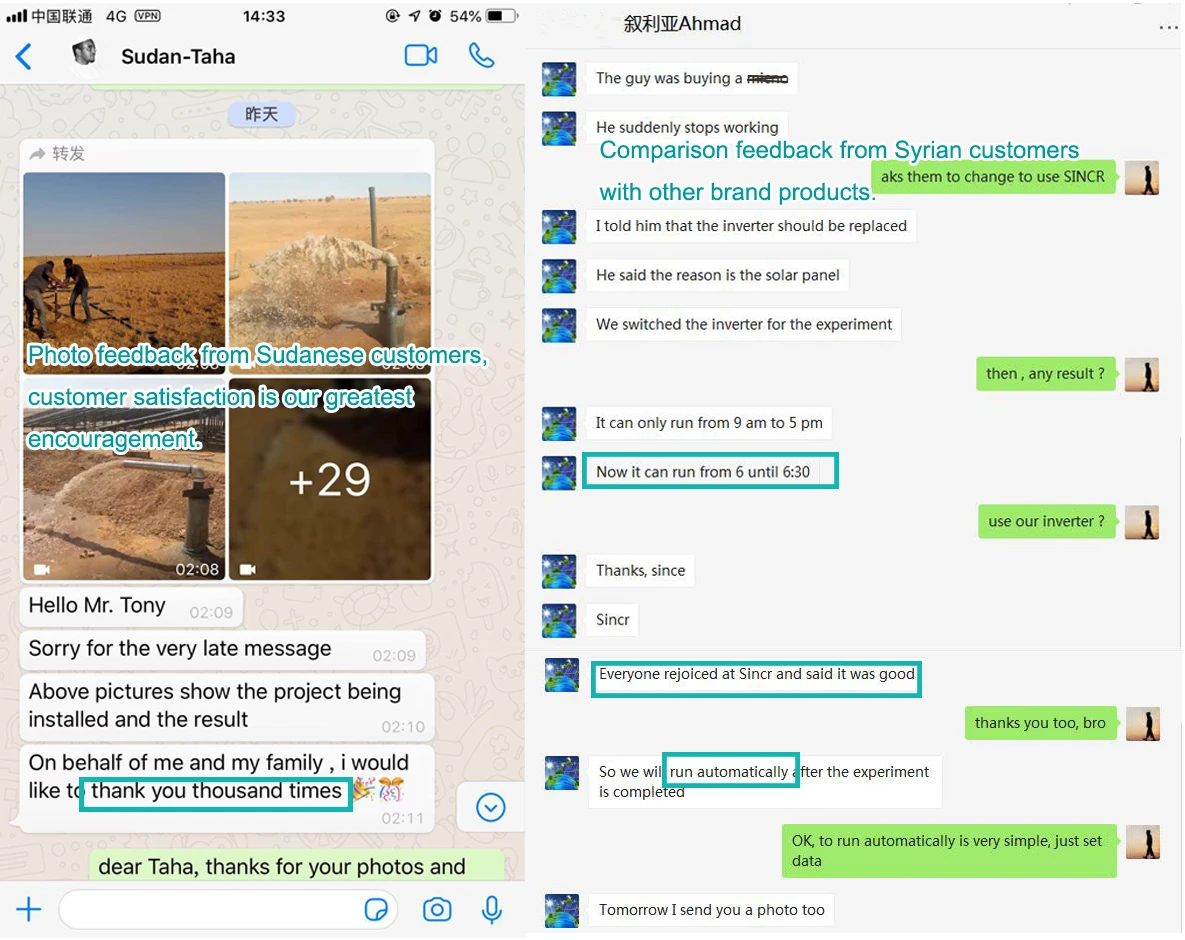

Customer's feedback
FAQ
Q1.what's your payment terms?
A:We accept L/C,T/T,Western Union,Money Gram,CNY.
Q2.How long does it take to deliver the goods?
A:If the stocks, usually sized orders are sent out within 14 working days.
Q3.How do you usually make delivery?How long?.
A:Courier delivery ( FedEx,DHL,UPS,EMS,TNT) takes 3-6 days depending on your destination.
Q4.How do you ship the products?
A:Sea Freight & Air Mail & Bulk Air Freight.
Q5.Do you support the oem business?
A:Yes,Including LOGO, outer packaging, graphics and user manual.Please email us that what you want to print.
Q6.How to choose right inverters and solar water pump?
A:Please tell us your requirements and questions, we will answer you as soon as possible.And we will consult our engineers and adjust the right equipment for you.
(Your other questions can leave a message.)
