P3.91 Rental LED Display Panel 500x500mm Seamless Splicing High Resolution Video Wall for Trade Shows Stage Backdrops
- Category: >>>
- Supplier: Shenzhen Sunrise Opto-Electronic Technology Co. Ltd.Shenzhen Ltd.
Share on (1601167770034):
Product Overview
Description
Input voltage | AC220V |
Operating temperature range | -20 ~ +60 ℃ |
Working Humidity | 10%-95% |
Maintenance method | Rear maintenance |
Lifespan | ≥100,000 hours |
Assembly precision between PCB | ≤1mm |
Installation method | Outdoor rental installation |
Model No | O3.91 | I2.6 | I2.98 | I3.91 | |||
Pixel pitch | 3.91mm | 2.604mm | 2.98mm | 3.91mm | |||
LED Type | SMD1921 | SMD 1515 | SMD2121 | SMD2121 | |||
Pixel Density | 65410 pixel/㎡ | 147475 pixel/㎡ | 112896 pixel/㎡ | 65410 pixel/㎡ | |||
Scan | 1/16 scan | 1/32 scan | 1/28 scan | 1/16 scan | |||
Cabinet Material | Die casting aluminum | ||||||
Cabinet Dimension (W*H*D) | 500x500x85mm/19.7”*19.7”*3.4” | ||||||
Cabinet Wight | 8kg | 8kg | 8kg | 8kg | |||
Cabinet Resolution | 128*128dots | 192*192dots | 168*168dots | 128*128dots | |||
Max power Consumption | 800w/㎡ | ||||||
Average power Consumption | 270w/㎡ | ||||||
Brightness | 4500 cd/㎡ | 800 cd/㎡ | 800 cd/㎡ | 1000 cd/㎡ | |||
Viewing Angle | H: 120° V:120° | ||||||
Refresh Rate | 3840Hz | ||||||
Gray Scale | 16bits | ||||||
High contrast | 4000:1 | ||||||
IP Rating | IP65 | IP43 | |||||
Operating Temperature | 20℃~ +60 ℃ | ||||||
Lifetime | 100,000hrs | ||||||
Gorgeous Appearance

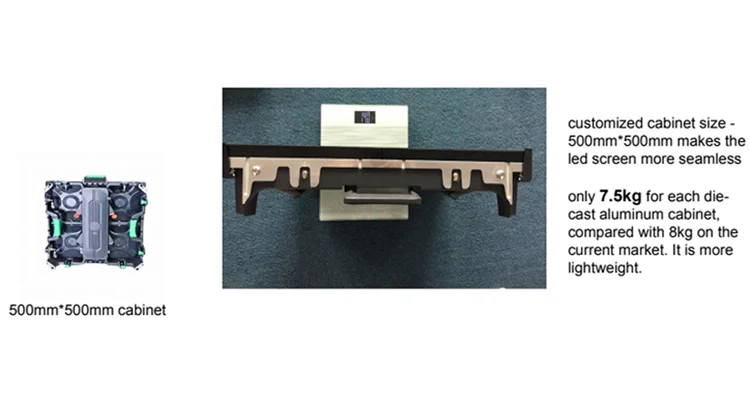

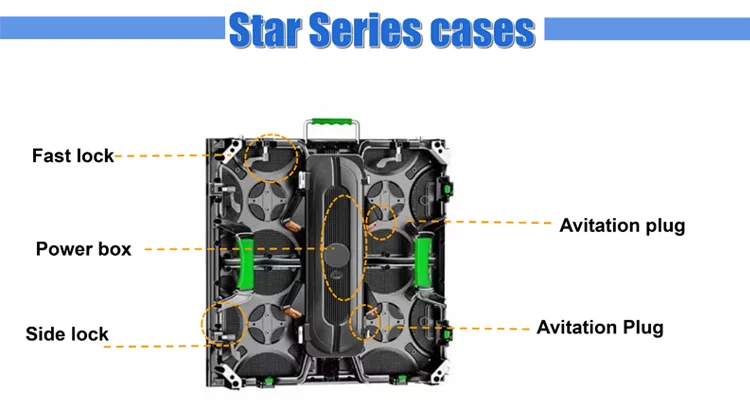

Specialized structure

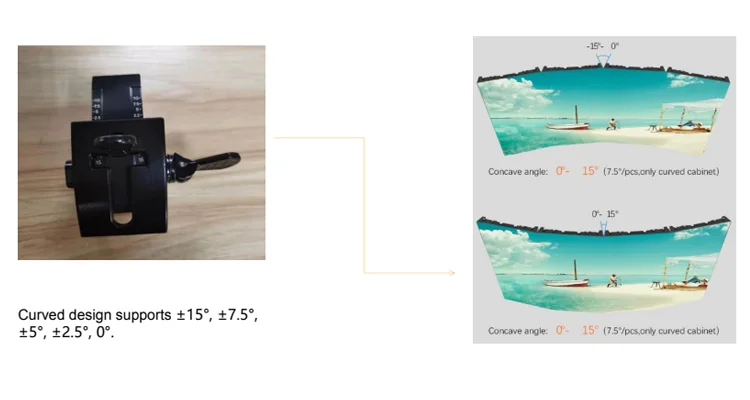

Specialized structure(optional)

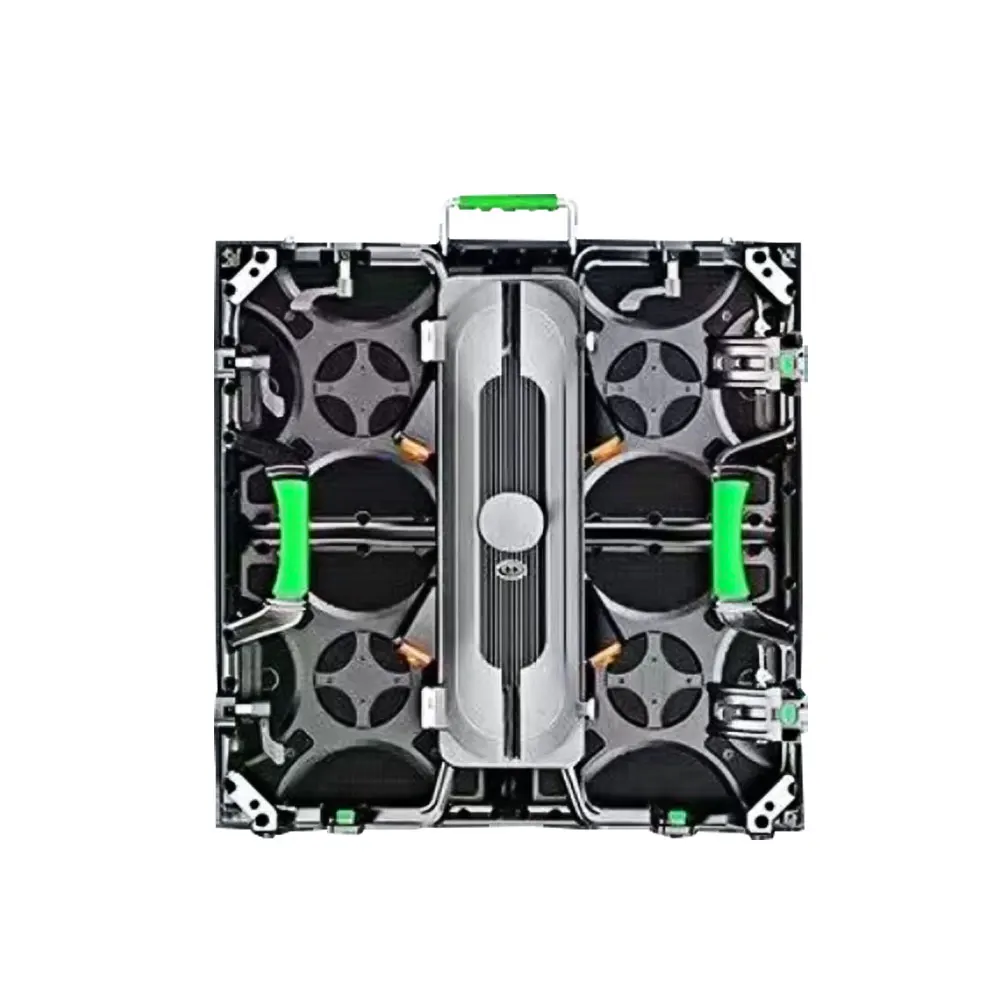

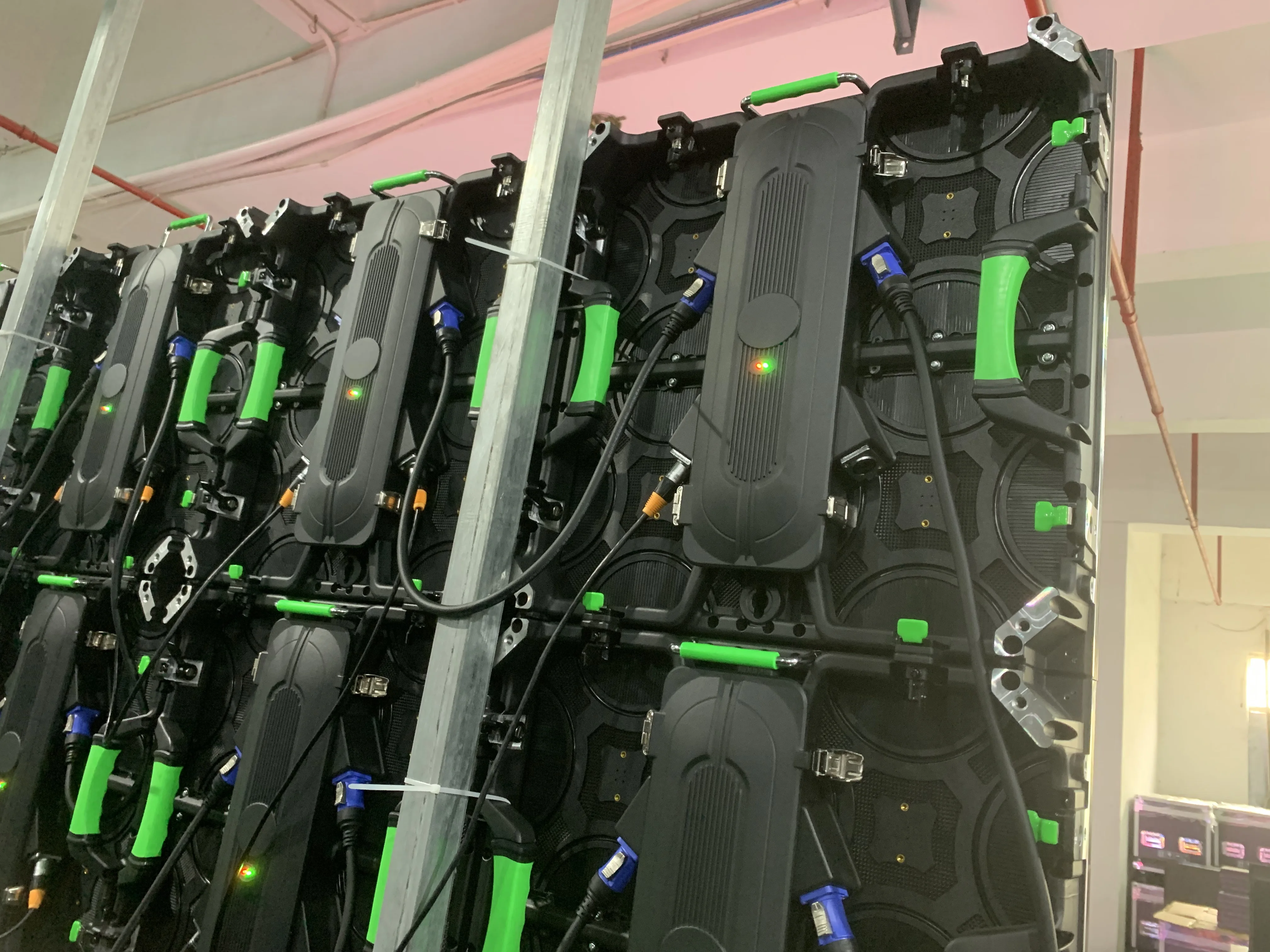

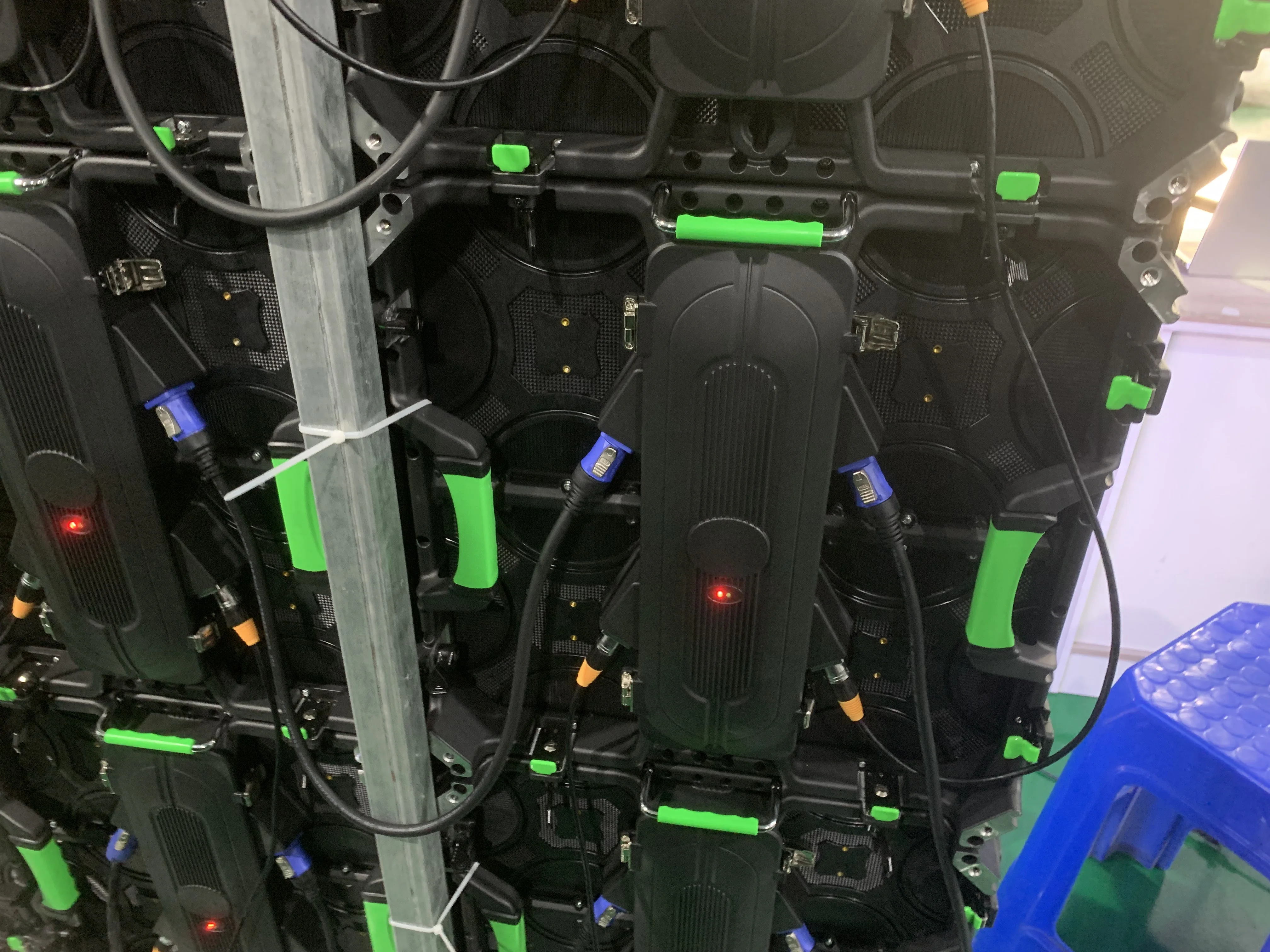

Back Side

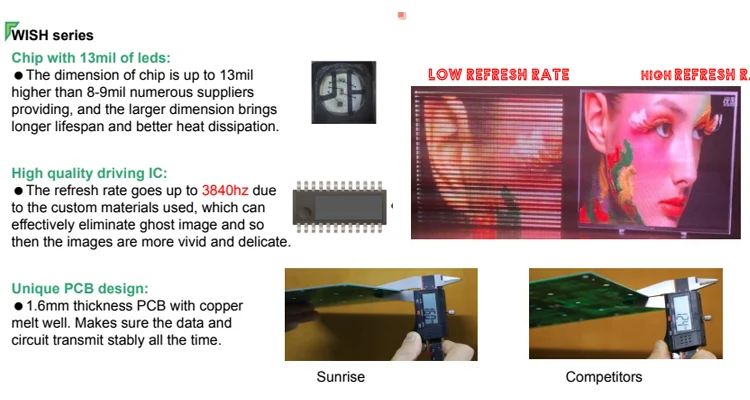

Advanced technique.

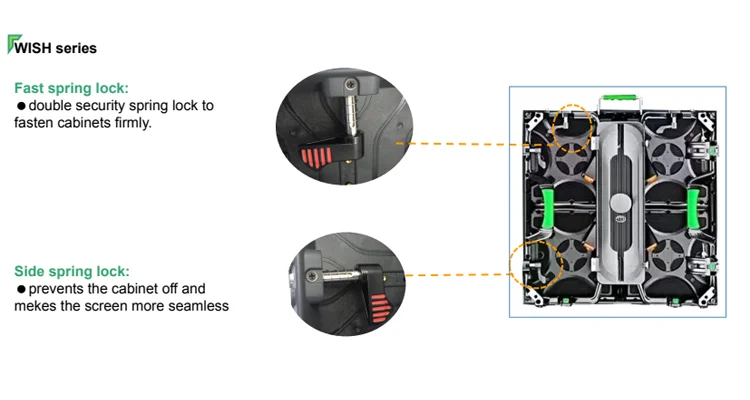

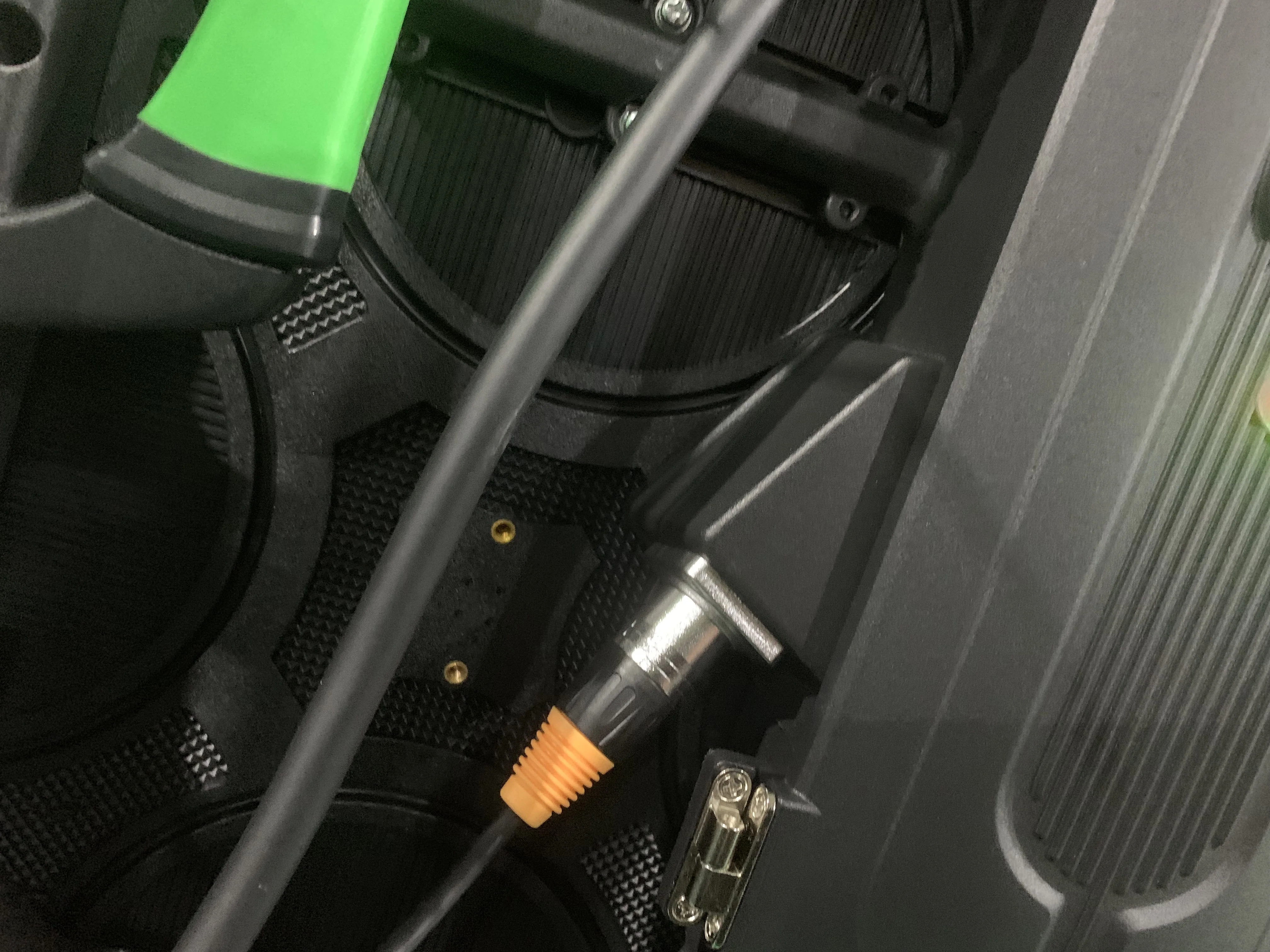

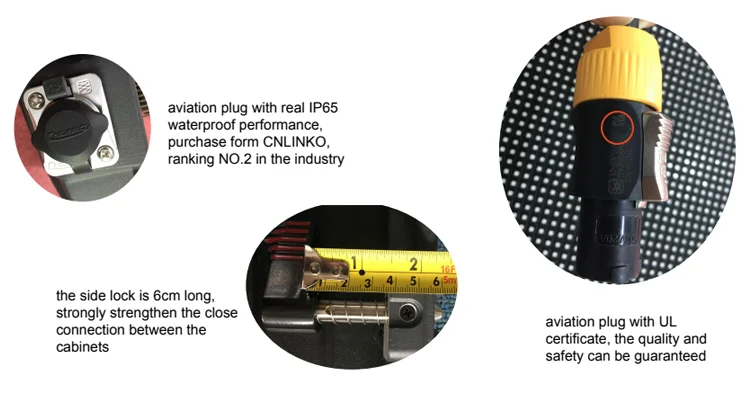

More specific details

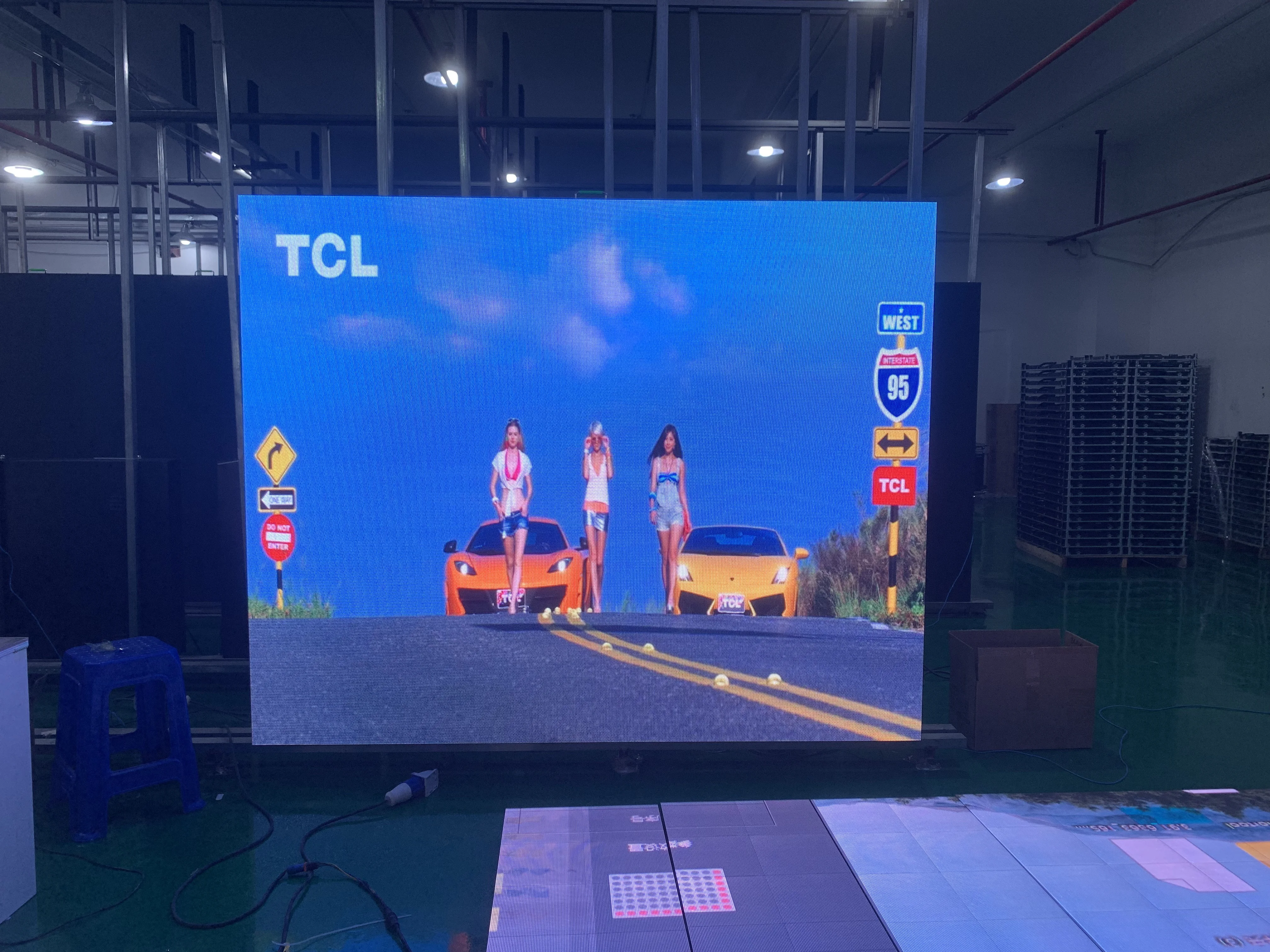

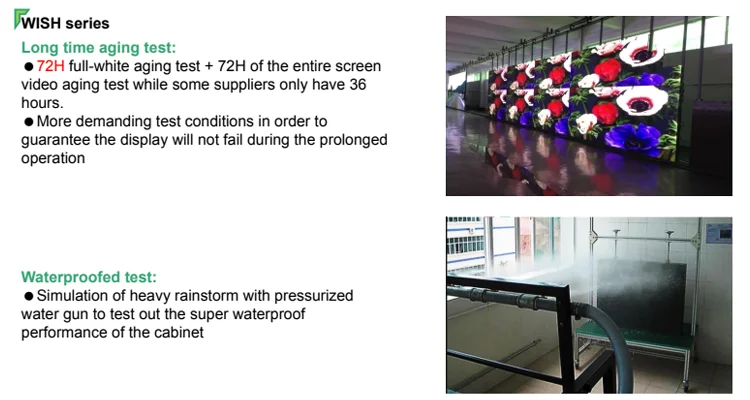

Strict tests before shipment

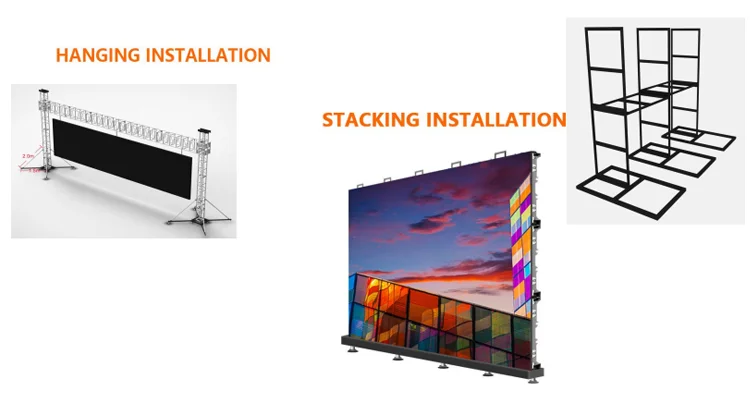

Two different installation solutions for your option
1. Payment Terms: T/T 30% as deposit before production, T/T 70% balance before delivery.
2. Lead Time: 25 working days since the deposit arrival.
3. Warranty: 2 years.
4. Valid period of this quotation is 30 days.
Warranty Terms
1. Guarantee time: 1 year quality guarantee (guarantee period), and we will provide free parts for replacement if
any problem belong to us during this period; after the guarantee period, the seller should provide spare parts for
replacement based on cost charge. (Spare parts are 1% of total project. For additional guarantee period, there
should be additional cost.)
replacement based on cost charge. (Spare parts are 1% of total project. For additional guarantee period, there
should be additional cost.)
2. The seller is responsible for permanent maintenance of the panel. During the guarantee period, the maintenance
is free of charge (except the defectiveness resulted from man-made damage or force majeure).
is free of charge (except the defectiveness resulted from man-made damage or force majeure).
3. During the guarantee period the buyer can return the defective components due to technical or quality problems
to the seller. The seller is obligated to finish fixing within 5 working days after receiving, and send it back to the
buyer without any repairing charge (the buyer should pay the one-way cost)
to the seller. The seller is obligated to finish fixing within 5 working days after receiving, and send it back to the
buyer without any repairing charge (the buyer should pay the one-way cost)
.
