Industrial Cement Dry Limestone Ball Mill Calcium Carbonate Powder Plant 5500 X 8500 Ball Mill With Ceramic Ball
Industrial Cement Dry Limestone Ball Mill Calcium Carbonate Powder Plant 5500 X 8500 Ball Mill With Ceramic Ball
Industrial Cement Dry Limestone Ball Mill Calcium Carbonate Powder Plant 5500 X 8500 Ball Mill With Ceramic Ball
Industrial Cement Dry Limestone Ball Mill Calcium Carbonate Powder Plant 5500 X 8500 Ball Mill With Ceramic Ball
Industrial Cement Dry Limestone Ball Mill Calcium Carbonate Powder Plant 5500 X 8500 Ball Mill With Ceramic Ball
Industrial Cement Dry Limestone Ball Mill Calcium Carbonate Powder Plant 5500 X 8500 Ball Mill With Ceramic Ball
Industrial Cement Dry Limestone Ball Mill Calcium Carbonate Powder Plant 5500 X 8500 Ball Mill With Ceramic Ball

Industrial Cement Dry Limestone Ball Mill Calcium Carbonate Powder Plant 5500 X 8500 Ball Mill With Ceramic Ball

Share on (1601167960041):


Price:$3,500.00 - $8,000.00

Quantity:


Product Overview

Description



Products Description

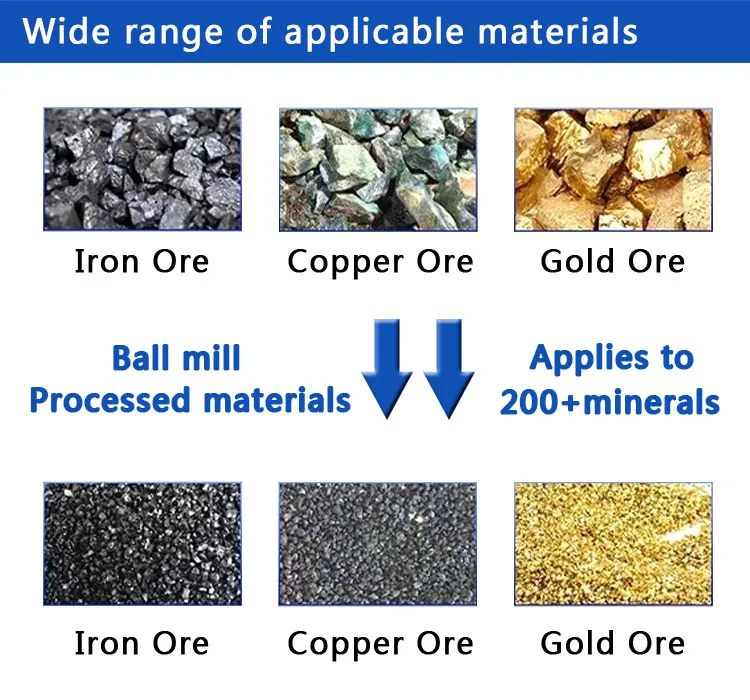

Ball mill is a key piece of equipment for grinding crushed materials, and it is widely used in production lines for powders such as cement, silicates, refractory material, fertilizer, glass ceramics, etc., as well as for ore dressing of ferrous and
non-ferrous metals. The ball mill can grind ores and other materials, wet or dry, capable of handling hard material such as
feldspar, quartz, iron ore, gold ore, etc.
As a popular grinding mill for use in ore dressing and cement ceramics production, it comminutes over 200 materials with flexibledesign, high throughput capacity, fine granularity, easy structure, minimal maintenance, dependable performance, and long service life.




Working principle

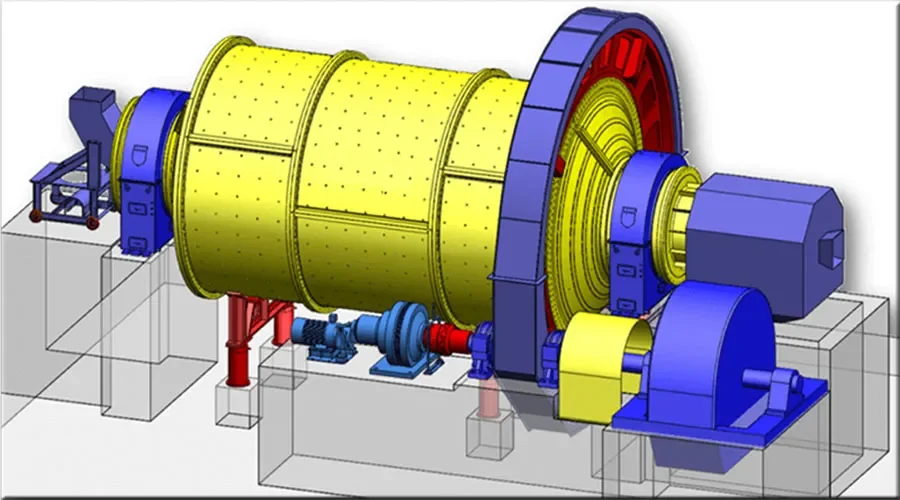

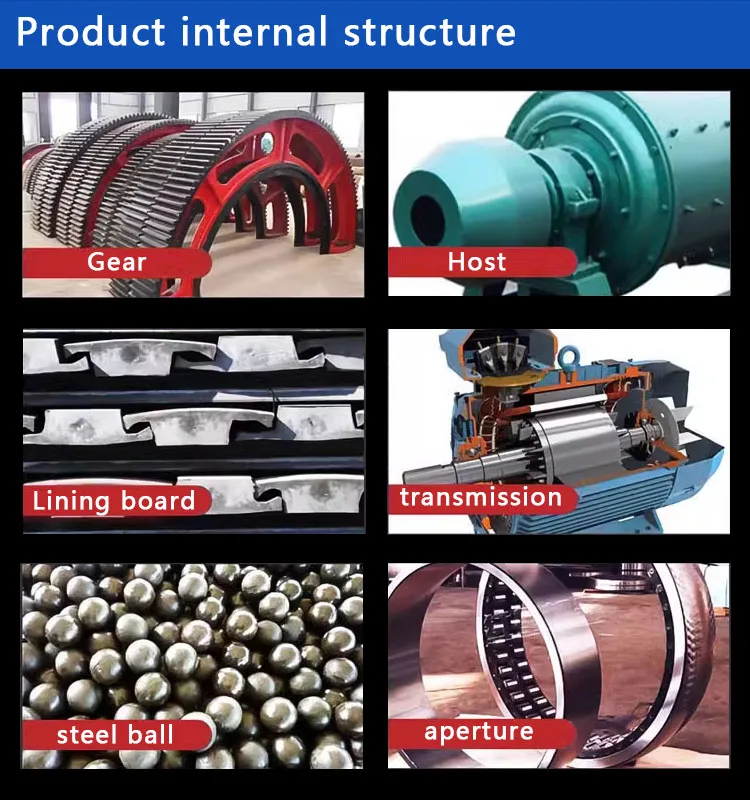

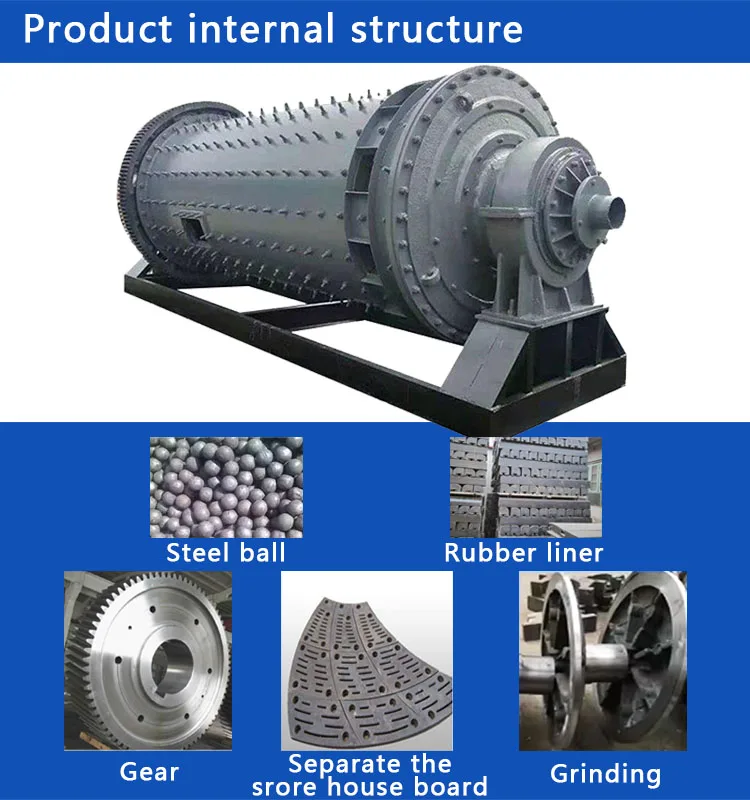

The ball mill is horizontal cylindrical rotation device,driving by brim gearwheel, there are two chambers and grid. Material goes into the first chamber through the feeding inlet, inside the first chamber, there are stage liners and ripple liners as well as steel balls with various kinds.The shell rotates which generates eccentricity, this force brings balls to a certain height and then balls drop down by gravity, which will impact and grind the material. After the primary grinding in the first chamber,material goes into the second chamber through segregate screen, in the second chamber, there are fiat liners and steel balls,after the secondary grinding, material is discharged through the discharge screen.






Product Paramenters


Model
Shell rotation speed
（r/min）
Ball load
(t)
Feeding size
(mm)
Discharging size
(mm)
Capacity
(t/h)
Motor power
(kw)
Total weight
(t)
Ф900×1800
36-38
1.5
<20
0.075-0.89
0.65-2
18.5
5.85
Ф900×3000
36
2.7
<20
0.075-0.89
1.1-3.5
22
6.98
Ф1200×2400
36
3
<25
0.075-0.6
1.5-4.8
30
13.6
Ф1200×3000
36
3.5
<25
0.074-0.4
1.6-5
37
14.3
Ф1200×4500
32.4
5
<25
0.074-0.4
1.6-5.8
55
15.6
Ф1500×3000
29.7
7.5
<25
0.074-0.4
2-5
75
19.5
Ф1500×4500
27
11
<25
0.074-0.4
3-6
110
22
Ф1500×5700
28
12
<25
0.074-0.4
3.5-6
130
25.8
Ф1830×3000
25.4
11
<25
0.074-0.4
4-10
130
34.5
Ф1830×4500
25.4
15
<25
0.074-0.4
4.5-12
155
38
Ф1830×6400
24.1
21
<25
0.074-0.4
6.5-15
210
43
Ф1830×7000
24.1
23
<25
0.074-0.4
7.5-17
245
43.8
Ф2100×3000
23.7
15
<25
0.074-0.4
6.5-36
155
45
Ф2100×4500
23.7
24
<25
0.074-0.4
8-43
245
56
Ф2100×7000
23.7
26
<25
0.074-0.4
12-48
280
59.5
Ф2200×4500
21.5
27
<25
0.074-0.4
9-45
280
54.5
Ф2200×6500
21.7
35
<25
0.074-0.4
14-26
380
61
Ф2200×7000
21.7
35
<25
0.074-0.4
15-28
380
62.5
Ф2200×7500
21.7
35
<25
0.074-0.4
15-30
380
64.8
Ф2400×3000
21
23
<25
0.074-0.4
7-50
245
58
Ф2400×4500
21
30
<25
0.074-0.4
8.5-60
320
72
Ф2700×4000
20.7
40
<25
0.074-0.4
22-80
380
95
Ф2700×4500
20.7
48
<25
0.074-0.4
26-90
480
102
Ф3200×4500
18
65
<25
0.074-0.4
As per process conditions
630
149
Ф3600×4500
17
90
<25
0.074-0.4
As per process conditions
850
169
Ф3600×6000
17
110
<25
0.074-0.4
As per process conditions
1250
198
Ф3600×8500
18
131
<25
0.074-0.4
45.8-256
1800
260
Ф4000×5000
16.9
121
<25
0.074-0.4
45-208
1500
230
Ф4000×6000
16.9
146
<25
0.074-0.4
65-248
1600
242
Ф4000×6700
16.9
149
<25
0.074-0.4
75-252
1800
249
Ф4500×6400
15.6
172
<25
0.074-0.4
84-306
2000
280
Ф5030×6400
14.4
216
<25
0.074-0.4
98-386
2500
320
Ф5030×8300
14.4
266
<25
0.074-0.4
118-500
3300
403
Ф5500×8500
13.8
338
<25
0.074-0.4
148-615
4500
525


Technical Parameters of wet Type Ball Mill


Model
Shell Size(mm)
Effective Volume(m3)
Grinding Media Weight(t)
Rotate Speed(r/min)
Power(kW)
Discharge Size(㎜)
Capacity (t/h)
Remark
Dia.×Length
GMQG1530
1500×3000
4
8
27.6
75
0.8-0.074
12-2.8
380V
GMQG1535
1500×3500
4.6
11
27.6
75-90
0.8-0.074
14-3.4
380V
GMQG1830
1800×3000
6.5
13
25.3
132
0.8-0.074
21-4.8
380V
GMQG1835
1800×3500
7.58
16
25.3
160
0.8-0.074
25-5.8
380V
GMQG1840
1800×4000
8.65
17.3
25.3
185
0.8-0.074
28-6.6
380V
GMQG1845
1800×4500
9.75
19.5
25.3
210
0.8-0.074
31-7.2
380V
GMQG2122
2100×2200
6.7
14.7
23.8
160
0.8-0.074
24-5.3
380V
GMQG2130
2100×3000
9.2
17
23.8
185
0.8-0.074
26-6.0
380V
GMQG2136
2100×3600
11
19
23.8
210
0.8-0.074
29-6.5
380V
GMQG2140
2100×4000
12.2
20.5
23.8
220
0.8-0.074
32-7.2
380V
GMQG2145
2100×4500
13.8
22
23.8
250
0.8-0.074
36-8.1
380V
GMQG2424
2400×2400
9.8
20
22.8
220
0.8-0.074
32-6.6
380V
GMQG2430
2400×3000
12.2
25
22.8
250
0.8-0.074
38-7.5
380V
GMQG2436
2400×3600
14.6
30
22.8
280
0.8-0.074
42-8.5
380V
GMQG2440
2400×4000
16.2
33
22.8
355
0.8-0.074
47-9.5
380V
GMQG2445
2400×4500
18.2
37
22.8
400
0.8-0.074
55-10.5
380V
GMQG2721
2700×2100
10.7
24
21.7
280
3.0-0.074
84-8.5
6-10KV
GMQG2727
2700×2700
13.8
29
21.7
315
3.0-0.074
105-9.0
6-10KV
GMQG2730
2700×3000
15.3
32.5
21.7
355
3.0-0.074
120-10
6-10KV
GMQG2736
2700×3600
18.4
39
21.7
400
3.0-0.074
145-12
6-10KV
GMQG2740
2700×4000
20.5
43
21.7
450
3.0-0.074
159-13
6-10KV
GMQG2745
2700×4500
23
50
21.7
500
3.0-0.074
180-15
6-10KV
GMQG3231
3200×3100
22.65
46.9
18.6
500
3.0-0.074
182-16
6-10KV
GMQG3236
3200×3600
26.2
52
18.6
560
3.0-0.074
190-19
6-10KV
GMQG3240
3200×4000
29.2
57
18.6
630
3.0-0.074
210-22
6-10KV
GMQG3245
3200×4500
32.8
65
18.6
710-800
3.0-0.074
235-29
6-10KV
GMQG3254
3200×5400
39.2
81.6
18.6
800-1000
3.0-0.074
280-35
6-10KV
GMQG3640
3600×4000
35.6
75
17.3
800
3.0-0.074
230-25
6-10KV
GMQG3645
3600×4500
40.8
88
17.3
1000
3.0-0.074
259-29
6-10KV
GMQG3650
3600×5000
45.3
96
17.3
1120
3.0-0.074
288-35
6-10KV
GMQG3660
3600×6000
54.4
117
17.3
1250-1500
3.0-0.074
310-38
6-10KV
GMQG3685
3600×8500
79
144
17.3
1800
3.0-0.074
450-50
6-10KV


Application




Company Profile




FAQ


Q: Why Choose Us?
1). Several Year's Experience We have rich experience in equipment manufacturing. Our machines have high
reputation both China and abroad (Such as the Middle East, Southeast Asia, Africa and so on more than 10 countries and regions.)
2). Manufacturer, Not trading company Factory direct sale makes price more competitive. Welcome our clients come to visit our factory.
3). Fast Delivery We promise the goods can be shipped out on delivery date after confirmation of the order.

Q: How do I know the quality of your machine?
A: You can send your raw materials to us and we will test the machine for you without charging the fees. And we can send the machine test video to you.Or you can come to the factory with your raw material we test the machine together.

Q: Which brand of motor will you use?
A: We use domestic motor manufatured by Chinese-famous suppliers, but we can also based on your requiremnts custom other brand.
Q: Will you dispatch the engineer to guide installation?
A: Yes, according to the customer's requirement, we will dispatch engineers to guide installation and traning about the operation of the machine.For the small machine we have the machine video help you install. Engineers 24 hours online guidance installation, timely and efficient to ensure that the machine into production as soon as possible.
