Price:$710.00-810.00

Quantity:


Product Overview

Description







Model
Air volume
(m³/h)
Inlet flow rate
(m/s)
Equipment resistance
(Pa)
Dust removal efficiency (%)
Dimensions(mm)
(L×W×H)
Equipment weight
(Kg)
QLXF-3.0
636~1052
12~20
800~1800
85~98
Φ300×1360
46
QLXF-4.2
1149~1915
12~20
800~1800
85~98
Φ420×1880
83
QLXF-5.4
2094~3485
12~20
800~1800
85~98
Φ540×2400
134
QLXF-7.0
3656~4867
12~20
800~1800
85~98
Φ700×3080
222
QLXF-8.2
5200~8330
12~20
800~1800
85~98
Φ820×3600
309
QLXF-9.4
6558~10929
12~20
800~1800
85~98
Φ940×4110
396
QLXF-10.6
8328~13881
12~20
800~1800
85~98
Φ1060×4620
498
QLXF-12.5
12150~18230
12~18
800~1500
85~95
Φ1250×5100
950
QLXF-15
17500~26240
12~18
800~1500
85~95
Φ1500×6100
1330
QLXF-17.5
23820~35720
12~18
800~1500
85~95
Φ1750×7120
2250
QLXF-20.0
31100~46660
12~18
800~1500
85~95
Φ2000×8120
2900
QLXF-22.5
39370~59050
12~18
800~150C
85~95
Φ2250×9210
4360
QLXF-25.0
48600~72900
12~18
800~1500
85~95
Φ2500×10120
5320
QLXF-27.5
58810~88210
12~18
800~1500
85~95
Φ2750×11150
6480
QLXF-30.0
69980~104980
12~18
800~1500
85~95
Φ3000×12150
7660




Introduction to Cyclone Dust Collector。

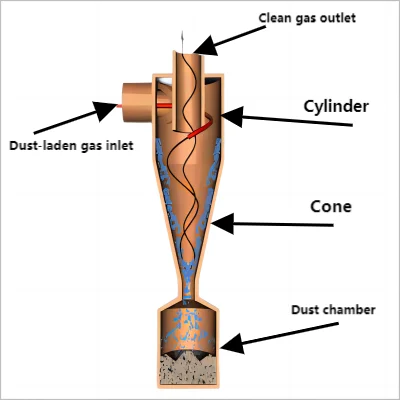

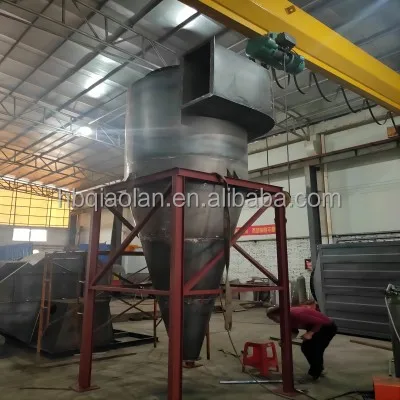

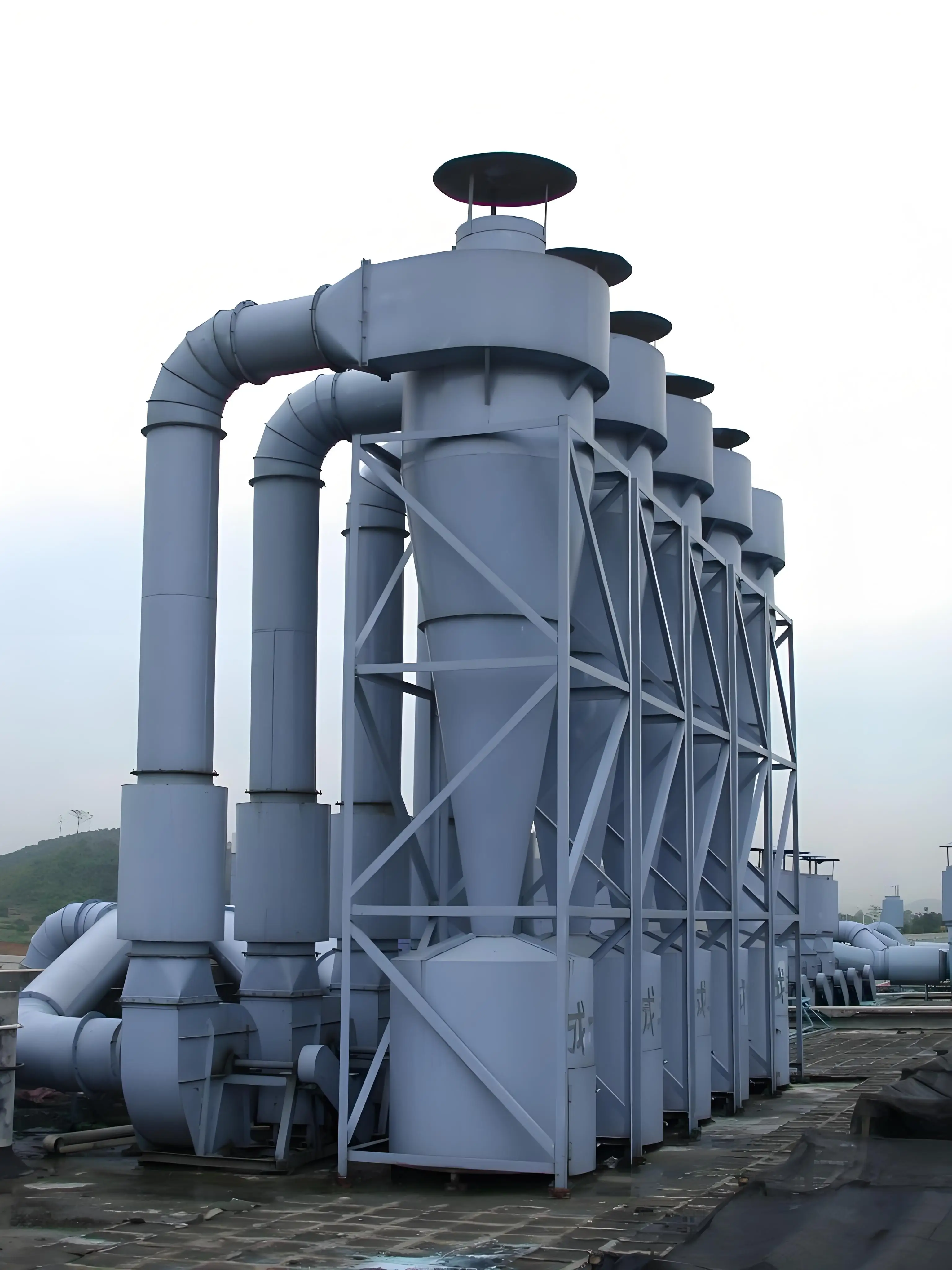

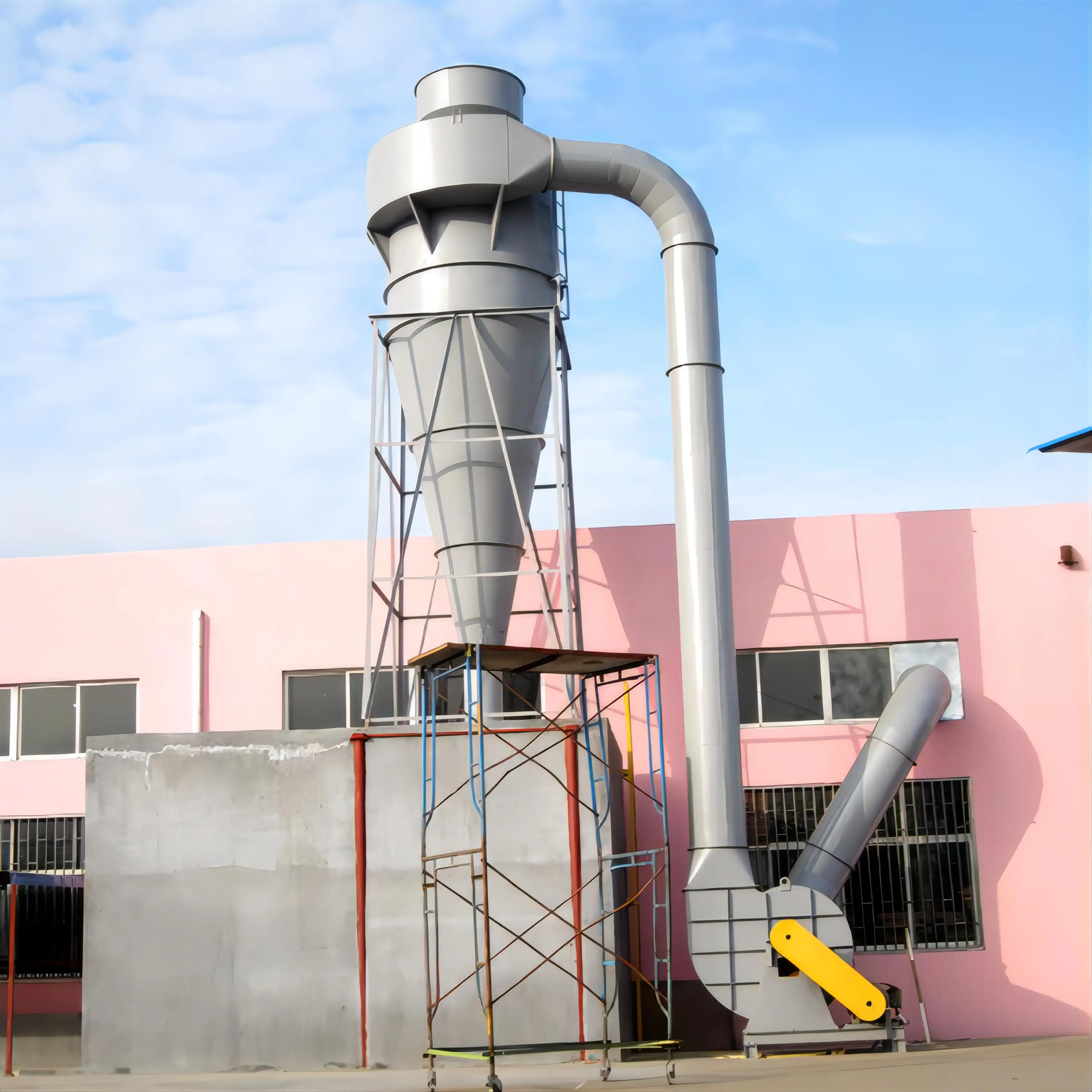

Cyclone dust collector is a type of dust removal device. The dust removal mechanism is to make the dust-laden airflow rotate, separate the dust particles from the airflow and capture them on the wall by centrifugal force, and then make the dust particles fall into the ash hopper by gravity. Each component of the cyclone dust collector has a certain size ratio. Every change in the ratio relationship can affect the efficiency and pressure loss of the cyclone dust collector. Among them, the diameter of the dust collector, the size of the air inlet, and the diameter of the exhaust pipe are the main influencing factors.



























Q1:Are you a factory or trading company?
A1:We are a professional manufacturer of industrial vacuum cleaners and dust collectors in China with a history of more than 30 years.

Q2:How about the quality of your machines?
A2：We have our own research and development team, experienced technicians and professional staff, and we pay attention to every detail in manufacturing to ensure the high quality of the machine.

Q3:Can you make customized products?
A3:Yes, we can produce according to your sample or detailed drawings.

Q4:What are your terms of payment?
A4:Telegraphic transfer/Western Union/cash, 70% deposit, 30% balance paid before delivery, sight letter of credit is acceptable.

Q5 :Where is your factory located? How can I visit there?
A5:Our factory is located in Botou City, Hebei Province, China, near to the Beijing.There are two ways to get to our company.
1,Fly to Beijing airport, take the high-speed train from Beijing south to Cangzhou West (1 hour), then we can pick you up.
2, Fly to Shanghai Airport, take the high-speed train from Shanghai Hongqiao to Cangzhou West (4.5 hours), then we can pick you up.

Q6: Where is the nearest port to you?
A6: Our nearest port is Tianjin Port, other ports can also deliver goods.

Q7 :How can I contact you?
A7: Please look at my business card and feel free to talk to me. Or send an email and I will reply you within 24 hours with the best solution and price to you.
