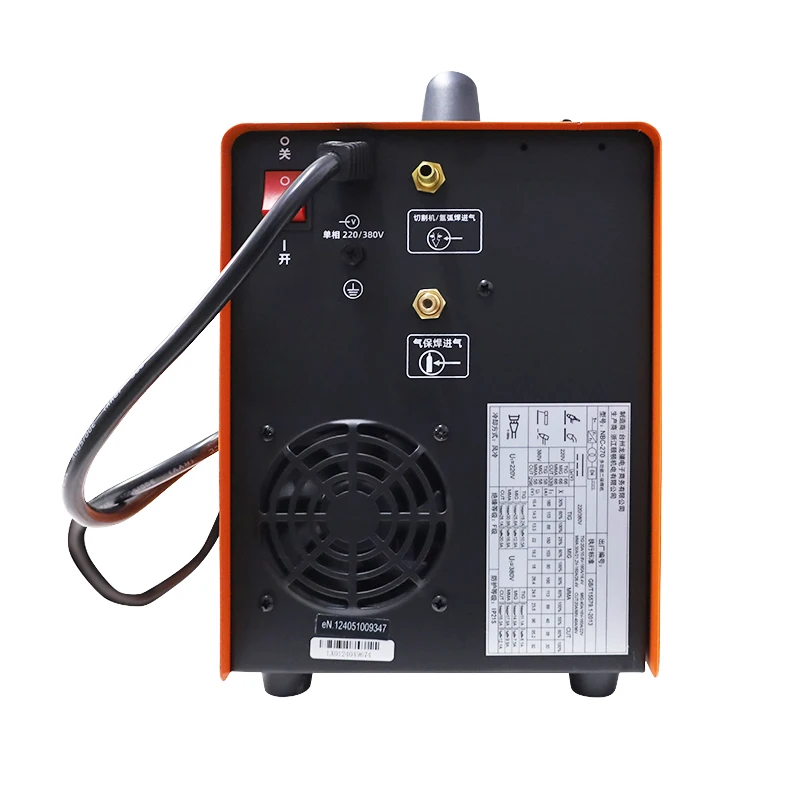

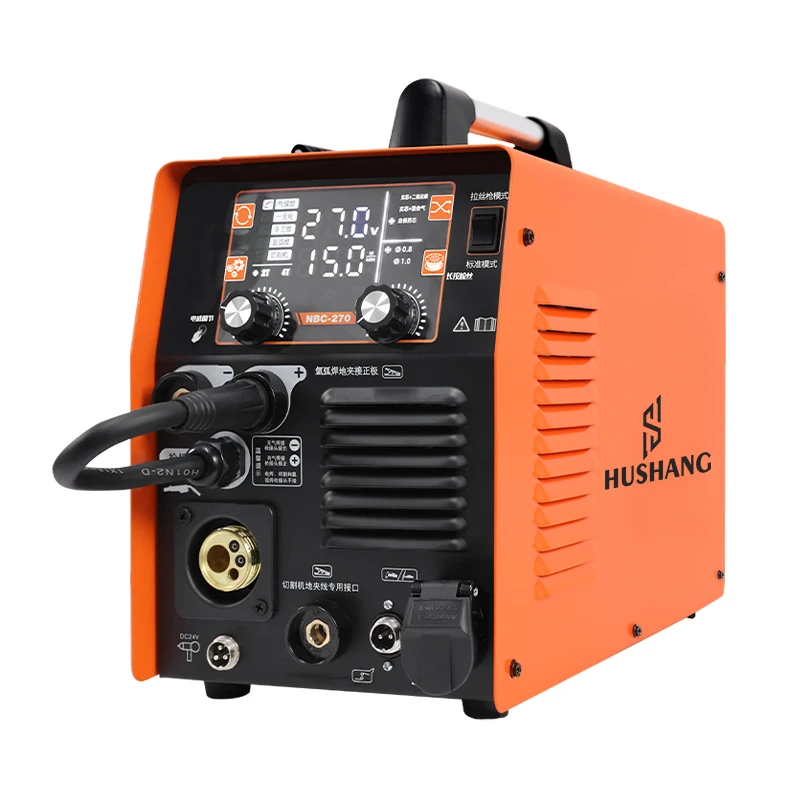

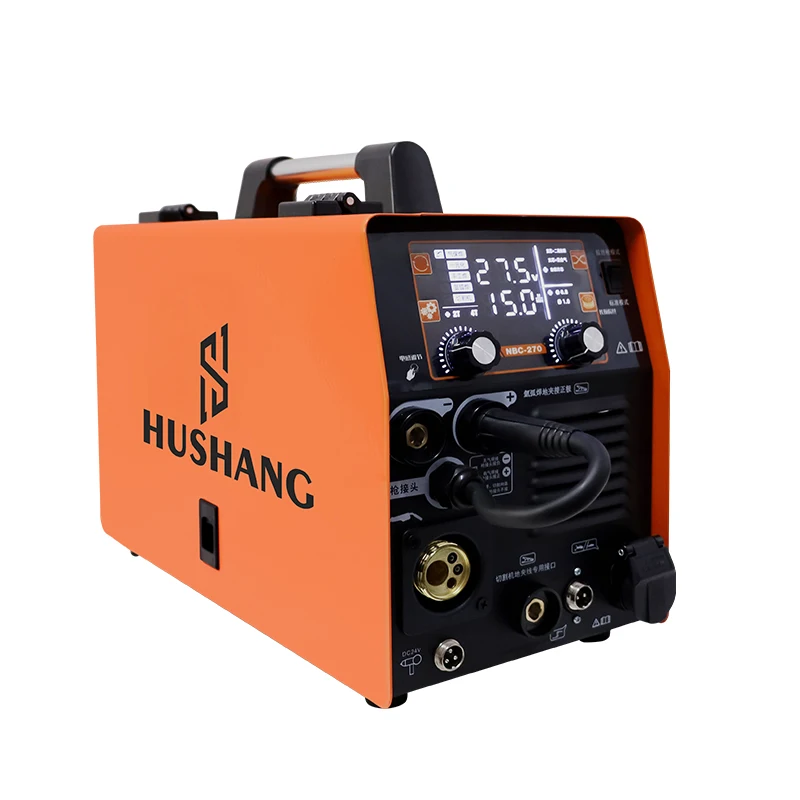

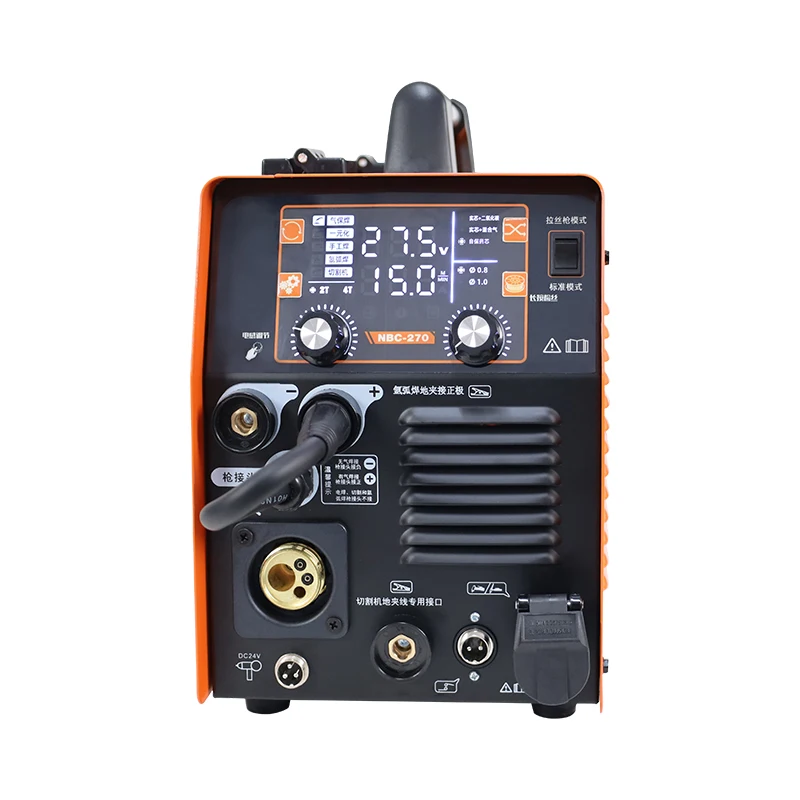

160Amp 220/380V dual voltage portable CO2 no gas MIG/MMA/TIG/CUT aluminium welding machine 5 in 1 multifunctional mig welders
160Amp 220/380V dual voltage portable CO2 no gas MIG/MMA/TIG/CUT aluminium welding machine 5 in 1 multifunctional mig welders
160Amp 220/380V dual voltage portable CO2 no gas MIG/MMA/TIG/CUT aluminium welding machine 5 in 1 multifunctional mig welders
160Amp 220/380V dual voltage portable CO2 no gas MIG/MMA/TIG/CUT aluminium welding machine 5 in 1 multifunctional mig welders
160Amp 220/380V dual voltage portable CO2 no gas MIG/MMA/TIG/CUT aluminium welding machine 5 in 1 multifunctional mig welders
160Amp 220/380V dual voltage portable CO2 no gas MIG/MMA/TIG/CUT aluminium welding machine 5 in 1 multifunctional mig welders
160Amp 220/380V dual voltage portable CO2 no gas MIG/MMA/TIG/CUT aluminium welding machine 5 in 1 multifunctional mig welders

160Amp 220/380V dual voltage portable CO2 no gas MIG/MMA/TIG/CUT aluminium welding machine 5 in 1 multifunctional mig welders

Share on (1601168173722):


Price:$300.77 - $382.80

Quantity:


Product Overview

Description







*Model
NBC-270
*Input Voltage
1ph 220/380V ±10%
*Input Capacity
MIG:3.9KVA MMA:4.8KVA CUT:6.2KVA TIG:4.2KVA
*Frequency
50/60HZ(machine) 50HZ(air pump)
*Input Current
220V:MMA:16.9A MIG:12.9A TIG:10.5A CUT:20.9A380V:MMA:9.8A MIG:7.5A TIG:6.1A CUT:12.1A
*Output Current
MMA:30-160A MIG:40-160A TIG:20-160A CUT:20-40A
*Output voltage
MMA:21.2-26.4v MIG:16-22V TIG:10.8-16.4V CUT:88-96V
*Duty Cycle@40℃
MMA:30% MIG:25% TIG:30% CUT:55%
*No-load Voltage
220V:MMA:66V MIG:66V TIG:66V CUT:339V380V:MMA:58V MIG:58V TIG:58V CUT:296V
*Power Factor
0.73
*Efficient
85%
*Weight
11KG
*Product dimensions
470*205*330mm
